ScottPatron eRIDE
- Price
- £5,699 – £8,199
- Motor
- Bosch Performance Line CXUp to 120 Nm
- Battery
- 800 WhPowerTube
- Travel F / R
- 150 / 150 mm
- Wheels
- 29"
- Weight
- 24 kg – 24.4 kg
Overview
The 2027 Patron eRIDE is Scott's full-power trail and all-mountain e-MTB: a carbon main frame with an alloy rear end, 150 mm of travel front and rear on 29-inch wheels, and a Bosch Performance Line CX motor with an 800 Wh PowerTube.
The shock sits inside the frame behind a cover, the head angle is adjustable via the headset, and the top build adds Bosch ABS Pro brakes.
- 150 mm travel front and rear
- Bosch CX, 800 Wh
- Integrated shock, adjustable head angle
- ABS Pro on the Patron 10
Scott Patron eRIDE builds
Patron eRIDE builds compared

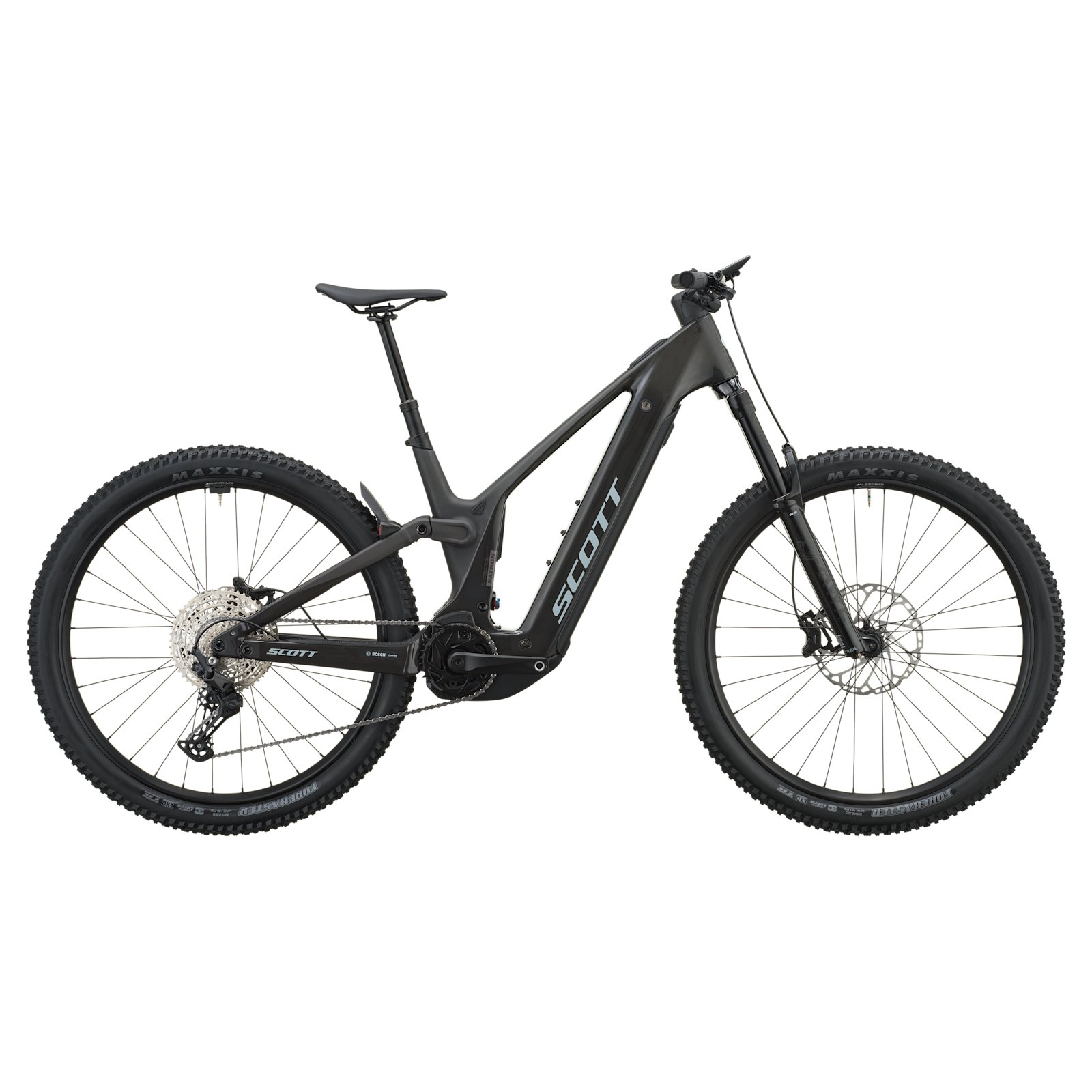

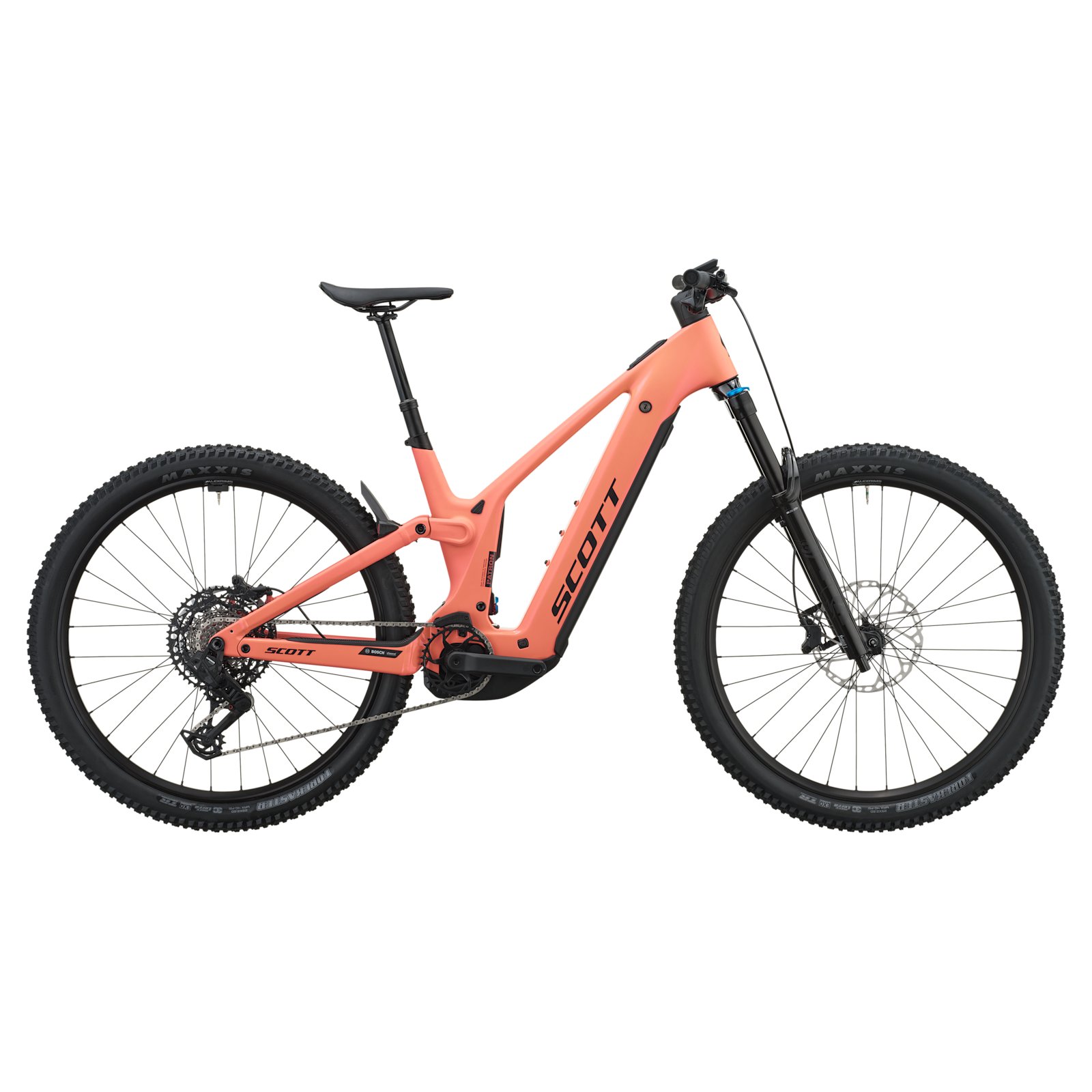

| Patron eRIDE 30 | Patron eRIDE 20 | Patron eRIDE 10 | |
|---|---|---|---|
| Price | £5,699 | £6,999 | £8,199 |
| Frame | Carbon main frame, alloy rear | Carbon main frame, alloy rear | Carbon main frame, alloy rear |
| Fork | Fox AWL HD Sport, Rail 2.0 | Fox 36 Rhythm, eOptimized | Fox 36 Perf, Air |
| Shock | Fox Float Rhythm LV EVOL | Fox Float Performance EVOL | Fox Float Performance EVOL |
| Derailleur | Shimano Deore RD-M6200 12-speed | SRAM S1000 Eagle AXS Transmission 12 Speed | SRAM GX Eagle AXS Transmission 12 Speed |
| Brakes | Shimano BR-MT620 4-Piston | Shimano Deore BR-M6220 4-Piston | Shimano XT BR-M8220 ABS Pro 4-Piston |
| Wheels | Alex Rims MD30 Disc 29" 32H, Black | Alex Rims MD30 Disc 29" 32H, Black | Alex Rims MD30 Disc 29" 32H, Black |
| Display | Bosch Intuvia 200 | Bosch Kiox 300 | Bosch Kiox 300 |
| Weight | 24 kg | 24.3 kg | 24.4 kg |
Patron eRIDE geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| AHead tube angle | 65.8° | 65.8° | 65.8° | 65.8° |
| BHead tube length | 120 mm | 125 mm | 135 mm | 145 mm |
| CTop tube horizontal | 579.3 mm | 605.5 mm | 626.6 mm | 657 mm |
| DStandover height | 719 mm | 719 mm | 729 mm | 732 mm |
| EBB offset | -36.2 mm | -36.1 mm | -35.9 mm | -35.8 mm |
| FBB height | 340.8 mm | 340.9 mm | 341.1 mm | 341.2 mm |
| GWheel base | 1212.8 mm | 1234.9 mm | 1264.7 mm | 1298.4 mm |
| IBB center to top of seattube | 405 mm | 435 mm | 470 mm | 500 mm |
| JSeat angle | 77.4° | 77.2° | 77.2° | 77.2° |
| KChainstay | 453.5 mm | 453.5 mm | 453.5 mm | 453.5 mm |
| LReach | 439.4 mm | 459.3 mm | 484.7 mm | 514.2 mm |
| MStack | 643 mm | 647.4 mm | 656.3 mm | 665.1 mm |
| NStem Length | 50 mm | 50 mm | 50 mm | 50 mm |
| PFork length | 561 mm | 561 mm | 561 mm | 561 mm |
| QMaximum Seatpost Insertion | 200 mm | 230 mm | 265 mm | 295 mm |
| RHandlebar Width | 780 mm | 780 mm | 780 mm | 780 mm |
Source: Scott.
Scott Patron eRIDE: FAQ
How much does the Scott Patron eRIDE cost?
£5,699 – £8,199 depending on the build (Patron eRIDE 30 £5,699, Patron eRIDE 20 £6,999, Patron eRIDE 10 £8,199); UK RRP, VAT incl..
How many Scott Patron eRIDE builds are there?
3: Patron eRIDE 30, Patron eRIDE 20, Patron eRIDE 10. They share the frame platform and differ mainly in suspension, drivetrain, wheels and weight.
How much does the Scott Patron eRIDE weigh?
Claimed weights range from 24 kg (Patron eRIDE 30) to 24.4 kg (Patron eRIDE 10).
What motor and battery does the Scott Patron eRIDE use?
Bosch Performance Line CX (Up to 120 Nm) with a 800 Wh battery (powertube).
How much travel does the Scott Patron eRIDE have?
150 mm fork and 150 mm rear travel on 29" wheels.
