NorcoSight VLT TQ C2
- Motor
- TQ HPR6060 Nm
- Battery
- 580 WhTQ 580 Wh
- Travel F / R
- 160 / 150 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
- Weight
- 20.6 kgManufacturer figure (size 3)
Overview
The Norco Sight VLT TQ C2 ($8,999) is a mid-range build of the Sight VLT TQ: TQ HPR60 with 580 Wh, Fox 36 Performance Elite GripX2 fork, Fox Float X Performance shock, Shimano Deore Di2 RD-M6250 and Shimano Deore M6120 4-P brakes. Claimed weight is 20.6 kg.
The Sight VLT TQ is Norco's light (mid-power) carbon all-mountain e-MTB, using the same VPS-HP high-pivot suspension as the rest of the Sight family with 150 mm rear and 160 mm front travel on mixed wheels.
It is powered by the 1.92 kg TQ HPR60 drive (60 Nm, 350 W max power, 200% support) and a 580 Wh integrated battery. Claimed weights are 20.2-20.9 kg in size 3.
- TQ HPR60 light motor, 60 Nm
- 580 Wh battery
- 150 mm rear / 160 mm fork
- Carbon frame, ~20-21 kg claimed

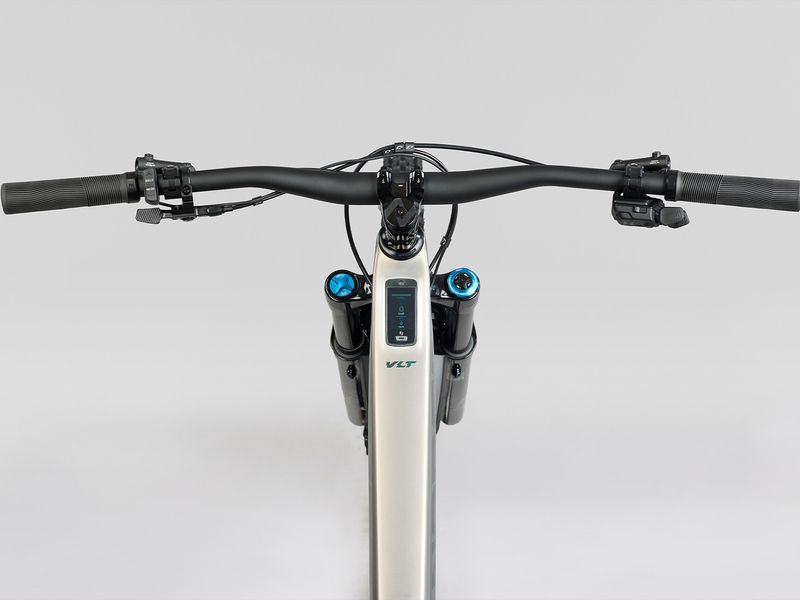

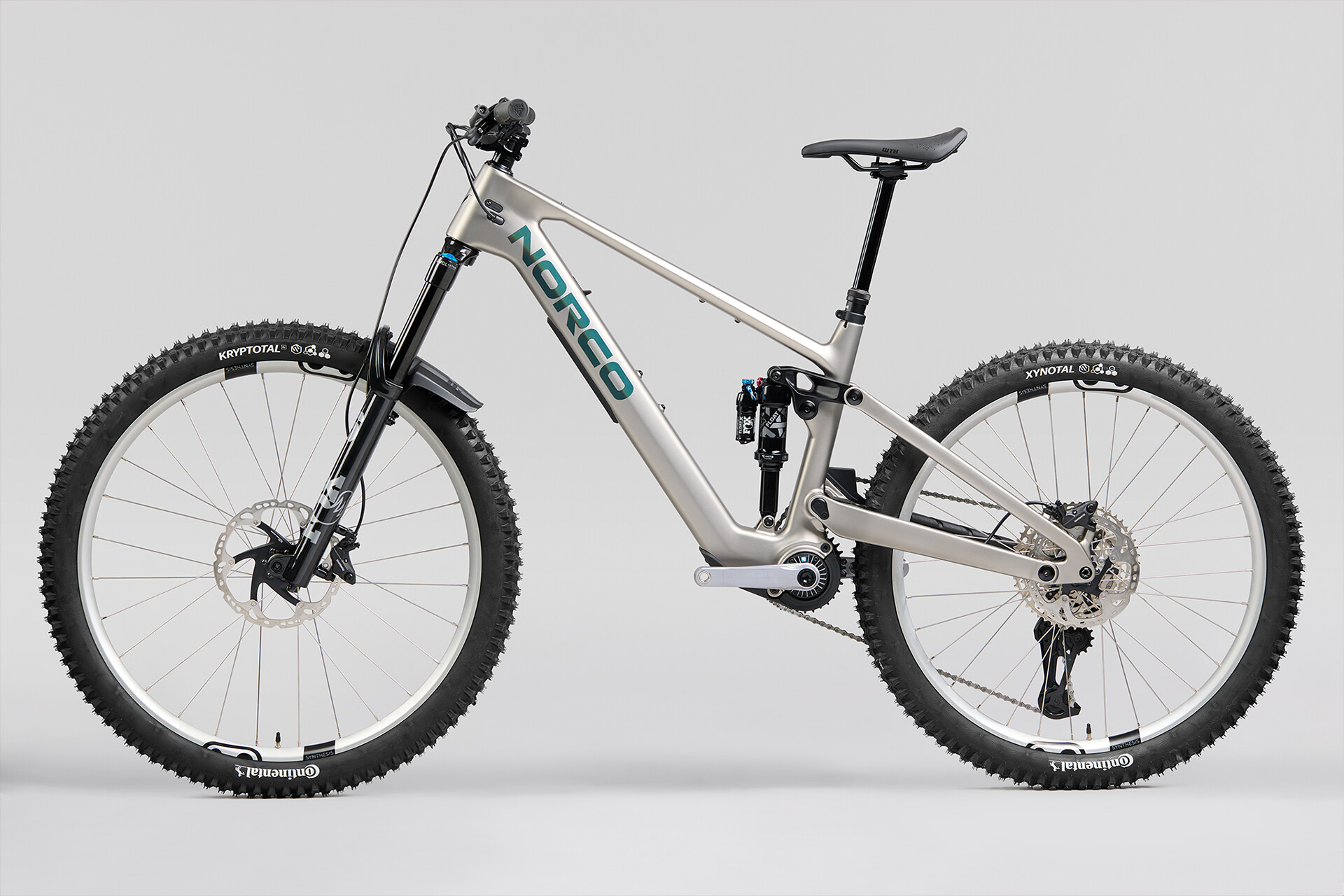

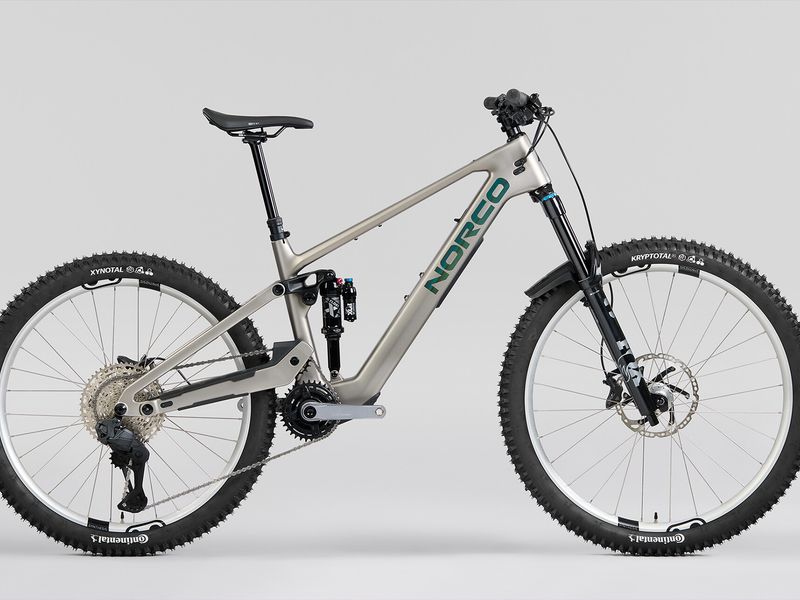

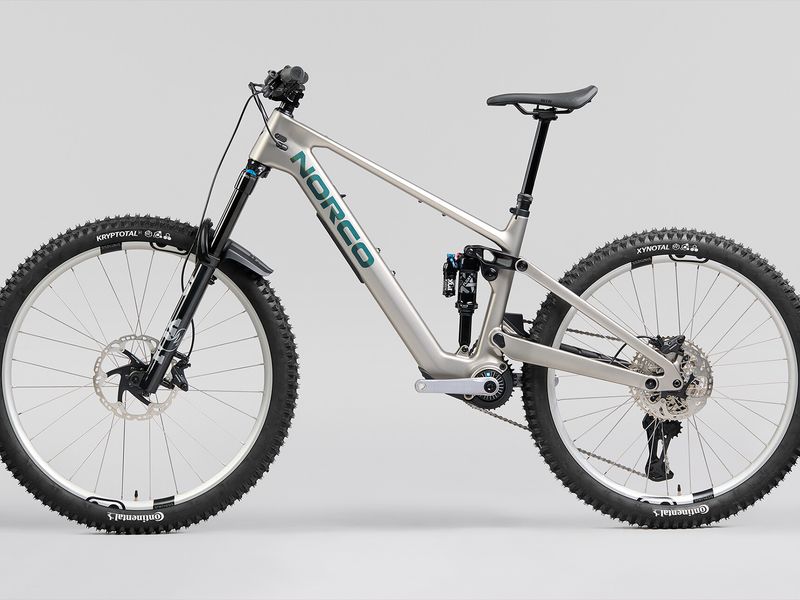

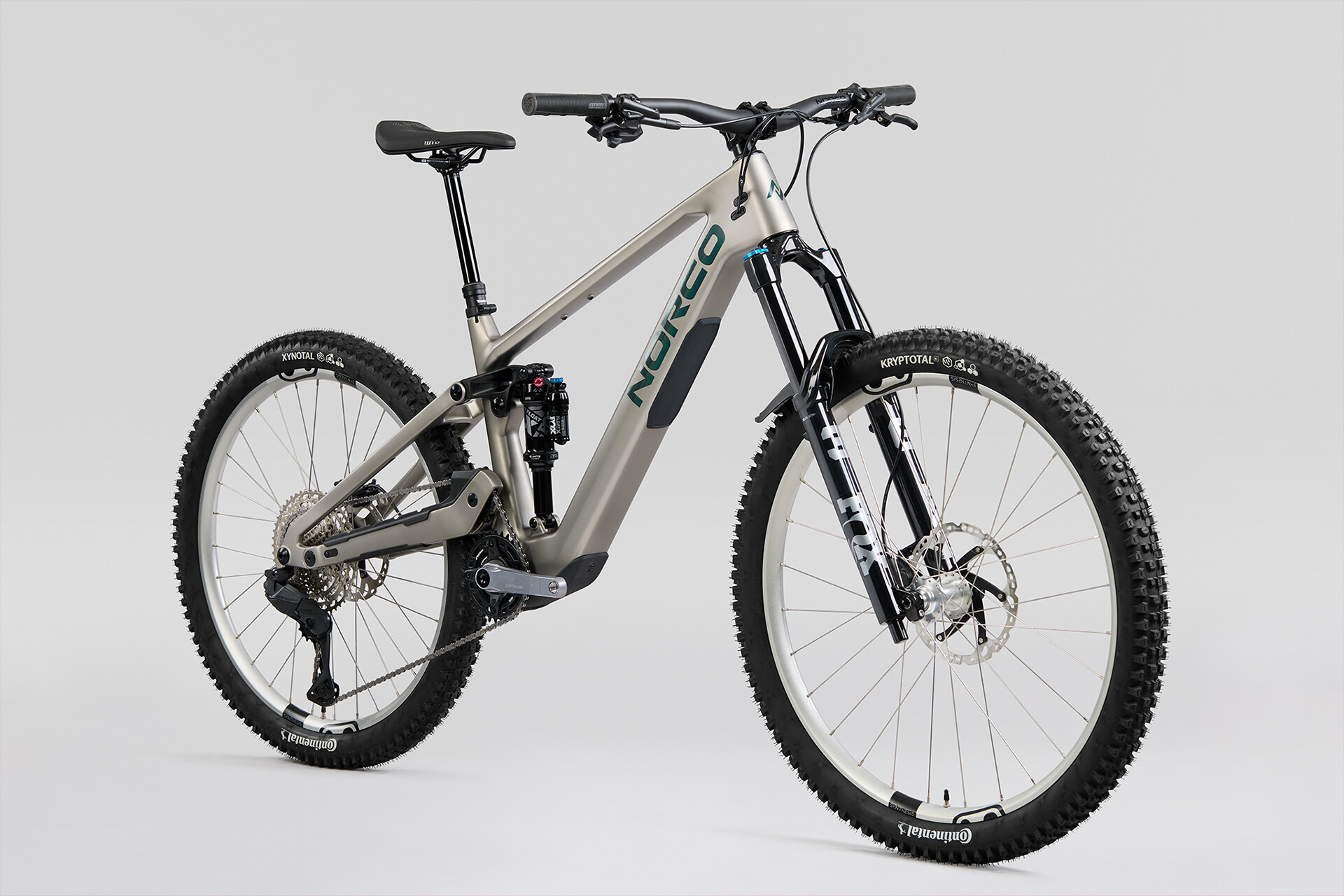

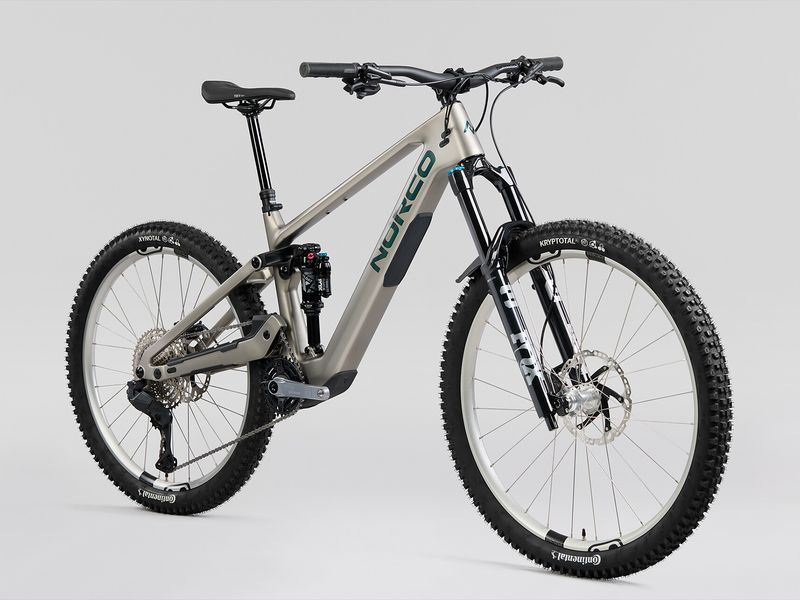

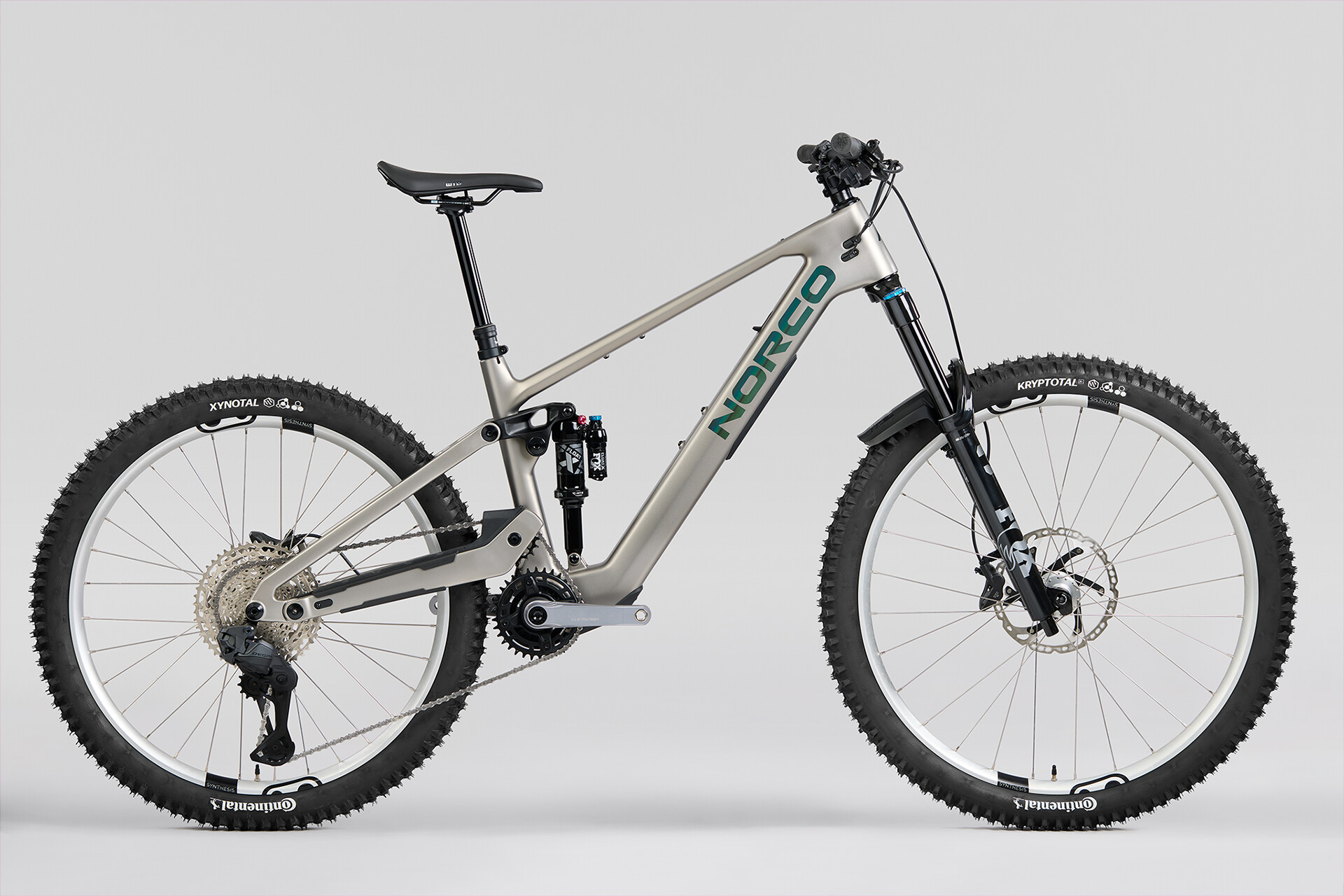

Gallery
Photos: Norco
Full specifications
Frame & suspension
- Frame
- Carbon Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™

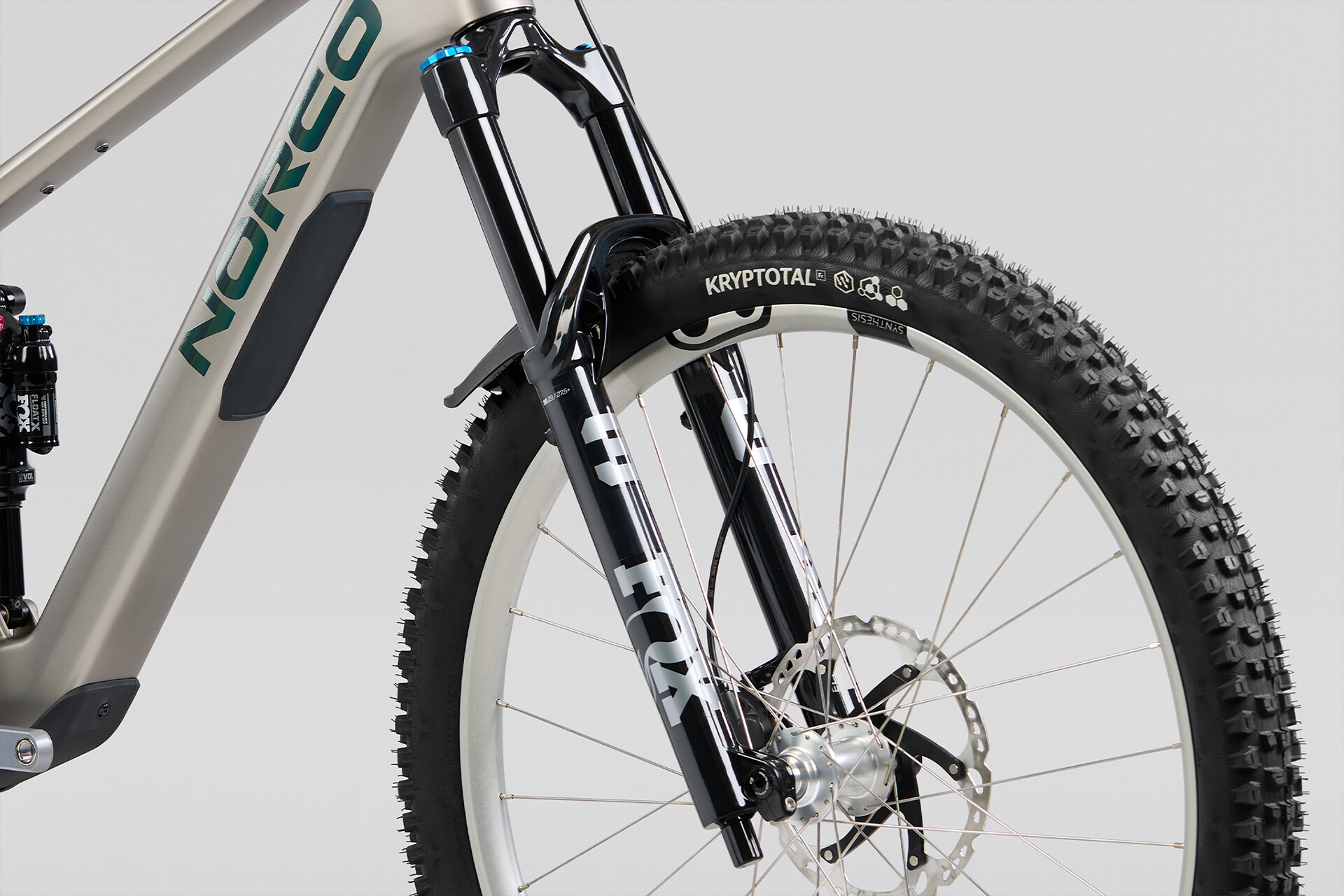

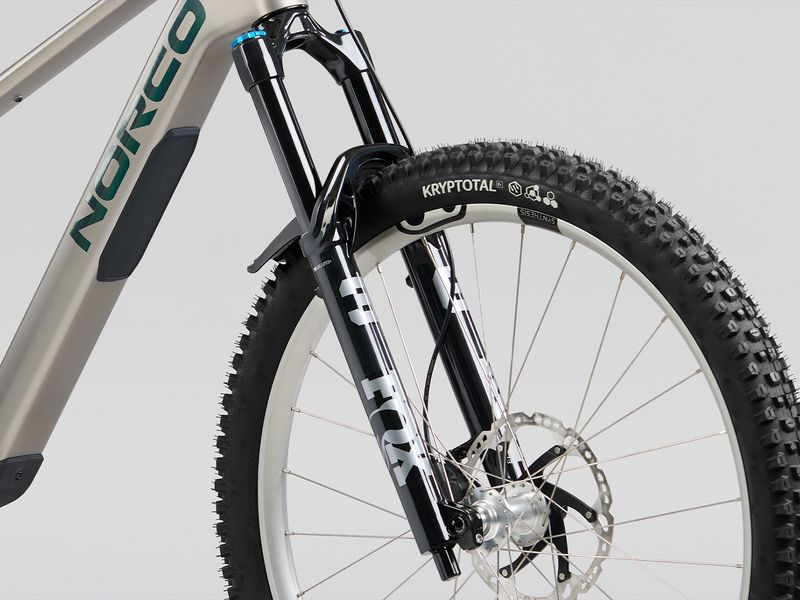

- Fork
- Fox 36 Performance Elite GripX2, HSC/LSC/HSR/LSR, 160mm, 44mm Offset, Fender Included
- Rear shock
- Fox Float X Performance, 230x60mm Std, 2 position
E-system

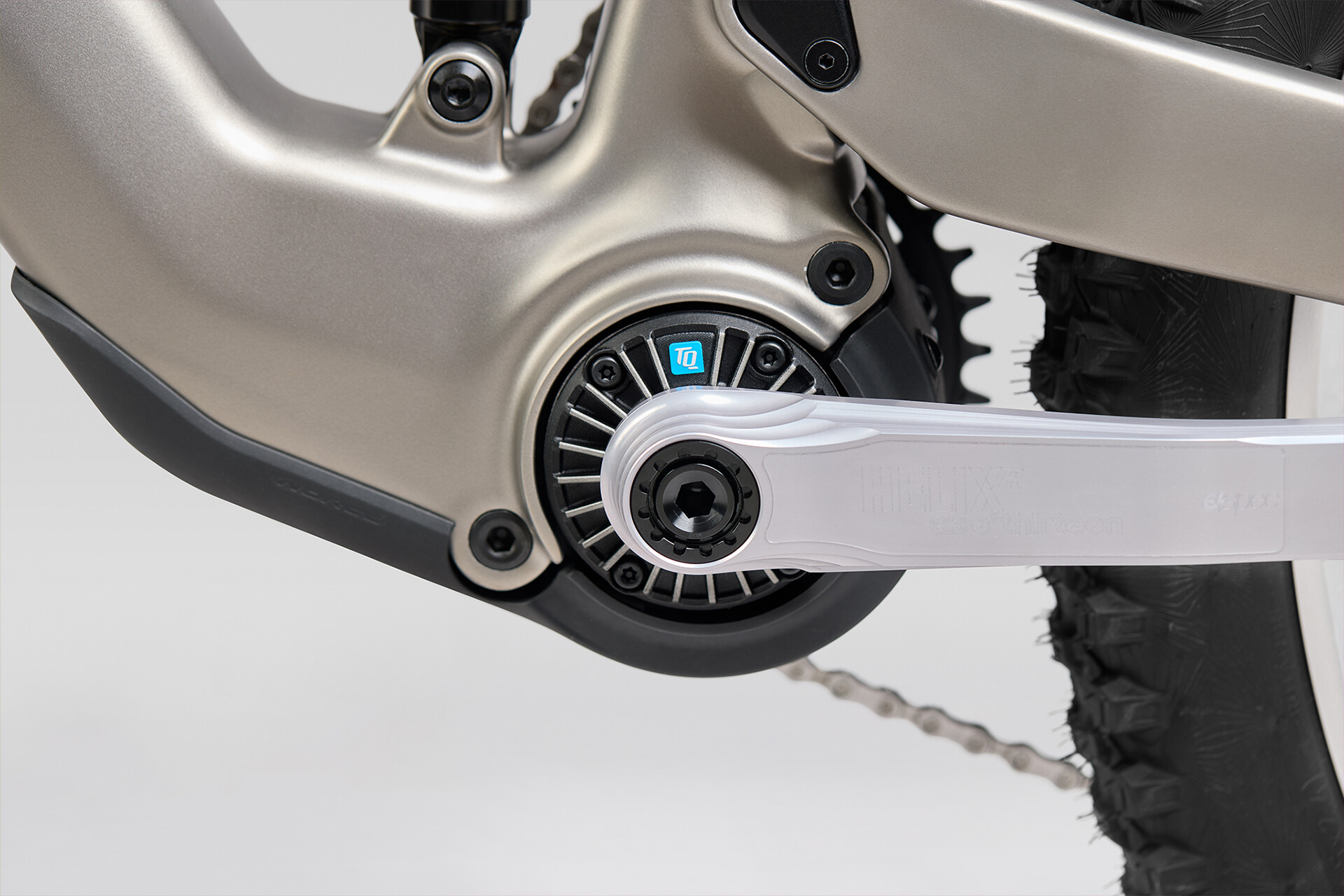

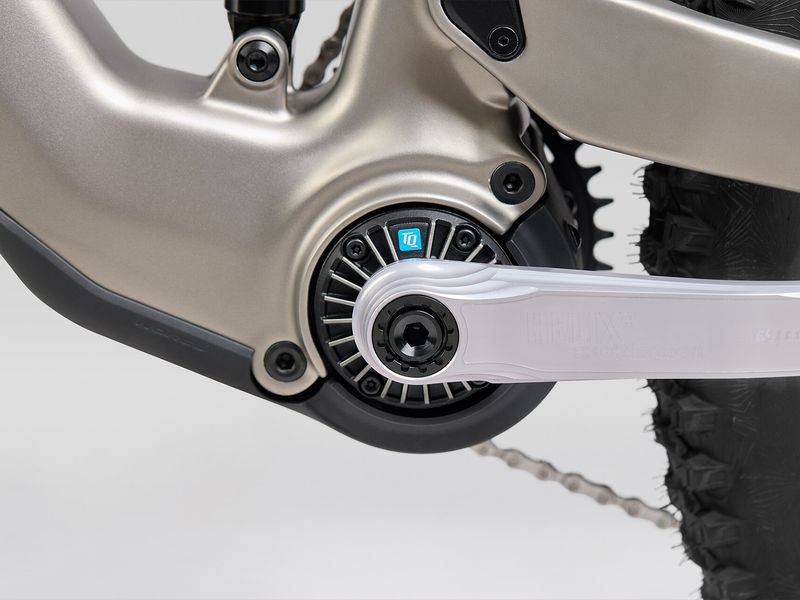

- Motor
- TQ HPR60, 60 Nm
- Battery
- TQ 580Wh
- Switch
- TQ Remote, V02, 22.2mm

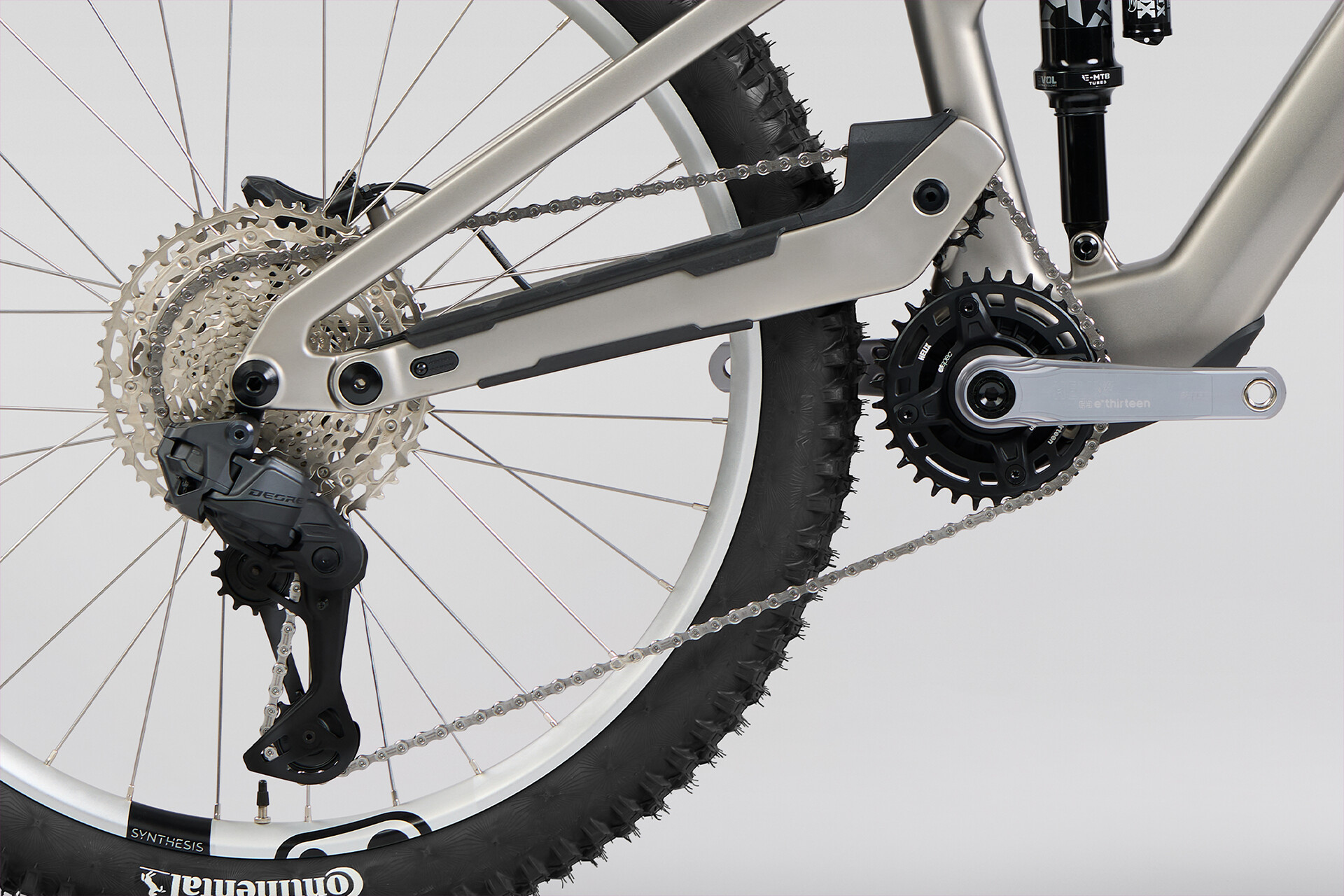

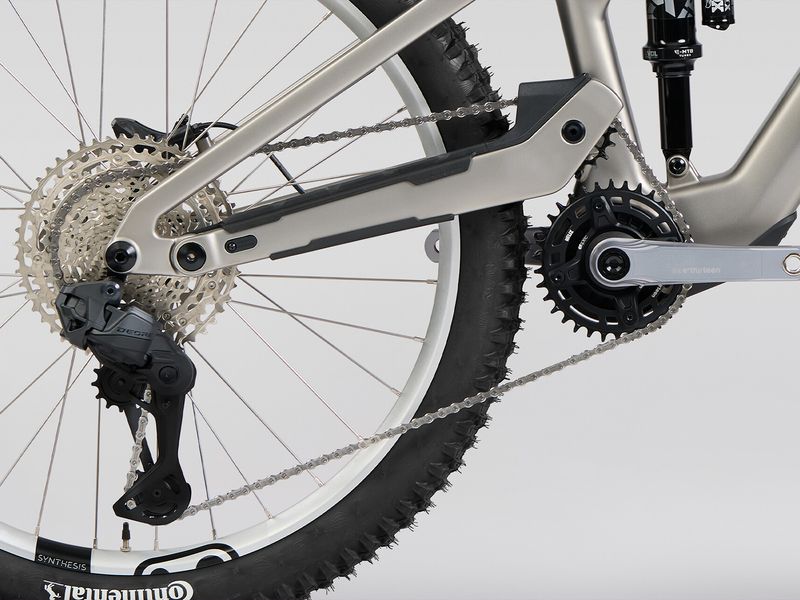

Drivetrain
- Rear Shifter
- Shimano Deore Di2 SW-M6250-IR, 12sp
- Rear derailleur
- Shimano Deore Di2 RD-M6250, SGS, 12sp
- Crankset
- e*thirteen Helix Race Alloy TQ, 34T, 155mm (S1,S2) - 160mm (S3,S4,S5)
- Cassette
- Shimano Deore CS-M6100-12, 10-51T, 12sp
- Chain
- Shimano Deore CN-M6100, 12sp
Brakes

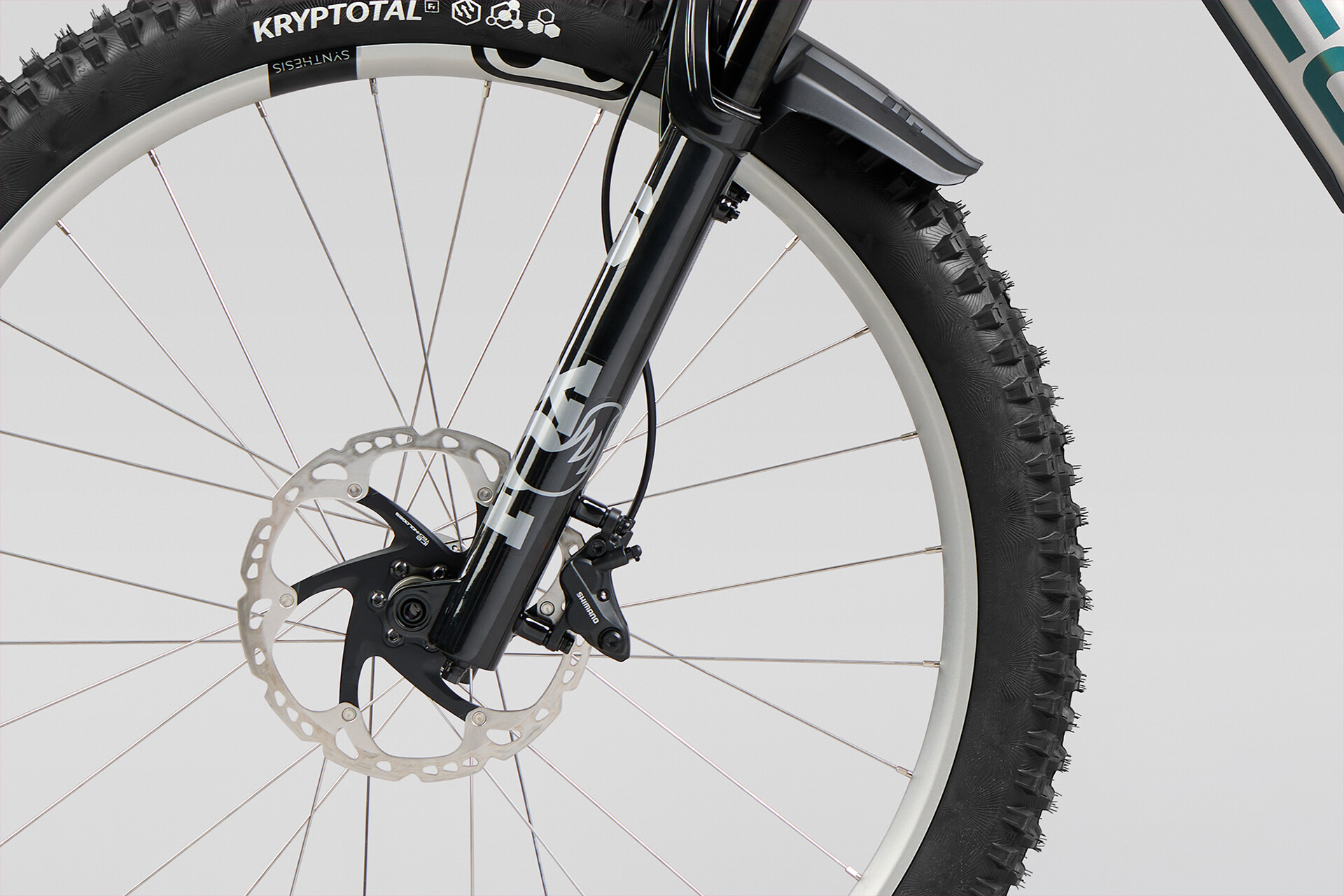

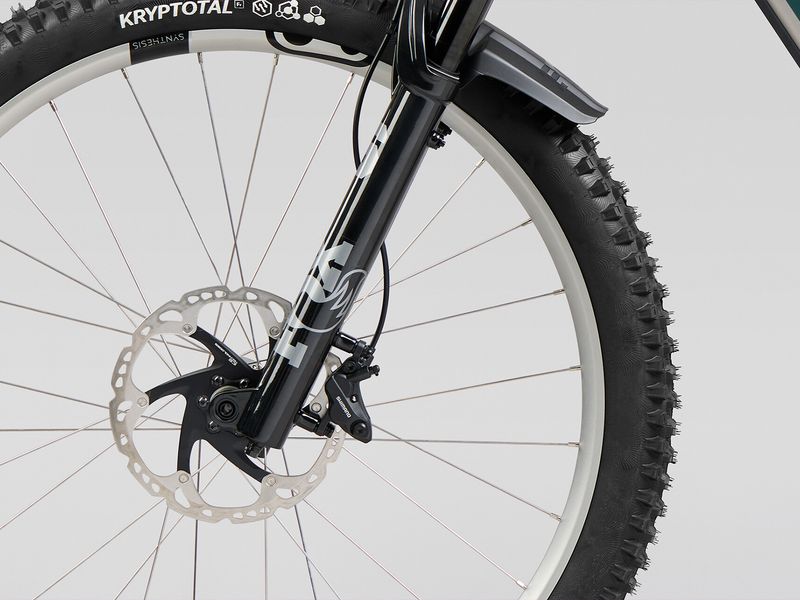

- Front Brake
- Shimano Deore M6120 4-P, Metallic pads
- Front Brake Rotor
- Shimano SM-RT86, 203mm, 6-Bolt
- Rear Brake
- Shimano Deore M6120 4-P, Metallic pads
- Rear Brake Rotor
- Shimano SM-RT86, 180mm, 6-Bolt
- Brake Levers
- Shimano Deore M6100
Wheels & tyres
- Front Hub
- Crank Bros. Synthesis, 15x110mm Boost, 32h, 6-Bolt
- Rear Hub
- Crank Bros. Synthesis, 12x148mm Boost, Micro Spline, 32h, 6-Bolt
- Rims
- Crank Bros. Synthesis Alloy Enduro, F- 31.5mm 28h, R- 29.5mm 32h, 29"-27.5" F/R
- Front Tire
- Continental Kryptotal-F, Enduro, Soft, 29" x 2.4", Foldable
- Rear Tire
- Continental Xynotal, Enduro, Soft, 27.5" x 2.4", Foldable
- Spokes/Nipples
- Sapim D-Light (front), Sapim Race (rear)

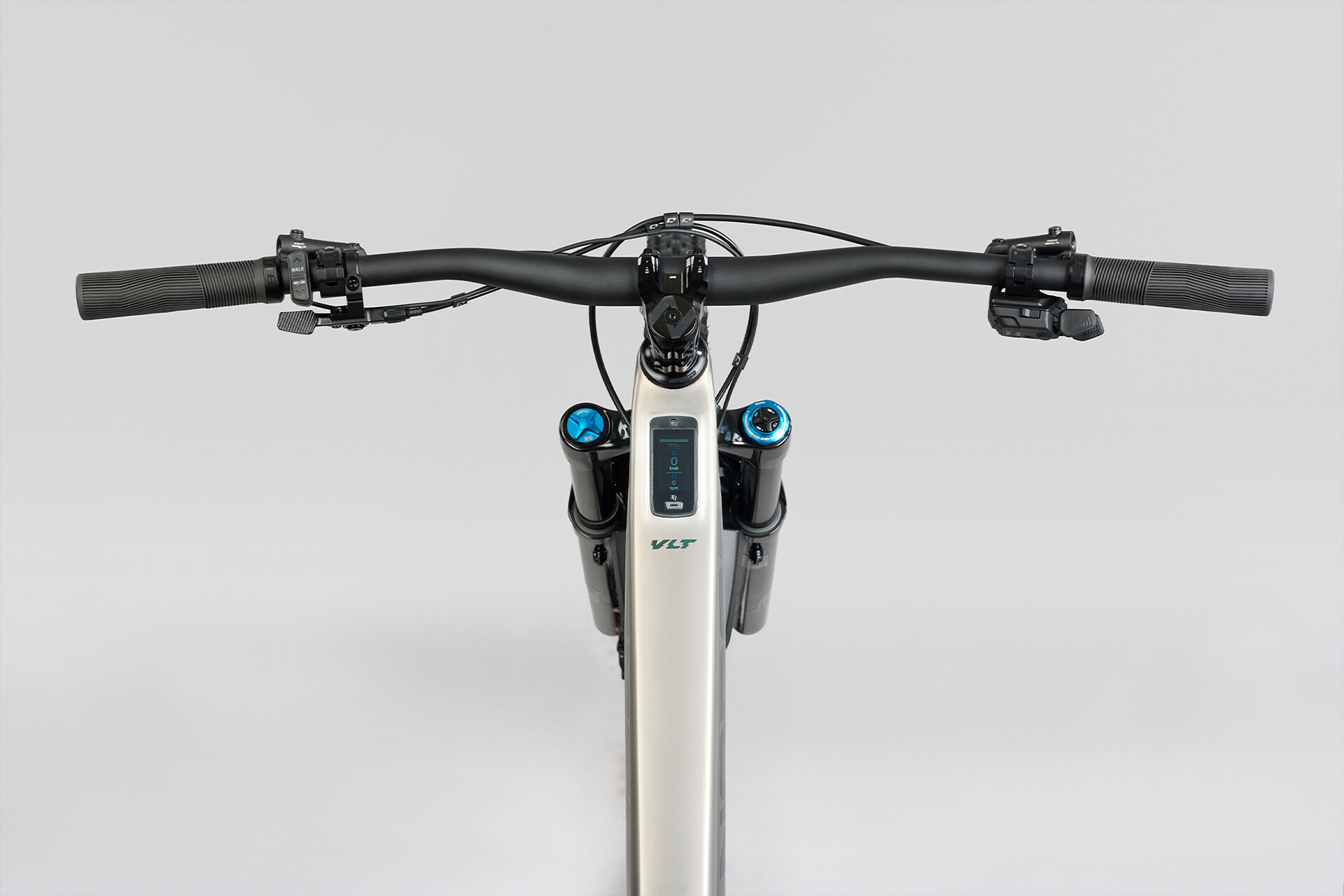

Cockpit
- Handlebar
- Norco 6061 DB Alloy, 800mm, 25mm Rise
- Stem
- Norco Alloy, 40mm Length, 35mm Clamp
- Seatpost
- TranzX YSI08 RAD+ Travel Adjust Dropper, 31.6mm, 125mm (S1) -150mm (S2) -170mm (S3) -200mm (S4, S5)
- Headset
- FSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 )
- Saddle
- WTB Rocket Fusion Med, 142x250 mm
- Grips
- WTB Wavelength, 140mm Length
- Seatpost Clamp
- Norco Alloy Nutted Clamp, 34.9mm ID
Other
- Sensor
- TQ Speed Sensor Rotor Magnet
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Sight VLT TQ geometry
| Size | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Reach | 422.5 mm | 447.5 mm | 472.5 mm | 497.5 mm | 522.5 mm |
| Stack | 618 mm | 627 mm | 636 mm | 645 mm | 654 mm |
| HTAHead Tube Angle | 64° | 64° | 64° | 64° | 64° |
| OSFork Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| STSeat Tube Length | 385 mm | 395 mm | 415 mm | 445 mm | 475 mm |
| STAEffective Seat Tube Angle | 77° | 77.25° | 77.5° | 77.75° | 78° |
| RCRear Centre Length | 432 mm | 432 mm | 436 mm | 440 mm | 444 mm |
| RCRear Centre Length at Sag | 441 mm | 441 mm | 445 mm | 449 mm | 453 mm |
| BBDF/RBottom Bracket Drop (Front/Rear) | 25/5 mm | 25/5 mm | 25/5 mm | 25/5 mm | 25/5 mm |
| BBHBottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm | 349 mm |
| HTTHorizontal Top Tube | 565 mm | 589 mm | 613 mm | 637 mm | 661 mm |
| WBWheelbase | 1193 mm | 1222 mm | 1255 mm | 1289 mm | 1322 mm |
| SOHStandover | 700 mm | 701 mm | 711 mm | 714 mm | 729 mm |
| HTHead Tube Length | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Trail | 133 mm | 133 mm | 133 mm | 133 mm | 133 mm |
| Recommended Seatpost Drop | 125 mm | 150 mm | 170 mm | 200 mm | 200 mm |
| Maximum Post Insertion | 220 mm | 250 mm | 270 mm | 300 mm | 330 mm |
| Stem Length | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Crank Length | 165 mm | 165 mm | 165 mm | 165 mm | 165 mm |
| Tire Size | 2.35" – 2.6" | 2.35" – 2.6" | 2.35" – 2.6" | 2.35" – 2.6" | 2.35" – 2.6" |
| Water Bottle Compatible | 1 x 620 mL | 1 x 620 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL |
Source: Norco. Sizes are Norco Ride Aligned sizes 1-5.
Sight VLT TQ: builds compared
Sight VLT TQ range →| Sight VLT TQ C3 | Sight VLT TQ C2 | Sight VLT TQ C1 | |
|---|---|---|---|
| Price | $6,999 | $8,999 | $10,599 |
| Frame | Carbon | Carbon | Carbon |
| Fork | DVO Diamond 36 D1, High/Low Speed Compression | Rebound | Fox 36 Performance Elite GripX2, HSC/LSC/HSR/LSR | Fox 36 Factory Grip X2 HSC/LSC/HSR/LSR 160mm, 44mm Offset |
| Shock | DVO Topaz Pro Gen 3 | Fox Float X Performance | Fox Factory Float X |
| Derailleur | Shimano Deore RD-M6100 | Shimano Deore Di2 RD-M6250 | Shimano Deore XT Di2 RD-M8250 |
| Brakes | TRP Slate EVO | Shimano Deore M6120 4-P | Shimano XT M8220 4-P |
| Wheels | WTB ST i30 TCS 2.0 ,30 mm, 32H | Crank Bros, Synthesis Alloy Enduro | Crank Bros, Synthesis Carbon Enduro |
| Weight | 20.9 kg | 20.6 kg | 20.2 kg |
Sight VLT TQ C2: FAQ
How much does the Norco Sight VLT TQ C2 cost?
$8,999 (US MSRP (Norco US site, excl. tax)). The Sight VLT TQ range runs from $6,999 (Sight VLT TQ C3) to $10,599 (Sight VLT TQ C1). Prices vary by country and dealer.
How much does the Norco Sight VLT TQ C2 weigh?
Norco quotes 20.6 kg. The lightest Sight VLT TQ build is the Sight VLT TQ C1 at 20.2 kg.
What motor and battery does the Norco Sight VLT TQ C2 have?
TQ HPR60 (60 Nm). 580 Wh battery — tQ 580 Wh.
How much suspension travel does the Norco Sight VLT TQ C2 have?
160 mm at the fork and 150 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Norco Sight VLT TQ C2 come in?
1, 2, 3, 4, 5. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Sight VLT TQ C2 and the Sight VLT TQ C1?
They share the Sight VLT TQ frame platform and motor; the differences are in the parts — fork: Fox 36 Performance Elite GripX2 vs Fox 36 Factory Grip X2 HSC/LSC/HSR/LSR 160mm; shock: Fox Float X Performance vs Fox Factory Float X; derailleur: Shimano Deore Di2 RD-M6250 vs Shimano Deore XT Di2 RD-M8250; brakes: Shimano Deore M6120 4-P vs Shimano XT M8220 4-P; claimed weight: 20.6 kg vs 20.2 kg; price: $8,999 vs $10,599.
