RoseFile Plus 70
- Motor
- TQ HPR6060 Nm; 350 W peak
- Battery
- 580 WhIntegrated TQ battery
- Travel F / R
- 150 / 140 mm
- Wheels
- 29"
- Frame
- Carbon
- Weight
- 20.3 kgManufacturer figure (approx., size L, without pedals)
Overview
The Rose File Plus 70 (€4,900) is the entry build of the File Plus: TQ HPR60 (60 Nm) with 580 Wh, Rock Shox Lyrik Select fork, Rock Shox Super Deluxe Select shock, SRAM Eagle 70 Transmission and SRAM DB8 Stealth brakes. Claimed weight is 20.3 kg.
The File Plus is Rose's light carbon trail e-MTB, built around the TQ HPR60 motor (60 Nm, 350 W) and a 580 Wh battery that Rose says charges fully in about 3 hours. Motor, display and controls are integrated into the frame, and riding modes can be set in the TQ E-Bike app.
It runs 29-inch wheels with 140 mm of rear travel and a 150 mm fork, plus an angle-adjust headset for a 64° or 65° head angle. The XTR SL build uses a 140 mm fork and 130 mm shock. Rose quotes 18.6 to 20.3 kg depending on build.
- TQ HPR60: 60 Nm, 350 W
- 580 Wh battery
- 150/140 mm travel, 29-inch wheels
- Angle-adjust headset (64°/65°)

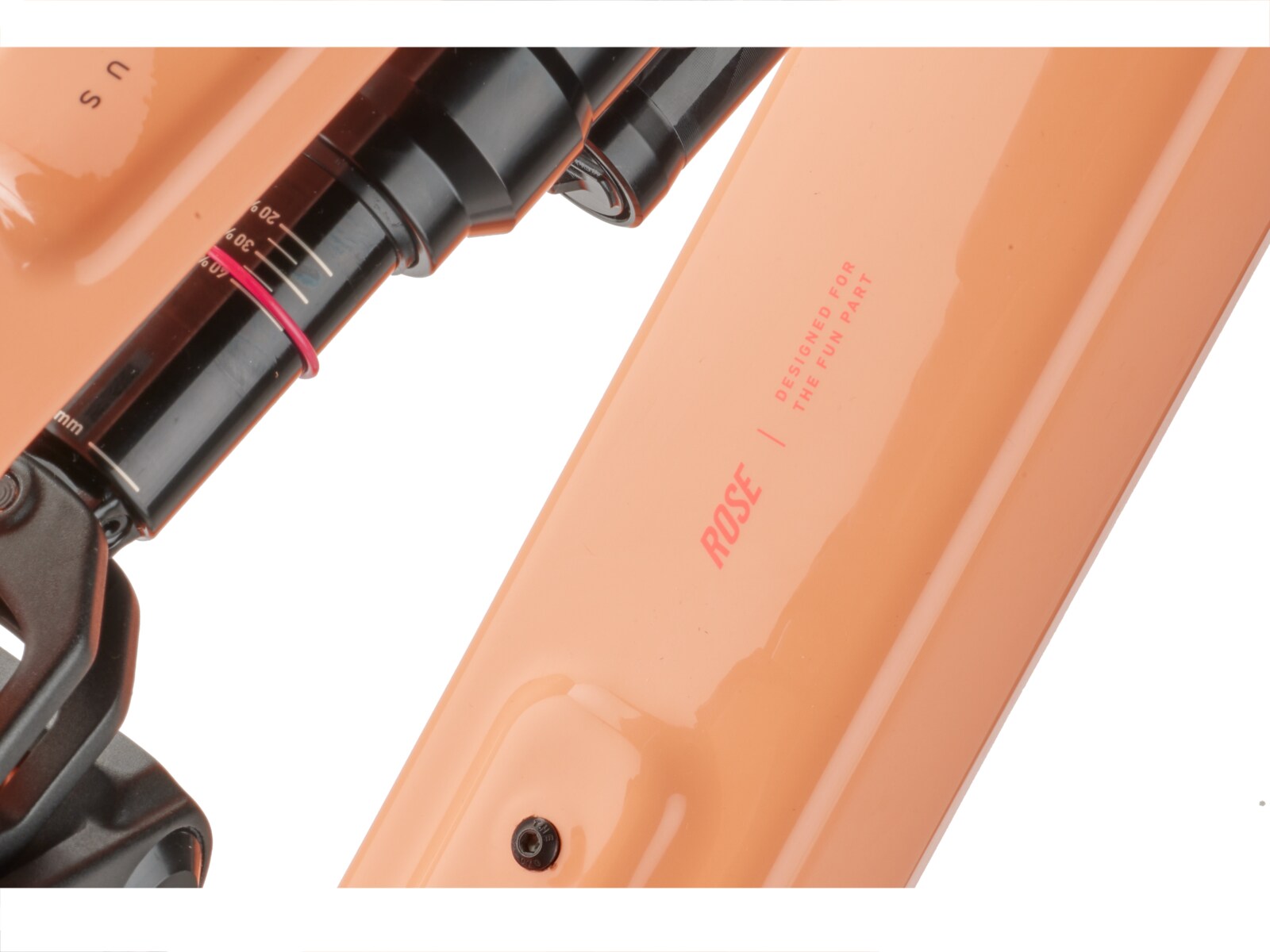

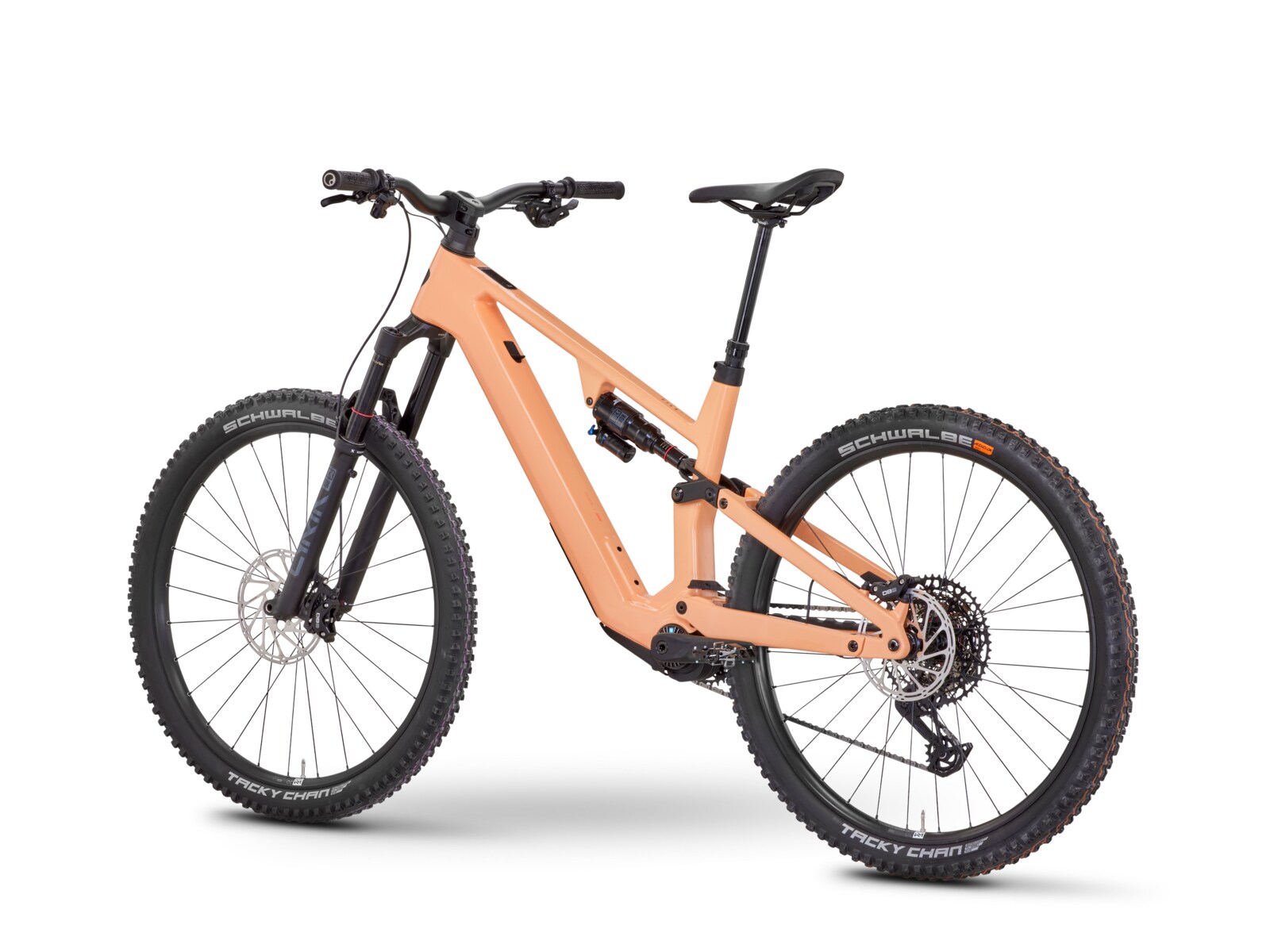

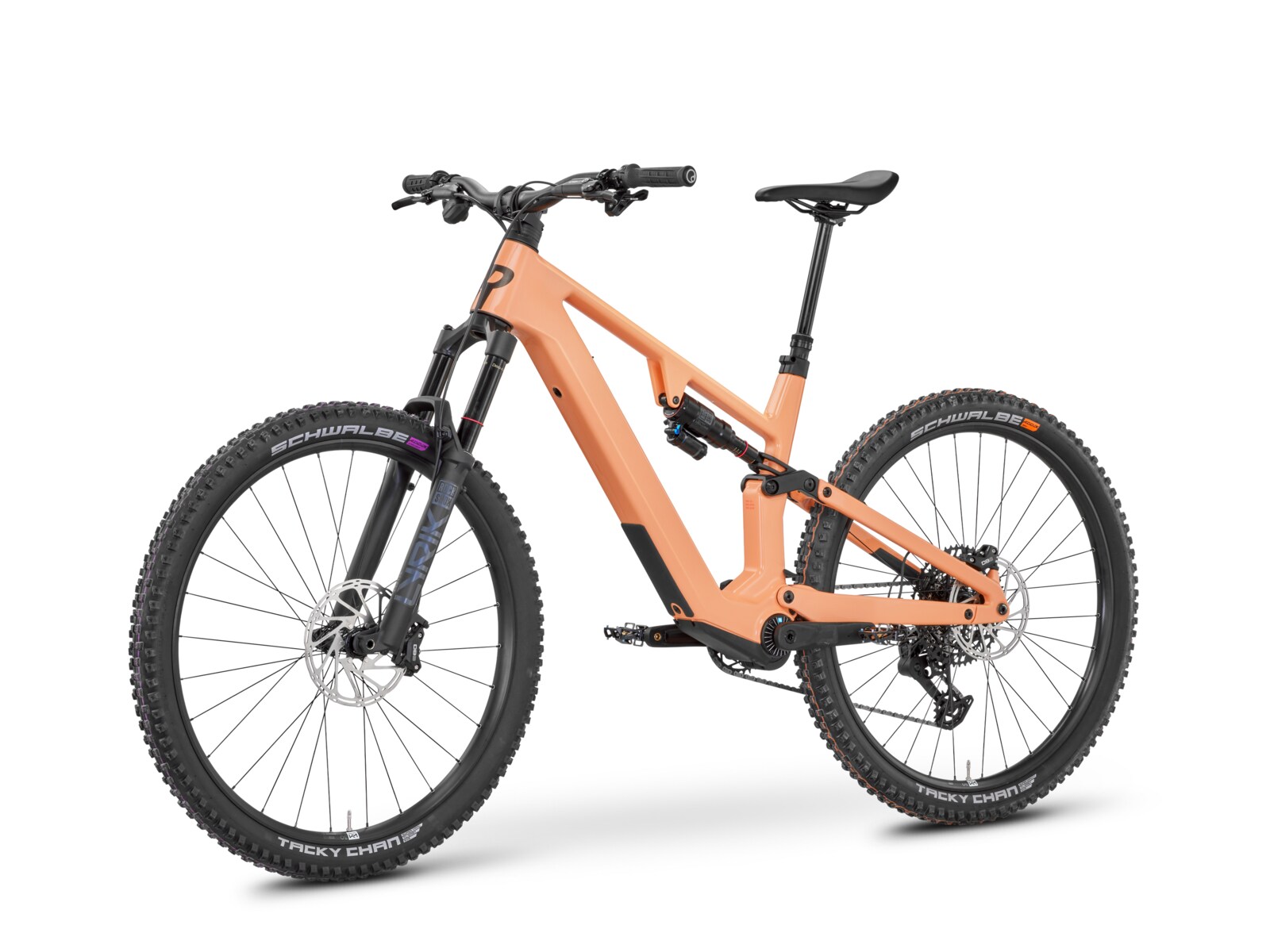

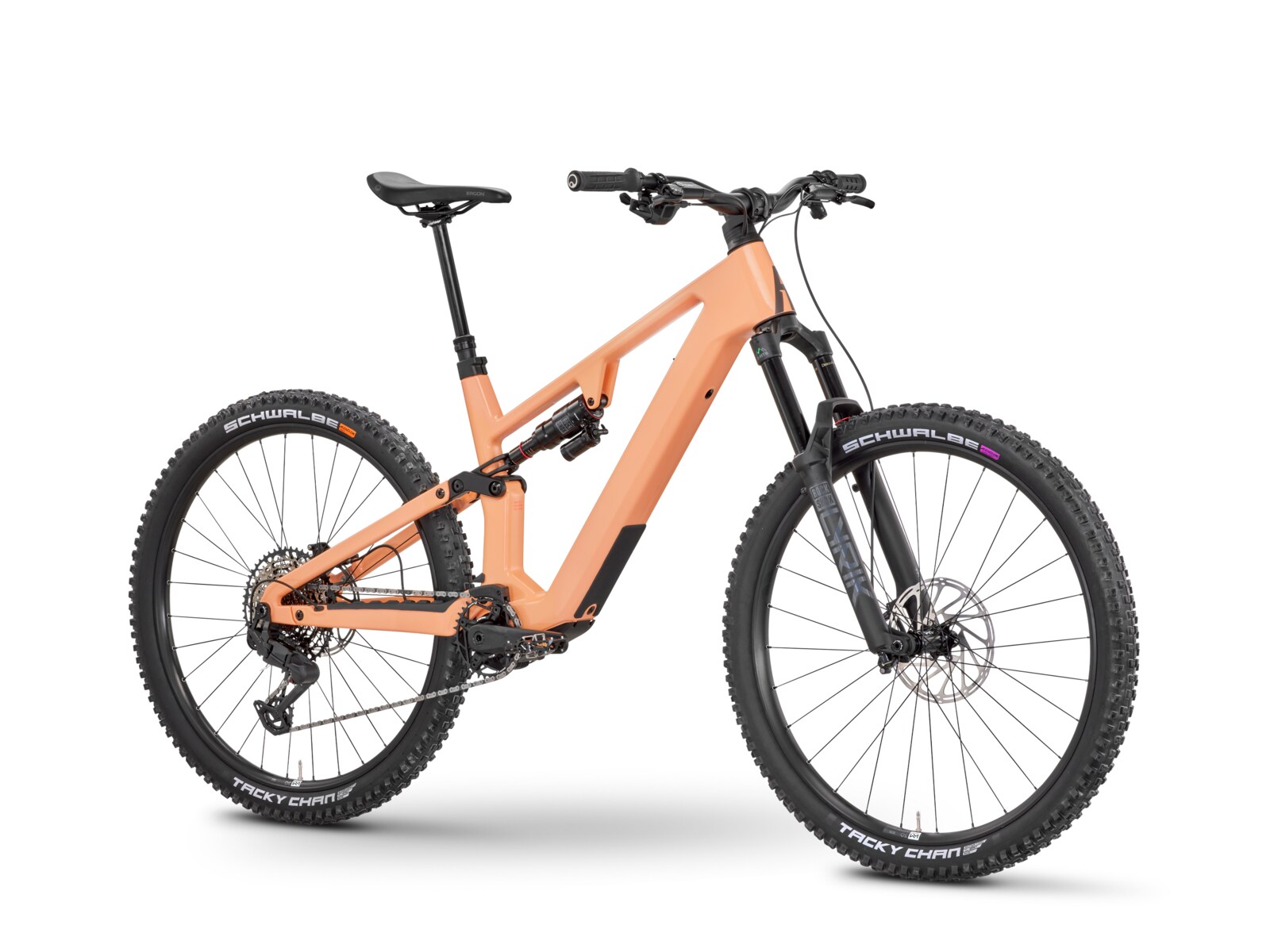

Gallery
Photos: Rose
Full specifications
Frame & suspension
- Frame
- Rose File Plus, Carbon
- Fork
- Rock Shox Lyrik Select Char RC 15x110 MxlSte DA+ 1.8Tap black matt 29" Boost, 150mm, 44mm Offset
- Rear shock
- Rock Shox Deluxe Select RC2T, 140mm, 210x55
E-system
- Motor
- TQ HPR60
- Battery
- 580 Wh
Drivetrain
- Crankset
- crank arm SRAM Eagle 70 TQ, black 160mm
- Chainring
- Chainring SRAM Eagle Transmission 104BCD 34T. black
- Chain guide
- e*thirteen top guide black
- Rear derailleur
- SRAM Eagle 70
- Chain
- Sram Eagle 70, 118 links
- Shifter
- SRAM Eagle 70, black
Brakes
- Front brake
- SRAM DB8 Stealth, black matt 800mm
- Rear brake
- SRAM DB8 Stealth DIR, black matt 1700mm
Wheels & tyres
- Rear Wheel
- Newmen Performance 30 strong, 29"
- Front Wheel
- Newmen Performance 30 base, 29"
- Tyres
- Schwalbe Tacky Chan Evo, Super Trail, ultra soft, black 29x2.4
- Tyres
- Schwalbe Tacky Chan Evo, Super Gravity, soft, black 29x2.4
Cockpit
- Handlebar
- Rose OD, Rise 34mm, 760mm
- Grips
- Ergon GDH Team black
- Stem
- Rose OD 35, L. 40mm
- Saddle
- Ergon SM10 E-Mountain stealth
- Seatpost
- e*thirteen , Vario, Remote, 180mm
- Pedals
- Rose VPE-533
Other
- Bell
- ROSE Bell black
- Lock
- Rose combination lock KS 90
- Lights
- Büchel BL 300 Battery lighting set
- Weight
- ca. 20.3 kg
- Max. system weight
- 130 kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
File Plus geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 410 mm | 440 mm | 460 mm | 480 mm |
| BTop tube length | 561 mm | 587 mm | 614 mm | 641 mm |
| CHead tube length | 110 mm | 115 mm | 125 mm | 135 mm |
| DHead tube angle | 64° / 65° | 64° / 65° | 64° / 65° | 64° / 65° |
| ESeat tube angle | 78.5° | 78.5° | 78.5° | 78.5° |
| FBB drop | 30 mm | 30 mm | 30 mm | 30 mm |
| GChainstay length | 445 mm | 445 mm | 445 mm | 445 mm |
| HWheelbase | 1203 mm | 1237 mm | 1267 mm | 1296 mm |
| JReach | 435 mm | 460 mm | 485 mm | 510 mm |
| KStack | 621 mm | 625 mm | 634 mm | 643 mm |
| LBB height | 346.5 mm | 346.5 mm | 346.5 mm | 346.5 mm |
| MStandover height (100 mm in front of BB) | 763 mm | 763 mm | 763 mm | 763 mm |
| PFork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| QWheel size | 29" | 29" | 29" | 29" |
| RMax. tyre width | 2.5" | 2.5" | 2.5" | 2.5" |
| SFork travel | 150 mm | 150 mm | 150 mm | 150 mm |
| TRear travel | 140 mm | 140 mm | 140 mm | 140 mm |
Head tube angle values: 64° / 65° angle-adjust headset positions. Source: Rose.
File Plus: builds compared
File Plus range →| File Plus 70 | File Plus XT | File Plus XTR SL | File Plus X0 | |
|---|---|---|---|---|
| Price | €4,900 | €5,900 | €6,900 | €6,900 |
| Frame | Carbon | Carbon | Carbon | Carbon |
| Fork | Rock Shox Lyrik Select Char RC 15x110 MxlSte DA+ 1.8Tap black matt 29" Boost, 150mm | Rock Shox Lyrik Select+ C3.1 RC2, black matt 29" Boost | Fox Float SL F-S Grip X HSC 1.5 black 29", 140mm travel | Rock Shox Lyrik Ultimate C3.1 RC2 15x110 MxlSte DA+ 1.8, shiny black 29" Boost |
| Shock | Rock Shox Deluxe Select RC2T | Rock Shox Deluxe Select+ RC2T | Fox Float Factory | Rock Shox Super Deluxe Ultimate RC2T |
| Derailleur | SRAM Eagle 70 | Shimano Deore XT RD-M8260 SGS 12-speed | Shimano XTR | SRAM X0 T-TYPE AXS |
| Brakes | SRAM DB8 Stealth | Shimano Deore XT BL-M8200 / BR-M8220 | Shimano XTR | SRAM Maven Silver |
| Wheels | Newmen Performance 30 base | Newmen Forge 30 base | Newmen Phase 30 light | Newmen Beskar 30 base |
| Weight | 20.3 kg | 20.3 kg | 18.6 kg | 19.9 kg |
File Plus 70: FAQ
How much does the Rose File Plus 70 cost?
€4,900 (RRP Germany, VAT incl. (on sale at €4,500 at time of scraping)). The File Plus range runs from €4,900 (File Plus 70) to €6,900 (File Plus X0). Prices vary by country and dealer.
How much does the Rose File Plus 70 weigh?
Rose quotes 20.3 kg. The lightest File Plus build is the File Plus XTR SL at 18.6 kg.
What motor and battery does the Rose File Plus 70 have?
TQ HPR60 (60 Nm; 350 W peak). 580 Wh battery — integrated TQ battery.
How much suspension travel does the Rose File Plus 70 have?
150 mm at the fork and 140 mm at the rear, on 29" wheels.
What sizes does the Rose File Plus 70 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the File Plus 70 and the File Plus XT?
They share the File Plus frame platform and motor; the differences are in the parts — fork: Rock Shox Lyrik Select Char RC 15x110 MxlSte DA+ 1.8Tap black matt 29" Boost vs Rock Shox Lyrik Select+ C3.1 RC2; shock: Rock Shox Deluxe Select RC2T vs Rock Shox Deluxe Select+ RC2T; derailleur: SRAM Eagle 70 vs Shimano Deore XT RD-M8260 SGS 12-speed; brakes: SRAM DB8 Stealth vs Shimano Deore XT BL-M8200 / BR-M8220; price: €4,900 vs €5,900.
