RoseSlab Plus 70
- Motor
- Bosch Performance Line CX85 Nm
- Battery
- 800 WhBosch PowerTube 800
- Travel F / R
- 170 / 160 mm
- Wheels
- 29"
- Frame
- Carbon
- Weight
- 23.9 kgManufacturer figure (approx.)
Overview
The Rose Slab Plus 70 (€4,900) is the entry build of the Slab Plus: Bosch Performance Line CX (Gen 5) (85 Nm) with 800 Wh, Rock Shox Domain Gold R fork, Rock Shox Superdeluxe Select RT shock, SRAM Eagle 70 Transmission and SRAM DB8 Stealth brakes. Claimed weight is 23.9 kg.
The Slab Plus is Rose's carbon e-enduro bike: 160 mm of rear travel, a 170 mm fork and 29-inch wheels, with a 64° head angle and 448 mm chainstays.
It uses the Bosch Performance Line CX (Gen 5) motor with an 800 Wh PowerTube battery; Rose also publishes mounting instructions for a Slab Plus range extender. Claimed weights are 23.7 to 24.0 kg.
- Bosch Performance Line CX Gen 5
- 800 Wh PowerTube battery
- 170/160 mm travel, 29-inch wheels
- Carbon frame, 64° head angle

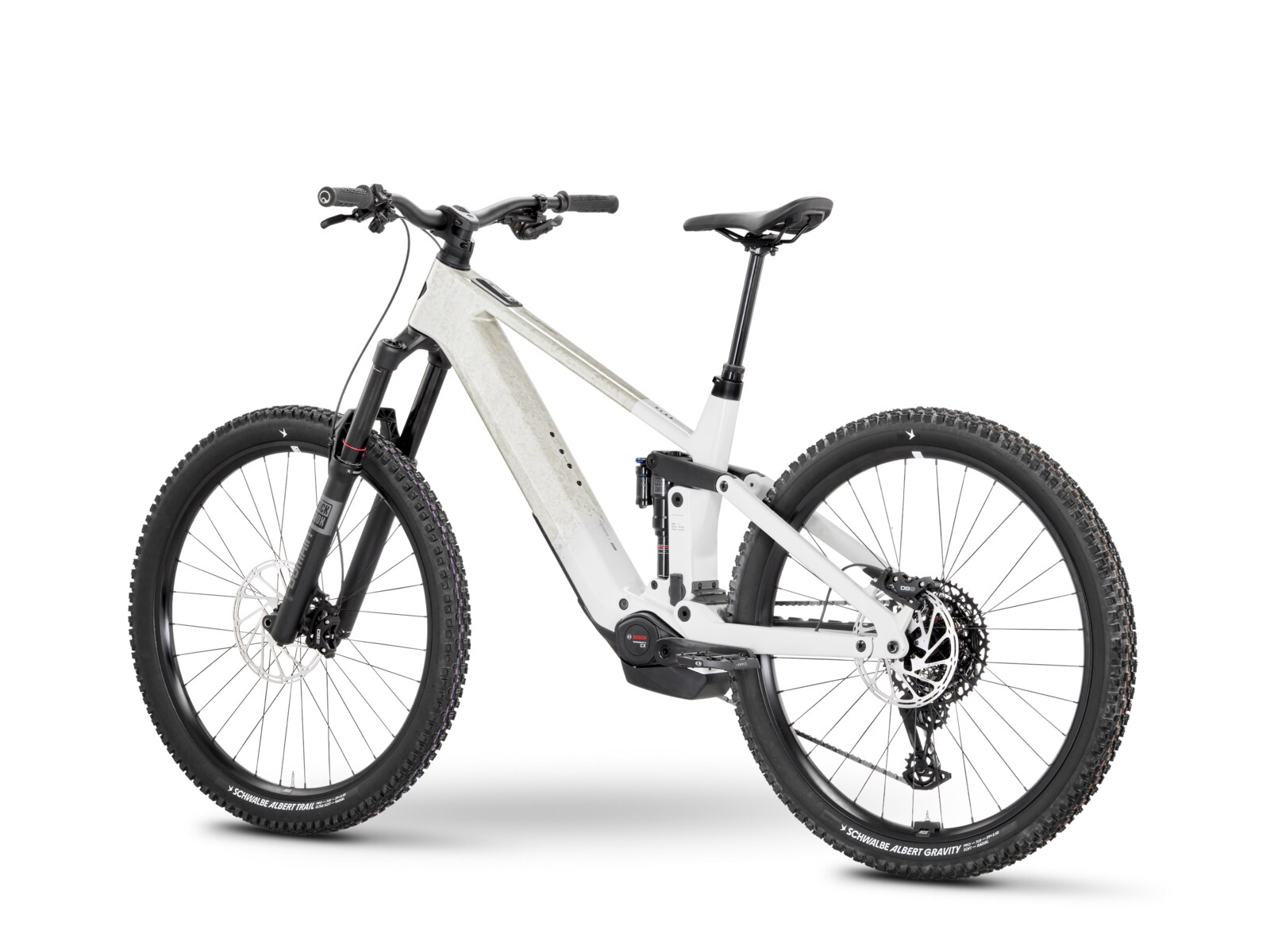

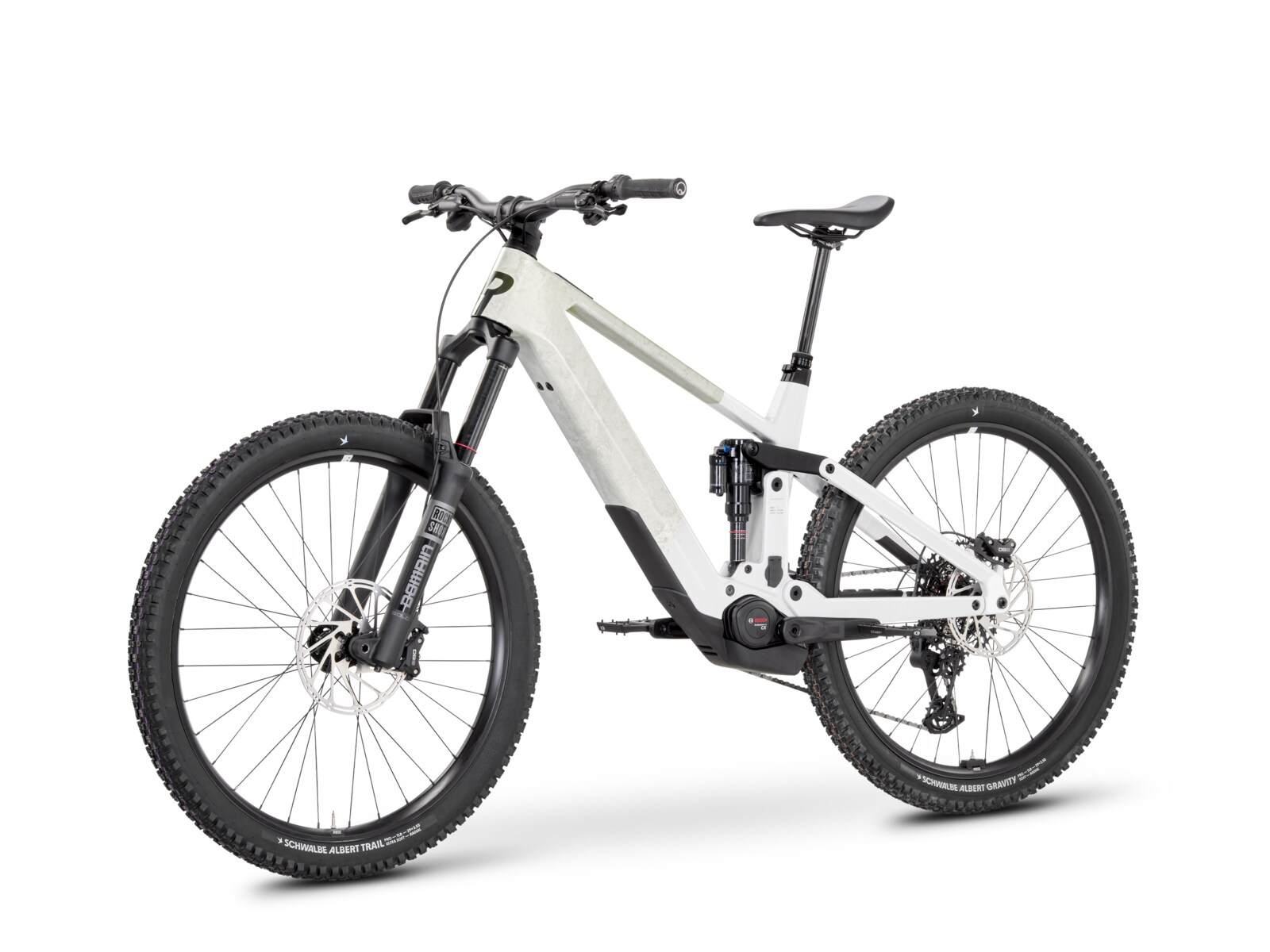

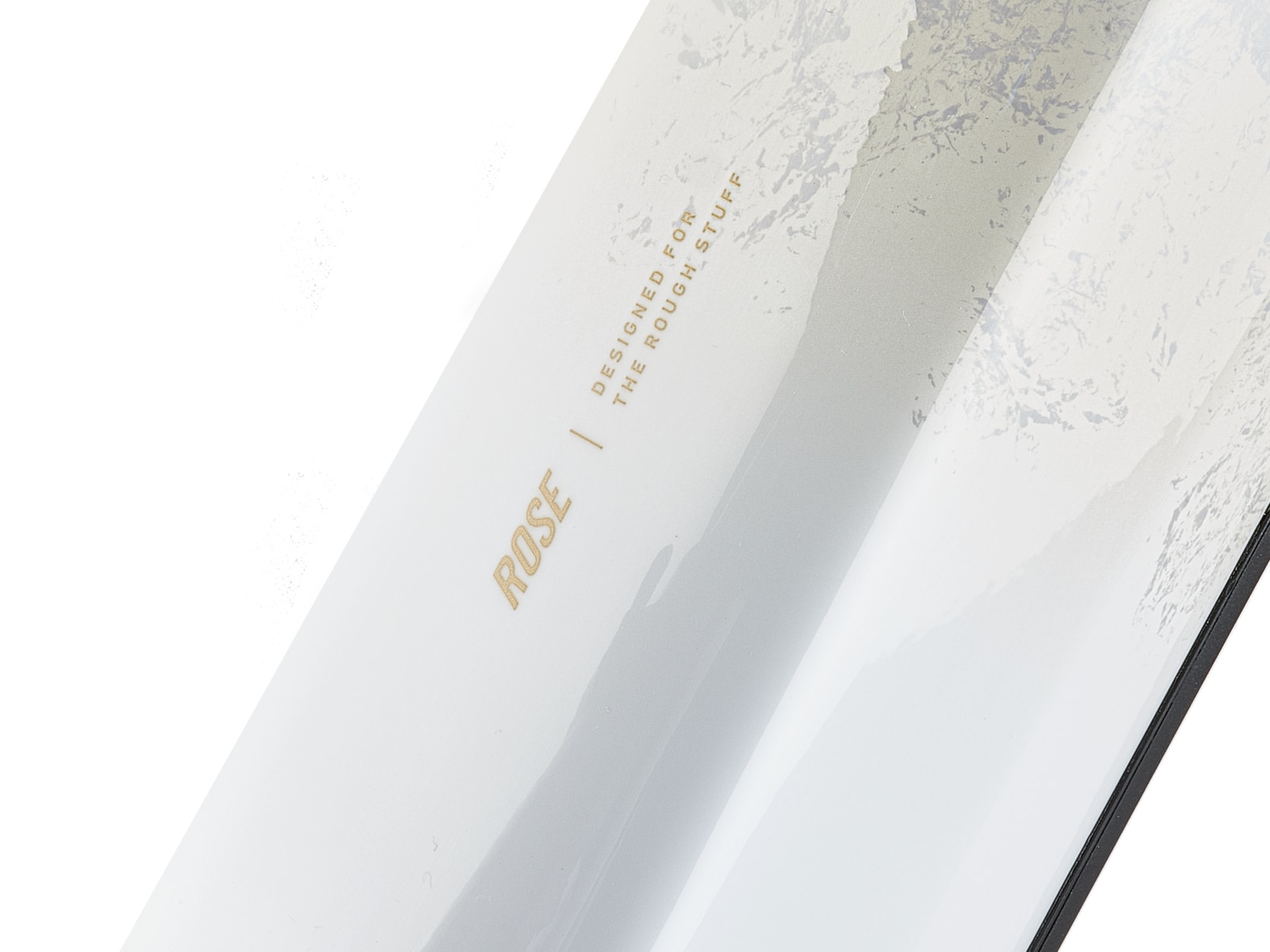

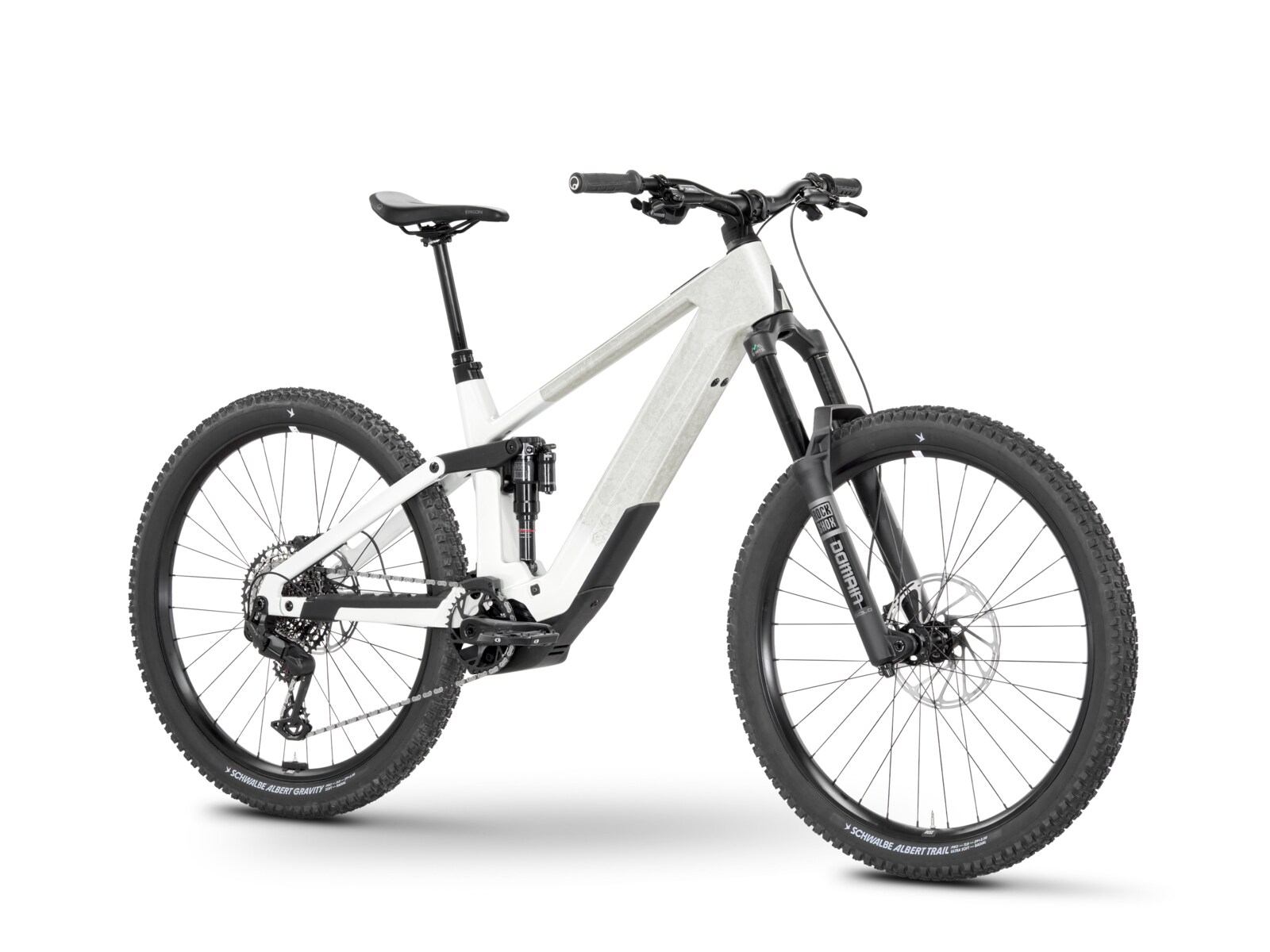

Gallery
Photos: Rose
Full specifications
Frame & suspension
- Frame
- Rose Slab Plus, Carbon
- Fork
- Rock Shox Domain Gold R 15x110 MxlSte DA 1.8T black matt 29" Boost, 170mm, 44mm Offset
- Rear shock
- Rock Shox Superdeluxe Select RT
E-system
- Motor
- Bosch Performance Line CX Gen. 5
- Battery
- Bosch PowerTube 800 Wh
- Display
- BRC3100 with Mini Remote
Drivetrain
- Crankset
- SRAM Eagle T-Type Bosch DU38 DM Steel black 36T
- Chain guide
- e*thirteen e*Spec Plus CX Gen 5 32-36T
- Cassette
- SRAM Eagle 70
- Rear derailleur
- SRAM Eagle 70
- Chain
- SRAM Eagle 70 Transmission Flattop 12s grey/black 120 links
- Shifter
- SRAM Eagle 70, black
Brakes
- Front brake
- SRAM DB8 Stealth, black matt 800mm
- Rear brake
- SRAM DB8 Stealth DIR, black matt 1700mm
Wheels & tyres
- Rear Wheel
- Rose HR 12x148 Boost, 30mm 29" (inch)
- Front Wheel
- Rose VR 15x110Boost, 30mm 29" (inch)
- Tyres
- Schwalbe Albert Evo Gravity Pro TLR black 29x2.5
- Tyres
- Schwalbe Albert Evo Trail Pro TLR black 29x2.5
Cockpit
- Handlebar
- Rose OD 35, Rise 35mm, 780mm
- Grips
- Ergon GDH Team black
- Stem
- Rose OD 35, L. 40mm
- Saddle
- Ergon SM10 E-Mountain stealth
- Seatpost
- e*thirteen Vario, Remote, 120mm
- Pedals
- Rose VPE-533
Other
- Bell
- ROSE Bell black
- Lights
- Büchel BL 300 Battery lighting set
- Weight
- ca. 23.9 kg
- Max. system weight
- 130 kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Slab Plus geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 410 mm | 430 mm | 450 mm | 470 mm |
| BTop tube length | 578 mm | 605 mm | 632 mm | 659 mm |
| CHead tube length | 115 mm | 115 mm | 125 mm | 135 mm |
| DHead tube angle | 64° | 64° | 64° | 64° |
| ESeat tube angle | 77.8° | 77.8° | 77.8° | 77.8° |
| FBB drop | 22.5 mm | 22.5 mm | 22.5 mm | 22.5 mm |
| GChainstay length | 448 mm | 448 mm | 448 mm | 448 mm |
| HWheelbase | 1247 mm | 1272 mm | 1297 mm | 1322 mm |
| JReach | 445 mm | 470 mm | 495 mm | 520 mm |
| KStack | 635 mm | 635 mm | 644 mm | 653 mm |
| LBB height | 356.5 mm | 356.5 mm | 356.5 mm | 356.5 mm |
| MStandover height (100 mm in front of BB) | 769 mm | 769 mm | 769 mm | 769 mm |
| PFork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| QWheel size | 29" | 29" | 29" | 29" |
| RMax. tyre width | 2.5" | 2.5" | 2.5" | 2.5" |
| SFork travel | 170 mm | 170 mm | 170 mm | 170 mm |
| TRear travel | 160 mm | 160 mm | 160 mm | 160 mm |
Source: Rose.
Slab Plus: builds compared
Slab Plus range →| Slab Plus 70 | Slab Plus XT | Slab Plus X0 | |
|---|---|---|---|
| Price | €4,900 | €5,900 | €6,900 |
| Frame | Carbon | Carbon | Carbon |
| Fork | Rock Shox Domain Gold R 15x110 MxlSte DA 1.8T black matt 29" Boost, 170mm | Fox Float 38 Performance Grip 3 Pos. | Rock Shox Zeb Ultimate Char.3.1 shiny black 29" Boost, 170mm |
| Shock | Rock Shox Superdeluxe Select RT | Fox Float X2 | Rock Shox Vivid Ultimate RT 205x65 |
| Derailleur | SRAM Eagle 70 | Shimano Deore XT RD-M8260 SGS 12-speed | SRAM X0 T-TYPE AXS |
| Brakes | SRAM DB8 Stealth | Shimano XT | SRAM Maven Silver |
| Wheels | Rose VR 15x110Boost | Newmen Forge 30 base | Newmen Beskar 30 base |
| Display | BRC3100 with Mini Remote | Bosch Kiox 400C with Mini Remote | Bosch Kiox 400C with Mini Remote |
| Weight | 23.9 kg | 24 kg | 23.7 kg |
Slab Plus 70: FAQ
How much does the Rose Slab Plus 70 cost?
€4,900 (RRP Germany, VAT incl. (on sale at €4,650 at time of scraping)). The Slab Plus range runs from €4,900 (Slab Plus 70) to €6,900 (Slab Plus X0). Prices vary by country and dealer.
How much does the Rose Slab Plus 70 weigh?
Rose quotes 23.9 kg. The lightest Slab Plus build is the Slab Plus X0 at 23.7 kg.
What motor and battery does the Rose Slab Plus 70 have?
Bosch Performance Line CX (85 Nm). 800 Wh battery — bosch PowerTube 800.
How much suspension travel does the Rose Slab Plus 70 have?
170 mm at the fork and 160 mm at the rear, on 29" wheels.
What sizes does the Rose Slab Plus 70 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Slab Plus 70 and the Slab Plus XT?
They share the Slab Plus frame platform and motor; the differences are in the parts — fork: Rock Shox Domain Gold R 15x110 MxlSte DA 1.8T black matt 29" Boost vs Fox Float 38 Performance Grip 3 Pos.; shock: Rock Shox Superdeluxe Select RT vs Fox Float X2; derailleur: SRAM Eagle 70 vs Shimano Deore XT RD-M8260 SGS 12-speed; brakes: SRAM DB8 Stealth vs Shimano XT; claimed weight: 23.9 kg vs 24 kg; price: €4,900 vs €5,900.
