RoseSlab Plus XT
- Motor
- Bosch Performance Line CX85 Nm
- Battery
- 800 WhBosch PowerTube 800
- Travel F / R
- 170 / 160 mm
- Wheels
- 29"
- Frame
- Carbon
- Weight
- 24 kgManufacturer figure (approx.)
Overview
The Rose Slab Plus XT (€5,900) is a mid-range build of the Slab Plus: Bosch Performance Line CX (Gen 5) (85 Nm) with 800 Wh, Fox Float 38 Performance Grip fork, Fox Float X2 Performance-S shock, Shimano XT Di2 and Shimano XT brakes. Claimed weight is 24.0 kg.
The Slab Plus is Rose's carbon e-enduro bike: 160 mm of rear travel, a 170 mm fork and 29-inch wheels, with a 64° head angle and 448 mm chainstays.
It uses the Bosch Performance Line CX (Gen 5) motor with an 800 Wh PowerTube battery; Rose also publishes mounting instructions for a Slab Plus range extender. Claimed weights are 23.7 to 24.0 kg.
- Bosch Performance Line CX Gen 5
- 800 Wh PowerTube battery
- 170/160 mm travel, 29-inch wheels
- Carbon frame, 64° head angle

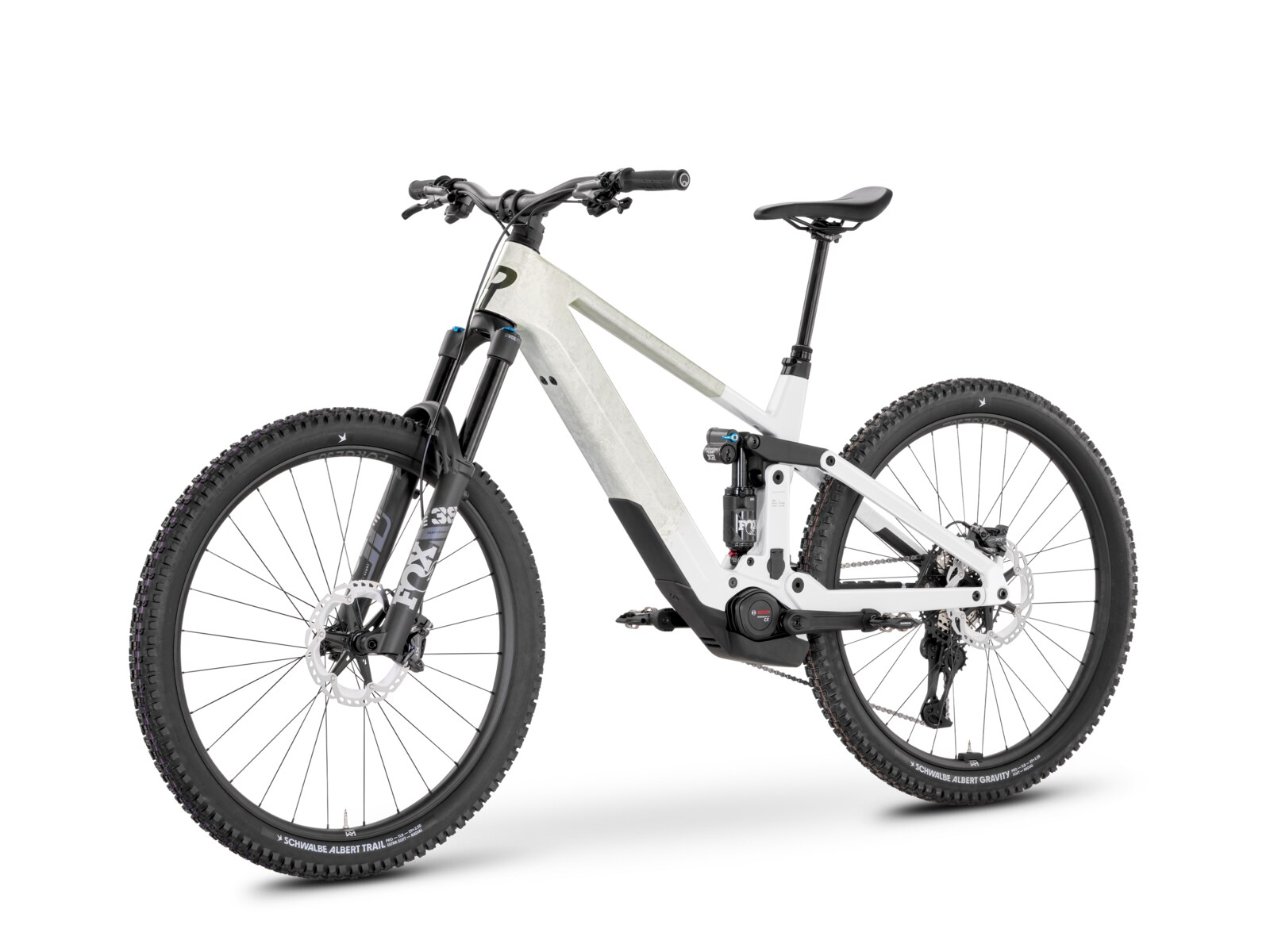

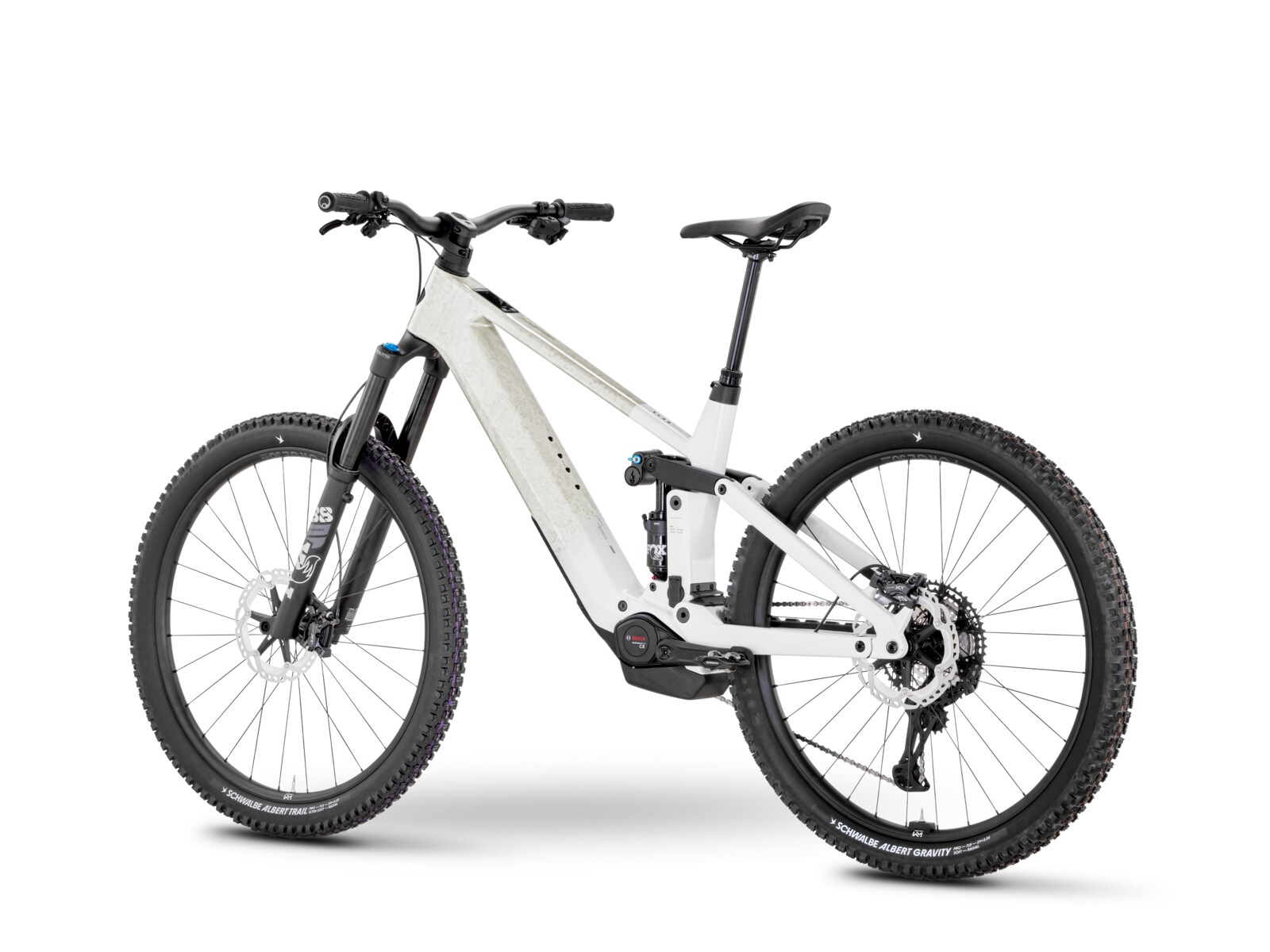

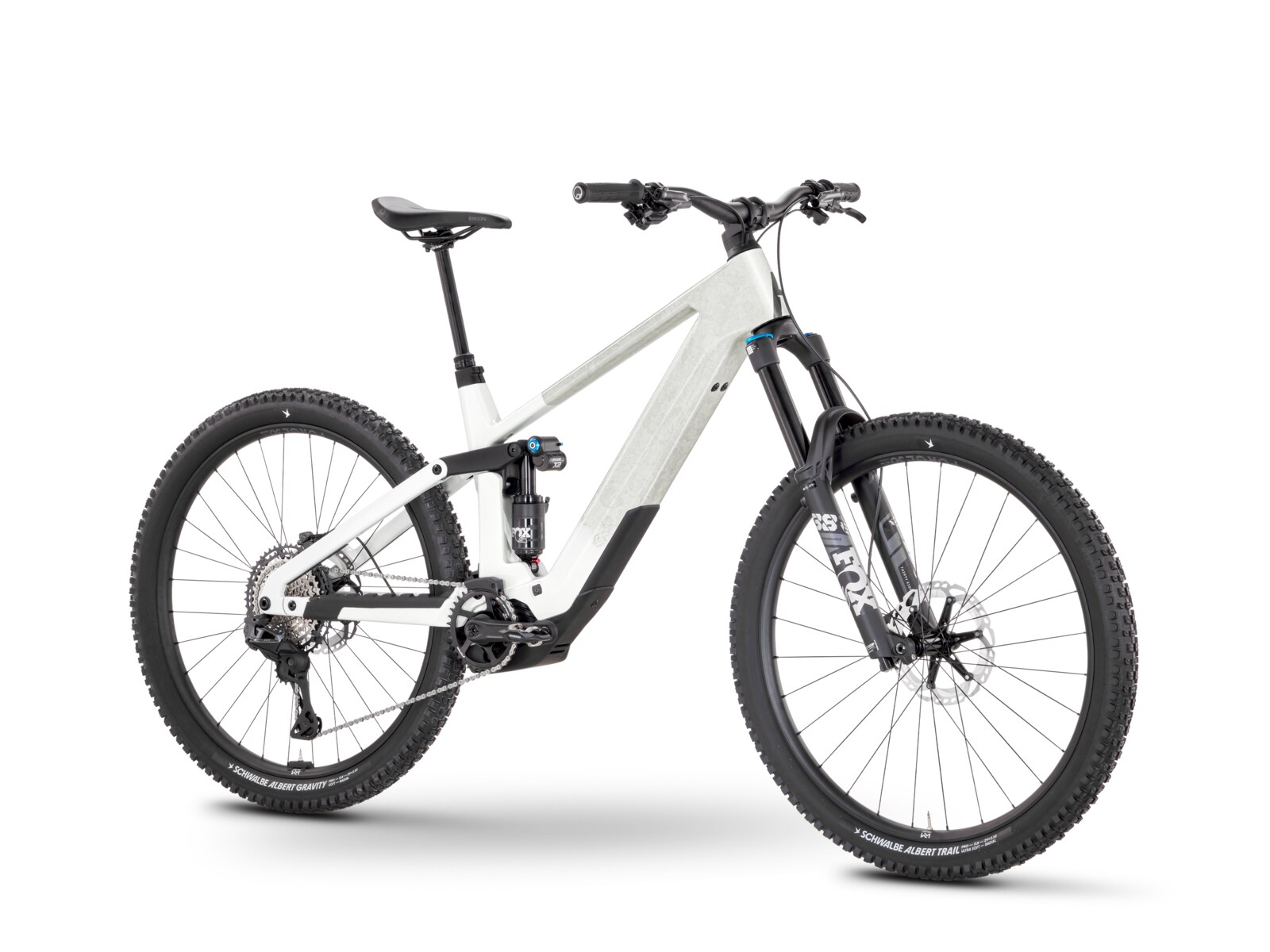

Gallery
Photos: Rose
Full specifications
Frame & suspension
- Frame
- Rose Slab Plus, Carbon
- Fork
- Fox Float 38 Performance Grip 3 Pos.
- Rear shock
- Fox Float X2
E-system
- Motor
- Bosch Performance Line CX Gen. 5
- Battery
- Bosch PowerTube 800 Wh
- Display
- Bosch Kiox 400C with Mini Remote
Drivetrain
- Crankset
- E13 Helix Core 160mm BOSCH Gen4-TQBrose 160mm
- Chainring
- e*thirteen Helix Core E*SPec, Bosch Gen. 5
- Chain guide
- e*thirteen e*Spec Plus CX Gen 5 32-36T
- Cassette
- Shimano Deore XT CS-M8200-12 10-51
- Rear derailleur
- Shimano Deore XT RD-M8260 SGS 12-speed
- Chain
- Shimano CN-M8100 Deore XT HG 12-speed
- Shifter
- SHIMANO Deore XT SW-M8250-IR
Brakes
- Front brake
- Shimano XT, BL-M8200 / BR-M8220
- Rear brake
- Shimano Deore XT BL-M8200 / BR-M8220, black 1800mm
Wheels & tyres
- Front Wheel
- Newmen Forge 30 base, 29"
- Rear Wheel
- Newmen Forge 30 strong, 29"
- Tyres
- Schwalbe Albert Evo Gravity Pro TLR black 29x2.5
- Tyres
- Schwalbe Albert Evo Trail Pro TLR black 29x2.5
Cockpit
- Handlebar
- Rose OD 35, Rise 35mm, 780mm
- Grips
- Ergon GDH Team black
- Stem
- Rose OD 35, L. 40mm
- Saddle
- Ergon SM10 E-Mountain stealth
- Seatpost
- e*thirteen , Vario, Remote, 180mm
- Pedals
- Rose VPE-533
Other
- Bell
- ROSE Bell black
- Lights
- Büchel BL 300 Battery lighting set
- Weight
- ca. 24.0 kg
- Max. system weight
- 130 kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Slab Plus geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 410 mm | 430 mm | 450 mm | 470 mm |
| BTop tube length | 578 mm | 605 mm | 632 mm | 659 mm |
| CHead tube length | 115 mm | 115 mm | 125 mm | 135 mm |
| DHead tube angle | 64° | 64° | 64° | 64° |
| ESeat tube angle | 77.8° | 77.8° | 77.8° | 77.8° |
| FBB drop | 22.5 mm | 22.5 mm | 22.5 mm | 22.5 mm |
| GChainstay length | 448 mm | 448 mm | 448 mm | 448 mm |
| HWheelbase | 1247 mm | 1272 mm | 1297 mm | 1322 mm |
| JReach | 445 mm | 470 mm | 495 mm | 520 mm |
| KStack | 635 mm | 635 mm | 644 mm | 653 mm |
| LBB height | 356.5 mm | 356.5 mm | 356.5 mm | 356.5 mm |
| MStandover height (100 mm in front of BB) | 769 mm | 769 mm | 769 mm | 769 mm |
| PFork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| QWheel size | 29" | 29" | 29" | 29" |
| RMax. tyre width | 2.5" | 2.5" | 2.5" | 2.5" |
| SFork travel | 170 mm | 170 mm | 170 mm | 170 mm |
| TRear travel | 160 mm | 160 mm | 160 mm | 160 mm |
Source: Rose.
Slab Plus: builds compared
Slab Plus range →| Slab Plus 70 | Slab Plus XT | Slab Plus X0 | |
|---|---|---|---|
| Price | €4,900 | €5,900 | €6,900 |
| Frame | Carbon | Carbon | Carbon |
| Fork | Rock Shox Domain Gold R 15x110 MxlSte DA 1.8T black matt 29" Boost, 170mm | Fox Float 38 Performance Grip 3 Pos. | Rock Shox Zeb Ultimate Char.3.1 shiny black 29" Boost, 170mm |
| Shock | Rock Shox Superdeluxe Select RT | Fox Float X2 | Rock Shox Vivid Ultimate RT 205x65 |
| Derailleur | SRAM Eagle 70 | Shimano Deore XT RD-M8260 SGS 12-speed | SRAM X0 T-TYPE AXS |
| Brakes | SRAM DB8 Stealth | Shimano XT | SRAM Maven Silver |
| Wheels | Rose VR 15x110Boost | Newmen Forge 30 base | Newmen Beskar 30 base |
| Display | BRC3100 with Mini Remote | Bosch Kiox 400C with Mini Remote | Bosch Kiox 400C with Mini Remote |
| Weight | 23.9 kg | 24 kg | 23.7 kg |
Slab Plus XT: FAQ
How much does the Rose Slab Plus XT cost?
€5,900 (RRP Germany, VAT incl. (on sale at €5,650 at time of scraping)). The Slab Plus range runs from €4,900 (Slab Plus 70) to €6,900 (Slab Plus X0). Prices vary by country and dealer.
How much does the Rose Slab Plus XT weigh?
Rose quotes 24 kg. The lightest Slab Plus build is the Slab Plus X0 at 23.7 kg.
What motor and battery does the Rose Slab Plus XT have?
Bosch Performance Line CX (85 Nm). 800 Wh battery — bosch PowerTube 800.
How much suspension travel does the Rose Slab Plus XT have?
170 mm at the fork and 160 mm at the rear, on 29" wheels.
What sizes does the Rose Slab Plus XT come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Slab Plus XT and the Slab Plus X0?
They share the Slab Plus frame platform and motor; the differences are in the parts — fork: Fox Float 38 Performance Grip 3 Pos. vs Rock Shox Zeb Ultimate Char.3.1 shiny black 29" Boost; shock: Fox Float X2 vs Rock Shox Vivid Ultimate RT 205x65; derailleur: Shimano Deore XT RD-M8260 SGS 12-speed vs SRAM X0 T-TYPE AXS; brakes: Shimano XT vs SRAM Maven Silver; claimed weight: 24 kg vs 23.7 kg; price: €5,900 vs €6,900.
