SimplonRapcon :eTQ Ultimate
- Motor
- TQ HPR6060 Nm
- Battery
- 360 WhTQ HPR Battery V01, integrated; 160 Wh range extender optional
- Travel F / R
- 160 / 160 mm
- Wheels
- 29"
- Frame
- Carbon
- Weight
- 18.6 kgManufacturer figure (size M, Core Selection spec sheet)
Overview
The Simplon Rapcon :eTQ Ultimate (€9,999) is the top build of the Rapcon :eTQ: TQ HPR60 (60 Nm) with 360 Wh, FOX 38 FLOAT FACTORY 29" fork, FOX Float X2 Factory shock, SRAM X0 Eagle Transmission and Shimano XT M8220 brakes. Claimed weight is 18.6 kg.
The Rapcon :eTQ is Simplon's light e-MTB: a carbon frame with 160 mm of rear travel, a 160 or 170 mm fork, 29-inch wheels and an optional mullet setup compensated by a flip chip on the lower shock mount. Simplon quotes from 19.29 kg for the bike.
It uses the TQ HPR60 motor (60 Nm, 350 W, 1,850 g) with a fixed 360 Wh battery and a 160 Wh range extender option, plus a top-tube display and internal cable routing through the headset. The system weight limit is 140 kg.
- TQ HPR60, 60 Nm, 350 W
- 360 Wh battery + 160 Wh extender
- 160 mm rear, 160/170 mm fork
- From 19.29 kg (Simplon figure)

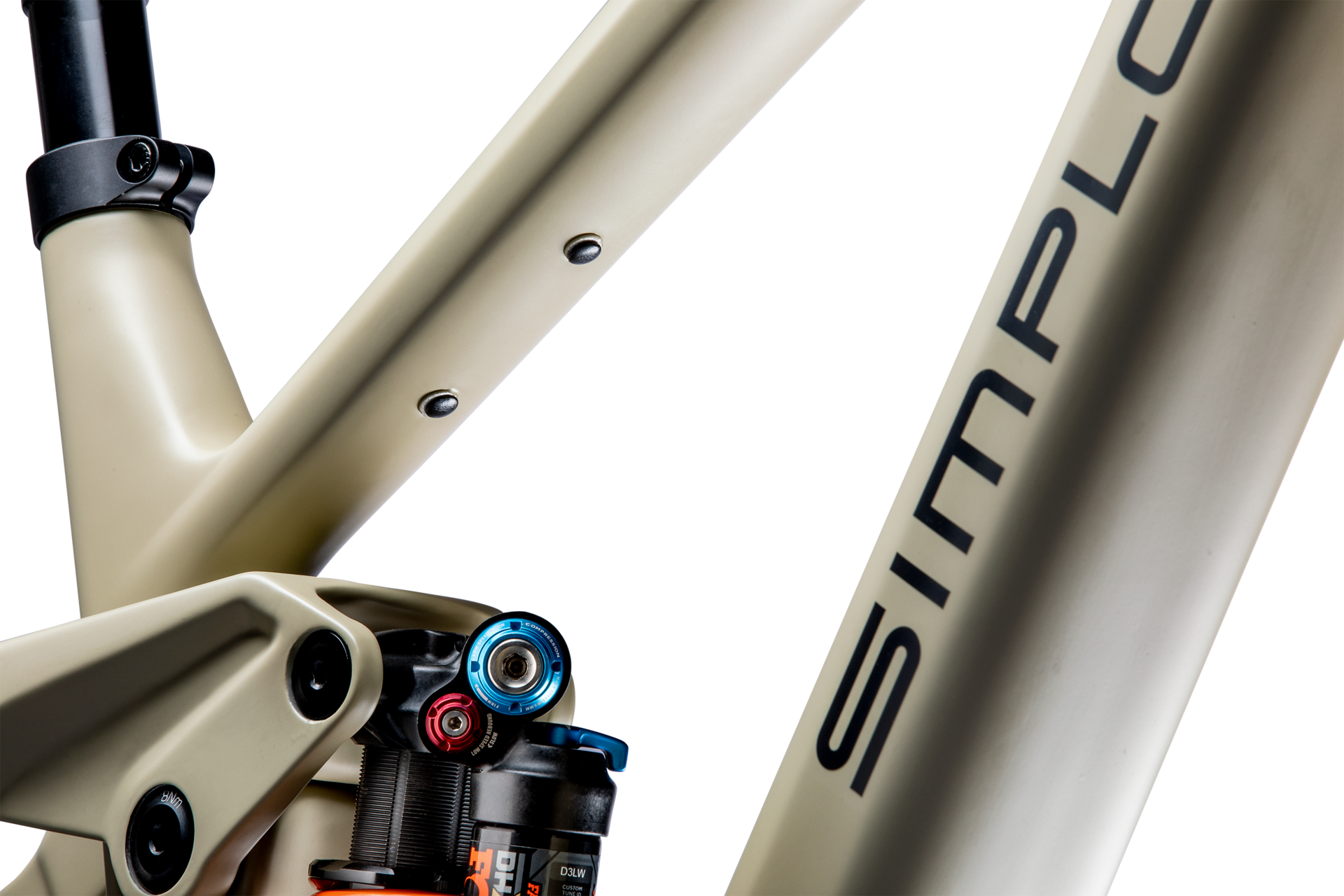

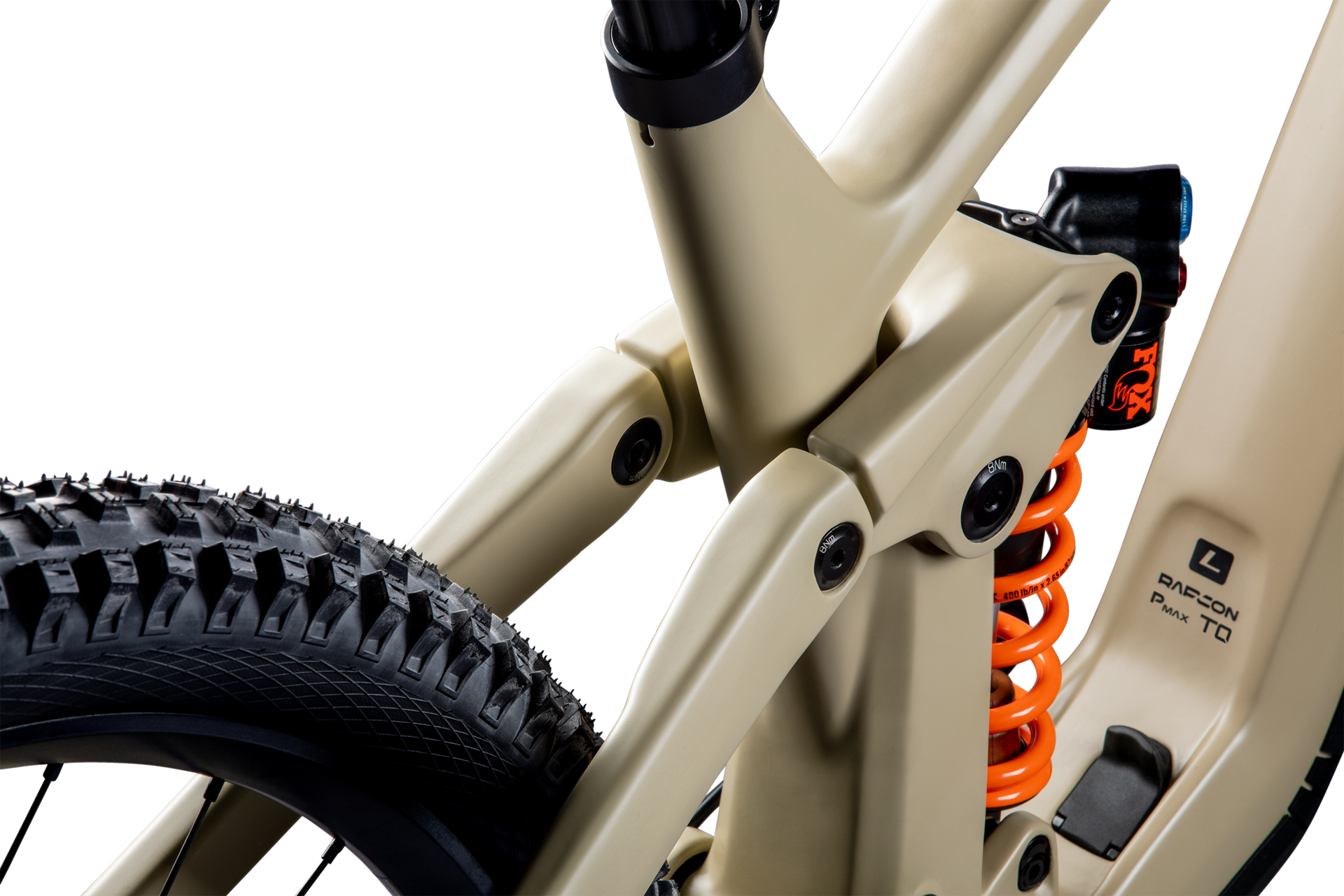

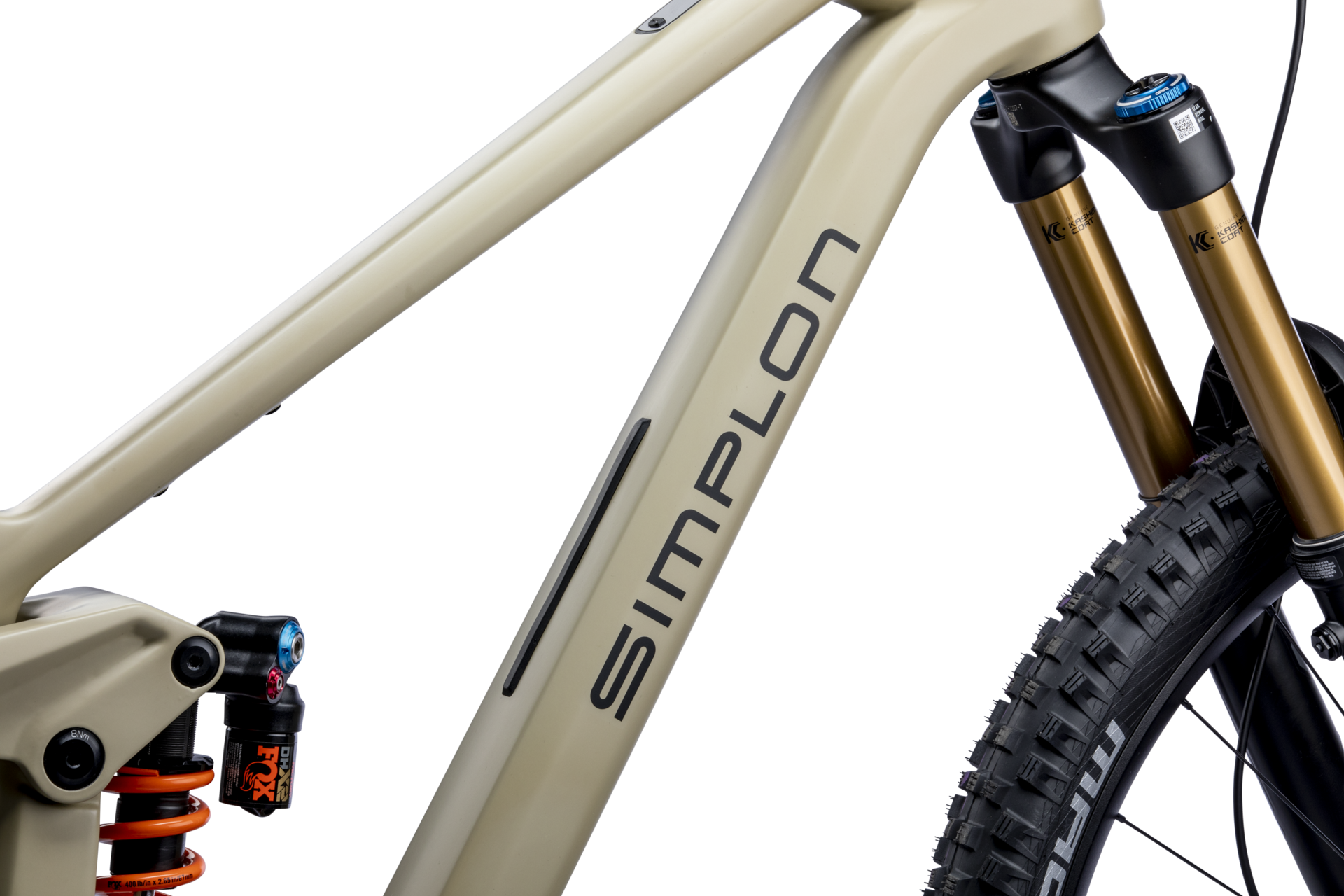

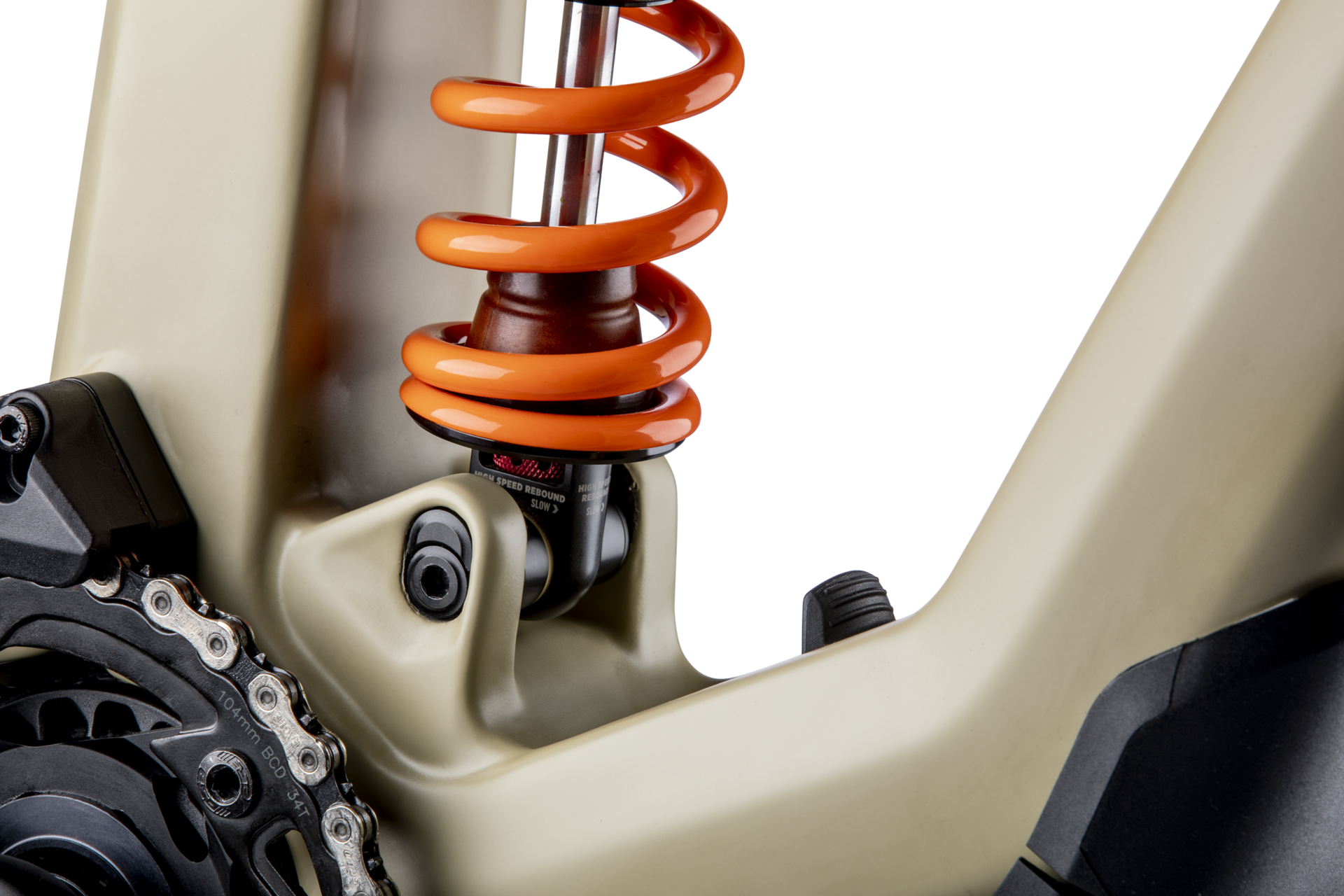

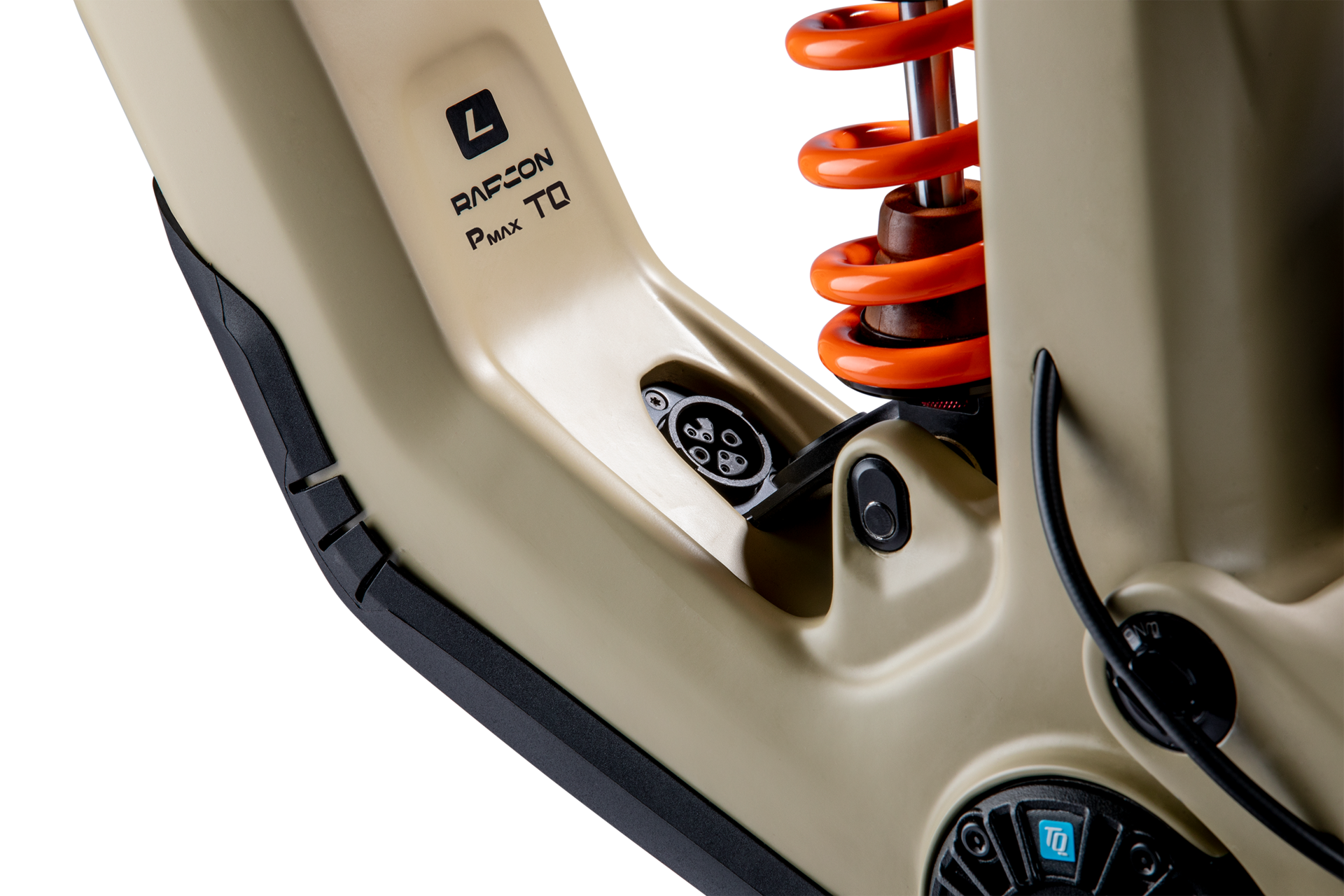

Gallery
Photos: Simplon
Full specifications
Frame & suspension
- Rear shock
- FOX Float X2 Factory, 165mm
- Frame
- RAPCON :eTQ, carbon
- Headset
- Acros AZA-636
- Fork
- FOX 38 FLOAT FACTORY 29" 160mm
E-system
- Battery
- TQ HPR Battery V01 360 Wh
- Display
- TQ HPR Color Display V04 | HPR Remote V02
- Motor
- TQ HPR 60
Drivetrain
- Crankset
- FSA CK-745 alloy | 160mm
- Rear derailleur
- Sram X0 Eagle Transmission
Brakes
- Brakes
- Shimano BRM8220, 4-piston, 203mm, 203mm
Wheels & tyres
- Tyres
- Schwalbe, MagicMary/Albert, black, Evo, Trail Pro, 63-622
- Wheelset
- DT Swiss HXC 1501
Cockpit
- Spacers
- 30mm spacers Carbon
- Stem
- Simplon Zero III 35mm x 0°
- Seatpost
- BikeYoke Divine, 160mm, 31.6
- Grips
- Ergon GE10 EVO
- Saddle
- Selle Italia X-BOW 145 boost | manganese rail
- Handlebar
- Simplon Riser BAR | CF | R.31,8 | 800 mm
Other
- Bottle cage
- Bottle Cage SIDELOADER ALU
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Rapcon :eTQ geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 370 mm | 395 mm | 420 mm | 445 mm |
| BTop tube (horizontal) | 569 mm | 590 mm | 604 mm | 634 mm |
| CHead tube angle | 64.5° | 64.5° | 64.5° | 64.5° |
| DSeat tube angle (effective) | 78.5° | 78.5° | 78.5° | 78.5° |
| D1Seat tube angle (actual) | 70.2° | 72.1° | 73.7° | 74° |
| D2Saddle rail height (reference) | 660 mm | 700 mm | 740 mm | 780 mm |
| EHead tube length | 97 mm | 104 mm | 115 mm | 125 mm |
| FChainstay length | 436 mm | 438 mm | 443 mm | 447 mm |
| GWheelbase | 1204 mm | 1229 mm | 1259 mm | 1285 mm |
| HBottom bracket drop | 36 mm | 36 mm | 36 mm | 36 mm |
| IFork length | 574 mm | 574 mm | 574 mm | 574 mm |
| KFork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| MStandover | 738 mm | 738 mm | 744 mm | 744 mm |
| RReach | 441 mm | 461 mm | 481 mm | 501 mm |
| SStack | 621 mm | 629 mm | 639 mm | 648 mm |
| STRStack to reach | 1.41 | 1.36 | 1.33 | 1.29 |
| HtRider height | 155-172 cm | 168-182 cm | 178-190 cm | 188-200 cm |
| ISInseam | 72-82 cm | 77-86 cm | 82-90 cm | 87-99 cm |
Source: Simplon (geometry for the 160 mm fork option; two bottom bracket drop values = the two flip-chip positions as listed by Simplon). Rider height and inseam in cm.
Rapcon :eTQ: builds compared
Rapcon :eTQ range →| Rapcon :eTQ Expert | Rapcon :eTQ Ultimate | |
|---|---|---|
| Price | €7,999 | €9,999 |
| Frame | Carbon | Carbon |
| Fork | Rock Shox Zeb Select Plus 170mm | FOX 38 FLOAT FACTORY 29" 160mm |
| Shock | Rockshox Super Deluxe Select+ | 205x65 | 165mm | FOX Float X2 Factory |
| Derailleur | Sram Eagle 90 Transmission | Sram X0 Eagle Transmission |
| Brakes | Magura Louise Elite | Shimano BRM8220 |
| Display | TQ HPR Color Display V04 | HPR Remote V02 | TQ HPR Color Display V04 | HPR Remote V02 |
| Weight | 18.4 kg | 18.6 kg |
Rapcon :eTQ Ultimate: FAQ
How much does the Simplon Rapcon :eTQ Ultimate cost?
€9,999 (RRP Germany (EUR), VAT incl.; Simplon Core Selection fixed price). The Rapcon :eTQ range runs from €7,999 (Rapcon :eTQ Expert) to €9,999 (Rapcon :eTQ Ultimate). Prices vary by country and dealer.
How much does the Simplon Rapcon :eTQ Ultimate weigh?
Simplon quotes 18.6 kg. The lightest Rapcon :eTQ build is the Rapcon :eTQ Expert at 18.4 kg.
What motor and battery does the Simplon Rapcon :eTQ Ultimate have?
TQ HPR60 (60 Nm). 360 Wh battery — tQ HPR Battery V01, integrated; 160 Wh range extender optional.
How much suspension travel does the Simplon Rapcon :eTQ Ultimate have?
160 mm at the fork and 160 mm at the rear, on 29" wheels.
What sizes does the Simplon Rapcon :eTQ Ultimate come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Rapcon :eTQ Ultimate and the Rapcon :eTQ Expert?
They share the Rapcon :eTQ frame platform and motor; the differences are in the parts — fork: FOX 38 FLOAT FACTORY 29" 160mm vs Rock Shox Zeb Select Plus 170mm; shock: FOX Float X2 Factory vs Rockshox Super Deluxe Select+ | 205x65 | 165mm; derailleur: Sram X0 Eagle Transmission vs Sram Eagle 90 Transmission; claimed weight: 18.6 kg vs 18.4 kg; price: €9,999 vs €7,999.
