SimplonRapcon :e Core
- Motor
- Bosch Performance Line CX Gen585 Nm (up to 120 Nm via eBike Flow app)
- Battery
- 600 WhBosch PowerTube, removable; 250 Wh range extender optional
- Travel F / R
- 160 / 160 mm
- Wheels
- 29"
- Frame
- Carbon
- Weight
- 23.5 kgManufacturer figure (size M, Core Selection spec sheet)
Overview
The Simplon Rapcon :e Core (€6,999) is the entry build of the Rapcon :e: Bosch Performance Line CX Gen5 (85 Nm) with 600 Wh, RockShox Zeb Base fork, RockShox Super Deluxe shock, SRAM Eagle 70 transmission and Magura Louise Elite brakes. Claimed weight is 23.5 kg.

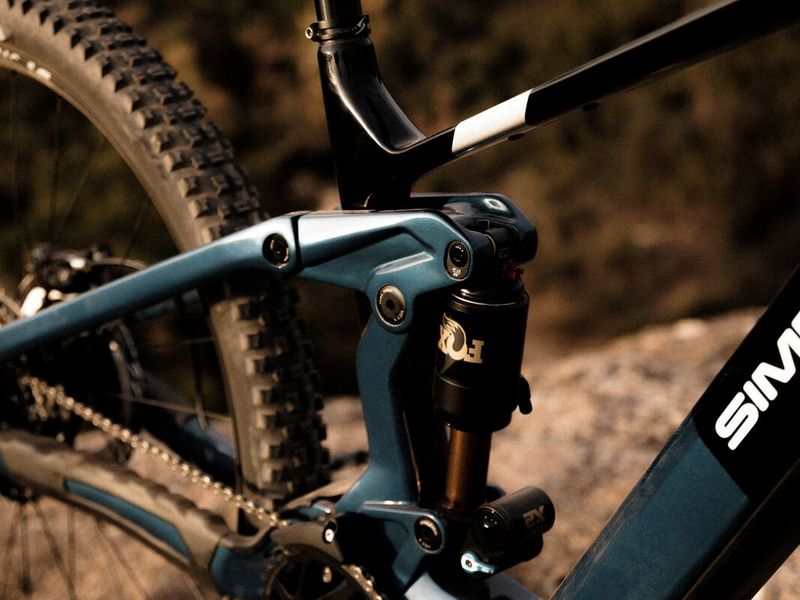

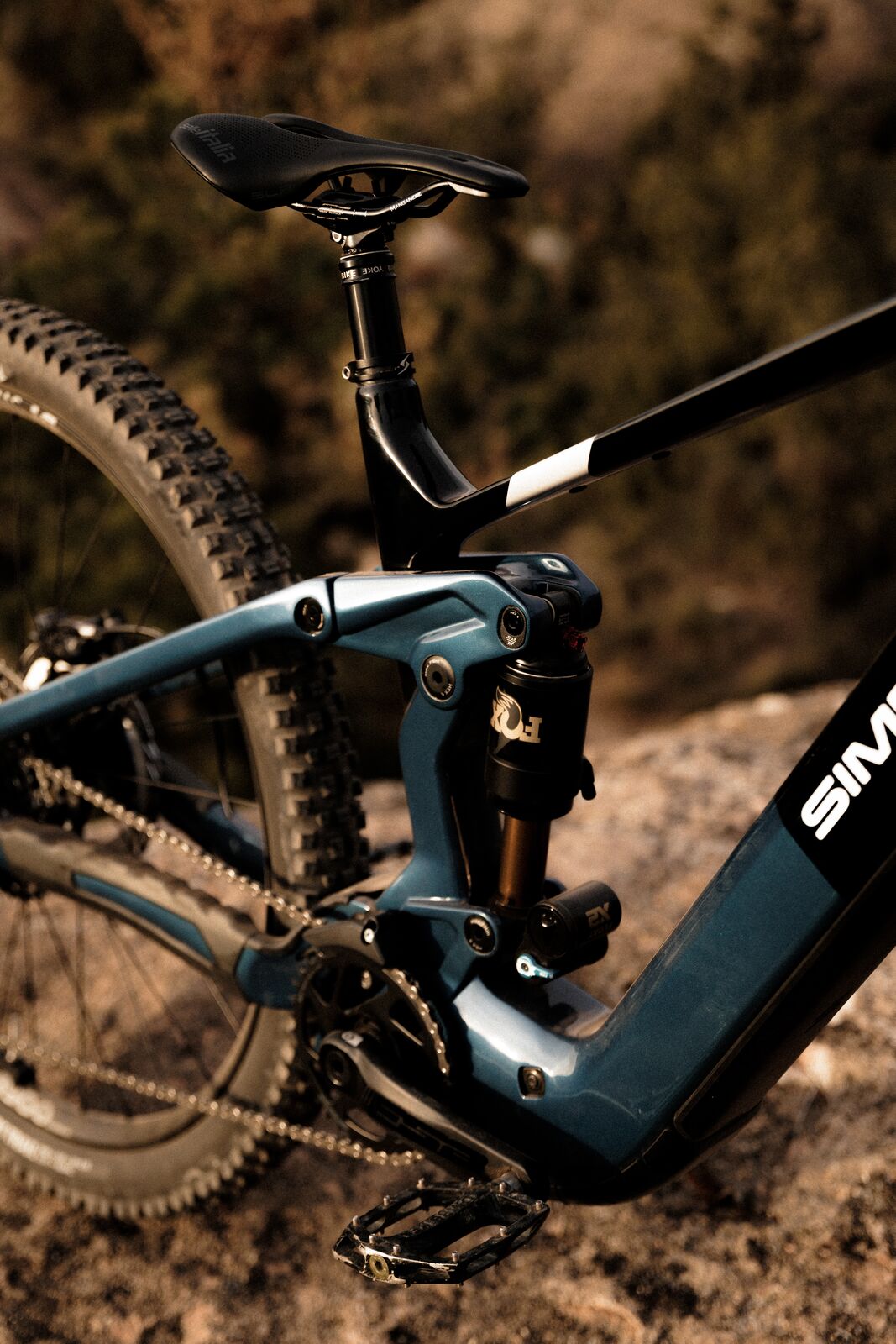

The Rapcon :e is Simplon's carbon e-enduro bike for all-mountain and enduro terrain: 160 mm of travel front and rear on a four-bar rear end, 29-inch wheels with mullet compatibility, a 64° head angle and size-specific chainstays. The system weight rating is 150 kg.

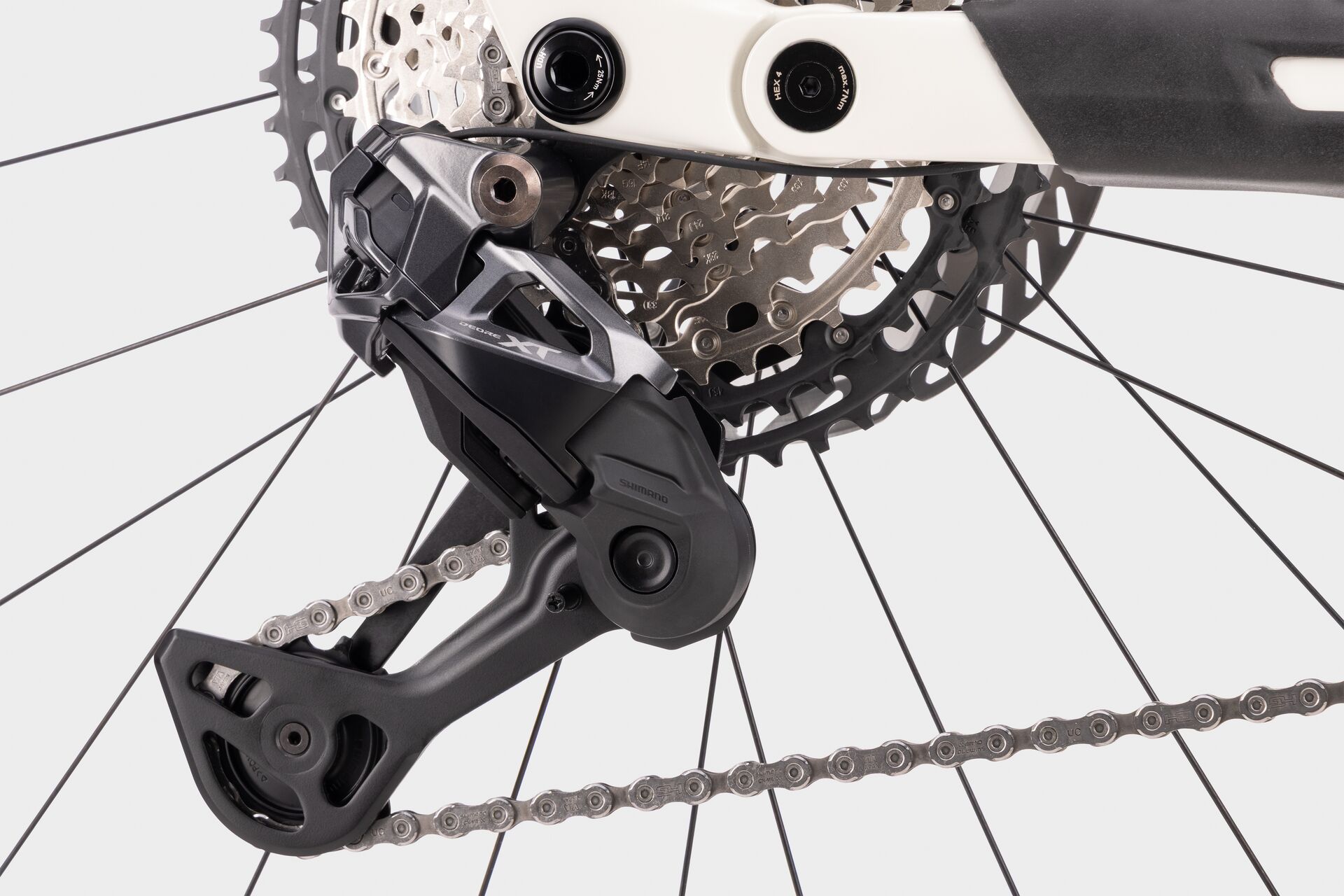

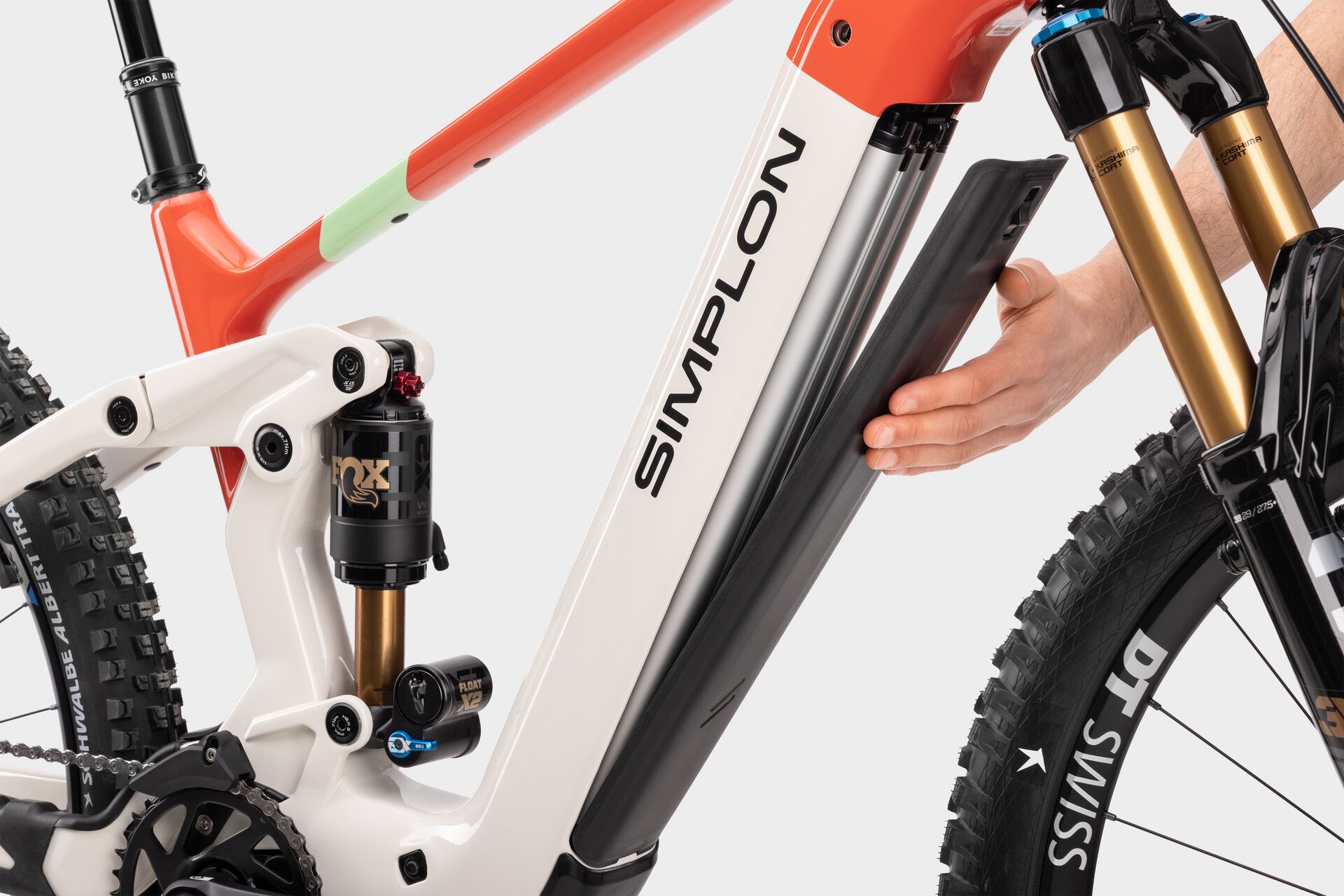

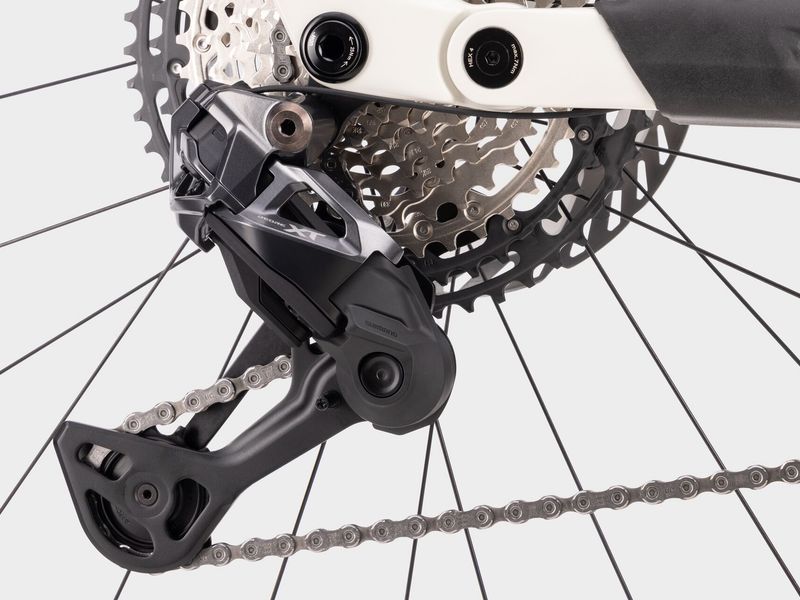

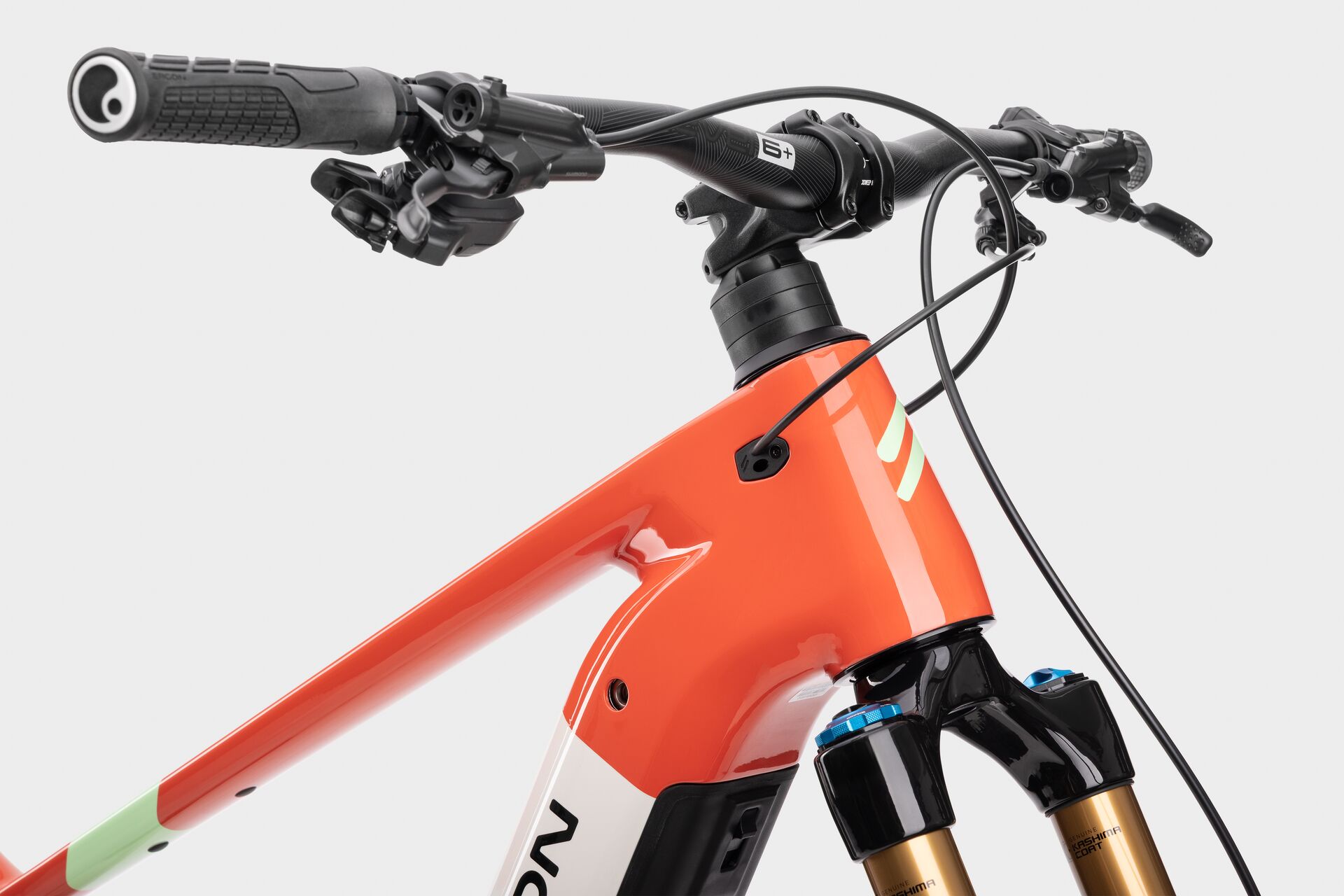

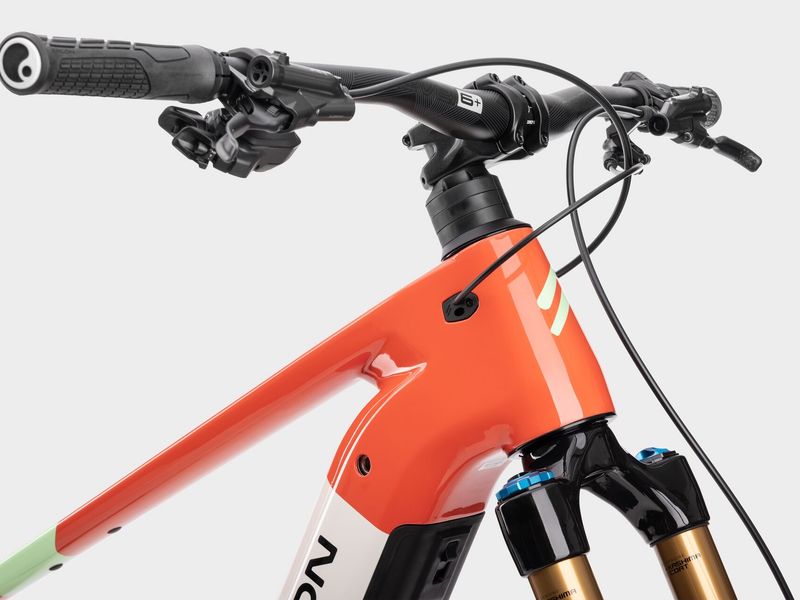

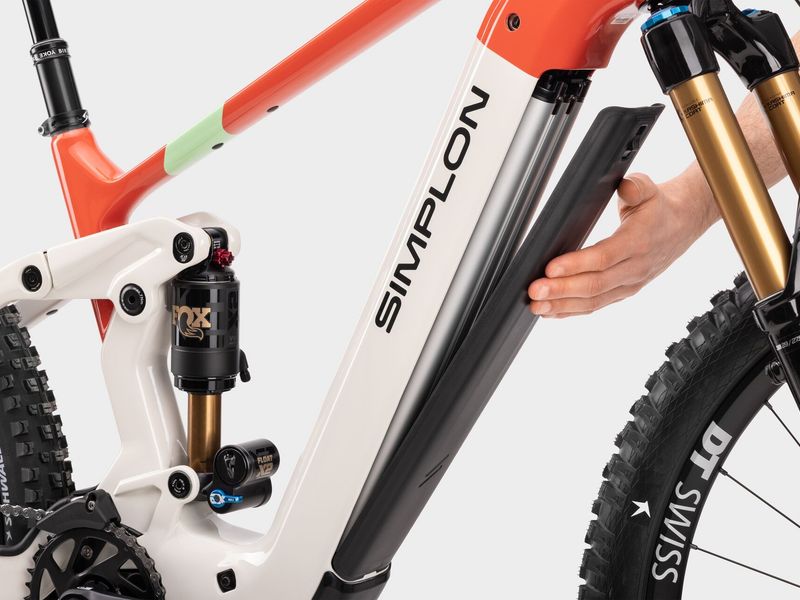

All Core Selection builds use the Bosch Performance Line CX Gen5 (85 Nm, up to 120 Nm via the eBike Flow app) with a 600 or 800 Wh battery removable through a battery hatch; a 250 Wh range extender is optional. Cables run externally for easier servicing, and the Ultimate+ build gets Shimano XT Di2 with Bosch eShift.
- 160 mm travel front and rear, 29"
- Bosch Performance Line CX Gen5
- 600 or 800 Wh, removable via hatch
- 150 kg system weight rating
Gallery
Photos: Simplon
Full specifications
Frame & suspension
- Headset
- Acros AZA-639
- Fork
- Rock Shox Zeb Base 160mm
- Frame
- RAPCON :e, carbon
- Rear shock
- Rockshox Super Deluxe | 230x62,5 | 160mm
E-system
- Battery
- Bosch Powertube 600 Wh
- Motor
- Bosch Performance Line CX BDU 38
- Display

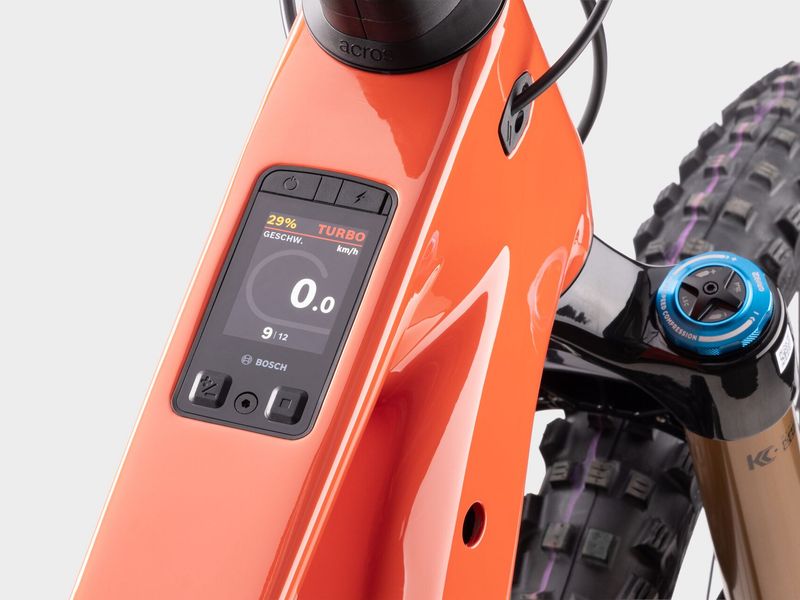

- Bosch System controller+mini remote
Drivetrain
- Crankset
- FSA CK-745 alloy | 160mm
- Rear derailleur
- Sram Eagle 70 transmission
Brakes
- Brakes
- Magura Louise Elite, 4/4 pistons, 203mm, 203mm
Wheels & tyres
- Tyres
- Schwalbe | MagicMary/Albert black | Evo | Trail Pro | 63-622
- Wheelset
- DT Swiss | Hybrid LN | IW:30
Cockpit
- Spacers
- 30mm Spacers Alloy
- Handlebar
- Simplon Riser BAR | AL | R.15 | 800 mm
- Stem
- Simplon Zero III 45mm x 0°
- Grips
- Ergon GE10 EVO
- Saddle
- Selle Italia X-BOW 145 boost | manganese rail
- Seatpost

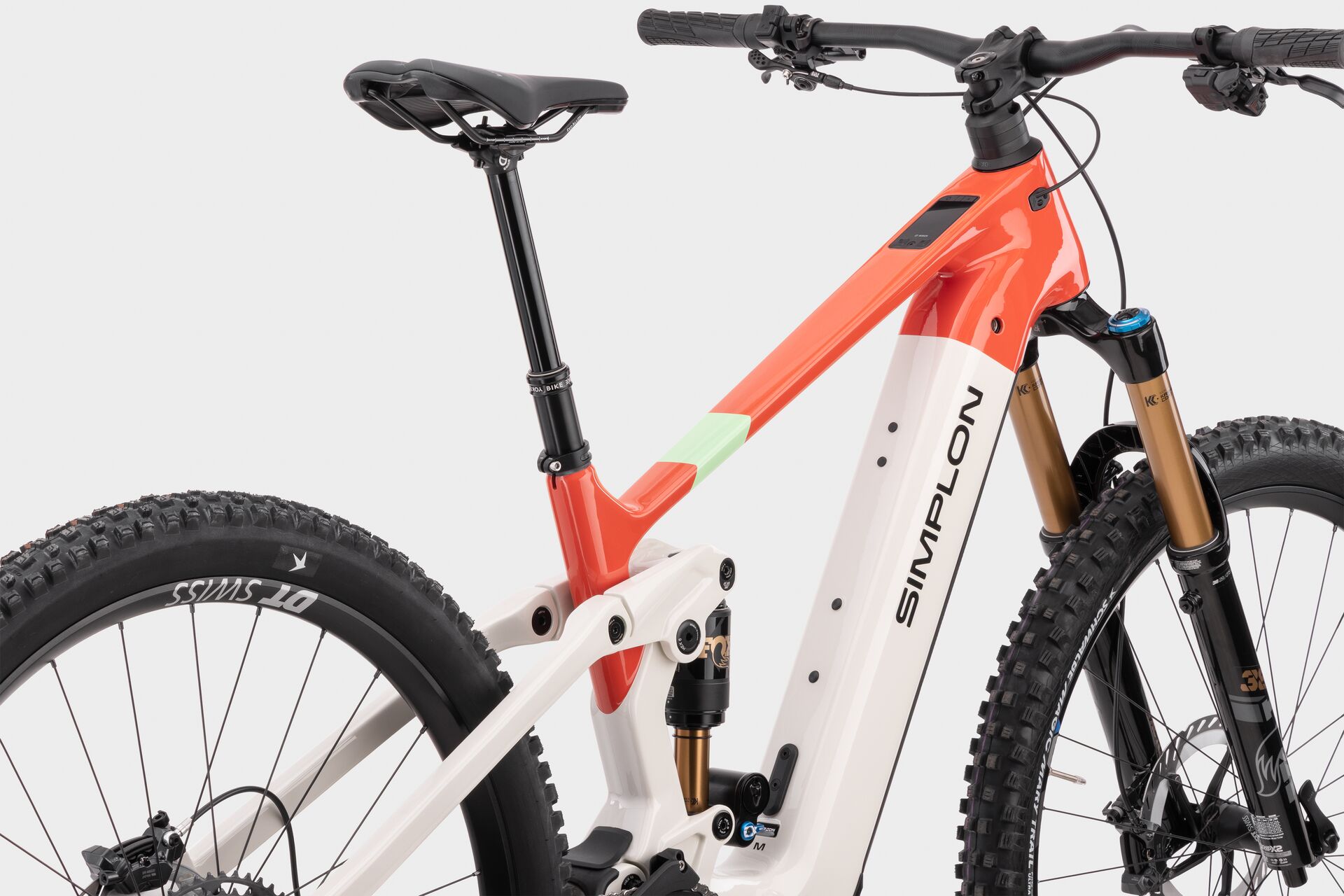

- BikeYoke Divine | 31.6 | 160 mm
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Rapcon :e geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 400 mm | 420 mm | 440 mm | 460 mm |
| BTop tube (horizontal) | 573 mm | 597 mm | 618 mm | 640 mm |
| CHead tube angle | 64° | 64° | 64° | 64° |
| DSeat tube angle (effective) | 77.5° | 77.5° | 77.5° | 77.5° |
| D1Seat tube angle (actual) | 72.3° | 72.3° | 72.3° | 72.3° |
| D2Saddle rail height (reference) | 665 mm | 705 mm | 750 mm | 795 mm |
| EHead tube length | 116 mm | 129 mm | 136 mm | 146 mm |
| FChainstay length | 445 mm | 445 mm | 450 mm | 455 mm |
| GWheelbase | 1231 mm | 1253 mm | 1281 mm | 1311 mm |
| HBottom bracket drop | 25 mm | 25 mm | 25 mm | 25 mm |
| IFork length | 576 mm | 576 mm | 576 mm | 576 mm |
| KFork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| MStandover | 749 mm | 761 mm | 761 mm | 753 mm |
| RReach | 438 mm | 460 mm | 480 mm | 500 mm |
| SStack | 627 mm | 638 mm | 646 mm | 655 mm |
| STRStack to reach | 1.43 | 1.39 | 1.35 | 1.31 |
| HtRider height | 155-174 cm | 170-184 cm | 180-194 cm | 190-200 cm |
| ISInseam | 75-83 cm | 78-87 cm | 81-91 cm | 86-99 cm |
Source: Simplon. Rider height and inseam in cm.
Rapcon :e: builds compared
Rapcon :e range →| Rapcon :e Core | Rapcon :e Core+ | Rapcon :e Expert+ | Rapcon :e Ultimate+ | |
|---|---|---|---|---|
| Price | €6,999 | €7,279 | €8,279 | €9,779 |
| Frame | Carbon | Carbon | Carbon | Carbon |
| Fork | Rock Shox Zeb Base 160mm | Rock Shox Zeb Base 160mm | Rock Shox Zeb Select Plus 160mm | FOX 38 FLOAT Factory | Grip X2 | HSC, LSC |
| Shock | Rockshox Super Deluxe | 230x62,5 | 160mm | Rockshox Super Deluxe | 230x62,5 | 160mm | Rock Shox Super Deluxe select plus | FOX Float X2 Factory | 2 Pos Adjust | 205x62,5 | 160mm |
| Derailleur | Sram Eagle 70 transmission | Sram Eagle 70 transmission | Sram Eagle 90 transmission | Shimano Deore XT M8200 Di2 | 1x12 |
| Brakes | Magura Louise Elite | Magura Louise Elite | Magura Louise Elite | Shimano BR-M8220 |
| Display | Bosch System controller+mini remote | Bosch System controller+mini remote | Bosch Kiox 400 C | mini remote | Bosch Kiox 400 C | mini remote |
| Weight | 23.5 kg | 24.4 kg | 24.2 kg | 24.6 kg |
Rapcon :e Core: FAQ
How much does the Simplon Rapcon :e Core cost?
€6,999 (RRP Germany (EUR), VAT incl.; Simplon Core Selection fixed price). The Rapcon :e range runs from €6,999 (Rapcon :e Core) to €9,779 (Rapcon :e Ultimate+). Prices vary by country and dealer.
How much does the Simplon Rapcon :e Core weigh?
Simplon quotes 23.5 kg. It is the lightest build of the Rapcon :e.
What motor and battery does the Simplon Rapcon :e Core have?
Bosch Performance Line CX Gen5 (85 Nm (up to 120 Nm via eBike Flow app)). 600 Wh battery — bosch PowerTube, removable; 250 Wh range extender optional.
How much suspension travel does the Simplon Rapcon :e Core have?
160 mm at the fork and 160 mm at the rear, on 29" wheels.
What sizes does the Simplon Rapcon :e Core come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Rapcon :e Core and the Rapcon :e Core+?
They share the Rapcon :e frame platform and motor; the differences are in the parts — claimed weight: 23.5 kg vs 24.4 kg; price: €6,999 vs €7,279.
