SimplonRapcon AL:e Core
- Motor
- Bosch Performance Line PX Gen585 Nm (90 Nm via eBike Flow app)
- Battery
- 600 WhBosch PowerTube, removable; 250 Wh range extender optional
- Travel F / R
- 160 / 160 mm
- Wheels
- 29"
- Frame
- Alloy
- Weight
- 26.6 kgManufacturer figure (size M, Core Selection spec sheet)
Overview

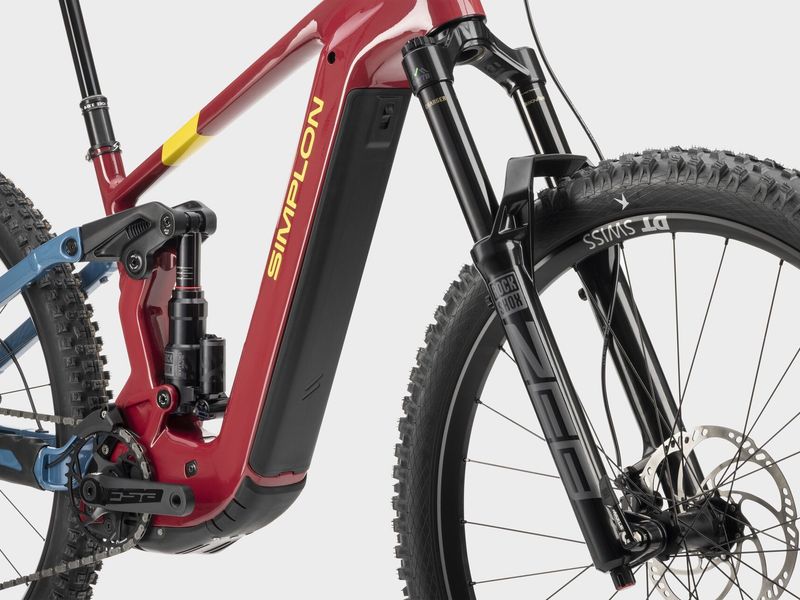

The Simplon Rapcon AL:e Core (€5,614) is the entry build of the Rapcon AL:e: Bosch Performance Line PX Gen5 (85 Nm) with 600 Wh, RockShox Zeb Base fork, RockShox Super Deluxe shock, SRAM Eagle 70 transmission and Magura Louise Elite brakes. Claimed weight is 26.6 kg.

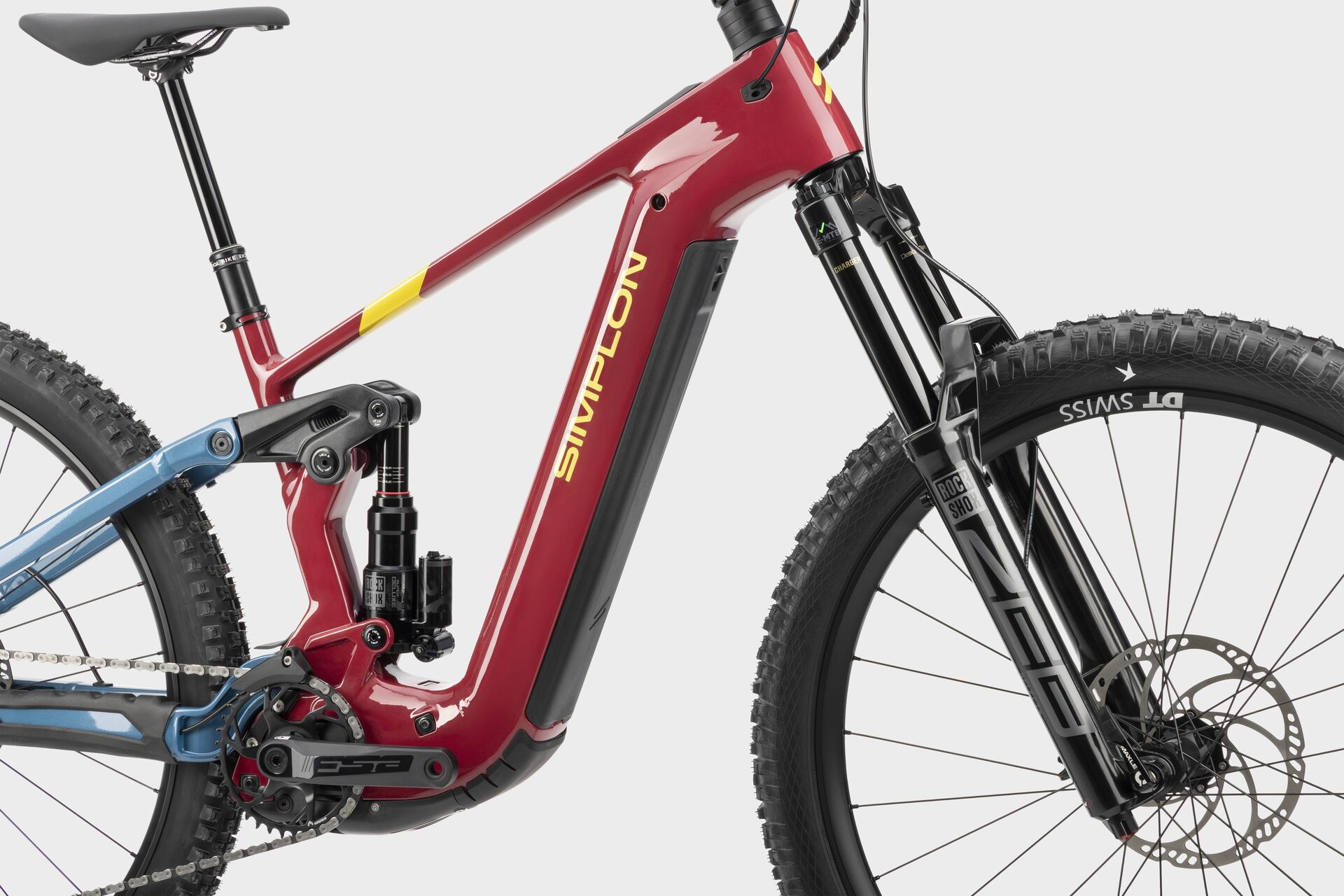

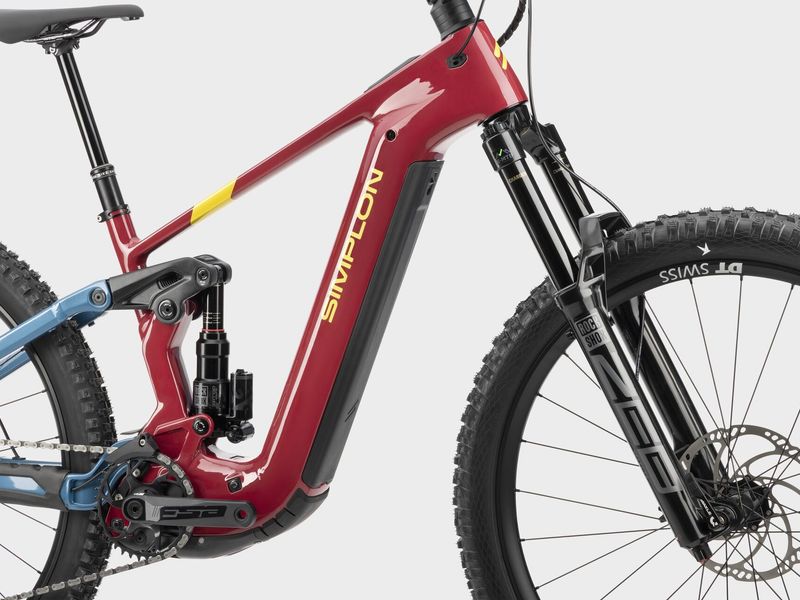

The Rapcon AL:e is the aluminium sibling of the Rapcon :e: a 160/160 mm e-enduro bike whose three-piece main frame is gravity-cast, with a 64° head angle, a 77.5° effective seat angle, 29-inch wheels and a mullet option via flip chip. It is rated for a 150 kg system weight.

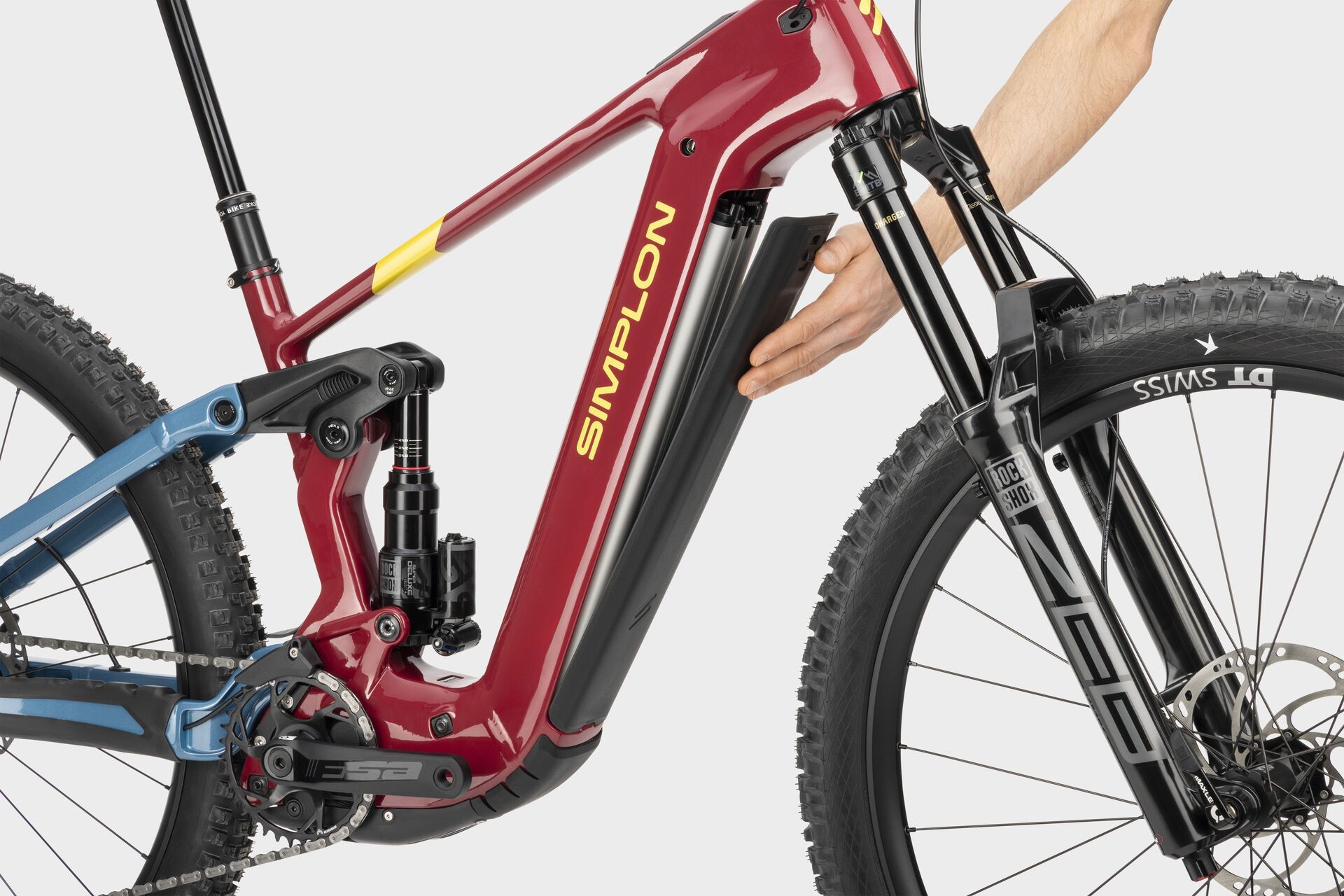

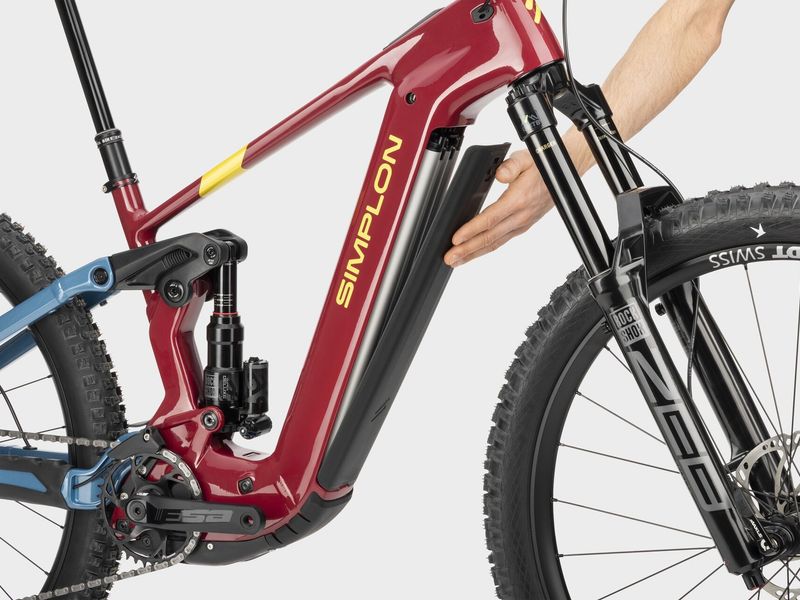

The Core build uses the Bosch Performance Line PX Gen5 with a 600 Wh battery; Core+ and Expert step up to the Performance Line CX Gen5 and 800 Wh. The battery comes out through a hatch, and a 250 Wh range extender fits every frame size.
- Gravity-cast aluminium main frame
- 160 mm travel, 64° head angle
- Bosch CX or PX Gen5, 600/800 Wh
- Mullet option via flip chip
Gallery
Photos: Simplon
Full specifications
Frame & suspension
- Fork
- Rock Shox Zeb Base 160mm
- Rear shock
- Rockshox Super Deluxe | 230x62,5 | 160mm
- Frame
- RAPCON AL :e, alloy
- Headset
- Acros AZA-639
E-system
- Battery
- Bosch Powertube 600 Wh
- Display

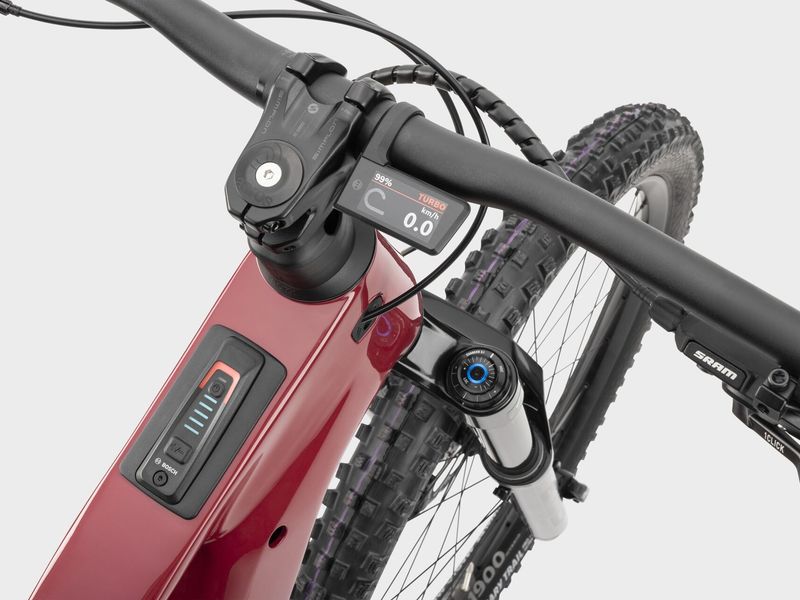

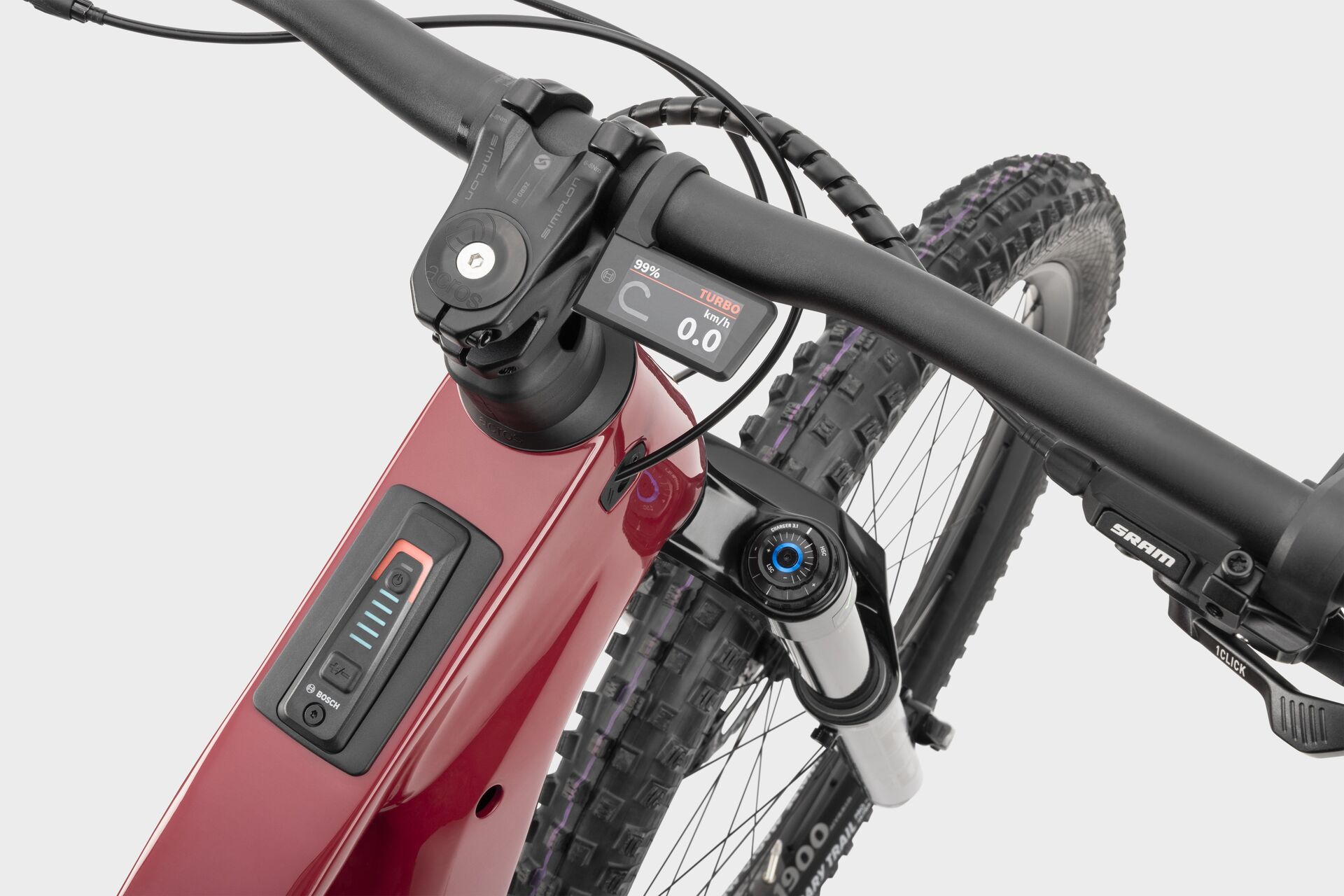

- Bosch Purion 400 | System Controller | mini remote
- Motor
- Bosch Performance Line PX BDU3470
Drivetrain
- Crankset
- FSA CK-745 alloy | 160mm
- Rear derailleur
- Sram Eagle 70 transmission
Brakes
- Brakes
- Magura Louise Elite, 4/4 pistons, 203mm, 203mm
Wheels & tyres
- Tyres
- Schwalbe | MagicMary/Albert black | Evo | Trail Pro | 63-622
- Wheelset
- DT Swiss | Hybrid LN | IW:30
Cockpit
- Spacers
- 30mm Spacers Alloy
- Handlebar
- Simplon Riser BAR | AL | R.15 | 800 mm
- Stem
- Simplon Zero III 45mm x 0°
- Grips
- Ergon GE10 EVO
- Saddle
- Selle Italia X-BOW 145 boost | manganese rail
- Seatpost
- BikeYoke Divine | 31.6 | 160 mm
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Rapcon AL:e geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 400 mm | 420 mm | 440 mm | 460 mm |
| BTop tube (horizontal) | 573 mm | 598 mm | 619 mm | 644 mm |
| CHead tube angle | 64° | 64° | 64° | 64° |
| DSeat tube angle (effective) | 77.5° | 77.5° | 77.5° | 77.5° |
| D1Seat tube angle (actual) | 72.2° | 72.2° | 72.2° | 72.2° |
| D2Saddle rail height (reference) | 665 mm | 705 mm | 750 mm | 795 mm |
| EHead tube length | 116 mm | 129 mm | 136 mm | 146 mm |
| FChainstay length | 446 mm | 446 mm | 446 mm | 446 mm |
| GWheelbase | 1232 mm | 1264 mm | 1276 mm | 1301 mm |
| HBottom bracket drop | 25 mm | 25 mm | 25 mm | 25 mm |
| IFork length | 576 mm | 576 mm | 576 mm | 576 mm |
| KFork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| MStandover | 749 mm | 761 mm | 761 mm | 753 mm |
| RReach | 438 mm | 460 mm | 480 mm | 500 mm |
| SStack | 627 mm | 638 mm | 646 mm | 655 mm |
| STRStack to reach | 1.43 | 1.39 | 1.35 | 1.31 |
| HtRider height | 155-174 cm | 170-184 cm | 180-194 cm | 190-200 cm |
| ISInseam | 75-83 cm | 78-87 cm | 81-91 cm | 86-99 cm |
Source: Simplon. Rider height and inseam in cm.
Rapcon AL:e: builds compared
Rapcon AL:e range →| Rapcon AL:e Core | Rapcon AL:e Core+ | Rapcon AL:e Expert | |
|---|---|---|---|
| Price | €5,614 | €6,094 | €7,279 |
| Frame | Alloy | Alloy | Alloy |
| Fork | Rock Shox Zeb Base 160mm | Rock Shox Zeb Base 160mm | Rock Shox Zeb Select Plus 160mm |
| Shock | Rockshox Super Deluxe | 230x62,5 | 160mm | Rockshox Super Deluxe | 230x62,5 | 160mm | Rockshox Super Deluxe Select+ | 230x62,5 | 160mm |
| Derailleur | Sram Eagle 70 transmission | Sram Eagle 70 transmission | Sram Eagle 90 transmission |
| Brakes | Magura Louise Elite | Magura Louise Elite | Magura Louise Elite |
| Display | Bosch Purion 400 | System Controller | mini remote | Bosch Purion 400 | System Controller | mini remote | Bosch Purion 400 | System Controller | mini remote |
| Weight | 26.6 kg | 27.4 kg | 27.1 kg |
Rapcon AL:e Core: FAQ
How much does the Simplon Rapcon AL:e Core cost?
€5,614 (RRP Germany (EUR), VAT incl.; Simplon Core Selection fixed price). The Rapcon AL:e range runs from €5,614 (Rapcon AL:e Core) to €7,279 (Rapcon AL:e Expert). Prices vary by country and dealer.
How much does the Simplon Rapcon AL:e Core weigh?
Simplon quotes 26.6 kg. It is the lightest build of the Rapcon AL:e.
What motor and battery does the Simplon Rapcon AL:e Core have?
Bosch Performance Line PX Gen5 (85 Nm (90 Nm via eBike Flow app)). 600 Wh battery — bosch PowerTube, removable; 250 Wh range extender optional.
How much suspension travel does the Simplon Rapcon AL:e Core have?
160 mm at the fork and 160 mm at the rear, on 29" wheels.
What sizes does the Simplon Rapcon AL:e Core come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Rapcon AL:e Core and the Rapcon AL:e Core+?
They share the Rapcon AL:e frame platform; the differences are in the parts — claimed weight: 26.6 kg vs 27.4 kg; price: €5,614 vs €6,094.
