ScottPatron ST eRIDE
- Price
- £6,199 – £9,399
- Motor
- Bosch Performance Line CXUp to 120 Nm
- Battery
- 800 WhPowerTube
- Travel F / R
- 170 / 150 mm
- Wheels
- 29"
- Weight
- 24.1 kg – 25.3 kg
Overview
The Patron ST eRIDE is the gravity-oriented Patron: the same 150 mm Integrated Suspension Technology rear end and 800 Wh PowerTube, but with a 170 mm fork and slacker geometry (64.9° head angle).

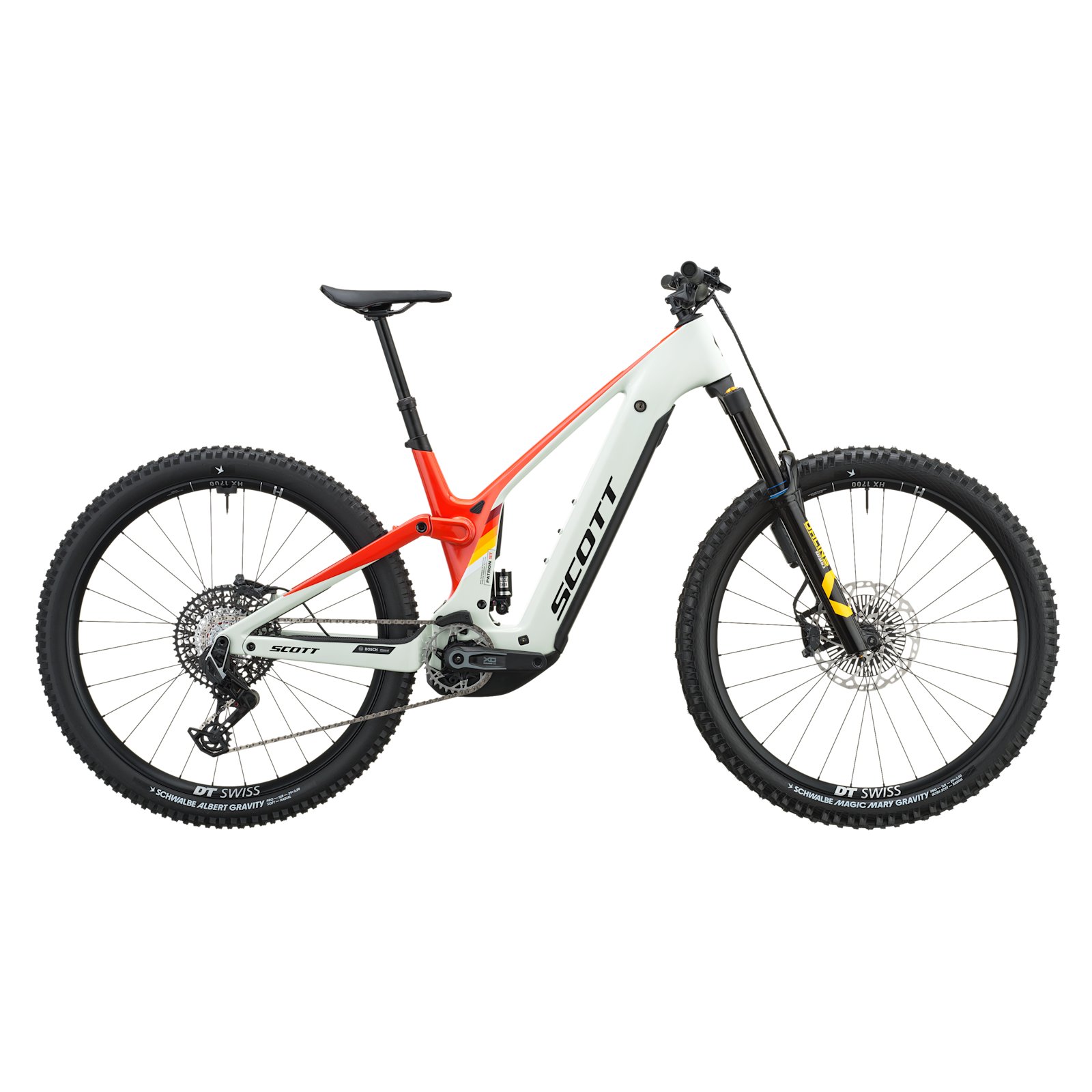

The Tuned build gets a full-carbon frame, Bosch's CX-R motor, Öhlins suspension and ABS Pro brakes; the ST 10 uses the carbon/alloy frame with RockShox suspension.
- 170 mm fork / 150 mm rear
- Bosch CX or CX-R, 800 Wh
- 64.9° head angle
- Öhlins and ABS Pro on the Tuned
Scott Patron ST eRIDE builds
Patron ST eRIDE builds compared
| Patron ST eRIDE 10 | Patron ST eRIDE Tuned | |
|---|---|---|
| Price | £6,199 | £9,399 |
| Frame | Carbon main frame, alloy rear | Carbon |
| Fork | RockShox ZEB, E-Bike | Öhlins RXF38 M.3 Air, TTX-Technology |
| Shock | RockShox SuperDeluxe | RockShox SuperDeluxe Ultimate |
| Derailleur | SRAM Eagle 70 Transmission | SRAM X0 Eagle AXS Transmission 12 Speed |
| Brakes | SRAM Maven Base 4-Piston | Shimano XT BR-M8220 ABS Pro 4-Piston |
| Wheels | Alex Rims MD30 Disc 29" 32H, Black | — |
| Display | Bosch System Controller | Bosch Kiox 400C |
| Weight | 25.3 kg | 24.1 kg |
Patron ST eRIDE geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| AHead tube angle | 64.9° | 64.9° | 64.9° | 64.9° |
| BHead tube length | 120 mm | 125 mm | 135 mm | 145 mm |
| CTop tube horizontal | 582.4 mm | 607.9 mm | 629.7 mm | 660.2 mm |
| DStandover height | 719 mm | 719 mm | 729 mm | 732 mm |
| EBB offset | -28.4 mm | -28.4 mm | -28.4 mm | -28.5 mm |
| FBB height | 348.6 mm | 348.6 mm | 348.6 mm | 348.5 mm |
| GWheel base | 1222.3 mm | 1244.5 mm | 1274.2 mm | 1308 mm |
| IBB center to top of seattube | 405 mm | 435 mm | 470 mm | 500 mm |
| JSeat angle | 76.4° | 76.3° | 76.3° | 76.3° |
| KChainstay | 454 mm | 454 mm | 454 mm | 454 mm |
| LReach | 428.3 mm | 448.3 mm | 473.9 mm | 503.4 mm |
| MStack | 650.5 mm | 655 mm | 664.2 mm | 673.3 mm |
| NStem Length | 50 mm | 50 mm | 50 mm | 50 mm |
| OTrail | 127.9 mm | 127.9 mm | 127.9 mm | 127.9 mm |
| PFork length | 584 mm | 584 mm | 584 mm | 584 mm |
| QMaximum Seatpost Insertion | 200 mm | 230 mm | 265 mm | 295 mm |
Source: Scott.
Scott Patron ST eRIDE: FAQ
How much does the Scott Patron ST eRIDE cost?
£6,199 – £9,399 depending on the build (Patron ST eRIDE 10 £6,199, Patron ST eRIDE Tuned £9,399); UK RRP, VAT incl..
How many Scott Patron ST eRIDE builds are there?
2: Patron ST eRIDE 10, Patron ST eRIDE Tuned. They share the frame platform and differ mainly in suspension, drivetrain, wheels and weight.
How much does the Scott Patron ST eRIDE weigh?
Claimed weights range from 24.1 kg (Patron ST eRIDE Tuned) to 25.3 kg (Patron ST eRIDE 10).
What motor and battery does the Scott Patron ST eRIDE use?
Bosch Performance Line CX (Up to 120 Nm) with a 800 Wh battery (powertube).
How much travel does the Scott Patron ST eRIDE have?
170 mm fork and 150 mm rear travel on 29" wheels.
