SRAMXX Eagle AXS Transmission
No EUR/GBP price on sram.com; US MSRP $2299 - $2499
- Speeds
- 12 (1x)
- Range
- 10–52T (XS 1297 T-TYPE 10-52)
- Shifting
- Wireless AXS (Pod Ultimate Concave)
- Crank arms
- 165mm, 170mm, 175mm
- Chainring
- 32T DM
Overview
SRAM XX Eagle AXS Transmission is the lightweight-yet-robust wireless 12-speed T-Type groupset with 10–52T range and optional power meter (US MSRP $2299–2499).
Eagle Transmission is SRAM's T-Type 12-speed 1x system: Full Mount derailleurs bolt directly around the rear axle with no hanger, and cassette mapping plus X-Sync tooth profiles give, per SRAM, the best shift under load – even with the added power of E-MTB. All T-Type components can be mixed and matched.

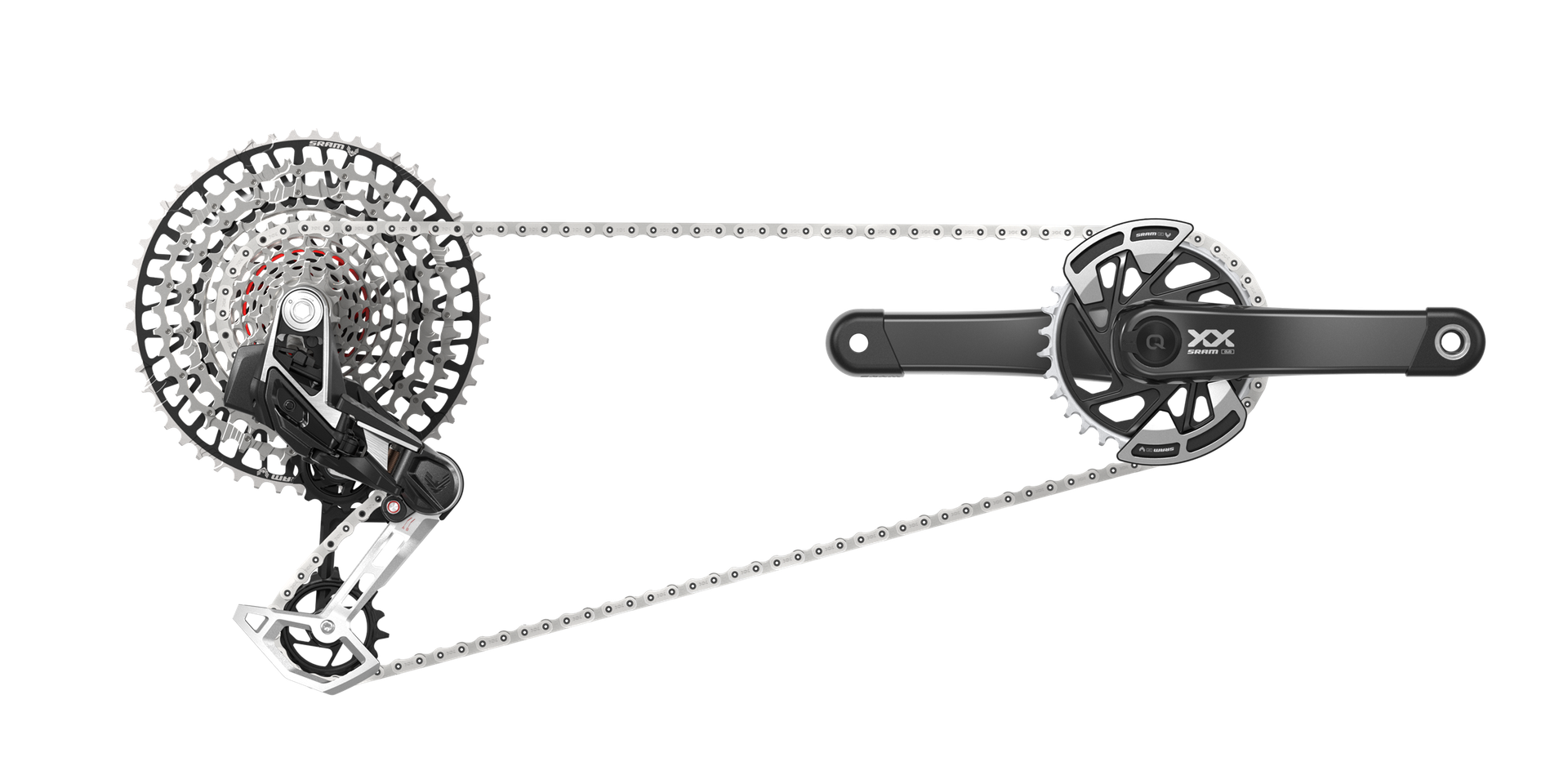

The XX T-Type AXS Transmission groupset balances robustness and weight savings to handle big enduro days. It combines the XX derailleur, XS-1297 10–52T cassette, XX DUB cranks with T-Type rings (power-meter version available), XX Flattop chain and Pod Ultimate controller.

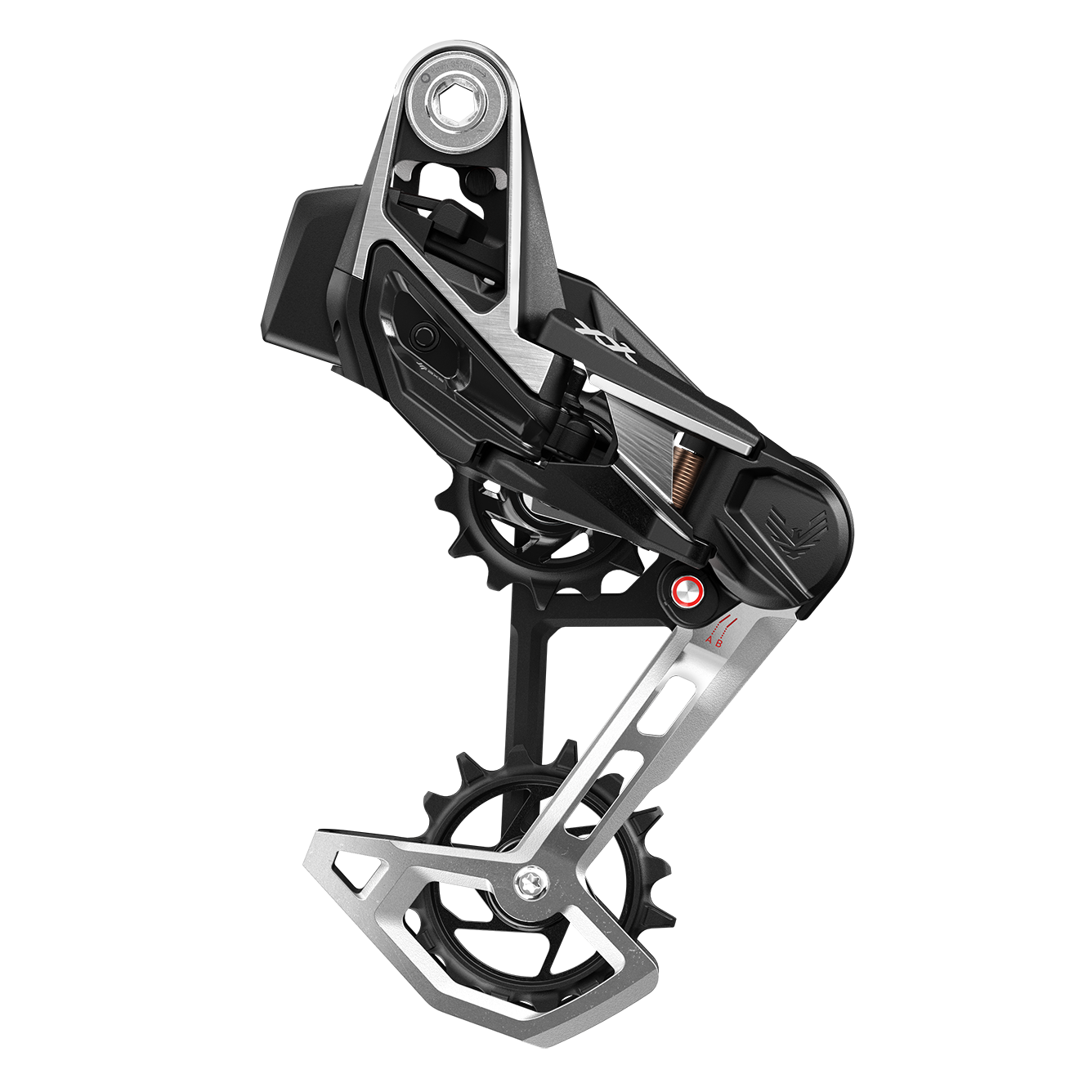

- Full Mount hangerless XX derailleur
- 10–52T XS-1297 cassette
- XX DUB crankset, power meter variant available
- Pod Ultimate "click and fire" controller
- Bashguard compatible
Gallery
Full specifications
Groupset
- Rear Derailleur
- XX EAGLE AXS T-TYPE
- Shifter Right
- POD ULTIMATE CONCAVE
- Crank
- XX EAGLE, XX EAGLE POWER
- Crank arm length
- 165mm, 170mm, 175mm
- Chainring
- 32T DM
- Guard Included
- Yes - 2 guards
- Chain
- XX T-TYPE 126
- Cassette
- XS 1297 T-TYPE 10-52
- Battery Included
- Yes - 1
- Charger Included
- Yes
Rear derailleur
- Speed (RD)
- 12
- Max tooth
- 52
- Color (RD)
- Silver
- Cage material (RD)
- Aluminum
- Drivetrain Configuration
- 1x
- RD Minimum (Cassette)
- 52
- Communication Protocol
- AXS
- Shift Technology
- Wireless
- Chain Technology
- T-Type
- Weight (g)
- 450
Features
- Feature
- Available with 165/170/175mm crankarm and 32T chainring
- Feature
- Bashguard compatible
- Feature
- XX T-Type Eagle Transmission derailleur
- Feature
- 10-52T XX Eagle Transmission cassette
- Feature
- XX Transmission Flattop chain
- Feature
- Pod Ultimate controller
- Feature
- Power meter Variant available
- Feature
- AXS battery/charger
Manufacturer specification — SRAM. Specs and prices can change; check with the brand or your dealer.
SRAM Eagle Transmission versions compared
| XX Eagle AXS Transmission | X0 Eagle AXS Transmission | GX Eagle AXS Transmission | S1000 Eagle Transmission | Eagle 90 Transmission | Eagle 70 Transmission | |
|---|---|---|---|---|---|---|
| Price | — | €1,900 | — | — | — | — |
| Speeds | 12 (1x) | 12 (1x) | 12 (1x) | 12 (1x) | 12 (1x) | 12 (1x) |
| Range | 10–52T (XS 1297 T-TYPE 10-52) | 10–52T (XS 1295 T-TYPE 10-52) | 10–52T (XS 1275 T-TYPE 10-52) | — | — | — |
| Shifting | Wireless AXS (Pod Ultimate Concave) | Wireless AXS (Pod Ultimate Concave) | Wireless AXS (Pod) | Wireless AXS | Mechanical (cable) | Mechanical (cable) |
| Crank arms | 165mm, 170mm, 175mm | 165mm, 170mm, 175mm | 165mm, 170mm, 175mm | — | 155–175 mm | — |
| Chainring | 32T DM | 32T DM | 32T DM | — | — | — |
| Max cog | — | — | — | 52T | — | — |
| Mount | — | — | — | Full Mount (hangerless) | Full Mount (hangerless) | Full Mount (hangerless) |
| Cassette | — | — | — | — | — | XS-1270, replaceable 5-gear cluster |
| Weight | — | — | — | — | — | — |
| E-bike rated | — | Yes | Yes | Yes | Yes | Yes |
eMTBs that come with the SRAM Eagle Transmission
SRAM XX Eagle AXS Transmission: FAQ
Is the SRAM XX Eagle AXS Transmission suitable for e-bikes?
SRAM does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the SRAM XX Eagle AXS Transmission?
Speeds: 12 (1x); Range: 10–52T (XS 1297 T-TYPE 10-52); Shifting: Wireless AXS (Pod Ultimate Concave); Crank arms: 165mm, 170mm, 175mm; Chainring: 32T DM.
What other versions of the SRAM Eagle Transmission are there?
X0 Eagle AXS Transmission (€1,900), GX Eagle AXS Transmission, S1000 Eagle Transmission, Eagle 90 Transmission, Eagle 70 Transmission.
