GiantTrance Advanced E+ 1
- Motor
- Giant SyncDrive Pro 4120 Nm; 850 W peak
- Battery
- 840 WhEnergyPak
- Travel F / R
- 160 / 150 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
Overview
The Giant Trance Advanced E+ 1 (£6,999) is a mid-range build of the Trance Advanced E+: Giant SyncDrive Pro 4 (120 Nm) with 840 Wh, Fox 36 Performance fork, Fox Float X shock, SRAM GX AXS and TRP EVO Expert brakes.

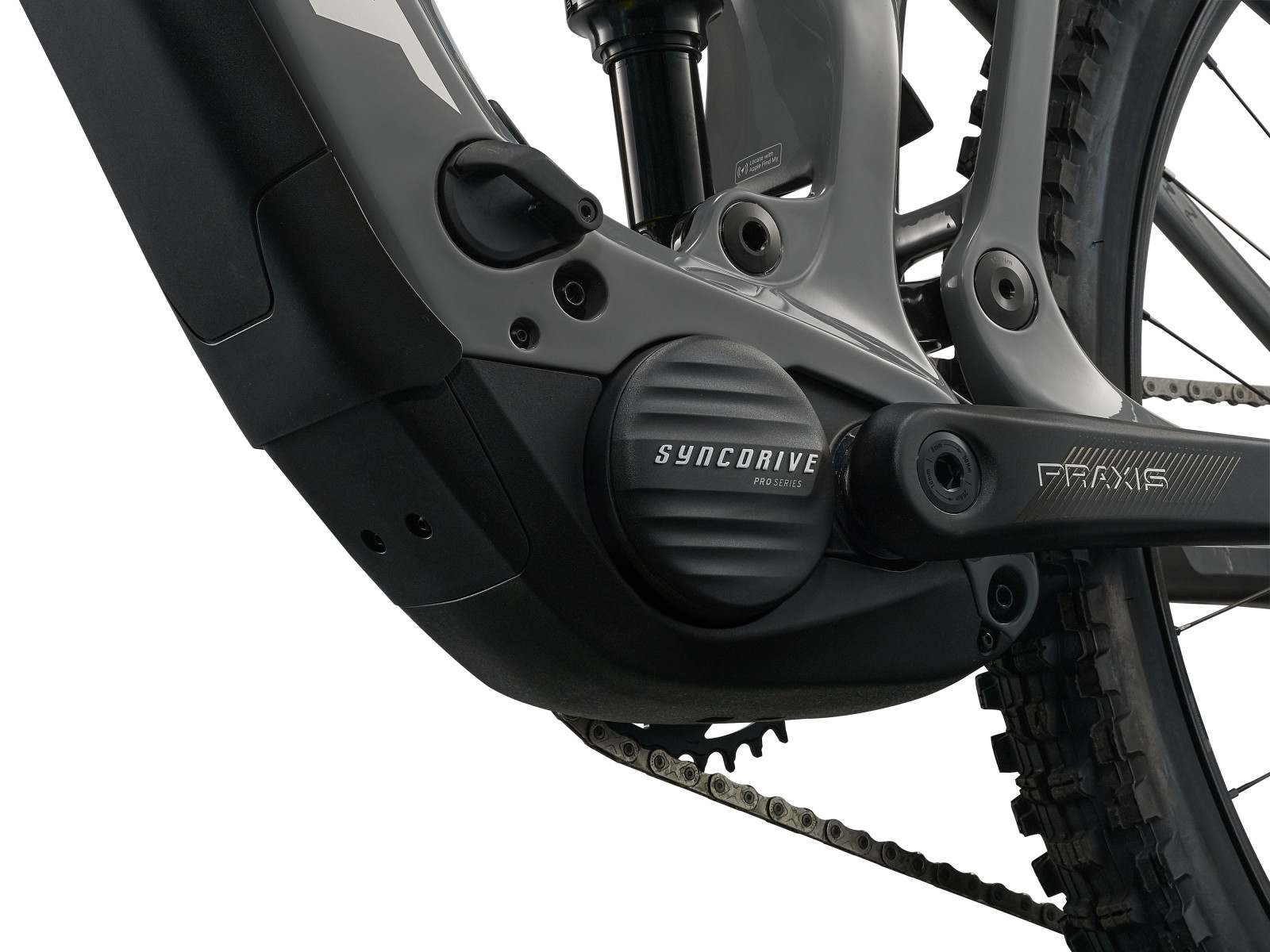

The 2027 Trance Advanced E+ is Giant's all-new carbon trail e-MTB, built around the in-house SyncDrive Pro 4 motor: 48 V, 120 Nm and 850 W peak power in a 2.4 kg unit, fed by an integrated 840 Wh EnergyPak.
It pairs 150 mm of Maestro rear travel with a 160 mm fork, mixed wheels (29-inch front, 27.5-inch rear) and a three-position flip chip. Giant quotes 21.9 kg for the top Trance Advanced E+ 0.
- SyncDrive Pro 4: 120 Nm, 850 W peak
- 840 Wh integrated battery
- 150 mm rear / 160 mm fork, mixed wheels
- 3-position flip chip
Gallery
Photos: Giant
Full specifications
Frame & suspension
- Sizes
- S/M/L/XL
- Colours
- Gloss Tactical Grey/Black or Gloss Dusted Peri/Morning Mist
- Frame
- Advanced SL-grade composite frame, Advanced forged composite upper rocker, 150mm Maestro suspension system, 3-position Flip-Chip adjustable geometry, 148mm Boost hub spacing, ZS66/ZS66 Headset compatible
- Fork
- Fox 36 Performance, 160mm travel, Grip damper
- Rear shock
- Fox Float X, Performance 2-position, 185x55mm Custom Tuned. Recommended sag: 30%
E-system
- Motor
- SyncDrive Pro4, 120Nm, 48V, 850W Peak Power
- Controller
- RideControl Ergo 5 wireless Integrated E+ System & seatpost remote
- Display
- RideControl GO Lux
- Battery
- EnergyPak 840Wh, 48V
- Charger
- 48V 4A Smart Charger X
Drivetrain
- Shifters
- Sram AXS Pod Rocker, discrete clamp
- Rear derailleur
- SRAM GX AXS
- Cassette
- SRAM Eagle Transmission, XS-1270, 10-52T, 12-speed
- Chain
- KMC eFlatHT, high-torque e-bike optimized flat-top chain 12-speed
- Crankset
- Praxis TYPE-2 alloy, SRAM Eagle Transmission 104BCD 36T
Brakes
- Brakes
- TRP EVO Expert, hydraulic disc, 4-piston, 220mm [F] 203mm [R]
- Brake levers
- TRP EVO Expert
Wheels & tyres
- Rims
- Giant TRA HD, Alloy, 30mm inner width, WideGuard Technology
- Hubs
- Giant TRA HD, E-Drive 350Nm, Titanium ratchet system, 72T engagement, 15x110mm [F] 12x148mm [R], e-bike optimized
- Spokes
- Giant TRA HD, Dynamic Balanced Lacing (D.B.L.)
- Tyres
- Maxxis Assagai 29X2.50" Foldable, TLR, EXO+, 3C Maxx Grip [F] Maxxis Minion DHR II 27.5x2.4" Foldable, TLR, EXO+, MaxxTerra [R]
Cockpit
- Handlebar
- Giant Contact SL Trail integrated, 27mm rise, Up: 5⁰ Back: 8⁰, 800mm
- Grips
- Giant Tactal Pro
- Stem
- Giant Contact SL Trail integrated, 40mm
- Seatpost
- Giant Contact Switch E+, 30.9mm electronic travel-adjust dropper post, (S:140, M-L:170, XL:200)
- Saddle
- Giant Romero SL HD
- Pedals
- PEDALS NOT SUPPLIED
Other
- Extras
- Giant Aegis Tire Checker, included tire pressure management system (TPMS) Tubeless kit (liquid, valves, levers, manual, tool)
- Chainguard
- Co-molded guide 32-36T adjustable
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Trance Advanced E+ geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat Tube Length | 400 mm | 425 mm | 450 mm | 475 mm |
| A1Seat Post Insertion Depth | 245 mm | 270 mm | 295 mm | 310 mm |
| BSeat Tube Angle | 76.6° / 77.0° / 77.4° | 76.6° / 77.0° / 77.4° | 76.6° / 77.0° / 77.4° | 76.6° / 77.0° / 77.4° |
| CTop Tube Length | 568 / 567 / 566 mm | 605 / 604 / 603 mm | 630 / 629 / 628 mm | 662 / 661 / 660 mm |
| DHead Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| EHead Tube Angle | 64.1° / 64.5° / 64.9° | 64.1° / 64.5° / 64.9° | 64.1° / 64.5° / 64.9° | 64.1° / 64.5° / 64.9° |
| FFork Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| GTrail | 135.9 mm | 135.9 mm | 135.9 mm | 135.9 mm |
| HWheelbase | 1200 / 1199 / 1197 mm | 1239 / 1237 / 1236 mm | 1267 / 1265 / 1264 mm | 1300 / 1299 / 1298 mm |
| IChain Stay Length | 443 / 443 / 443 mm | 443 / 443 / 443 mm | 443 / 443 / 443 mm | 443 / 443 / 443 mm |
| JBottom Bracket Drop | 17 / 12 / 7 mm | 17 / 12 / 7 mm | 17 / 12 / 7 mm | 17 / 12 / 7 mm |
| KStack | 634 / 631 / 629 mm | 643 / 640 / 638 mm | 652 / 649 / 647 mm | 661 / 659 / 658 mm |
| LReach | 422 / 425 / 428 mm | 457 / 460 / 463 mm | 477 / 480 / 484 mm | 504 / 510 / 513 mm |
| NHandlebar Width | 800 mm | 800 mm | 800 mm | 800 mm |
| OStem Length | 40 mm | 40 mm | 40 mm | 40 mm |
| PCrank Length | 155 mm | 155 mm | 155 mm | 155 mm |
| QWheel Size | 29" [F], 27.5" [R] | 29" [F], 27.5" [R] | 29" [F], 27.5" [R] | 29" [F], 27.5" [R] |
Where several values are given: Low / Mid / High flip-chip position. Source: Giant.
Trance Advanced E+: builds compared
Trance Advanced E+ range →| Trance Advanced E+ 2 | Trance Advanced E+ SE | Trance Advanced E+ 1 | Trance Advanced E+ 0 | |
|---|---|---|---|---|
| Price | £5,499 | £5,999 | £6,999 | £8,999 |
| Frame | Carbon | Carbon | Carbon | Carbon |
| Fork | Rock Shox Psylo Gold RC, 160mm travel | CREST TR Elite E-tuned, 160mm | Fox 36 Performance, 160mm travel | Fox 36 Factory, 160mm travel |
| Shock | Rock Shox Deluxe Select | CREST Flotrac TR E-tuned | Fox Float X | Fox Float X |
| Derailleur | Shimano Deore | TRP Electronic RD | SRAM GX AXS | SRAM XO AXS |
| Brakes | TRP EVO Comp | TRP EVO Comp | TRP EVO Expert | TRP EVO Pro |
| Wheels | Giant TRA HD, Alloy | Giant TRA HD, alloy | Giant TRA HD, Alloy | Giant TRX HD, Carbon |
| Display | RideControl GO Lux | Giant RideControl Go Lux | RideControl GO Lux | RideControl GO Lux |
| Weight | — | 21.9 kg | — | 21.9 kg |
Trance Advanced E+ 1: FAQ
How much does the Giant Trance Advanced E+ 1 cost?
£6,999 (UK RRP, VAT incl.). The Trance Advanced E+ range runs from £5,499 (Trance Advanced E+ 2) to £8,999 (Trance Advanced E+ 0). Prices vary by country and dealer.
What motor and battery does the Giant Trance Advanced E+ 1 have?
Giant SyncDrive Pro 4 (120 Nm; 850 W peak). 840 Wh battery — energyPak.
How much suspension travel does the Giant Trance Advanced E+ 1 have?
160 mm at the fork and 150 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Giant Trance Advanced E+ 1 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Trance Advanced E+ 1 and the Trance Advanced E+ 0?
They share the Trance Advanced E+ frame platform and motor; the differences are in the parts — fork: Fox 36 Performance vs Fox 36 Factory; derailleur: SRAM GX AXS vs SRAM XO AXS; price: £6,999 vs £8,999.
