GiantTrance Advanced E+ SE
- Motor
- Giant SyncDrive Pro 4120 Nm; 850 W peak
- Battery
- 840 WhEnergyPak Smart
- Travel F / R
- 160 / 150 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
- Weight
- 21.9 kgManufacturer figure
Watching this bike? Get new models and updates on Telegram →
Overview

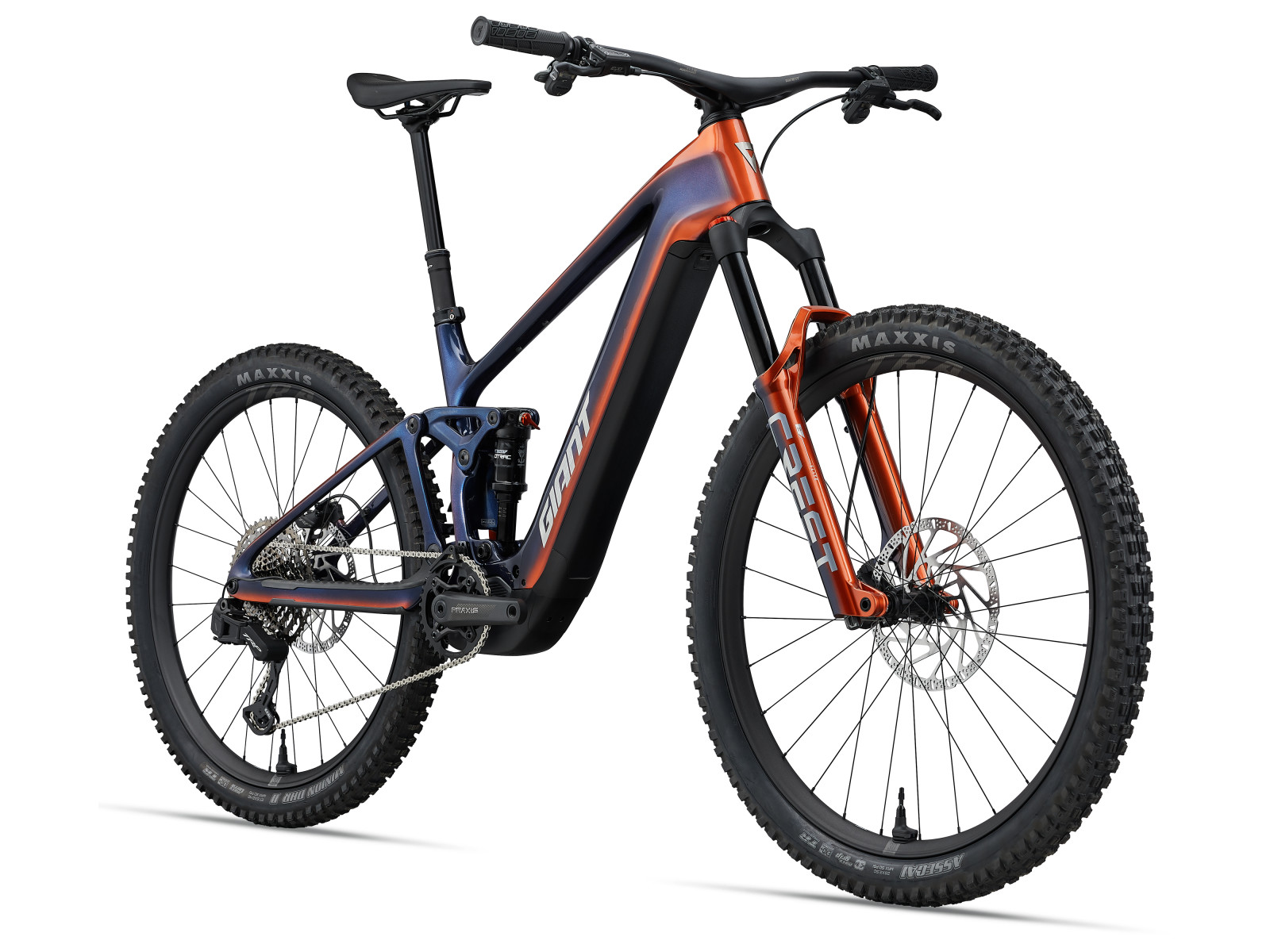

The Trance Advanced E+ SE (£5,999) uses Giant's own CREST TR suspension and a TRP electronic derailleur with TRP EVO Comp brakes. Giant quotes 21.9 kg, the same as the £8,999 top build.
The Trance Advanced E+ SE is one of 4 builds of the Giant Trance Advanced E+. About the Trance Advanced E+ range and all its builds →

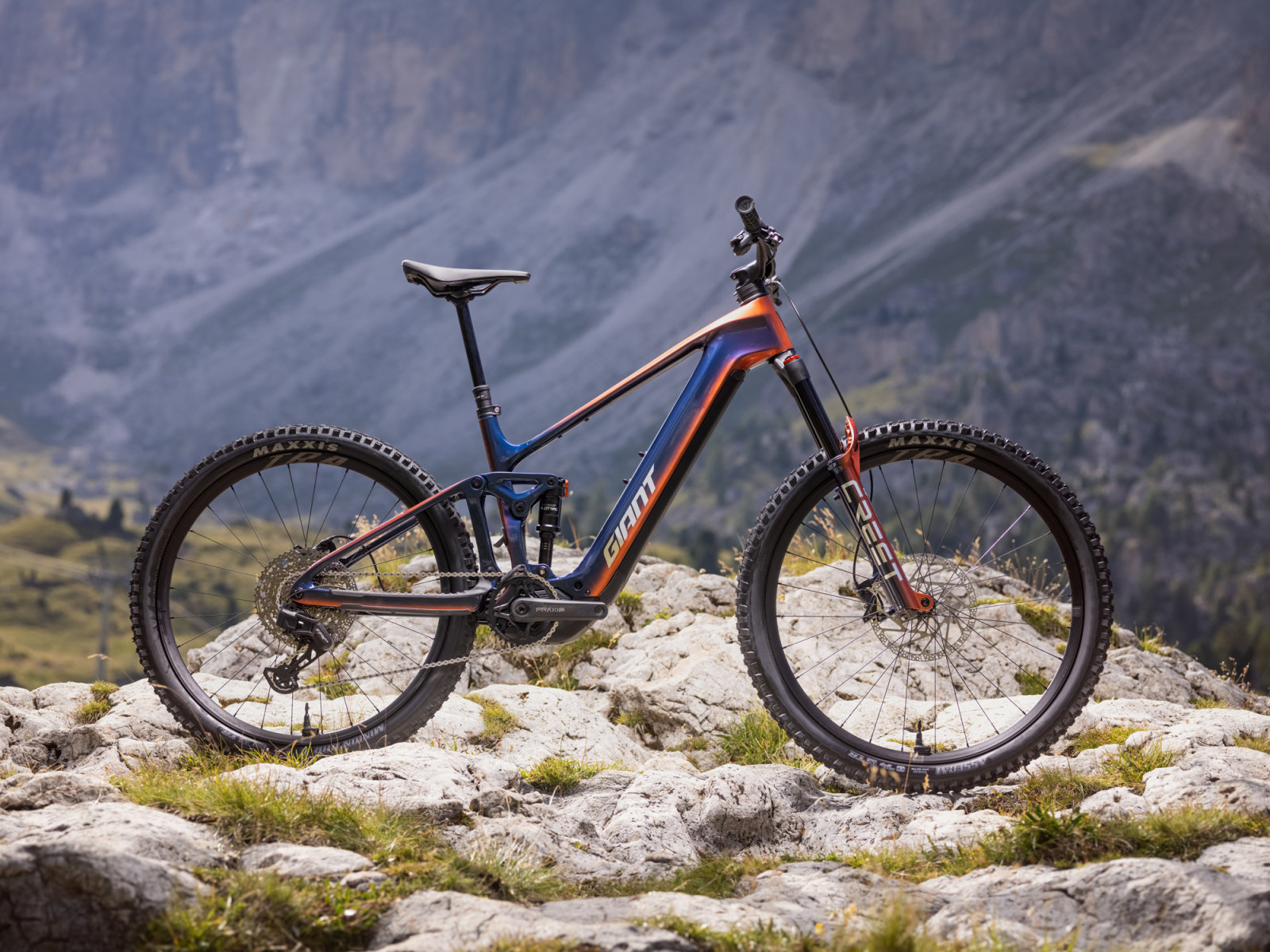

Gallery
Photos: Giant
Full specifications
Frame & suspension
- Sizes
- S/M/L/XL
- Colours
- Gloss Polar Night
- Frame

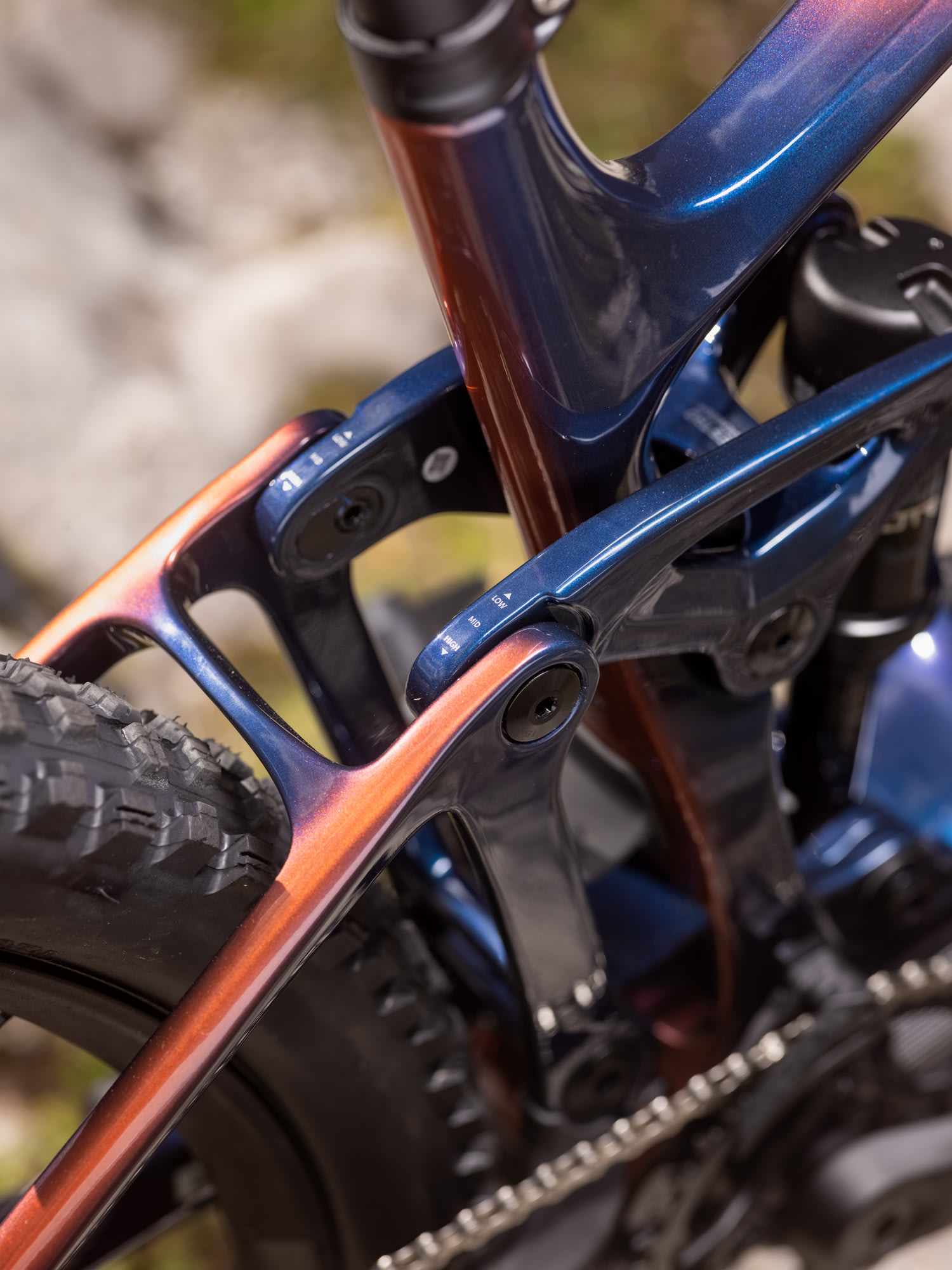

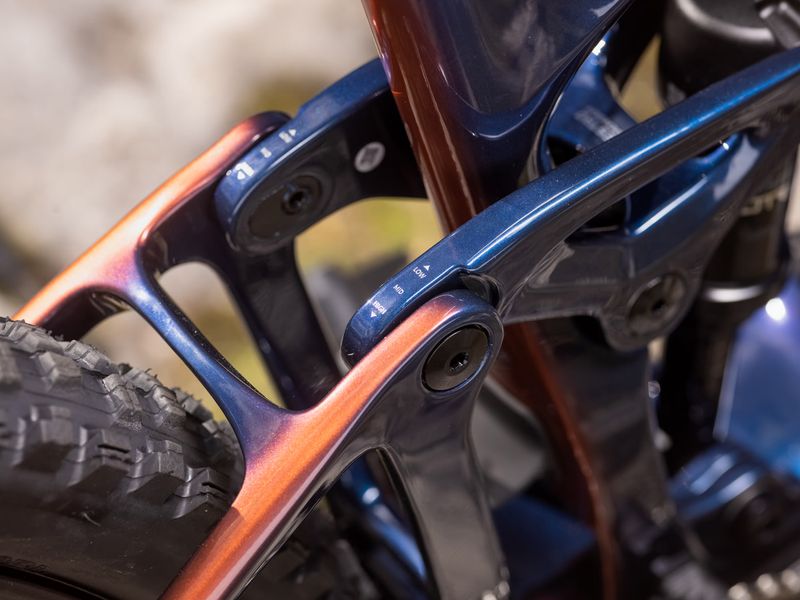

- Advanced-grade composite frame, Advanced Forged Composite upper rocker, 150mm Maestro suspension system, 3-position flip chip adjustable geometry, 148 mm BOOST hub spacing, ZS66/ZS66 headset compatible
- Fork
- CREST TR Elite E-tuned, 160mm, Dual Air, Elite damper
- Rear shock

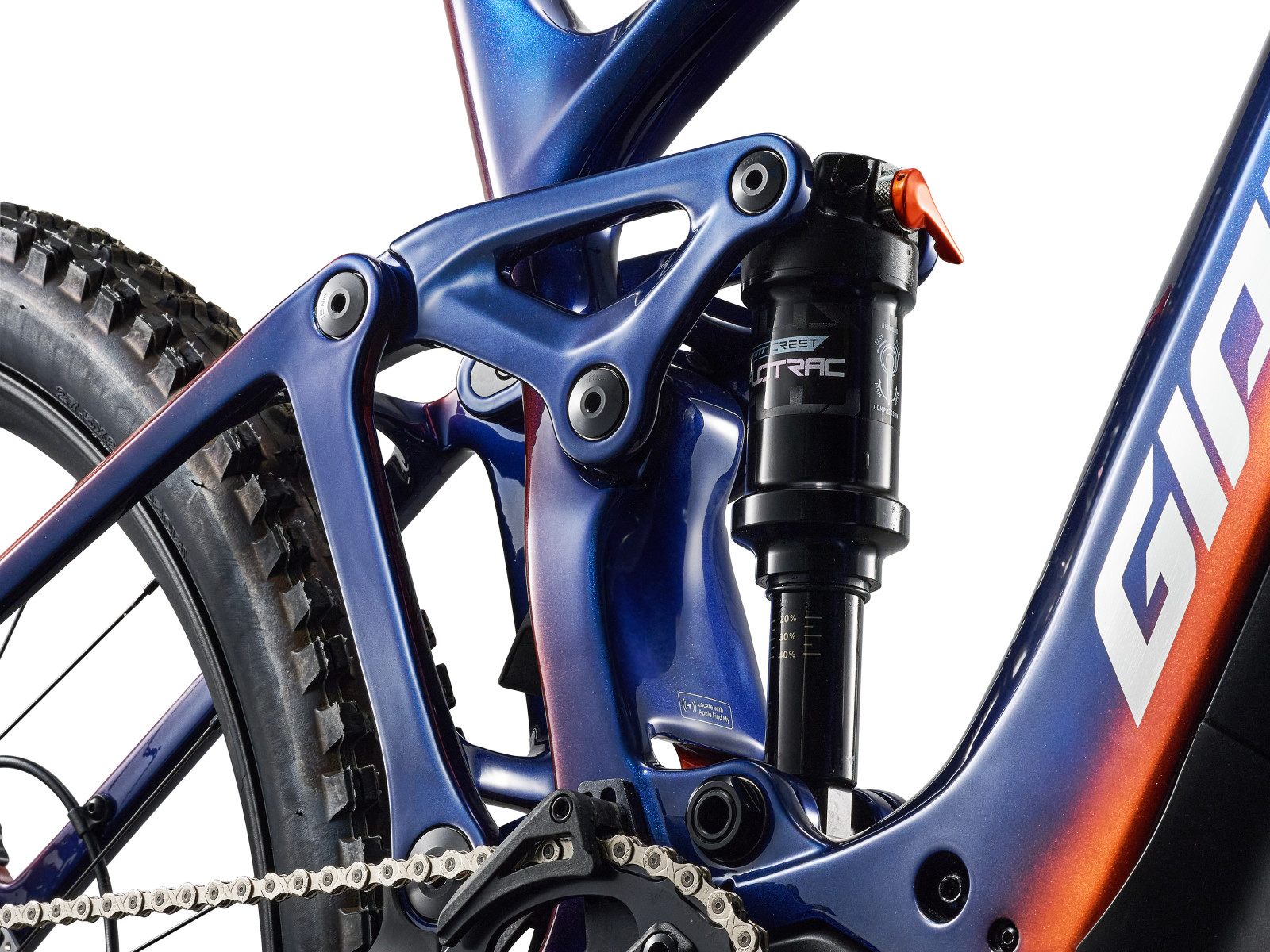

- CREST Flotrac TR E-tuned, 185 x 55 mm, custom tuned, recommended sag 30%
E-system
- Motor

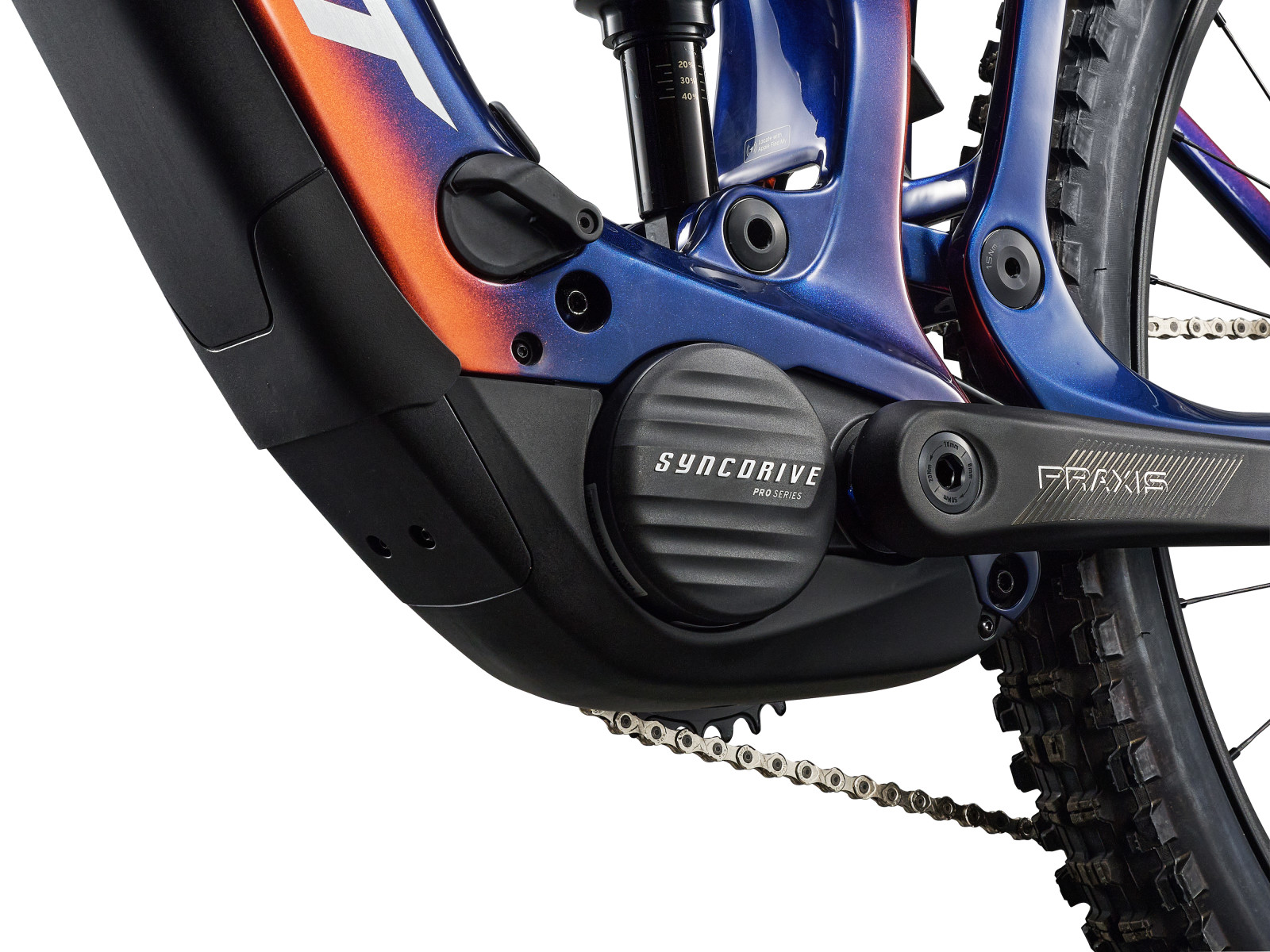

- Giant SyncDrive Pro 4, 120 Nm, 48 V, 850 W peak power
- Controller
- Giant RideControl Ergo 5 wireless, Integrated E+ System & seatpost remote
- Display
- Giant RideControl Go Lux
- Battery
- Giant EnergyPak Smart 840, 48V
- Charger
- Giant Smart Charger X, 48 V 4A
Drivetrain
- Shifters
- Giant RideControl Ergo 5 wireless
- Rear derailleur
- TRP Electronic RD, 10/11/12-speed compatible, TRD-002
- Cassette
- Shimano LinkGlide, 11-speed, 11-50T
- Chain
- KMC eGlide, high-torque e-bike optimized chain 11-speed
- Crankset
- Praxis Type-2 alloy, 155 mm
Brakes
- Brakes

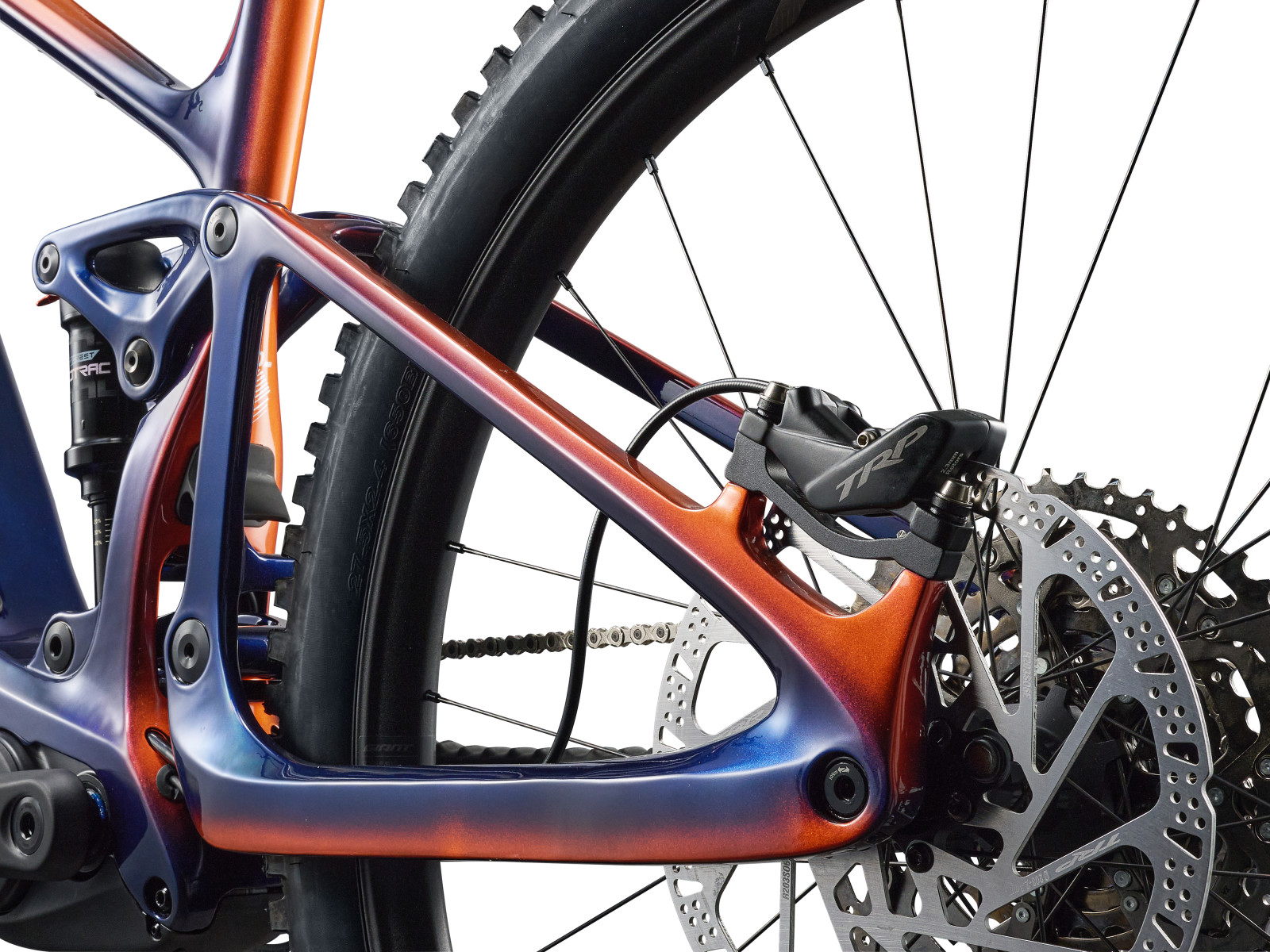

- TRP EVO Comp, hydraulic disc, 4-piston, 220 mm [F] 203 mm [R]
- Brake levers
- TRP EVO Comp
Wheels & tyres
- Rims
- Giant TRA HD, alloy, 30 mm inner width, Wide Guard Technology
- Hubs
- Giant TRA HD, E-Drive, titanium ratchet system, 72T engagement, 15 x 110 mm [F] 12 x 148 mm [R], e-bike optimized
- Spokes
- Giant TRA HD, Dynamic Balanced Lacing (D.B.L.)
- Tyres
- Maxxis Assegai 29 X 2.50-inch Foldable, TLR, EXO+, 3C MaxxGrip [F], Maxxis Minion DHR II 27.5 x 2.4-inch Foldable, TLR, EXO+, MaxxTerra [R]
Cockpit
- Handlebar
- Giant Contact SL Trail integrated, 27mm rise, Up: 5⁰ Back: 8⁰, 800mm
- Grips
- Giant Tactal Pro
- Stem
- Giant Contact SL Trail Integrated, 40 mm
- Seatpost
- Giant Contact Switch E+, 30.9 mm, electronic dropper post
- Saddle
- Giant Romero HD
- Pedals
- PEDALS NOT SUPPLIED
Other
- Extras
- Giant Aegis Tire Checker, included tire pressure management system (TPMS) Tubeless kit (liquid, valves, levers, manual, tool)
- Lighting
- Optional: Giant Recon series e-bike lights available and direct-connect compatible
- Max system weight
- 156kg
- Weight
- 21.9kg
Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.
Trance Advanced E+ geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| BSeat Tube Angle | 76.6° / 77.0° / 77.4° | 76.6° / 77.0° / 77.4° | 76.6° / 77.0° / 77.4° | 76.6° / 77.0° / 77.4° |
| CTop Tube Length | 568 / 567 / 566 mm | 605 / 604 / 603 mm | 630 / 629 / 628 mm | 662 / 661 / 660 mm |
| DHead Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| EHead Tube Angle | 64.1° / 64.5° / 64.9° | 64.1° / 64.5° / 64.9° | 64.1° / 64.5° / 64.9° | 64.1° / 64.5° / 64.9° |
| HWheelbase | 1200 / 1199 / 1197 mm | 1239 / 1237 / 1236 mm | 1267 / 1265 / 1264 mm | 1300 / 1299 / 1298 mm |
| IChain Stay Length | 443 / 443 / 443 mm | 443 / 443 / 443 mm | 443 / 443 / 443 mm | 443 / 443 / 443 mm |
| KStack | 634 / 631 / 629 mm | 643 / 640 / 638 mm | 652 / 649 / 647 mm | 661 / 659 / 658 mm |
| LReach | 422 / 425 / 428 mm | 457 / 460 / 463 mm | 477 / 480 / 484 mm | 504 / 510 / 513 mm |
| PCrank Length | 155 mm | 155 mm | 155 mm | 155 mm |
Where several values are given: Low / Mid / High flip-chip position. Source: Giant.
Trance Advanced E+: builds compared
Trance Advanced E+ range →| Trance Advanced E+ 2 | Trance Advanced E+ SE | Trance Advanced E+ 1 | Trance Advanced E+ 0 | |
|---|---|---|---|---|
| Price | £5,499 | £5,999 | £6,999 | £8,999 |
| Frame | Carbon | Carbon | Carbon | Carbon |
| Fork | Rock Shox Psylo Gold RC, 160mm travel | CREST TR Elite E-tuned, 160mm | Fox 36 Performance, 160mm travel | Fox 36 Factory, 160mm travel |
| Shock | Rock Shox Deluxe Select | CREST Flotrac TR E-tuned | Fox Float X | Fox Float X |
| Derailleur | Shimano Deore | TRP Electronic RD | SRAM GX AXS | SRAM XO AXS |
| Brakes | TRP EVO Comp | TRP EVO Comp | TRP EVO Expert | TRP EVO Pro |
| Wheels | Giant TRA HD, Alloy | Giant TRA HD, alloy | Giant TRA HD, Alloy | Giant TRX HD, Carbon |
| Display | RideControl GO Lux | Giant RideControl Go Lux | RideControl GO Lux | RideControl GO Lux |
| Weight | — | 21.9 kg | — | 21.9 kg |
Trance Advanced E+ SE: FAQ
What is the difference between the Trance Advanced E+ SE and the Trance Advanced E+ 1?
They share the Trance Advanced E+ frame platform and motor; the differences are in the parts: fork: CREST TR Elite E-tuned vs Fox 36 Performance; shock: CREST Flotrac TR E-tuned vs Fox Float X; derailleur: TRP Electronic RD vs SRAM GX AXS; price: £5,999 vs £6,999.
