GiantReign Advanced E+ 2
- Motor
- Giant SyncDrive Pro 3X100 Nm
- Battery
- 560 WhPlus 280 Wh range extender (per spec)
- Travel F / R
- 180 / 170 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
- Weight
- 23.6 kgManufacturer figure
Overview
The Giant Reign Advanced E+ 2 (£5,999) is the entry build of the Reign Advanced E+: Giant SyncDrive Pro 3X (100 Nm) with 560 Wh, RockShox Zeb select fork, RockShox SuperDeluxe Select shock, Shimano Deore and TRP EVO Comp brakes. Claimed weight is 23.6 kg.
The Reign Advanced E+ is Giant's carbon e-enduro bike: 170 mm of Maestro rear travel, a 180 mm fork, mixed wheels and a two-position flip chip.
It runs the SyncDrive Pro 3X motor (100 Nm, 800 W peak) with a 560 Wh EnergyPak Smart battery, and the spec lists a 280 Wh EnergyPak Plus range extender. Claimed weights sit between 23.2 and 23.7 kg.
- 170 mm rear / 180 mm fork
- SyncDrive Pro 3X, 100 Nm
- 560 Wh + 280 Wh range extender
- Carbon frame, mixed wheels

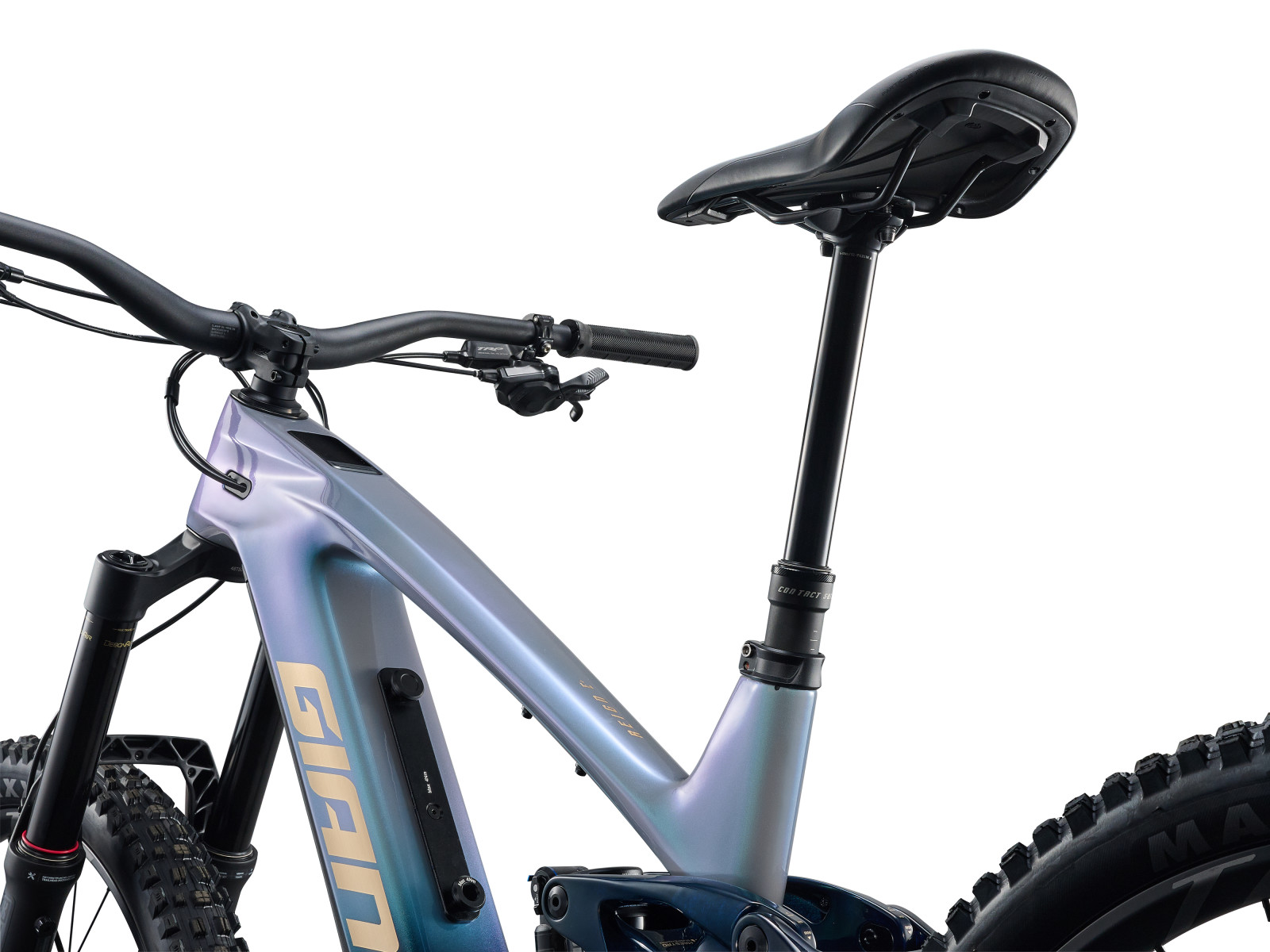

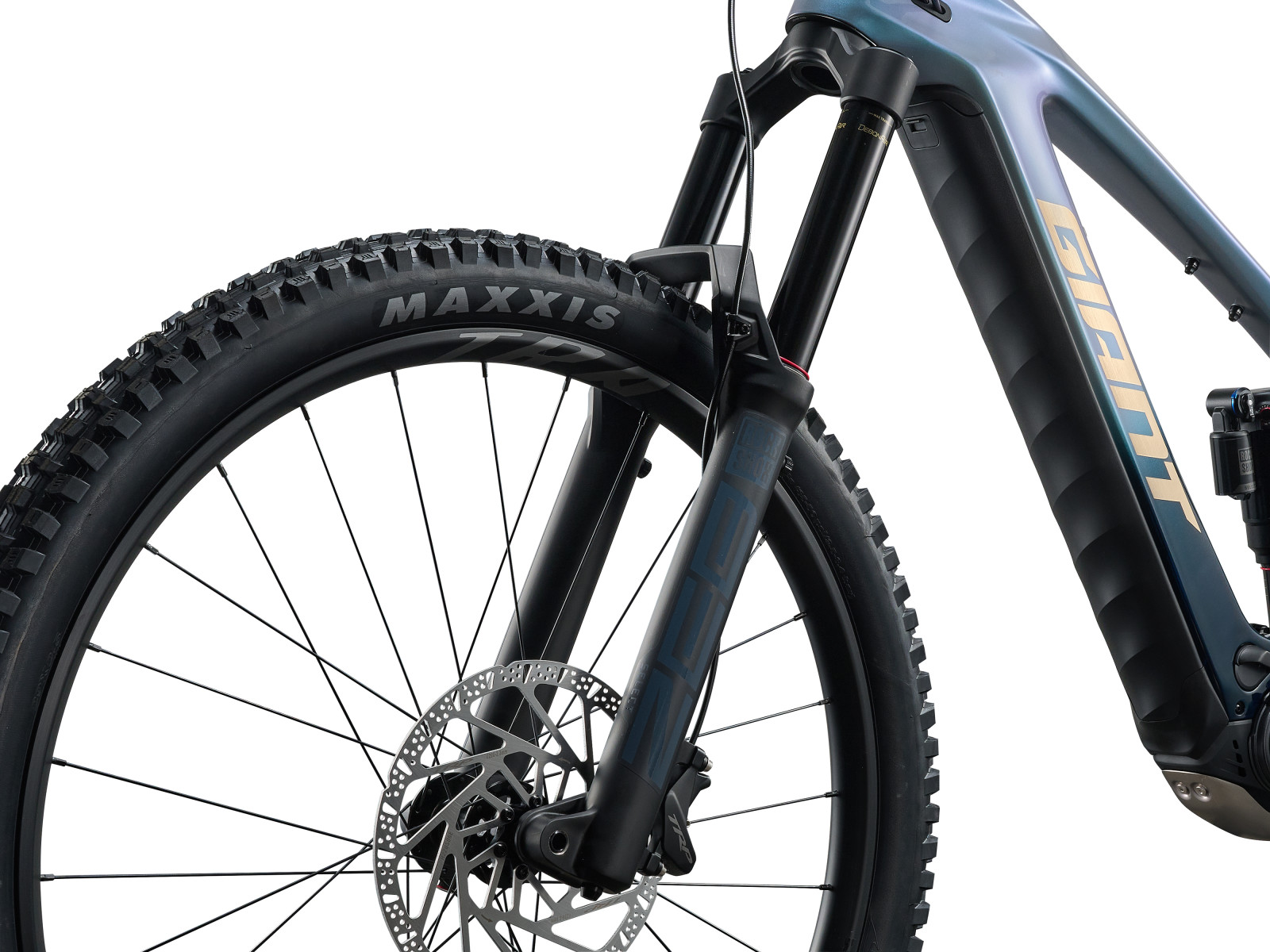

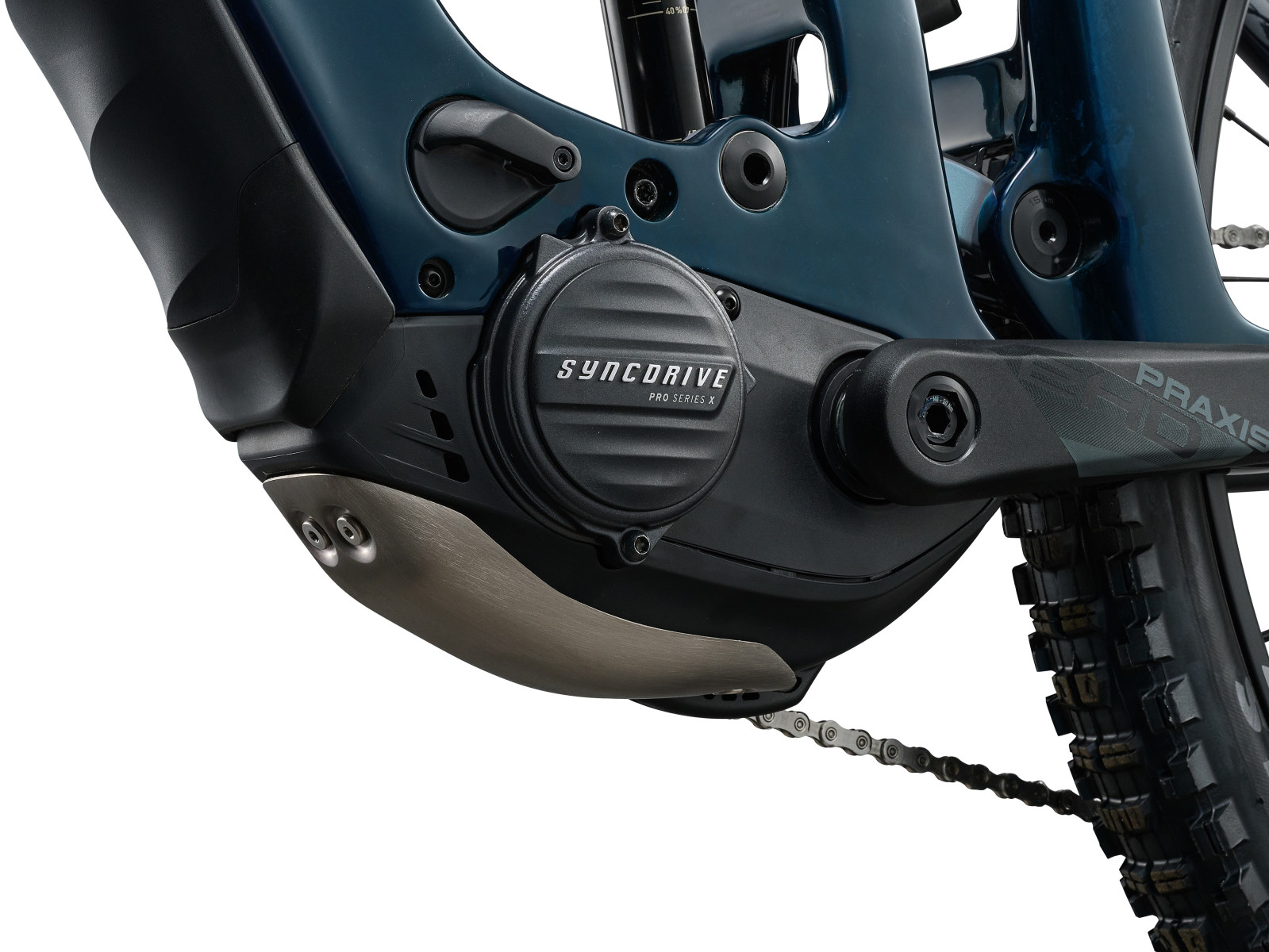

Gallery
Photos: Giant
Full specifications
Frame & suspension
- Sizes
- S, M, L, XL
- Colours
- Gloss Prismatic Haze
- Frame
- Advanced-grade composite frame, Advanced forged composite upper rocker, 170mm Maestro suspension system
- Fork
- RockShox Zeb select, 29", 180mm travel, Delta RC damper, 44mm offset, Maxle Stealth, 110x15mm Boost axle
- Rear shock
- RockShox SuperDeluxe Select, RT, 205x65mm, custom tuned, 30% sag recommended
E-system
- Motor
- Giant SyncDrive Pro3X,100Nm,48V 800W max power, 400% max support ratio
- Controller
- Giant RideControl Ergo 4
- Display
- Giant RideControl Go Lux
- Battery
- Giant EnergyPak Smart 560X, 560Wh, 48V Giant EnergyPak Plus 280Wh range extender
- Charger
- Giant EnergyPak 4A Charger, 48V
Drivetrain
- Shifters
- Shimano Deore, 12-speed
- Rear derailleur
- Shimano Deore, RD-7200,12-speed Shadow+
- Cassette
- Shimano Deore, HyperGlide+, 12-speed, 11-51T
- Chain
- Shimano Deore, 12-speed
- Crankset
- Praxis e-HD forged crankarm set, Q-factor: 168mm, length: 155mm
Brakes
- Brakes
- TRP EVO Comp, hydraulic disc, 4-piston, 220mm [F/R]
- Brake levers
- TRP EVO Comp
Wheels & tyres
- Rims
- Giant e-TRA 2, Hookless, 30mm inner width, Wide Guard
- Hubs
- Giant E-Drive 260Nm, 72t engagement, Boost, 15x110mm[F] 12x148mm[R], e-bike optimized
- Spokes
- Sapim Race [F] E-Lite [R], e-bike optimized
- Tyres
- Maxxis Assagai 29x2.5" foldable, EXO+ 3C MaxxGrip [F] Maxxis Minion DHR II 27.5x2.4" WT foldable, DoubleDown, 3C MaxxGrip [R]
Cockpit
- Handlebar
- Giant Contact TR35, 35mm rize, Up: 5⁰ Back: 9⁰, 35x800mm
- Grips
- Giant Tactal Pro-E, tapered, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
- Stem
- Giant Contact SL 35, 40 mm
- Seatpost
- Giant Contact Switch AT, 30.9 mm travel-adjust dropper post, XS & S: 110-140 mm, M & L: 140-170 mm
- Saddle
- Giant Romero, neutral
- Pedals
- PEDALS NOT SUPPLIED
Other
- Extras
- Aegis Tire Checker, BLE+ tire pressure monitoring system Tubeless kit (liquid, valves, levers, manual, tool)
- Lighting
- Optional: Giant Recon series e-bike lights available and direct-connect compatible
- Max system weight
- 156kg
- Weight
- 23.6kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Reign Advanced E+ geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| BSeat Tube Angle | 77.1° / 77.5° / 77.9° | 77.5° / 77.9° | 77.1° / 77.5° / 77.9° | 77.1° / 77.5° / 77.9° |
| CTop Tube Length | 570 / 569 / 568 mm | 601 / 600 mm | 625 / 624 / 623 mm | 657 / 656 / 655 mm |
| DHead Tube Length | 95 mm | 105 mm | 120 mm | 135 mm |
| EHead Tube Angle | 63.1° / 63.5° / 63.9° | 63.5° / 63.9° | 63.1° / 63.5° / 63.9° | 63.1° / 63.5° / 63.9° |
| HWheelbase | 1226 / 1226 / 1227 mm | 1261 / 1261 mm | 1287 / 1288 / 1288 mm | 1323 / 1323 / 1324 mm |
| IChain Stay Length | 450 / 450 / 450 mm | 450 / 450 mm | 450 / 450 / 450 mm | 450 / 450 / 450 mm |
| KStack | 647 / 645 / 642 mm | 654 / 651 mm | 669 / 667 / 665 mm | 683 / 680 / 678 mm |
| LReach | 426 / 430 / 435 mm | 460 / 465 mm | 476 / 480 / 485 mm | 505 / 510 / 514 mm |
| PCrank Length | 155 mm | 155 mm | 155 mm | 155 mm |
Where several values are given: Low / Mid / High flip-chip position. Source: Giant.
Reign Advanced E+: builds compared
Reign Advanced E+ range →| Reign Advanced E+ 2 | Reign Advanced E+ 1 | Reign Advanced E+ 0 | |
|---|---|---|---|
| Price | £5,999 | £6,999 | £8,499 |
| Frame | Carbon | Carbon | Carbon |
| Fork | RockShox Zeb select, 29" | Fox Float 38 Performance Elite, 180mm | Fox 38 Factory, 29" |
| Shock | RockShox SuperDeluxe Select | Fox DHX Performance Elite | Fox Float X2 Factory |
| Derailleur | Shimano Deore | SRAM 90 Eagle Transmission | SRAM XO AXS Eagle |
| Brakes | TRP EVO Comp | TRP EVO Expert | TRP EVO Pro |
| Wheels | Giant e-TRA 2, Hookless | Giant e-TRA 2, Hookless | Giant e-TRA, hookless |
| Display | Giant RideControl Go Lux | Giant RideControl Go Lux | Giant RideControl Go Lux |
| Weight | 23.6 kg | 23.2 kg | 23.7 kg |
Reign Advanced E+ 2: FAQ
How much does the Giant Reign Advanced E+ 2 cost?
£5,999 (UK RRP, VAT incl.). The Reign Advanced E+ range runs from £5,999 (Reign Advanced E+ 2) to £8,499 (Reign Advanced E+ 0). Prices vary by country and dealer.
How much does the Giant Reign Advanced E+ 2 weigh?
Giant quotes 23.6 kg. The lightest Reign Advanced E+ build is the Reign Advanced E+ 1 at 23.2 kg.
What motor and battery does the Giant Reign Advanced E+ 2 have?
Giant SyncDrive Pro 3X (100 Nm). 560 Wh battery — plus 280 Wh range extender (per spec).
How much suspension travel does the Giant Reign Advanced E+ 2 have?
180 mm at the fork and 170 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Giant Reign Advanced E+ 2 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Reign Advanced E+ 2 and the Reign Advanced E+ 1?
They share the Reign Advanced E+ frame platform and motor; the differences are in the parts — fork: RockShox Zeb select vs Fox Float 38 Performance Elite; shock: RockShox SuperDeluxe Select vs Fox DHX Performance Elite; derailleur: Shimano Deore vs SRAM 90 Eagle Transmission; claimed weight: 23.6 kg vs 23.2 kg; price: £5,999 vs £6,999.
