Giant Reign Advanced E+ 1 e-MTB, side view
Photo: Giant
Full-power eMTBEnduro2027
Reign Advanced E+ range · 3 builds

GiantReign Advanced E+ 1

£6,999UK RRP, VAT incl.
Motor
Giant SyncDrive Pro 3X100 Nm
Battery
560 WhPlus 280 Wh range extender (per spec)
Travel F / R
180 / 170 mm
Wheels
Mullet 29" / 27.5"
Frame
Carbon
Weight
23.2 kgManufacturer figure

All Giant SyncDrive eMTBs →

Watching this bike? Get new models and updates on Telegram →

Overview

The Reign Advanced E+ 1 (£6,999) moves to Fox Float 38 Performance Elite and DHX Performance Elite coil, SRAM Eagle 90 Transmission and TRP EVO Expert brakes. At a claimed 23.2 kg it's also the lightest Reign Advanced E+.

The Reign Advanced E+ 1 is one of 3 builds of the Giant Reign Advanced E+. About the Reign Advanced E+ range and all its builds →

Gallery

Photos: Giant

Full specifications

Frame & suspension

Sizes
S, M, L, XL
Colours
Gloss Mars Dust
Frame
Advanced-grade composite frame, Advanced forged composite upper rocker, 170mm Maestro suspension system
Fork

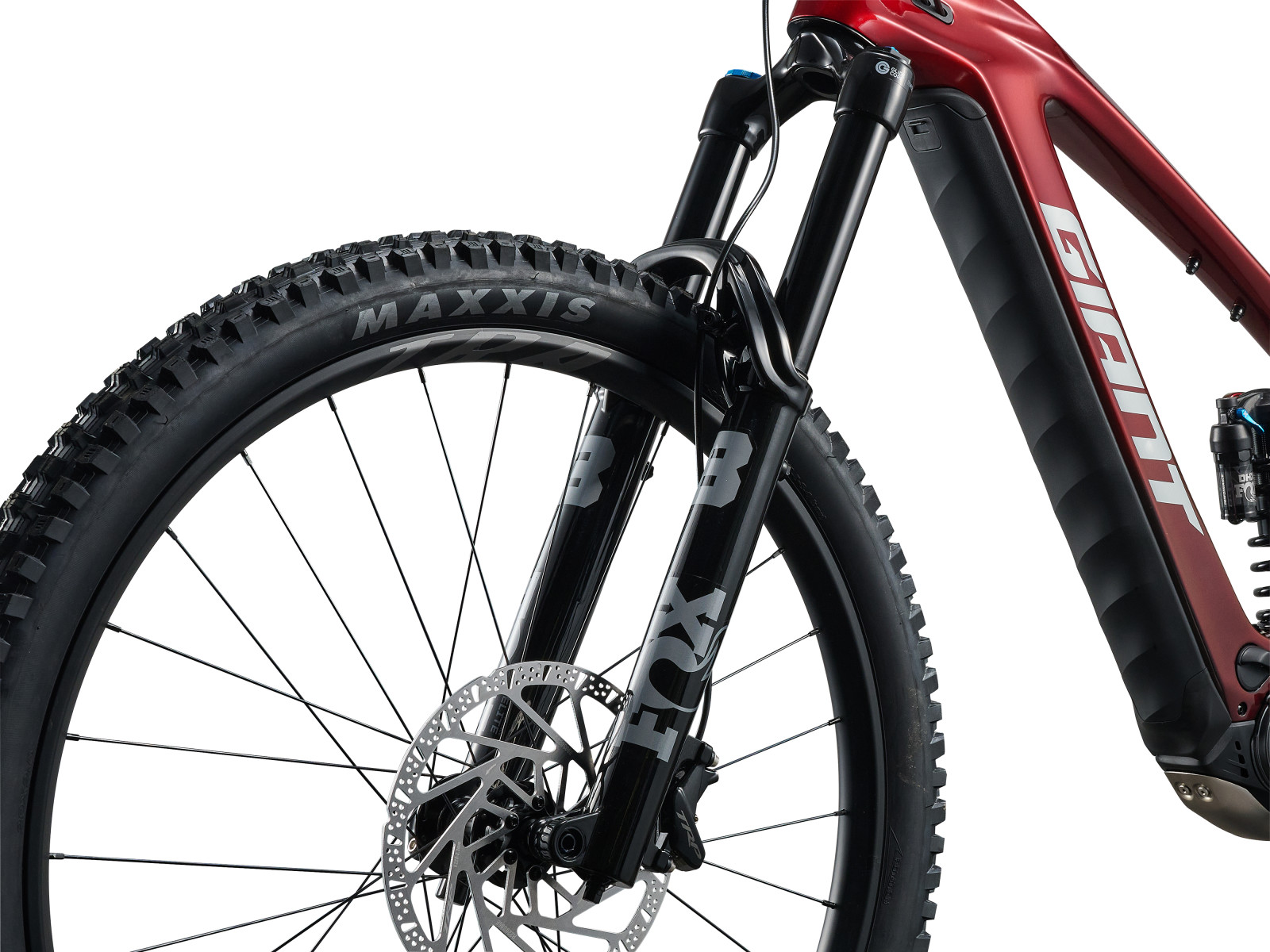

Fox Float 38 Performance Elite, 180mm, GripX2 damper, 4-way adjust, 110x15, Kabolt X
Rear shock
Fox DHX Performance Elite, 205x65mm, LSC | LSR | Std Steel Spring custom tuned

E-system

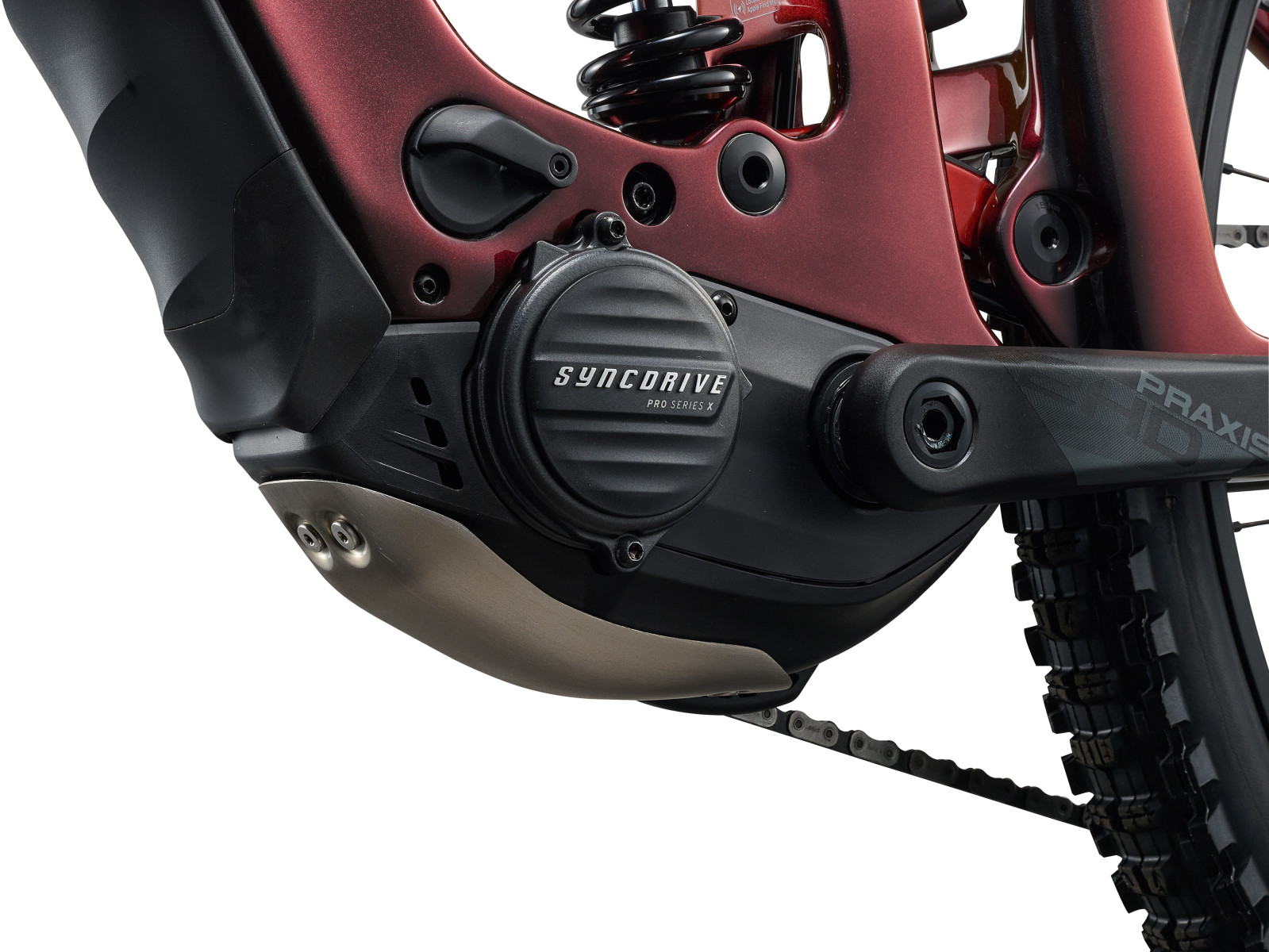

Motor
Giant SyncDrive Pro3X,100Nm,48V 800W max power, 400% max support ratio
Controller
Giant RideControl Ergo 4
Display
Giant RideControl Go Lux
Battery
Giant EnergyPak Smart 560X, 560Wh, 48V Giant EnergyPak Plus 280Wh range extender
Charger
Giant EnergyPak 4A Charger, 48V

Drivetrain

Shifters
SRAM Eagle 90 Transmission
Rear derailleur
SRAM 90 Eagle Transmission
Cassette
SRAM Eagle Transmission, 10x52, 12-speed
Chain
SRAM Eagle Transmission, Flattop, PowerLink, 12-speed
Crankset
Praxis e-HD forged crankarm set, Q-factor: 168mm, length: 155mm

Brakes

Brakes
TRP EVO Expert, hydraulic disc, 4-piston, 220mm rotors [F/R]
Brake levers
TRP EVO Expert

Wheels & tyres

Rims
Giant e-TRA 2, Hookless, 30mm inner width, Wide Guard
Hubs
Giant E-Drive 260Nm, 72t engagement, Boost, 15x110mm[F] 12x148mm[R], e-bike optimized
Spokes
Sapim Race [F] E-Lite [R], e-bike optimized
Tyres
Maxxis Assagai 29x2.5" foldable, EXO+ 3C MaxxGrip [F] Maxxis Minion DHR II 27.5x2.4" WT foldable, DoubleDown, 3C MaxxGrip [R]

Cockpit

Handlebar
Giant Contact SL TR35, 35mm rise, 5-degree upsweep, 9-degree backsweep, 35x800mm
Grips
Giant Tactal Pro-E, tapered, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
Stem
Giant Contact SL 35, 40 mm
Seatpost
Giant Contact Switch AT, 30.9 mm travel-adjust dropper post, XS & S: 110-140 mm, M & L: 140-170 mm
Saddle
Giant Romero, neutral
Pedals
PEDALS NOT SUPPLIED

Other

Extras
Aegis Tire Checker, BLE+ tire pressure monitoring system Tubeless kit (liquid, valves, levers, manual, tool)
Lighting
Optional: Giant Recon series e-bike lights available and direct-connect compatible
Max system weight
156kg
Weight
23.2kg

Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.

Reign Advanced E+ geometry

SizeSMLXL
BSeat Tube Angle77.1° / 77.5° / 77.9°77.5° / 77.9°77.1° / 77.5° / 77.9°77.1° / 77.5° / 77.9°
CTop Tube Length570 / 569 / 568 mm601 / 600 mm625 / 624 / 623 mm657 / 656 / 655 mm
DHead Tube Length95 mm105 mm120 mm135 mm
EHead Tube Angle63.1° / 63.5° / 63.9°63.5° / 63.9°63.1° / 63.5° / 63.9°63.1° / 63.5° / 63.9°
HWheelbase1226 / 1226 / 1227 mm1261 / 1261 mm1287 / 1288 / 1288 mm1323 / 1323 / 1324 mm
IChain Stay Length450 / 450 / 450 mm450 / 450 mm450 / 450 / 450 mm450 / 450 / 450 mm
KStack647 / 645 / 642 mm654 / 651 mm669 / 667 / 665 mm683 / 680 / 678 mm
LReach426 / 430 / 435 mm460 / 465 mm476 / 480 / 485 mm505 / 510 / 514 mm
PCrank Length155 mm155 mm155 mm155 mm

Where several values are given: Low / Mid / High flip-chip position. Source: Giant.

Reign Advanced E+: builds compared

Reign Advanced E+ range →
Reign Advanced E+ 2Reign Advanced E+ 1Reign Advanced E+ 0
Price£5,999£6,999£8,499
FrameCarbonCarbonCarbon
ForkRockShox Zeb select, 29"Fox Float 38 Performance Elite, 180mmFox 38 Factory, 29"
ShockRockShox SuperDeluxe SelectFox DHX Performance EliteFox Float X2 Factory
DerailleurShimano DeoreSRAM 90 Eagle TransmissionSRAM XO AXS Eagle
BrakesTRP EVO CompTRP EVO ExpertTRP EVO Pro
WheelsGiant e-TRA 2, HooklessGiant e-TRA 2, HooklessGiant e-TRA, hookless
DisplayGiant RideControl Go LuxGiant RideControl Go LuxGiant RideControl Go Lux
Weight23.6 kg23.2 kg23.7 kg

Reign Advanced E+ 1: FAQ

What is the difference between the Reign Advanced E+ 1 and the Reign Advanced E+ 0?

They share the Reign Advanced E+ frame platform and motor; the differences are in the parts: fork: Fox Float 38 Performance Elite vs Fox 38 Factory; shock: Fox DHX Performance Elite vs Fox Float X2 Factory; derailleur: SRAM 90 Eagle Transmission vs SRAM XO AXS Eagle; claimed weight: 23.2 kg vs 23.7 kg; price: £6,999 vs £8,499.
