GiantFathom E+ 2
- Motor
- Giant SyncDrive Pro 3X100 Nm
- Battery
- 625 WhEnergyPak
- Travel F / R
- 130 / – mm
- Wheels
- 29"
- Frame
- Alloy
- Weight
- 24.4 kgManufacturer figure
Overview
The Giant Fathom E+ 2 (£2,599) is the entry build of the Fathom E+: Giant SyncDrive Pro 3X (100 Nm) with 625 Wh, SR Suntour XCM34 fork, Shimano CUES and Shimano MT-200 brakes. Claimed weight is 24.4 kg.
The Fathom E+ is Giant's aluminium e-MTB hardtail: 29-inch wheels, a 130 mm fork and the SyncDrive Pro 3X motor (100 Nm), with an 800 Wh battery on the E+ 1 and 625 Wh on the E+ 2. Both have an integrated kickstand mount.
- Aluminium hardtail
- 130 mm fork, 29-inch wheels
- SyncDrive Pro 3X, 100 Nm
- 800 or 625 Wh battery
Gallery
Photos: Giant
Full specifications
Frame & suspension
- Sizes
- S, M, L, XL, XXL
- Colours
- Gloss Null White or Gloss Stardust Grey
- Frame
- ALUXX-grade aluminium, OverDrive, 148x12mm thru-axle, integrated KSA40 kickstand mount

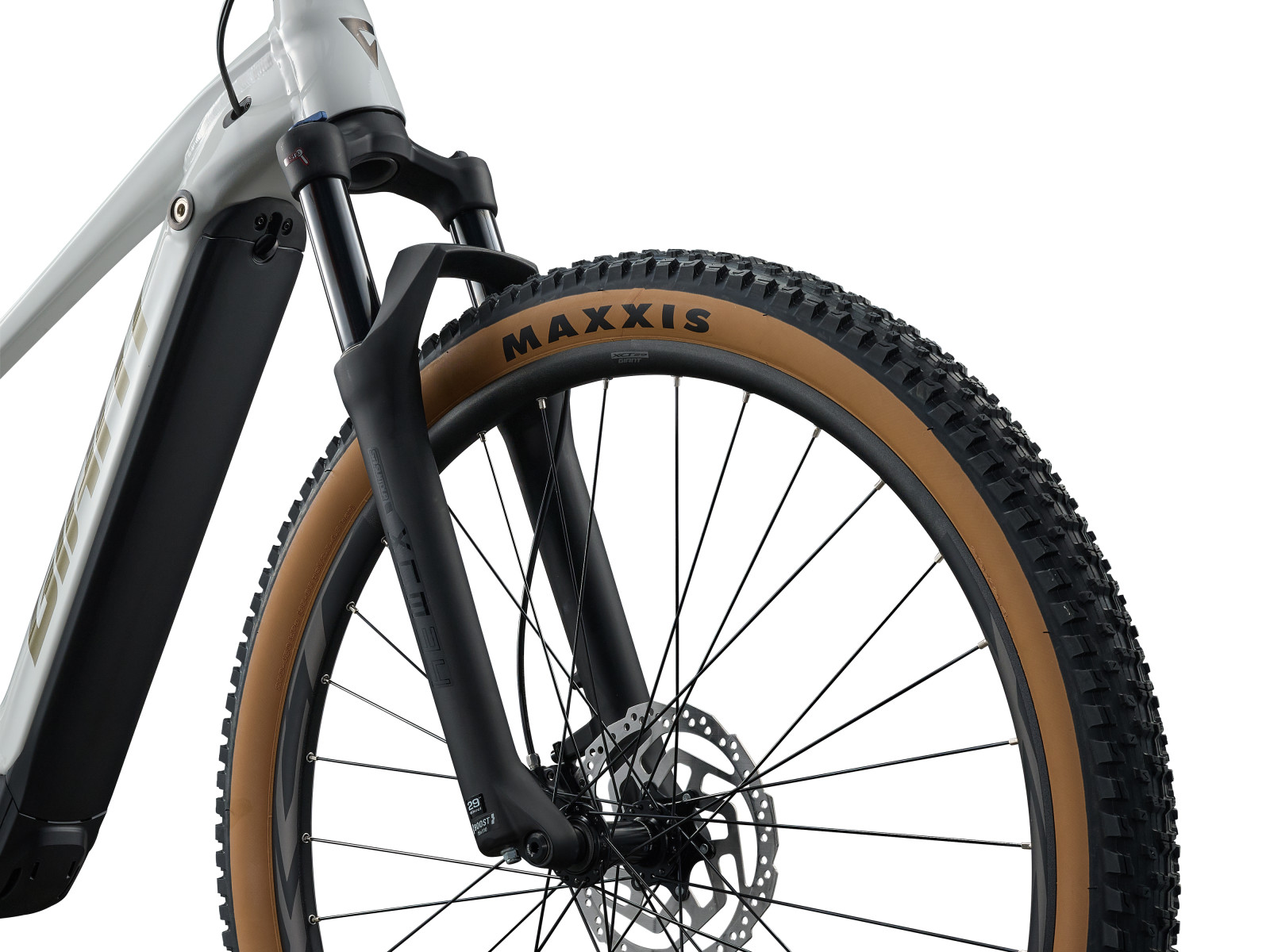

- Fork
- SR Suntour XCM34, 130mm travel, 15x110mm thru-axle
E-system

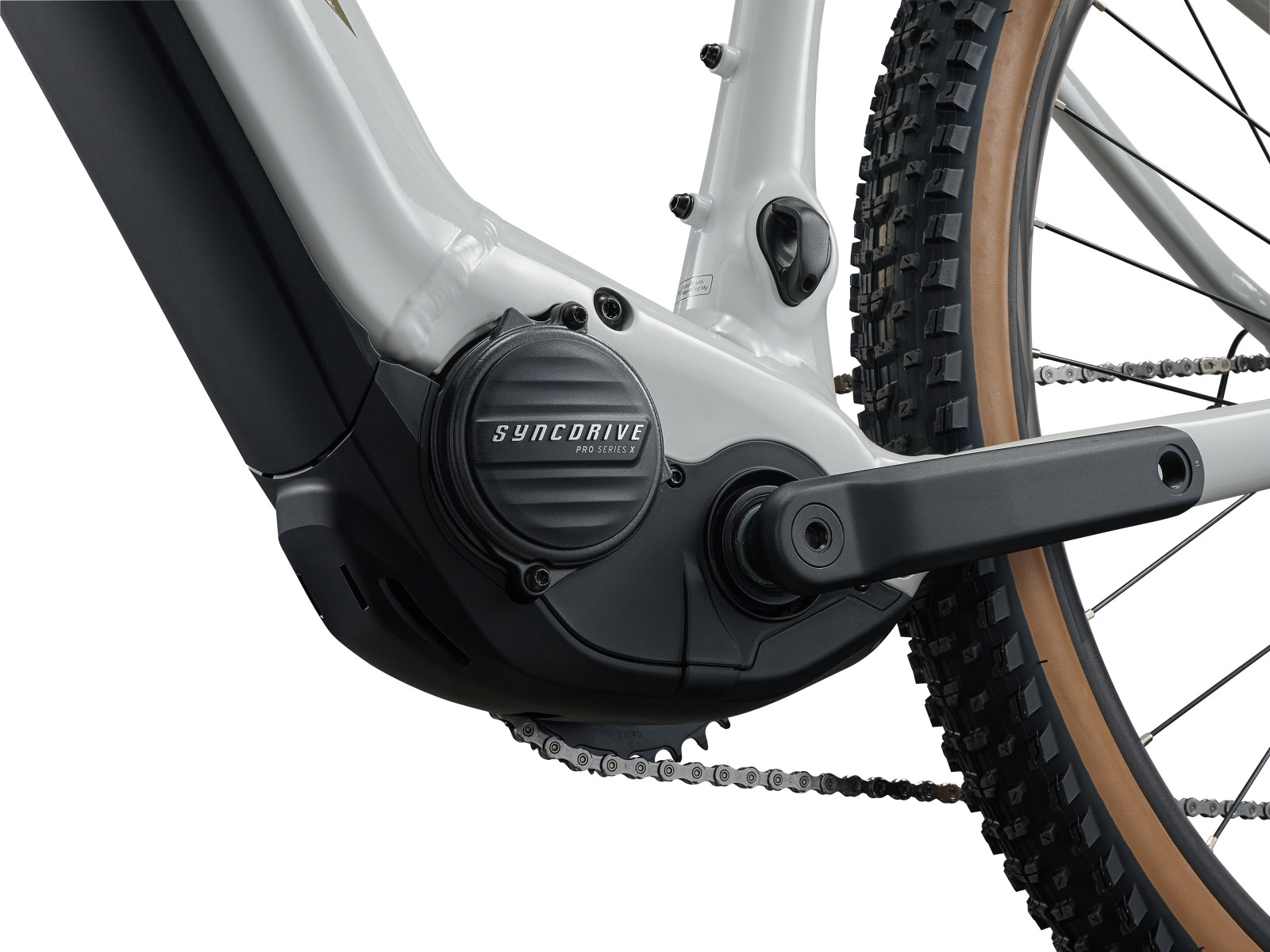

- Motor
- Giant SyncDrive Pro 3X, 100Nm, PedalPlus 6-Sensor technology
- Controller
- Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels
- Display
- Giant RideControl Dash 2, full colour LCD display
- Battery
- Giant EnergyPak 625Wh
- Charger
- Giant EnergyPak 4A smart charger
- Lock
- ABUS Xplus battery lock

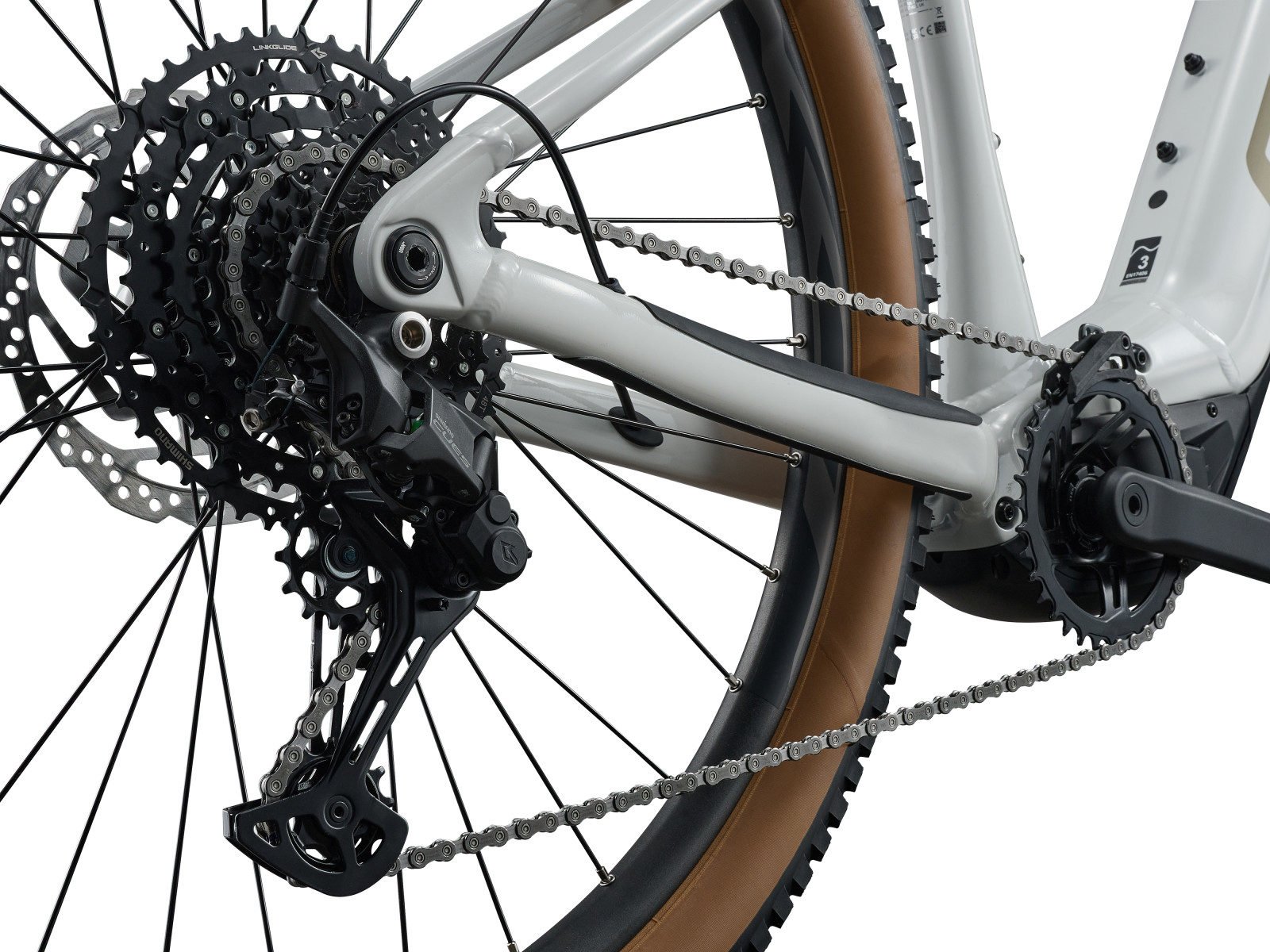

Drivetrain
- Shifters
- Shimano CUES, LinkGlide
- Rear derailleur
- Shimano CUES, LinkGlide, 10-speed, Shadow+
- Cassette
- Shimano CUES, LinkGlide, 10-speed, 11x48
- Chain
- Shimano LinkGlide
- Crankset
- Forged aluminium, [XS/S] 165mm, [M/L] 170mm
Brakes
- Brakes
- Shimano MT-200, hydraulic disc, 180mm [F/R] rotors
- Brake levers
- Shimano MT-200
Wheels & tyres
- Rims
- Giant XCT 29, tubeless ready, 25mm, e-bike optimized
- Hubs
- Shimano TC500, Boost, Center-Lock, 15x110mm [F] 12x148mm [R]
- Spokes
- Stainless steel
- Tyres
- Maxxis Rekon, 29x2.4", wire bead, EXO, 60TPI
Cockpit
- Handlebar
- Giant Connect TR riser, 31.8x760mm [S], 31.8x780mm [M-XXL]
- Grips
- Giant Sole-O
- Stem
- Giant Contact
- Seatpost
- Forged Aluminium, 30.9mm, 2-bolt micro adjustable
- Saddle
- Giant Ergo Contact Trail
- Pedals
- Large platform pedal, 28-pins, PP cage, steel axle
Other
- Max system weight
- 150kg
- Weight
- 24.4kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Fathom E+ geometry
| Size | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| BSeat Tube Angle | 75.0° | 75.0° | 75.0° | 75.0° | 75.0° |
| CTop Tube Length | 590 mm | 610 mm | 630 mm | 650 mm | 670 mm |
| DHead Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| EHead Tube Angle | 66.0° | 66.0° | 66.0° | 66.0° | 66.0° |
| HWheelbase | 1197 mm | 1219 mm | 1241 mm | 1262 mm | 1284 mm |
| IChain Stay Length | 470 mm | 470 mm | 470 mm | 470 mm | 470 mm |
| KStack | 647 mm | 656 mm | 665 mm | 674 mm | 684 mm |
| LReach | 416 mm | 434 mm | 451 mm | 469 mm | 486 mm |
| PCrank Length | 165 mm | 165 mm | 165 mm | 165 mm | 165 mm |
Source: Giant.
Fathom E+: builds compared
Fathom E+ range →| Fathom E+ 2 | Fathom E+ 1 | |
|---|---|---|
| Price | £2,599 | £2,999 |
| Frame | Alloy | Alloy |
| Fork | SR Suntour XCM34, 130mm travel | Giant STL 36 Air, 130mm travel |
| Derailleur | Shimano CUES | Shimano Cues |
| Brakes | Shimano MT-200 | Tektro Orion |
| Wheels | Giant XCT 29, tubeless ready | Giant XCT 29 Tubeless Ready 25mm e-bike optimized |
| Display | Giant RideControl Dash 2 | Giant RideControl Dash 2 |
| Weight | 24.4 kg | — |
Fathom E+ 2: FAQ
How much does the Giant Fathom E+ 2 cost?
£2,599 (UK RRP, VAT incl.). The Fathom E+ range runs from £2,599 (Fathom E+ 2) to £2,999 (Fathom E+ 1). Prices vary by country and dealer.
How much does the Giant Fathom E+ 2 weigh?
Giant quotes 24.4 kg. It is the lightest build of the Fathom E+.
What motor and battery does the Giant Fathom E+ 2 have?
Giant SyncDrive Pro 3X (100 Nm). 625 Wh battery — energyPak.
How much suspension travel does the Giant Fathom E+ 2 have?
130 mm at the fork, on 29" wheels.
What sizes does the Giant Fathom E+ 2 come in?
S, M, L, XL, XXL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Fathom E+ 2 and the Fathom E+ 1?
They share the Fathom E+ frame platform and motor; the differences are in the parts — fork: SR Suntour XCM34 vs Giant STL 36 Air; derailleur: Shimano CUES vs Shimano Cues; price: £2,599 vs £2,999.
