GiantFathom E+ 1
- Motor
- Giant SyncDrive Pro 3X100 Nm
- Battery
- 800 WhEnergyPak Smart
- Travel F / R
- 130 / – mm
- Wheels
- 29"
- Frame
- Alloy
Watching this bike? Get new models and updates on Telegram →
Overview
The Fathom E+ 1 (£2,999) adds an 800 Wh battery and a Giant STL 36 Air fork with Shimano CUES and Tektro Orion brakes. £400 more than the Fathom E+ 2, mainly for range and a better fork.
The Fathom E+ 1 is one of 2 builds of the Giant Fathom E+. About the Fathom E+ range and all its builds →

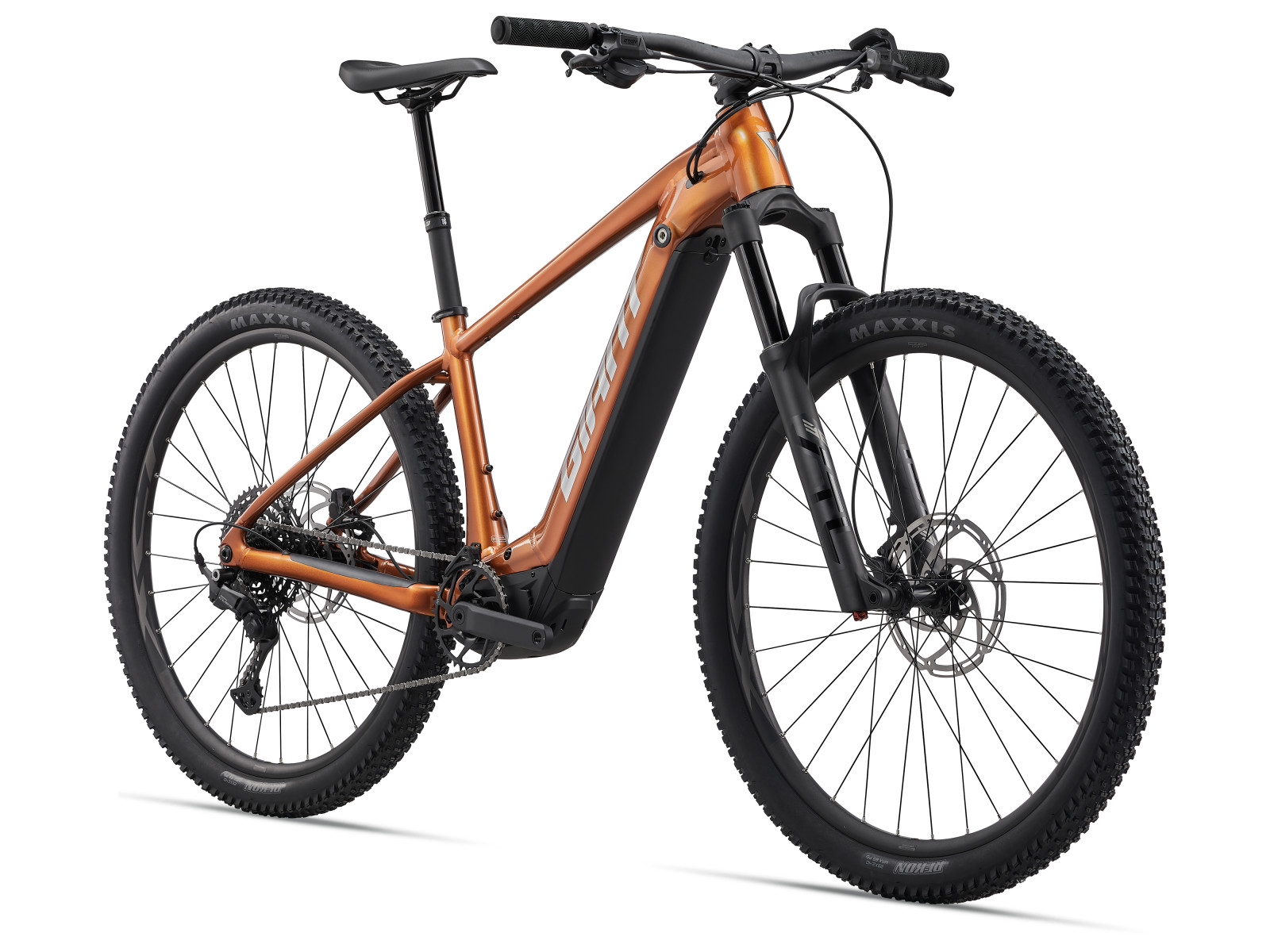

Gallery
Photos: Giant
Full specifications
Frame & suspension
- Sizes
- S, M, L, XL, XXL
- Colours
- Gloss Amber Glow or Gloss Cryo Silver
- Frame
- ALUXX-grade aluminium, OverDrive, 148x12mm thru-axle, integrated KSA40 kickstand mount

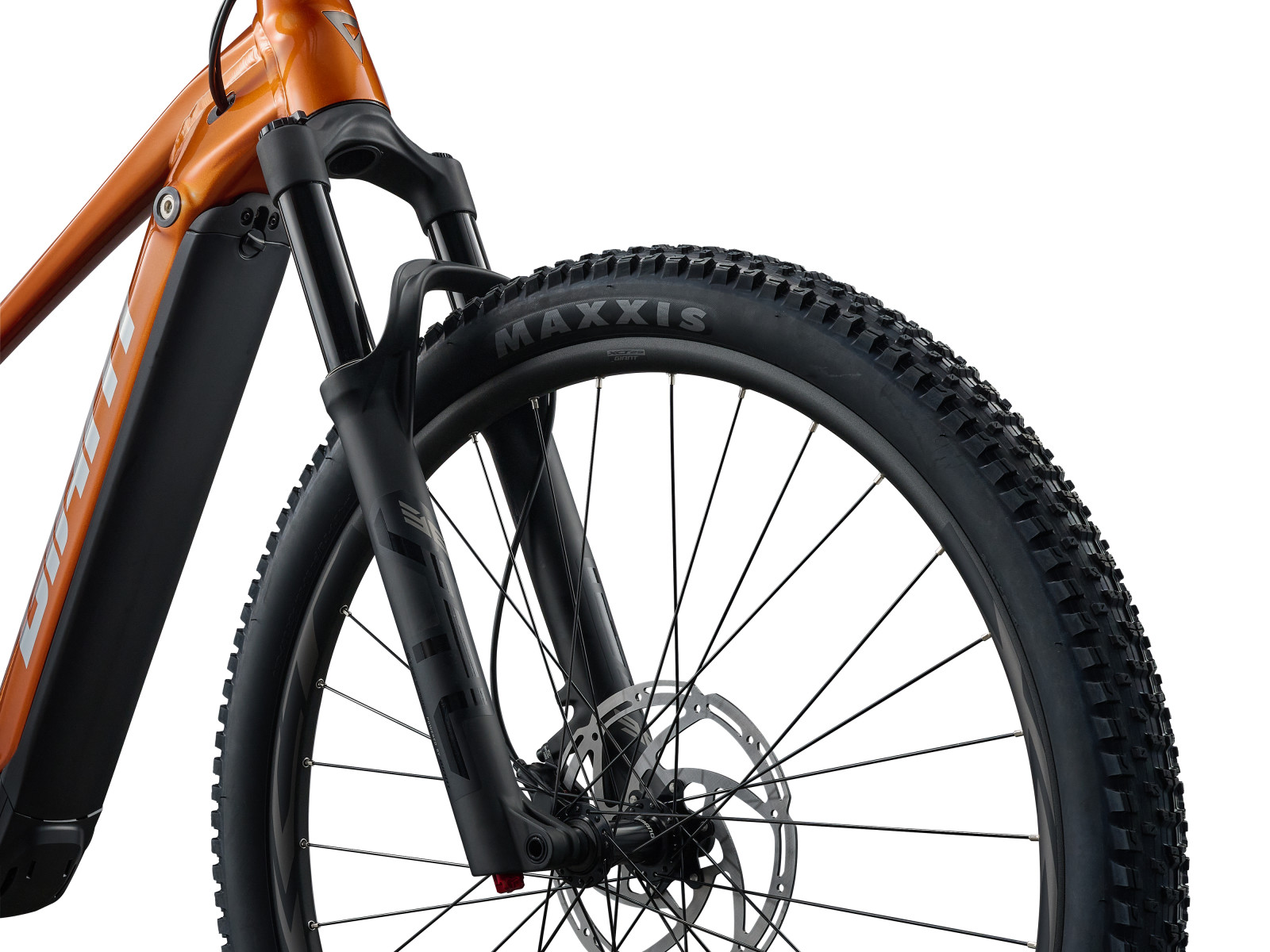

- Fork
- Giant STL 36 Air, 130mm travel, 5-position compression adjust, tapered steerer, 72mm crown, e-bike optimized, 110x15mm Boost axle, full fender compatible
E-system

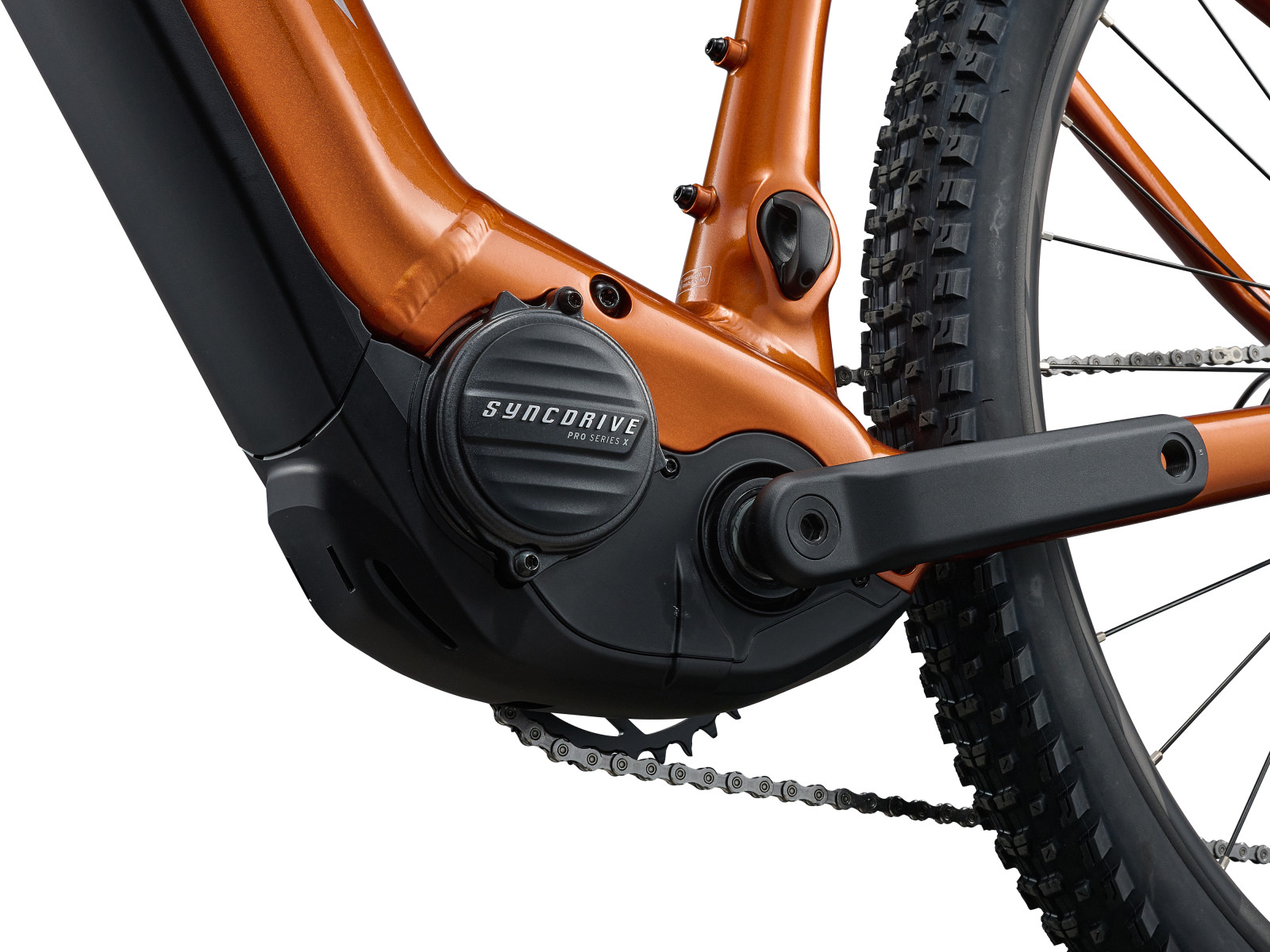

- Motor
- Giant SyncDrive Pro 3X 100Nm, PedalPlus 6-Sensor technology
- Controller
- Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels
- Display
- Giant RideControl Dash 2, high-angle visibility, full colour LCD display
- Battery
- Giant EnergyPak Smart 800Wh
- Charger
- Giant EnergyPak smart charger 4A
- Connectivity
- Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile
- Lock
- ABUS Xplus battery lock
Drivetrain
- Shifters
- Shimano Cues

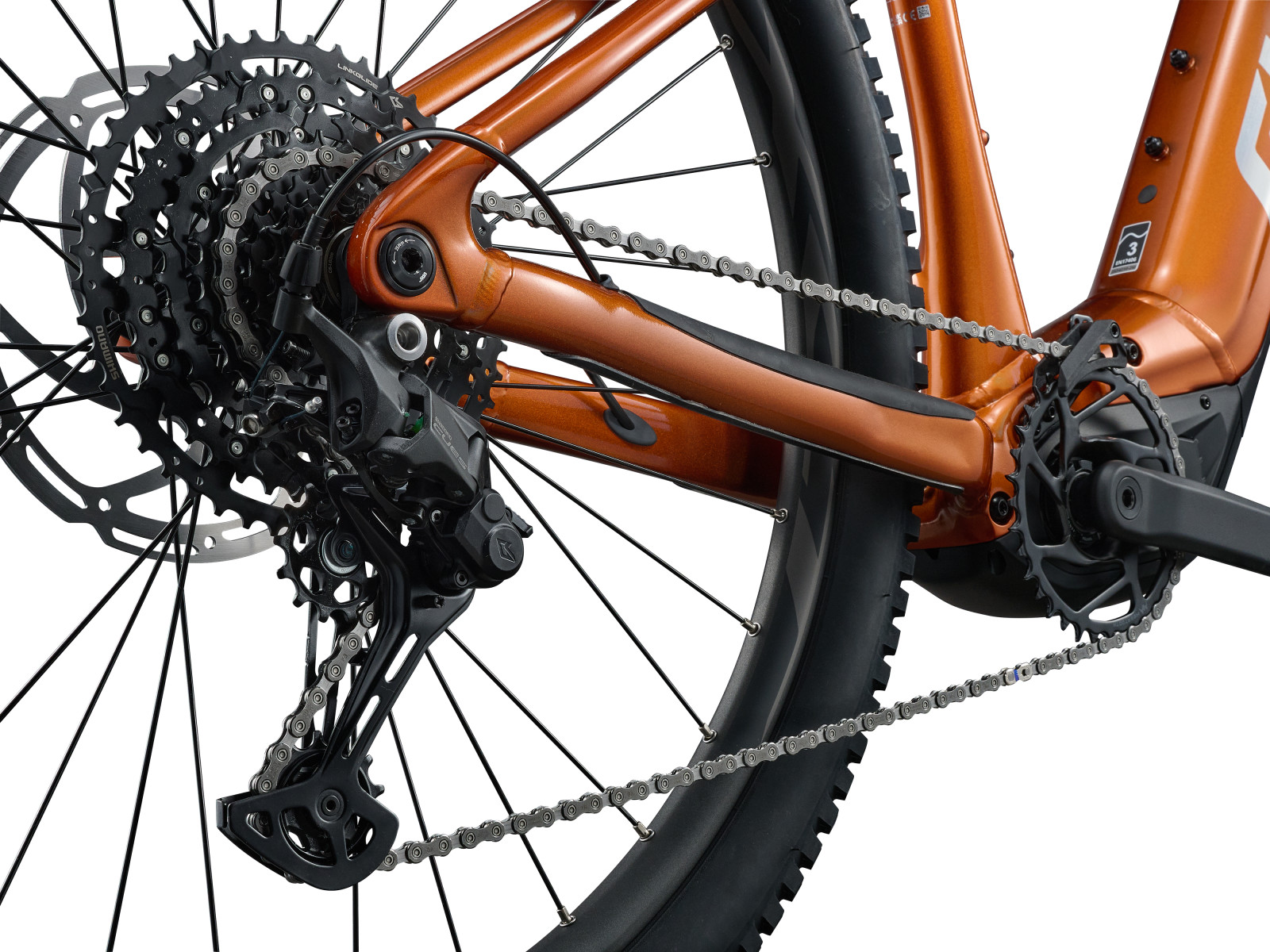

- Rear derailleur
- Shimano Cues, LinkGlide 10-speed Shadow+
- Cassette
- Shimano Cues11-48T 10-speed
- Chain
- Shimano Cues, Linkglide CN-LG500
- Crankset
- Forged alluminum direct-mount chainring steel 36T, Forged alumium crank arms
Brakes
- Brakes
- Tektro Orion, hydraulic disc
- Brake levers
- Tektro Orion
Wheels & tyres
- Rims
- Giant XCT 29 Tubeless Ready 25mm e-bike optimized
- Hubs
- Shimano TC500, Boost, Center-Lock, 15x110mm[F] 12x148mm[R]
- Spokes
- Stainless steel
- Tyres
- Maxxis Rekon 29x2.4", EXO, 60TPI
Cockpit
- Handlebar
- Giant Connect TR Riser 31.8x760mm [S], 780mm [M-XXL]
- Grips
- Giant Sole-O
- Stem
- Giant Contact SL
- Seatpost
- Giant Contact Switch AT dropper seatpost, 100mm travel
- Saddle
- Giant Ergo Contact Trail
- Pedals
- Anti-slip Platform
Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.
Fathom E+ geometry
| Size | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| ASeat Tube Length | 380 mm | 420 mm | 460 mm | 495 mm | 530 mm |
| BSeat Tube Angle | 75.0° | 75.0° | 75.0° | 75.0° | 75.0° |
| CTop Tube Length | 590 mm | 610 mm | 630 mm | 650 mm | 670 mm |
| DHead Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| EHead Tube Angle | 66.0° | 66.0° | 66.0° | 66.0° | 66.0° |
| FFork Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| GTrail | 113.5 mm | 113.5 mm | 113.5 mm | 113.5 mm | 113.5 mm |
| HWheelbase | 1197 mm | 1219 mm | 1241 mm | 1262 mm | 1284 mm |
| IChain Stay Length | 470 mm | 470 mm | 470 mm | 470 mm | 470 mm |
| JBottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| KStack | 647 mm | 656 mm | 665 mm | 674 mm | 684 mm |
| LReach | 416 mm | 434 mm | 451 mm | 469 mm | 486 mm |
| MStand Over Height | 730 mm | 757 mm | 750 mm | 773 mm | 776 mm |
| NHandlebar Width | 750 mm | 750 mm | 780 mm | 780 mm | 780 mm |
| OStem Length | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| QWheel Size | 29" | 29" | 29" | 29" | 29" |
Source: Giant.
Fathom E+: builds compared
Fathom E+ range →| Fathom E+ 2 | Fathom E+ 1 | |
|---|---|---|
| Price | £2,599 | £2,999 |
| Frame | Alloy | Alloy |
| Fork | SR Suntour XCM34, 130mm travel | Giant STL 36 Air, 130mm travel |
| Derailleur | Shimano CUES | Shimano Cues |
| Brakes | Shimano MT-200 | Tektro Orion |
| Wheels | Giant XCT 29, tubeless ready | Giant XCT 29 Tubeless Ready 25mm e-bike optimized |
| Display | Giant RideControl Dash 2 | Giant RideControl Dash 2 |
| Weight | 24.4 kg | — |
Fathom E+ 1: FAQ
What is the difference between the Fathom E+ 1 and the Fathom E+ 2?
They share the Fathom E+ frame platform and motor; the differences are in the parts: fork: Giant STL 36 Air vs SR Suntour XCM34; derailleur: Shimano Cues vs Shimano CUES; price: £2,999 vs £2,599.
