Full-power eMTBHardtail / Trail2027
Model range · 2 buildsGiantFathom E+
- Price
- £2,599 – £2,999
- Motor
- Giant SyncDrive Pro 3X100 Nm
- Battery
- 625 WhEnergyPak
- Travel F / R
- 130 / null mm
- Wheels
- 29"
- Weight
- 24.4 kg
Overview
The Fathom E+ is Giant's aluminium e-MTB hardtail: 29-inch wheels, a 130 mm fork and the SyncDrive Pro 3X motor (100 Nm), with an 800 Wh battery on the E+ 1 and 625 Wh on the E+ 2. Both have an integrated kickstand mount.
- Aluminium hardtail
- 130 mm fork, 29-inch wheels
- SyncDrive Pro 3X, 100 Nm
- 800 or 625 Wh battery

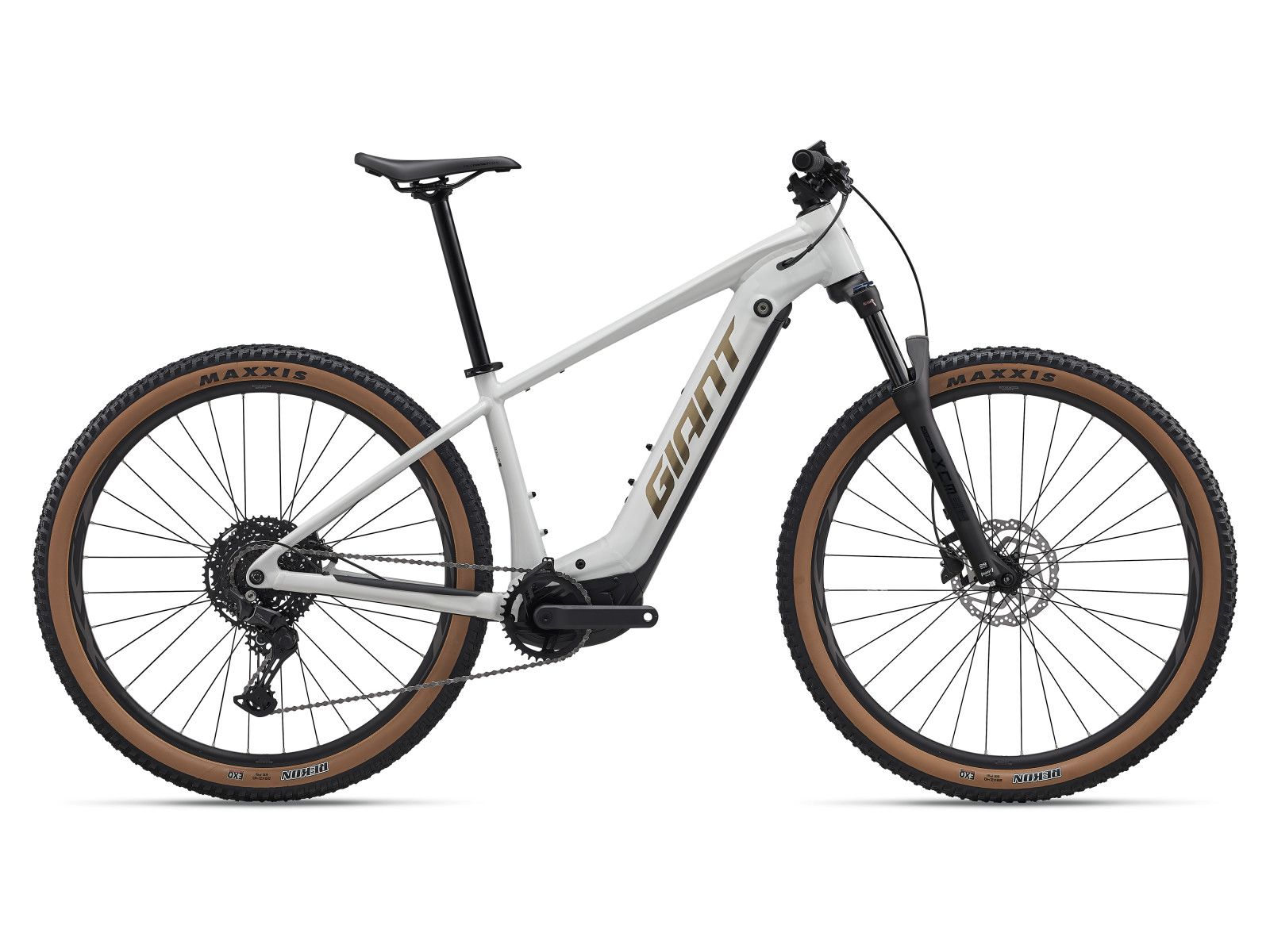

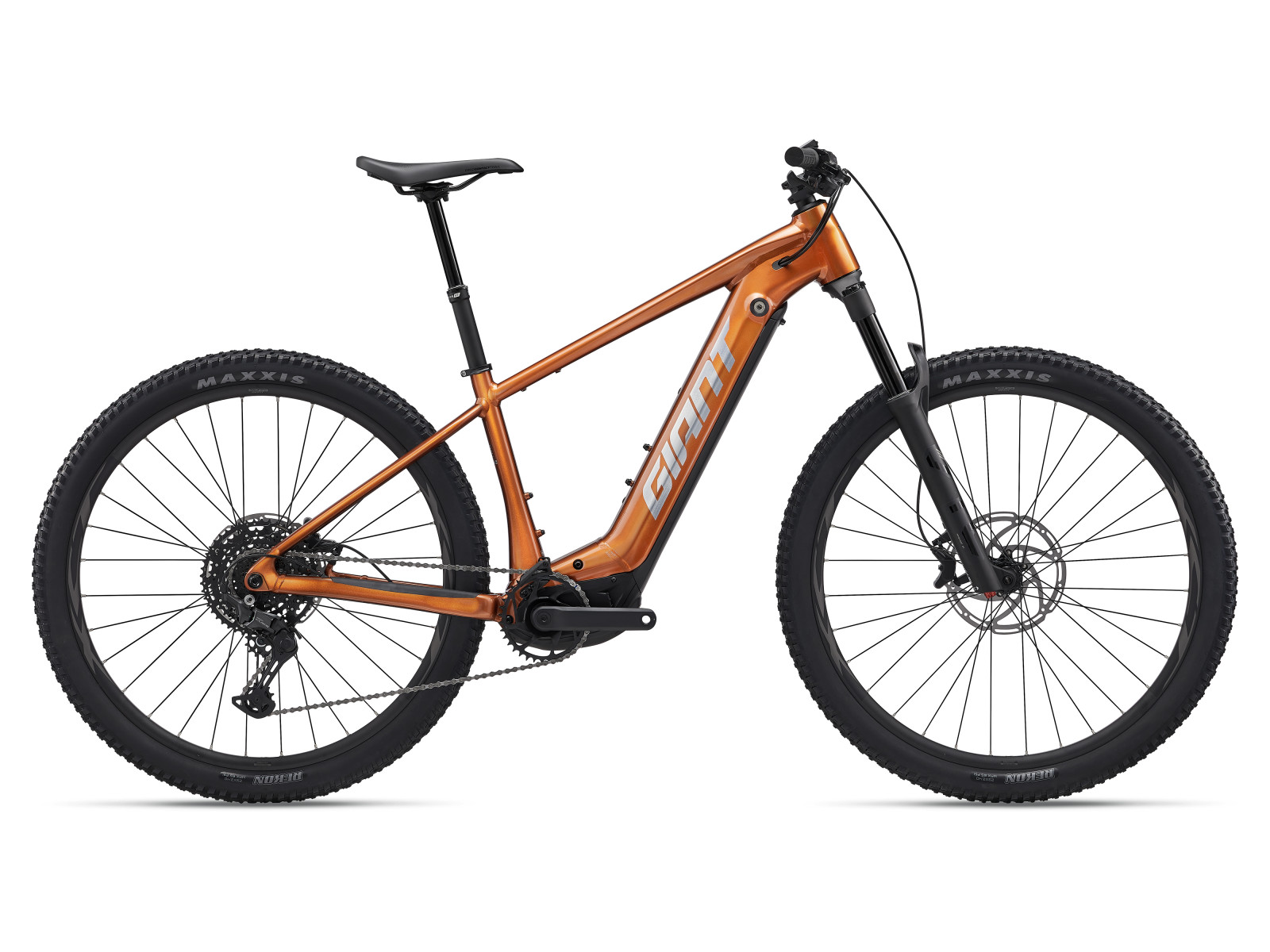

Giant Fathom E+ builds
Fathom E+ builds compared
| Fathom E+ 2 | Fathom E+ 1 | |
|---|---|---|
| Price | £2,599 | £2,999 |
| Frame | Alloy | Alloy |
| Fork | SR Suntour XCM34, 130mm travel | Giant STL 36 Air, 130mm travel |
| Derailleur | Shimano CUES | Shimano Cues |
| Brakes | Shimano MT-200 | Tektro Orion |
| Wheels | Giant XCT 29, tubeless ready | Giant XCT 29 Tubeless Ready 25mm e-bike optimized |
| Display | Giant RideControl Dash 2 | Giant RideControl Dash 2 |
| Weight | 24.4 kg | — |
Fathom E+ geometry
| Size | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| BSeat Tube Angle | 75.0° | 75.0° | 75.0° | 75.0° | 75.0° |
| CTop Tube Length | 590 mm | 610 mm | 630 mm | 650 mm | 670 mm |
| DHead Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| EHead Tube Angle | 66.0° | 66.0° | 66.0° | 66.0° | 66.0° |
| HWheelbase | 1197 mm | 1219 mm | 1241 mm | 1262 mm | 1284 mm |
| IChain Stay Length | 470 mm | 470 mm | 470 mm | 470 mm | 470 mm |
| KStack | 647 mm | 656 mm | 665 mm | 674 mm | 684 mm |
| LReach | 416 mm | 434 mm | 451 mm | 469 mm | 486 mm |
| PCrank Length | 165 mm | 165 mm | 165 mm | 165 mm | 165 mm |
Source: Giant.
Giant Fathom E+: FAQ
How much does the Giant Fathom E+ cost?
£2,599 – £2,999 depending on the build (Fathom E+ 2 £2,599, Fathom E+ 1 £2,999); UK RRP, VAT incl..
How many Giant Fathom E+ builds are there?
2: Fathom E+ 2, Fathom E+ 1. They share the frame platform and differ mainly in suspension, drivetrain, wheels and weight.
How much does the Giant Fathom E+ weigh?
Claimed weights range from 24.4 kg (Fathom E+ 2) to 24.4 kg (Fathom E+ 2).
What motor and battery does the Giant Fathom E+ use?
Giant SyncDrive Pro 3X (100 Nm) with a 625 Wh battery (energypak).
How much travel does the Giant Fathom E+ have?
130 mm fork and null mm rear travel on 29" wheels.
