YetiLTe XX AXS
- Motor
- Bosch Performance Line CX-R120 Nm; 750 W peak
- Battery
- 800 WhBosch PowerTube
- Travel F / R
- 170 / 160 mm
- Wheels
- 29" (MX 29" / 27.5" compatible)
- Frame
- Carbon
- Weight
- 23.7 kgManufacturer figure (size not stated)
Overview
The Yeti LTe XX AXS (€14,500) is the top build of the LTe: Bosch Performance Line CX-R (120 Nm) with 800 Wh, Fox Podium Factory fork, Fox Factory Float X2 shock, SRAM XX AXS and SRAM Maven Ultimate brakes. Claimed weight is 23.7 kg.
The LTe is Yeti's full-power carbon enduro e-MTB: 160 mm of Sixfinity rear travel, a 170 mm fork and 29-inch wheels, with a flip chip for a mixed-wheel (29/27.5) setup that retains geometry. The XX and X0 builds use the Bosch Performance Line CX-R (120 Nm, 750 W) and the 90 build the Bosch CX, all with an 800 Wh PowerTube battery and Kiox 400C display.

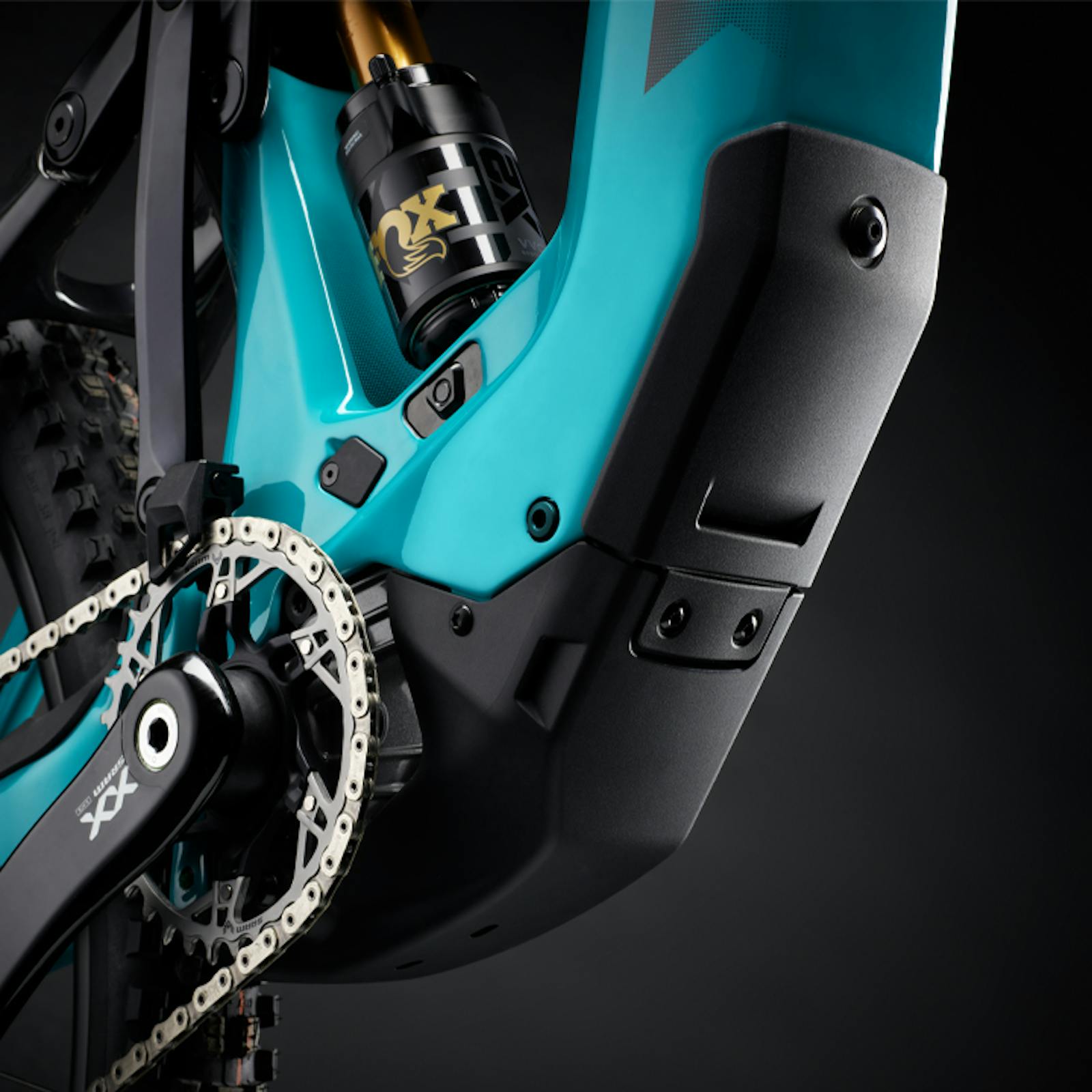

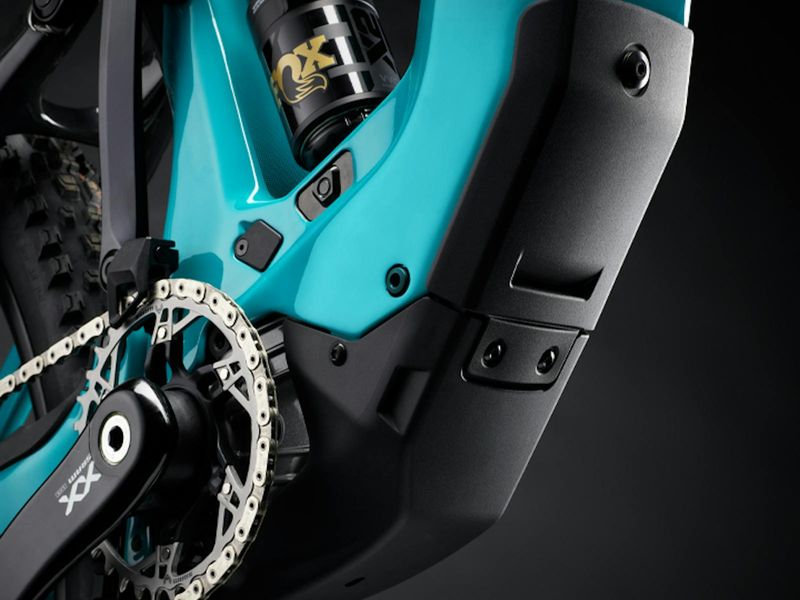

The progression rate is adjustable via flip chip, the downtube guard doubles as an access door for the battery, and sizes M–XL accept the 250 Wh PowerMore range extender. Geometry has a 64° head angle and reach of 435–510 mm (S–XL).
- Bosch CX-R or CX, 800 Wh
- 160 mm Sixfinity / 170 mm fork
- 29" or MX mixed wheels
- PowerMore 250 Wh extender compatible
Gallery
Photos: Yeti
Full specifications
Frame & suspension
- Frame

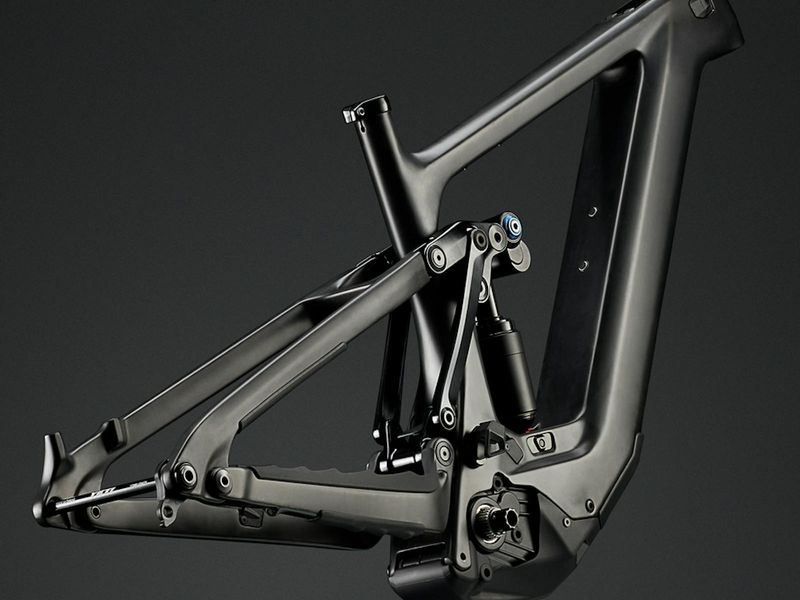

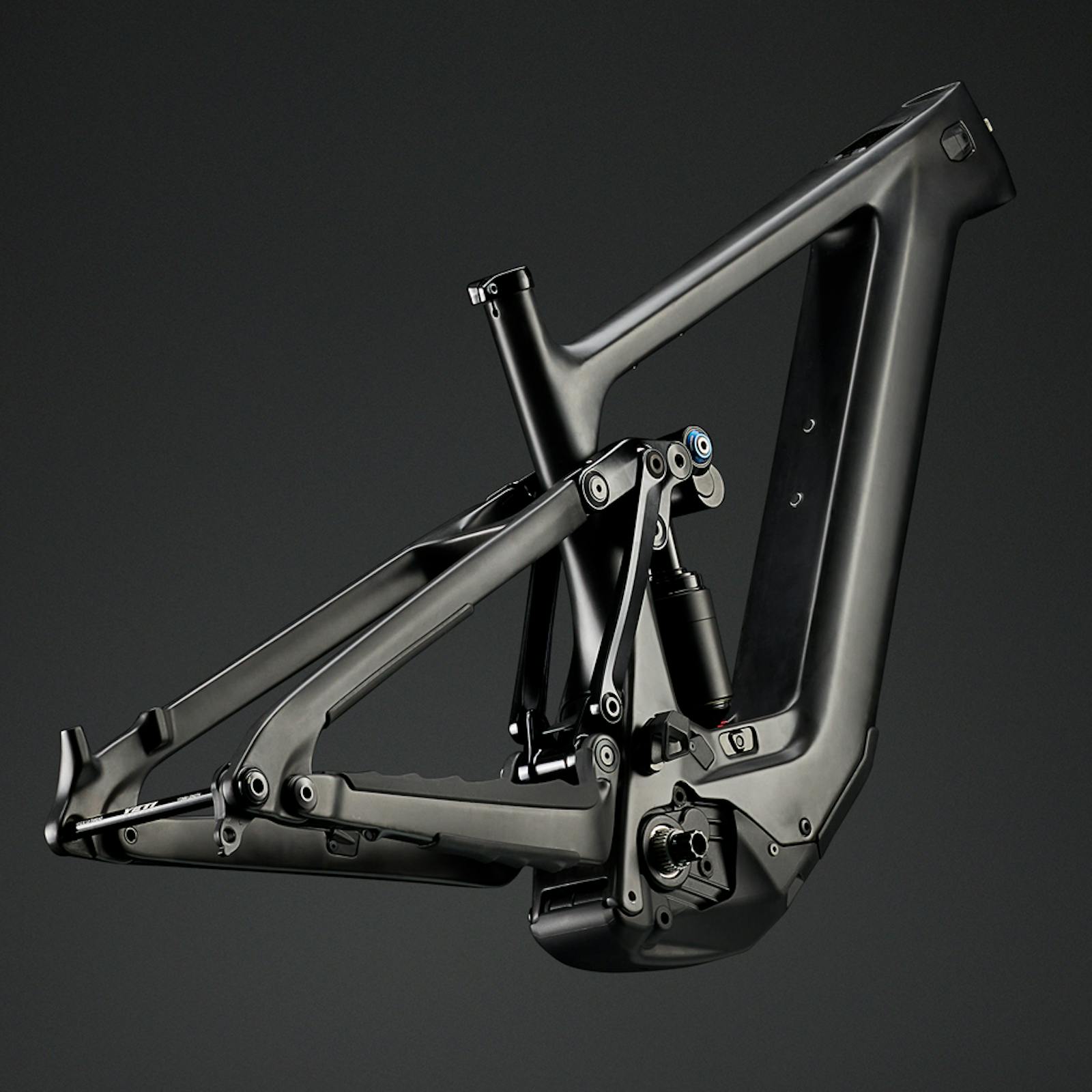

- TURQ Series carbon fiber frame, SIXFINITY suspension technology, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
- Fork
- Fox Podium Factory (170 mm)
- Rear shock
- Fox Factory Float X2
- Rear travel
- 160mm
E-system
- Motor
- Bosch Performance Line CX-R BDU384Y
- Battery
- Bosch Powertube 800Wh
- Display

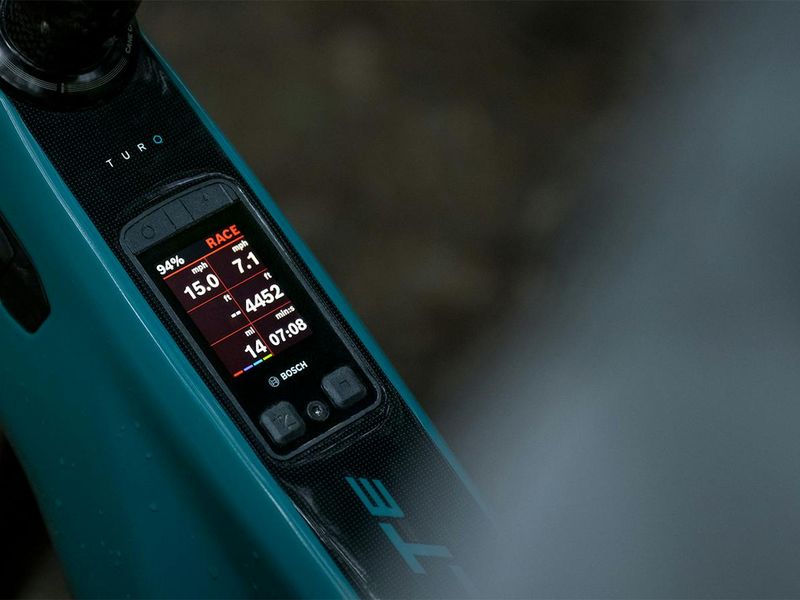

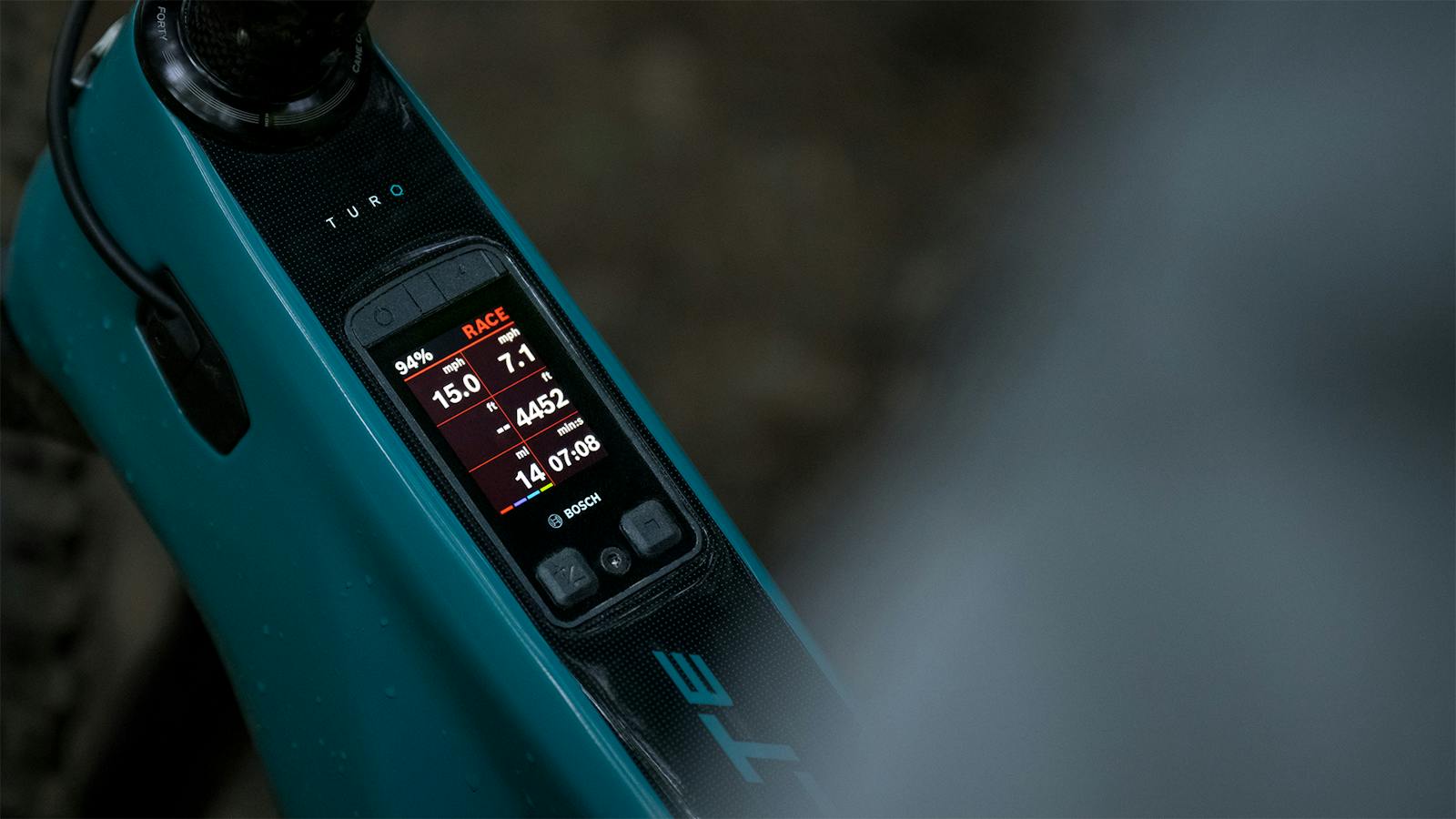

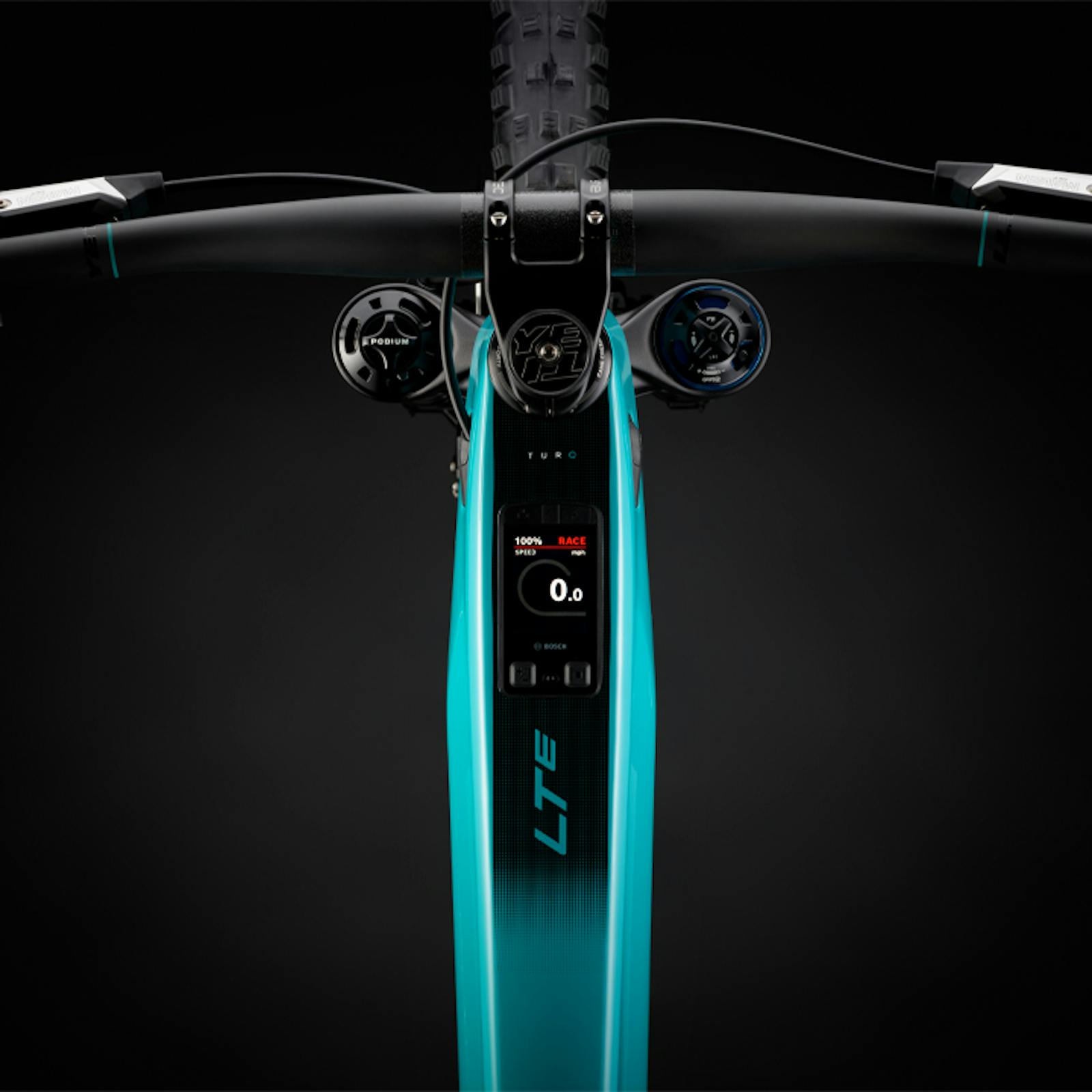

- Bosch Kiox 400C
- Remote
- Bosch Wireless Mini Remote
- Charger
- Bosch 4A Charger
Drivetrain
- Rear derailleur
- SRAM XX AXS
- Shifter
- SRAM AXS Pod Controller
- Crankset

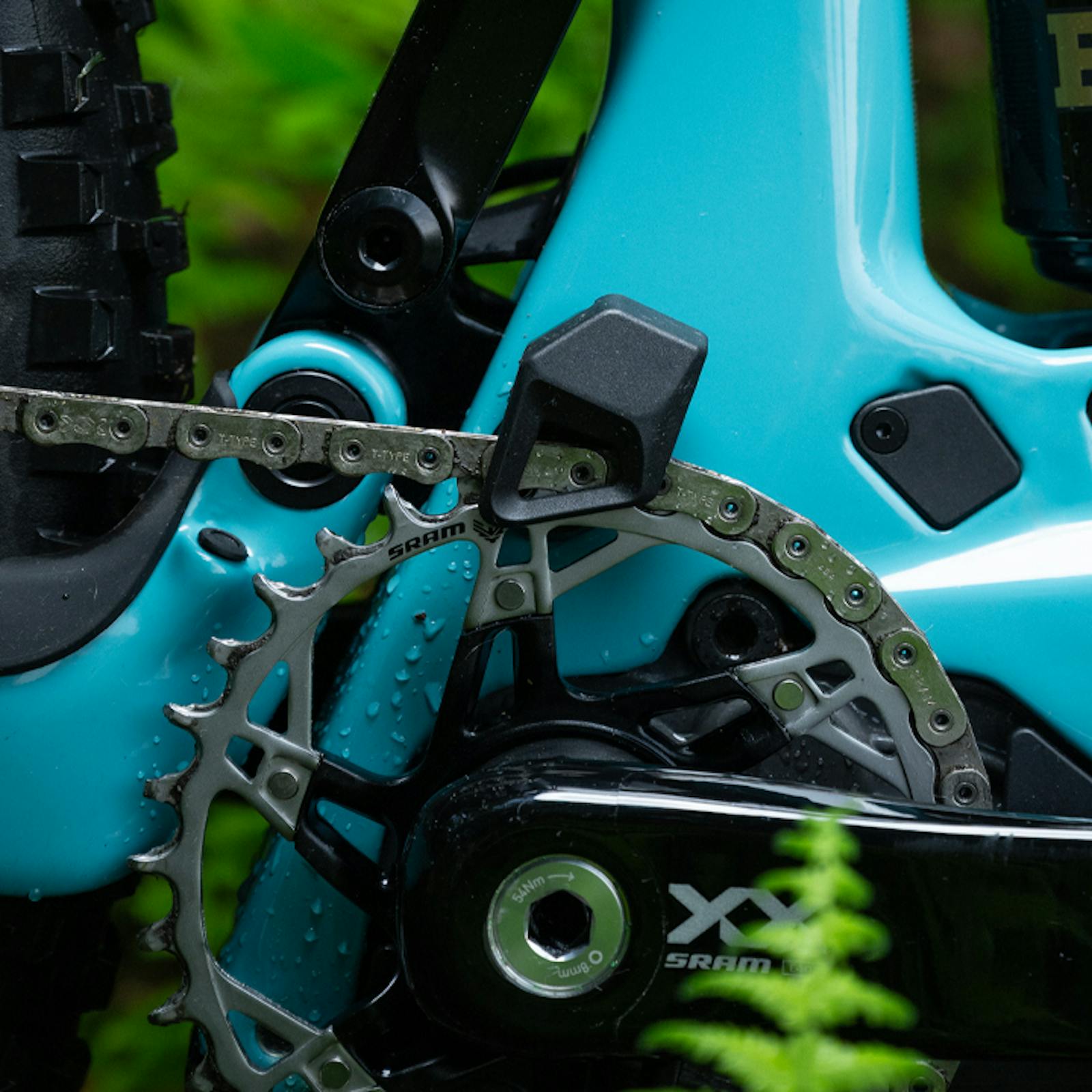

- Raceface Era 160mm
- Cassette
- SRAM XX 10-52
- Chain
- SRAM XX
Brakes
- Brakes
- SRAM Maven Ultimate
- Rotors
- SRAM HS2 200/200
Wheels & tyres
- Wheelset
- DT Swiss HXC1700 30mm Carbon
- Front tyre
- Schwalbe Magic Mary Gravity Pro 2.5 Radial Ultra Soft
- Rear tyre
- Schwalbe Tacky Chan Gravity Pro 2.5 Radial Soft

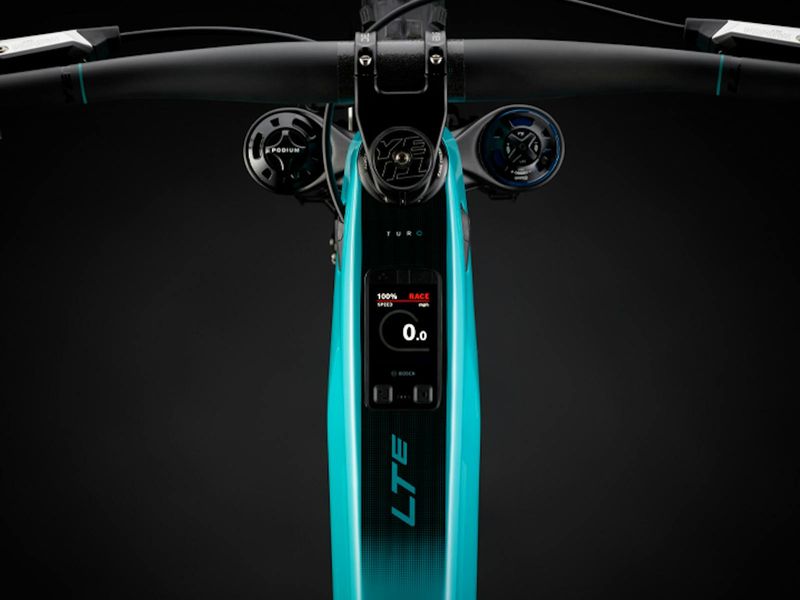

Cockpit
- Headset
- Cane Creek 40
- Handlebar
- Yeti Carbon 35X800mm 35mm Rise
- Stem
- Burgtec Enduro MK3 35X50mm
- Grips
- ODI Reflex
- Seatpost
- SRAM Reverb AXS 31.6mm / Sm: 150mm, Md: 175mm Lg-xl: 200mm
- Saddle
- WTB Solano SL Titanium
Other
- Weight
- 52.28 lb (23.72 kg)
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
LTe geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 390 mm | 420 mm | 440 mm | 460 mm |
| BEffective top tube length | 566 mm | 598 mm | 620 mm | 647 mm |
| CHead tube angle | 64° | 64° | 64° | 64° |
| DEffective seat tube angle | 78° | 78° | 78° | 78° |
| EActual seat tube angle | 72.0° | 72.1° | 72.2° | 72.3° |
| FRear center | 449 mm | 449 mm | 449 mm | 449 mm |
| GWheelbase | 1223 mm | 1257 mm | 1282 mm | 1312 mm |
| HEstimated BB height | 350 mm | 350 mm | 350 mm | 350 mm |
| IStandover | 754 mm | 765 mm | 765 mm | 765 mm |
| JHead tube length | 92 mm | 100 mm | 111 mm | 122 mm |
| KAxle to crown | 588 mm | 588 mm | 588 mm | 588 mm |
| LOffset | 44 mm | 44 mm | 44 mm | 44 mm |
| MStack | 618 mm | 625 mm | 635 mm | 645 mm |
| NReach | 435 mm | 465 mm | 485 mm | 510 mm |
| OFront center | 774 mm | 808 mm | 833 mm | 863 mm |
| PVertical fork travel | 153 mm | 153 mm | 153 mm | 153 mm |
Source: Yeti Cycles. Values per size; geometry stated as retained in the MX (mixed-wheel) flip-chip setting.
LTe: builds compared
LTe range →| LTe 90 | LTe X0 AXS | LTe XX AXS | |
|---|---|---|---|
| Price | €9,900 | €12,900 | €14,500 |
| Frame | Carbon | Carbon | Carbon |
| Fork | Fox Factory 38 Grip X2/170mm | Fox Factory 38 Grip X2/170mm | Fox Podium Factory (170 mm) |
| Shock | Fox Factory Float X2 | Fox Factory Float X2 | Fox Factory Float X2 |
| Derailleur | SRAM 90 | SRAM X0 AXS | SRAM XX AXS |
| Brakes | SRAM Maven Base | SRAM Maven Silver | SRAM Maven Ultimate |
| Display | Bosch Kiox 400C | Bosch Kiox 400C | Bosch Kiox 400C |
| Weight | 23.6 kg | 23.5 kg | 23.7 kg |
LTe XX AXS: FAQ
How much does the Yeti LTe XX AXS cost?
€14,500 (RRP Germany, VAT incl.). The LTe range runs from €9,900 (LTe 90) to €14,500 (LTe XX AXS). Prices vary by country and dealer.
How much does the Yeti LTe XX AXS weigh?
Yeti quotes 23.7 kg. The lightest LTe build is the LTe X0 AXS at 23.5 kg.
What motor and battery does the Yeti LTe XX AXS have?
Bosch Performance Line CX-R (120 Nm; 750 W peak). 800 Wh battery — bosch PowerTube.
How much suspension travel does the Yeti LTe XX AXS have?
170 mm at the fork and 160 mm at the rear, on 29" (MX 29" / 27.5" compatible) wheels.
What sizes does the Yeti LTe XX AXS come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the LTe XX AXS and the LTe X0 AXS?
They share the LTe frame platform and motor; the differences are in the parts — fork: Fox Podium Factory (170 mm) vs Fox Factory 38 Grip X2/170mm; derailleur: SRAM XX AXS vs SRAM X0 AXS; claimed weight: 23.7 kg vs 23.5 kg; price: €14,500 vs €12,900.
