PivotShuttle LT
- Price
- $8,999 – $16,699
- Motor
- Bosch Performance Line CX120 Nm; 750 W peak
- Battery
- 800 WhBosch PowerTube, removable; PowerMore 250 range extender optional
- Travel F / R
- 170 / 162 mm
- Wheels
- Mullet 29" / 27.5"
Overview
The Shuttle LT is Pivot's carbon long-travel enduro e-MTB: 162 mm of dw-link rear travel (165 mm in the long chainstay setting) with a 170 mm fork and mixed wheels. It has several adjustments: a geometry flip chip, a progression flip chip at the lower shock mount, 8 mm of chainstay adjustment via the Swinger dropout and the Slacky McSteepTube seat tube angle (76.5° or 78°).
It runs the Bosch Gen 5 Performance Line CX (Ride) or CX Race (Pro and Team), rated at 120 Nm and 750 W peak, with a removable 800 Wh battery and PowerMore 250 range extender compatibility. Pro and Team builds get a FOX Podium inverted fork, and NEO builds a FOX Live Valve Neo shock. Pivot says the lightest builds weigh under 23.5 kg.
- 170 mm fork / 162 mm rear, mixed wheels
- Bosch CX / CX Race, removable 800 Wh
- Adjustable seat angle, chainstay and progression
- FOX Podium fork on Pro and Team
Pivot Shuttle LT builds
Shuttle LT builds compared

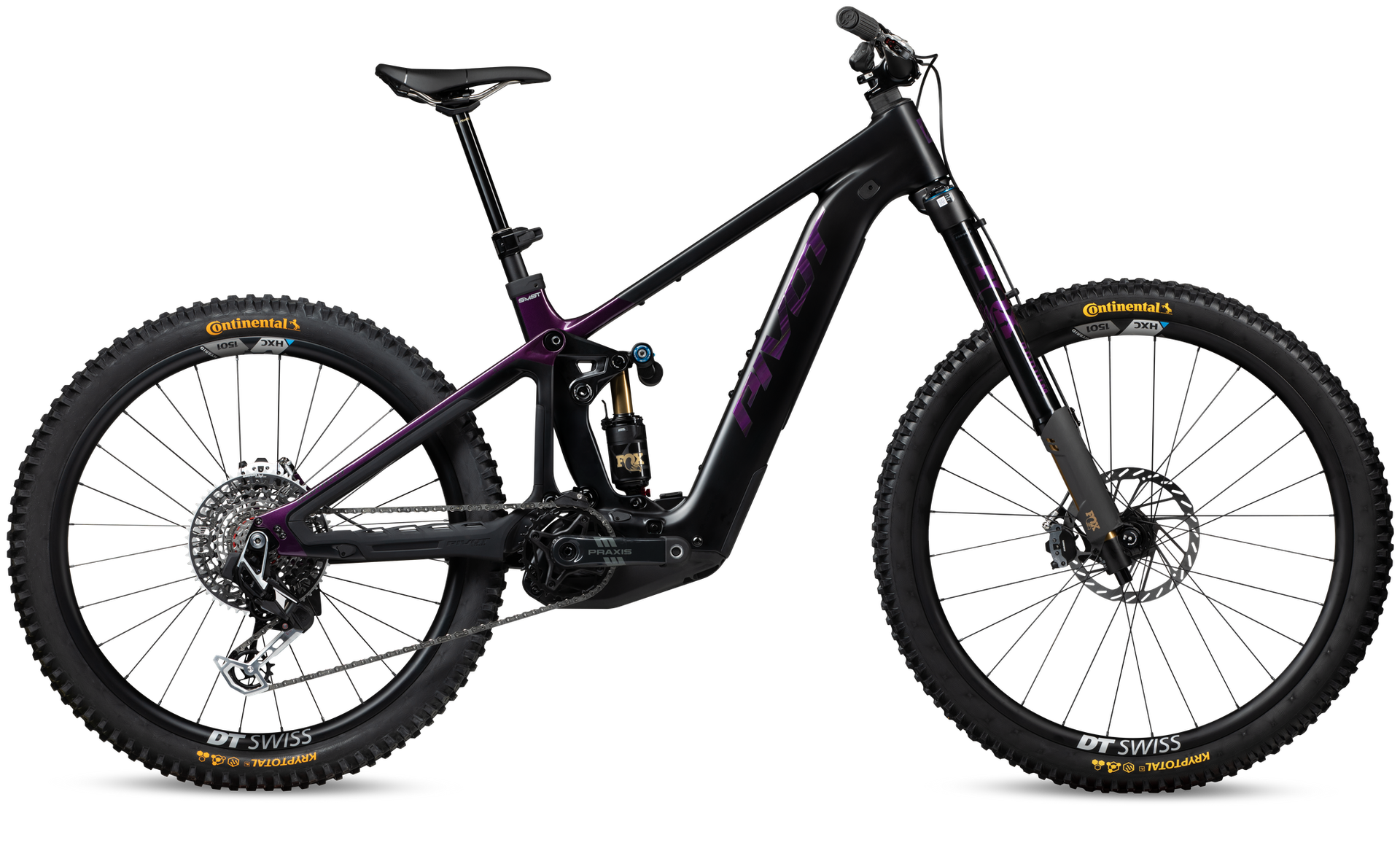

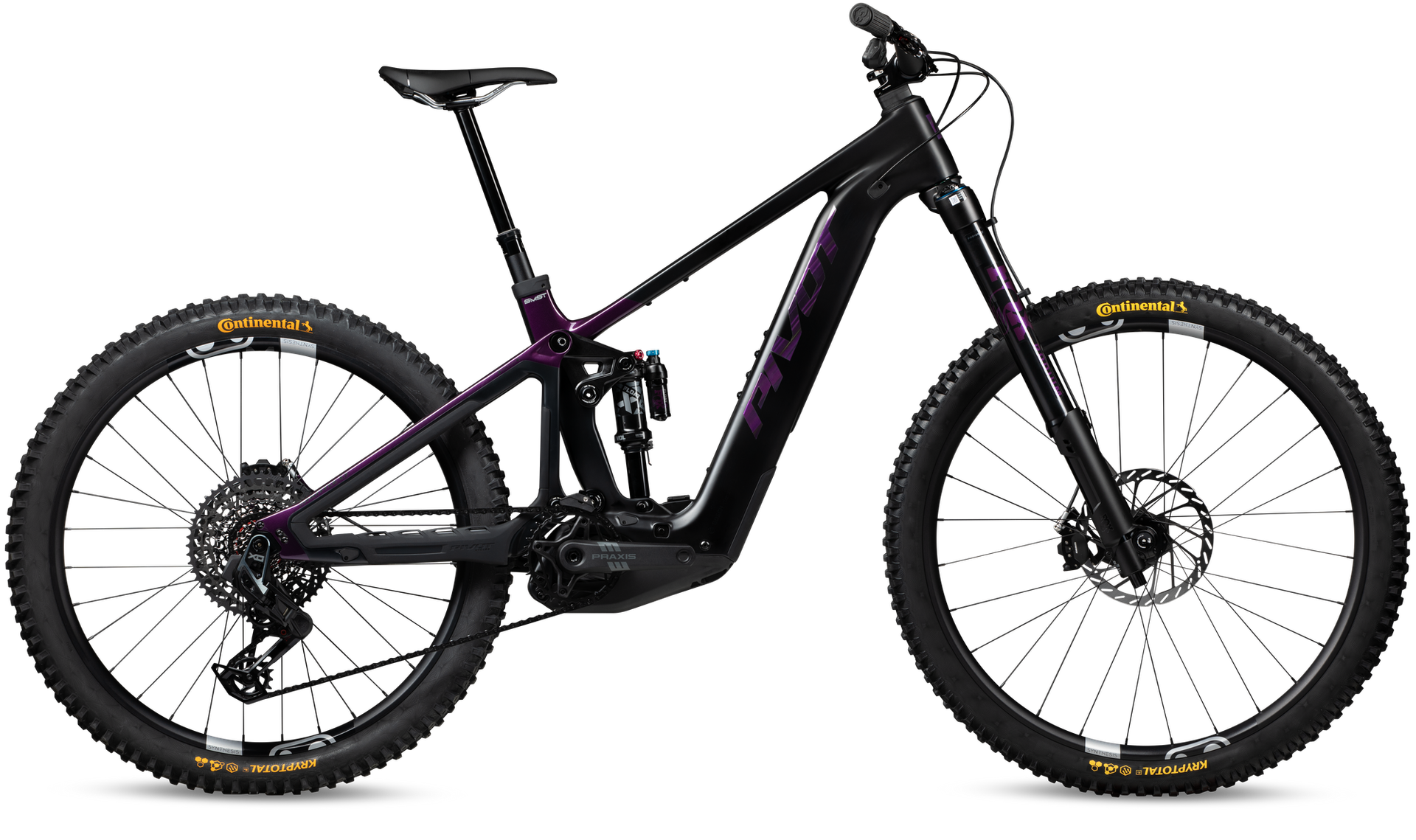

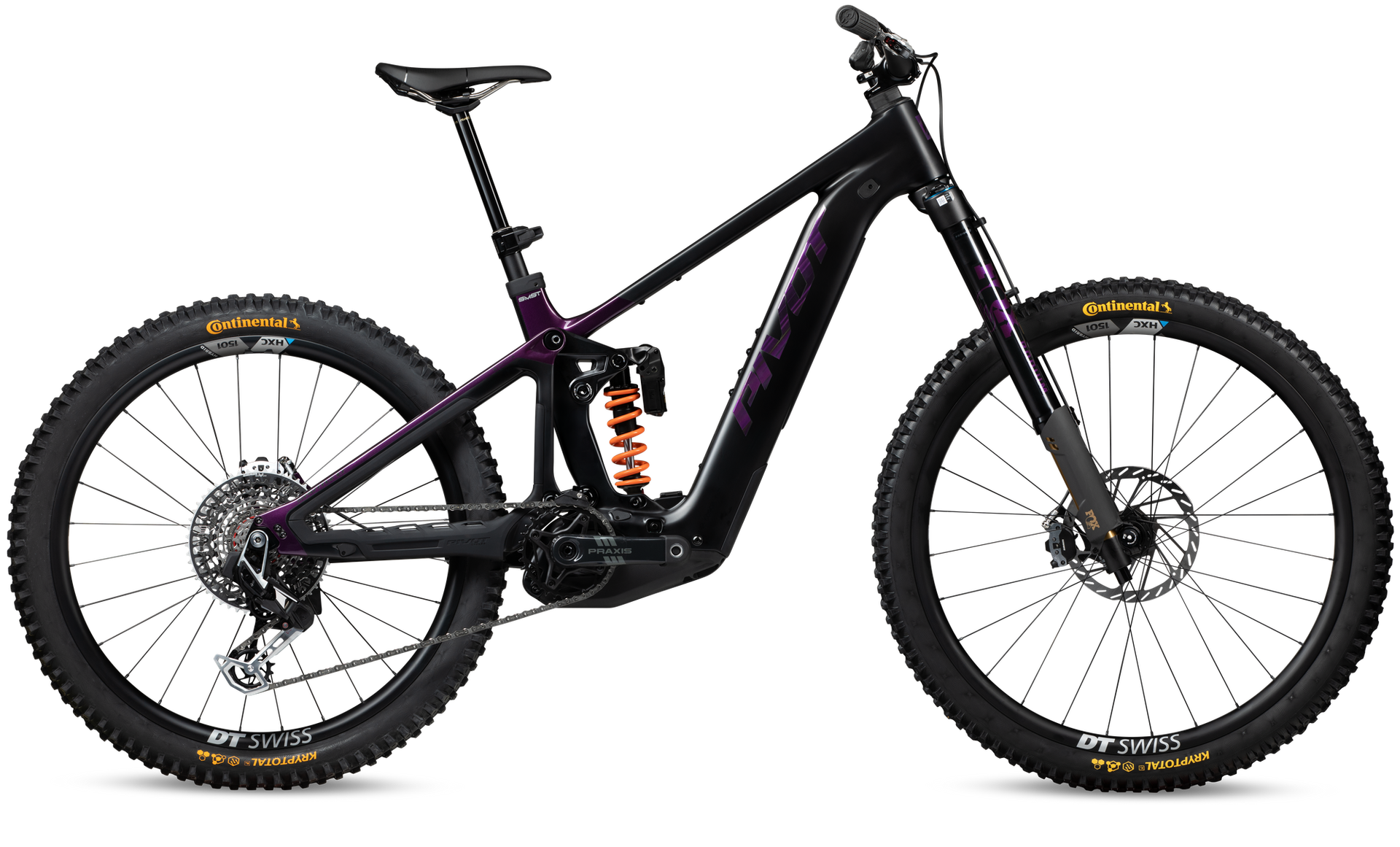

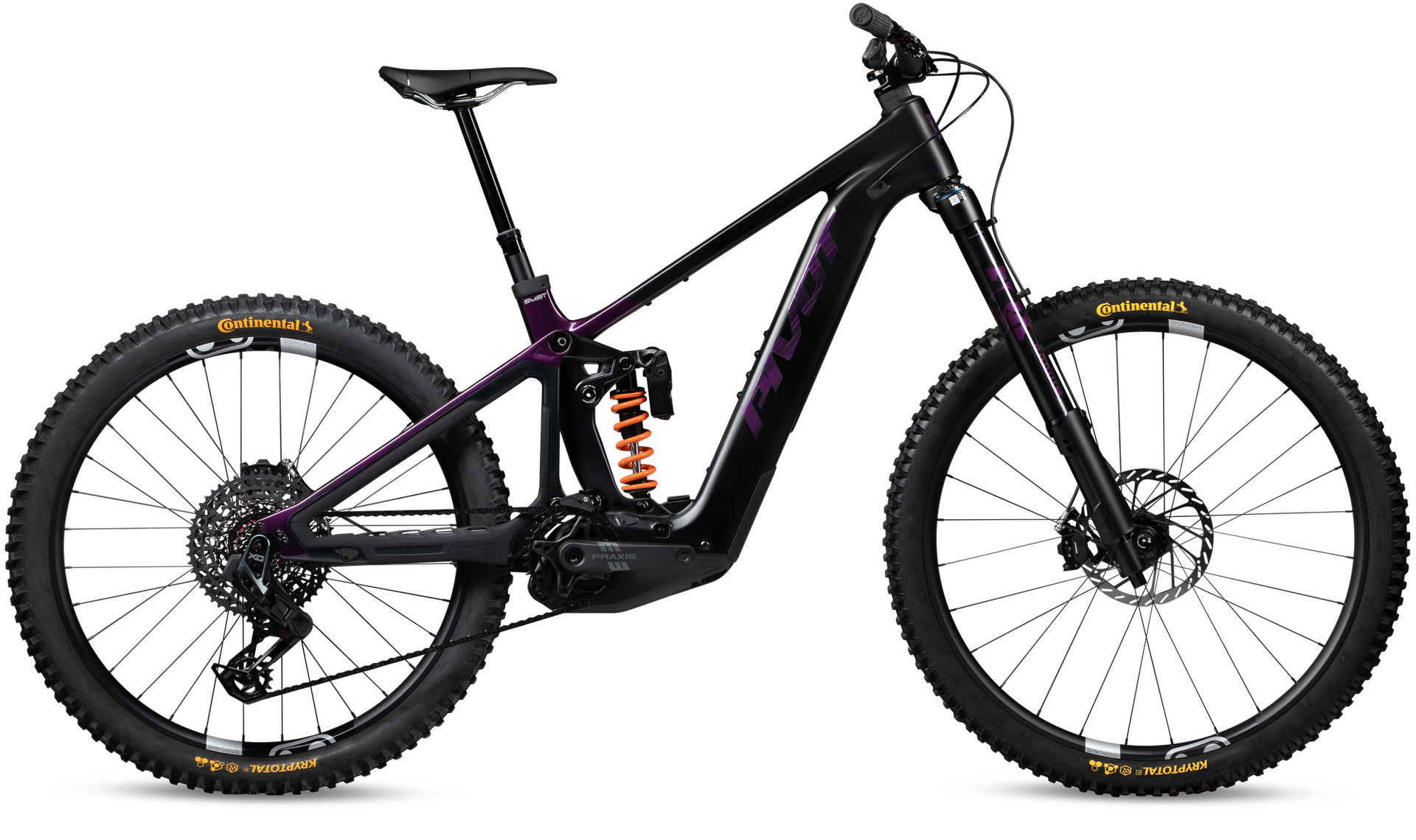

| Shuttle LT Ride Eagle 70/90 | Shuttle LT Pro X0 Eagle Transmission | Shuttle LT Pro X0 Eagle Transmission NEO | Shuttle LT Team XX Eagle Transmission | Shuttle LT Team XX Eagle Transmission NEO | |
|---|---|---|---|---|---|
| Price | $8,999 | $12,599 | $14,299 | $14,999 | $16,699 |
| Frame | Carbon | Carbon | Carbon | Carbon | Carbon |
| Fork | Fox Performance 38 29", 44mm offset | Fox Performance Elite Podium 29", 44mm offset | Fox Performance Elite Podium 29", 44mm offset | Fox Factory Podium 29", 44mm offset | Fox Factory Podium 29", 44mm offset |
| Shock | Fox Performance Float X | Fox Performance Elite Float X | Fox Factory DHX Neo Live | Fox Factory Float X2 | Fox Factory DHX Neo Live |
| Derailleur | SRAM Eagle 90 Mechanical Transmission 12-Speed | SRAM X0 Eagle Transmission 12-Speed | SRAM X0 Eagle Transmission 12-Speed | SRAM XX Eagle Transmission 12-Speed | SRAM XX Eagle Transmission 12-Speed |
| Brakes | SRAM Maven 4-piston | SRAM Maven Silver 4-piston | SRAM Maven Silver 4-piston | SRAM Maven Ultimate 4-piston | SRAM Maven Ultimate 4-piston |
| Display | — | Bosch Kiox 400C | Bosch Kiox 400C | Bosch Kiox 400C | Bosch Kiox 400C |
Shuttle LT geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat Tube Length | 378 mm | 399 mm | 432 mm | 470 mm |
| BTop Tube Length (Eff.) | 605 / 607 mm | 632 / 634 mm | 649 / 651 mm | 671 / 674 mm |
| CHead Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| DHead Tube Angle | 64° / 63.2° | 64° / 63.2° | 64° / 63.2° | 64° / 63.2° |
| ESeat Tube Angle (Eff.) | 76.5° / 75.7° | 76.5° / 75.7° | 76.5° / 75.7° | 76.5° / 75.7° |
| FChainstay Length - Short | 443 mm | 443 mm | 443 mm | 443 mm |
| FChainstay Length - Long | 451 mm | 451 mm | 451 mm | 451 mm |
| GBottom Bracket Height | 346 / 335 mm | 346 / 335 mm | 346 / 335 mm | 346 / 335 mm |
| HBottom Bracket Drop | 28 / 22 mm | 28 / 22 mm | 28 / 22 mm | 28 / 22 mm |
| IStandover | 689 / 678 mm | 689 / 678 mm | 704 / 693 mm | 720 / 709 mm |
| JWheelbase - Short | 1232 mm | 1261 mm | 1281 / 1280 mm | 1305 mm |
| JWheelbase - Long | 1240 mm | 1269 mm | 1288 mm | 1313 mm |
| Reach | 443 / 434 mm | 468 / 459 mm | 483 / 474 mm | 503 / 494 mm |
| Stack | 639 / 645 mm | 648 / 655 mm | 657 / 664 mm | 666 / 673 mm |
| BTop Tube Length (Eff.) (78° seat angle setting) | 584 / 586 mm | 612 / 613 mm | 629 / 631 mm | 652 / 654 mm |
| ESeat Tube Angle (Eff.) (78° seat angle setting) | 78° / 77.2° | 78° / 77.2° | 78° / 77.2° | 78° / 77.2° |
Where two values are given: High BB / Low BB flip-chip position. Main rows show the 76.5° seat-tube-angle (Slacky McSteepTube) setting; rows marked "78° seat angle setting" show the steep setting. Source: Pivot Cycles.
Pivot Shuttle LT: FAQ
How much does the Pivot Shuttle LT cost?
$8,999 – $16,699 depending on the build (Shuttle LT Ride Eagle 70/90 $8,999, Shuttle LT Pro X0 Eagle Transmission $12,599, Shuttle LT Pro X0 Eagle Transmission NEO $14,299, Shuttle LT Team XX Eagle Transmission $14,999, Shuttle LT Team XX Eagle Transmission NEO $16,699); US RRP (MSRP), excl. sales tax; bike only, without range extender. Pivot currently lists it on sale at $6,999..
How many Pivot Shuttle LT builds are there?
5: Shuttle LT Ride Eagle 70/90, Shuttle LT Pro X0 Eagle Transmission, Shuttle LT Pro X0 Eagle Transmission NEO, Shuttle LT Team XX Eagle Transmission, Shuttle LT Team XX Eagle Transmission NEO. They share the frame platform and differ mainly in suspension, drivetrain, wheels and weight.
What motor and battery does the Pivot Shuttle LT use?
Bosch Performance Line CX (120 Nm; 750 W peak) with a 800 Wh battery (bosch powertube, removable; powermore 250 range extender optional).
How much travel does the Pivot Shuttle LT have?
170 mm fork and 162 mm rear travel on mullet 29" / 27.5" wheels.
