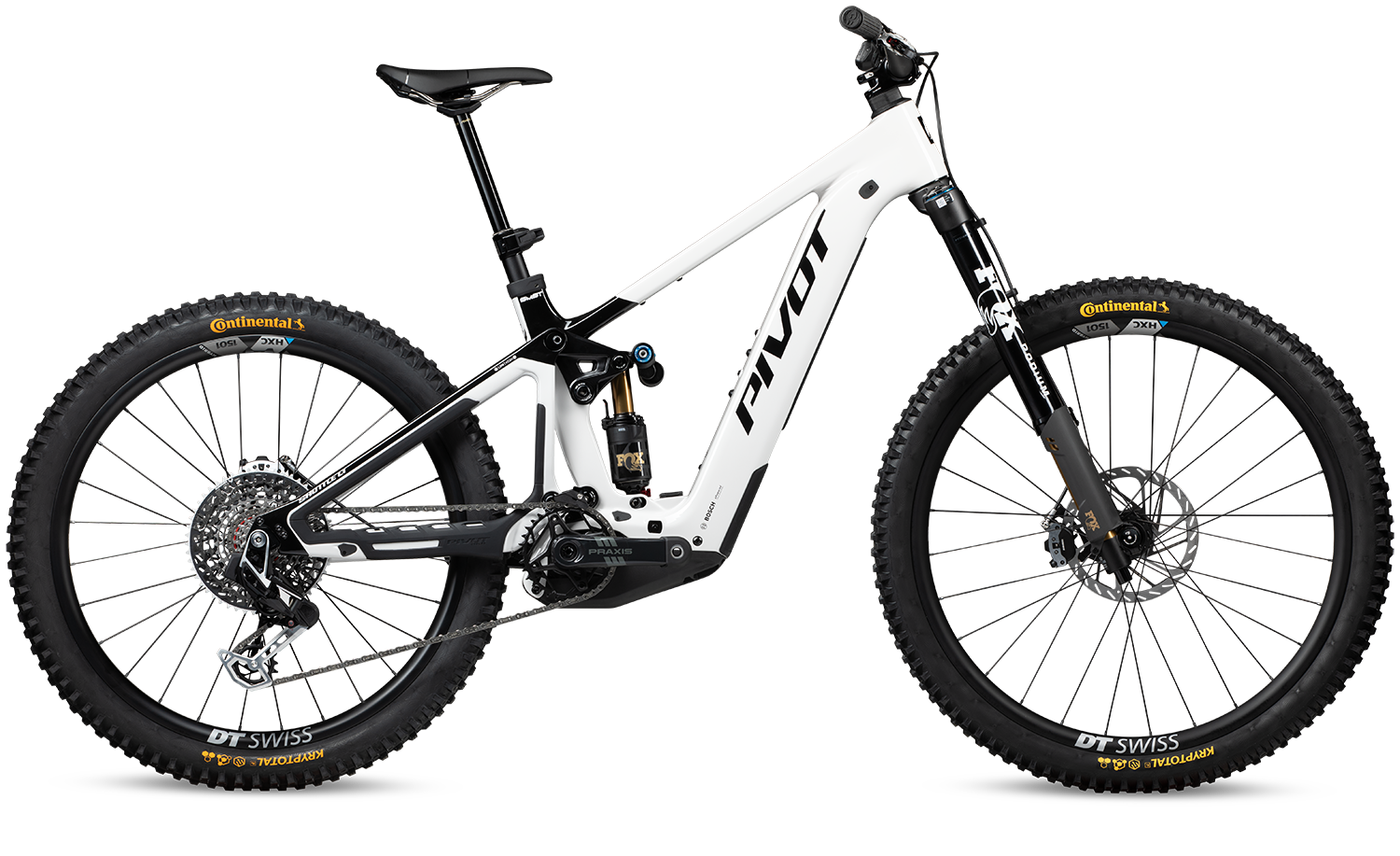

PivotShuttle LT Team XX Eagle Transmission
- Motor
- Bosch Performance Line CX Race120 Nm; 750 W peak
- Battery
- 800 WhBosch PowerTube, removable; PowerMore 250 range extender optional
- Travel F / R
- 170 / 162 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
Overview
The Pivot Shuttle LT Team XX Eagle Transmission ($14,999) is a mid-range build of the Shuttle LT: Bosch Performance Line CX Race (120 Nm) with 800 Wh, Fox Factory Podium fork, Fox Factory Float X2 shock, SRAM XX Eagle Transmission 12-Speed and SRAM Maven Ultimate 4-piston brakes.

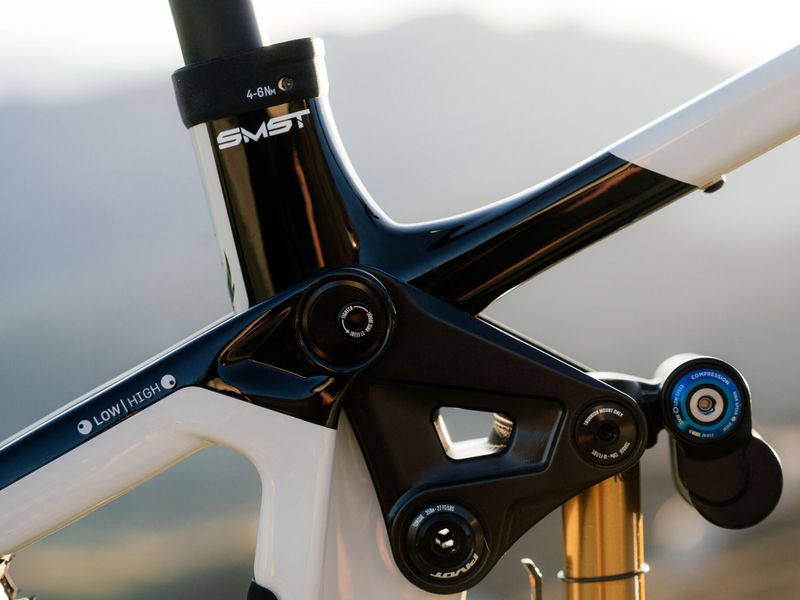

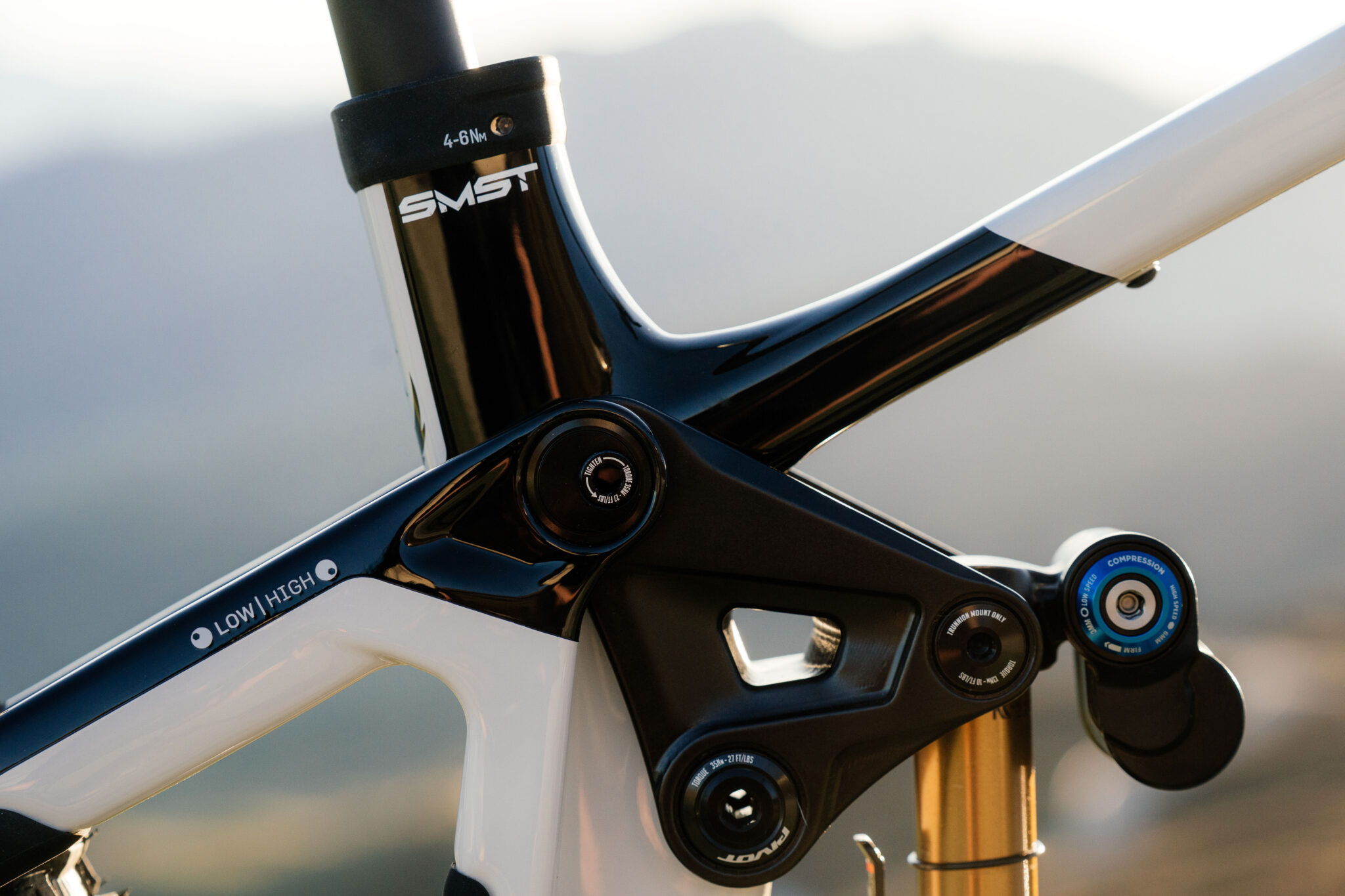

The Shuttle LT is Pivot's carbon long-travel enduro e-MTB: 162 mm of dw-link rear travel (165 mm in the long chainstay setting) with a 170 mm fork and mixed wheels. It has several adjustments: a geometry flip chip, a progression flip chip at the lower shock mount, 8 mm of chainstay adjustment via the Swinger dropout and the Slacky McSteepTube seat tube angle (76.5° or 78°).
It runs the Bosch Gen 5 Performance Line CX (Ride) or CX Race (Pro and Team), rated at 120 Nm and 750 W peak, with a removable 800 Wh battery and PowerMore 250 range extender compatibility. Pro and Team builds get a FOX Podium inverted fork, and NEO builds a FOX Live Valve Neo shock. Pivot says the lightest builds weigh under 23.5 kg.
- 170 mm fork / 162 mm rear, mixed wheels
- Bosch CX / CX Race, removable 800 Wh
- Adjustable seat angle, chainstay and progression
- FOX Podium fork on Pro and Team

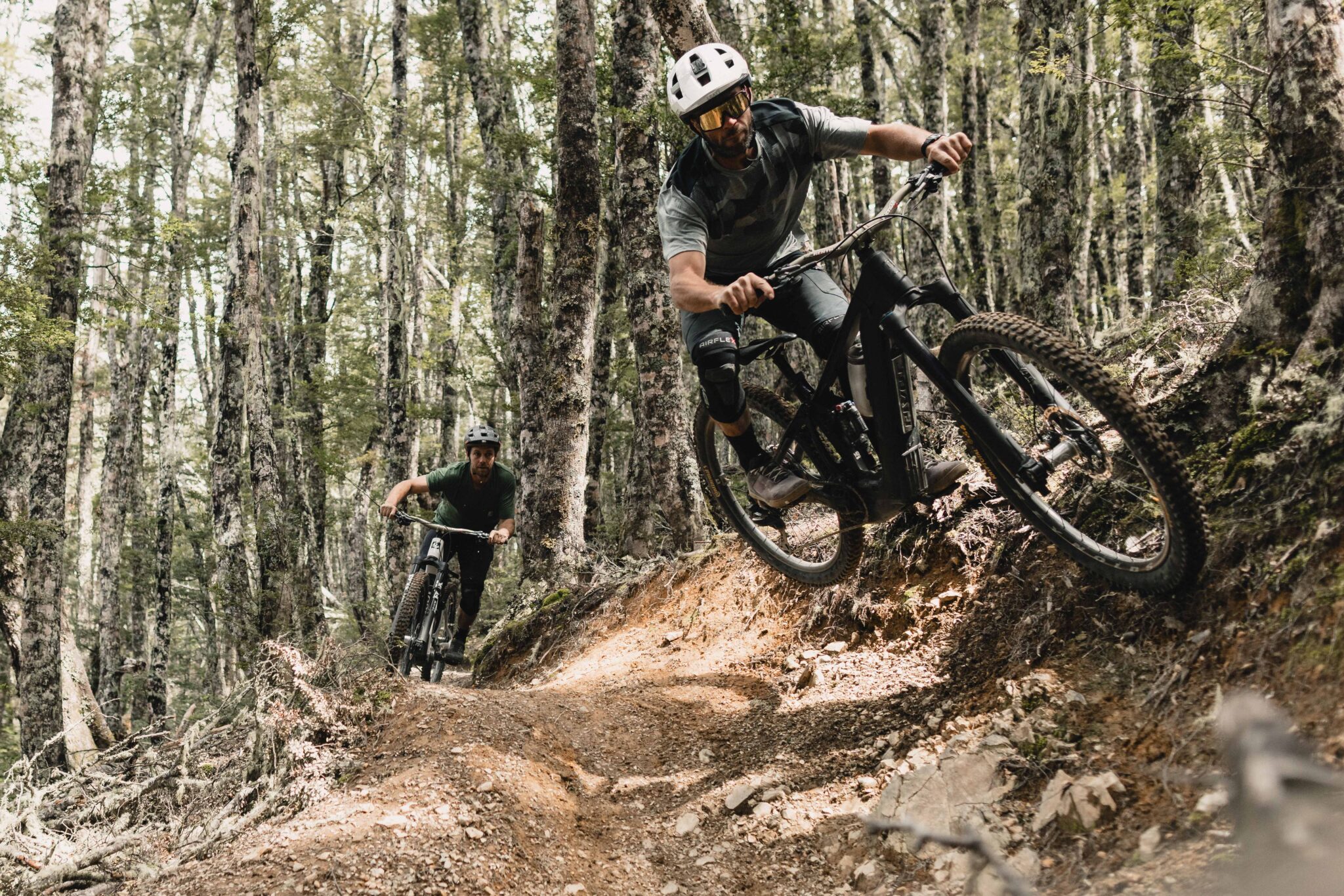

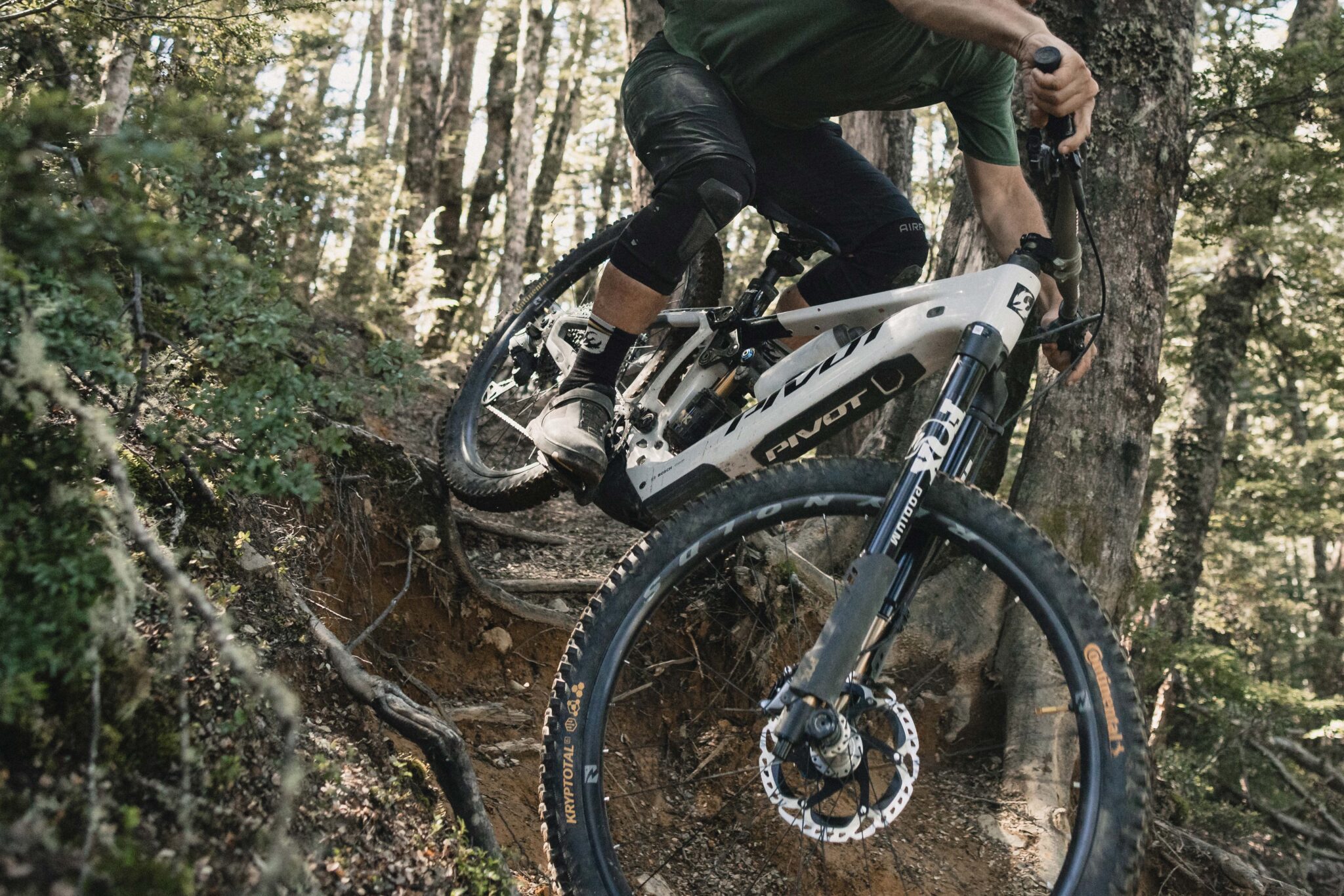

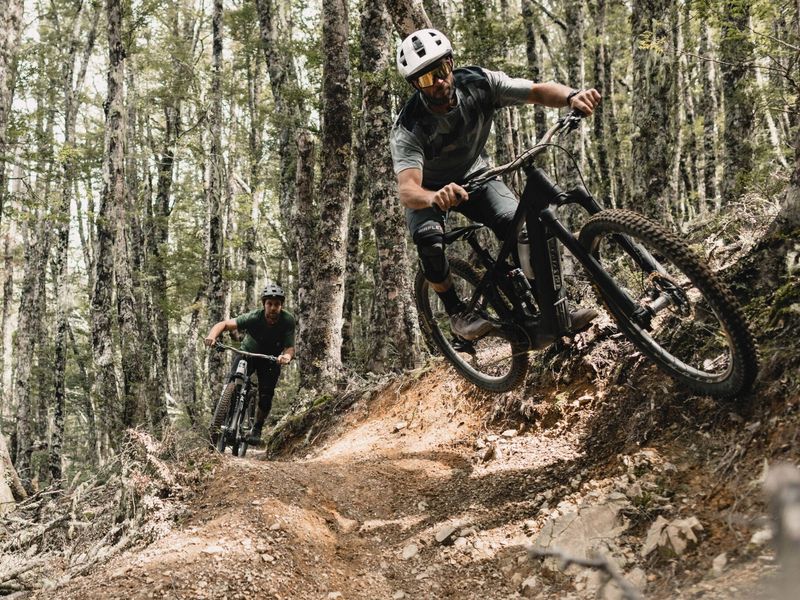

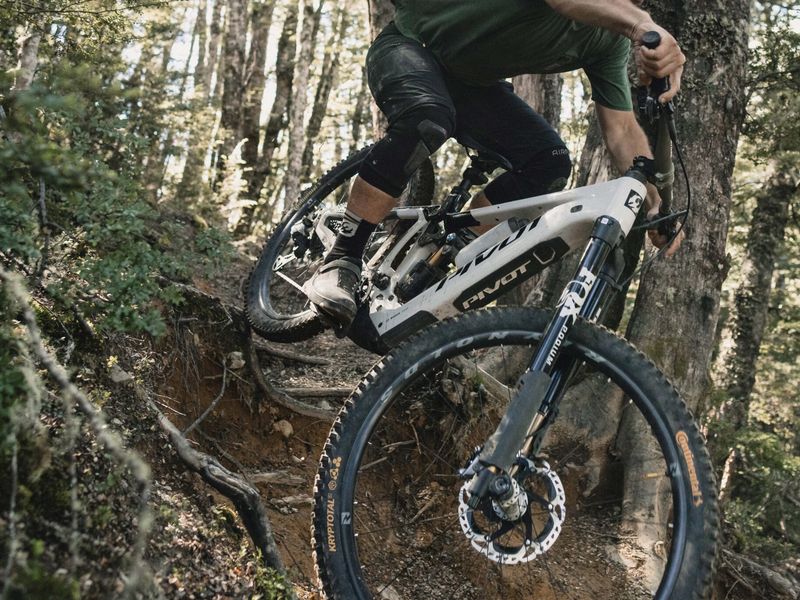

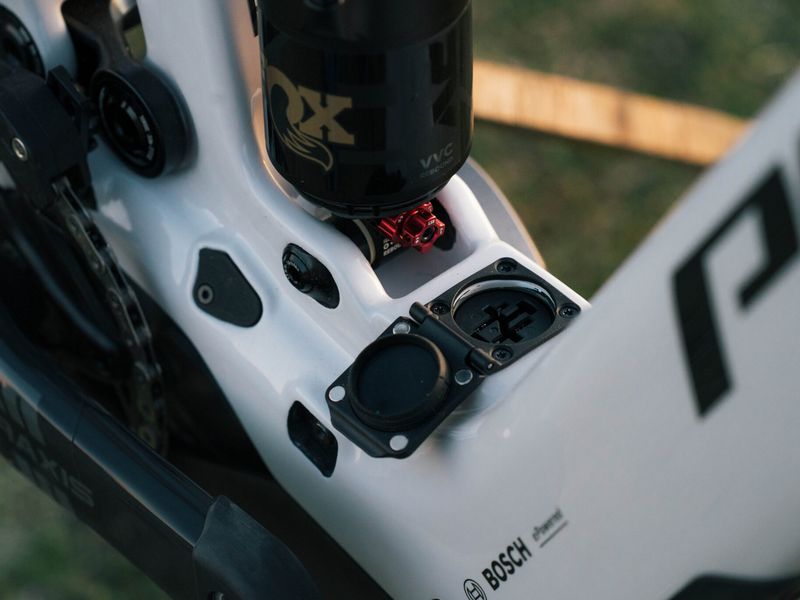

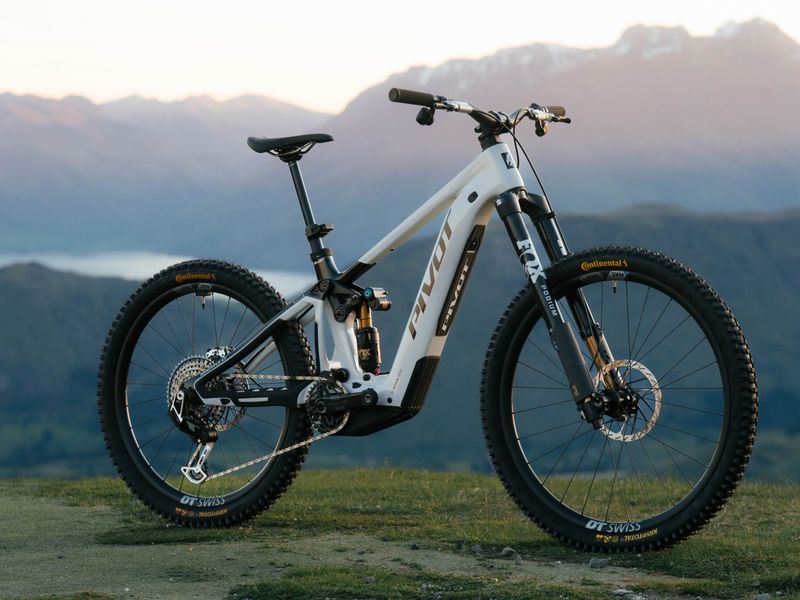

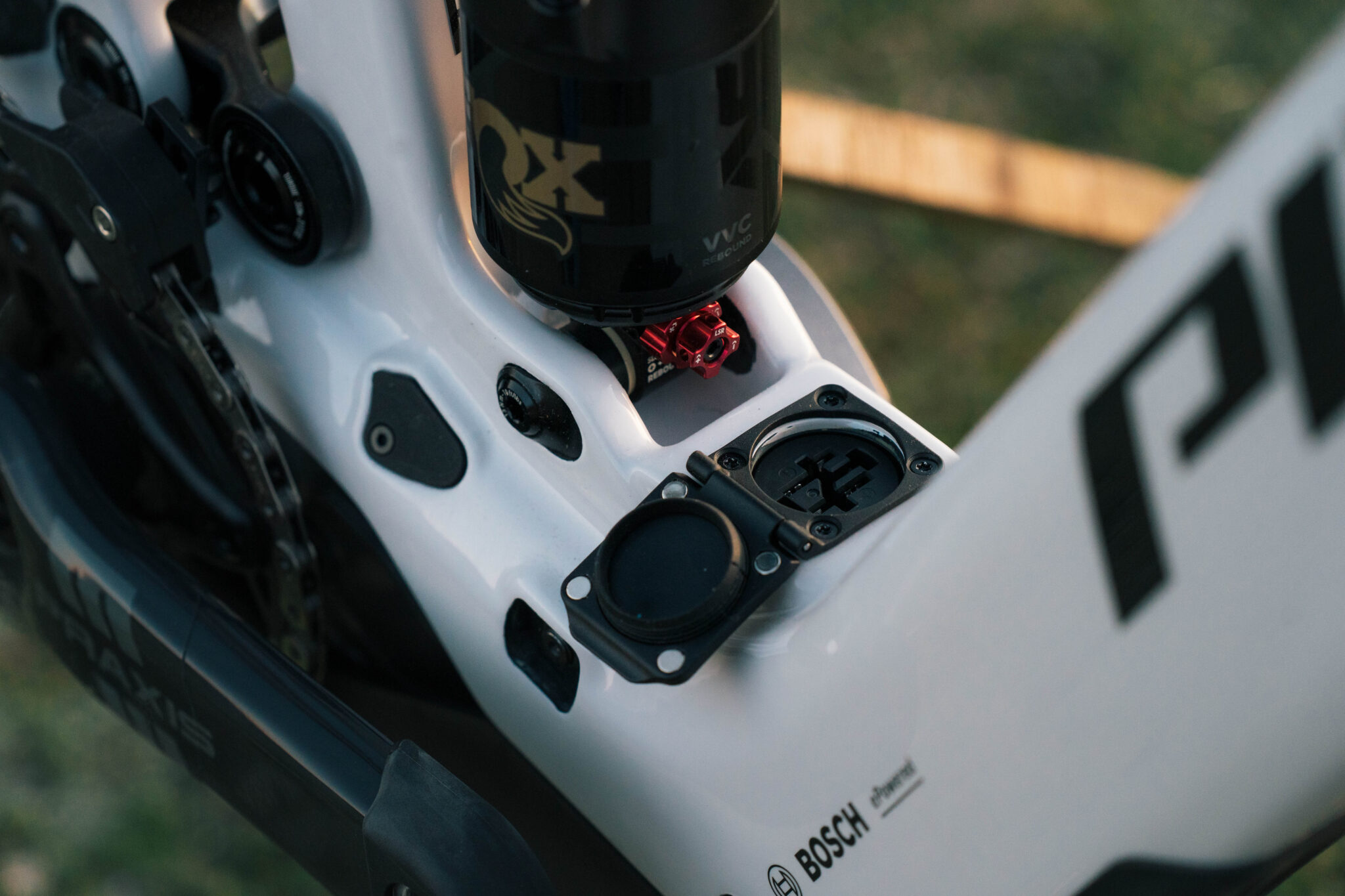

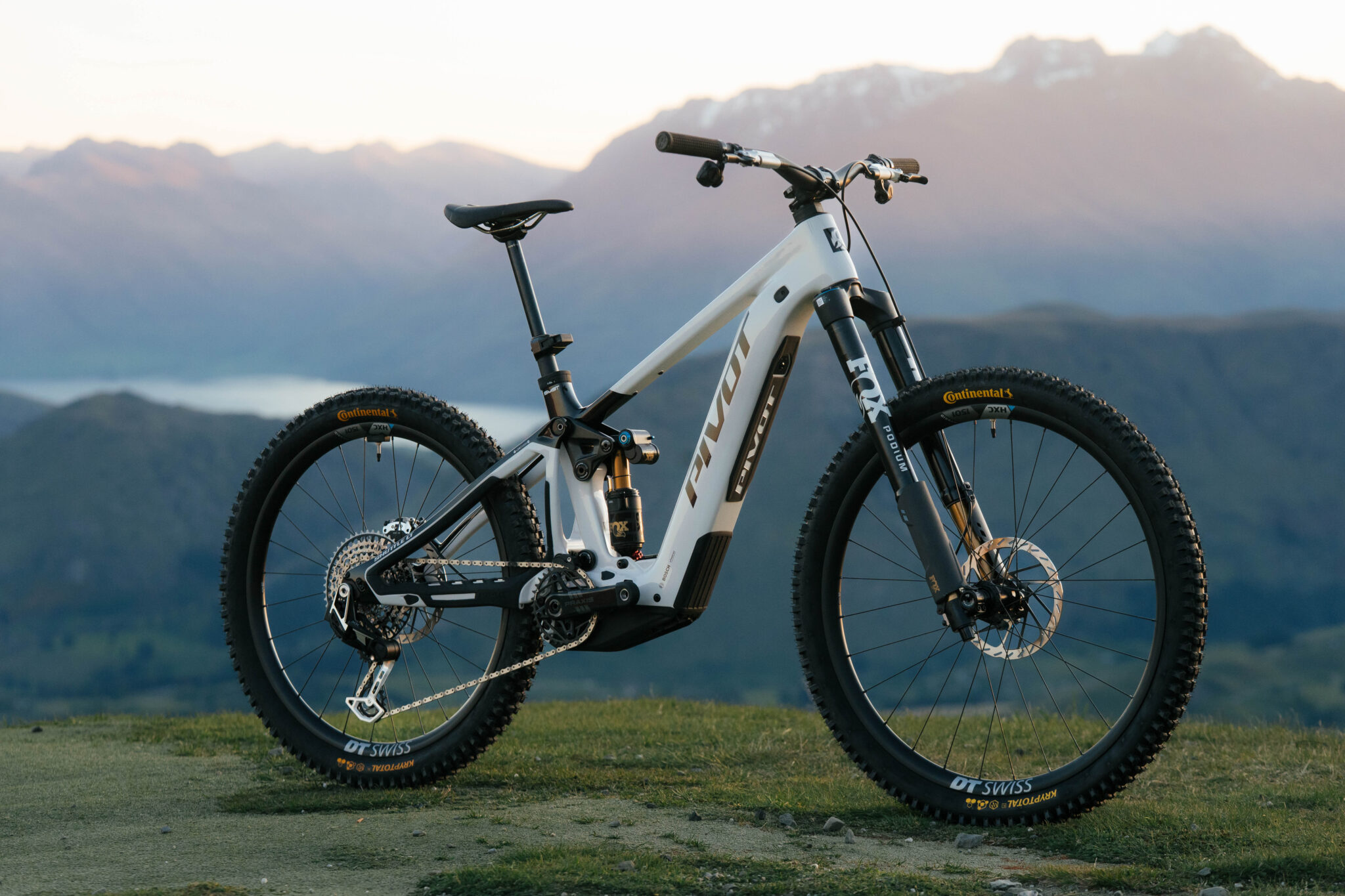

Gallery
Photos: Pivot
Full specifications
Frame & suspension
- Frame
- Shuttle LT
- Fork
- Fox Factory Podium 29", 44mm offset, GRIP X2 - 170mm
- Rear shock
- Fox Factory Float X2
- Headset
- Pivot Precision Sealed Cartridge
- Sizes
- S, M, L, XL
- Colours
- Stone Cold White / Black Royal Purple / Black Royal Purple | Aurora Sky
E-system
- Motor
- Bosch Gen 5 Performance Line CX Race Edition (120 Nm, 750 W peak)
- Battery
- Bosch PowerTube 800 Wh, removable
- Range extender
- Bosch PowerMore 250 (250 Wh), optional at checkout (+$599)
- Display
- Bosch Kiox 400C
- Remote
- Bosch wireless remote
Drivetrain
- Shifter
- SRAM AXS Pod Controller
- Rear derailleur
- SRAM XX Eagle Transmission 12-Speed
- Cassette
- SRAM XX 1297 Eagle Transmission 10-52t
- Chain
- SRAM XX Eagle Flattop 12-Speed
- Crankset
- Praxis Carbon eCranks E-MTB 34t - 155mm
Brakes
- Brakes
- SRAM Maven Ultimate 4-piston
- Rotors
- SRAM HS2 Centerlock - 200mm (front) / SRAM HS2 Centerlock - 200mm (rear)
Wheels & tyres
- Wheelset
- DT Swiss Hybrid HXC1501 Carbon, 30mm - Mixed 20x110 F/12x157 R
- Tyres
- Continental Kryptotal-F 29" x 2.4" SuperSoft Compound Enduro Casing (front) / Continental Kryptotal-R 27.5" x 2.6" Soft Compound Enduro Casing (rear)
Cockpit
- Handlebar
- Phoenix Team Carbon - 20mm Rise 780mm(SM), 35mm Rise 780mm(MD-XL)
- Stem
- Phoenix Team Enduro V2- 40mm(SM-LG), 50mm(XL)
- Grips
- Phoenix Factory Lock-On
- Seatpost
- RockShox Reverb V2 150mm (SM), 175mm (MD), 200mm (LG), 225mm (XL)
- Saddle
- Pivot Team E-Bike
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Shuttle LT geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat Tube Length | 378 mm | 399 mm | 432 mm | 470 mm |
| BTop Tube Length (Eff.) | 605 / 607 mm | 632 / 634 mm | 649 / 651 mm | 671 / 674 mm |
| CHead Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| DHead Tube Angle | 64° / 63.2° | 64° / 63.2° | 64° / 63.2° | 64° / 63.2° |
| ESeat Tube Angle (Eff.) | 76.5° / 75.7° | 76.5° / 75.7° | 76.5° / 75.7° | 76.5° / 75.7° |
| FChainstay Length - Short | 443 mm | 443 mm | 443 mm | 443 mm |
| FChainstay Length - Long | 451 mm | 451 mm | 451 mm | 451 mm |
| GBottom Bracket Height | 346 / 335 mm | 346 / 335 mm | 346 / 335 mm | 346 / 335 mm |
| HBottom Bracket Drop | 28 / 22 mm | 28 / 22 mm | 28 / 22 mm | 28 / 22 mm |
| IStandover | 689 / 678 mm | 689 / 678 mm | 704 / 693 mm | 720 / 709 mm |
| JWheelbase - Short | 1232 mm | 1261 mm | 1281 / 1280 mm | 1305 mm |
| JWheelbase - Long | 1240 mm | 1269 mm | 1288 mm | 1313 mm |
| Reach | 443 / 434 mm | 468 / 459 mm | 483 / 474 mm | 503 / 494 mm |
| Stack | 639 / 645 mm | 648 / 655 mm | 657 / 664 mm | 666 / 673 mm |
| BTop Tube Length (Eff.) (78° seat angle setting) | 584 / 586 mm | 612 / 613 mm | 629 / 631 mm | 652 / 654 mm |
| ESeat Tube Angle (Eff.) (78° seat angle setting) | 78° / 77.2° | 78° / 77.2° | 78° / 77.2° | 78° / 77.2° |
Where two values are given: High BB / Low BB flip-chip position. Main rows show the 76.5° seat-tube-angle (Slacky McSteepTube) setting; rows marked "78° seat angle setting" show the steep setting. Source: Pivot Cycles.
Shuttle LT: builds compared
Shuttle LT range →| Shuttle LT Ride Eagle 70/90 | Shuttle LT Pro X0 Eagle Transmission | Shuttle LT Pro X0 Eagle Transmission NEO | Shuttle LT Team XX Eagle Transmission | Shuttle LT Team XX Eagle Transmission NEO | |
|---|---|---|---|---|---|
| Price | $8,999 | $12,599 | $14,299 | $14,999 | $16,699 |
| Frame | Carbon | Carbon | Carbon | Carbon | Carbon |
| Fork | Fox Performance 38 29", 44mm offset | Fox Performance Elite Podium 29", 44mm offset | Fox Performance Elite Podium 29", 44mm offset | Fox Factory Podium 29", 44mm offset | Fox Factory Podium 29", 44mm offset |
| Shock | Fox Performance Float X | Fox Performance Elite Float X | Fox Factory DHX Neo Live | Fox Factory Float X2 | Fox Factory DHX Neo Live |
| Derailleur | SRAM Eagle 90 Mechanical Transmission 12-Speed | SRAM X0 Eagle Transmission 12-Speed | SRAM X0 Eagle Transmission 12-Speed | SRAM XX Eagle Transmission 12-Speed | SRAM XX Eagle Transmission 12-Speed |
| Brakes | SRAM Maven 4-piston | SRAM Maven Silver 4-piston | SRAM Maven Silver 4-piston | SRAM Maven Ultimate 4-piston | SRAM Maven Ultimate 4-piston |
| Display | — | Bosch Kiox 400C | Bosch Kiox 400C | Bosch Kiox 400C | Bosch Kiox 400C |
Shuttle LT Team XX Eagle Transmission: FAQ
How much does the Pivot Shuttle LT Team XX Eagle Transmission cost?
$14,999 (US RRP (MSRP), excl. sales tax; bike only, without range extender. Pivot currently lists it on sale at $11,999.). The Shuttle LT range runs from $8,999 (Shuttle LT Ride Eagle 70/90) to $16,699 (Shuttle LT Team XX Eagle Transmission NEO). Prices vary by country and dealer.
What motor and battery does the Pivot Shuttle LT Team XX Eagle Transmission have?
Bosch Performance Line CX Race (120 Nm; 750 W peak). 800 Wh battery — bosch PowerTube, removable; PowerMore 250 range extender optional.
How much suspension travel does the Pivot Shuttle LT Team XX Eagle Transmission have?
170 mm at the fork and 162 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Pivot Shuttle LT Team XX Eagle Transmission come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Shuttle LT Team XX Eagle Transmission and the Shuttle LT Team XX Eagle Transmission NEO?
They share the Shuttle LT frame platform and motor; the differences are in the parts — shock: Fox Factory Float X2 vs Fox Factory DHX Neo Live; price: $14,999 vs $16,699.
