PivotShuttle AM Ride Eagle 70/90
- Motor
- Bosch Performance Line CX120 Nm; 750 W peak
- Battery
- 800 WhBosch PowerTube, integrated; PowerMore 250 range extender optional
- Travel F / R
- 160 / 150 mm
- Wheels
- 29"
- Frame
- Carbon main frame, alloy rear
Overview
The Pivot Shuttle AM Ride Eagle 70/90 ($8,499) is the entry build of the Shuttle AM: Bosch Performance Line CX (120 Nm) with 800 Wh, RockShox Lyrik Select+ fork, RockShox Super Deluxe Select shock, SRAM Eagle 90 Transmission 12-Speed and SRAM DB8 Stealth 4-piston brakes.
The Shuttle AM is Pivot's carbon full-power all-mountain e-MTB: 150 mm of dw-link rear travel, a 160 mm fork and 29-inch wheels (mixed wheels are supported), with a flip chip in the upper link and a hollow-core carbon frame (the Ride build uses an alloy rear triangle).
All builds use Bosch's Gen 5 drive system with an integrated 800 Wh PowerTube battery: the Performance Line CX on the Ride build and the CX Race (CX-R) on Pro and Team builds, both rated at 120 Nm and 750 W peak. The frame accepts the Bosch PowerMore 250 range extender, and Pivot says the lightest builds weigh under 21.5 kg.
- Bosch Gen 5 CX / CX Race, 120 Nm
- 800 Wh battery, range extender ready
- 150 mm rear / 160 mm fork, 29-inch
- Carbon frame, flip chip

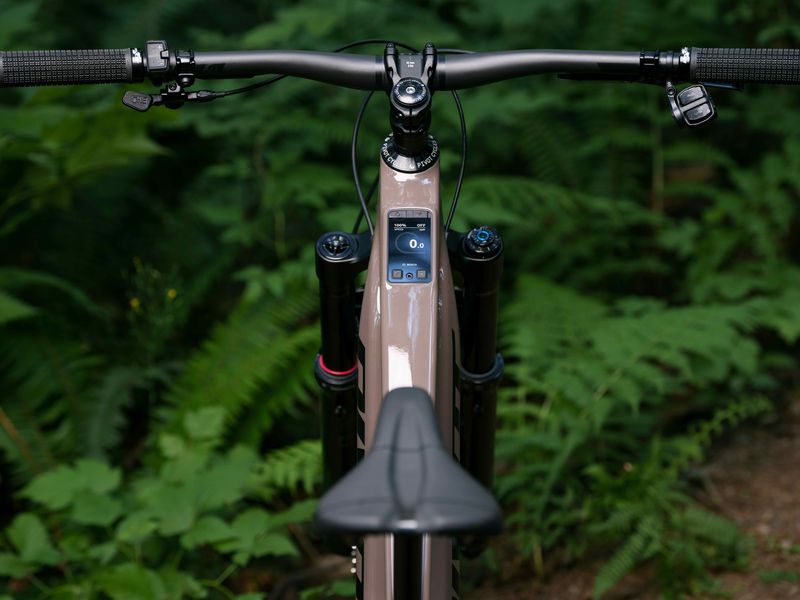

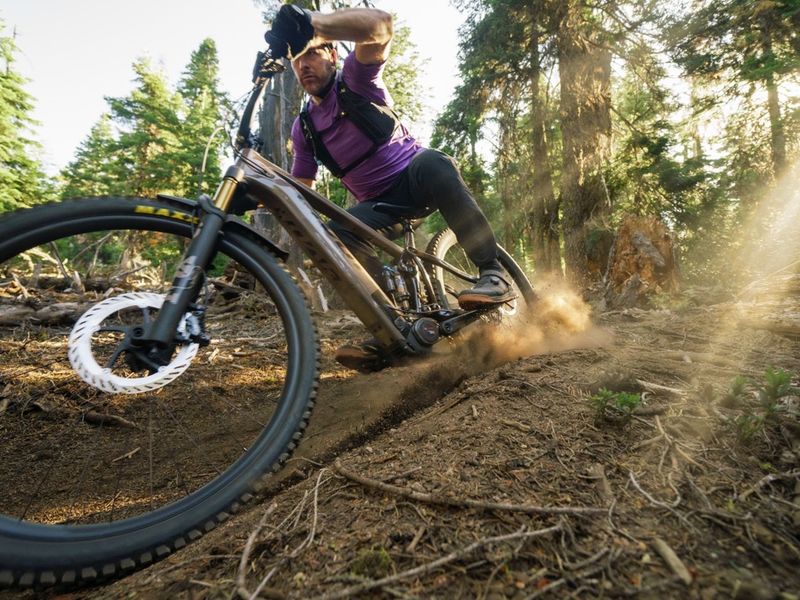

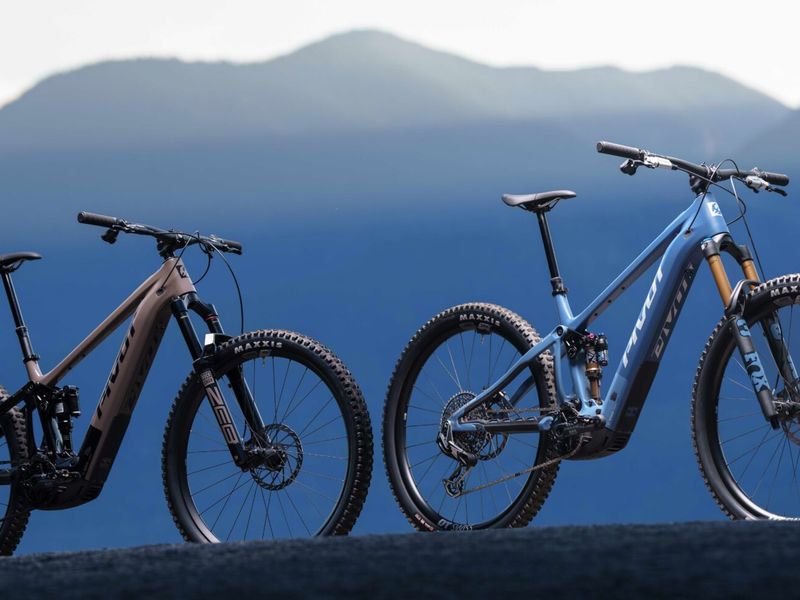

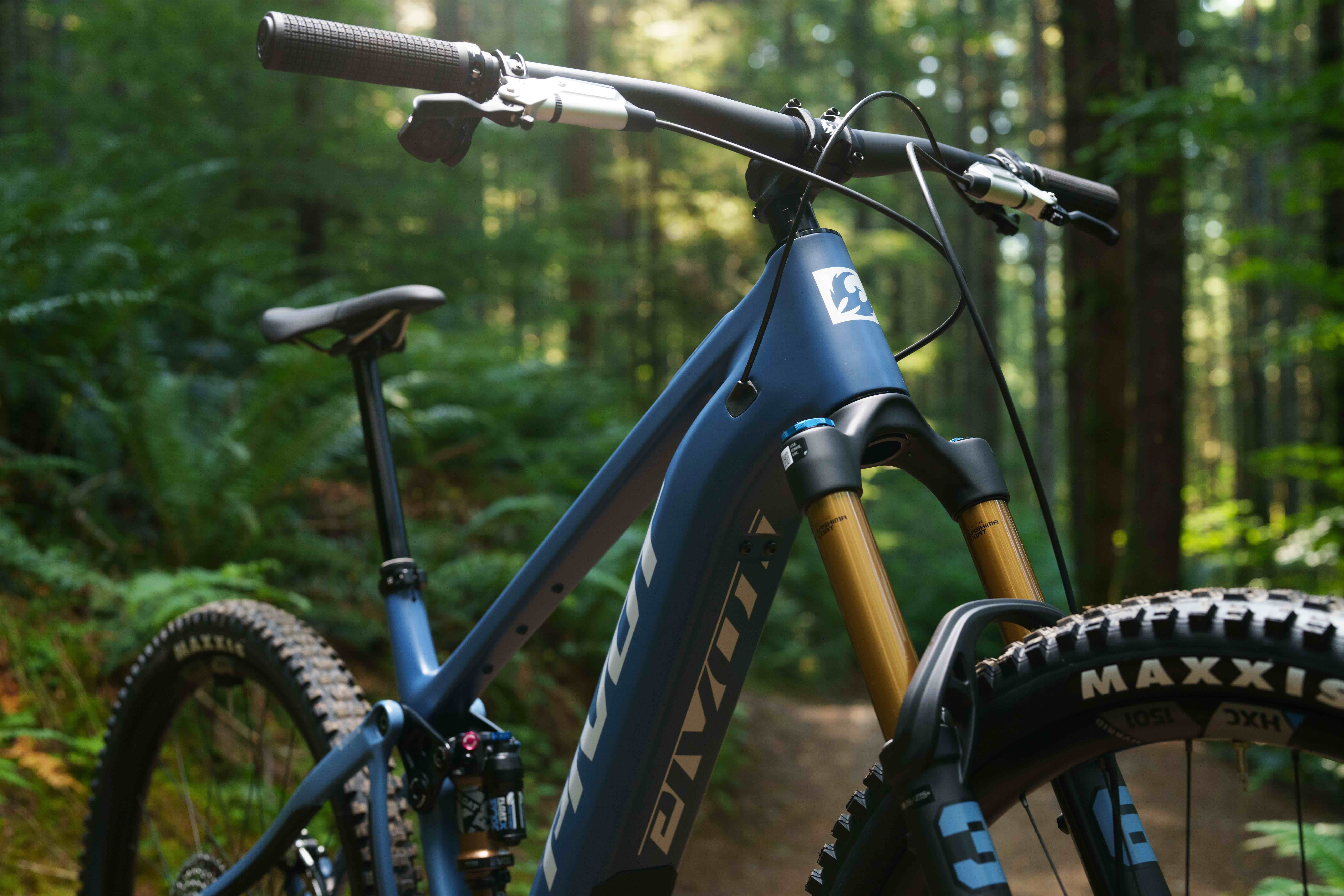

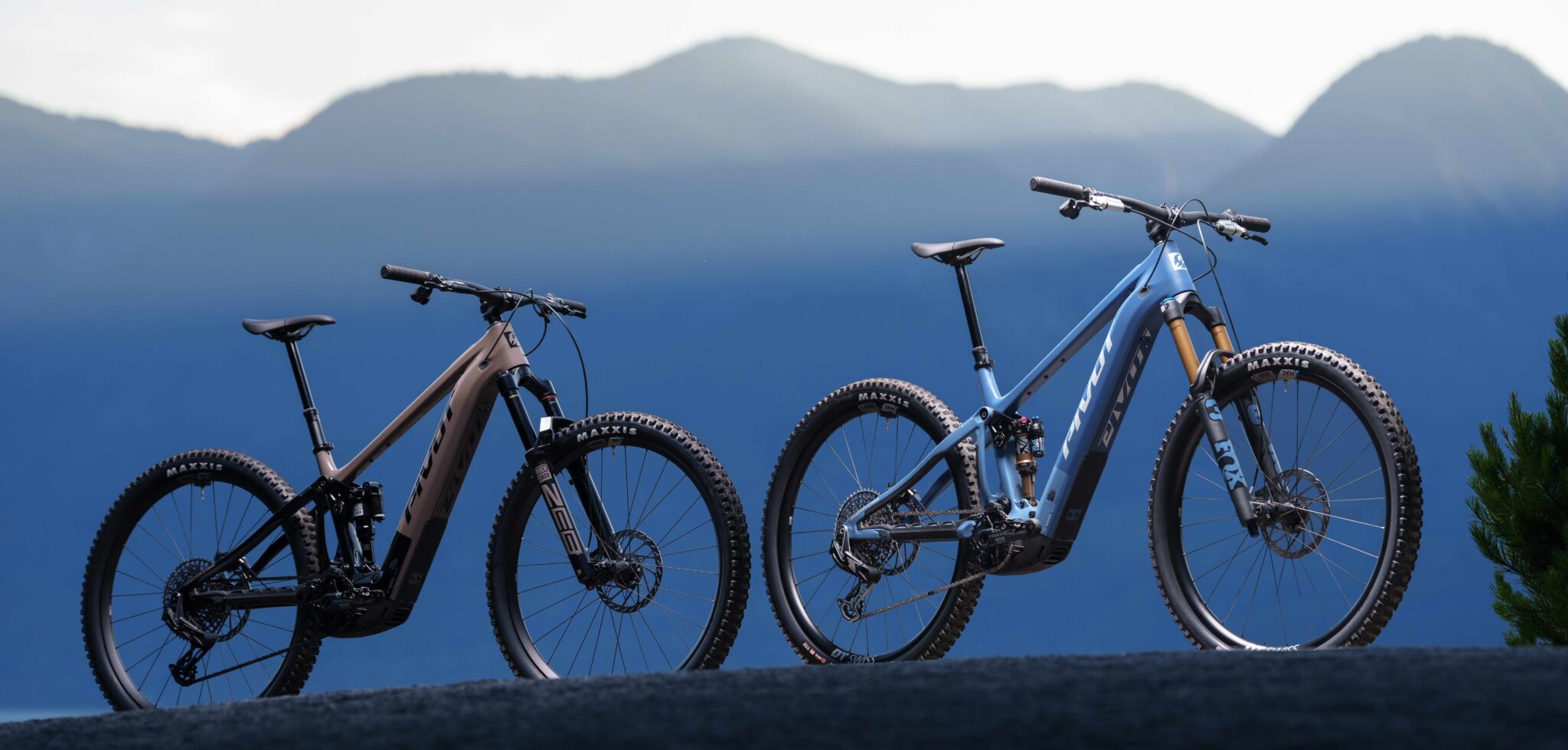

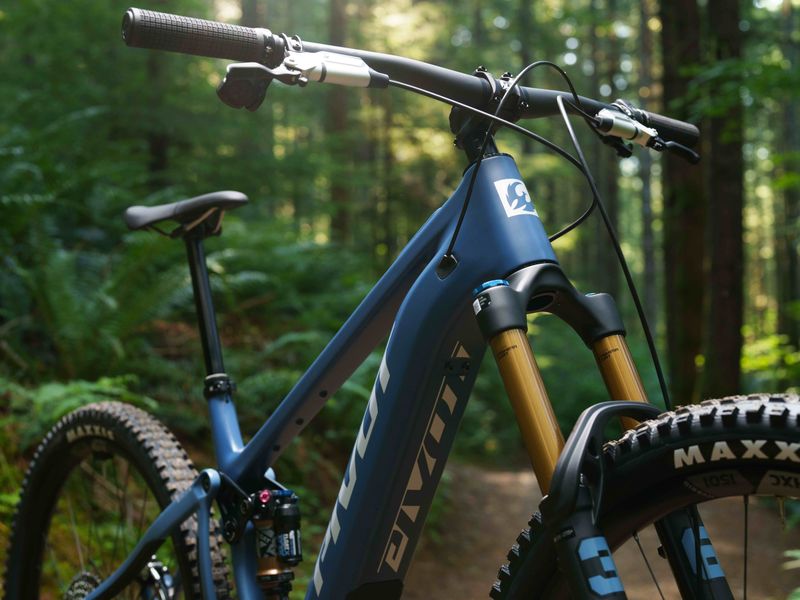

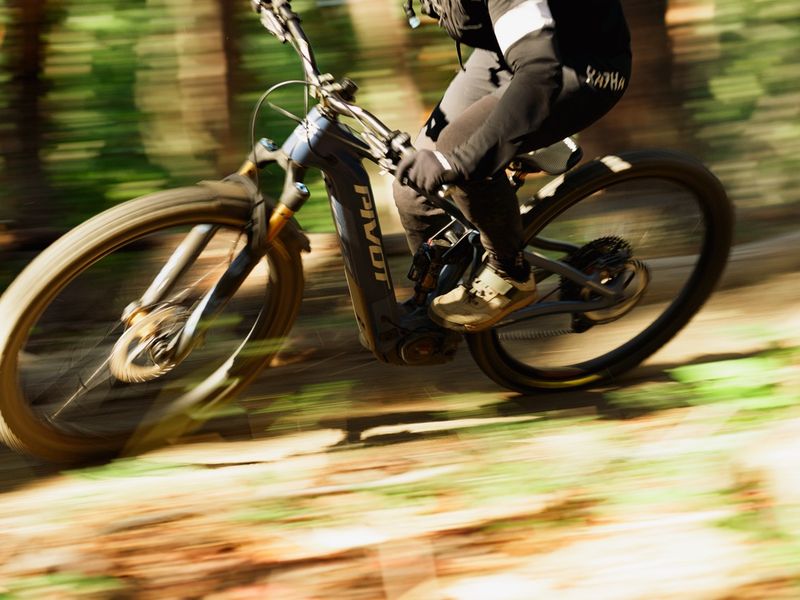

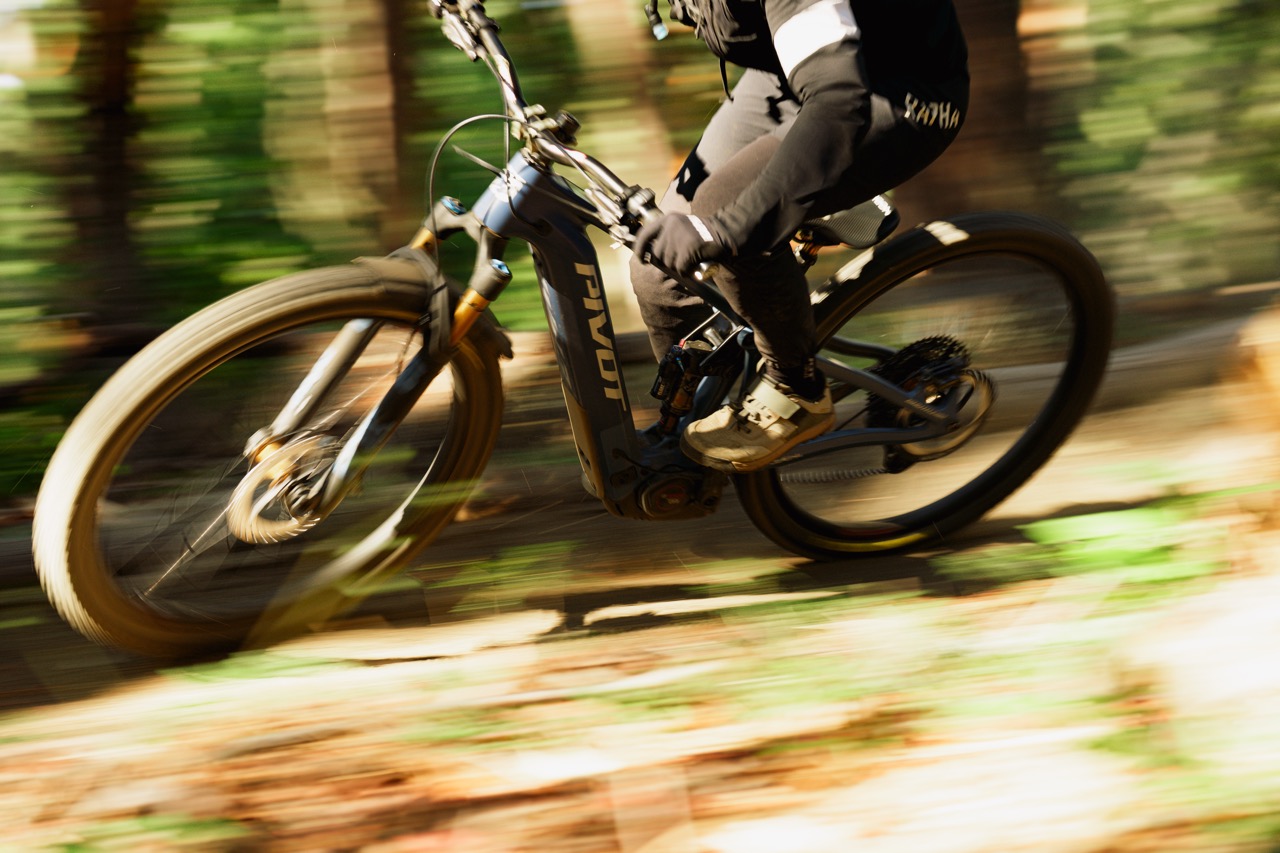

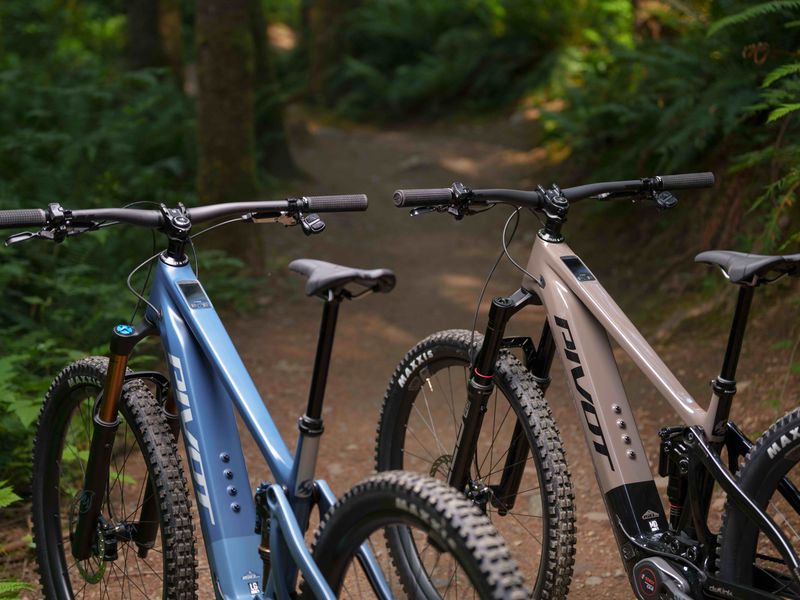

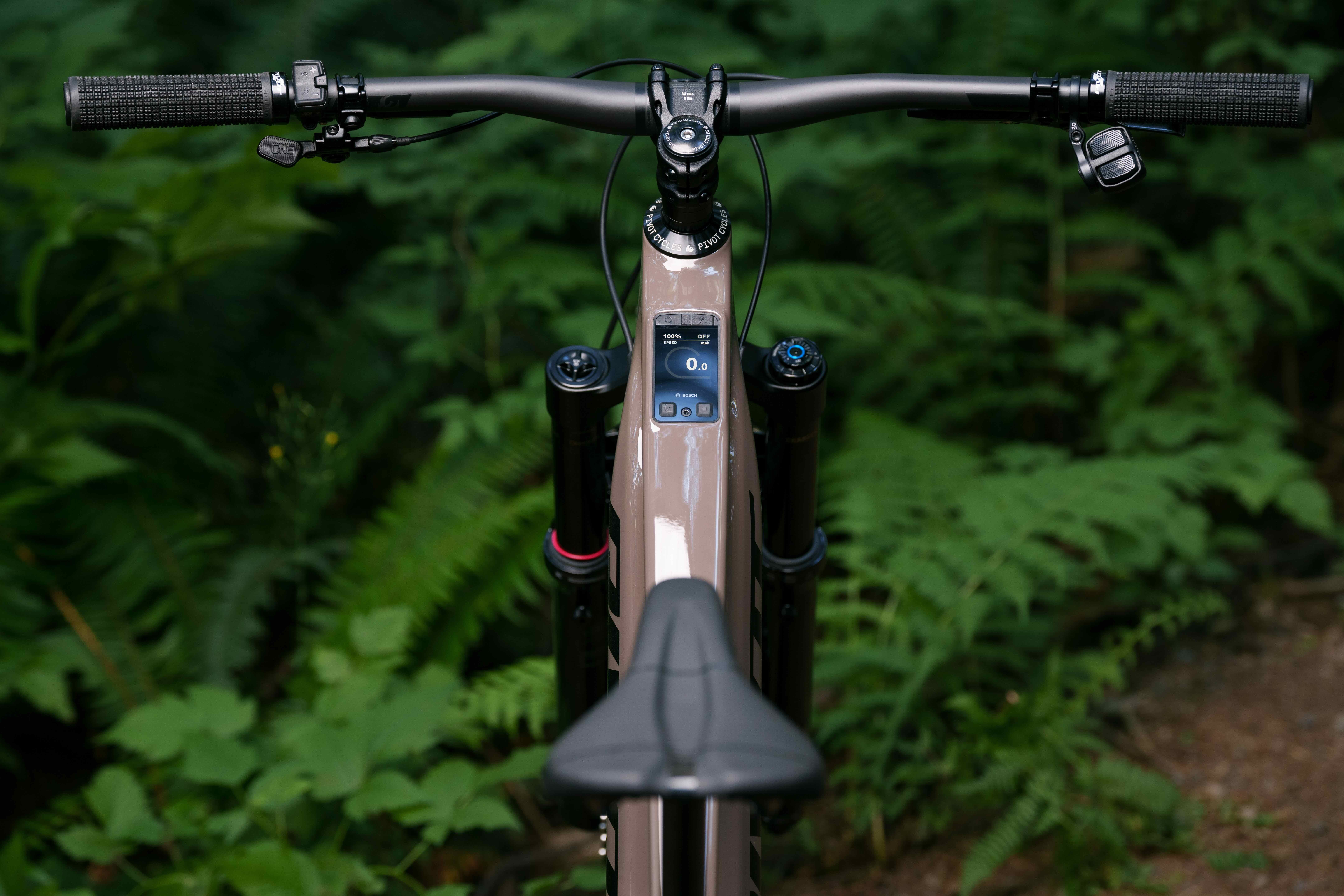

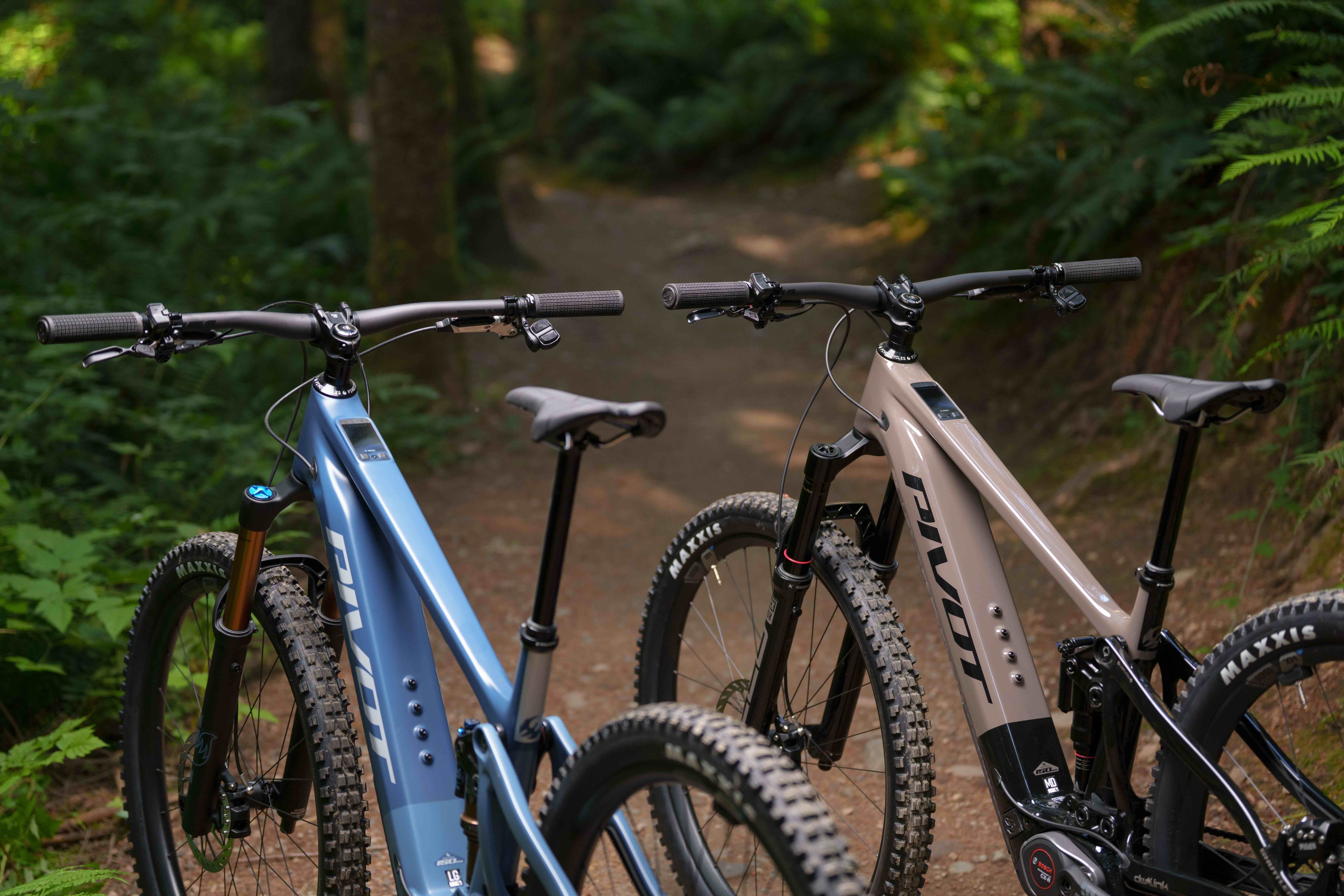

Gallery
Photos: Pivot
Full specifications
Frame & suspension
- Frame
- Shuttle AM w/Alloy RT
- Fork
- RockShox Lyrik Select+ 29", 44mm offset, 160mm
- Rear shock
- RockShox Super Deluxe Select
- Headset
- Pivot Precision Sealed Cartridge
- Sizes
- S, M, L, XL
- Colours
- Badlands Brown
E-system
- Motor
- Bosch Gen 5 Performance Line CX (120 Nm, 750 W peak)
- Battery
- Bosch PowerTube 800 Wh, integrated
- Range extender
- Bosch PowerMore 250 (250 Wh), optional at checkout (+$599)
- Remote
- Bosch wireless remote
Drivetrain
- Shifter
- SRAM Eagle 70 Mechanical Transmission 12-Speed
- Rear derailleur
- SRAM Eagle 90 Mechanical Transmission 12-Speed
- Cassette
- SRAM XS-1270 Eagle Transmission 10-52t
- Chain
- SRAM Eagle 70 Flattop 12-Speed
- Crankset
- FSA CK-747/IS Armset 34t - 160mm
Brakes
- Brakes
- SRAM DB8 Stealth 4-piston
- Rotors
- SRAM Centerline Centerlock - 200mm (front) / SRAM Centerline Centerlock - 200mm (rear)
Wheels & tyres
- Wheelset
- DT Swiss E532, 30mm - 29" 15x110 F/12x157 R
- Tyres
- Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA (front) / Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA (rear)
Cockpit
- Handlebar
- Phoenix Race Low Rise Aluminum
- Stem
- Phoenix Team Enduro/Trail
- Grips
- Phoenix Factory Lock-On
- Seatpost
- JD/PIVOT YSP23GLS 150mm (SM) 170mm (MD) 200mm (LG-XL)
- Saddle
- Pivot Ride E-Bike
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Shuttle AM geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat Tube Length (C-T) | 378 mm | 399 mm | 432 mm | 470 mm |
| BTop Tube Length | 598 / 599 mm | 630 / 631 mm | 647 / 649 mm | 670 / 671 mm |
| CHead Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| DHead Tube Angle | 64.5° / 64.1° | 64.5° / 64.1° | 64.5° / 64.1° | 64.5° / 64.1° |
| ESeat Tube Angle (Eff.) | 76.9° / 76.5° | 76.9° / 76.5° | 76.9° / 76.5° | 76.9° / 76.5° |
| FChainstay Length | 444 mm | 444 mm | 444 mm | 444 mm |
| GBottom Bracket Height | 350 / 345 mm | 350 / 345 mm | 350 / 345 mm | 350 / 345 mm |
| HBottom Bracket Drop | 24 / 29 mm | 24 / 29 mm | 24 / 29 mm | 24 / 29 mm |
| IStandover | 720 / 715 mm | 720 / 715 mm | 720 / 715 mm | 720 / 715 mm |
| JWheelbase | 1216 / 1217 mm | 1250 / 1251 mm | 1269 / 1270 mm | 1294 / 1295 mm |
| Stack | 629 / 632 mm | 638 / 642 mm | 647 / 651 mm | 656 / 660 mm |
| Reach | 435 / 431 mm | 465 / 461 mm | 480 / 476 mm | 500 / 496 mm |
Where two values are given: High / Low flip-chip position. Source: Pivot Cycles.
Shuttle AM: builds compared
Shuttle AM range →| Shuttle AM Ride Eagle 70/90 | Shuttle AM Pro X0 Eagle Transmission | Shuttle AM Team XX Eagle Transmission | Shuttle AM Team XX Eagle Transmission NEO | |
|---|---|---|---|---|
| Price | $8,499 | $11,999 | $14,499 | $15,999 |
| Frame | Carbon main frame, alloy rear | Carbon | Carbon | Carbon |
| Fork | RockShox Lyrik Select+ 29", 44mm offset | 2027 RockShox Zeb Ultimate 29", 44mm offset | Fox Factory 36 29", 44mm offset | Fox Factory 36 29", 44mm offset |
| Shock | RockShox Super Deluxe Select | 2027 RockShox Super Deluxe Ultimate | Fox Factory Float X | Fox Factory Float X Neo Live |
| Derailleur | SRAM Eagle 90 Mechanical Transmission 12-Speed | SRAM X0 Eagle Transmission 12-Speed | SRAM XX Eagle Transmission 12-Speed | SRAM XX Eagle Transmission 12-Speed |
| Brakes | SRAM DB8 Stealth 4-piston | SRAM Maven Silver 4-piston | SRAM Maven Ultimate 4-piston | SRAM Maven Ultimate 4-piston |
| Display | — | Bosch Kiox 400C | Bosch Kiox 400C | Bosch Kiox 400C |
Shuttle AM Ride Eagle 70/90: FAQ
How much does the Pivot Shuttle AM Ride Eagle 70/90 cost?
$8,499 (US RRP (MSRP), excl. sales tax; bike only, without range extender.). The Shuttle AM range runs from $8,499 (Shuttle AM Ride Eagle 70/90) to $15,999 (Shuttle AM Team XX Eagle Transmission NEO). Prices vary by country and dealer.
What motor and battery does the Pivot Shuttle AM Ride Eagle 70/90 have?
Bosch Performance Line CX (120 Nm; 750 W peak). 800 Wh battery — bosch PowerTube, integrated; PowerMore 250 range extender optional.
How much suspension travel does the Pivot Shuttle AM Ride Eagle 70/90 have?
160 mm at the fork and 150 mm at the rear, on 29" wheels.
What sizes does the Pivot Shuttle AM Ride Eagle 70/90 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Shuttle AM Ride Eagle 70/90 and the Shuttle AM Pro X0 Eagle Transmission?
They share the Shuttle AM frame platform; the differences are in the parts — frame: carbon main frame, alloy rear vs carbon; fork: RockShox Lyrik Select+ 29" vs 2027 RockShox Zeb Ultimate 29"; shock: RockShox Super Deluxe Select vs 2027 RockShox Super Deluxe Ultimate; derailleur: SRAM Eagle 90 Mechanical Transmission 12-Speed vs SRAM X0 Eagle Transmission 12-Speed; price: $8,499 vs $11,999.
