PivotShuttle AM
- Price
- $8,499 – $15,999
- Motor
- Bosch Performance Line CX120 Nm; 750 W peak
- Battery
- 800 WhBosch PowerTube, integrated; PowerMore 250 range extender optional
- Travel F / R
- 160 / 150 mm
- Wheels
- 29"
Overview
The Shuttle AM is Pivot's carbon full-power all-mountain e-MTB: 150 mm of dw-link rear travel, a 160 mm fork and 29-inch wheels (mixed wheels are supported), with a flip chip in the upper link and a hollow-core carbon frame (the Ride build uses an alloy rear triangle).
All builds use Bosch's Gen 5 drive system with an integrated 800 Wh PowerTube battery: the Performance Line CX on the Ride build and the CX Race (CX-R) on Pro and Team builds, both rated at 120 Nm and 750 W peak. The frame accepts the Bosch PowerMore 250 range extender, and Pivot says the lightest builds weigh under 21.5 kg.
- Bosch Gen 5 CX / CX Race, 120 Nm
- 800 Wh battery, range extender ready
- 150 mm rear / 160 mm fork, 29-inch
- Carbon frame, flip chip
Pivot Shuttle AM builds
Shuttle AM builds compared

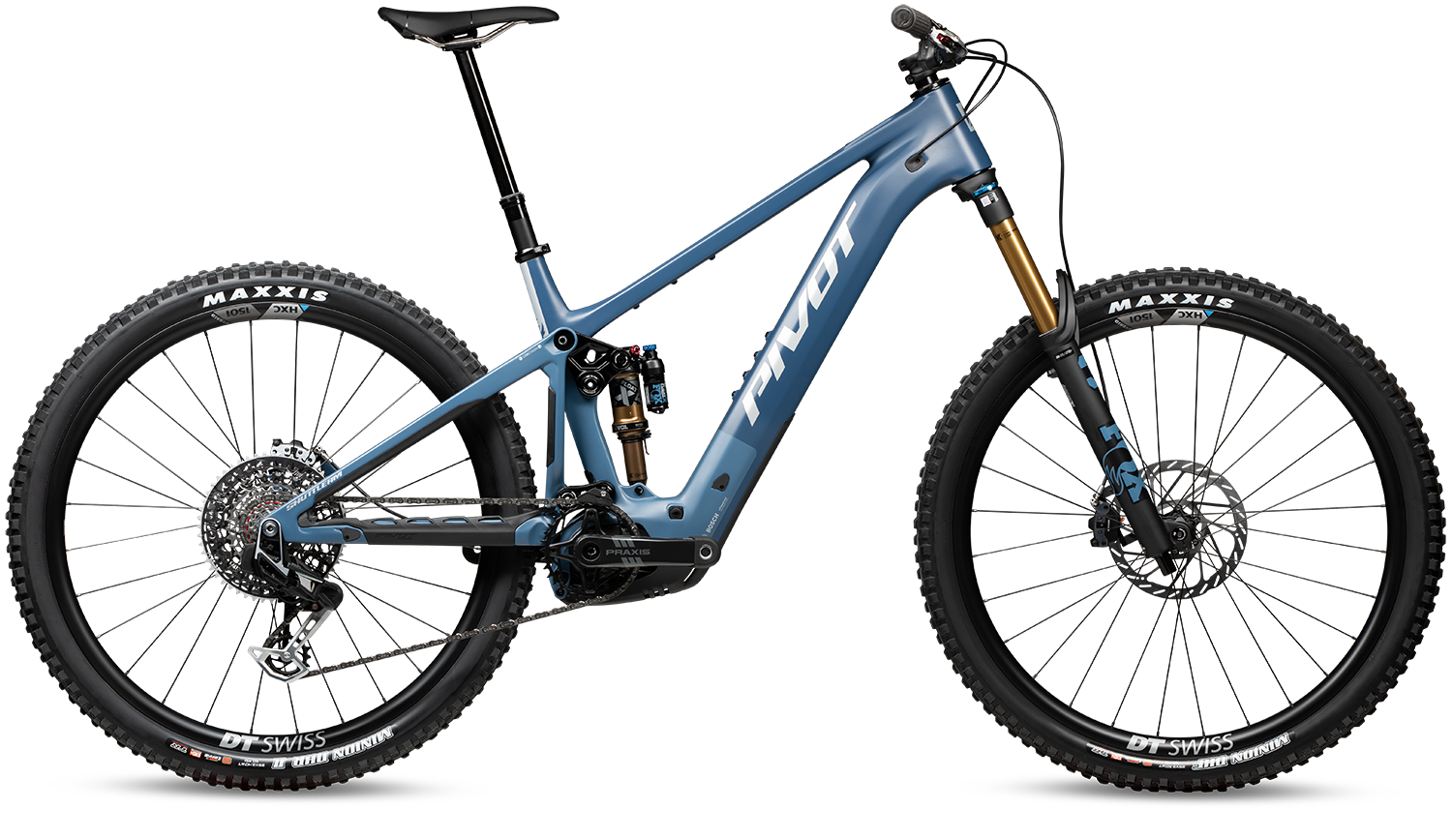

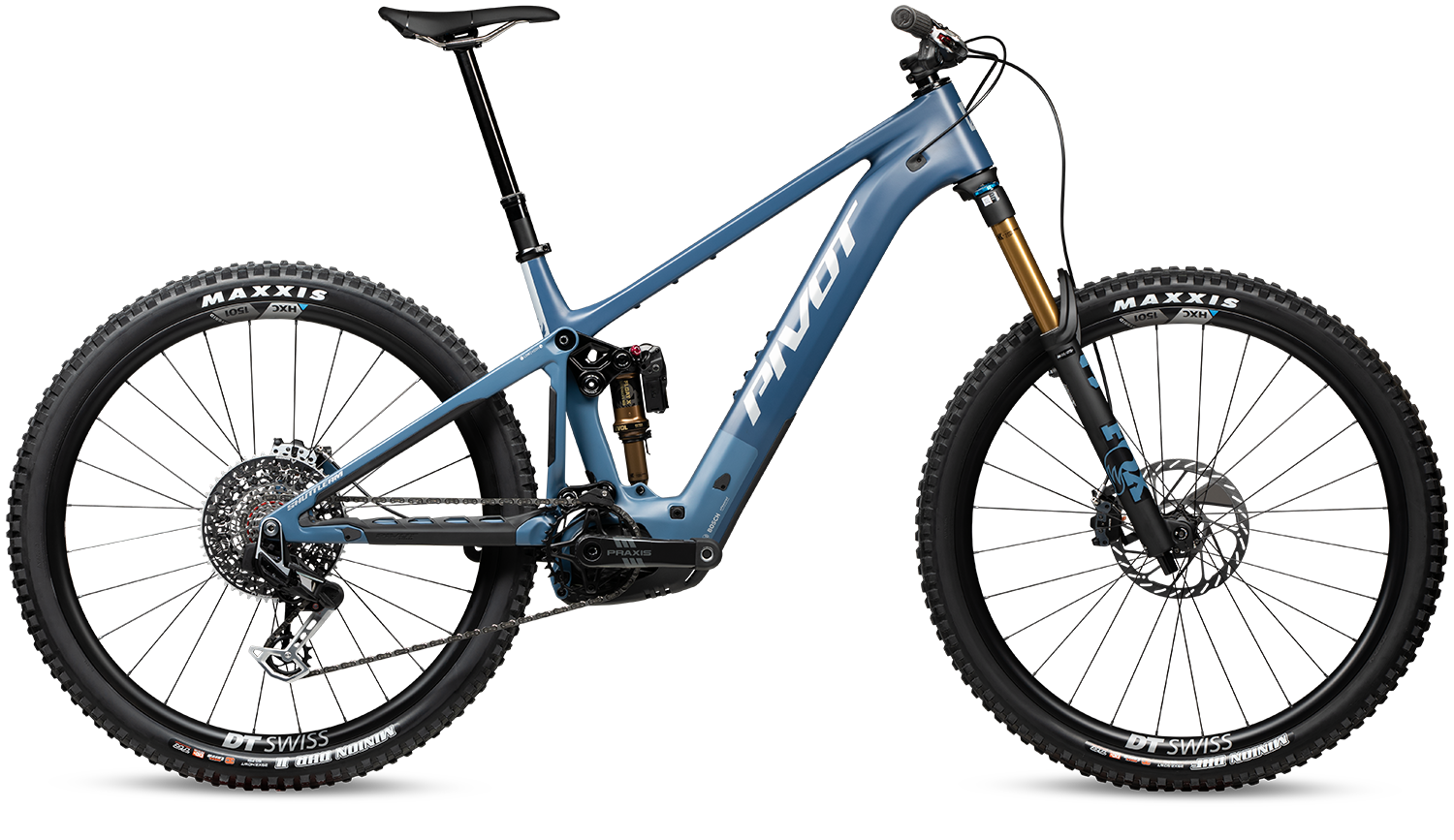

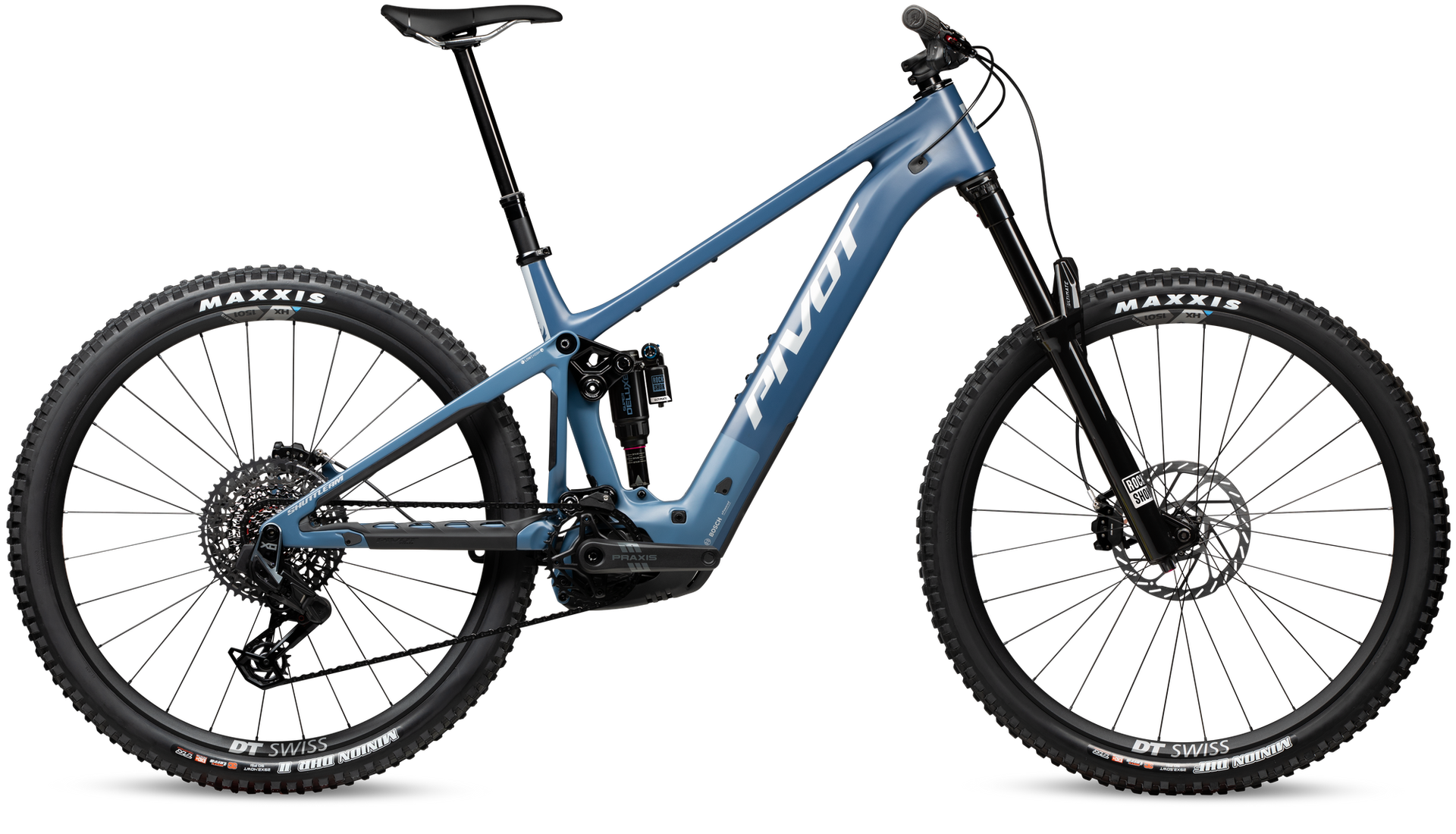

| Shuttle AM Ride Eagle 70/90 | Shuttle AM Pro X0 Eagle Transmission | Shuttle AM Team XX Eagle Transmission | Shuttle AM Team XX Eagle Transmission NEO | |
|---|---|---|---|---|
| Price | $8,499 | $11,999 | $14,499 | $15,999 |
| Frame | Carbon main frame, alloy rear | Carbon | Carbon | Carbon |
| Fork | RockShox Lyrik Select+ 29", 44mm offset | 2027 RockShox Zeb Ultimate 29", 44mm offset | Fox Factory 36 29", 44mm offset | Fox Factory 36 29", 44mm offset |
| Shock | RockShox Super Deluxe Select | 2027 RockShox Super Deluxe Ultimate | Fox Factory Float X | Fox Factory Float X Neo Live |
| Derailleur | SRAM Eagle 90 Mechanical Transmission 12-Speed | SRAM X0 Eagle Transmission 12-Speed | SRAM XX Eagle Transmission 12-Speed | SRAM XX Eagle Transmission 12-Speed |
| Brakes | SRAM DB8 Stealth 4-piston | SRAM Maven Silver 4-piston | SRAM Maven Ultimate 4-piston | SRAM Maven Ultimate 4-piston |
| Display | — | Bosch Kiox 400C | Bosch Kiox 400C | Bosch Kiox 400C |
Shuttle AM geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat Tube Length (C-T) | 378 mm | 399 mm | 432 mm | 470 mm |
| BTop Tube Length | 598 / 599 mm | 630 / 631 mm | 647 / 649 mm | 670 / 671 mm |
| CHead Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| DHead Tube Angle | 64.5° / 64.1° | 64.5° / 64.1° | 64.5° / 64.1° | 64.5° / 64.1° |
| ESeat Tube Angle (Eff.) | 76.9° / 76.5° | 76.9° / 76.5° | 76.9° / 76.5° | 76.9° / 76.5° |
| FChainstay Length | 444 mm | 444 mm | 444 mm | 444 mm |
| GBottom Bracket Height | 350 / 345 mm | 350 / 345 mm | 350 / 345 mm | 350 / 345 mm |
| HBottom Bracket Drop | 24 / 29 mm | 24 / 29 mm | 24 / 29 mm | 24 / 29 mm |
| IStandover | 720 / 715 mm | 720 / 715 mm | 720 / 715 mm | 720 / 715 mm |
| JWheelbase | 1216 / 1217 mm | 1250 / 1251 mm | 1269 / 1270 mm | 1294 / 1295 mm |
| Stack | 629 / 632 mm | 638 / 642 mm | 647 / 651 mm | 656 / 660 mm |
| Reach | 435 / 431 mm | 465 / 461 mm | 480 / 476 mm | 500 / 496 mm |
Where two values are given: High / Low flip-chip position. Source: Pivot Cycles.
Pivot Shuttle AM: FAQ
How much does the Pivot Shuttle AM cost?
$8,499 – $15,999 depending on the build (Shuttle AM Ride Eagle 70/90 $8,499, Shuttle AM Pro X0 Eagle Transmission $11,999, Shuttle AM Team XX Eagle Transmission $14,499, Shuttle AM Team XX Eagle Transmission NEO $15,999); US RRP (MSRP), excl. sales tax; bike only, without range extender..
How many Pivot Shuttle AM builds are there?
4: Shuttle AM Ride Eagle 70/90, Shuttle AM Pro X0 Eagle Transmission, Shuttle AM Team XX Eagle Transmission, Shuttle AM Team XX Eagle Transmission NEO. They share the frame platform and differ mainly in suspension, drivetrain, wheels and weight.
What motor and battery does the Pivot Shuttle AM use?
Bosch Performance Line CX (120 Nm; 750 W peak) with a 800 Wh battery (bosch powertube, integrated; powermore 250 range extender optional).
How much travel does the Pivot Shuttle AM have?
160 mm fork and 150 mm rear travel on 29" wheels.
