PivotShuttle SL Ride Eagle 70/90
- Motor
- Fazua Ride 6060 Nm; 450 W peak
- Battery
- 430 WhFazua fixed battery; 430 Wh or 480 Wh depending on production date (Pivot)
- Travel F / R
- 150 / 132 mm
- Wheels
- 29"
- Frame
- Carbon
Overview
The Pivot Shuttle SL Ride Eagle 70/90 ($8,499) is the entry build of the Shuttle SL: Fazua Ride 60 (60 Nm) with 430 Wh, Fox Performance 36 fork, Fox Performance Float X shock, SRAM Eagle 90 Transmission 12-Speed and SRAM DB8 Stealth 4-piston brakes.
The Shuttle SL is Pivot's lightweight trail e-MTB: a full-carbon Hollow Core frame with 132 mm of dw-link rear travel, a 150 mm FOX 36 fork, 29-inch wheels, a geometry flip chip and size-specific chainstay lengths.
It uses the Fazua Ride 60 system (60 Nm, 450 W peak) with a fixed battery that is 430 Wh or 480 Wh depending on production date. Pivot puts the drive system at 4.2 kg and says the lightest build starts at 36.25 lb (under 17 kg).
- Fazua Ride 60, 60 Nm
- 430 or 480 Wh battery
- 132 mm rear / 150 mm fork, 29-inch
- Lightest build under 17 kg

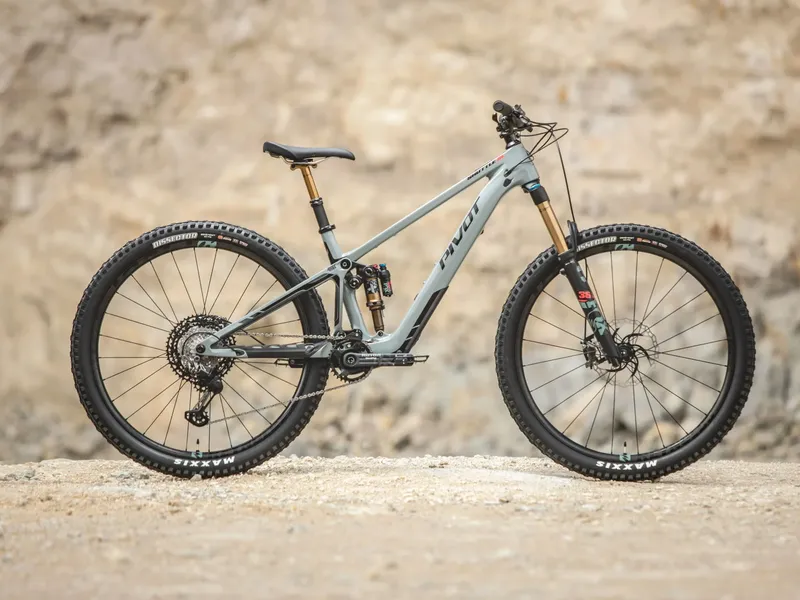

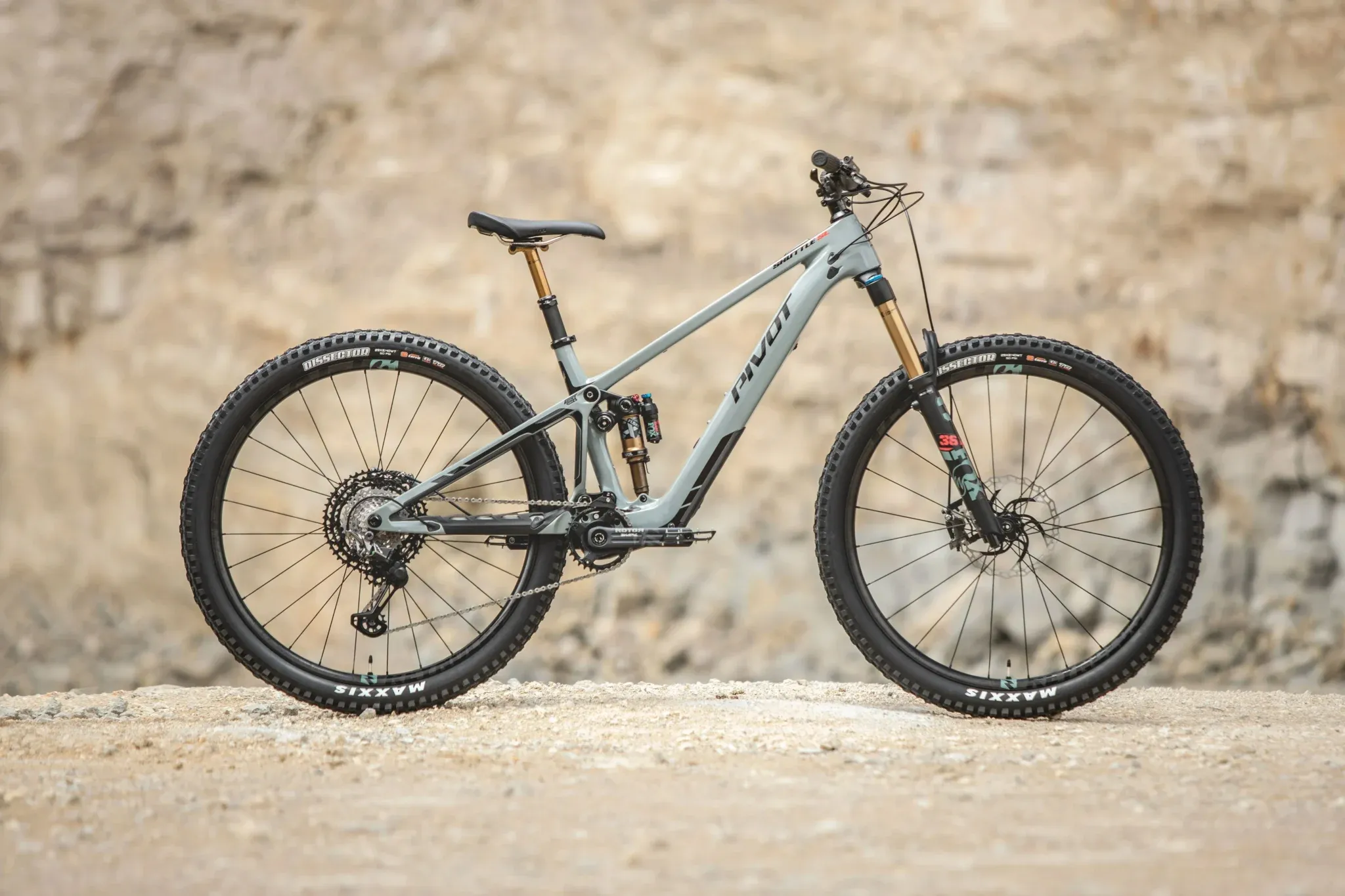

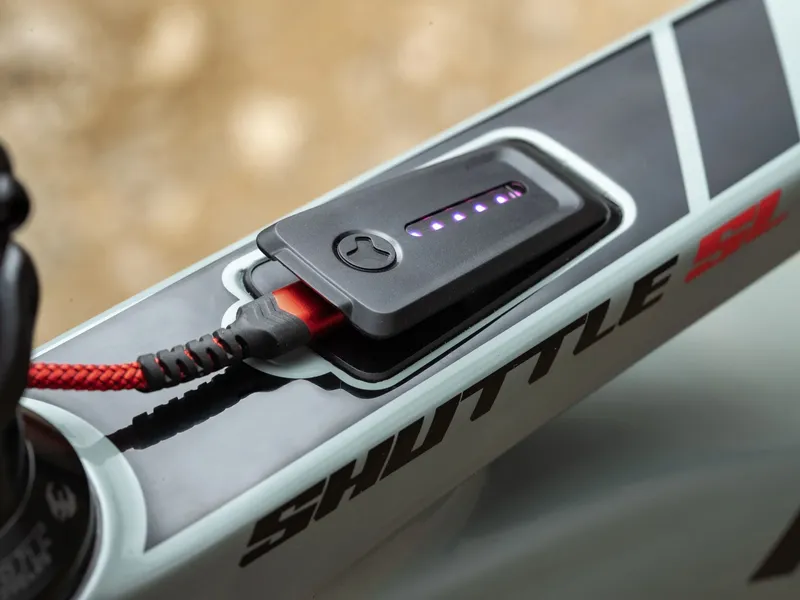

Gallery
Photos: Pivot
Full specifications
Frame & suspension
- Frame
- Shuttle SL
- Fork
- Fox Performance 36 29", 44mm offset, GRIP - 150mm
- Rear shock
- Fox Performance Float X
- Headset
- Pivot Precision Sealed Cartridge
- Sizes
- S, M, L, XL
- Colours

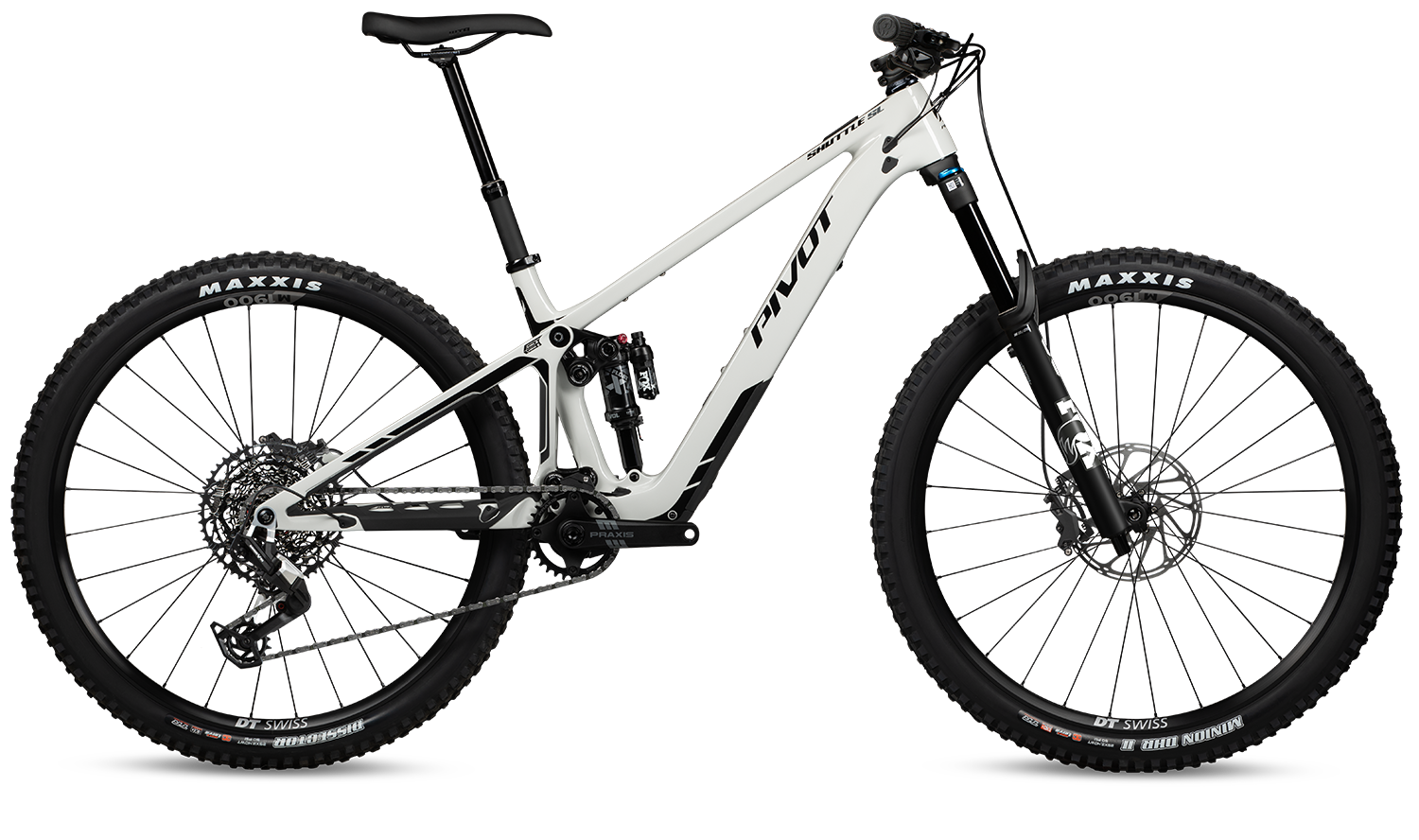

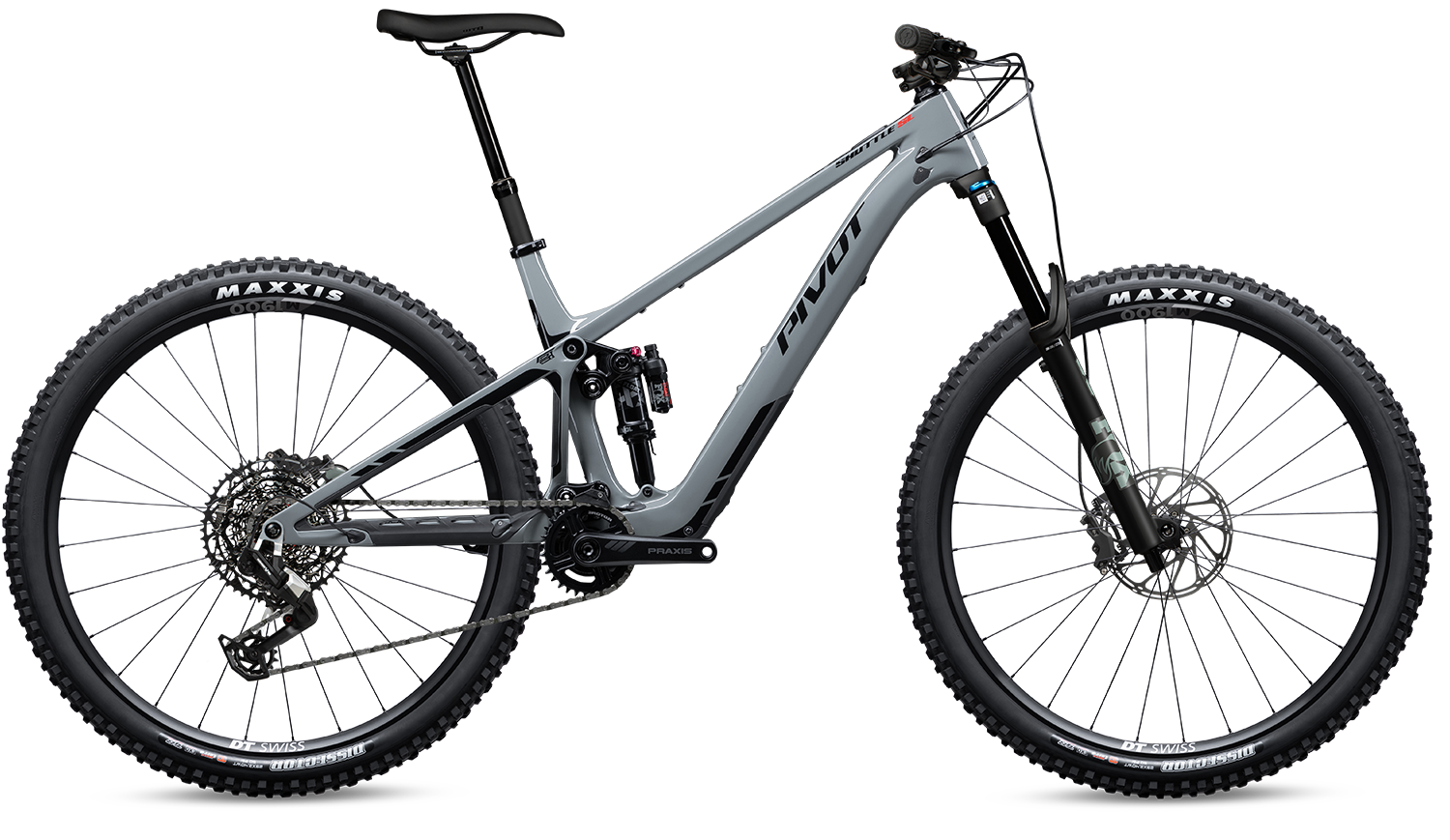

- Desert Sage Green / Aspen White / Black Lime
E-system
- Motor
- Fazua Ride 60 (60 Nm, 450 W peak)
- Battery
- Fazua 430 Wh or 480 Wh (depending on production date), fixed
Drivetrain
- Shifter
- SRAM Eagle 90 Mechanical Transmission 12-Speed
- Rear derailleur
- SRAM Eagle 90 Mechanical Transmission 12-Speed
- Cassette
- SRAM XS-1270 Eagle Transmission 10-52t
- Chain
- SRAM Eagle 70 Flattop 12-Speed
- Crankset
- PRAXIS ETOR E-MTB 32t
Brakes
- Brakes
- SRAM DB8 Stealth 4-piston
- Rotors
- SRAM Centerline 6-bolt - 200mm (front) / SRAM Centerline 6-bolt - 180mm (rear)
Wheels & tyres
- Wheelset
- DT Swiss M1900 w/ DT Swiss 370 hub, 30mm - 29" 15x110 F/12x157 R
- Tyres
- Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA (front) / Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA (rear)
Cockpit
- Handlebar
- Phoenix Race Low Rise Aluminum -780mm
- Stem
- Phoenix Team Enduro/Trail - 45mm
- Grips
- Phoenix Factory Lock-On
- Seatpost
- JD/PIVOT YSP23GLS 150mm (SM) 170mm (MD) 200mm (LG-XL)
- Saddle
- Phoenix WTB Volt Race (Medium Width) (MD), Pivot Pro E-Bike (LG-XL)
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Shuttle SL geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat Tube Length (C-T) | 368 mm | 394 mm | 432 mm | 470 mm |
| BTop Tube Length | 597 / 598 mm | 631 / 632 mm | 645 / 646 mm | 659 / 660 mm |
| CHead Tube Length | 95 mm | 112 mm | 117 mm | 130 mm |
| DHead Tube Angle | 65.5° / 65° | 65.5° / 65° | 65.5° / 65° | 65.4° / 65° |
| ESeat Tube Angle (Eff.) | 76.5° / 76° | 76.5° / 76° | 76.5° / 76° | 77.2° / 76.8° |
| FChainstay Length | 430 / 432 mm | 430 / 432 mm | 432 / 434 mm | 436 / 438 mm |
| GBottom Bracket Height | 352 / 347 mm | 352 / 347 mm | 352 / 347 mm | 352 / 347 mm |
| HBottom Bracket Drop | 21.4 / 27 mm | 21.3 / 27 mm | 21.2 / 27 mm | 21.2 / 27 mm |
| IStandover | 674 / 665 mm | 677 / 668 mm | 682 / 674 mm | 687 / 678 mm |
| JWheelbase | 1185 / 1186 mm | 1222 / 1223 mm | 1239 / 1240 mm | 1271 / 1272 mm |
| Stack | 607 / 610 mm | 622 / 626 mm | 626 / 630 mm | 638 / 642 mm |
| Reach | 439 / 435 mm | 469 / 465 mm | 482 / 478 mm | 504 / 500 mm |
Where two values are given: High / Low flip-chip position. Source: Pivot Cycles.
Shuttle SL: builds compared
Shuttle SL range →| Shuttle SL Ride Eagle 70/90 | Shuttle SL Pro X0 Eagle Transmission | Shuttle SL Team XX Eagle Transmission | |
|---|---|---|---|
| Price | $8,499 | $10,899 | $12,499 |
| Frame | Carbon | Carbon | Carbon |
| Fork | Fox Performance 36 29", 44mm offset | Fox Factory 36 29", 44mm offset | Fox Factory 36 29", 44mm offset |
| Shock | Fox Performance Float X | Fox Factory Float X | Fox Factory Float X |
| Derailleur | SRAM Eagle 90 Mechanical Transmission 12-Speed | SRAM X0 Eagle Transmission 12-Speed | SRAM XX Eagle Transmission 12-Speed |
| Brakes | SRAM DB8 Stealth 4-piston | SRAM Motive Silver 4-piston | SRAM Motive Ultimate 4-piston |
Shuttle SL Ride Eagle 70/90: FAQ
How much does the Pivot Shuttle SL Ride Eagle 70/90 cost?
$8,499 (US RRP (MSRP), excl. sales tax; bike only, without range extender.). The Shuttle SL range runs from $8,499 (Shuttle SL Ride Eagle 70/90) to $12,499 (Shuttle SL Team XX Eagle Transmission). Prices vary by country and dealer.
What motor and battery does the Pivot Shuttle SL Ride Eagle 70/90 have?
Fazua Ride 60 (60 Nm; 450 W peak). 430 Wh battery — fazua fixed battery; 430 Wh or 480 Wh depending on production date (Pivot).
How much suspension travel does the Pivot Shuttle SL Ride Eagle 70/90 have?
150 mm at the fork and 132 mm at the rear, on 29" wheels.
What sizes does the Pivot Shuttle SL Ride Eagle 70/90 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Shuttle SL Ride Eagle 70/90 and the Shuttle SL Pro X0 Eagle Transmission?
They share the Shuttle SL frame platform and motor; the differences are in the parts — fork: Fox Performance 36 29" vs Fox Factory 36 29"; shock: Fox Performance Float X vs Fox Factory Float X; derailleur: SRAM Eagle 90 Mechanical Transmission 12-Speed vs SRAM X0 Eagle Transmission 12-Speed; price: $8,499 vs $10,899.
