PivotShuttle SL
- Price
- $8,499 – $12,499
- Motor
- Fazua Ride 6060 Nm; 450 W peak
- Battery
- 430 WhFazua fixed battery; 430 Wh or 480 Wh depending on production date (Pivot)
- Travel F / R
- 150 / 132 mm
- Wheels
- 29"
Overview

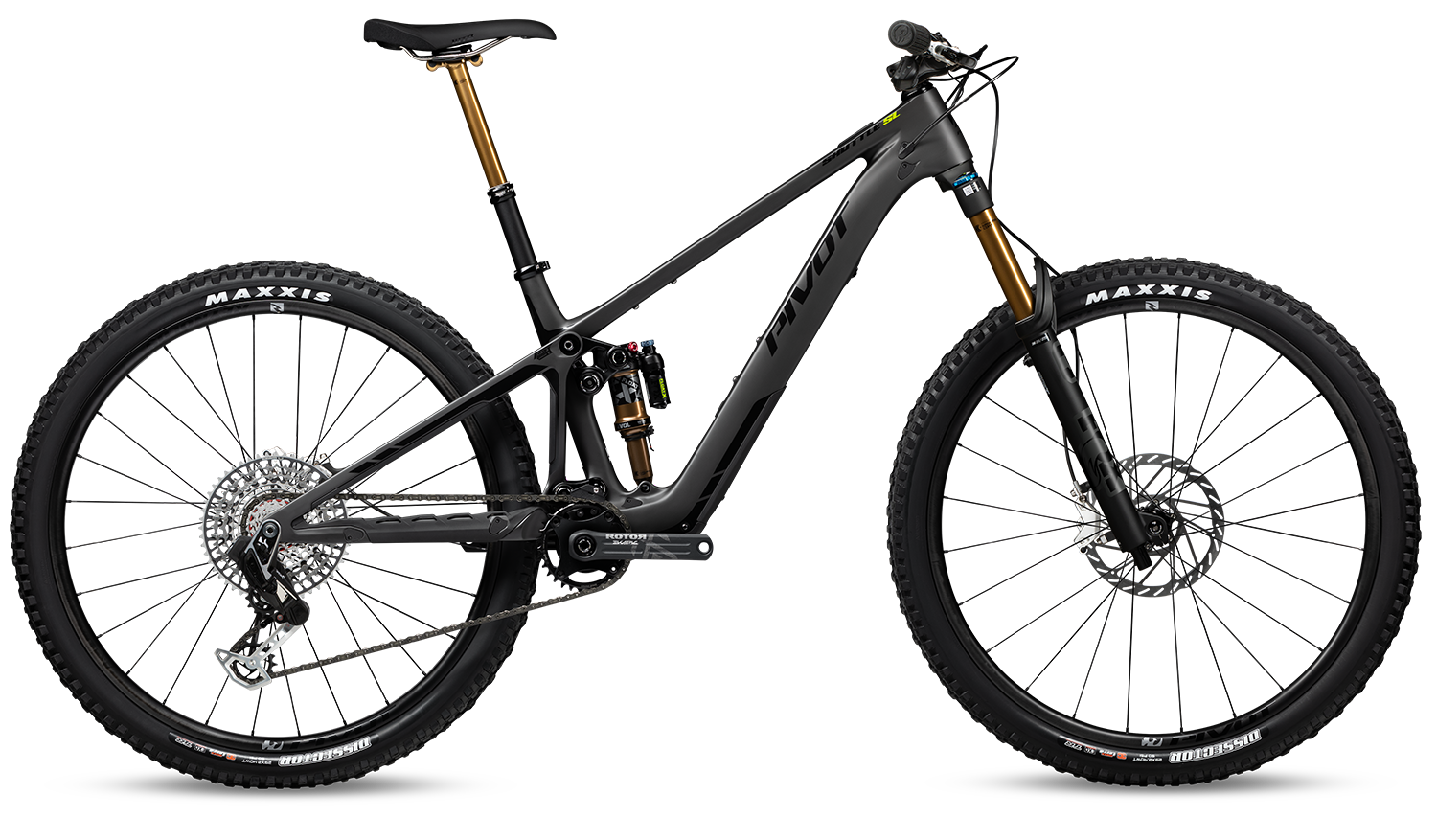

The Shuttle SL is Pivot's lightweight trail e-MTB: a full-carbon Hollow Core frame with 132 mm of dw-link rear travel, a 150 mm FOX 36 fork, 29-inch wheels, a geometry flip chip and size-specific chainstay lengths.
It uses the Fazua Ride 60 system (60 Nm, 450 W peak) with a fixed battery that is 430 Wh or 480 Wh depending on production date. Pivot puts the drive system at 4.2 kg and says the lightest build starts at 36.25 lb (under 17 kg).
- Fazua Ride 60, 60 Nm
- 430 or 480 Wh battery
- 132 mm rear / 150 mm fork, 29-inch
- Lightest build under 17 kg
Pivot Shuttle SL builds
Shuttle SL builds compared

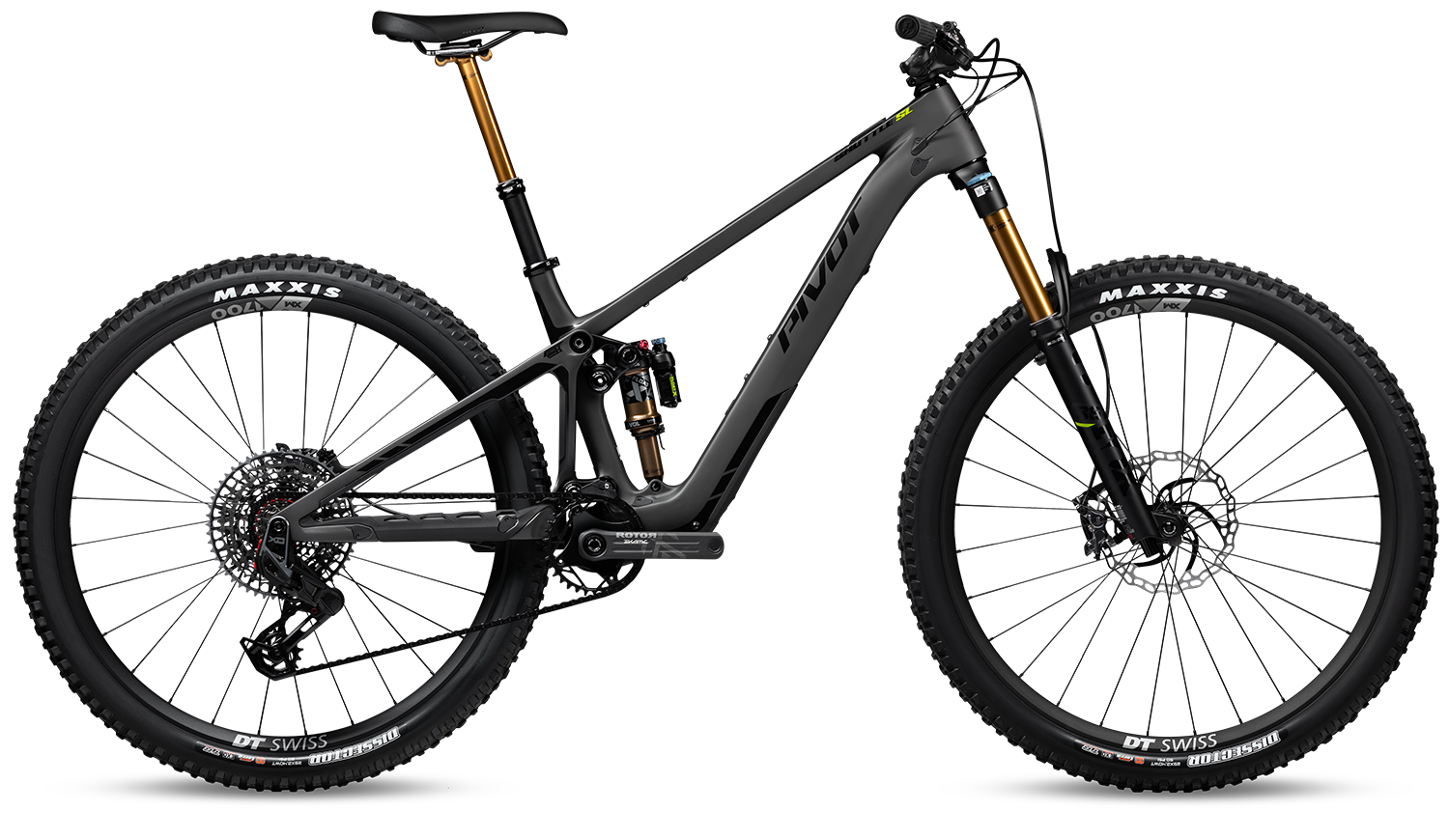

| Shuttle SL Ride Eagle 70/90 | Shuttle SL Pro X0 Eagle Transmission | Shuttle SL Team XX Eagle Transmission | |
|---|---|---|---|
| Price | $8,499 | $10,899 | $12,499 |
| Frame | Carbon | Carbon | Carbon |
| Fork | Fox Performance 36 29", 44mm offset | Fox Factory 36 29", 44mm offset | Fox Factory 36 29", 44mm offset |
| Shock | Fox Performance Float X | Fox Factory Float X | Fox Factory Float X |
| Derailleur | SRAM Eagle 90 Mechanical Transmission 12-Speed | SRAM X0 Eagle Transmission 12-Speed | SRAM XX Eagle Transmission 12-Speed |
| Brakes | SRAM DB8 Stealth 4-piston | SRAM Motive Silver 4-piston | SRAM Motive Ultimate 4-piston |
Shuttle SL geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat Tube Length (C-T) | 368 mm | 394 mm | 432 mm | 470 mm |
| BTop Tube Length | 597 / 598 mm | 631 / 632 mm | 645 / 646 mm | 659 / 660 mm |
| CHead Tube Length | 95 mm | 112 mm | 117 mm | 130 mm |
| DHead Tube Angle | 65.5° / 65° | 65.5° / 65° | 65.5° / 65° | 65.4° / 65° |
| ESeat Tube Angle (Eff.) | 76.5° / 76° | 76.5° / 76° | 76.5° / 76° | 77.2° / 76.8° |
| FChainstay Length | 430 / 432 mm | 430 / 432 mm | 432 / 434 mm | 436 / 438 mm |
| GBottom Bracket Height | 352 / 347 mm | 352 / 347 mm | 352 / 347 mm | 352 / 347 mm |
| HBottom Bracket Drop | 21.4 / 27 mm | 21.3 / 27 mm | 21.2 / 27 mm | 21.2 / 27 mm |
| IStandover | 674 / 665 mm | 677 / 668 mm | 682 / 674 mm | 687 / 678 mm |
| JWheelbase | 1185 / 1186 mm | 1222 / 1223 mm | 1239 / 1240 mm | 1271 / 1272 mm |
| Stack | 607 / 610 mm | 622 / 626 mm | 626 / 630 mm | 638 / 642 mm |
| Reach | 439 / 435 mm | 469 / 465 mm | 482 / 478 mm | 504 / 500 mm |
Where two values are given: High / Low flip-chip position. Source: Pivot Cycles.
Pivot Shuttle SL: FAQ
How much does the Pivot Shuttle SL cost?
$8,499 – $12,499 depending on the build (Shuttle SL Ride Eagle 70/90 $8,499, Shuttle SL Pro X0 Eagle Transmission $10,899, Shuttle SL Team XX Eagle Transmission $12,499); US RRP (MSRP), excl. sales tax; bike only, without range extender..
How many Pivot Shuttle SL builds are there?
3: Shuttle SL Ride Eagle 70/90, Shuttle SL Pro X0 Eagle Transmission, Shuttle SL Team XX Eagle Transmission. They share the frame platform and differ mainly in suspension, drivetrain, wheels and weight.
What motor and battery does the Pivot Shuttle SL use?
Fazua Ride 60 (60 Nm; 450 W peak) with a 430 Wh battery (fazua fixed battery; 430 wh or 480 wh depending on production date (pivot)).
How much travel does the Pivot Shuttle SL have?
150 mm fork and 132 mm rear travel on 29" wheels.
