PivotShuttle SL/AM Ride Eagle 70/90
- Motor
- Bosch Performance Line SX60 Nm; 600 W peak
- Battery
- 400 WhBosch in-frame battery; PowerMore 250 range extender optional
- Travel F / R
- 160 / 150 mm
- Wheels
- 29"
- Frame
- Carbon
Overview
The Pivot Shuttle SL/AM Ride Eagle 70/90 ($8,499) is the entry build of the Shuttle SL/AM: Bosch Performance Line SX (60 Nm) with 400 Wh, Fox Performance 36 fork, Fox Performance Float shock, SRAM Eagle 90 Transmission 12-Speed and SRAM DB8 Stealth 4-piston brakes.
The Shuttle SL/AM is Pivot's lightweight all-mountain e-MTB: a full-carbon frame with 150 mm of dw-link rear travel, a 160 mm FOX 36 fork and 29-inch wheels. The XS size ships with mixed wheels, and a flip chip adjusts the geometry.
Every build uses the Bosch Performance Line SX drive unit (60 Nm, 600 W peak) with a 400 Wh in-frame battery, and the frame accepts the Bosch PowerMore 250 range extender. Pivot says the lightest builds weigh under 18 kg.
- Bosch Performance Line SX, 60 Nm
- 400 Wh battery, range extender ready
- 150 mm rear / 160 mm fork
- Lightest builds under 18 kg

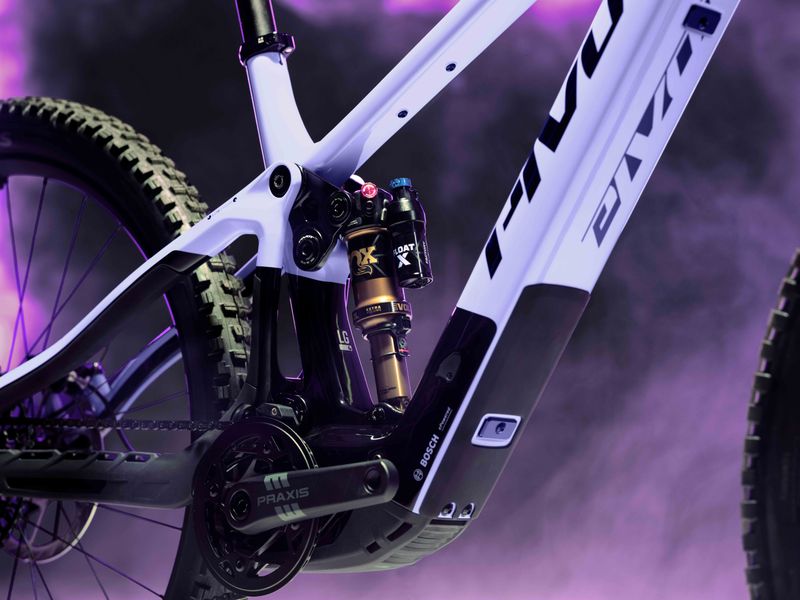

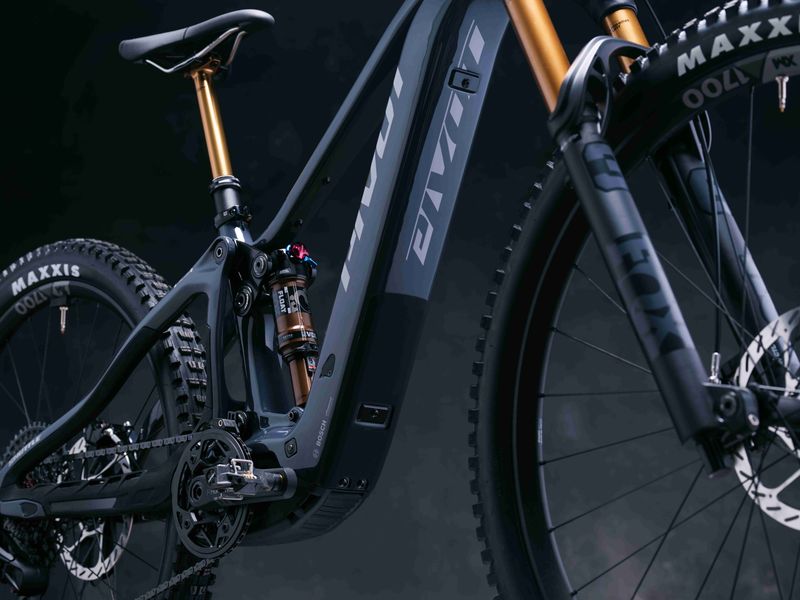

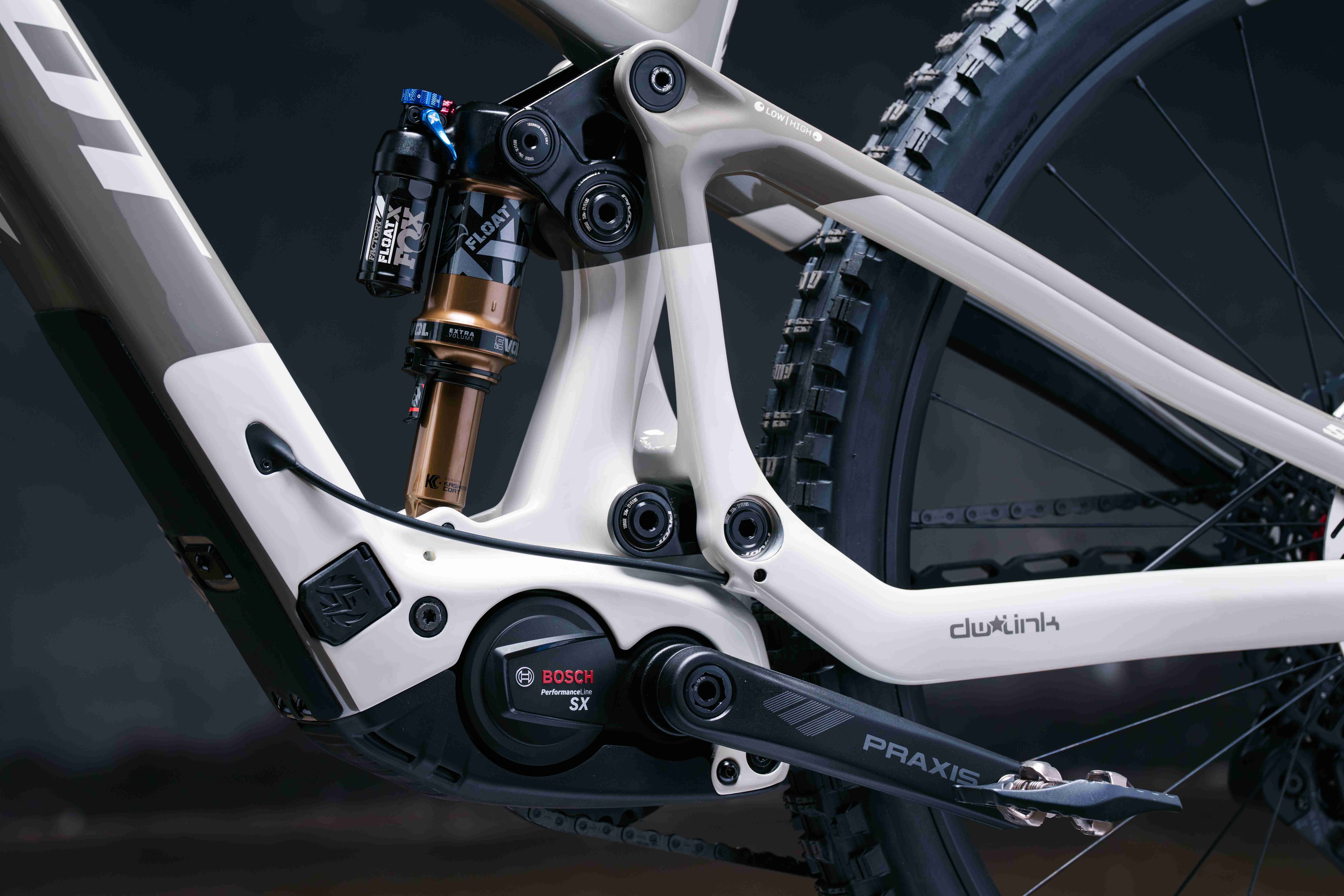

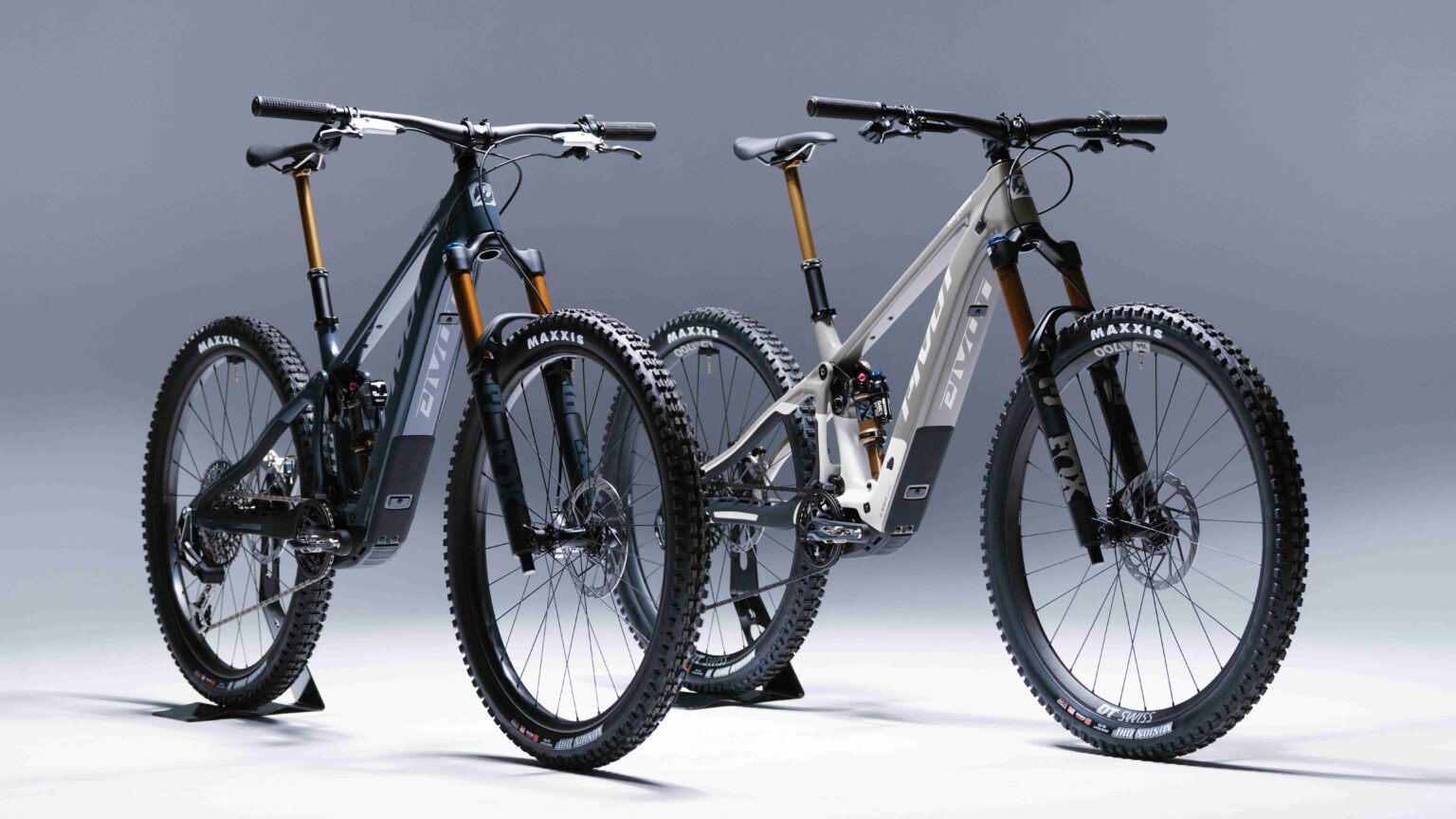

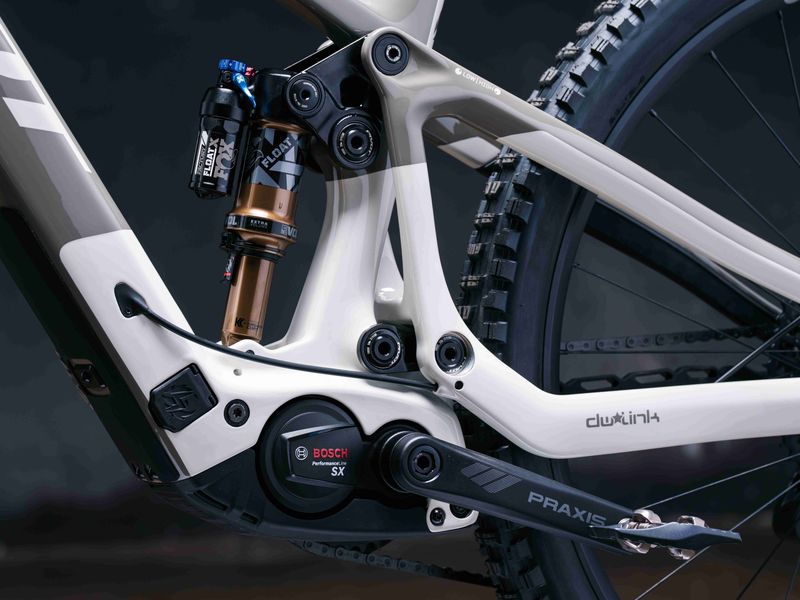

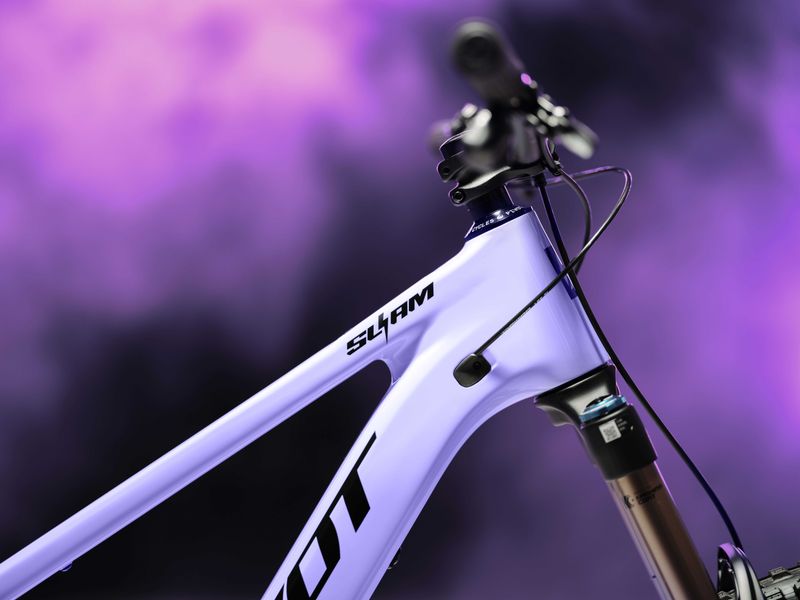

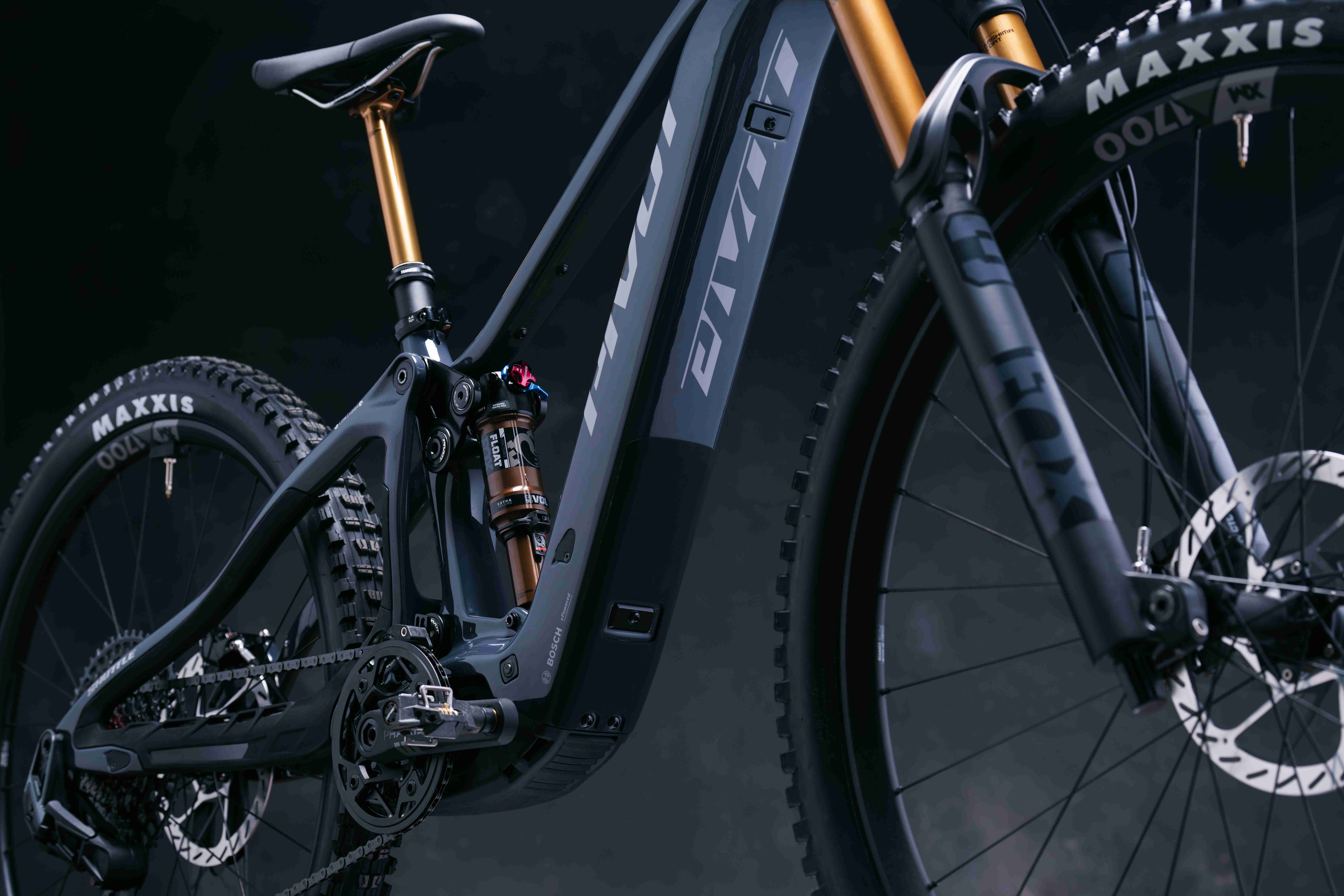

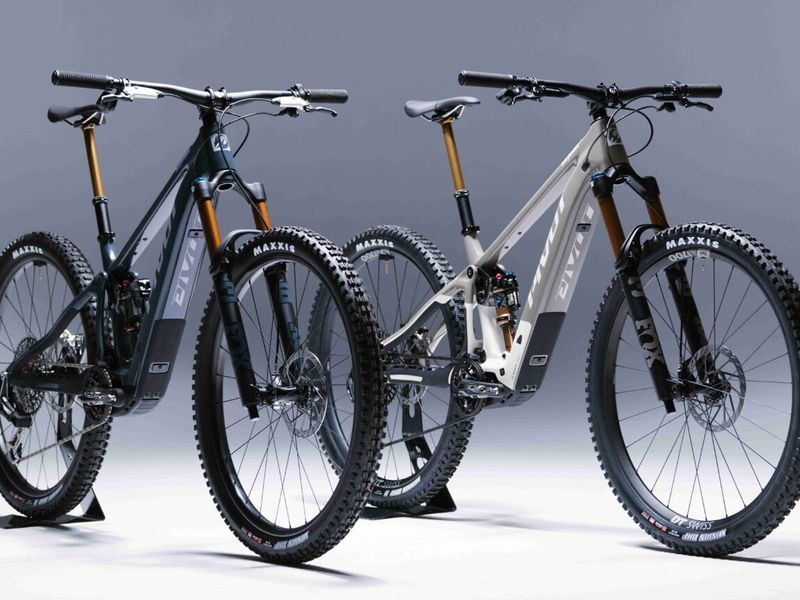

Gallery
Photos: Pivot
Full specifications
Frame & suspension
- Frame
- Shuttle SL/AM
- Fork
- Fox Performance 36 29", 44mm offset, GRIP - 160mm
- Rear shock
- Fox Performance Float
- Headset
- Pivot Precision Sealed Cartridge
- Sizes
- XS, S, M, L, XL

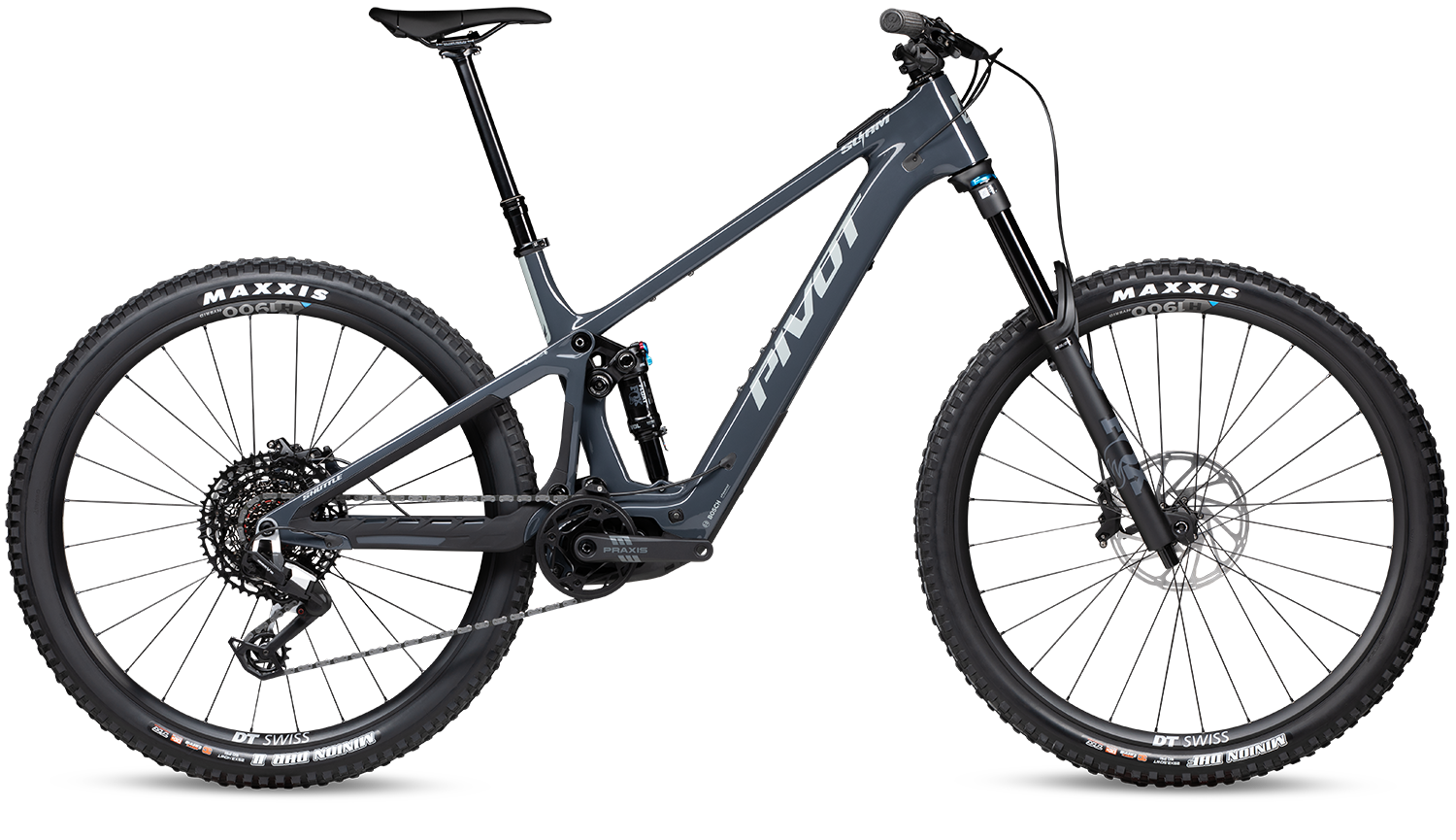

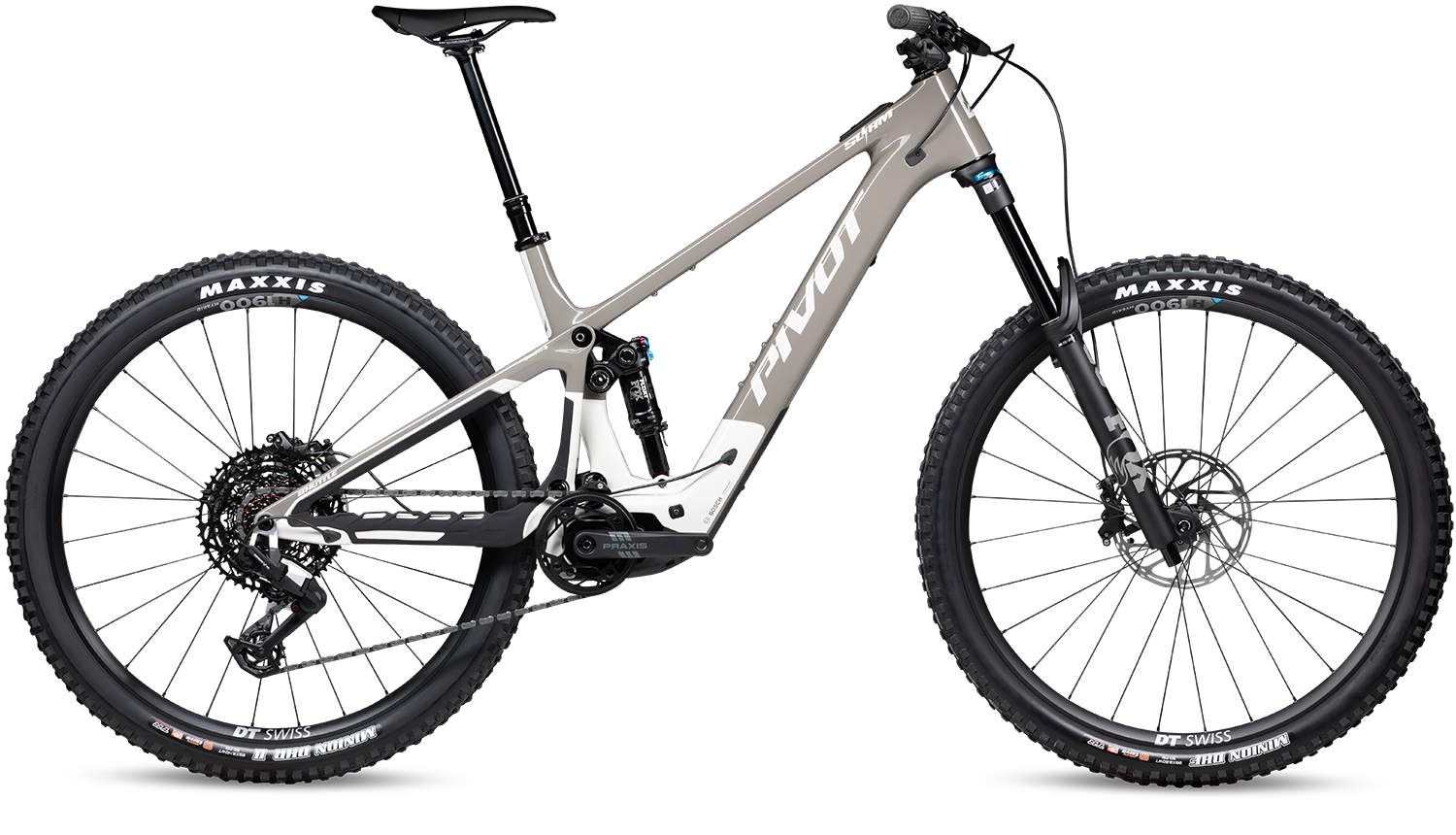

- Colours
- Black Cobalt Blue / Jaclyn Purple / Brownstone / Gloss Grey
E-system
- Motor
- Bosch Performance SX (60 Nm, 600 W peak)
- Battery
- Bosch 400 Wh, in-frame
- Range extender
- Bosch PowerMore 250 (250 Wh), optional at checkout (+$599)
Drivetrain
- Shifter
- SRAM Eagle 90 Mechanical Transmission 12-Speed
- Rear derailleur
- SRAM Eagle 90 Mechanical Transmission 12-Speed
- Cassette
- SRAM XS-1270 Eagle Transmission 10-52t
- Chain
- SRAM Eagle 70 Flattop 12-Speed
- Crankset
- Praxis Alloy eCranks E-MTB 34t - 160mm
Brakes
- Brakes
- SRAM DB8 Stealth 4-piston
- Rotors
- SRAM Centerline Centerlock - 200mm (front) / SRAM Centerline Centerlock - 200mm (rear)
Wheels & tyres
- Wheelset
- DT Swiss Hybrid H1900, 30mm - 15x110 F/12x157 R
- Tyres
- Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA (front) / Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA (rear)
Cockpit
- Handlebar
- Phoenix Ride 20mm Rise Aluminum - 780mm (XS-MD), 800mm (LG-XL)
- Stem
- Phoenix Team Enduro/Trail - 45mm (XS-LG) , 55mm (XL)
- Grips
- Phoenix Factory Lock-On
- Seatpost
- JD/PIVOT YSP23GLS 150mm (XS-SM) 170mm (MD) 200mm (LG-XL)
- Saddle
- Phoenix WTB Race High Tail Trail (SM), Phoenix RaceGrip Ride Saddle (XS, MD-XL)
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Shuttle SL/AM geometry
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| ASeat Tube Length (C-T) | 343 mm | 378 mm | 399 mm | 432 mm | 470 mm |
| BTop Tube Length (Eff.) | 573 / 574 mm | 602 / 603 mm | 630 / 631 mm | 647 / 648 mm | 669 / 670 mm |
| CHead Tube Length | 95 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| DHead Tube Angle | 64.5° / 64.1° | 64.5° / 64.1° | 64.5° / 64.1° | 64.5° / 64.1° | 64.5° / 64.1° |
| ESeat Tube Angle (Eff.) | 76.9° / 76.5° | 76.9° / 76.5° | 76.9° / 76.5° | 76.9° / 76.5° | 76.9° / 76.5° |
| FChain Stay Length | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm |
| GBottom Bracket Height | 350 / 345 mm | 350 / 345 mm | 350 / 345 mm | 350 / 345 mm | 350 / 345 mm |
| HBottom Bracket Drop | 18 / 23 mm | 24 / 29 mm | 24 / 29 mm | 24 / 29 mm | 24 / 29 mm |
| IStandover Height | 653 / 648 mm | 670 / 665 mm | 679 / 674 mm | 679 / 674 mm | 690 / 685 mm |
| JWheelbase | 1188 / 1189 mm | 1218 / 1219 mm | 1247 / 1248 mm | 1266 / 1267 mm | 1291 / 1292 mm |
| Reach | 425 / 420 mm | 440 / 436 mm | 465 / 461 mm | 480 / 476 mm | 500 / 496 mm |
| Stack | 607 / 610 mm | 627 / 630 mm | 636 / 639 mm | 645 / 648 mm | 654 / 657 mm |
Where two values are given: High / Low flip-chip position. Source: Pivot Cycles.
Shuttle SL/AM: builds compared
Shuttle SL/AM range →| Shuttle SL/AM Ride Eagle 70/90 | Shuttle SL/AM Pro X0 Eagle Transmission | Shuttle SL/AM Team XX Eagle Transmission | |
|---|---|---|---|
| Price | $8,499 | $11,199 | $13,199 |
| Frame | Carbon | Carbon | Carbon |
| Fork | Fox Performance 36 29", 44mm offset | Fox Factory 36 29", 44mm offset | Fox Factory 36 29", 44mm offset |
| Shock | Fox Performance Float | Fox Factory Float(XS) | Fox Factory Float(XS) |
| Derailleur | SRAM Eagle 90 Mechanical Transmission 12-Speed | SRAM X0 Eagle Transmission 12-Speed | SRAM XX Eagle Transmission 12-Speed |
| Brakes | SRAM DB8 Stealth 4-piston | SRAM Motive Silver 4-piston | SRAM Motive Ultimate 4-piston |
Shuttle SL/AM Ride Eagle 70/90: FAQ
How much does the Pivot Shuttle SL/AM Ride Eagle 70/90 cost?
$8,499 (US RRP (MSRP), excl. sales tax; bike only, without range extender.). The Shuttle SL/AM range runs from $8,499 (Shuttle SL/AM Ride Eagle 70/90) to $13,199 (Shuttle SL/AM Team XX Eagle Transmission). Prices vary by country and dealer.
What motor and battery does the Pivot Shuttle SL/AM Ride Eagle 70/90 have?
Bosch Performance Line SX (60 Nm; 600 W peak). 400 Wh battery — bosch in-frame battery; PowerMore 250 range extender optional.
How much suspension travel does the Pivot Shuttle SL/AM Ride Eagle 70/90 have?
160 mm at the fork and 150 mm at the rear, on 29" wheels.
What sizes does the Pivot Shuttle SL/AM Ride Eagle 70/90 come in?
XS, S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Shuttle SL/AM Ride Eagle 70/90 and the Shuttle SL/AM Pro X0 Eagle Transmission?
They share the Shuttle SL/AM frame platform and motor; the differences are in the parts — fork: Fox Performance 36 29" vs Fox Factory 36 29"; shock: Fox Performance Float vs Fox Factory Float(XS); derailleur: SRAM Eagle 90 Mechanical Transmission 12-Speed vs SRAM X0 Eagle Transmission 12-Speed; price: $8,499 vs $11,199.
