PivotShuttle SL/AM
- Price
- $8,499 – $13,199
- Motor
- Bosch Performance Line SX60 Nm; 600 W peak
- Battery
- 400 WhBosch in-frame battery; PowerMore 250 range extender optional
- Travel F / R
- 160 / 150 mm
- Wheels
- 29"
Overview

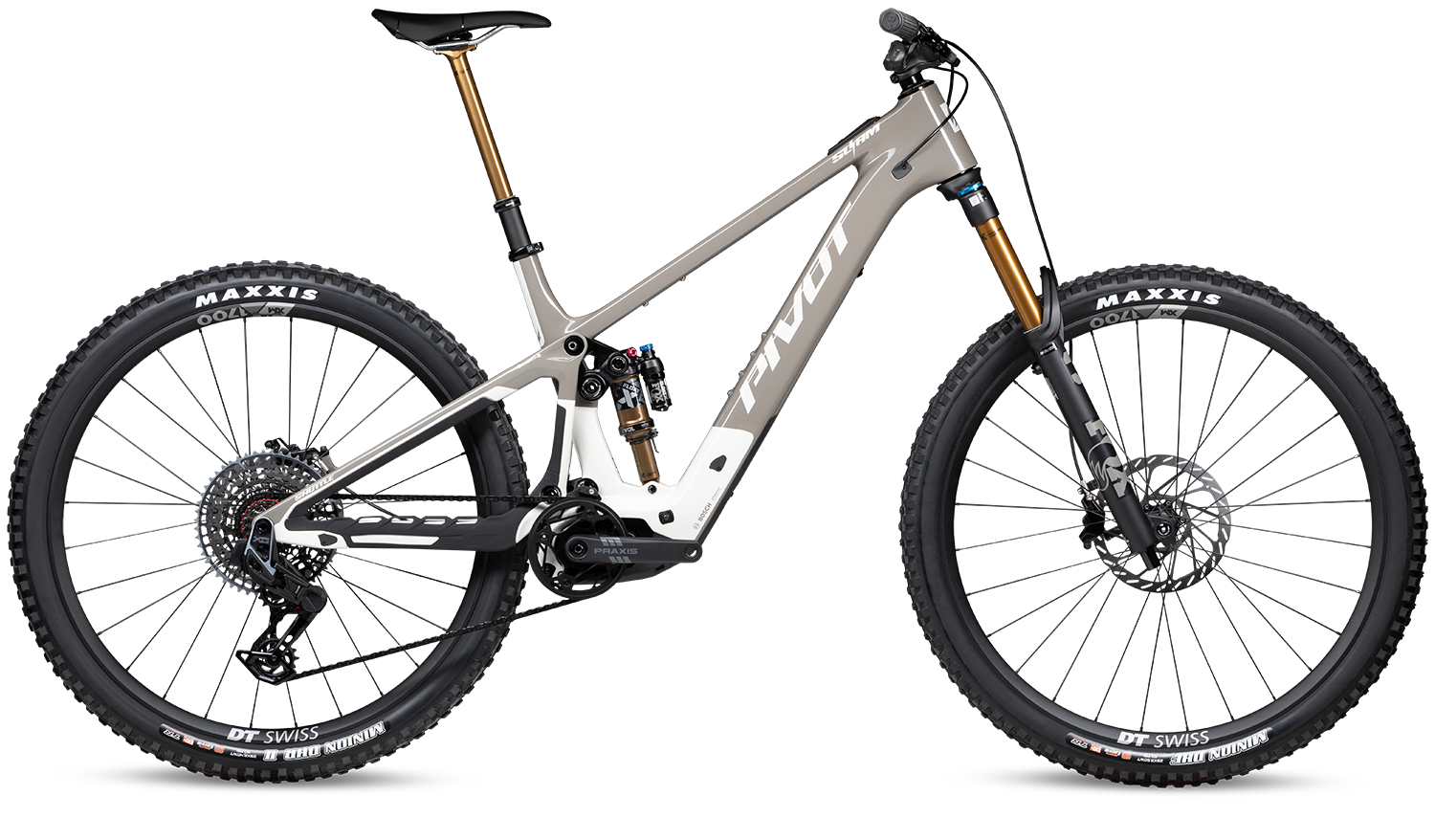

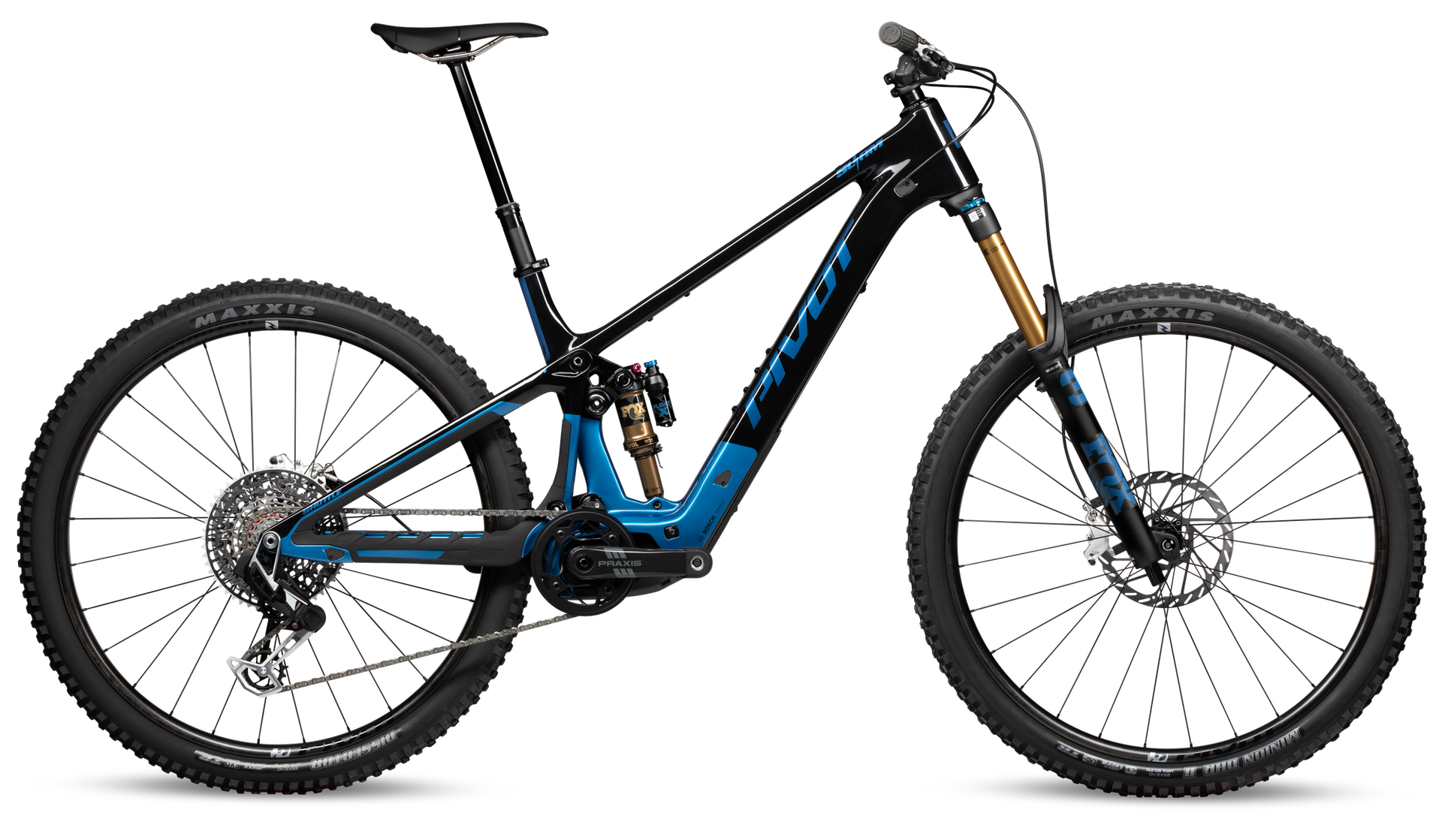

The Shuttle SL/AM is Pivot's lightweight all-mountain e-MTB: a full-carbon frame with 150 mm of dw-link rear travel, a 160 mm FOX 36 fork and 29-inch wheels. The XS size ships with mixed wheels, and a flip chip adjusts the geometry.
Every build uses the Bosch Performance Line SX drive unit (60 Nm, 600 W peak) with a 400 Wh in-frame battery, and the frame accepts the Bosch PowerMore 250 range extender. Pivot says the lightest builds weigh under 18 kg.
- Bosch Performance Line SX, 60 Nm
- 400 Wh battery, range extender ready
- 150 mm rear / 160 mm fork
- Lightest builds under 18 kg
Pivot Shuttle SL/AM builds
Shuttle SL/AM builds compared
| Shuttle SL/AM Ride Eagle 70/90 | Shuttle SL/AM Pro X0 Eagle Transmission | Shuttle SL/AM Team XX Eagle Transmission | |
|---|---|---|---|
| Price | $8,499 | $11,199 | $13,199 |
| Frame | Carbon | Carbon | Carbon |
| Fork | Fox Performance 36 29", 44mm offset | Fox Factory 36 29", 44mm offset | Fox Factory 36 29", 44mm offset |
| Shock | Fox Performance Float | Fox Factory Float(XS) | Fox Factory Float(XS) |
| Derailleur | SRAM Eagle 90 Mechanical Transmission 12-Speed | SRAM X0 Eagle Transmission 12-Speed | SRAM XX Eagle Transmission 12-Speed |
| Brakes | SRAM DB8 Stealth 4-piston | SRAM Motive Silver 4-piston | SRAM Motive Ultimate 4-piston |
Shuttle SL/AM geometry
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| ASeat Tube Length (C-T) | 343 mm | 378 mm | 399 mm | 432 mm | 470 mm |
| BTop Tube Length (Eff.) | 573 / 574 mm | 602 / 603 mm | 630 / 631 mm | 647 / 648 mm | 669 / 670 mm |
| CHead Tube Length | 95 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| DHead Tube Angle | 64.5° / 64.1° | 64.5° / 64.1° | 64.5° / 64.1° | 64.5° / 64.1° | 64.5° / 64.1° |
| ESeat Tube Angle (Eff.) | 76.9° / 76.5° | 76.9° / 76.5° | 76.9° / 76.5° | 76.9° / 76.5° | 76.9° / 76.5° |
| FChain Stay Length | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm |
| GBottom Bracket Height | 350 / 345 mm | 350 / 345 mm | 350 / 345 mm | 350 / 345 mm | 350 / 345 mm |
| HBottom Bracket Drop | 18 / 23 mm | 24 / 29 mm | 24 / 29 mm | 24 / 29 mm | 24 / 29 mm |
| IStandover Height | 653 / 648 mm | 670 / 665 mm | 679 / 674 mm | 679 / 674 mm | 690 / 685 mm |
| JWheelbase | 1188 / 1189 mm | 1218 / 1219 mm | 1247 / 1248 mm | 1266 / 1267 mm | 1291 / 1292 mm |
| Reach | 425 / 420 mm | 440 / 436 mm | 465 / 461 mm | 480 / 476 mm | 500 / 496 mm |
| Stack | 607 / 610 mm | 627 / 630 mm | 636 / 639 mm | 645 / 648 mm | 654 / 657 mm |
Where two values are given: High / Low flip-chip position. Source: Pivot Cycles.
Pivot Shuttle SL/AM: FAQ
How much does the Pivot Shuttle SL/AM cost?
$8,499 – $13,199 depending on the build (Shuttle SL/AM Ride Eagle 70/90 $8,499, Shuttle SL/AM Pro X0 Eagle Transmission $11,199, Shuttle SL/AM Team XX Eagle Transmission $13,199); US RRP (MSRP), excl. sales tax; bike only, without range extender..
How many Pivot Shuttle SL/AM builds are there?
3: Shuttle SL/AM Ride Eagle 70/90, Shuttle SL/AM Pro X0 Eagle Transmission, Shuttle SL/AM Team XX Eagle Transmission. They share the frame platform and differ mainly in suspension, drivetrain, wheels and weight.
What motor and battery does the Pivot Shuttle SL/AM use?
Bosch Performance Line SX (60 Nm; 600 W peak) with a 400 Wh battery (bosch in-frame battery; powermore 250 range extender optional).
How much travel does the Pivot Shuttle SL/AM have?
160 mm fork and 150 mm rear travel on 29" wheels.
