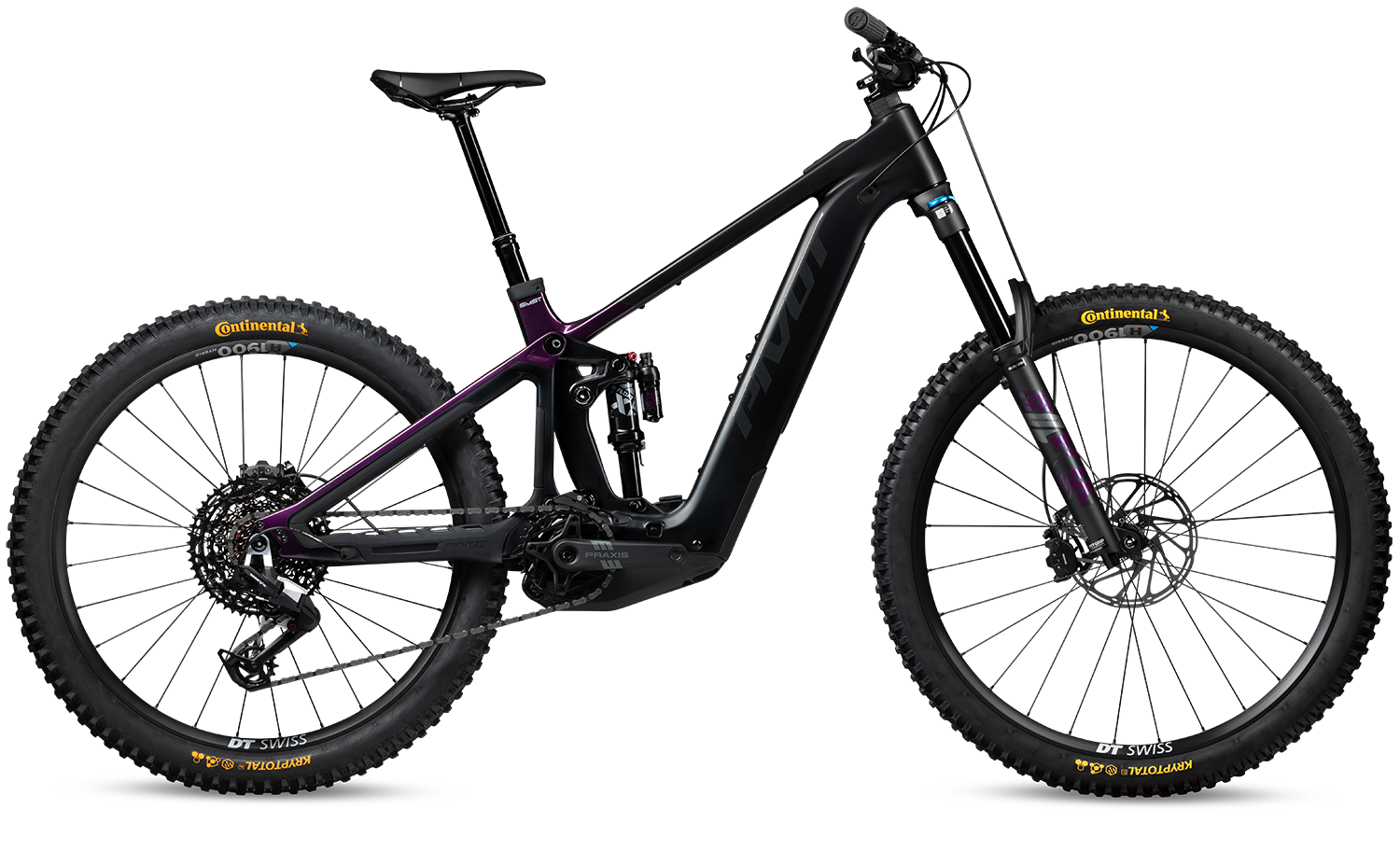

PivotShuttle LT Ride Eagle 70/90
- Motor
- Bosch Performance Line CX120 Nm; 750 W peak
- Battery
- 800 WhBosch PowerTube, removable; PowerMore 250 range extender optional
- Travel F / R
- 170 / 162 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
Overview

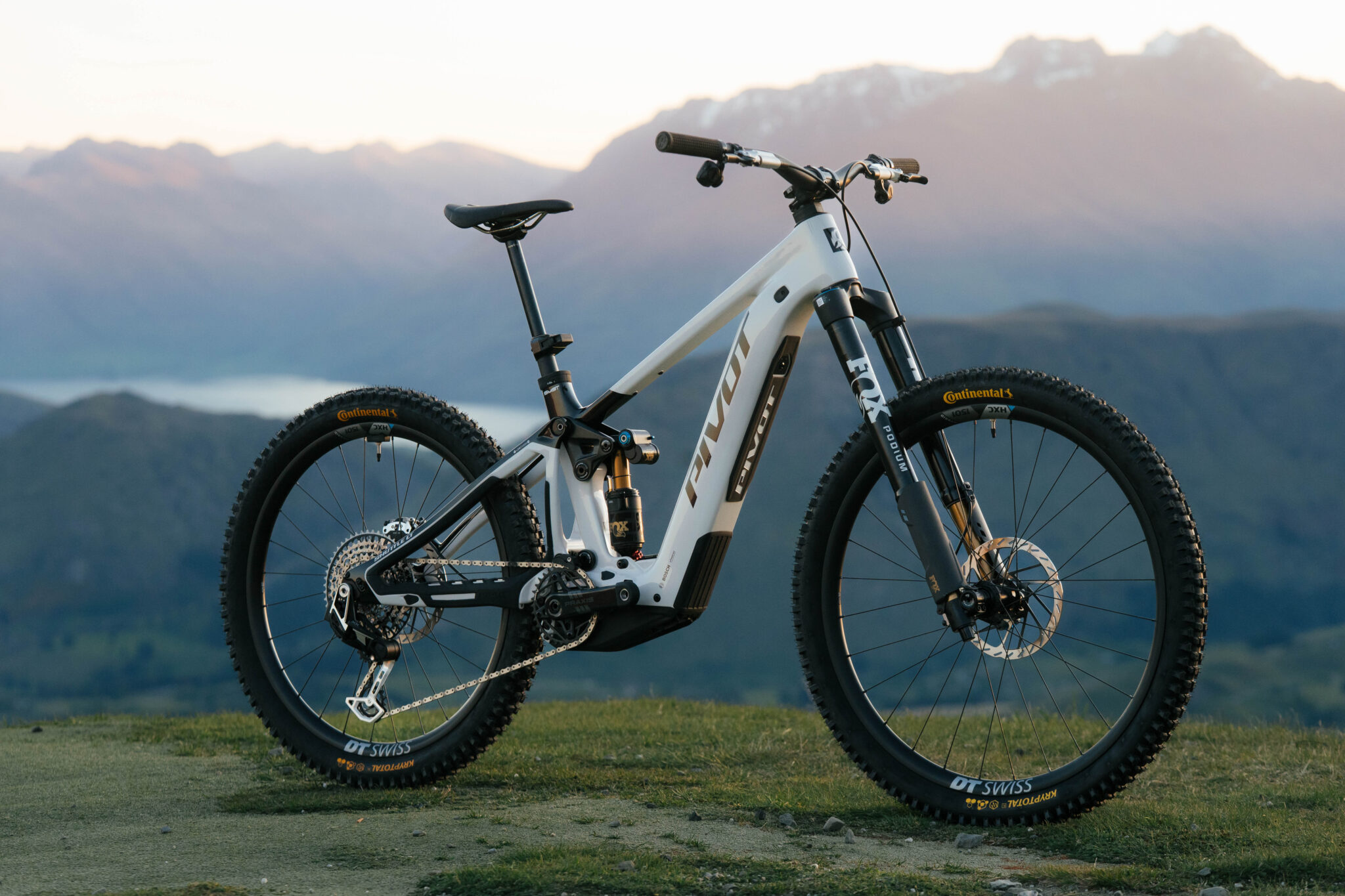

The Pivot Shuttle LT Ride Eagle 70/90 ($8,999) is the entry build of the Shuttle LT: Bosch Performance Line CX (120 Nm) with 800 Wh, Fox Performance 38 fork, Fox Performance Float X shock, SRAM Eagle 90 Transmission 12-Speed and SRAM Maven 4-piston brakes.

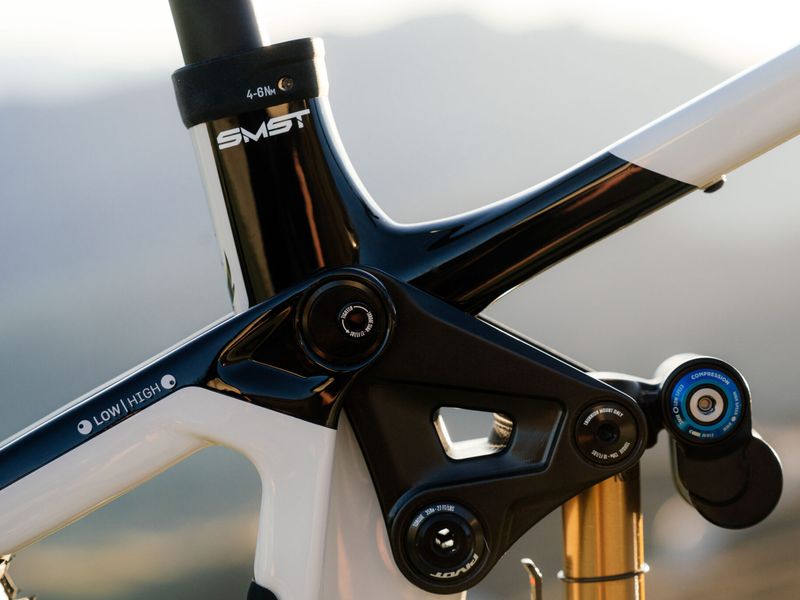

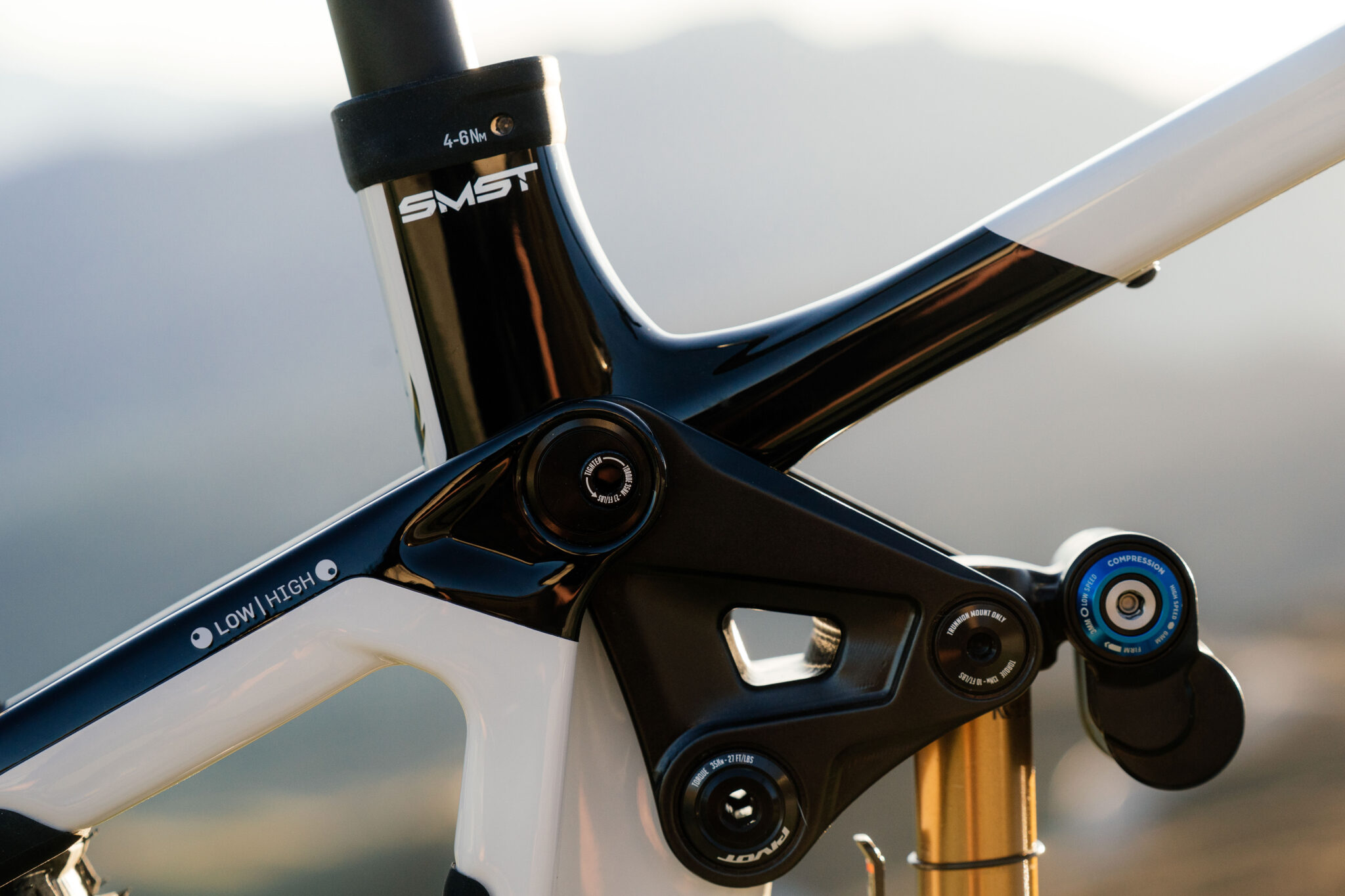

The Shuttle LT is Pivot's carbon long-travel enduro e-MTB: 162 mm of dw-link rear travel (165 mm in the long chainstay setting) with a 170 mm fork and mixed wheels. It has several adjustments: a geometry flip chip, a progression flip chip at the lower shock mount, 8 mm of chainstay adjustment via the Swinger dropout and the Slacky McSteepTube seat tube angle (76.5° or 78°).
It runs the Bosch Gen 5 Performance Line CX (Ride) or CX Race (Pro and Team), rated at 120 Nm and 750 W peak, with a removable 800 Wh battery and PowerMore 250 range extender compatibility. Pro and Team builds get a FOX Podium inverted fork, and NEO builds a FOX Live Valve Neo shock. Pivot says the lightest builds weigh under 23.5 kg.
- 170 mm fork / 162 mm rear, mixed wheels
- Bosch CX / CX Race, removable 800 Wh
- Adjustable seat angle, chainstay and progression
- FOX Podium fork on Pro and Team
Gallery
Photos: Pivot
Full specifications
Frame & suspension
- Frame
- Shuttle LT
- Fork
- Fox Performance 38 29", 44mm offset, GRIP - 170mm
- Rear shock
- Fox Performance Float X
- Headset
- Pivot Precision Sealed Cartridge
- Sizes
- S, M, L, XL
- Colours

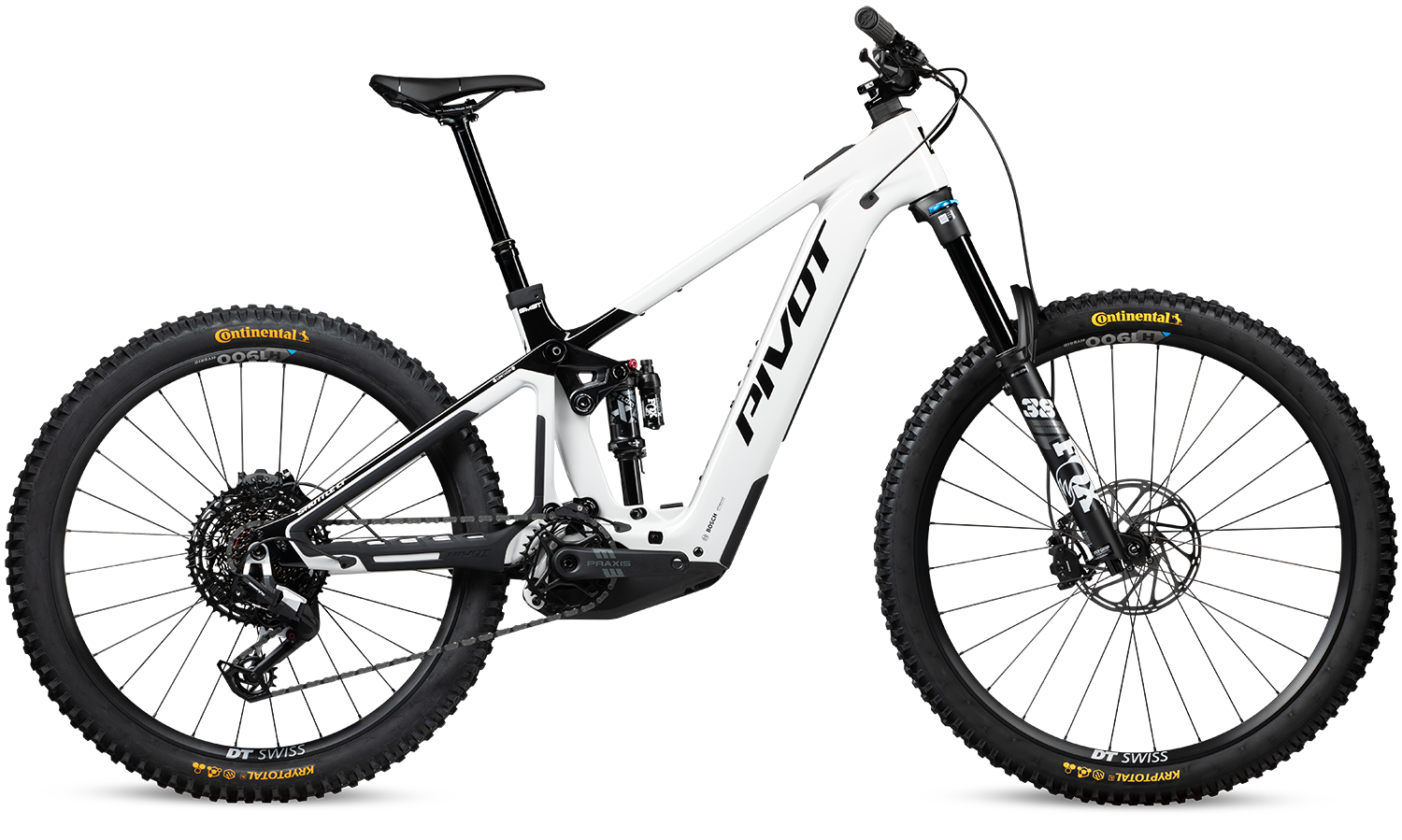

- Stone Cold White / Black Royal Purple / Black Royal Purple | Aurora Sky
E-system
- Motor
- Bosch Gen 5 Performance Line CX (120 Nm, 750 W peak)
- Battery
- Bosch PowerTube 800 Wh, removable
- Range extender
- Bosch PowerMore 250 (250 Wh), optional at checkout (+$599)
- Remote
- Bosch wireless remote
Drivetrain
- Shifter
- SRAM Eagle 90 Mechanical Transmission 12-Speed
- Rear derailleur
- SRAM Eagle 90 Mechanical Transmission 12-Speed
- Cassette
- SRAM XS-1270 Eagle Transmission 10-52t
- Chain
- SRAM Eagle 70 Flattop 12-Speed
- Crankset
- Praxis Alloy eCranks E-MTB 34t - 155mm
Brakes
- Brakes
- SRAM Maven 4-piston
- Rotors
- SRAM Centerline Centerlock - 200mm (front) / SRAM Centerline Centerlock - 200mm (rear)
Wheels & tyres
- Wheelset
- DT Swiss H1900 w/ DT Swiss 370 hub, 30mm - Mixed 15x110 F/12x157 R
- Tyres
- Continental Kryptotal-F 29" x 2.4" SuperSoft Compound Enduro Casing (front) / Continental Kryptotal-R 27.5" x 2.6" Soft Compound Enduro Casing (rear)
Cockpit
- Handlebar
- Phoenix Ride Aluminum - 20mm Rise 780mm(SM), 35mm Rise 780mm(MD-XL)
- Stem
- Phoenix Team Enduro V2- 40mm(SM-LG), 50mm(XL)
- Grips
- Phoenix Factory Lock-On
- Seatpost
- JD/PIVOT YSP23GLS 150mm (SM) 170mm (MD) 200mm (LG-XL)
- Saddle
- Pivot Ride E-Bike
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Shuttle LT geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat Tube Length | 378 mm | 399 mm | 432 mm | 470 mm |
| BTop Tube Length (Eff.) | 605 / 607 mm | 632 / 634 mm | 649 / 651 mm | 671 / 674 mm |
| CHead Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| DHead Tube Angle | 64° / 63.2° | 64° / 63.2° | 64° / 63.2° | 64° / 63.2° |
| ESeat Tube Angle (Eff.) | 76.5° / 75.7° | 76.5° / 75.7° | 76.5° / 75.7° | 76.5° / 75.7° |
| FChainstay Length - Short | 443 mm | 443 mm | 443 mm | 443 mm |
| FChainstay Length - Long | 451 mm | 451 mm | 451 mm | 451 mm |
| GBottom Bracket Height | 346 / 335 mm | 346 / 335 mm | 346 / 335 mm | 346 / 335 mm |
| HBottom Bracket Drop | 28 / 22 mm | 28 / 22 mm | 28 / 22 mm | 28 / 22 mm |
| IStandover | 689 / 678 mm | 689 / 678 mm | 704 / 693 mm | 720 / 709 mm |
| JWheelbase - Short | 1232 mm | 1261 mm | 1281 / 1280 mm | 1305 mm |
| JWheelbase - Long | 1240 mm | 1269 mm | 1288 mm | 1313 mm |
| Reach | 443 / 434 mm | 468 / 459 mm | 483 / 474 mm | 503 / 494 mm |
| Stack | 639 / 645 mm | 648 / 655 mm | 657 / 664 mm | 666 / 673 mm |
| BTop Tube Length (Eff.) (78° seat angle setting) | 584 / 586 mm | 612 / 613 mm | 629 / 631 mm | 652 / 654 mm |
| ESeat Tube Angle (Eff.) (78° seat angle setting) | 78° / 77.2° | 78° / 77.2° | 78° / 77.2° | 78° / 77.2° |
Where two values are given: High BB / Low BB flip-chip position. Main rows show the 76.5° seat-tube-angle (Slacky McSteepTube) setting; rows marked "78° seat angle setting" show the steep setting. Source: Pivot Cycles.
Shuttle LT: builds compared
Shuttle LT range →| Shuttle LT Ride Eagle 70/90 | Shuttle LT Pro X0 Eagle Transmission | Shuttle LT Pro X0 Eagle Transmission NEO | Shuttle LT Team XX Eagle Transmission | Shuttle LT Team XX Eagle Transmission NEO | |
|---|---|---|---|---|---|
| Price | $8,999 | $12,599 | $14,299 | $14,999 | $16,699 |
| Frame | Carbon | Carbon | Carbon | Carbon | Carbon |
| Fork | Fox Performance 38 29", 44mm offset | Fox Performance Elite Podium 29", 44mm offset | Fox Performance Elite Podium 29", 44mm offset | Fox Factory Podium 29", 44mm offset | Fox Factory Podium 29", 44mm offset |
| Shock | Fox Performance Float X | Fox Performance Elite Float X | Fox Factory DHX Neo Live | Fox Factory Float X2 | Fox Factory DHX Neo Live |
| Derailleur | SRAM Eagle 90 Mechanical Transmission 12-Speed | SRAM X0 Eagle Transmission 12-Speed | SRAM X0 Eagle Transmission 12-Speed | SRAM XX Eagle Transmission 12-Speed | SRAM XX Eagle Transmission 12-Speed |
| Brakes | SRAM Maven 4-piston | SRAM Maven Silver 4-piston | SRAM Maven Silver 4-piston | SRAM Maven Ultimate 4-piston | SRAM Maven Ultimate 4-piston |
| Display | — | Bosch Kiox 400C | Bosch Kiox 400C | Bosch Kiox 400C | Bosch Kiox 400C |
Shuttle LT Ride Eagle 70/90: FAQ
How much does the Pivot Shuttle LT Ride Eagle 70/90 cost?
$8,999 (US RRP (MSRP), excl. sales tax; bike only, without range extender. Pivot currently lists it on sale at $6,999.). The Shuttle LT range runs from $8,999 (Shuttle LT Ride Eagle 70/90) to $16,699 (Shuttle LT Team XX Eagle Transmission NEO). Prices vary by country and dealer.
What motor and battery does the Pivot Shuttle LT Ride Eagle 70/90 have?
Bosch Performance Line CX (120 Nm; 750 W peak). 800 Wh battery — bosch PowerTube, removable; PowerMore 250 range extender optional.
How much suspension travel does the Pivot Shuttle LT Ride Eagle 70/90 have?
170 mm at the fork and 162 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Pivot Shuttle LT Ride Eagle 70/90 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Shuttle LT Ride Eagle 70/90 and the Shuttle LT Pro X0 Eagle Transmission?
They share the Shuttle LT frame platform; the differences are in the parts — fork: Fox Performance 38 29" vs Fox Performance Elite Podium 29"; shock: Fox Performance Float X vs Fox Performance Elite Float X; derailleur: SRAM Eagle 90 Mechanical Transmission 12-Speed vs SRAM X0 Eagle Transmission 12-Speed; price: $8,999 vs $12,599.
