PivotShuttle SL Pro X0 Eagle Transmission
- Motor
- Fazua Ride 6060 Nm; 450 W peak
- Battery
- 430 WhFazua fixed battery; 430 Wh or 480 Wh depending on production date (Pivot)
- Travel F / R
- 150 / 132 mm
- Wheels
- 29"
- Frame
- Carbon
Overview
The Pivot Shuttle SL Pro X0 Eagle Transmission ($10,899) is a mid-range build of the Shuttle SL: Fazua Ride 60 (60 Nm) with 430 Wh, Fox Factory 36 fork, Fox Factory Float X shock, SRAM X0 Eagle Transmission 12-Speed and SRAM Motive Silver 4-piston brakes.
The Shuttle SL is Pivot's lightweight trail e-MTB: a full-carbon Hollow Core frame with 132 mm of dw-link rear travel, a 150 mm FOX 36 fork, 29-inch wheels, a geometry flip chip and size-specific chainstay lengths.
It uses the Fazua Ride 60 system (60 Nm, 450 W peak) with a fixed battery that is 430 Wh or 480 Wh depending on production date. Pivot puts the drive system at 4.2 kg and says the lightest build starts at 36.25 lb (under 17 kg).
- Fazua Ride 60, 60 Nm
- 430 or 480 Wh battery
- 132 mm rear / 150 mm fork, 29-inch
- Lightest build under 17 kg

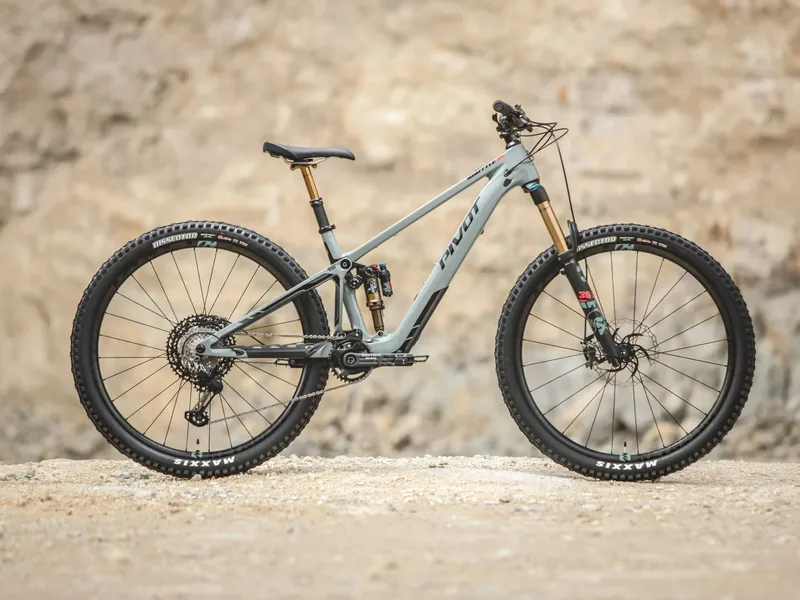

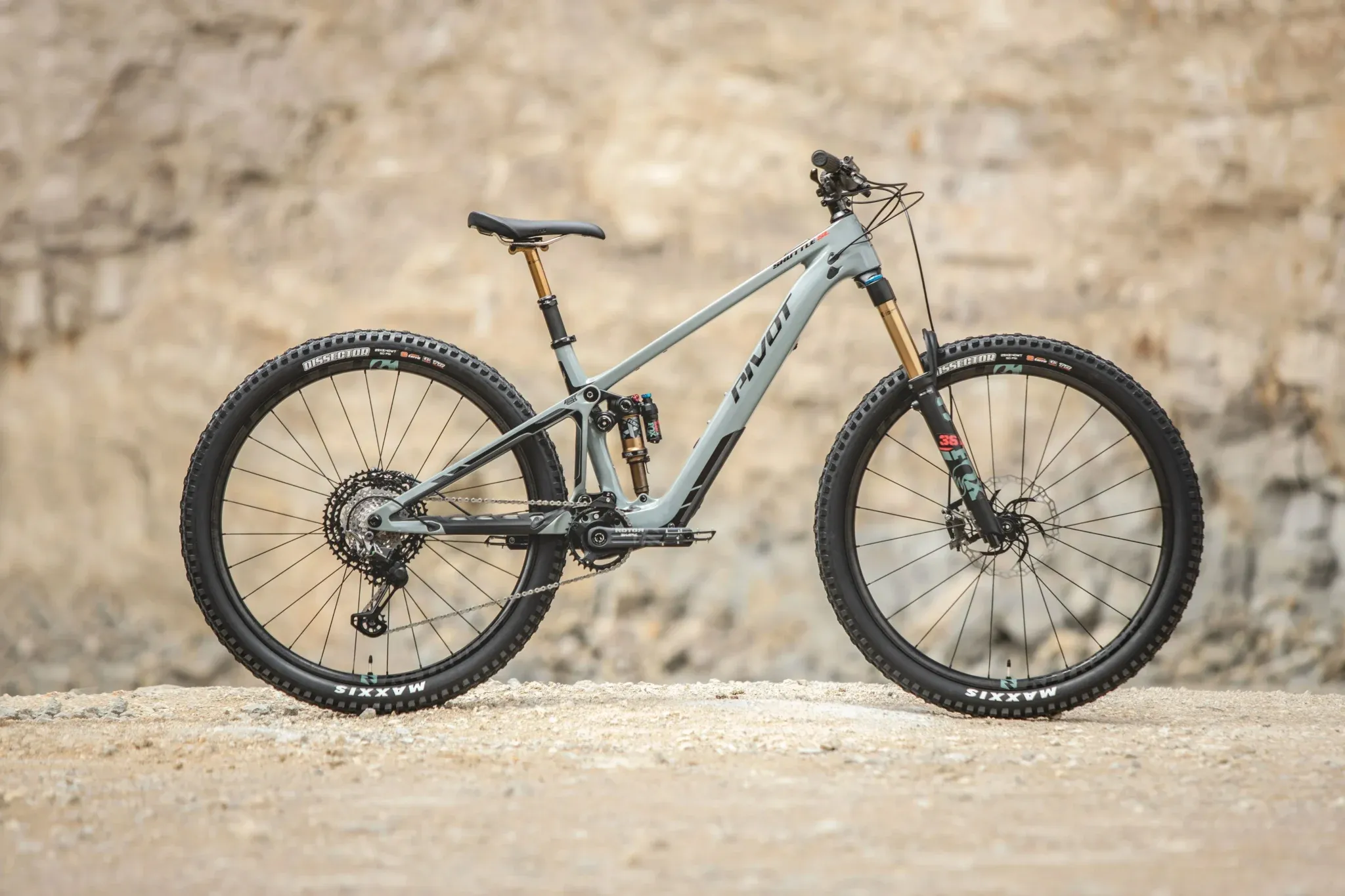

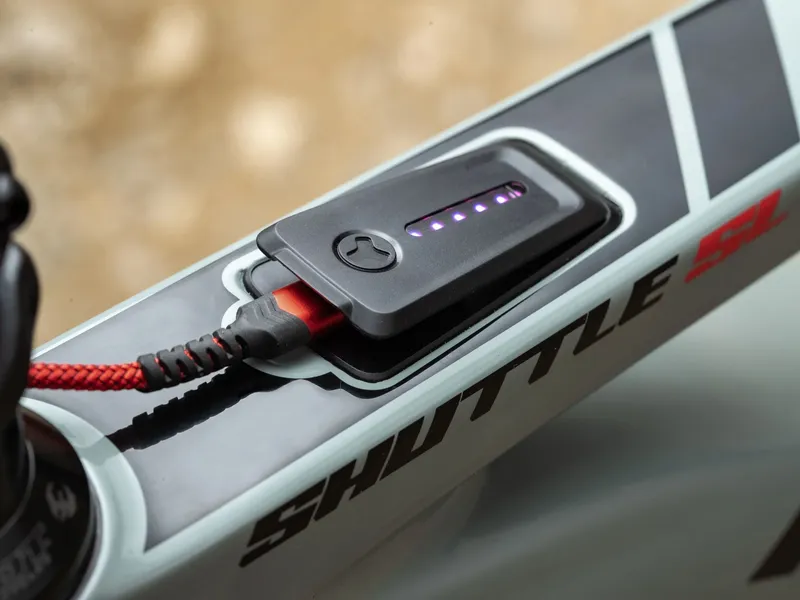

Gallery
Photos: Pivot
Full specifications
Frame & suspension
- Frame
- Shuttle SL
- Fork
- Fox Factory 36 29", 44mm offset, GRIP2 - 150mm
- Rear shock
- Fox Factory Float X
- Headset
- Pivot Precision Sealed Cartridge
- Sizes
- S, M, L, XL
- Colours
- Desert Sage Green / Aspen White / Black Lime
E-system
- Motor
- Fazua Ride 60 (60 Nm, 450 W peak)
- Battery
- Fazua 430 Wh or 480 Wh (depending on production date), fixed
Drivetrain
- Shifter
- SRAM AXS Pod Controller
- Rear derailleur
- SRAM X0 Eagle Transmission 12-Speed
- Cassette
- SRAM X0 1295 Eagle Transmission 10-52t
- Chain
- SRAM X0 Eagle Flattop 12-Speed
- Crankset
- ROTOR EKAPIC E-MTB 34t
Brakes
- Brakes
- SRAM Motive Silver 4-piston
- Rotors
- SRAM HS2 6-bolt - 200mm (front) / SRAM HS2 6-bolt - 180mm (rear)
Wheels & tyres
- Wheelset
- DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29" 15x110 F/12x157 R
- Tyres
- Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA (front) / Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA (rear)
Cockpit
- Handlebar
- Phoenix Team Low Rise Carbon -780mm
- Stem
- Phoenix Team Enduro/Trail - 45mm
- Grips
- Phoenix Factory Lock-On
- Seatpost
- Fox Factory Transfer
- Saddle
- Phoenix WTB Volt Pro (Medium Width) (SM-MD), Pivot Pro E-Bike (LG-XL)
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Shuttle SL geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat Tube Length (C-T) | 368 mm | 394 mm | 432 mm | 470 mm |
| BTop Tube Length | 597 / 598 mm | 631 / 632 mm | 645 / 646 mm | 659 / 660 mm |
| CHead Tube Length | 95 mm | 112 mm | 117 mm | 130 mm |
| DHead Tube Angle | 65.5° / 65° | 65.5° / 65° | 65.5° / 65° | 65.4° / 65° |
| ESeat Tube Angle (Eff.) | 76.5° / 76° | 76.5° / 76° | 76.5° / 76° | 77.2° / 76.8° |
| FChainstay Length | 430 / 432 mm | 430 / 432 mm | 432 / 434 mm | 436 / 438 mm |
| GBottom Bracket Height | 352 / 347 mm | 352 / 347 mm | 352 / 347 mm | 352 / 347 mm |
| HBottom Bracket Drop | 21.4 / 27 mm | 21.3 / 27 mm | 21.2 / 27 mm | 21.2 / 27 mm |
| IStandover | 674 / 665 mm | 677 / 668 mm | 682 / 674 mm | 687 / 678 mm |
| JWheelbase | 1185 / 1186 mm | 1222 / 1223 mm | 1239 / 1240 mm | 1271 / 1272 mm |
| Stack | 607 / 610 mm | 622 / 626 mm | 626 / 630 mm | 638 / 642 mm |
| Reach | 439 / 435 mm | 469 / 465 mm | 482 / 478 mm | 504 / 500 mm |
Where two values are given: High / Low flip-chip position. Source: Pivot Cycles.
Shuttle SL: builds compared
Shuttle SL range →| Shuttle SL Ride Eagle 70/90 | Shuttle SL Pro X0 Eagle Transmission | Shuttle SL Team XX Eagle Transmission | |
|---|---|---|---|
| Price | $8,499 | $10,899 | $12,499 |
| Frame | Carbon | Carbon | Carbon |
| Fork | Fox Performance 36 29", 44mm offset | Fox Factory 36 29", 44mm offset | Fox Factory 36 29", 44mm offset |
| Shock | Fox Performance Float X | Fox Factory Float X | Fox Factory Float X |
| Derailleur | SRAM Eagle 90 Mechanical Transmission 12-Speed | SRAM X0 Eagle Transmission 12-Speed | SRAM XX Eagle Transmission 12-Speed |
| Brakes | SRAM DB8 Stealth 4-piston | SRAM Motive Silver 4-piston | SRAM Motive Ultimate 4-piston |
Shuttle SL Pro X0 Eagle Transmission: FAQ
How much does the Pivot Shuttle SL Pro X0 Eagle Transmission cost?
$10,899 (US RRP (MSRP), excl. sales tax; bike only, without range extender.). The Shuttle SL range runs from $8,499 (Shuttle SL Ride Eagle 70/90) to $12,499 (Shuttle SL Team XX Eagle Transmission). Prices vary by country and dealer.
What motor and battery does the Pivot Shuttle SL Pro X0 Eagle Transmission have?
Fazua Ride 60 (60 Nm; 450 W peak). 430 Wh battery — fazua fixed battery; 430 Wh or 480 Wh depending on production date (Pivot).
How much suspension travel does the Pivot Shuttle SL Pro X0 Eagle Transmission have?
150 mm at the fork and 132 mm at the rear, on 29" wheels.
What sizes does the Pivot Shuttle SL Pro X0 Eagle Transmission come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Shuttle SL Pro X0 Eagle Transmission and the Shuttle SL Team XX Eagle Transmission?
They share the Shuttle SL frame platform and motor; the differences are in the parts — derailleur: SRAM X0 Eagle Transmission 12-Speed vs SRAM XX Eagle Transmission 12-Speed; price: $10,899 vs $12,499.
