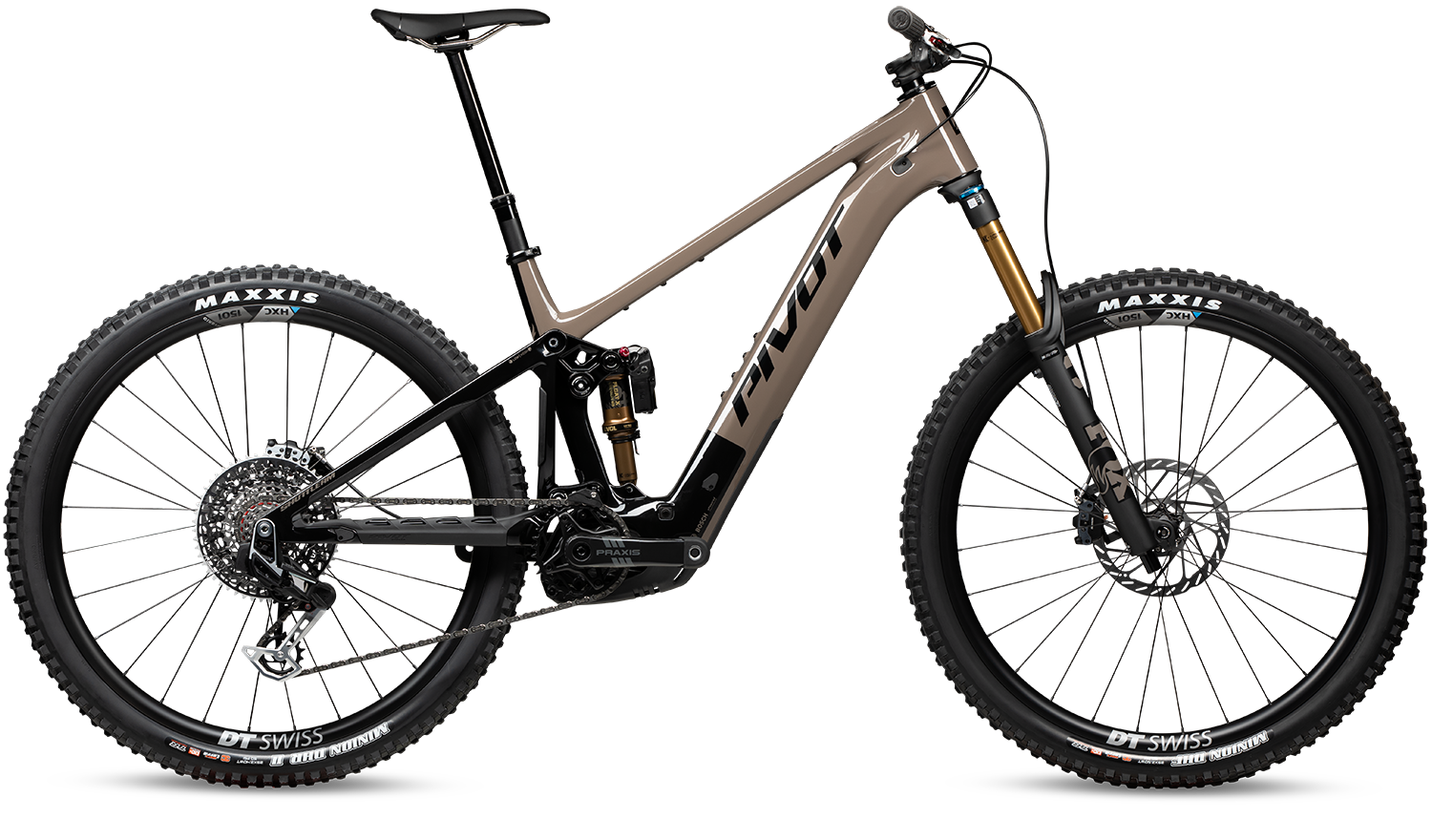

PivotShuttle AM Team XX Eagle Transmission NEO
- Motor
- Bosch Performance Line CX Race120 Nm; 750 W peak
- Battery
- 800 WhBosch PowerTube, integrated; PowerMore 250 range extender optional
- Travel F / R
- 160 / 150 mm
- Wheels
- 29"
- Frame
- Carbon
Overview
The Pivot Shuttle AM Team XX Eagle Transmission NEO ($15,999) is the top build of the Shuttle AM: Bosch Performance Line CX Race (120 Nm) with 800 Wh, Fox Factory 36 fork, Fox Factory Float X Neo Live shock, SRAM XX Eagle Transmission 12-Speed and SRAM Maven Ultimate 4-piston brakes.
The Shuttle AM is Pivot's carbon full-power all-mountain e-MTB: 150 mm of dw-link rear travel, a 160 mm fork and 29-inch wheels (mixed wheels are supported), with a flip chip in the upper link and a hollow-core carbon frame (the Ride build uses an alloy rear triangle).
All builds use Bosch's Gen 5 drive system with an integrated 800 Wh PowerTube battery: the Performance Line CX on the Ride build and the CX Race (CX-R) on Pro and Team builds, both rated at 120 Nm and 750 W peak. The frame accepts the Bosch PowerMore 250 range extender, and Pivot says the lightest builds weigh under 21.5 kg.
- Bosch Gen 5 CX / CX Race, 120 Nm
- 800 Wh battery, range extender ready
- 150 mm rear / 160 mm fork, 29-inch
- Carbon frame, flip chip

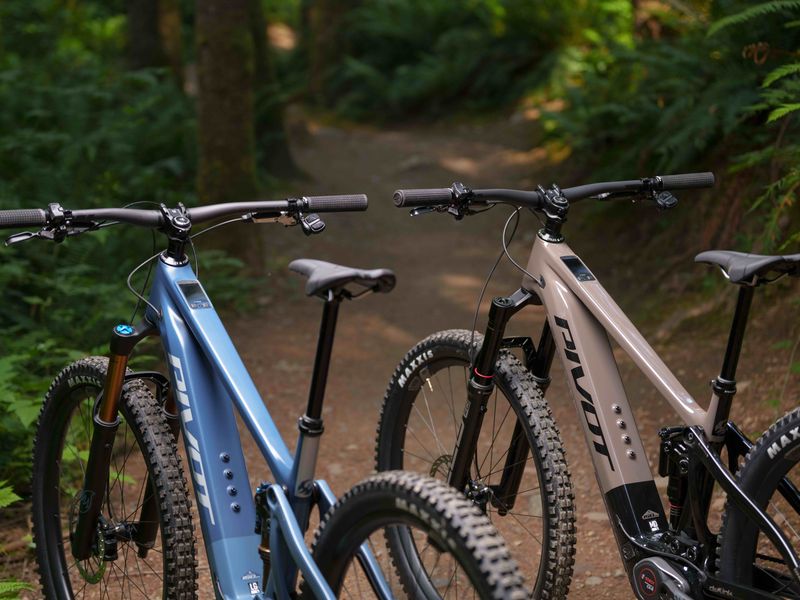

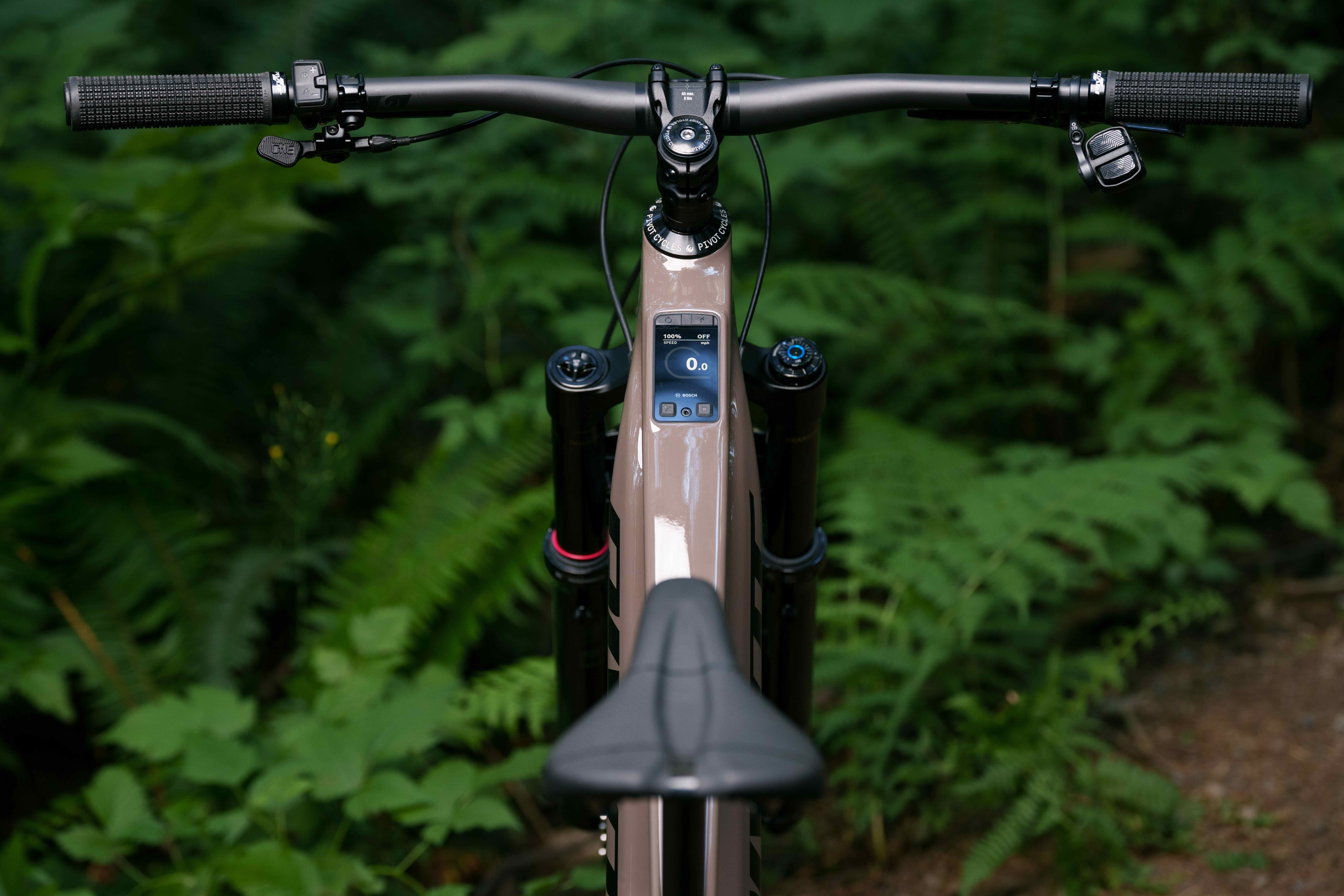

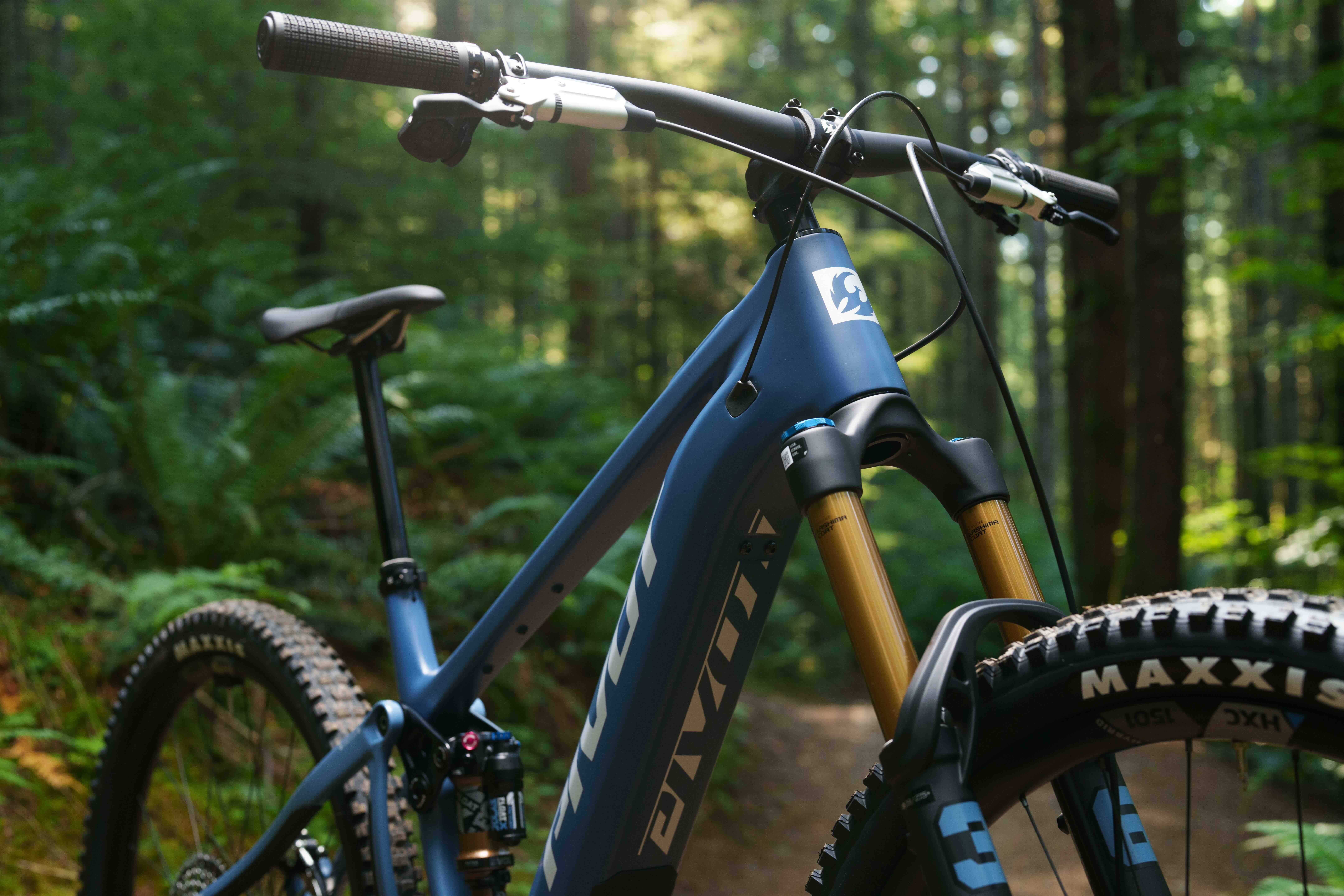

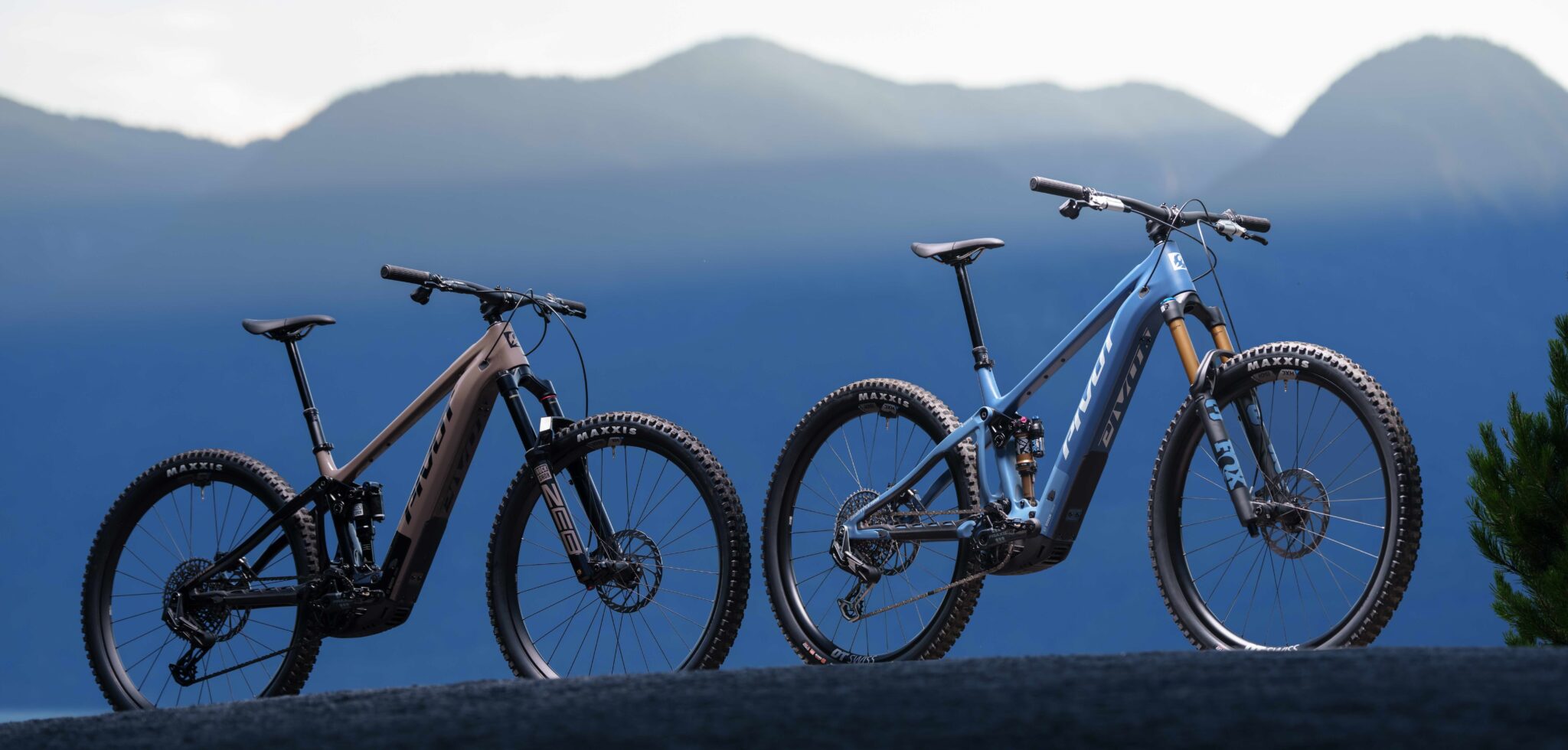

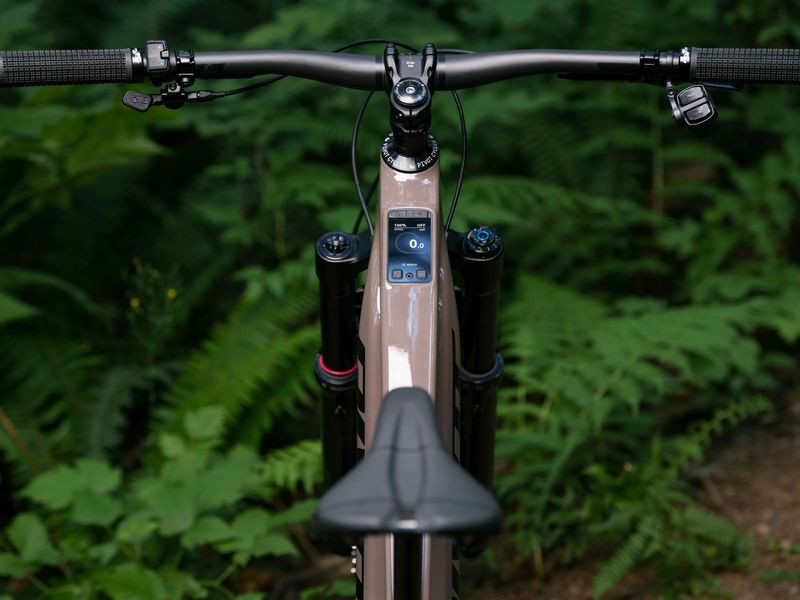

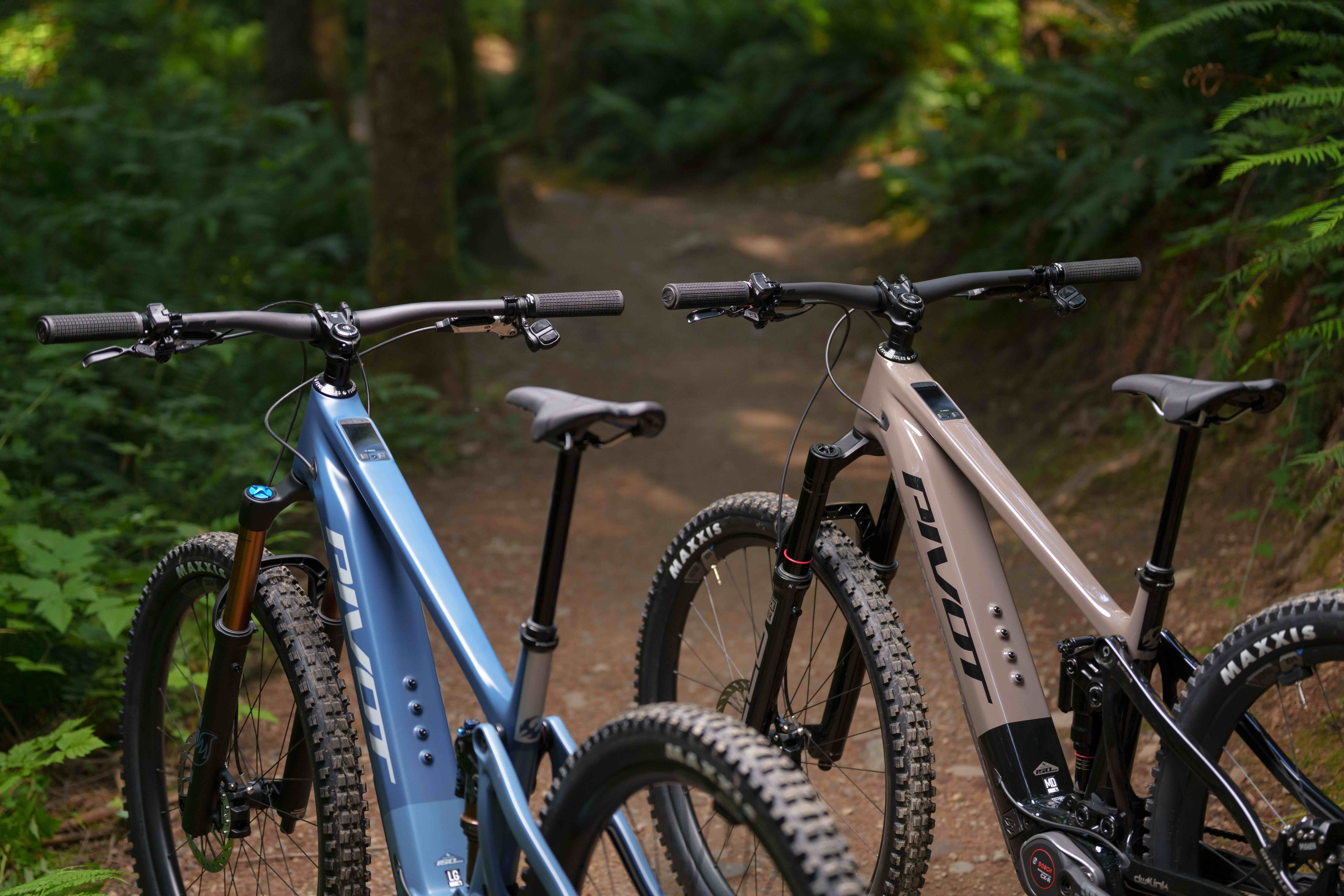

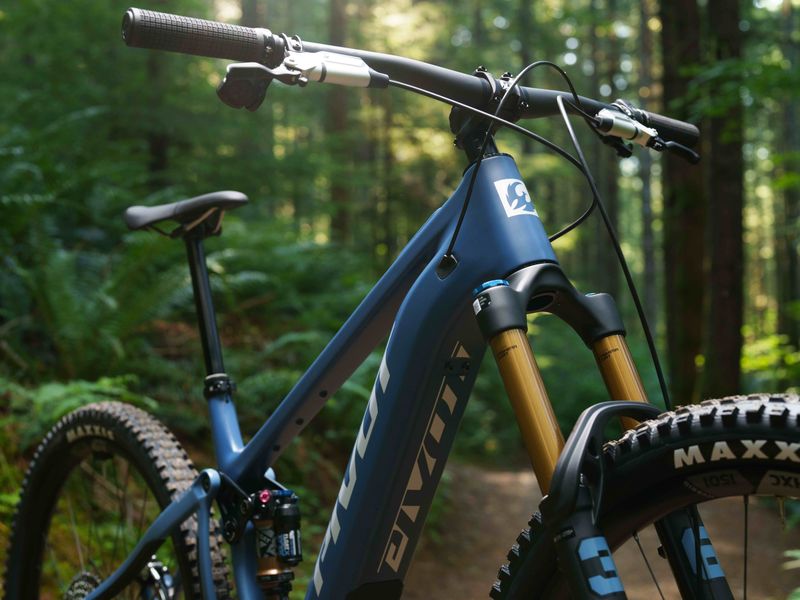

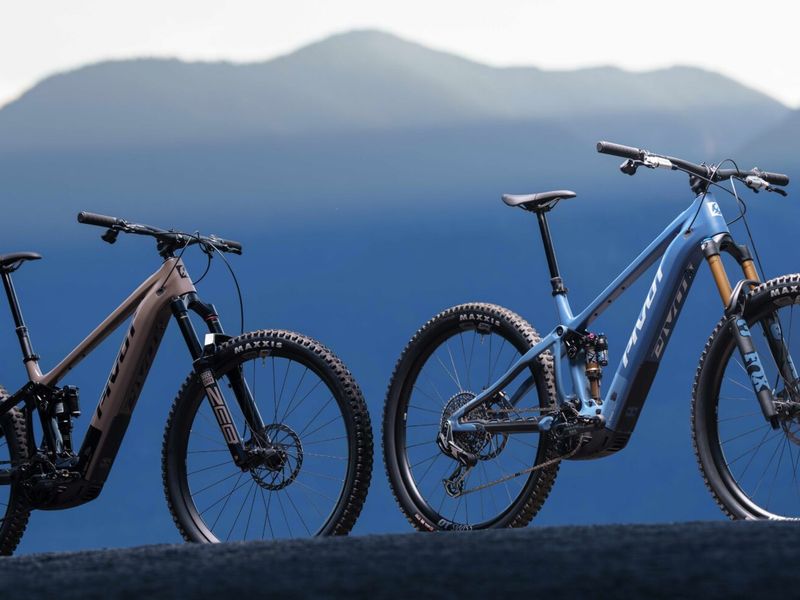

Gallery
Photos: Pivot
Full specifications
Frame & suspension
- Frame
- Shuttle AM
- Fork
- Fox Factory 36 29", 44mm offset, GRIP X2 - 160mm
- Rear shock
- Fox Factory Float X Neo Live
- Headset
- Pivot Precision Sealed Cartridge
- Sizes
- S, M, L, XL
- Colours
- Blue Dark Sky / Badlands Brown
E-system
- Motor
- Bosch Gen 5 Performance Line CX Race Edition (120 Nm, 750 W peak)
- Battery
- Bosch PowerTube 800 Wh, integrated
- Range extender
- Bosch PowerMore 250 (250 Wh), optional at checkout (+$599)
- Display
- Bosch Kiox 400C
- Remote
- Bosch wireless remote
Drivetrain
- Shifter
- SRAM AXS Pod Controller
- Rear derailleur
- SRAM XX Eagle Transmission 12-Speed
- Cassette
- SRAM XX 1297 Eagle Transmission 10-52t
- Chain
- SRAM XX Eagle Flattop 12-Speed
- Crankset
- Praxis Carbon eCranks E-MTB 34t - 160mm
Brakes
- Brakes
- SRAM Maven Ultimate 4-piston
- Rotors
- SRAM HS2 Centerlock - 200mm (front) / SRAM HS2 Centerlock - 200mm (rear)
Wheels & tyres
- Wheelset
- DT Swiss HXC1501 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29" 15x110 F/12x157 R
- Tyres
- Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA (front) / Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA (rear)
Cockpit
- Handlebar
- Phoenix Race Low Rise Carbon
- Stem
- Phoenix Team Enduro/Trail
- Grips
- Phoenix Factory Lock-On
- Seatpost
- OneUp Dropper V3 150mm (SM), 180mm (MD), 210mm (LG-XL)
- Saddle
- Pivot Team E-Bike
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Shuttle AM geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat Tube Length (C-T) | 378 mm | 399 mm | 432 mm | 470 mm |
| BTop Tube Length | 598 / 599 mm | 630 / 631 mm | 647 / 649 mm | 670 / 671 mm |
| CHead Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| DHead Tube Angle | 64.5° / 64.1° | 64.5° / 64.1° | 64.5° / 64.1° | 64.5° / 64.1° |
| ESeat Tube Angle (Eff.) | 76.9° / 76.5° | 76.9° / 76.5° | 76.9° / 76.5° | 76.9° / 76.5° |
| FChainstay Length | 444 mm | 444 mm | 444 mm | 444 mm |
| GBottom Bracket Height | 350 / 345 mm | 350 / 345 mm | 350 / 345 mm | 350 / 345 mm |
| HBottom Bracket Drop | 24 / 29 mm | 24 / 29 mm | 24 / 29 mm | 24 / 29 mm |
| IStandover | 720 / 715 mm | 720 / 715 mm | 720 / 715 mm | 720 / 715 mm |
| JWheelbase | 1216 / 1217 mm | 1250 / 1251 mm | 1269 / 1270 mm | 1294 / 1295 mm |
| Stack | 629 / 632 mm | 638 / 642 mm | 647 / 651 mm | 656 / 660 mm |
| Reach | 435 / 431 mm | 465 / 461 mm | 480 / 476 mm | 500 / 496 mm |
Where two values are given: High / Low flip-chip position. Source: Pivot Cycles.
Shuttle AM: builds compared
Shuttle AM range →| Shuttle AM Ride Eagle 70/90 | Shuttle AM Pro X0 Eagle Transmission | Shuttle AM Team XX Eagle Transmission | Shuttle AM Team XX Eagle Transmission NEO | |
|---|---|---|---|---|
| Price | $8,499 | $11,999 | $14,499 | $15,999 |
| Frame | Carbon main frame, alloy rear | Carbon | Carbon | Carbon |
| Fork | RockShox Lyrik Select+ 29", 44mm offset | 2027 RockShox Zeb Ultimate 29", 44mm offset | Fox Factory 36 29", 44mm offset | Fox Factory 36 29", 44mm offset |
| Shock | RockShox Super Deluxe Select | 2027 RockShox Super Deluxe Ultimate | Fox Factory Float X | Fox Factory Float X Neo Live |
| Derailleur | SRAM Eagle 90 Mechanical Transmission 12-Speed | SRAM X0 Eagle Transmission 12-Speed | SRAM XX Eagle Transmission 12-Speed | SRAM XX Eagle Transmission 12-Speed |
| Brakes | SRAM DB8 Stealth 4-piston | SRAM Maven Silver 4-piston | SRAM Maven Ultimate 4-piston | SRAM Maven Ultimate 4-piston |
| Display | — | Bosch Kiox 400C | Bosch Kiox 400C | Bosch Kiox 400C |
Shuttle AM Team XX Eagle Transmission NEO: FAQ
How much does the Pivot Shuttle AM Team XX Eagle Transmission NEO cost?
$15,999 (US RRP (MSRP), excl. sales tax; bike only, without range extender.). The Shuttle AM range runs from $8,499 (Shuttle AM Ride Eagle 70/90) to $15,999 (Shuttle AM Team XX Eagle Transmission NEO). Prices vary by country and dealer.
What motor and battery does the Pivot Shuttle AM Team XX Eagle Transmission NEO have?
Bosch Performance Line CX Race (120 Nm; 750 W peak). 800 Wh battery — bosch PowerTube, integrated; PowerMore 250 range extender optional.
How much suspension travel does the Pivot Shuttle AM Team XX Eagle Transmission NEO have?
160 mm at the fork and 150 mm at the rear, on 29" wheels.
What sizes does the Pivot Shuttle AM Team XX Eagle Transmission NEO come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Shuttle AM Team XX Eagle Transmission NEO and the Shuttle AM Team XX Eagle Transmission?
They share the Shuttle AM frame platform and motor; the differences are in the parts — shock: Fox Factory Float X Neo Live vs Fox Factory Float X; price: $15,999 vs $14,499.
