CanyonNeuron:ON 9 AXS
- Motor
- Bosch Performance Line CX85 Nm; 120 Nm with Bosch Performance Upgrade
- Battery
- 800 Wh
- Travel F / R
- 150 / – mm
- Wheels
- 29" (XS–S: 27.5")
- Frame
- Alloy
- Weight
- 25.9 kgSize M, manufacturer figure
Overview
The Neuron:ON 9 AXS (€5,499) tops the Neuron:ON range with Fox 36 Performance and Float Rhythm suspension, wireless SRAM S1000 Eagle AXS Transmission and Maven brakes, plus the Bosch CX motor and 800 Wh battery. Claimed weight is 25.9 kg.

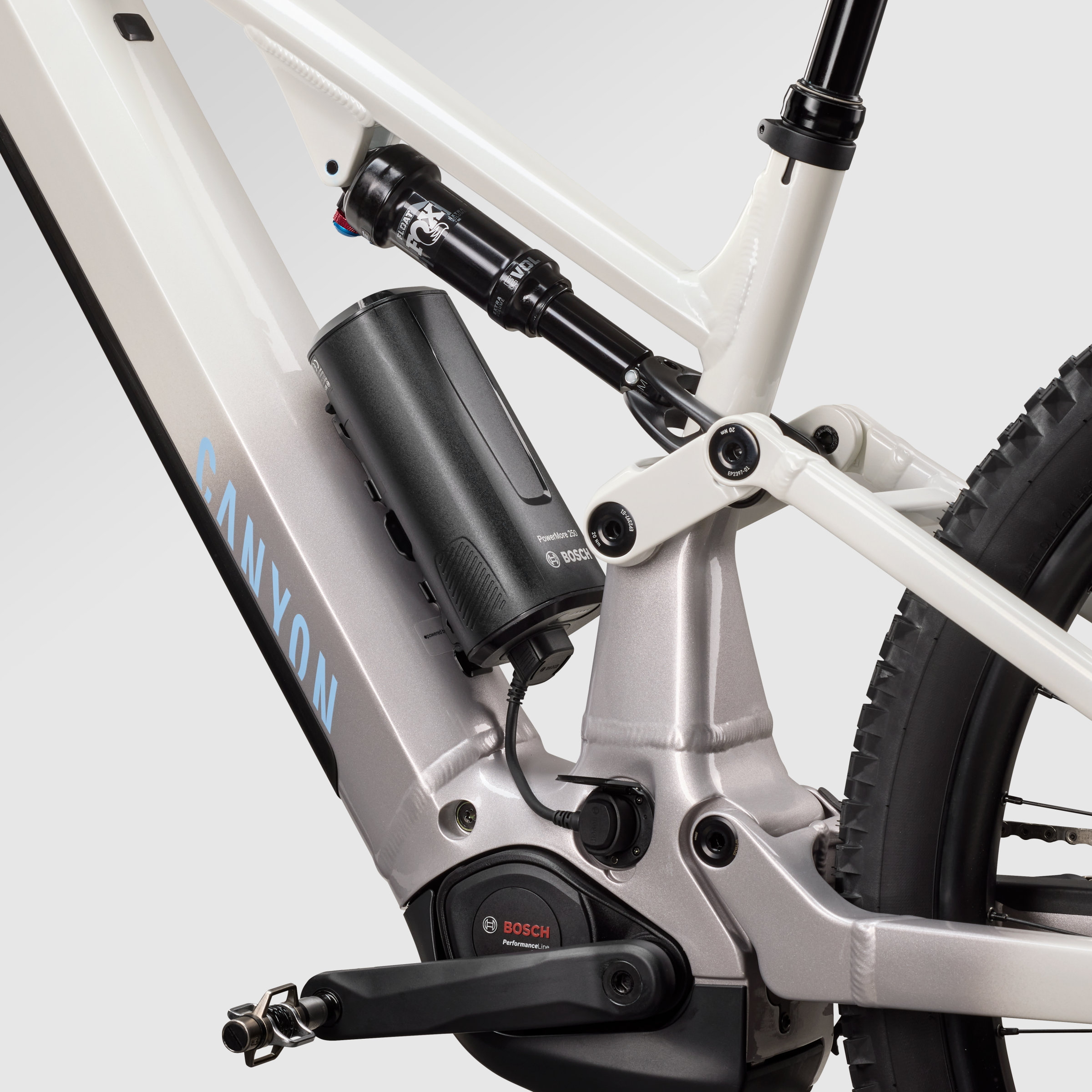

The Neuron:ON is Canyon's alloy full-power trail eMTB for long rides: a 150 mm fork, 29-inch wheels (27.5-inch on XS and S) and Bosch power — the PX motor on the Neuron:ON 7, the CX on the 8 and 9 AXS — with up to 800 Wh of battery and a 250 Wh range-extender option.
- Alloy frame, 150 mm fork
- Bosch PX or CX motor
- Up to 800 Wh, range extender option
- Sizes XS–XL with size-specific wheels
Gallery
Photos: Canyon
Full specifications
Frame & suspension
- Frame
- Neuron:ON — Axle dimension: 12x148 mm, Material: Aluminium (AL)
- Rear Shock
- FOX Float Rhythm — Fitting Length: 210X55
- Fork
- FOX 36 Performance — Axle dimension: 15x110 mm, Stanchion Diameter: 36 mm, Travel: 150 mm, Offset: 44 mm
- Seatpost Clamp
- Canyon GP0446-01
E-system
- Motor
- Bosch Performance Line CX
- Battery
- SRAM Powerpack
- Display
- Bosch Kiox 300
- Battery Charger
- Bosch 4A
Drivetrain
- Rear Derailleur
- SRAM S1000 Eagle AXS Transmission — Cage length: long
- Chainguard
- Canyon GP0480-01 slim
- Shift Lever
- SRAM AXS Pod Controller
- Cassette
- SRAM XS 1270 Eagle — Number of sprockets: 12, Range: 10-52
- Crank
- FSA CK-745/IS/GEN4 — Crank Length: 165,0
- Chainring
- SRAM Eagle Transmission
- Chain
- SRAM GX Eagle Transmission
Brakes
- Brake
- SRAM Maven — Number of pistons: 4
- Brake
- SRAM Maven — Number of pistons: 4
- Brake Rotor
- SRAM Centerline Rounded — Disc Size: 200 / 200
Wheels & tyres
- Front Wheel
- XC 30 AL :ON — Axle dimension: 15x110 mm, Rim material: Aluminium
- Rear Wheel
- END30AL/TC600 — Axle dimension: 12x148 mm, Rim material: Aluminium
- Tyre
- Schwalbe Romy Trail Pro Radial — Width: 2,5"
- Tyre
- Schwalbe Romy Trail Pro Radial — Width: 2,5"
- Thru Axle
- Canyon Quixle — Axle dimension: 12x148 mm
Cockpit
- Stem
- Canyon:ON ST0031
- Grips
- Ergon GE10 Evo
- Saddle
- Ergon SM10 Enduro Neo
- Seatpost
- Canyon SP0081 — Material: Aluminium (AL)
Other
- Pedals
- Flat Pedals
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Neuron:ON geometry
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Body Height | ≤ 166 cm | 166 - 175 cm | 175 - 183 cm | 183 - 192 cm | ≥ 192 cm |
| ASeat Height | 618 - 797 mm | 632 - 831 mm | 717 - 901 mm | 737 - 921 mm | 762 - 951 mm |
| BSeat Tube Length | 371 mm | 391 mm | 421 mm | 441 mm | 461 mm |
| CTop Tube Length | 560 mm | 581 mm | 614 mm | 643 mm | 675 mm |
| DHead Tube Length | 151 mm | 163 mm | 133 mm | 143 mm | 155 mm |
| EHead Tube Angle | 64.1° | 64.1° | 64.1° | 64.1° | 64.1° |
| FSeat Tube Angle | 71° | 71° | 71° | 71° | 71° |
| GChainstay Length | 452 mm | 452 mm | 455 mm | 455 mm | 455 mm |
| HWheel Base | 1214 mm | 1235 mm | 1258 mm | 1288 mm | 1318 mm |
| IStack | 626 mm | 637 mm | 647 mm | 656 mm | 666 mm |
| JReach | 414 mm | 429 mm | 455 mm | 480 mm | 505 mm |
| KStand-over Height | 784 mm | 782 mm | 780 mm | 778 mm | 776 mm |
| LBottom Bracket Offset | 10 mm | 10 mm | 30 mm | 30 mm | 30 mm |
Source: Canyon.
Neuron:ON: builds compared
Neuron:ON range →| Neuron:ON 7 | Neuron:ON 8 | Neuron:ON 9 AXS | |
|---|---|---|---|
| Price | €3,999 | €4,499 | €5,499 |
| Frame | Alloy | Alloy | Alloy |
| Fork | RockShox Psylo Silver RC | RockShox Lyrik | FOX 36 Performance |
| Shock | RockShox Deluxe Select | RockShox Deluxe Select | FOX Float Rhythm |
| Derailleur | Shimano Deore | Shimano Deore | SRAM S1000 Eagle AXS Transmission |
| Brakes | Shimano M6120 | Shimano M6120 | SRAM Maven |
| Wheels | XC 30 AL :ON | XC 30 AL :ON | XC 30 AL :ON |
| Display | Bosch Purion 200 BRC3800 | Bosch Purion 200 BRC3800 | Bosch Kiox 300 |
| Weight | 26.5 kg | 25.6 kg | 25.9 kg |
Neuron:ON 9 AXS: FAQ
How much does the Canyon Neuron:ON 9 AXS cost?
€5,499 (RRP Germany, VAT incl.). The Neuron:ON range runs from €3,999 (Neuron:ON 7) to €5,499 (Neuron:ON 9 AXS). Prices vary by country and dealer.
How much does the Canyon Neuron:ON 9 AXS weigh?
Canyon quotes 25.9 kg. The lightest Neuron:ON build is the Neuron:ON 8 at 25.6 kg.
What motor and battery does the Canyon Neuron:ON 9 AXS have?
Bosch Performance Line CX (85 Nm; 120 Nm with Bosch Performance Upgrade). 800 Wh battery.
How much suspension travel does the Canyon Neuron:ON 9 AXS have?
150 mm at the fork, on 29" (XS–S: 27.5") wheels.
What sizes does the Canyon Neuron:ON 9 AXS come in?
XS, S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Neuron:ON 9 AXS and the Neuron:ON 8?
They share the Neuron:ON frame platform and motor; the differences are in the parts — fork: FOX 36 Performance vs RockShox Lyrik; shock: FOX Float Rhythm vs RockShox Deluxe Select; derailleur: SRAM S1000 Eagle AXS Transmission vs Shimano Deore; claimed weight: 25.9 kg vs 25.6 kg; price: €5,499 vs €4,499.
