CanyonSpectral:ON CF 7
- Motor
- Shimano EP600
- Battery
- 800 WhRemovable aluminium-cased battery
- Travel F / R
- 160 / 155 mm
- Wheels

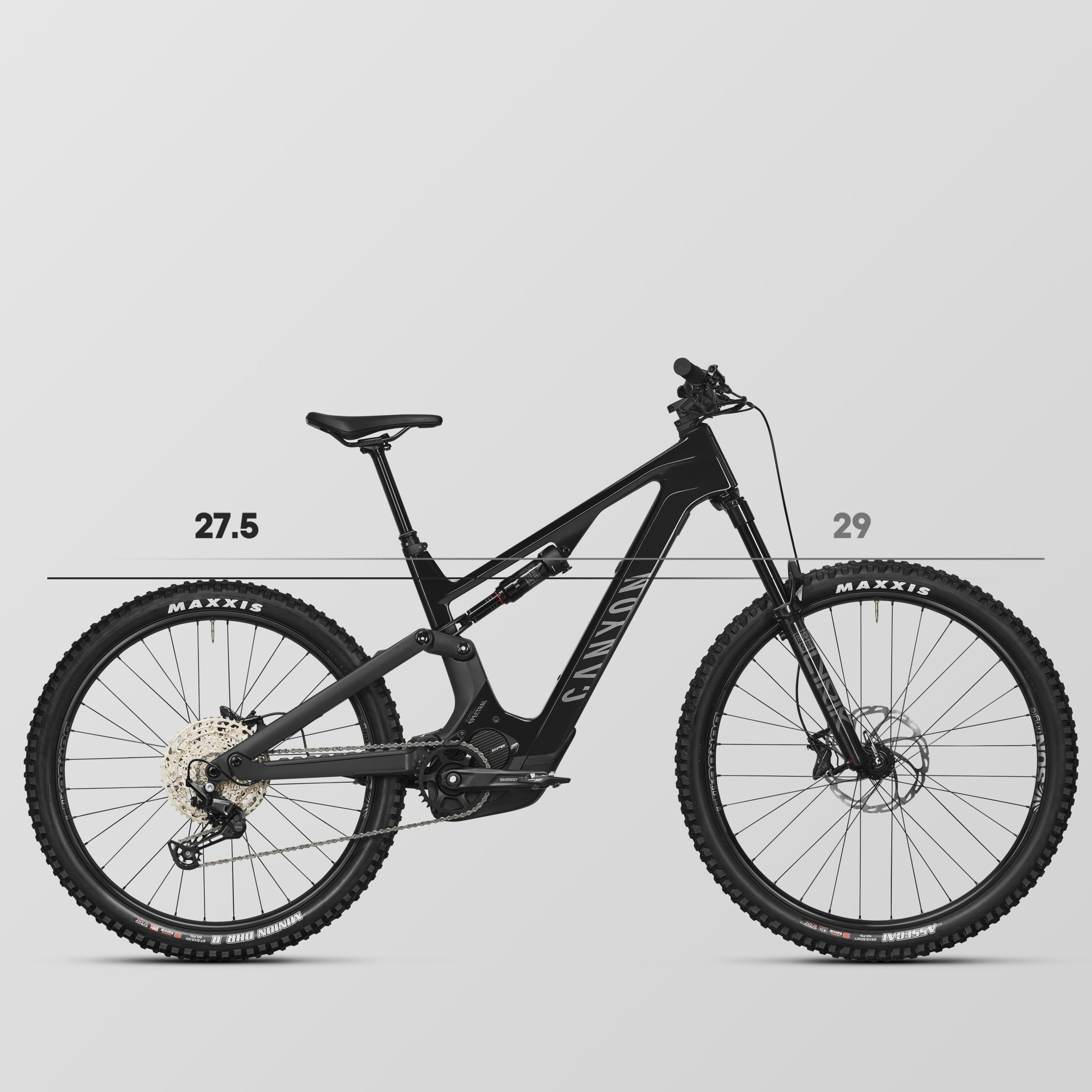

- Mullet 29" / 27.5"
- Frame
- Carbon
- Weight
- 24.3 kgSize M, manufacturer figure
Overview
The Spectral:ON CF 7 (€3,999) is the entry Spectral:ON: full-carbon frame, Shimano EP600 motor with an 800 Wh battery, RockShox Lyrik and Deluxe Select suspension, Shimano Deore drivetrain and brakes, at a claimed 24.32 kg.
The Spectral:ON is Canyon's full-power trail eMTB: a full-carbon frame with 155 mm of rear travel, a 160 mm fork and mixed 29/27.5-inch wheels (the CFR runs 29-inch at both ends), powered by Shimano's EP600 or EP801 motor and a removable 800 Wh battery.
Canyon sells it direct, which keeps prices low for the spec — the range starts at €3,999 in Germany.
- Full-carbon frame, 155 mm rear / 160 mm fork
- Shimano EP600 or EP801 motor
- Removable 800 Wh battery
- From €3,999 (Germany)

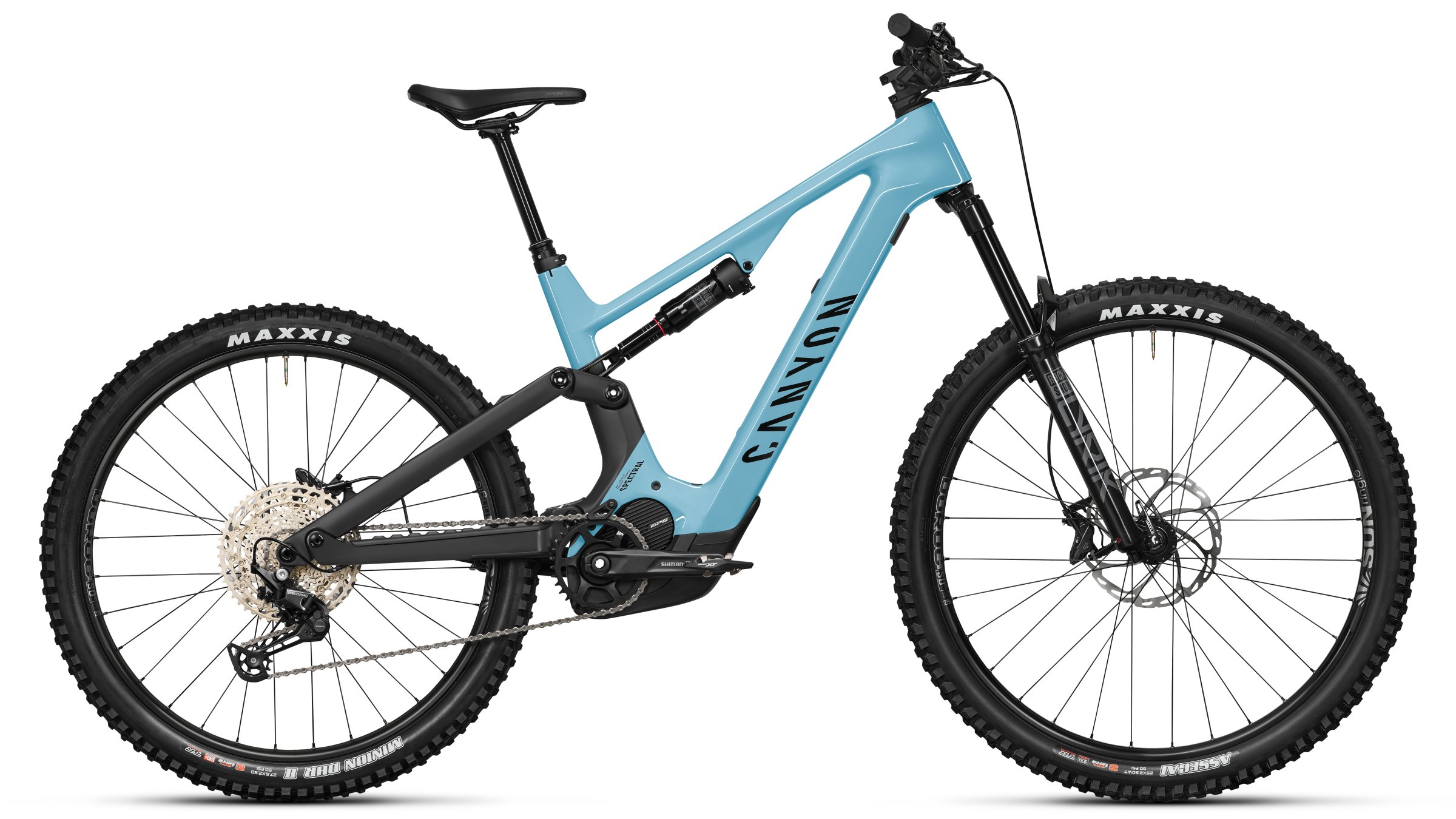

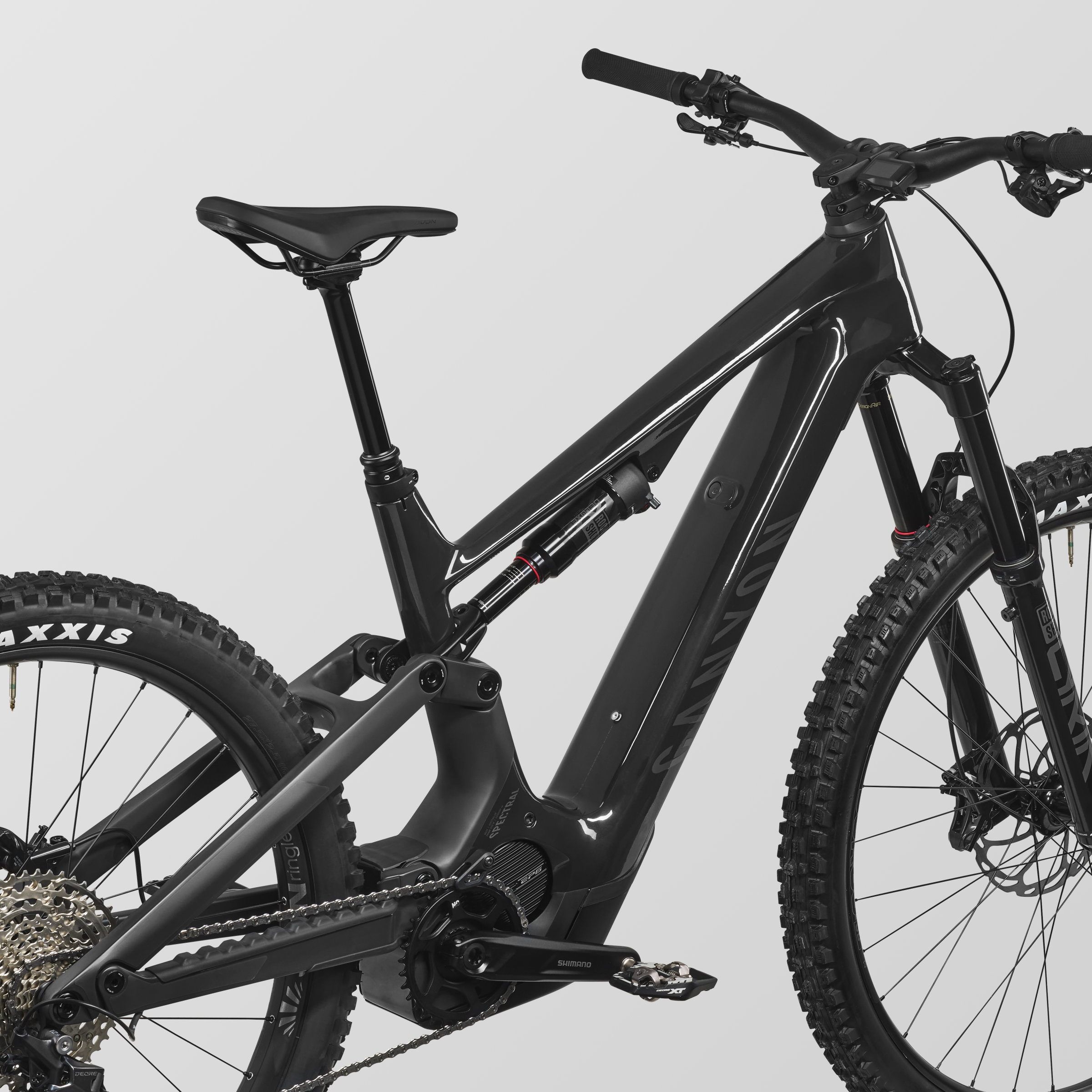

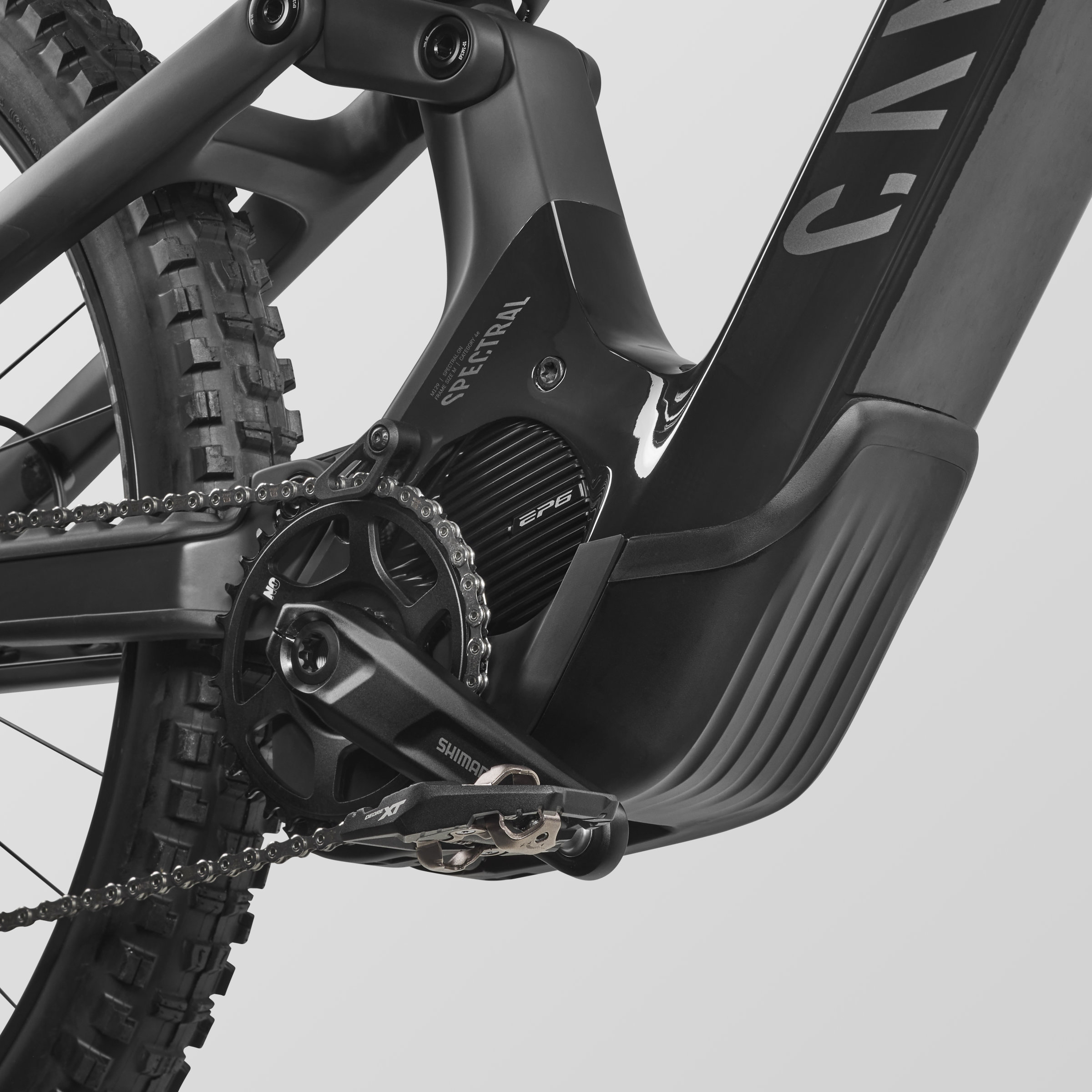

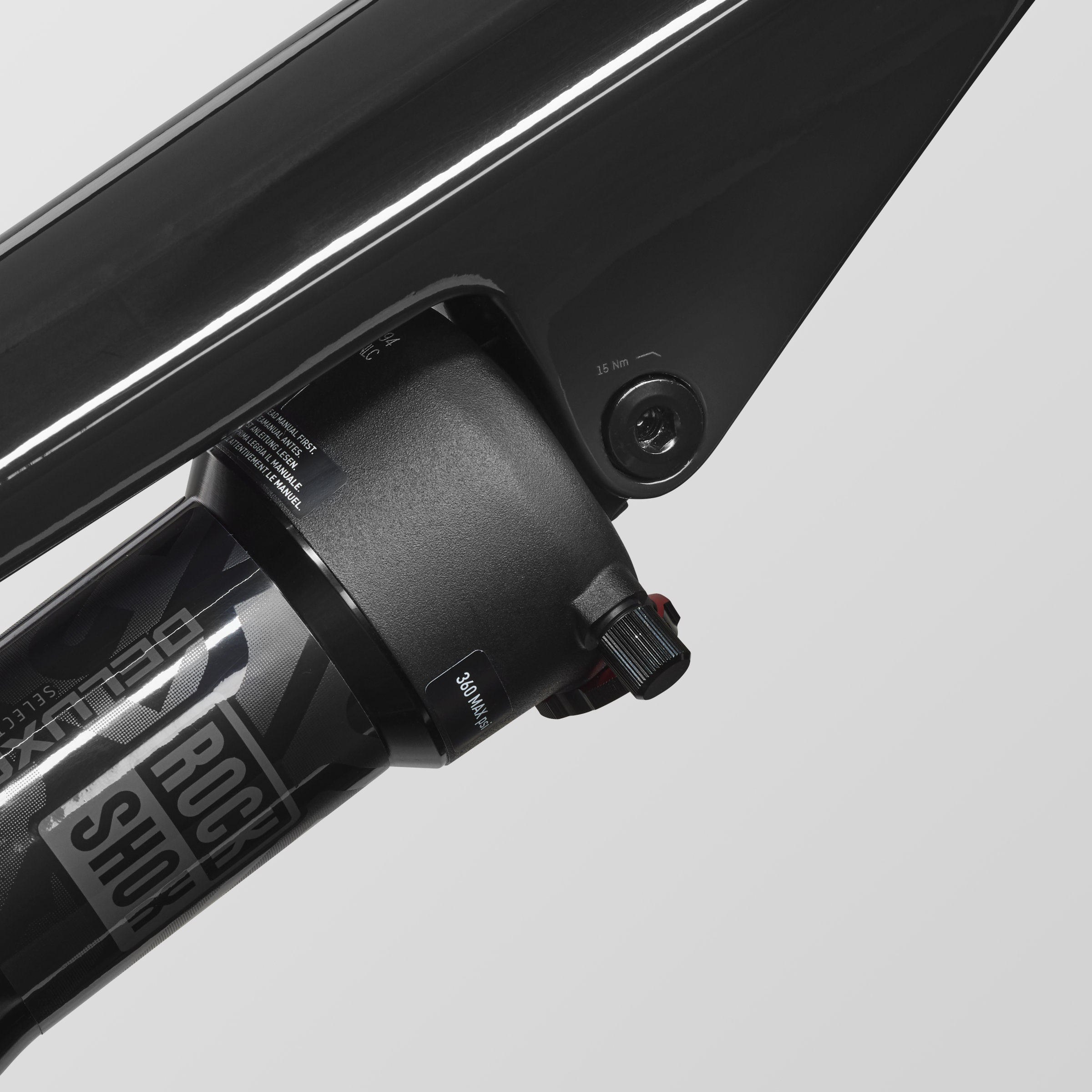

Gallery
Photos: Canyon
Full specifications
Frame & suspension
- Frame
- Canyon Spectral:ON CF — Axle dimension: 12x148 mm, Material: Carbon (CF)
- Rear Shock
- RockShox Deluxe Select, 230x60 — Fitting Length: 230X60, Rear Suspension Travel: 155
- Fork
- RockShox Lyrik — Axle dimension: 15x110 mm, Stanchion Diameter: 35 mm, Travel: 160 mm, Offset: 44 mm
- Seatpost Clamp
- Canyon GP0279-01 Seatclamp
E-system
- Motor
- Shimano EP600
- Battery
- Canyon BT010 — Battery capacity: 800 Wh
- Battery Charger
- Canyon Charger
Drivetrain
- Rear Derailleur
- Shimano Deore M6100, 12-Speed — Cage length: long
- Chainguard
- Canyon Chainguide M091/M129
- Shift Lever
- Shimano Deore M6100, 12-Speed
- Cassette
- Shimano Deore M6100 — Number of sprockets: 12, Range: 10-51
- Crank
- Shimano Steps — Crank Length: 165,0, Chainring size: 34
- Chainring
- Canyon EP1110-01 Chainring 34T
- Chain
- Shimano Deore M6100
Brakes
- Brake
- Shimano M6220 — Number of pistons: 4
- Brake
- Shimano M6220 — Number of pistons: 4
- Brake Rotor
- Hayes D-Series — Disc Size: 203 / 203
Wheels & tyres
- Front Wheel
- SunRingle Düroc SD37 Comp 29" — Axle dimension: 15x110 mm, Rim material: Aluminium
- Rear Wheel
- SunRingle Duroc SD42 12x148 — Axle dimension: 12x148 mm, Rim material: Aluminium
- Tyre
- MAXXIS Assegai — Width: 2.5"
- Tyre
- MAXXIS Minion DHR II — Width: 2.5"
- Thru Axle
- Canyon Quixle — Axle dimension: 12x148 mm
Cockpit
- Stem
- Canyon:ON ST0031 — Rise: 30 mm
- Grips
- Canyon Lock-On
- Saddle
- Fizik Terra Aidon X5
- Seatpost
- Iridium Dropper Post — Material: Aluminium (AL)
Other
- Pedals
- Flat Pedals
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Spectral:ON geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Body Height | ≤ 175 cm | 175 - 183 cm | 183 - 192 cm | ≥ 192 cm |
| ASeat Height | 647 - 756 mm | 693 - 823 mm | 733 - 853 mm | 753 - 873 mm |
| BSeat Tube Length | 420 mm | 440 mm | 460 mm | 480 mm |
| CTop Tube Length | 586 mm | 613 mm | 641 mm | 668 mm |
| DHead Tube Length | 115 mm | 125 mm | 135 mm | 145 mm |
| EHead Tube Angle | 65.5° | 65.5° | 65.5° | 65.5° |
| FSeat Tube Angle | 76.5° | 76.5° | 76.5° | 76.5° |
| GChainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| HWheel Base | 1194 mm | 1223 mm | 1252 mm | 1281 mm |
| IStack | 630 mm | 639 mm | 648 mm | 657 mm |
| JReach | 435 mm | 460 mm | 485 mm | 510 mm |
| KStand-over Height | 809 mm | 814 mm | 820 mm | 825 mm |
| LBottom Bracket Offset | 32 mm | 32 mm | 32 mm | 32 mm |
Source: Canyon.
Spectral:ON: builds compared
Spectral:ON range →| Spectral:ON CF 7 | Spectral:ON CF 8 | Spectral:ON CF 9 Di2 | Spectral:ON CFR | |
|---|---|---|---|---|
| Price | €3,999 | €4,499 | €4,999 | €5,999 |
| Frame | Carbon | Carbon | Carbon | Carbon |
| Fork | RockShox Lyrik | Fox 36 Rhythm | Fox 38 Performance Elite | Fox 38 Factory |
| Shock | RockShox Deluxe Select | Fox Float Rhythm | Fox Float X Performance Evolution | Fox Float X Factory |
| Derailleur | Shimano Deore M6100 | Shimano Deore XT M8100 | Shimano Deore XT Di2 | SRAM X0 Eagle AXS Transmission |
| Brakes | Shimano M6220 | Shimano SLX M7120 | Shimano M8120 brake | SRAM Maven Ultimate |
| Wheels | SunRingle Düroc SD37 Comp 29" | DT Swiss HLN350 15x110 30mm Centerlock | DT Swiss HX1700 | DT Swiss HXC 1501 |
| Weight | 24.3 kg | 24.4 kg | 24.6 kg | 23.9 kg |
Spectral:ON CF 7: FAQ
How much does the Canyon Spectral:ON CF 7 cost?
€3,999 (RRP Germany, VAT incl.). The Spectral:ON range runs from €3,999 (Spectral:ON CF 7) to €5,999 (Spectral:ON CFR). Prices vary by country and dealer.
How much does the Canyon Spectral:ON CF 7 weigh?
Canyon quotes 24.3 kg. The lightest Spectral:ON build is the Spectral:ON CFR at 23.9 kg.
What motor and battery does the Canyon Spectral:ON CF 7 have?
Shimano EP600. 800 Wh battery — removable aluminium-cased battery.
How much suspension travel does the Canyon Spectral:ON CF 7 have?
160 mm at the fork and 155 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Canyon Spectral:ON CF 7 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Spectral:ON CF 7 and the Spectral:ON CF 8?
They share the Spectral:ON frame platform; the differences are in the parts — fork: RockShox Lyrik vs Fox 36 Rhythm; shock: RockShox Deluxe Select vs Fox Float Rhythm; derailleur: Shimano Deore M6100 vs Shimano Deore XT M8100; claimed weight: 24.3 kg vs 24.4 kg; price: €3,999 vs €4,499.
