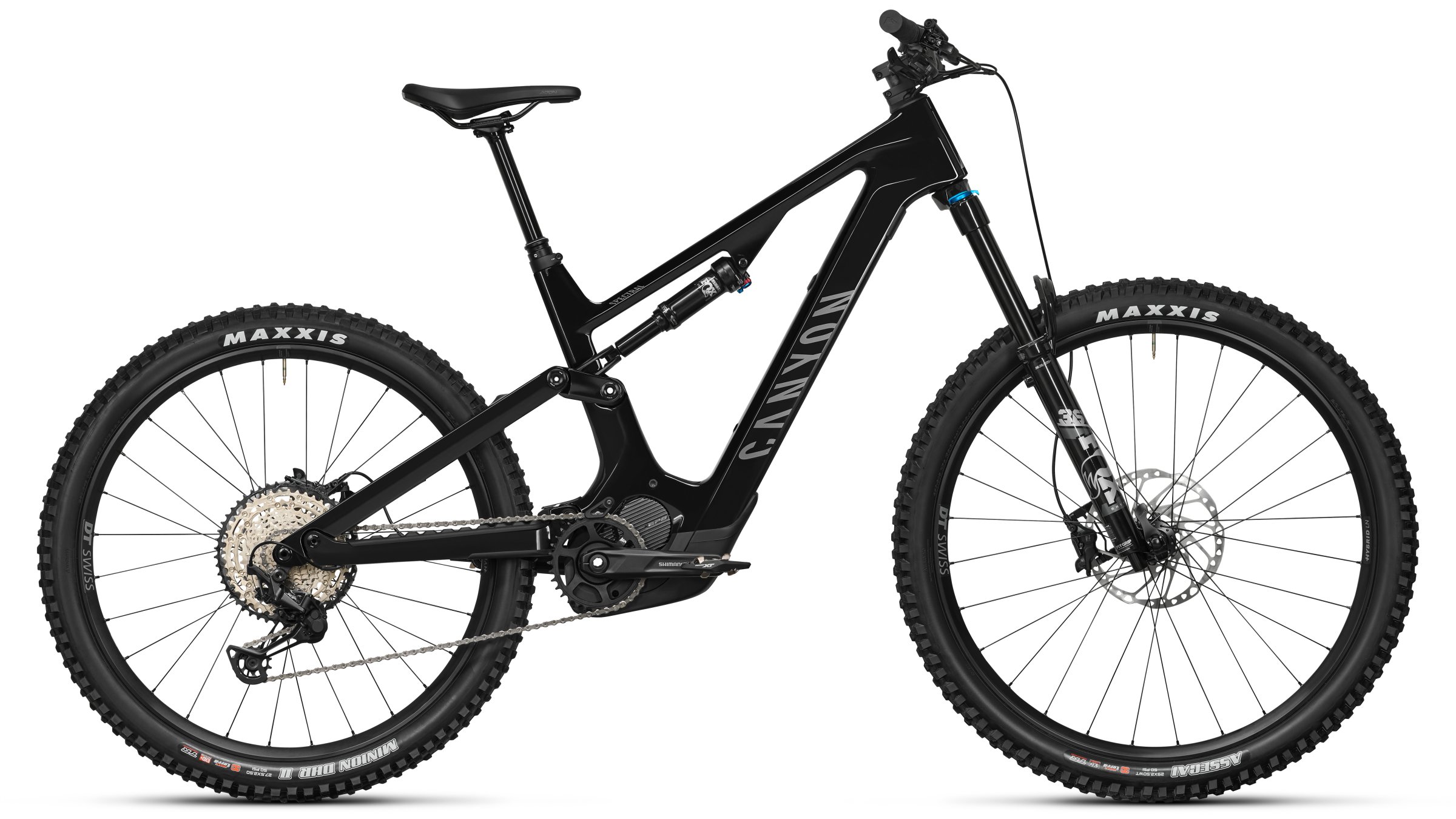

Canyon Spectral:ON CF 8 e-MTB, side view
Photo: Canyon
Full-power eMTBTrail / All mountain2025
Spectral:ON range · 4 builds

CanyonSpectral:ON CF 8

€4,499RRP Germany, VAT incl.
Motor
Shimano EP801
Battery
800 WhRemovable aluminium-cased battery
Travel F / R
160 / 155 mm
Wheels

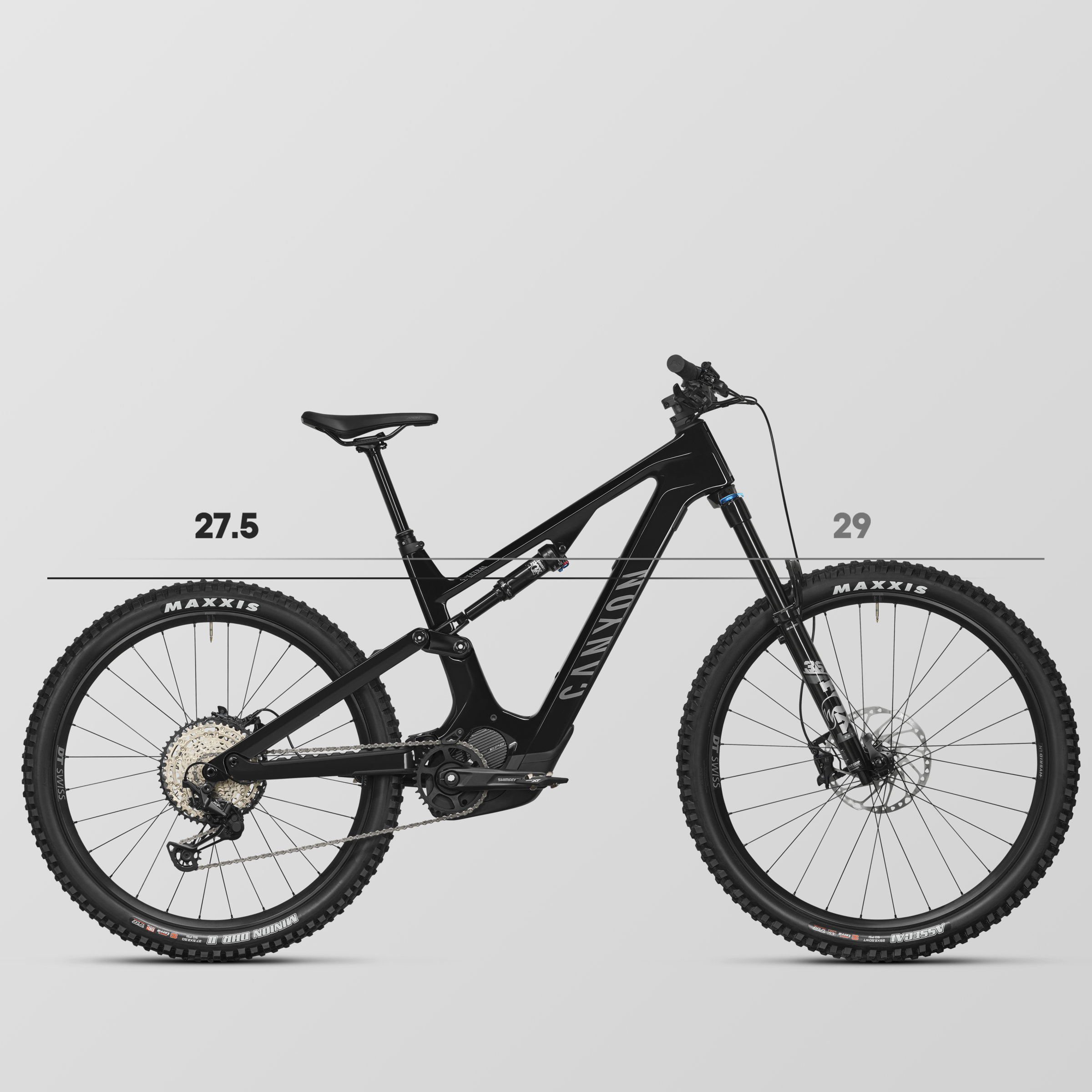

Mullet 29" / 27.5"
Frame
Carbon
Weight
24.4 kgSize M, manufacturer figure

All Shimano EP810 / EP801 / EP6 eMTBs →

Watching this bike? Get new models and updates on Telegram →

Overview

For €4,499 the CF 8 moves to the Shimano EP801 motor, Fox 36 Rhythm and Float Rhythm suspension, an XT derailleur and SLX four-piston brakes. Claimed weight 24.44 kg.

The Spectral:ON CF 8 is one of 4 builds of the Canyon Spectral:ON. About the Spectral:ON range and all its builds →

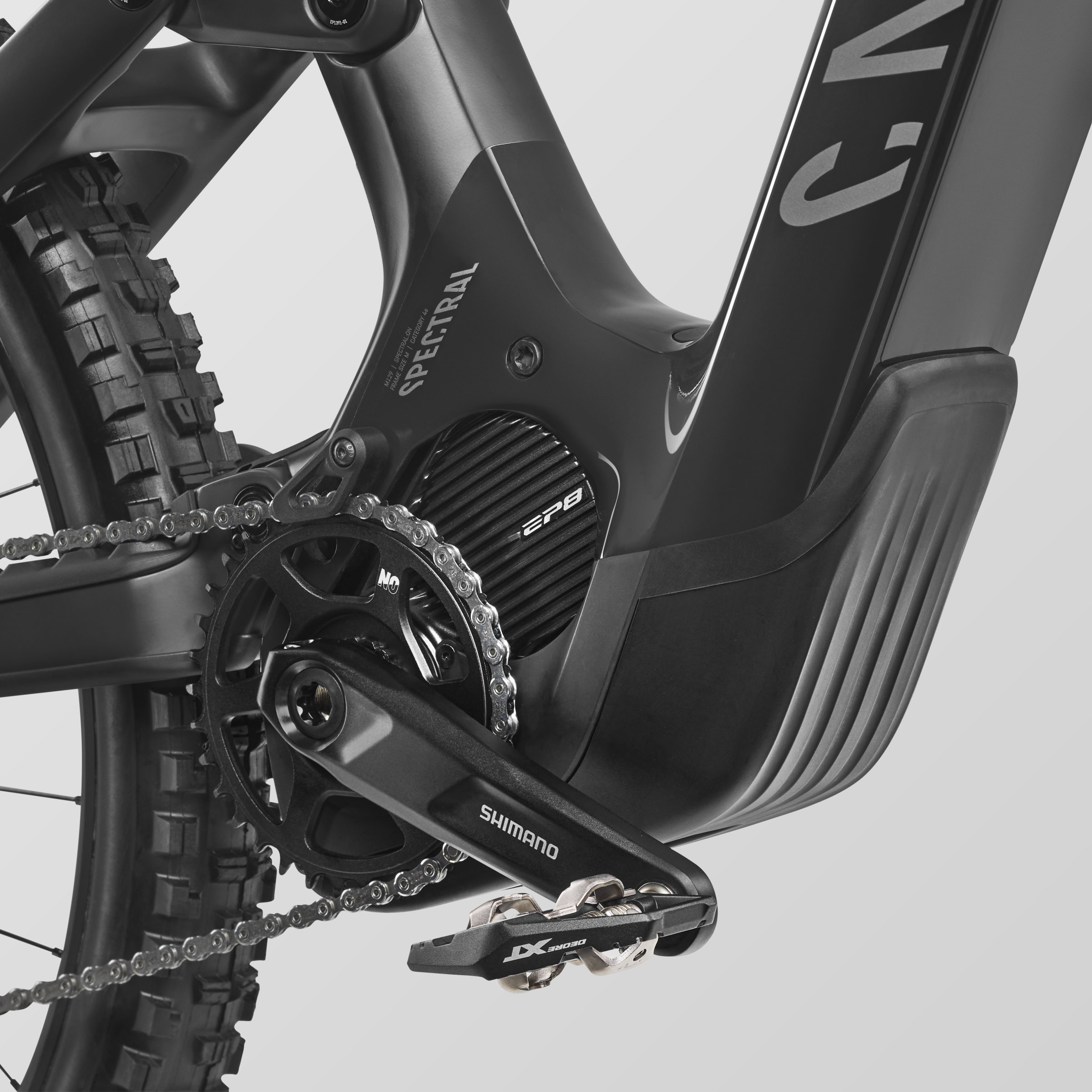

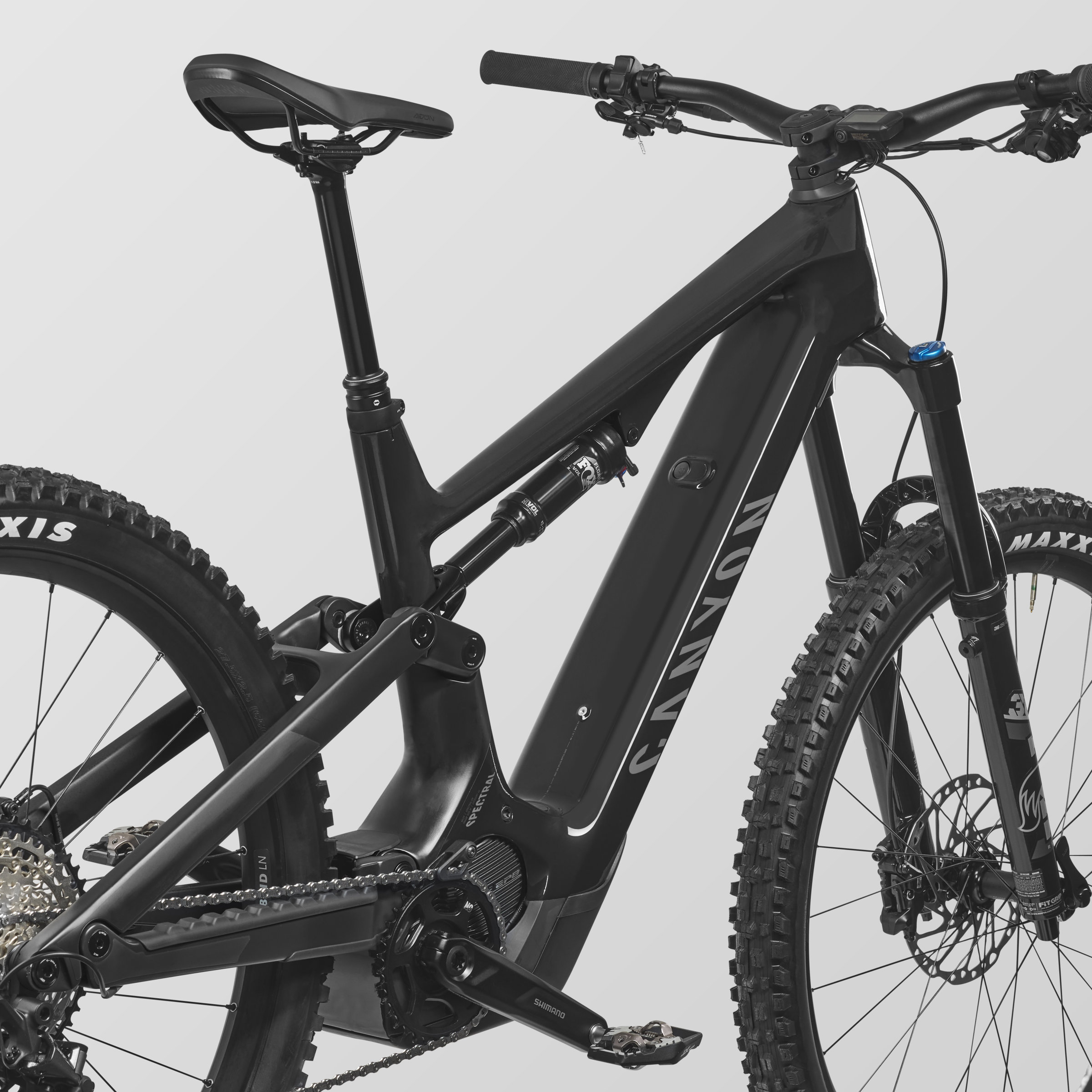

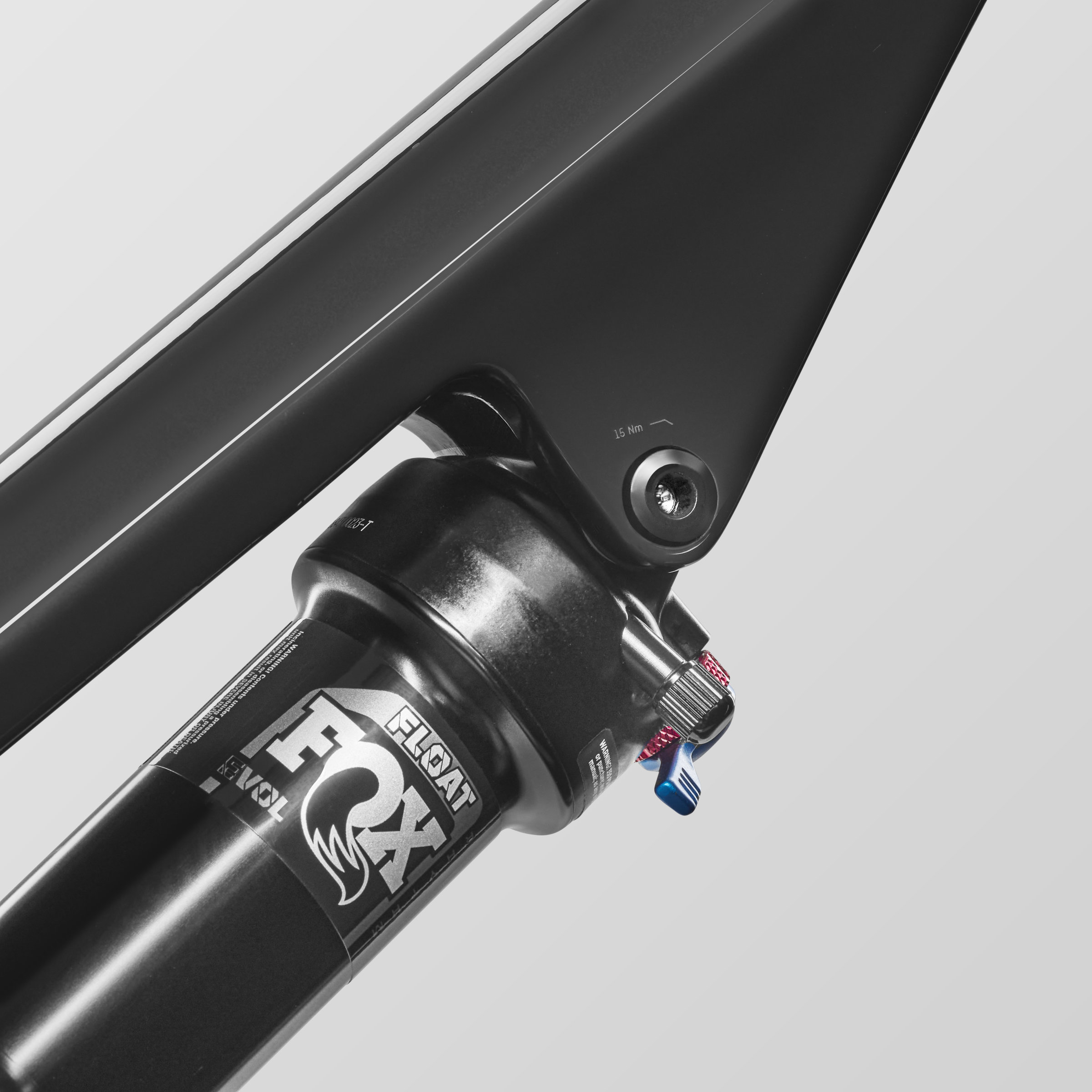

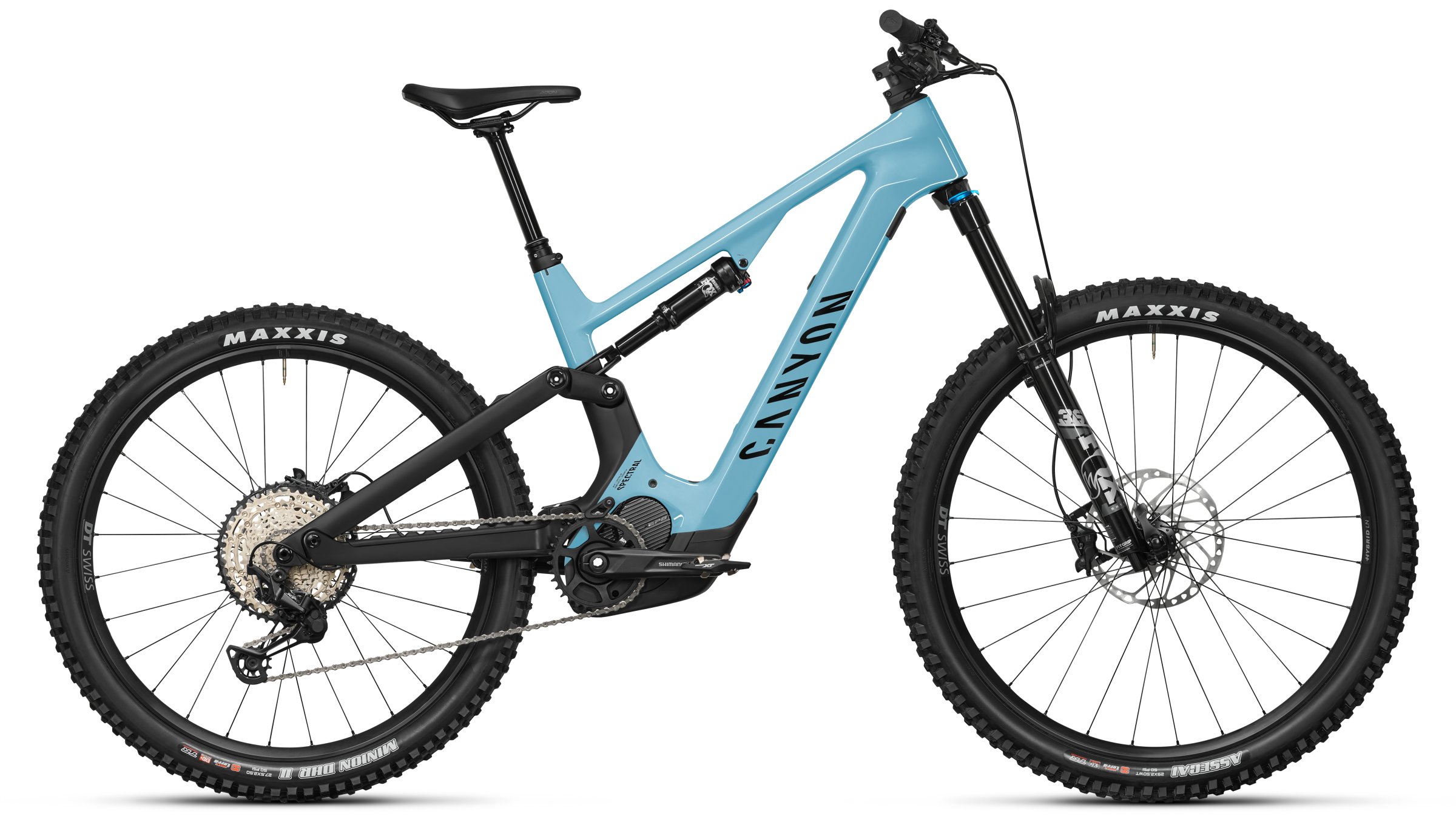

Gallery

Photos: Canyon

Full specifications

Frame & suspension

Frame
Canyon Spectral:ON CF, Axle dimension: 12x148 mm, Material: Carbon (CF)
Rear Shock
Fox Float Rhythm, Fitting Length: 230X60, Rear Suspension Travel: 155
Fork
Fox 36 Rhythm, Axle dimension: 15x110 mm, Stanchion Diameter: 38 mm, Travel: 160 mm, Offset: 44 mm
Seatpost Clamp
Canyon GP0279-01 Seatclamp

E-system

Motor
Shimano EP801
Battery
Canyon BT010, Battery capacity: 800 Wh
Battery Charger
Canyon Charger

Drivetrain

Rear Derailleur
Shimano Deore XT M8100, Cage length: long
Chainguard
Canyon Chainguide M091/M129
Shift Lever
Shimano Deore XT SL-M8100
Cassette
Shimano Deore SLX CS-M7100, Number of sprockets: 12, Range: 10-51
Crank
Shimano Steps, Crank Length: 165,0, Chainring size: 34
Chainring
Canyon EP1110-01 Chainring 34T
Chain
Shimano Deore M6100

Brakes

Brake
Shimano SLX M7120, Number of pistons: 2
Brake
Shimano Deore SLX M7120, Number of pistons: 4
Brake Rotor
Shimano RT64
Brake Rotor
Shimano RT-EM600, Disc Size: 203 / 203

Wheels & tyres

Front Wheel
DT Swiss HLN350 15x110 30mm Centerlock, Axle dimension: 15x110 mm, Rim material: Aluminium
Rear Wheel
DT Swiss HLN350 12x142 30mm Centerlock, Axle dimension: 12x142 mm, Rim material: Aluminium
Tyre
Maxxis Assegai, Width: 2.5"
Tyre
Maxxis Minion DHR II, Width: 2,5"
Thru Axle
Canyon Quixle, Axle dimension: 12x148 mm

Cockpit

Stem
Canyon:ON ST0031, Rise: 30 mm
Grips
Canyon Lock-On
Saddle
Fizik Terra Aidon X5
Seatpost
Iridium Dropper Post, Material: Aluminium (AL)

Other

Pedals
Flat Pedals

Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.

Spectral:ON geometry

SizeSMLXL
Body Height≤ 175 cm175 - 183 cm183 - 192 cm≥ 192 cm
ASeat Height647 - 756 mm693 - 823 mm733 - 853 mm753 - 873 mm
BSeat Tube Length420 mm440 mm460 mm480 mm
CTop Tube Length586 mm613 mm641 mm663 mm
DHead Tube Length115 mm125 mm135 mm145 mm
EHead Tube Angle65.5°65.5°65.5°65.5°
FSeat Tube Angle76.5°76.5°76.5°76.5°
GChainstay Length440 mm440 mm440 mm440 mm
HWheel Base1194 mm1223 mm1252 mm1281 mm
IStack630 mm639 mm648 mm661 mm
JReach435 mm460 mm485 mm510 mm
KStand-over Height809 mm814 mm820 mm825 mm
LBottom Bracket Offset36 mm36 mm36 mm36 mm

Source: Canyon.

Spectral:ON: builds compared

Spectral:ON range →
Spectral:ON CF 7Spectral:ON CF 8Spectral:ON CF 9 Di2Spectral:ON CFR
Price€3,999€4,499€4,999€5,999
FrameCarbonCarbonCarbonCarbon
ForkRockShox Lyrik, Axle dimension: 15x110 mmFox 36 Rhythm, Axle dimension: 15x110 mmFox 38 Performance Elite, Axle dimension: 15x110 mmFox 38 Factory, Axle dimension: 15x110 mm
ShockRockShox Deluxe SelectFox Float RhythmFox Float X Performance EvolutionFox Float X Factory
DerailleurShimano Deore M6100Shimano Deore XT M8100Shimano Deore XT Di2SRAM X0 Eagle AXS Transmission
BrakesShimano M6220Shimano SLX M7120Shimano M8120 brakeSRAM Maven Ultimate
WheelsSunRingle Düroc SD37 Comp 29"DT Swiss HLN350 15x110 30mm CenterlockDT Swiss HX1700DT Swiss HXC 1501
Weight24.3 kg24.4 kg24.6 kg23.9 kg

Spectral:ON CF 8: FAQ

What is the difference between the Spectral:ON CF 8 and the Spectral:ON CF 9 Di2?

They share the Spectral:ON frame platform and motor; the differences are in the parts: fork: Fox 36 Rhythm vs Fox 38 Performance Elite; shock: Fox Float Rhythm vs Fox Float X Performance Evolution; derailleur: Shimano Deore XT M8100 vs Shimano Deore XT Di2; claimed weight: 24.4 kg vs 24.6 kg; price: €4,499 vs €4,999.
