CanyonSpectral:ON CF 9 AXS
- Motor
- DJI Avinox M2SUp to 150 Nm (Boost); 1,500 W peak
- Battery
- 700 WhAvinox FP700, integrated
- Travel F / R
- 160 / 155 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
- Weight
- 21.7 kgSize M, manufacturer figure
Overview

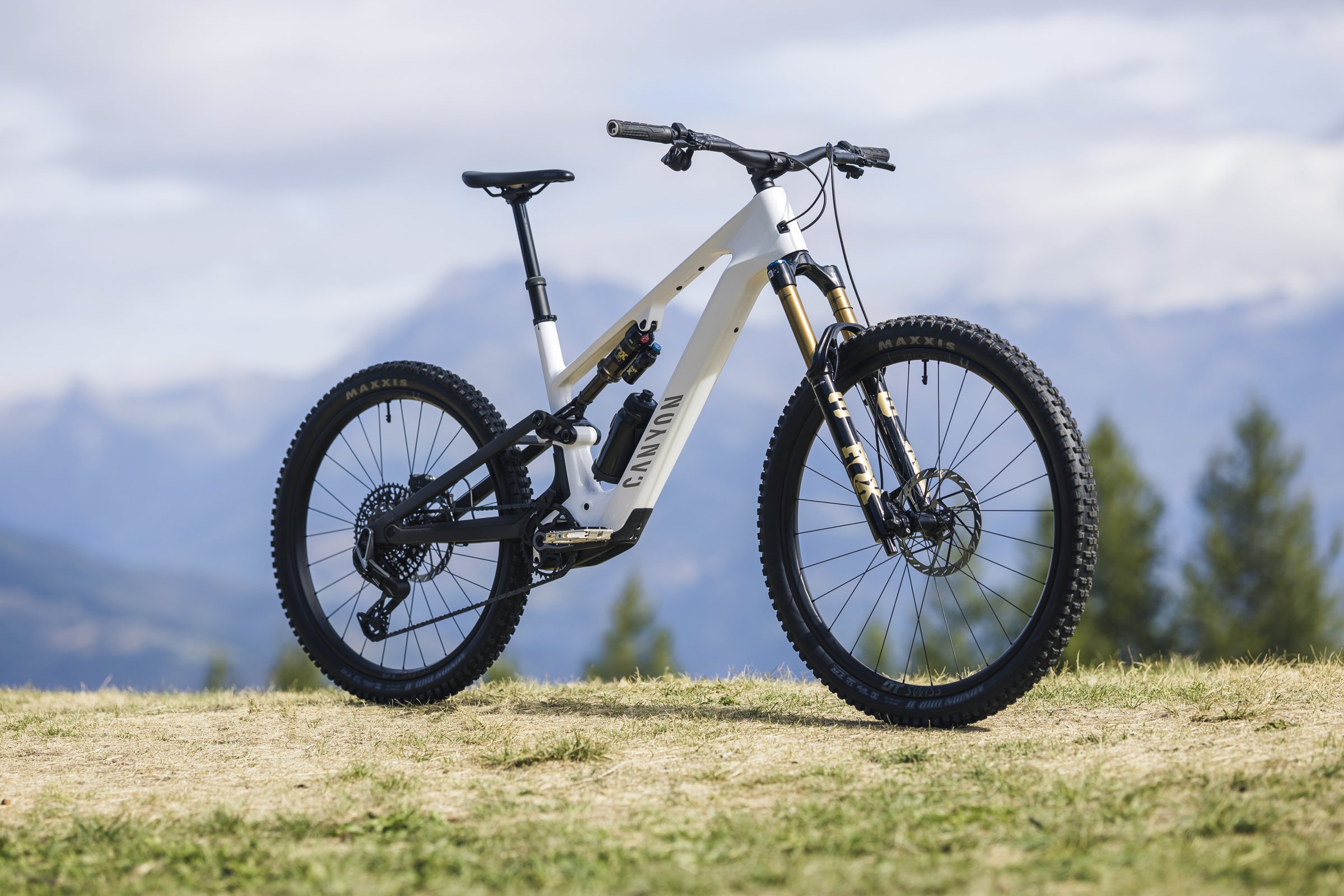

The Spectral:ON CF 9 AXS is the €6,999 launch model of the fourth-generation Spectral:ON, Canyon's first eMTB with the 150 Nm Avinox M2S motor and a 700 Wh battery. Fox 36 and Float X Factory suspension, SRAM X0 Transmission and DT Swiss HXC 1700 carbon wheels bring it to 21.7 kg (M).
The 2027 Spectral:ON CF is Canyon's fourth-generation full-power trail eMTB, rebuilt around the DJI Avinox M2S motor (up to 150 Nm and 1,500 W) and the 700 Wh FP700 battery. The 2.9 kg carbon frame is rated to Category 4e, rolls on mullet wheels with a flip chip for a full 29er setup, and gets size-specific chainstays, a 64° head angle and a 78.5° seat angle.

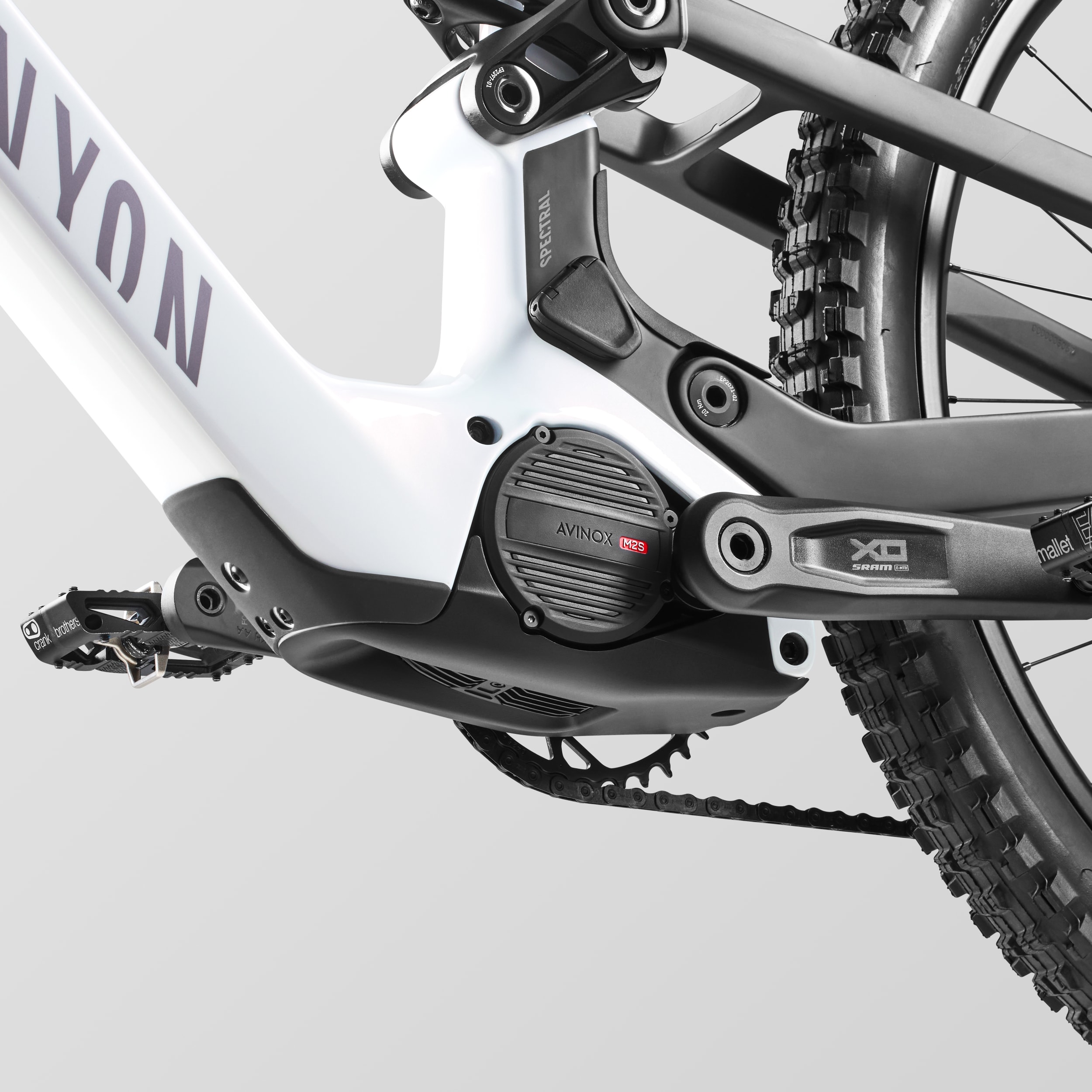

- Avinox M2S motor: up to 150 Nm and 1,500 W
- 2.9 kg carbon frame rated to Category 4e

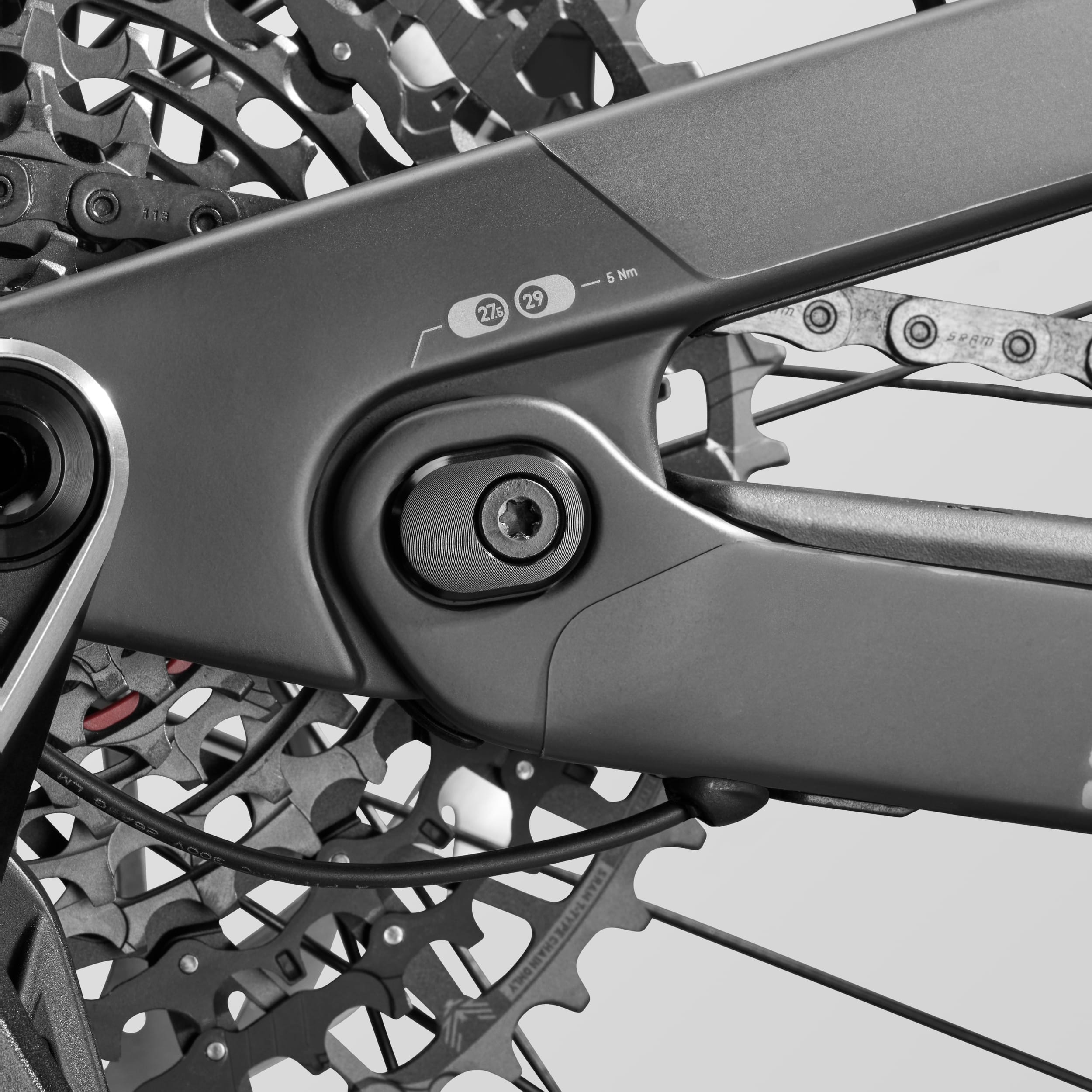

- Mullet wheels, 29" rear possible via flip chip
- Size-specific chainstays, reach 445–520 mm
Gallery
Photos: Canyon
Full specifications
Frame & suspension
- Frame
- Canyon Spectral:ON CF, carbon, 12x148 mm
- Fork
- Fox 36 Factory, 160 mm, 44 mm offset, 15x110 mm
- Rear shock

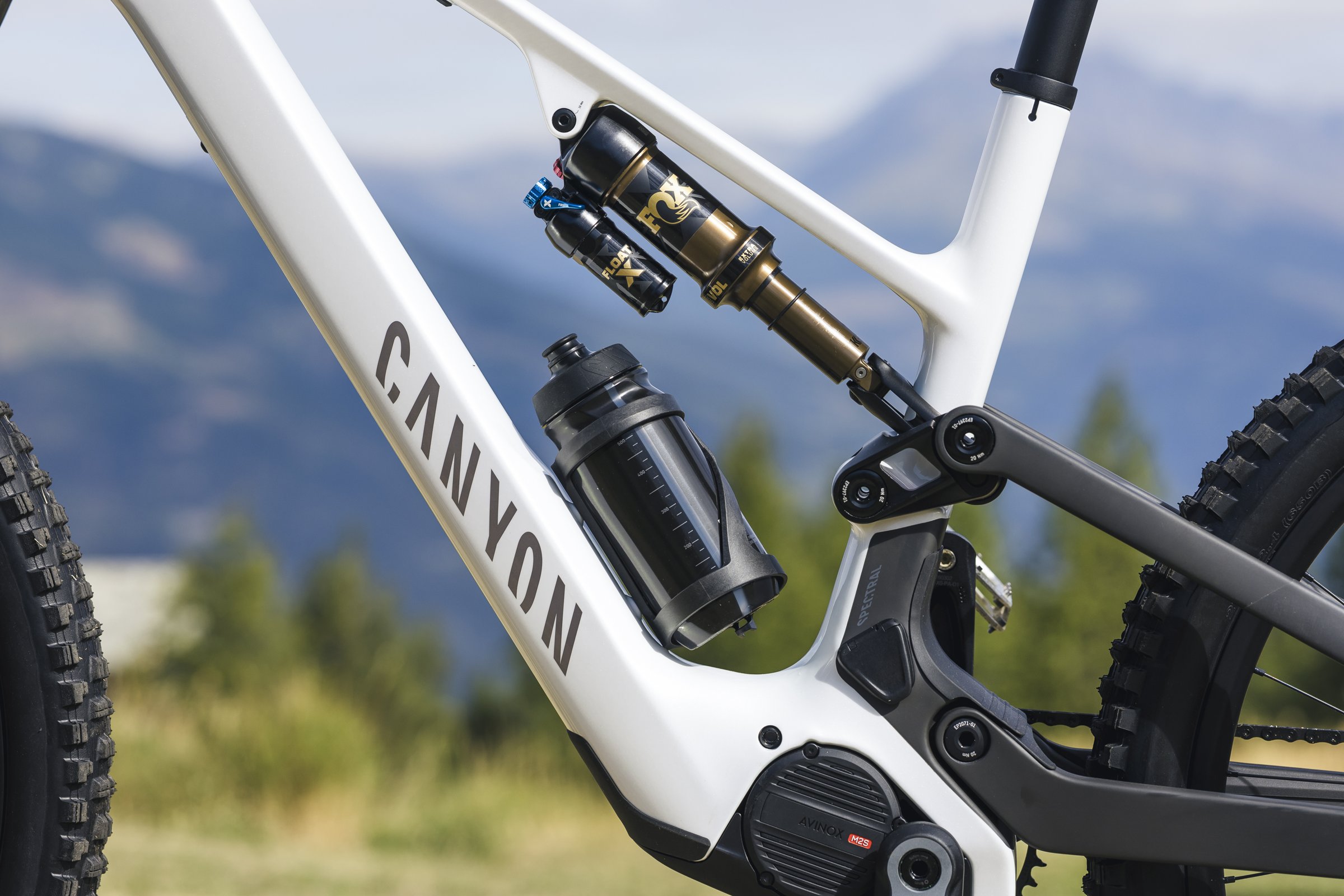

- Fox Float X Factory, 230x60 mm, 155 mm rear travel
E-system
- Motor
- Avinox M2S
- Battery
- Avinox 700 Wh
- Charger
- Avinox 4A charger (12A charger optional)
Drivetrain
- Rear derailleur
- SRAM X0 Eagle AXS Transmission
- Shifter
- SRAM AXS Pod Controller Rocker Paddle
- Cassette
- SRAM X0 Eagle XS-1295, 12-speed, 10-52T
- Crankset
- SRAM X0 Eagle, 160 mm
- Chain
- SRAM X0 T-Type
Brakes
- Brakes
- SRAM Maven Silver, 4-piston
- Rotors
- SRAM HS2, 200 / 200 mm
Wheels & tyres
- Wheels
- DT Swiss HXC 1700, carbon, 30 mm inner width
- Tyres
- Maxxis Minion DHR II, 2.4" front and rear
Cockpit
- Stem
- Canyon ST0040, 40 mm
- Handlebar
- Canyon HB0047, 30 mm rise, 760 mm (S) / 780 mm (M–XL)
- Grips
- Ergon GE10 Evo
- Saddle
- Ergon SM10 Enduro
- Seatpost
- Canyon SP0070-01 dropper, 34.9 mm, 170 mm (S) / 200 mm (M–L) / 230 mm (XL)
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Spectral:ON CF geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| aSeat height | 665–790 mm | 715–840 mm | 735–860 mm | 785–910 mm |
| bSeat tube length | 405 mm | 425 mm | 445 mm | 465 mm |
| cTop tube length | 575 mm | 601 mm | 628 mm | 655 mm |
| dHead tube length | 117 mm | 125 mm | 135 mm | 145 mm |
| eHead tube angle | 64° | 64° | 64° | 64° |
| fSeat tube angle | 78.5° | 78.5° | 78.5° | 78.5° |
| gChainstay length | 442 mm | 442 mm | 447 mm | 447 mm |
| hWheelbase | 1,231 mm | 1,259 mm | 1,293 mm | 1,323 mm |
| iStack | 637 mm | 644 mm | 653 mm | 662 mm |
| jReach | 445 mm | 470 mm | 495 mm | 520 mm |
| kStandover height | 774 mm | 780 mm | 786 mm | 790 mm |
| lBottom bracket offset | 33 mm | 33 mm | 32 mm | 32 mm |
| Rider height | ≤ 175 cm | 175–183 cm | 183–192 cm | ≥ 192 cm |
Stock mullet setup. Source: Canyon.
Spectral:ON CF 9 AXS: FAQ
How much does the Canyon Spectral:ON CF 9 AXS cost?
€6,999 (RRP Germany, VAT incl.; pre-order from Dec 4, 2026). Prices vary by country and dealer.
How much does the Canyon Spectral:ON CF 9 AXS weigh?
Canyon quotes 21.7 kg.
What motor and battery does the Canyon Spectral:ON CF 9 AXS have?
DJI Avinox M2S (Up to 150 Nm (Boost); 1,500 W peak). 700 Wh battery — avinox FP700, integrated.
How much suspension travel does the Canyon Spectral:ON CF 9 AXS have?
160 mm at the fork and 155 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Canyon Spectral:ON CF 9 AXS come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
