CanyonSpectral:ON CF
- Price
- €6,999
- Motor
- DJI Avinox M2SUp to 150 Nm (Boost); 1,500 W peak
- Battery
- 700 WhAvinox FP700, integrated
- Travel F / R
- 160 / 155 mm
- Wheels
- Mullet 29" / 27.5"
- Weight
- 21.7 kg
Overview

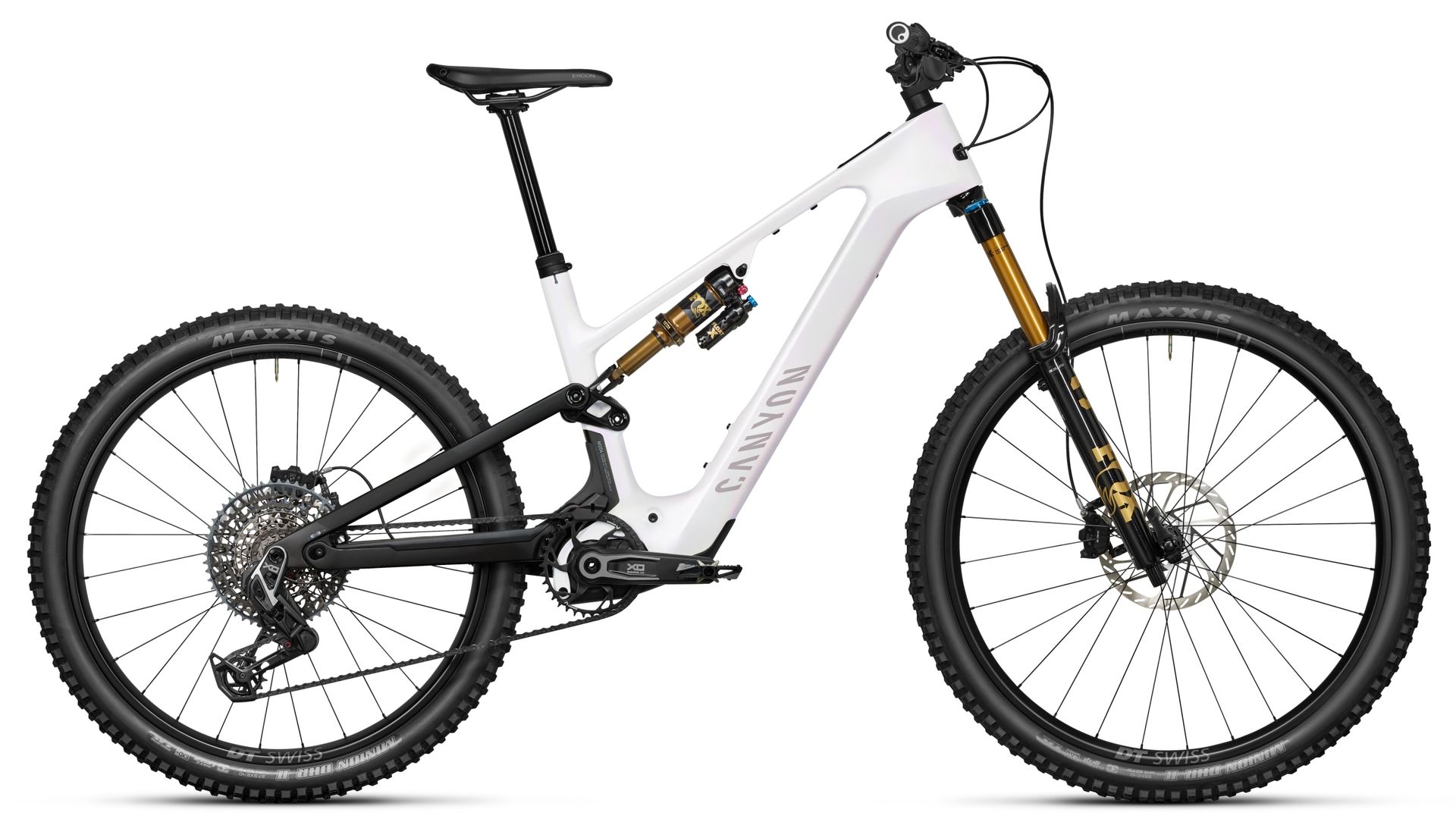

The 2027 Spectral:ON CF is Canyon's fourth-generation full-power trail eMTB, rebuilt around the DJI Avinox M2S motor (up to 150 Nm and 1,500 W) and the 700 Wh FP700 battery. The 2.9 kg carbon frame is rated to Category 4e, rolls on mullet wheels with a flip chip for a full 29er setup, and gets size-specific chainstays, a 64° head angle and a 78.5° seat angle.
- Avinox M2S motor: up to 150 Nm and 1,500 W
- 2.9 kg carbon frame rated to Category 4e
- Mullet wheels, 29" rear possible via flip chip
- Size-specific chainstays, reach 445–520 mm
Canyon Spectral:ON CF builds
Spectral:ON CF geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| aSeat height | 665–790 mm | 715–840 mm | 735–860 mm | 785–910 mm |
| bSeat tube length | 405 mm | 425 mm | 445 mm | 465 mm |
| cTop tube length | 575 mm | 601 mm | 628 mm | 655 mm |
| dHead tube length | 117 mm | 125 mm | 135 mm | 145 mm |
| eHead tube angle | 64° | 64° | 64° | 64° |
| fSeat tube angle | 78.5° | 78.5° | 78.5° | 78.5° |
| gChainstay length | 442 mm | 442 mm | 447 mm | 447 mm |
| hWheelbase | 1,231 mm | 1,259 mm | 1,293 mm | 1,323 mm |
| iStack | 637 mm | 644 mm | 653 mm | 662 mm |
| jReach | 445 mm | 470 mm | 495 mm | 520 mm |
| kStandover height | 774 mm | 780 mm | 786 mm | 790 mm |
| lBottom bracket offset | 33 mm | 33 mm | 32 mm | 32 mm |
| Rider height | ≤ 175 cm | 175–183 cm | 183–192 cm | ≥ 192 cm |
Stock mullet setup. Source: Canyon.
Canyon Spectral:ON CF: FAQ
How much does the Canyon Spectral:ON CF cost?
€6,999 depending on the build (Spectral:ON CF 9 AXS €6,999); RRP Germany, VAT incl.; pre-order from Dec 4, 2026.
How much does the Canyon Spectral:ON CF weigh?
Claimed weights range from 21.7 kg (Spectral:ON CF 9 AXS) to 21.7 kg (Spectral:ON CF 9 AXS).
What motor and battery does the Canyon Spectral:ON CF use?
DJI Avinox M2S (Up to 150 Nm (Boost); 1,500 W peak) with a 700 Wh battery (avinox fp700, integrated).
How much travel does the Canyon Spectral:ON CF have?
160 mm fork and 155 mm rear travel on mullet 29" / 27.5" wheels.
