CanyonStrive:ON CFR
- Motor
- Bosch Performance Line CX Race
- Battery
- 750 WhBosch PowerTube
- Travel F / R
- 170 / 160 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
- Weight
- 24.8 kgSize M, manufacturer figure
Overview
The Strive:ON CFR (€7,499) is the top Strive:ON with Bosch's Performance Line CX Race motor, RockShox ZEB Ultimate and Vivid Ultimate suspension, wireless SRAM X0 Eagle AXS Transmission and Maven Silver brakes.
The Strive:ON is Canyon's full-power enduro eMTB for 2027: a carbon frame with 160 mm of rear travel, a 170 mm fork and mixed wheels, built around Bosch's Performance Line CX motor (CX Race on the CFR) and a 750 Wh PowerTube battery.
- 160 mm rear / 170 mm fork
- Bosch CX (CFR: CX Race)
- 750 Wh battery
- Carbon frame, mullet wheels
Gallery
Photos: Canyon
Full specifications
Frame & suspension
- Frame
- Canyon Strive:ON — Axle dimension: 12x148 mm, Material: Carbon (CFR)

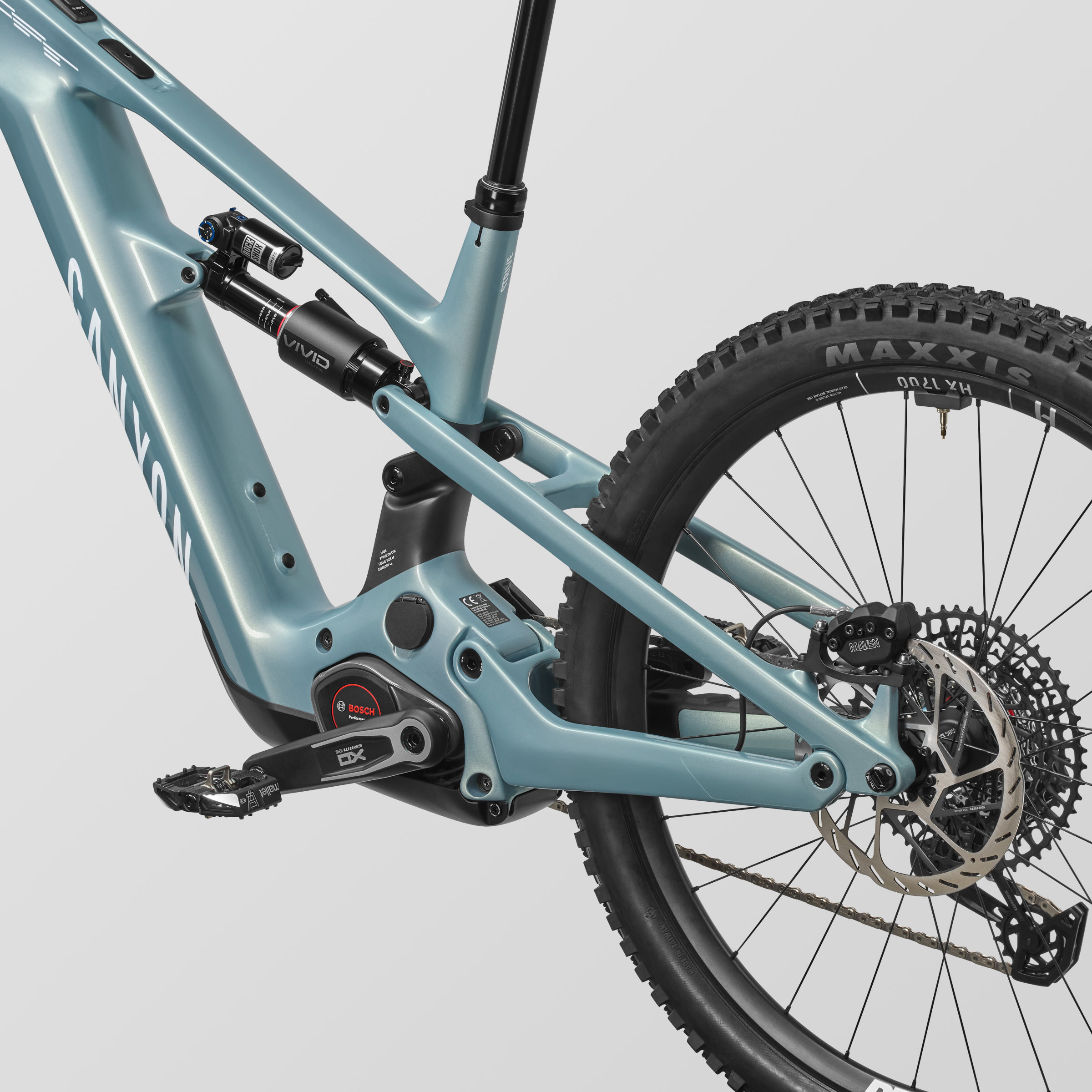

- Rear Shock

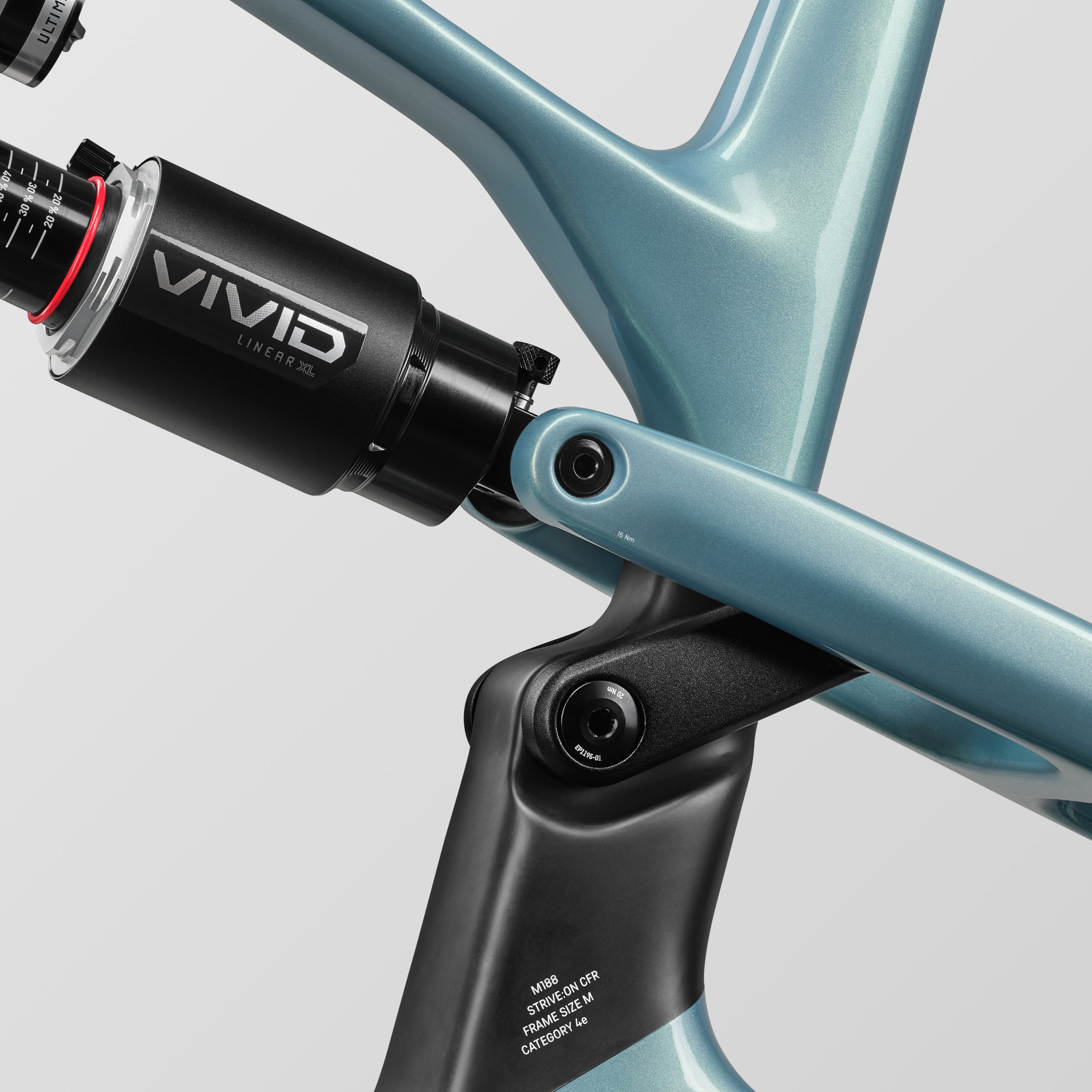

- RockShox Vivid Ultimate — Fitting Length: 230X65, Rear Suspension Travel: 160
- Fork
- RockShox ZEB Ultimate — Axle dimension: 15x110 mm, Travel: 170 mm, Offset: 44 mm
- Seatpost Clamp
- Canyon GP0446-01
E-system

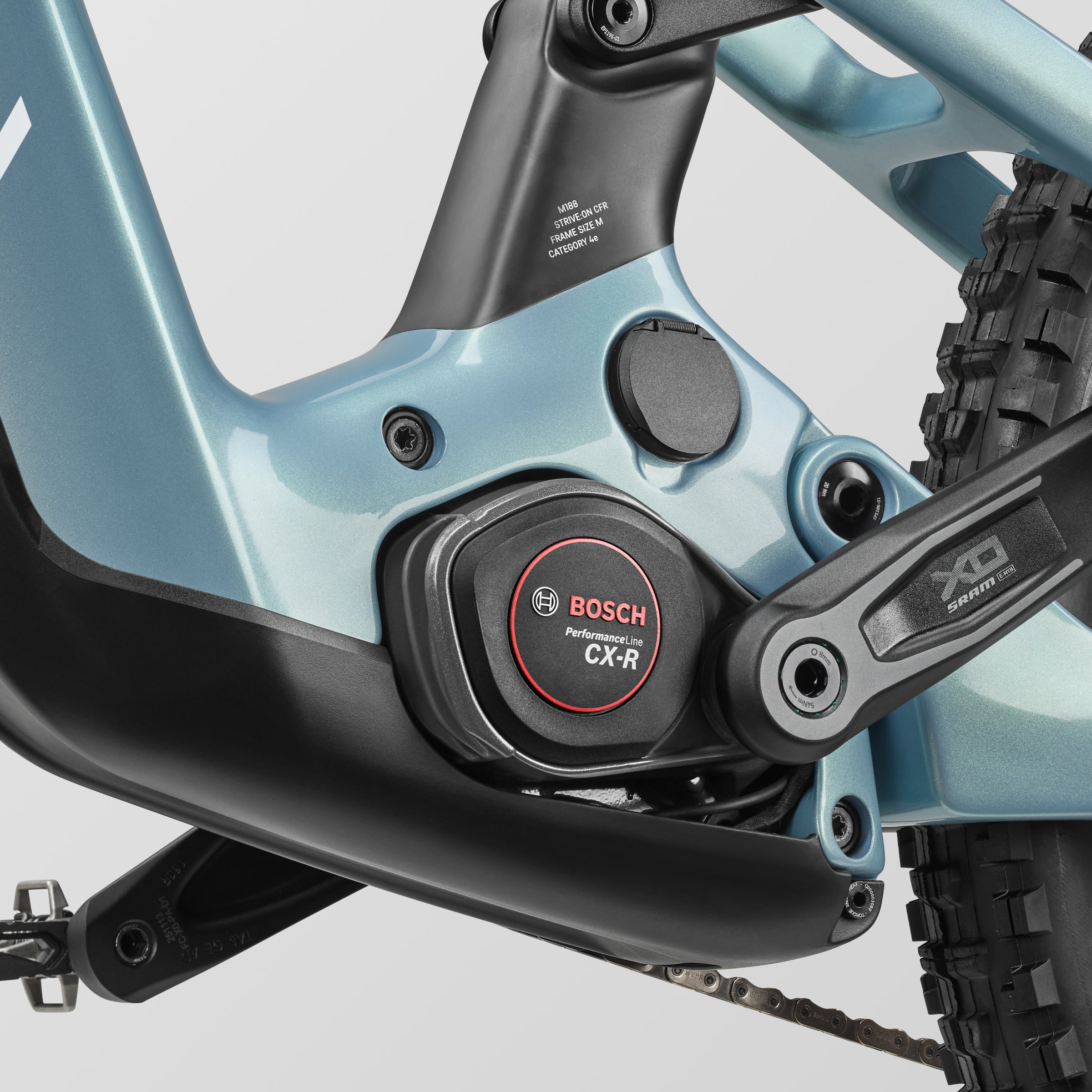

- Motor
- BOSCH Drive Unit Performance Line CXR
- Battery
- SRAM Powerpack — Battery capacity: 750 Wh
- Battery
- Bosch PowerTube 750Wh — Battery capacity: 750 Wh
- Battery Charger
- Bosch 4A
Drivetrain
- Rear Derailleur
- SRAM X0 Eagle AXS Transmission — Cage length: long
- Chainguard
- Canyon GP0480-01 slim
- Shift Lever
- SRAM AXS Pod Controller Rocker Paddle
- Cassette
- SRAM XS-1275 — Number of sprockets: 12, Range: 10-52
- Crank
- X0 Eagle E-MTB Crank — Crank Length: 160,0
- Chainring
- XX Eagle Transmission
- Chain
- SRAM GX Eagle Transmission
Brakes
- Brake
- SRAM Maven Silver — Number of pistons: 4
- Brake
- SRAM Maven Silver — Number of pistons: 4
- Brake Rotor
- SRAM HS2 — Disc Size: 200 / 200
Wheels & tyres
- Front Wheel
- DT Swiss HX1700 — Axle dimension: 15x110 mm, Rim material: Aluminium
- Rear Wheel
- DT Swiss HX1700 — Axle dimension: 12x148 mm, Rim material: Aluminium
- Tyre
- MAXXIS Assegai — Width: 2.5"
- Tyre
- MAXXIS Minion DHR II — Width: 2.5"
- Thru Axle
- Canyon Quixle — Axle dimension: 12x148 mm
Cockpit
- Stem
- Canyon ST0040 — Material: Aluminium (AL), Stem Length: 40
- Handlebar
- Canyon HB0047 — Rise: 30 mm
- Grips
- Ergon GDH Team
- Saddle
- Ergon SM10 Enduro Neo
- Seatpost
- Canyon SP0081 — Material: Aluminium (AL)
Other
- Pedals
- Flat Pedals
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Strive:ON geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Body Height | ≤ 177 cm | 172 - 185 cm | 180 - 194 cm | ≥ 189 cm |
| ASeat Height | 636 - 835 mm | 716 - 900 mm | 731 - 915 mm | 761 - 950 mm |
| BSeat Tube Length | 395 mm | 420 mm | 435 mm | 460 mm |
| CTop Tube Length | 584 mm | 611 mm | 638 mm | 666 mm |
| DHead Tube Length | 110 mm | 120 mm | 130 mm | 145 mm |
| EHead Tube Angle | 63.5° | 63.5° | 63.5° | 63.5° |
| FSeat Tube Angle | 78° | 78° | 78° | 78° |
| GChainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| HWheel Base | 1245 mm | 1274 mm | 1304 mm | 1336 mm |
| IStack | 630 mm | 639 mm | 648 mm | 661 mm |
| JReach | 450 mm | 475 mm | 500 mm | 525 mm |
| KStand-over Height | 778 mm | 776 mm | 780 mm | 787 mm |
| LBottom Bracket Offset | 27 mm | 27 mm | 27 mm | 27 mm |
Source: Canyon.
Strive:ON: builds compared
Strive:ON range →| Strive:ON CF 8 | Strive:ON CF 9 | Strive:ON CFR | |
|---|---|---|---|
| Price | €4,999 | €6,499 | €7,499 |
| Frame | Carbon | Carbon | Carbon |
| Fork | Rock Shox Domain Gold R | FOX 38 Performance Elite Grip X2 | RockShox ZEB Ultimate |
| Shock | RockShox Super Deluxe | FOX Float X2 Performance | RockShox Vivid Ultimate |
| Derailleur | Shimano Deore M6100 | SRAM Eagle 90 Transmission | SRAM X0 Eagle AXS Transmission |
| Brakes | Shimano Deore SLX M7120 | SRAM Maven | SRAM Maven Silver |
| Wheels | Sunringle 309 Enduro Comp | DT Swiss H1900 | DT Swiss HX1700 |
| Weight | 24.8 kg | 24.8 kg | 24.8 kg |
Strive:ON CFR: FAQ
How much does the Canyon Strive:ON CFR cost?
€7,499 (RRP Germany, VAT incl.). The Strive:ON range runs from €4,999 (Strive:ON CF 8) to €7,499 (Strive:ON CFR). Prices vary by country and dealer.
How much does the Canyon Strive:ON CFR weigh?
Canyon quotes 24.8 kg. The lightest Strive:ON build is the Strive:ON CF 8 at 24.8 kg.
What motor and battery does the Canyon Strive:ON CFR have?
Bosch Performance Line CX Race. 750 Wh battery — bosch PowerTube.
How much suspension travel does the Canyon Strive:ON CFR have?
170 mm at the fork and 160 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Canyon Strive:ON CFR come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Strive:ON CFR and the Strive:ON CF 9?
They share the Strive:ON frame platform; the differences are in the parts — fork: RockShox ZEB Ultimate vs FOX 38 Performance Elite Grip X2; shock: RockShox Vivid Ultimate vs FOX Float X2 Performance; derailleur: SRAM X0 Eagle AXS Transmission vs SRAM Eagle 90 Transmission; price: €7,499 vs €6,499.
