ShimanoDeore Di2 M6260 (E-Bike)

No RRP published on the accessible Shimano spec site

Speeds: 12 (HG) / 11 (LINKGLIDE)
Range: 10-51T (12-speed cassette)
Shifting: Di2 electronic, wireless switch
Power: Wired (e-bike battery)
Derailleur hanger: UDH

Overview

Deore Di2 e-bike drivetrain built around the wired-power RD-M6260-12 derailleur: 12-speed, up to 51T, plus an 11-speed LINKGLIDE version.

The Deore M6260 Di2 rear derailleur is the wired-power version of Shimano's Deore Di2 mountain bike derailleur, drawing power from the bike rather than a built-in battery (spec chart: power supply wired). It comes as a 12-speed RD-M6260-12 (HG 12-speed chain, up to 51T low sprocket, 41T capacity) and an 11-speed LINKGLIDE RD-M6260-11L (up to 50T, 39T capacity).

Shimano lists it in its EP6 MTB e-bike system line-up charts, and its wireless link can show SHIMANO E-BIKE SYSTEMS data and works with E-TUBE PROJECT and E-TUBE RIDE. It is paired with the SW-M6250-R wireless shift switch and the CS-M6200-12 cassette (10-51T).

Wired-power Di2 derailleur for e-bikes
12-speed HG (RD-M6260-12) or 11-speed LINKGLIDE (RD-M6260-11L)
Up to 51T low sprocket, UDH compatible
E-TUBE PROJECT / E-TUBE RIDE compatible
Listed in Shimano EP6 MTB line-up charts

Gallery

Shimano Deore Di2 M6260 (E-Bike), detail 1

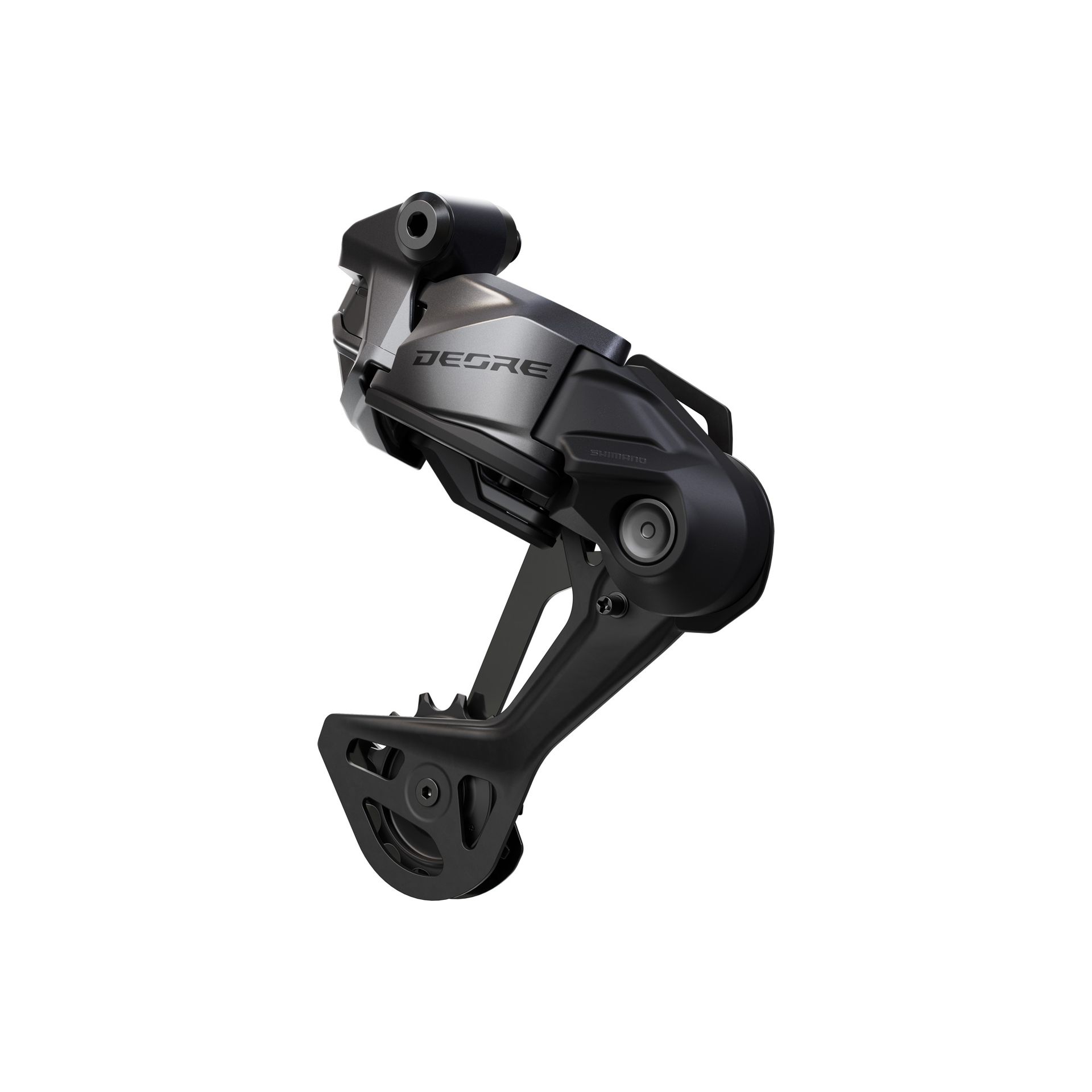

Shimano Deore Di2 M6260 (E-Bike), detail 2

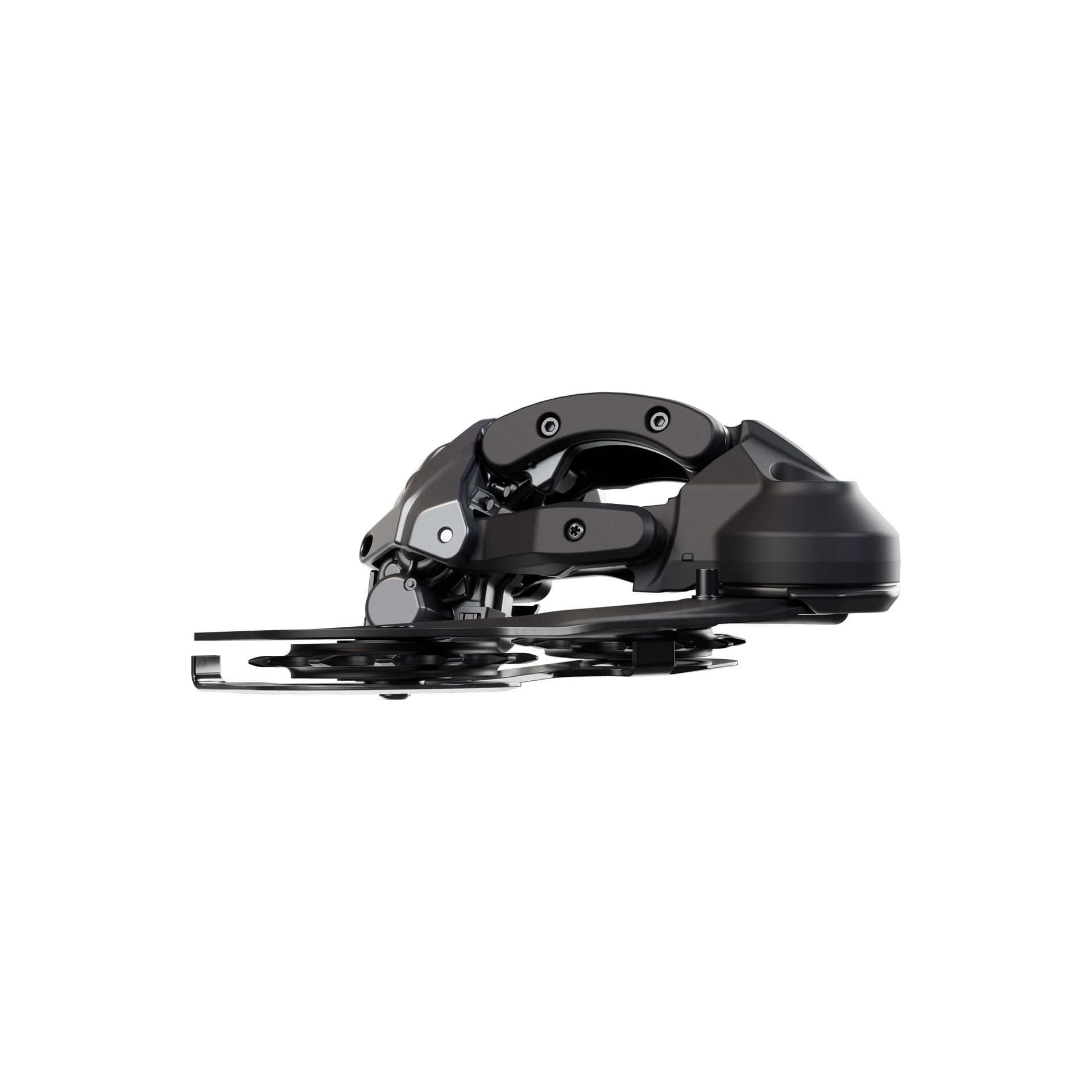

Shimano Deore Di2 M6260 (E-Bike), detail 3

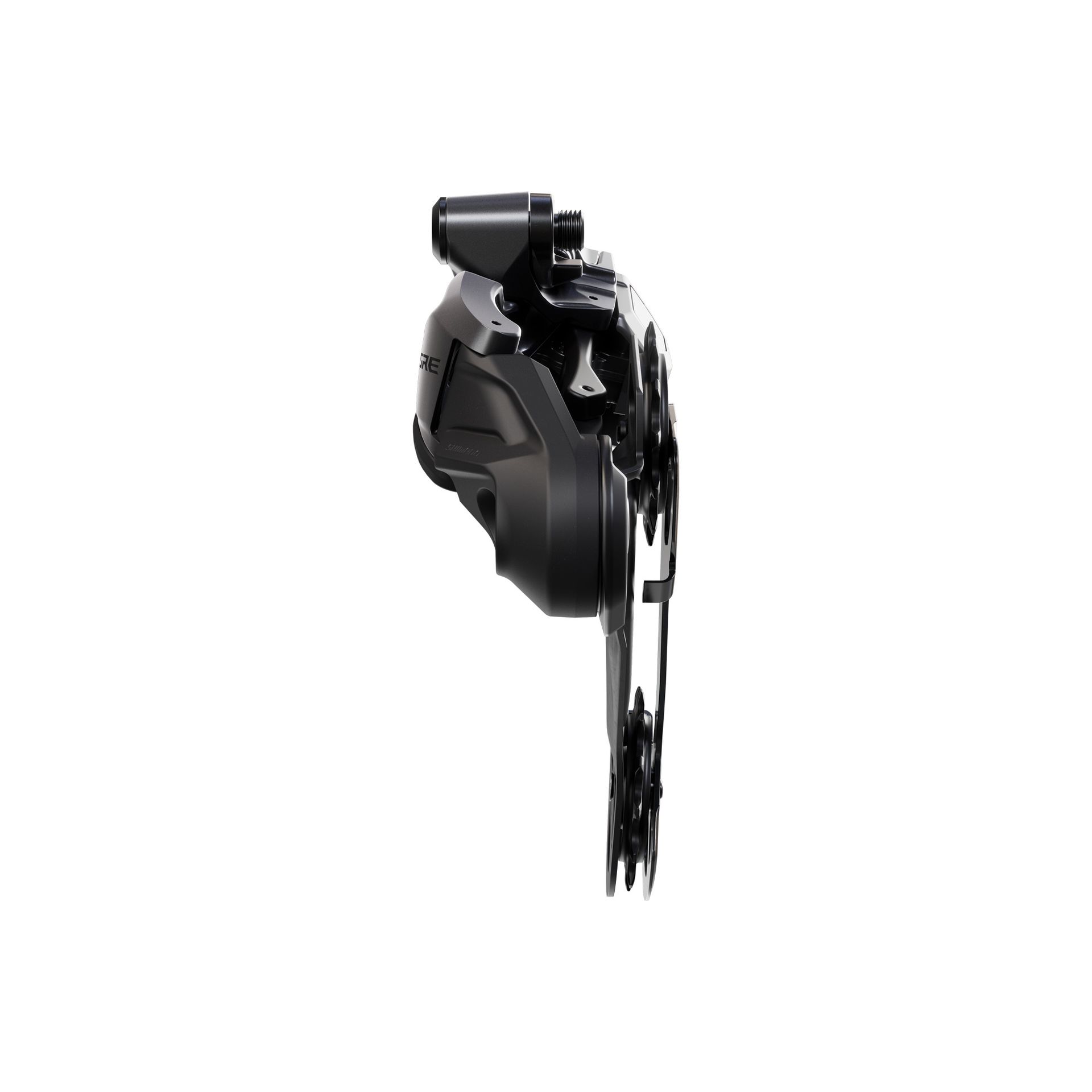

Shimano Deore Di2 M6260 (E-Bike), detail 4

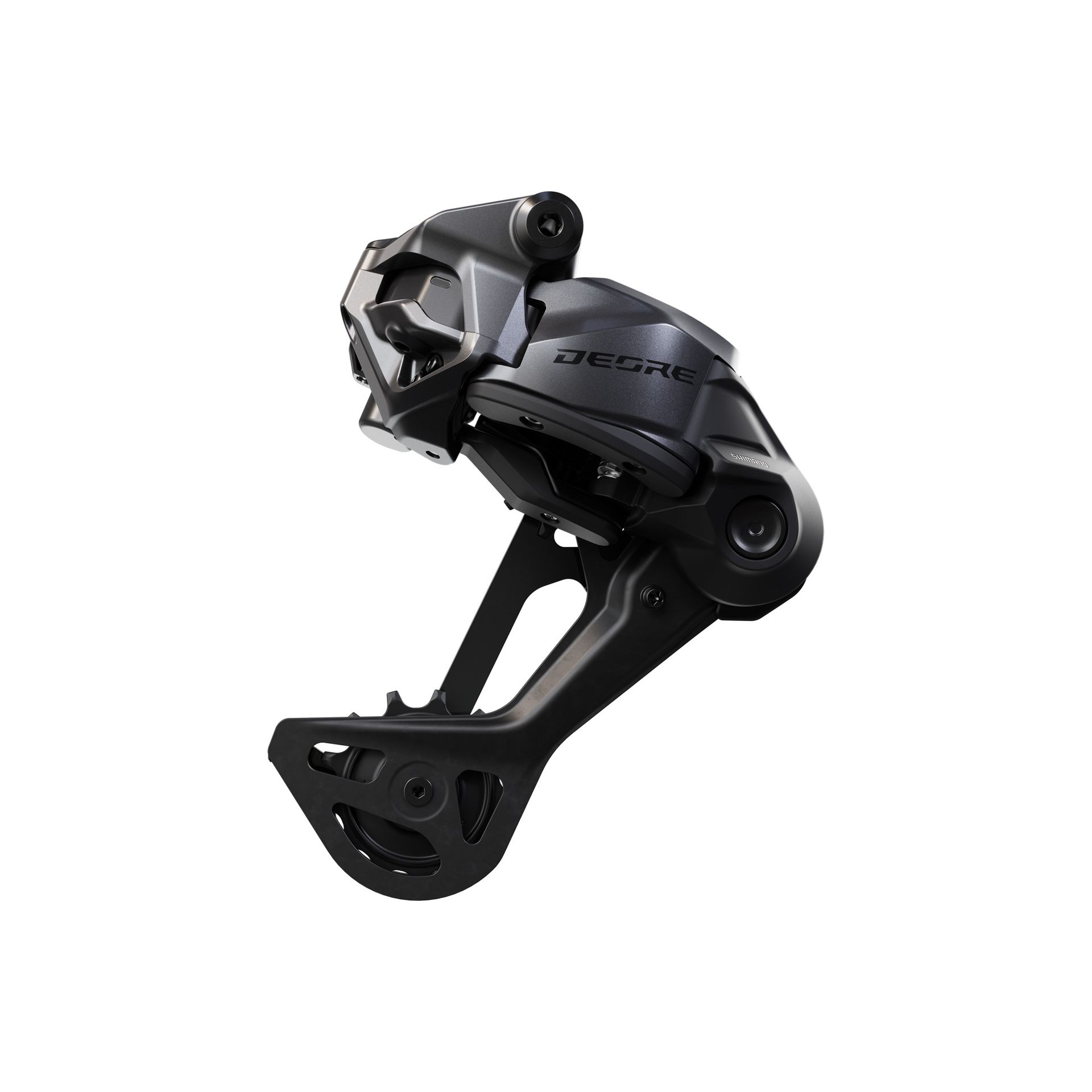

Shimano Deore Di2 M6260 (E-Bike), detail 5

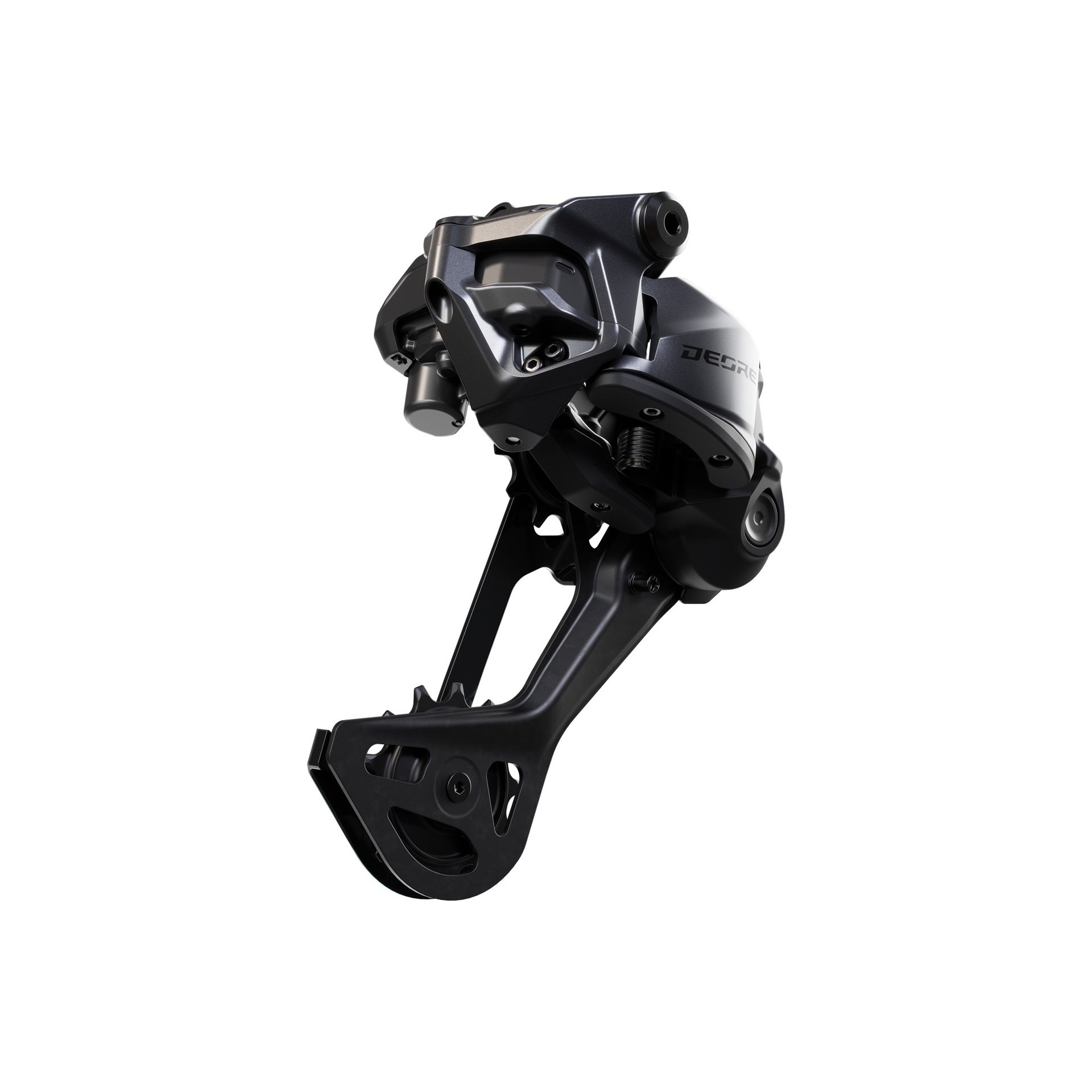

Shimano Deore Di2 M6260 (E-Bike), detail 6

Full specifications

Rear derailleur 12-speed (RD-M6260-12)

Series: DEORE
Model no.: RD-M6260-12
Color / 1: Series color
Rear speeds: 12
Compatible chain: HG 12-speed
RD construction / SHADOW ES: Yes
Applicable derailleur hanger / SHIMANO MTB type / Direct attachment (conventional): Yes
Applicable derailleur hanger / UDH standard: Yes
Max. front difference: 0T
Total capacity: 41T
Low sprocket / Max.: 51T
Low sprocket / Min.: 51T
Top sprocket / Max.: 10T
Top sprocket / Min.: 10T
Fluoric coated link bushings: 8
Pulley / Guide pulley bearing: Sealed bearing
Pulley / Tension pulley bearing: Sealed bearing
Pulley / Teeth: 13T
Pulley / Screws material: Stainless steel
Pulley / Sunken type pulley screw: Yes
B-axle / Hollow axle: Yes
B-axle / Material: Stainless steel
B-axle / Finish: Coloring
Bracket body / Material: Aluminum
Bracket body / Finish: Painted
P-axle / Material: Steel
P-axle / Finish: Plated
Plate body / Material: GFRP
Outer link / Material: Aluminum
Outer link / Finish: Painted
Inner link / Material: Aluminum
Inner link / Finish: Painted
Outer plate / Material: Steel
Outer plate / Finish: Painted
Inner plate / Material: Steel
Inner plate / Finish: Painted
Stroke adjusting screw / Material: Steel
Stroke adjusting screw / Finish: Plated
Di2 connectivity wired / Di2 shifting: Yes
Di2 connectivity wireless / Di2 shifting: Yes
Di2 connectivity wireless / Bluetooth® LE custom (*) / Adjust mode information: Yes
Di2 connectivity wireless / Bluetooth® LE custom (*) / Gear position: Yes
Di2 connectivity wireless / Bluetooth® LE custom (*) / SHIMANO E-BIKE SYSTEMS data items (***): Yes
Di2 connectivity wireless / Bluetooth® LE custom (*) / Compatible with E-TUBE RIDE: Yes
Di2 connectivity wireless / Bluetooth® LE custom (*) / Compatible with E-TUBE PROJECT: Yes
Di2 connectivity wireless / ANT private (**) / Adjust mode information: Yes
Di2 connectivity wireless / ANT private (**) / Gear position: Yes
Di2 connectivity wireless / ANT private (**) / SHIMANO E-BIKE SYSTEMS data items (***): Yes
SD50 port (pcs): 0
SD300 port (pcs): 1 *1
SD50 connector (pcs): 0
SD300 connector (pcs): 0
LED for system status: Yes
Power supply / Wired: Yes
Note: *1 Compatible with EW-PS300

Rear derailleur 11-speed LinkGlide (RD-M6260-11L)

Series: DEORE
Model no.: RD-M6260-11L
Color / 1: Series color
Rear speeds: 11
Compatible chain: LINKGLIDE, HG 11-speed
RD construction / SHADOW ES: Yes
Applicable derailleur hanger / SHIMANO MTB type / Direct attachment (conventional): Yes
Applicable derailleur hanger / UDH standard: Yes
Max. front difference: 0T
Total capacity: 39T
Low sprocket / Max.: 50T
Low sprocket / Min.: 50T
Top sprocket / Max.: 11T
Top sprocket / Min.: 11T
Fluoric coated link bushings: 8
Pulley / Guide pulley bearing: Sealed bearing
Pulley / Tension pulley bearing: Sealed bearing
Pulley / Teeth: 13T
Pulley / Screws material: Stainless steel
Pulley / Sunken type pulley screw: Yes
B-axle / Hollow axle: Yes
B-axle / Material: Stainless steel
B-axle / Finish: Coloring
Bracket body / Material: Aluminum
Bracket body / Finish: Painted
P-axle / Material: Steel
P-axle / Finish: Plated
Plate body / Material: GFRP
Outer link / Material: Aluminum
Outer link / Finish: Painted
Inner link / Material: Aluminum
Inner link / Finish: Painted
Outer plate / Material: Steel
Outer plate / Finish: Painted
Inner plate / Material: Steel
Inner plate / Finish: Painted
Stroke adjusting screw / Material: Steel
Stroke adjusting screw / Finish: Plated
Di2 connectivity wired / Di2 shifting: Yes
Di2 connectivity wireless / Di2 shifting: Yes
Di2 connectivity wireless / Bluetooth® LE custom (*) / Adjust mode information: Yes
Di2 connectivity wireless / Bluetooth® LE custom (*) / Gear position: Yes
Di2 connectivity wireless / Bluetooth® LE custom (*) / SHIMANO E-BIKE SYSTEMS data items (***): Yes
Di2 connectivity wireless / Bluetooth® LE custom (*) / Compatible with E-TUBE RIDE: Yes
Di2 connectivity wireless / Bluetooth® LE custom (*) / Compatible with E-TUBE PROJECT: Yes
Di2 connectivity wireless / ANT private (**) / Adjust mode information: Yes
Di2 connectivity wireless / ANT private (**) / Gear position: Yes
Di2 connectivity wireless / ANT private (**) / SHIMANO E-BIKE SYSTEMS data items (***): Yes
SD50 port (pcs): 0
SD300 port (pcs): 1 *1
SD50 connector (pcs): 0
SD300 connector (pcs): 0
LED for system status: Yes
Power supply / Wired: Yes
Note: *1 Compatible with EW-PS300

Shift switch (SW-M6250-R)

Series: DEORE
Model no.: SW-M6250-R
Position: Clamp band
Di2 connectivity wireless / Di2 shifting: Yes
Button numbers (pcs): 3
SD50 port (pcs): 0
SD300 port (pcs): 0
SD50 connector (pcs): 0
SD300 connector (pcs): 0
Switch1 / Default function: RD outward
Switch1 / Multiple input / Hold: Yes
Switch2 / Default function: RD inward
Switch2 / Multiple input / Hold: Yes
Switch3 / Default function: Shifting/Adj. mode
Switch3 / Multiple input / Hold: Yes
Battery: CR1632 x 2
LED / Shimano system status: Yes

Cassette (CS-M6200-12)

Series: DEORE
Model no.: CS-M6200-12
Type: HYPERGLIDE+
Rear speeds: 12
Compatible chain: HG 12-speed
Combination name (Group name): 10-51T
Combination * Titanium gear / 1: 10-12-14-16-18-21-24-28-33-39-45-51T
Spline type / MICRO SPLINE: Yes
Aluminum spider arm / QTY (pcs): 1
Aluminum spider arm / Finish: Anodized
Steel gear / QTY (pcs): 12
Steel gear / Finish: Plated
Lock ring / Material: Aluminum
Lock ring / Finish: Anodized

General

E-bike line-up: Listed in Shimano EP6 MTB e-bike system line-up chart(s)

Manufacturer specification — Shimano. Specs and prices can change; check with the brand or your dealer.

eMTBs that come with the Shimano Deore Di2

Cube Reaction Hybrid SLX 800 e-MTB, side view

Cube · Hardtail / TrailReaction Hybrid SLX 800Bosch CX · 800 Wh · 120 / – mm€4,199

Shimano Deore Di2 M6260 (E-Bike): FAQ

Is the Shimano Deore Di2 M6260 (E-Bike) suitable for e-bikes?

Yes — Shimano lists it as e-bike rated or e-bike specific.

What are the key specs of the Shimano Deore Di2 M6260 (E-Bike)?

Speeds: 12 (HG) / 11 (LINKGLIDE); Range: 10-51T (12-speed cassette); Shifting: Di2 electronic, wireless switch; Power: Wired (e-bike battery); Derailleur hanger: UDH.
