Drivetrain
Shimano Deore range · 3 versionsShimanoDeore M6200 12-Speed
No RRP published on the accessible Shimano spec site
- Speeds
- 12
- Range
- 10-51T
- Shifting
- Mechanical
- Max. low sprocket
- 51T
- Derailleur hanger
- UDH
Overview
Deore M6200 12-Speed: mechanical 12-speed Deore drivetrain with the RD-M6200-SGS derailleur (up to 51T) and CS-M6200-12 cassette.
The Deore M6200 12-Speed groupset is Shimano's Deore mechanical 1x12 mountain bike drivetrain, built around the RD-M6200-SGS rear derailleur (HG 12-speed chain, up to 51T low sprocket, 41T capacity).
It pairs with the SL-M6200-R shifter and the CS-M6200-12 cassette (10-51T; average weight - g) and the FC-M6200 crankset.
- 12-speed HG mechanical drivetrain
- RD-M6200-SGS derailleur, up to 51T, 41T capacity
- Cassette 10-51T
- UDH compatible derailleur
Gallery
Full specifications

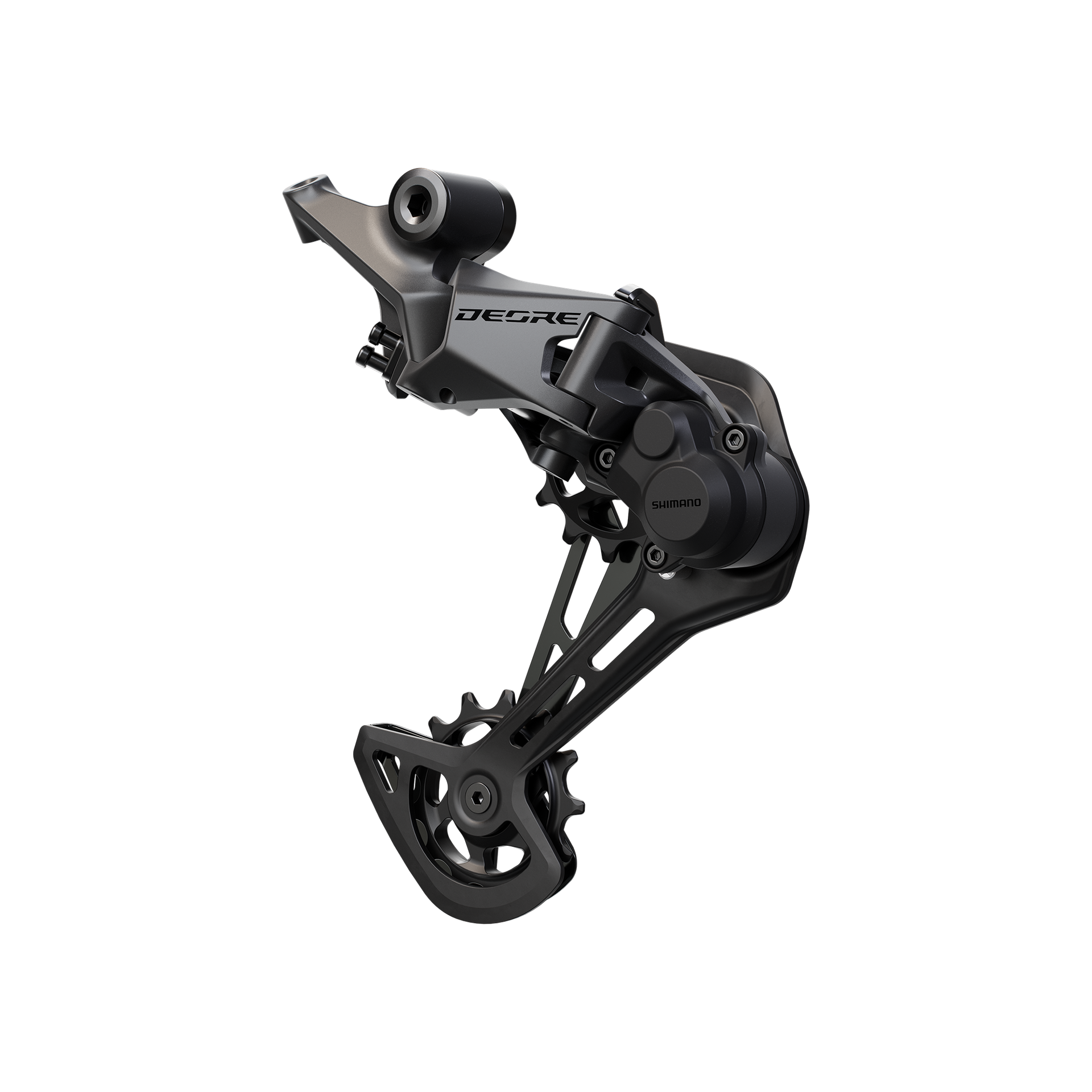

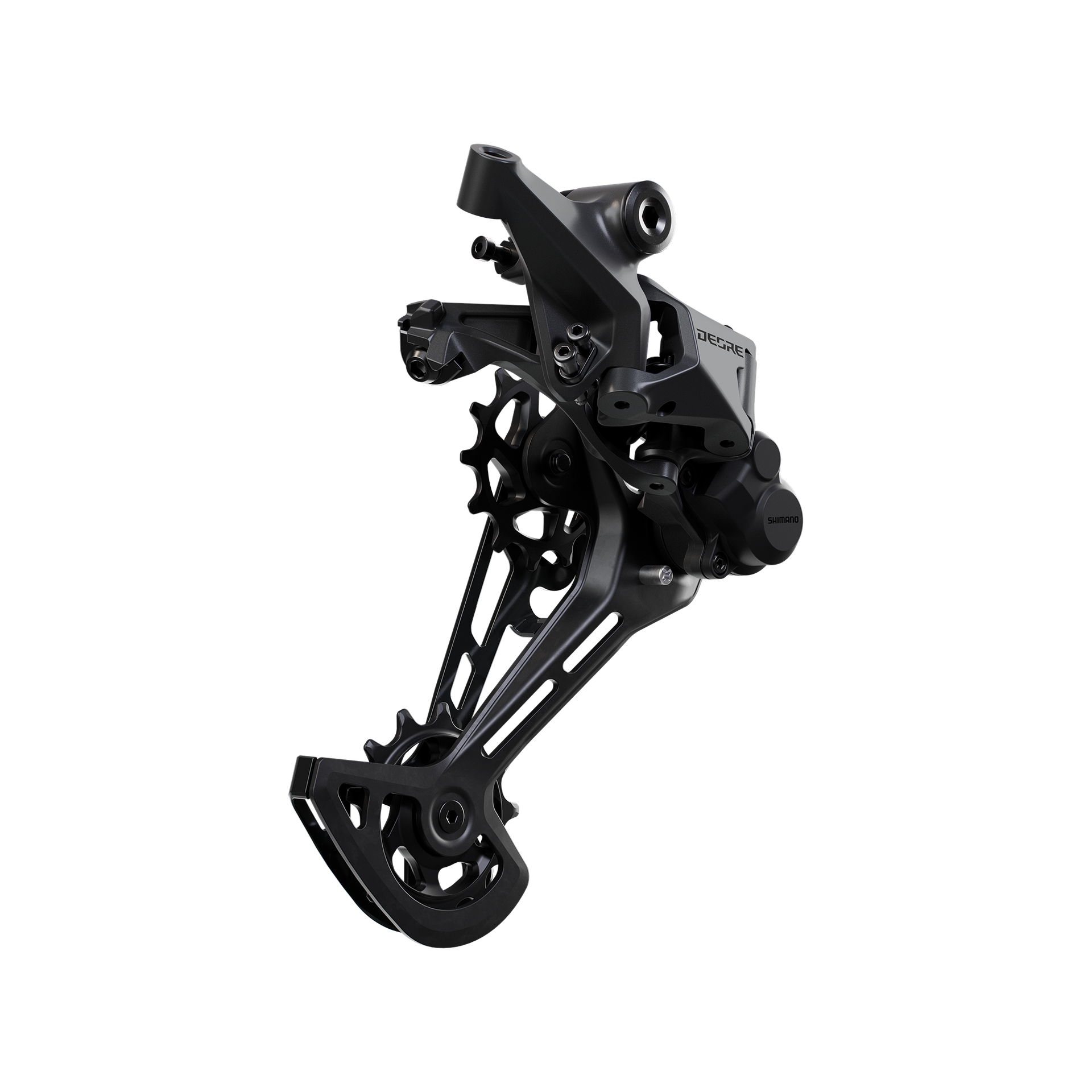

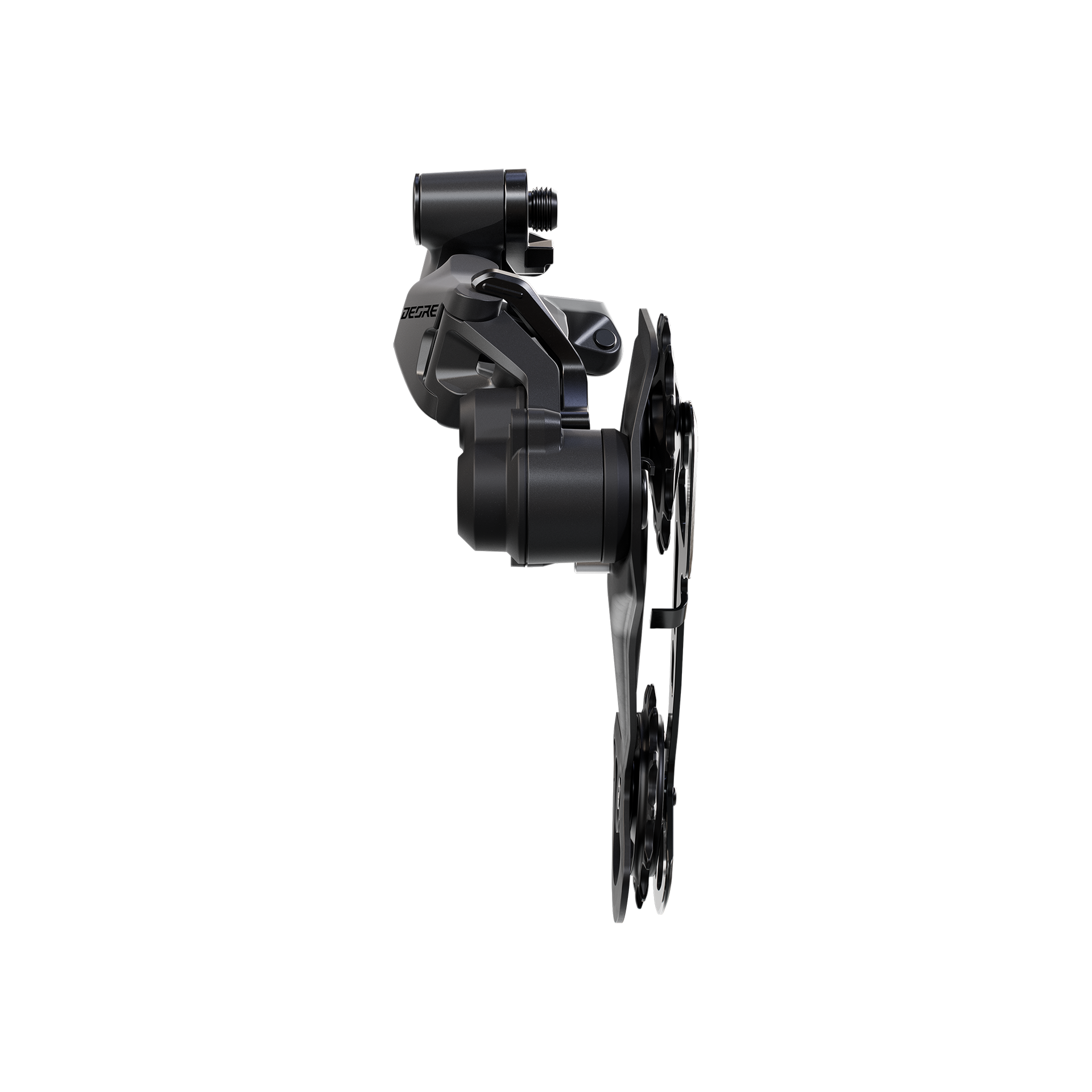

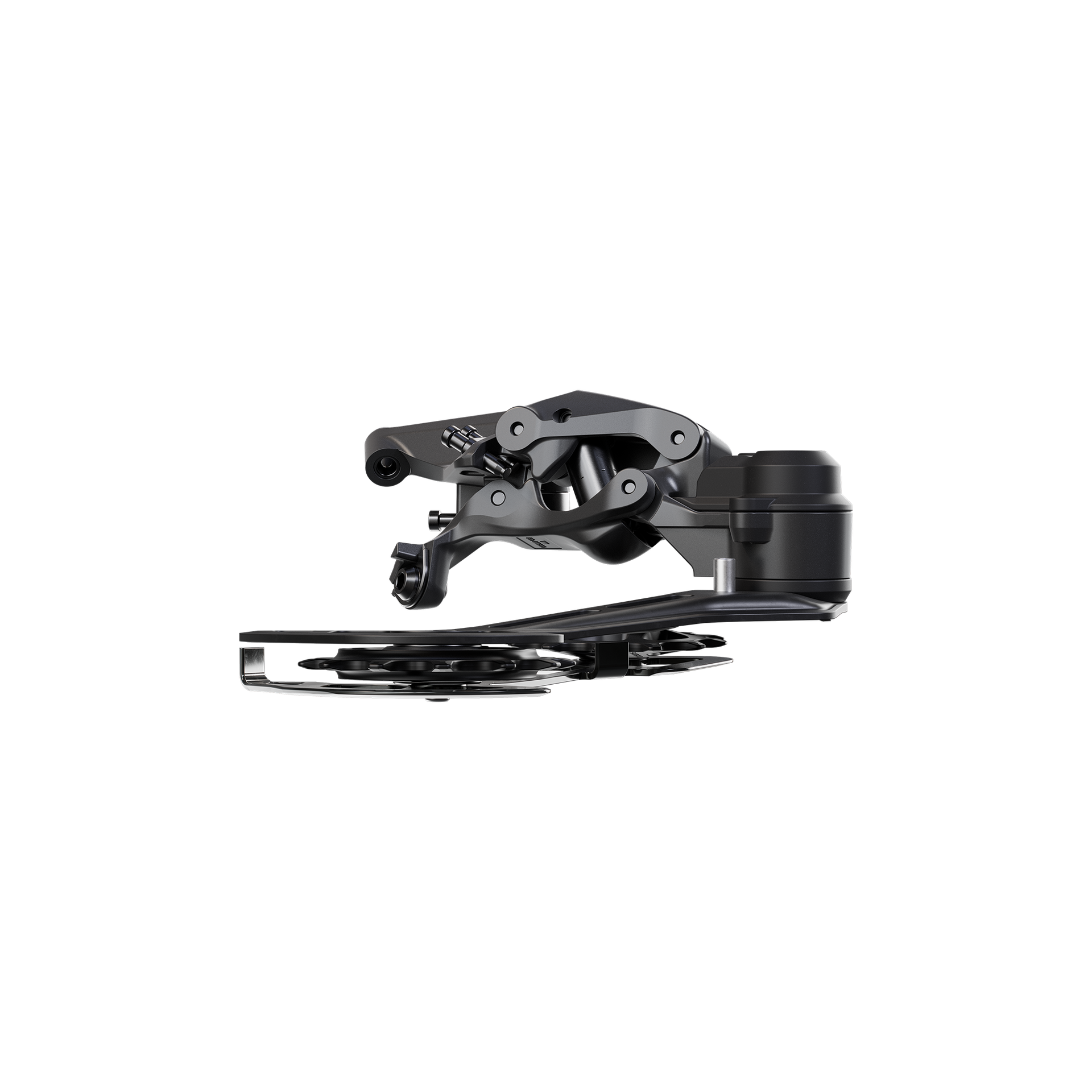

Rear derailleur (RD-M6200-SGS)
- Series
- DEORE
- Model no.
- RD-M6200-SGS
- Color / 1
- Series color
- Rear speeds
- 12
- Compatible chain
- HG 12-speed
- RD construction / SHIMANO SHADOW RD+
- Yes
- Applicable derailleur hanger / SHIMANO MTB type / Direct attachment (conventional)
- Yes
- Applicable derailleur hanger / UDH standard
- Yes
- Max. front difference
- 0T
- Total capacity
- 41T
- Low sprocket / Max.
- 51T
- Low sprocket / Min.
- 51T
- Top sprocket / Max.
- 10T
- Top sprocket / Min.
- 10T
- Fluoric coated link bushings
- 7
- Pulley / Teeth
- 13T
- Pulley / Screws material
- Stainless steel
- Pulley / Sunken type pulley screw
- Yes
- B-axle / Hollow axle
- Yes
- B-axle / Material
- Stainless steel
- Bracket body / Material
- Aluminum
- Bracket body / Finish
- Painted
- P-axle / Material
- Steel
- Plate body / Material
- GFRP
- Outer link / Material
- Aluminum
- Outer link / Finish
- Painted
- Inner link / Material
- Aluminum
- Inner link / Finish
- Painted
- Outer plate / Material
- Steel
- Outer plate / Finish
- Painted
- Inner plate / Material
- Steel
- Inner plate / Finish
- Painted
- Cable fixing screw / Material
- Stainless steel
- Stroke adjusting screw / Material
- Steel
- Stroke adjusting screw / Finish
- Plated
Shifter (SL-M6200-R)
- Series
- DEORE
- Model no.
- SL-M6200-R
- Color / 1
- Series color
- Shifter type
- RAPIDFIRE PLUS
- Rear speeds
- 12
- Compatible rear derailleur type
- MTB 12-speed
- Mount type / Clamp band
- Yes
- Shift lever cable adjust
- Yes
- Max. multiple shifts (main lever/rear)
- 3
- Release function / 2-WAY RELEASE
- Yes
- OPTICAL GEAR DISPLAY / Without
- Yes
- Shift lever bracket / Material
- Aluminum
- Shift lever bracket / Finish
- Painted
- Clamp screw / Material
- Stainless steel
- Main lever body / Material
- GFRP+Steel
- Release lever body / Material
- GFRP+Steel
- Base cover / Material
- Resin
- Shift lever cable / Inner cable / OPTISLICK
- Yes
- Recommended shift lever outer casing
- OT-SP41
- Note
- OPTISLICK(SUS)

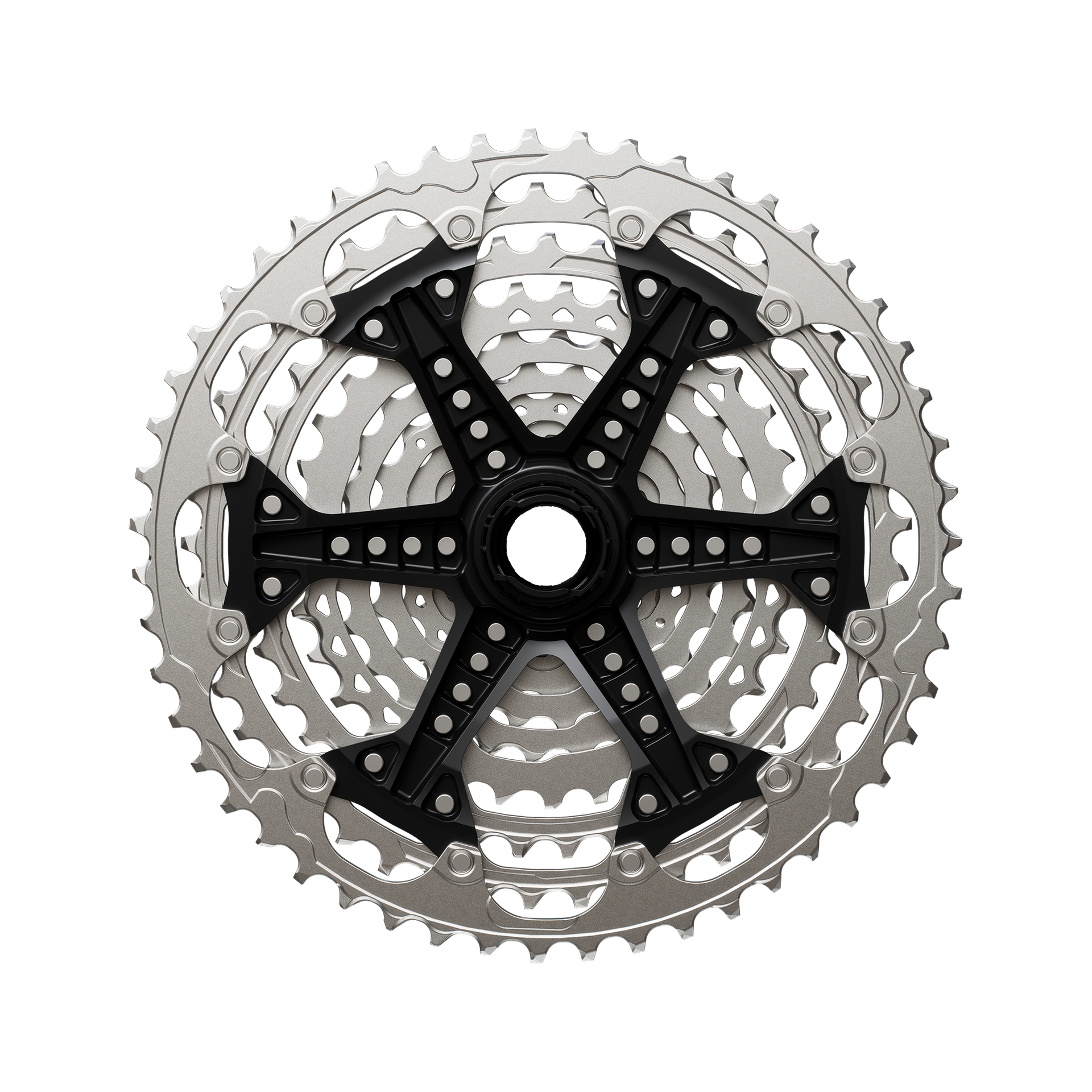

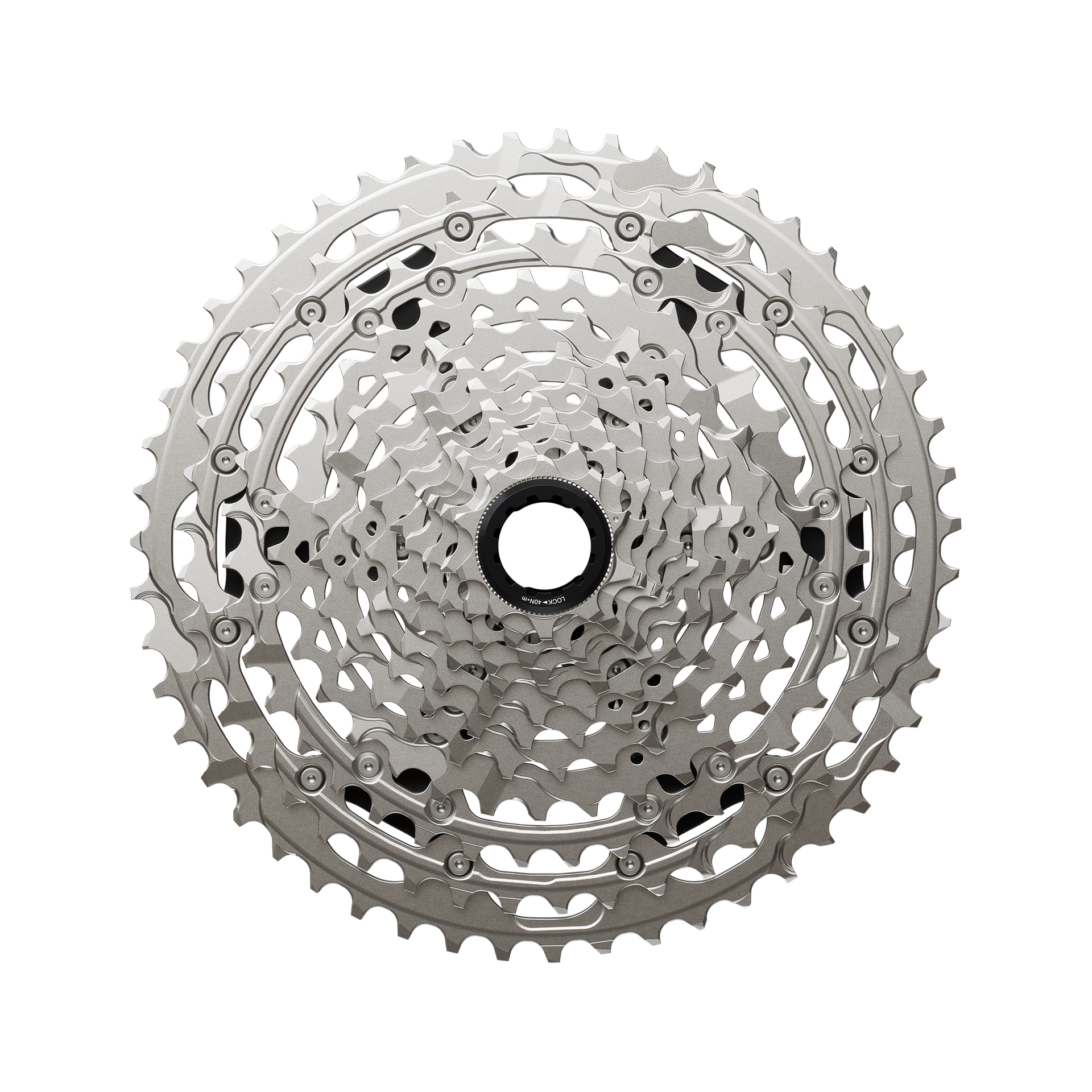

Cassette (CS-M6200-12)
- Series
- DEORE
- Model no.
- CS-M6200-12
- Type
- HYPERGLIDE+
- Rear speeds
- 12
- Compatible chain
- HG 12-speed
- Combination name (Group name)
- 10-51T
- Combination * Titanium gear / 1
- 10-12-14-16-18-21-24-28-33-39-45-51T
- Spline type / MICRO SPLINE
- Yes
- Aluminum spider arm / QTY (pcs)
- 1
- Aluminum spider arm / Finish
- Anodized
- Steel gear / QTY (pcs)
- 12
- Steel gear / Finish
- Plated
- Lock ring / Material
- Aluminum
- Lock ring / Finish
- Anodized
Crankset (FC-M6200)
- Series
- DEORE
- Model no.
- FC-M6200
- Color / 1
- Series color
- Rear speeds
- 12
- Compatible chain
- HG 12-speed
- Chain line (mm)
- 55
- O.L.D. / Thru (mm) / 148
- Yes
- O.L.D. / QR/Nut (mm) / 141
- Yes
- P.C.D. (mm)
- Direct
- Chainring combination
- 30T, 32T
- Q-factor (mm)
- 176
- Crank arm length (mm) / 165
- Yes
- Crank arm length (mm) / 170
- Yes
- Crank arm length (mm) / 175
- Yes
- Optional chain guard / Without chain/bash guard
- Yes
- 2-PIECE CRANKSET
- Yes
- Compatible bottom bracket type / Outboard
- Yes
- Recommended bottom bracket / Threaded (normal)
- BB-MT501
- Recommended bottom bracket / Press-Fit
- BB-MT500-PA
- Threaded bottom bracket shell width (mm) / 68
- Yes
- Threaded bottom bracket shell width (mm) / 73
- Yes
- Crank arm / Material
- Aluminum
- Crank arm / Finish
- Anodized
- Crank axle / Material
- Steel
- Crank axle / Finish
- Plated
- Outer ring / Material
- Steel
- Outer ring / Finish
- Painted
- Crank fixing screw included
- Yes
Manufacturer specification — Shimano. Specs and prices can change; check with the brand or your dealer.
Shimano Deore versions compared
| Deore M6120 4-Piston | Deore M7200 12-Speed | Deore M6200 12-Speed | |
|---|---|---|---|
| Price | — | — | — |
| Pistons | 4 (ceramic) | — | — |
| Rotor sizes | 140 / 160 / 180 / 200 / 203 / 220 mm | — | — |
| Fluid | SHIMANO Mineral | — | — |
| Mount | Post mount | — | — |
| Lever | BL-M6100, tool reach adjust | — | — |
| Speeds | — | 12 | 12 |
| Range | — | 10-51T | 10-51T |
| Shifting | — | Mechanical | Mechanical |
| Weight | — | 439 g | — |
| E-bike rated | — | — | — |
eMTBs that come with the Shimano Deore
Cube · TrailStereo Hybrid ONE44 HPC Pro 800Bosch CX · 800 Wh · 150 / 140 mm€4,099
Cube · TrailStereo Hybrid ONE44 HPC Race 800Bosch CX · 800 Wh · 150 / 140 mm€4,399
Haibike · All-mountainALLMTN 2Bosch CX · 800 Wh · 160 / 160 mm€4,499
Megamo · EnduroReason AL 07DJI Avinox M2S · 800 Wh · 160 / 160 mm€4,999
Cube · TrailStereo Hybrid ONE44 HPC SLX 800Bosch CX · 800 Wh · 150 / 140 mm€4,999
Rocky Mountain · EnduroAltitude Powerplay Alloy 30Rocky Mountain Dyname S4 Pro · 720 Wh · 170 / 160 mm€5,499
Haibike · All-mountainALLMTN 6Bosch CX · 800 Wh · 160 / 150 mm€5,499
Giant · TrailTrance Advanced E+ 2Giant SyncDrive Pro 4 · 840 Wh · 160 / 150 mm£5,499
Scott · Trail / All-mountainPatron eRIDE 30Bosch CX · 800 Wh · 150 / 150 mm£5,699
Megamo · EnduroReason CRB 07DJI Avinox M2S · 800 Wh · 160 / 160 mm€5,999
Santa Cruz · TrailVala C DeoreBosch CX · 600 Wh · 160 / 150 mm£6,699
Scott · Trail / All-mountainPatron eRIDE 20Bosch CX · 800 Wh · 150 / 150 mm£6,999
Shimano Deore M6200 12-Speed: FAQ
Is the Shimano Deore M6200 12-Speed suitable for e-bikes?
Shimano does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the Shimano Deore M6200 12-Speed?
Speeds: 12; Range: 10-51T; Shifting: Mechanical; Max. low sprocket: 51T; Derailleur hanger: UDH.
What other versions of the Shimano Deore are there?
Deore M6120 4-Piston, Deore M7200 12-Speed.
