BHiLYNX+ DL Trail 8.1
- Motor
- DJI Avinox M2S150 Nm; 1300 W peak
- Battery
- 800 WhIntegrated, non-removable
- Travel F / R
- 150 / 150 mm
- Wheels
- 29"
- Frame
- Alloy
Overview
The BH iLYNX+ DL Trail 8.1 (€4,999.90) is a mid-range build of the iLYNX+ DL Trail: DJI Avinox M2S (150 Nm) with 800 Wh, FOX 36 AWL fork, FOX FLOAT Rhythm shock, Shimano XT 12sp and Shimano MT520 4 Piston brakes.
The iLYNX+ DL Trail is BH's trail e-MTB built around DJI's Avinox drive: most builds use the M2S motor (150 Nm, up to 1300 W peak in Turbo mode), the entry 7.9 the M2 (125 Nm, 1100 W). All builds carry a non-removable 800 Wh battery, for which BH quotes up to 157 km of range.

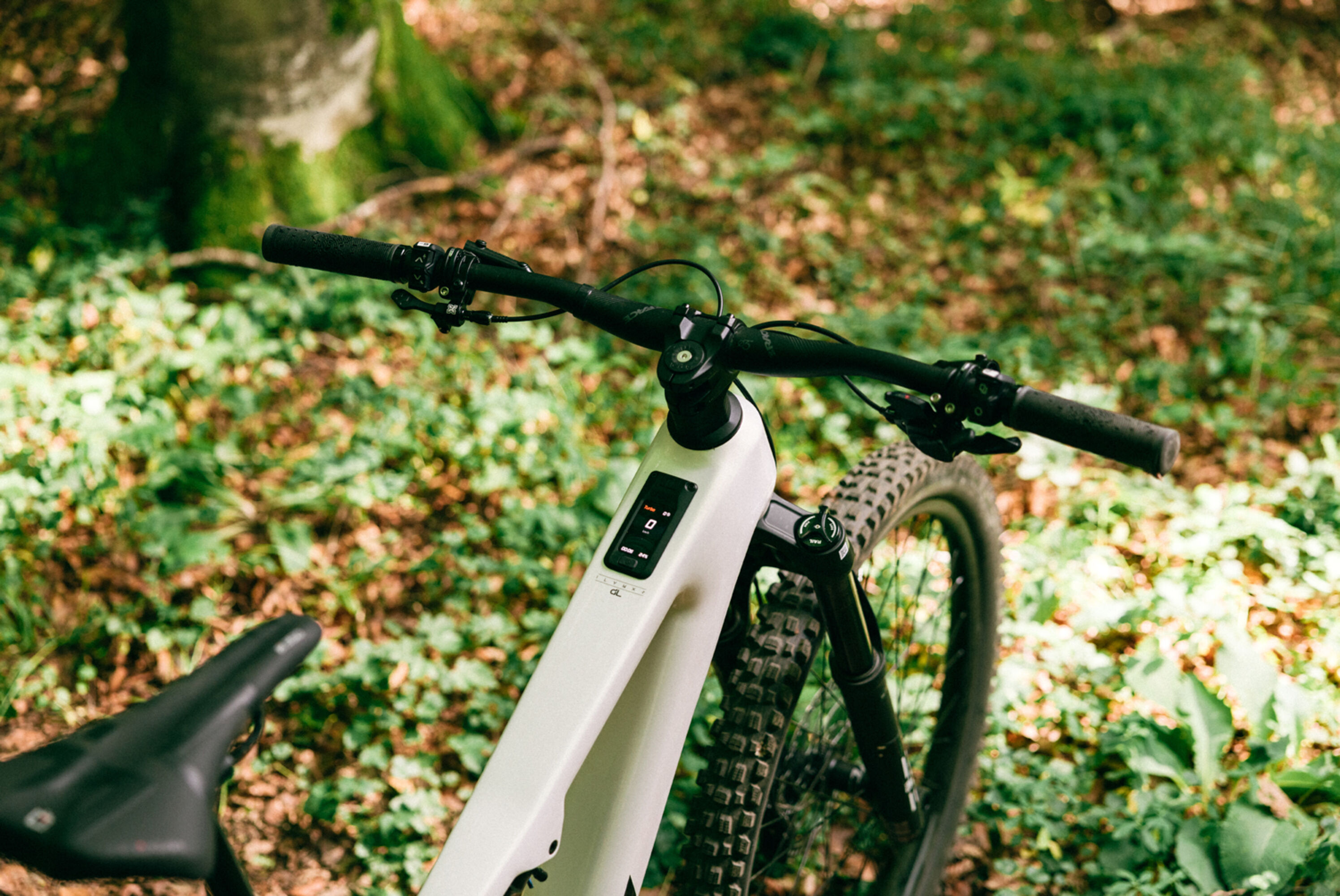

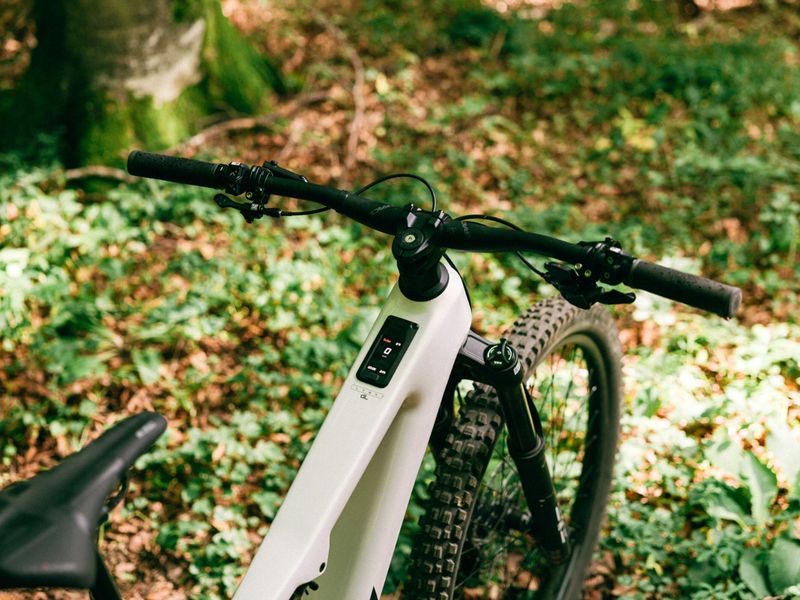

The 29-inch frame uses BH's Split Pivot suspension; carbon builds are listed with 140 mm rear travel, the alloy builds with 150 mm, paired with 140–150 mm forks. A 2-inch OLED touchscreen is integrated into the frame, with wireless left/right handlebar controllers.

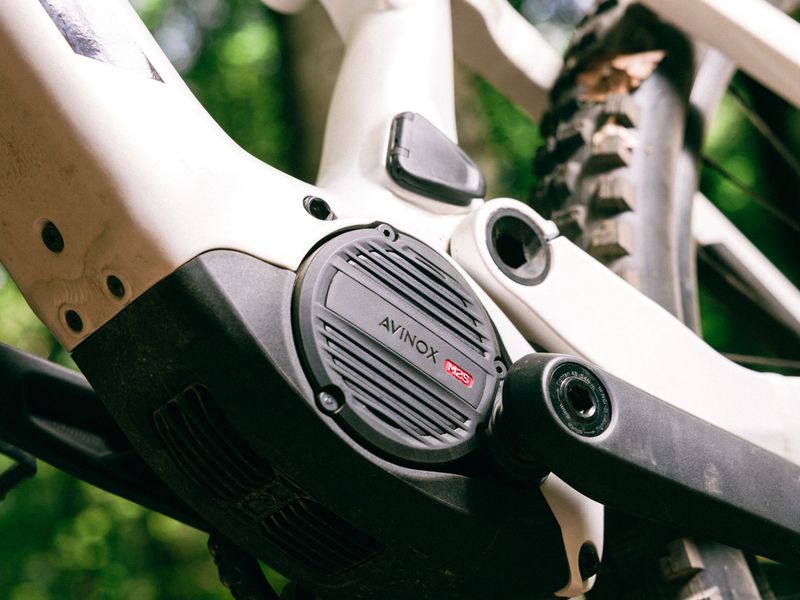

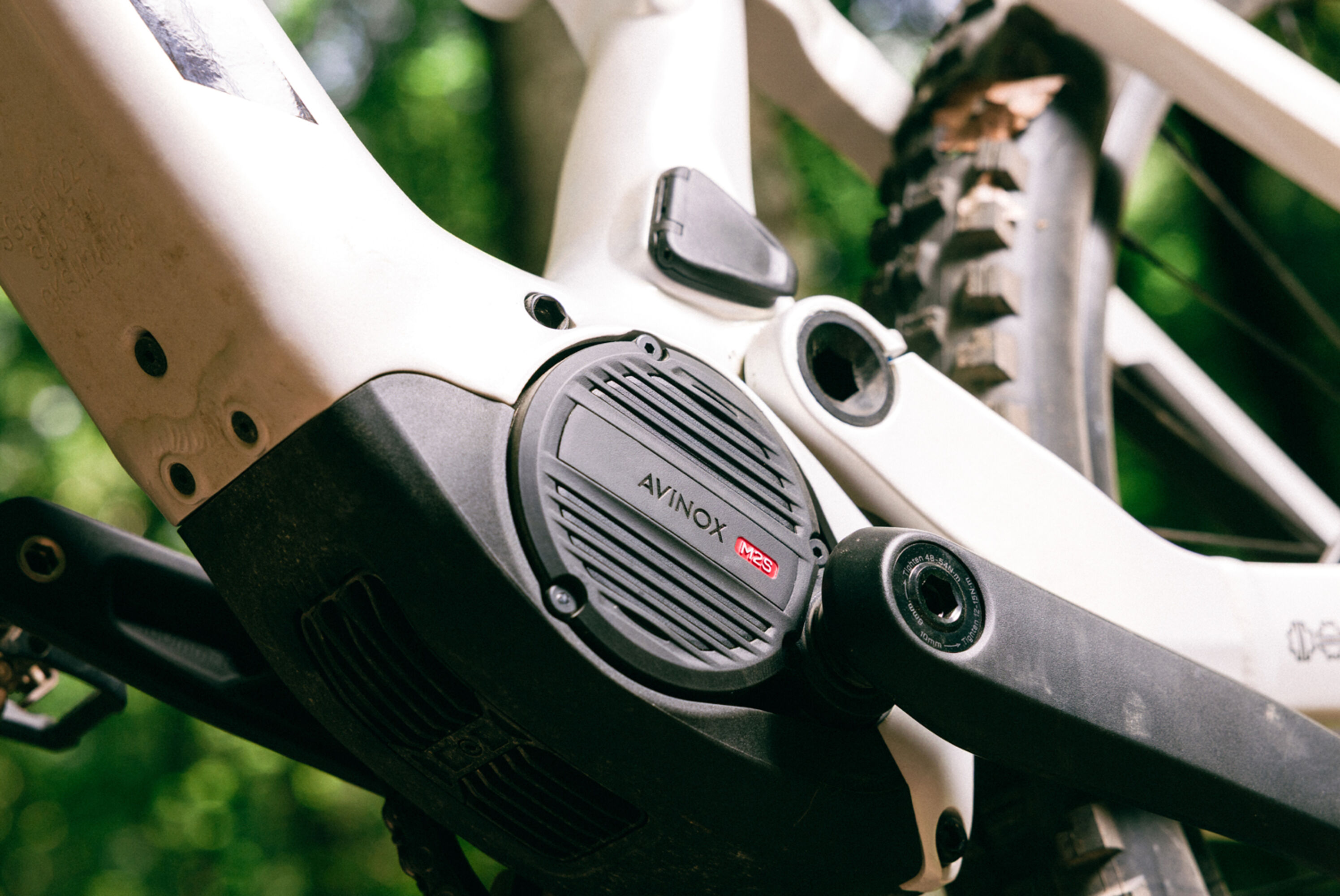

- DJI Avinox M2S: 150 Nm, 1300 W peak
- 800 Wh battery
- 140/150 mm rear, 29" wheels

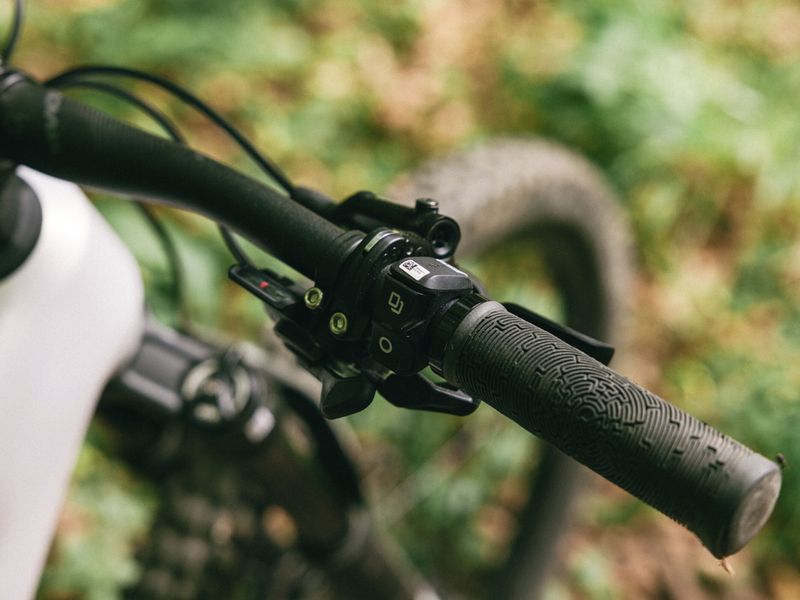

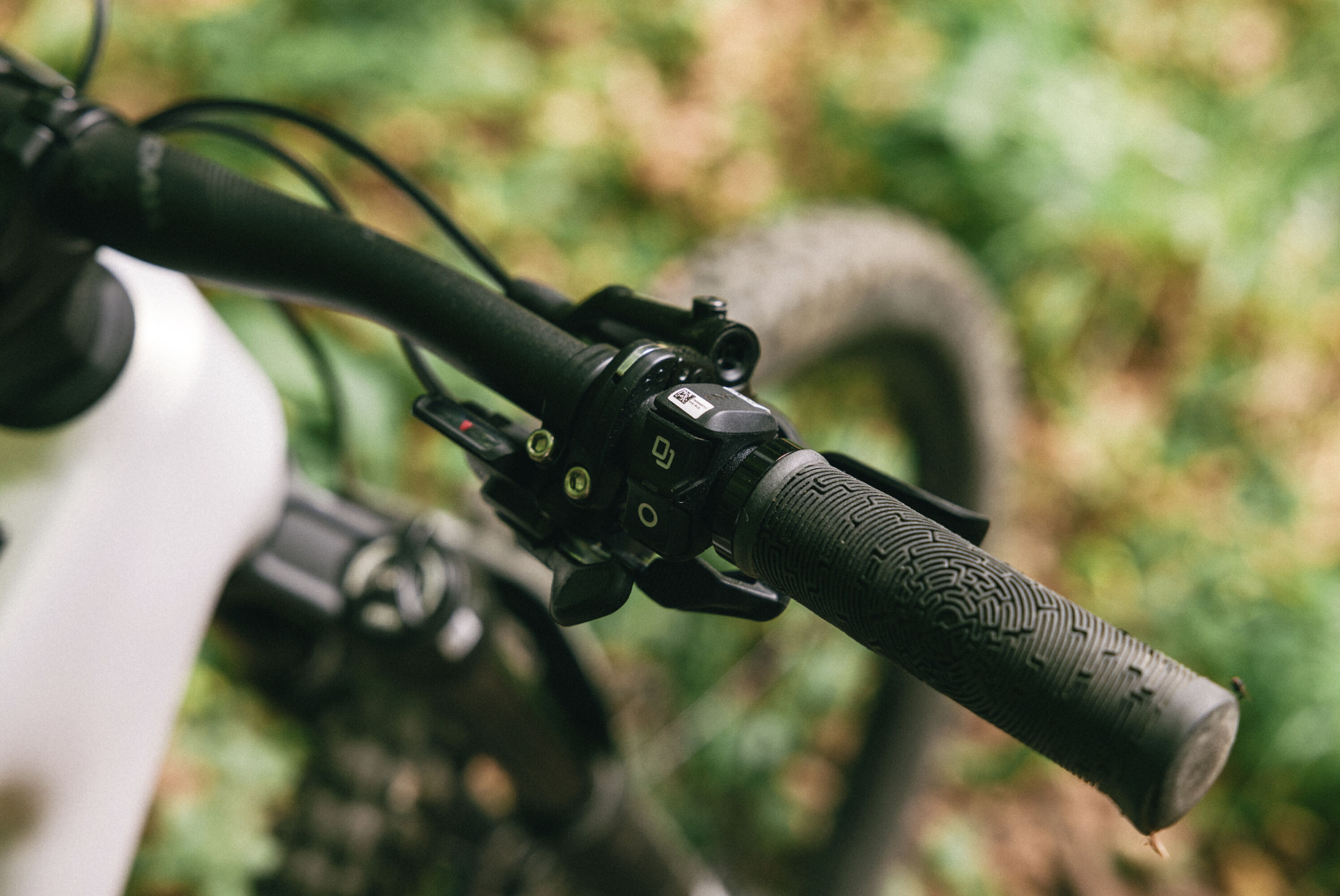

- Integrated OLED display, wireless remotes

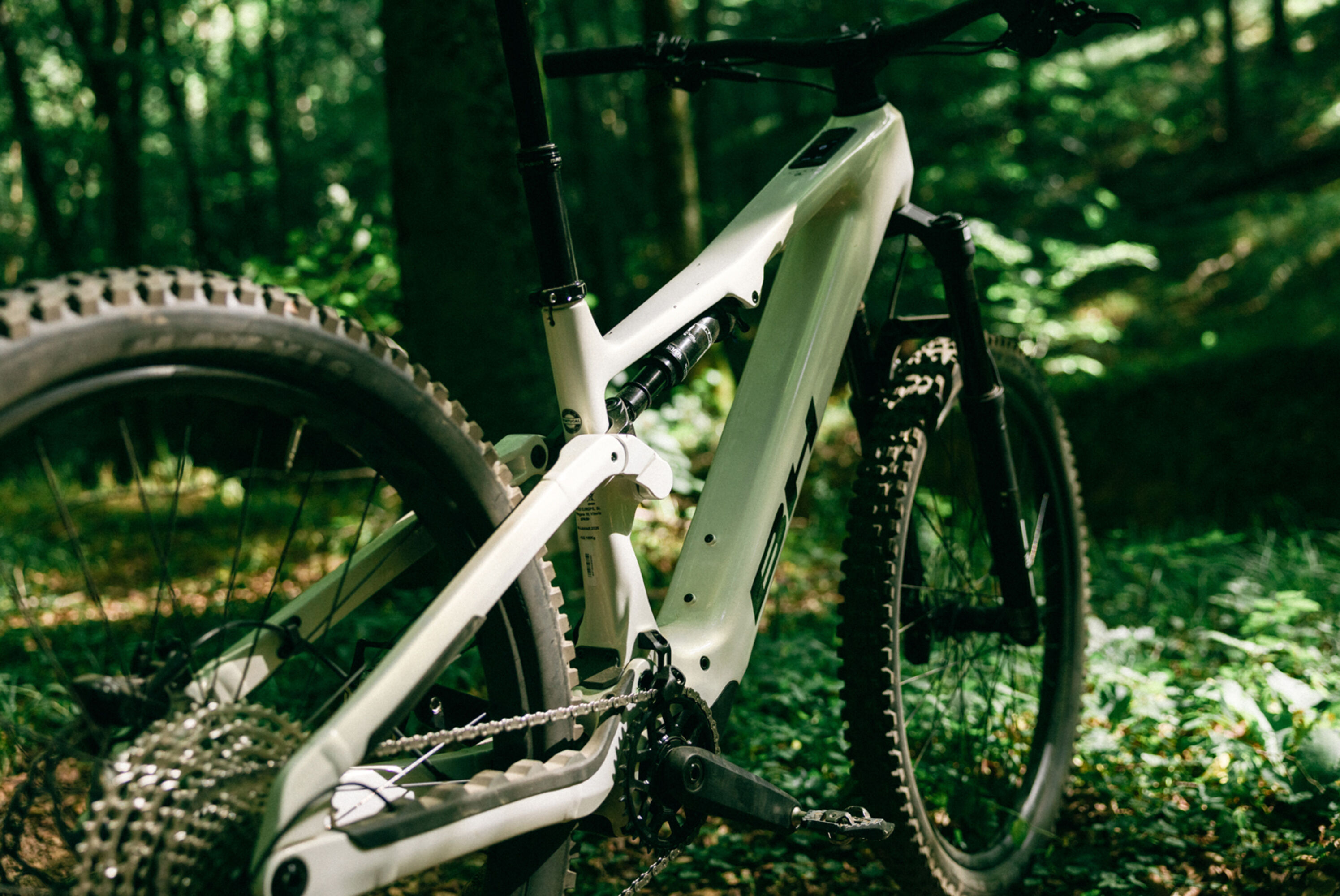

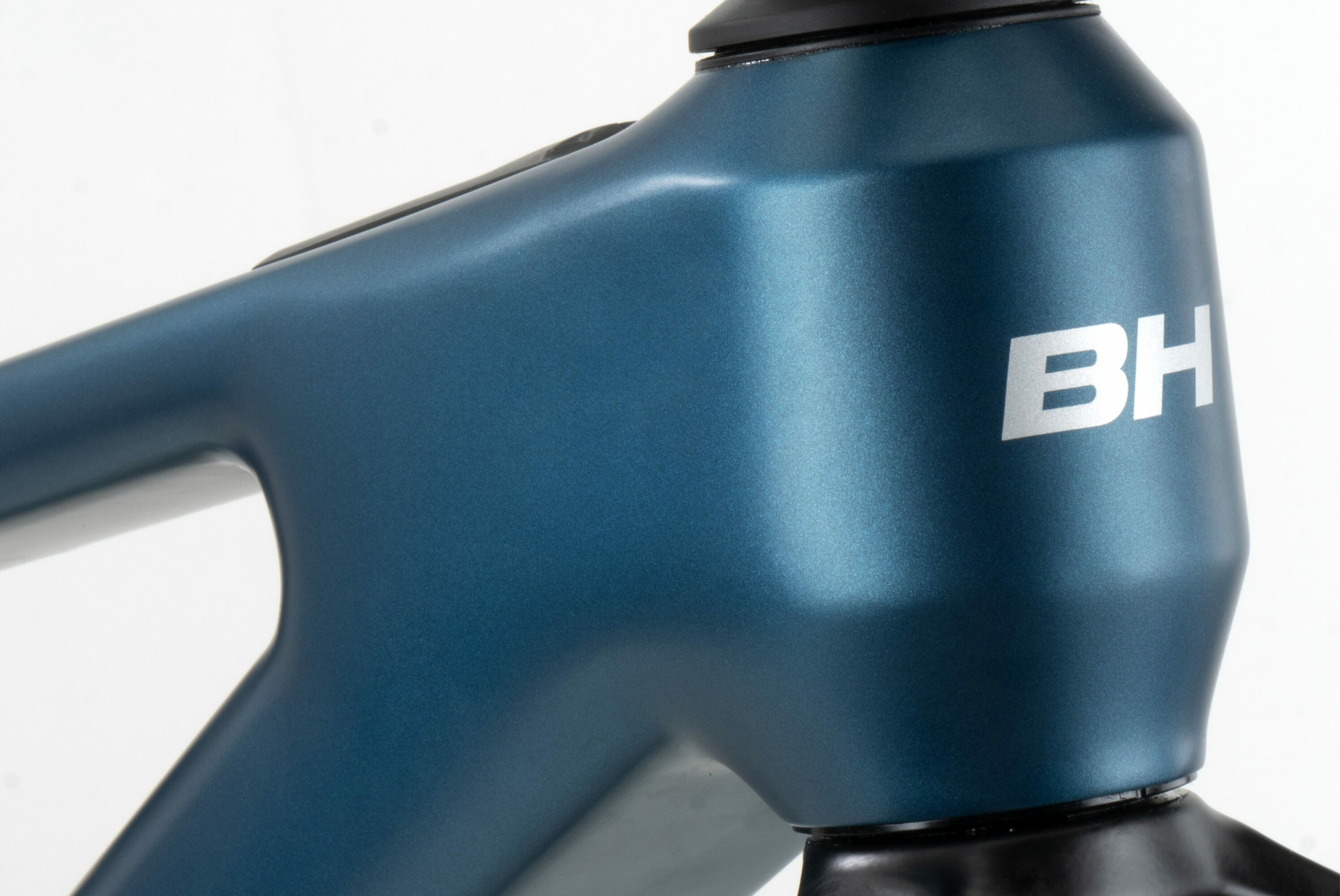

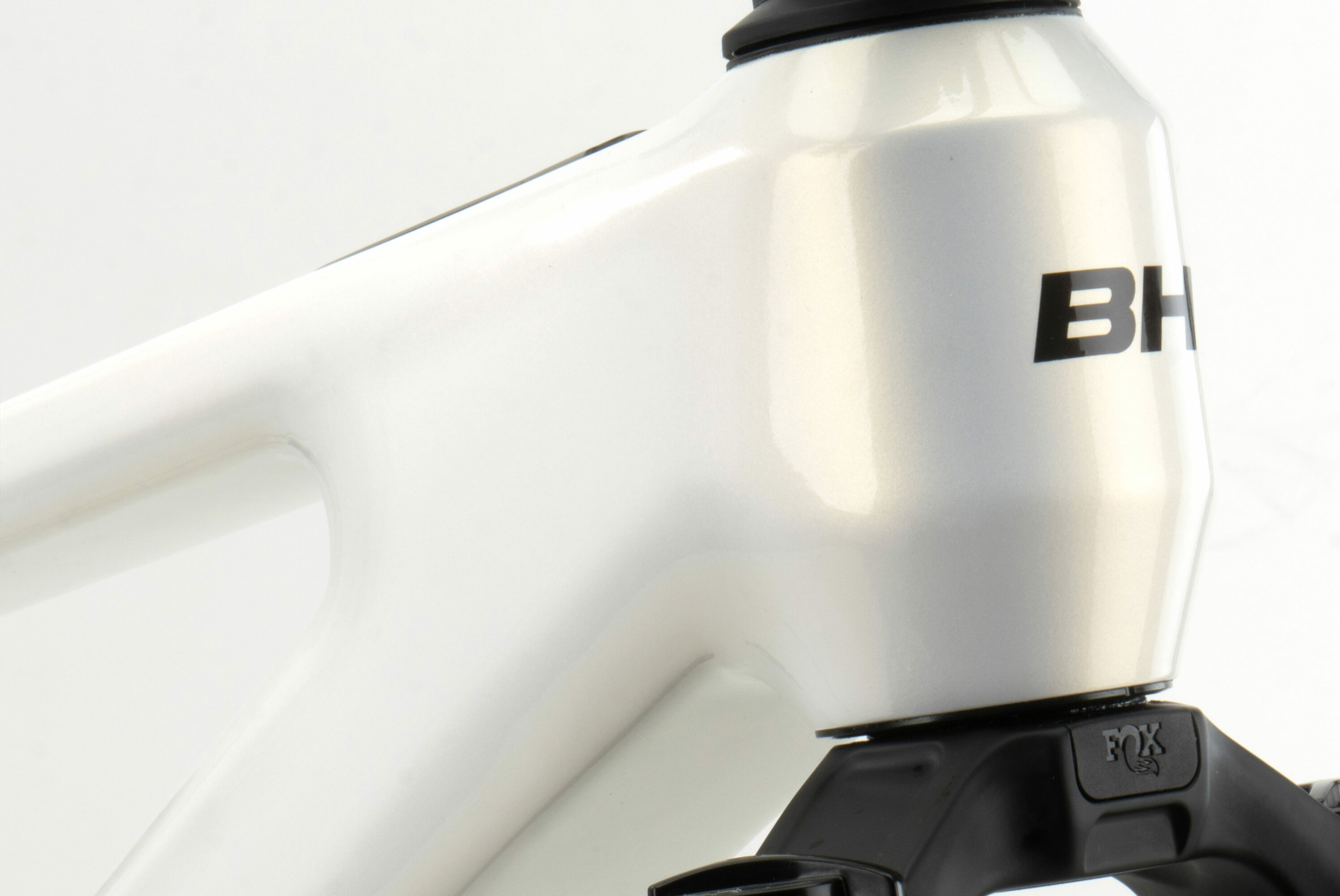

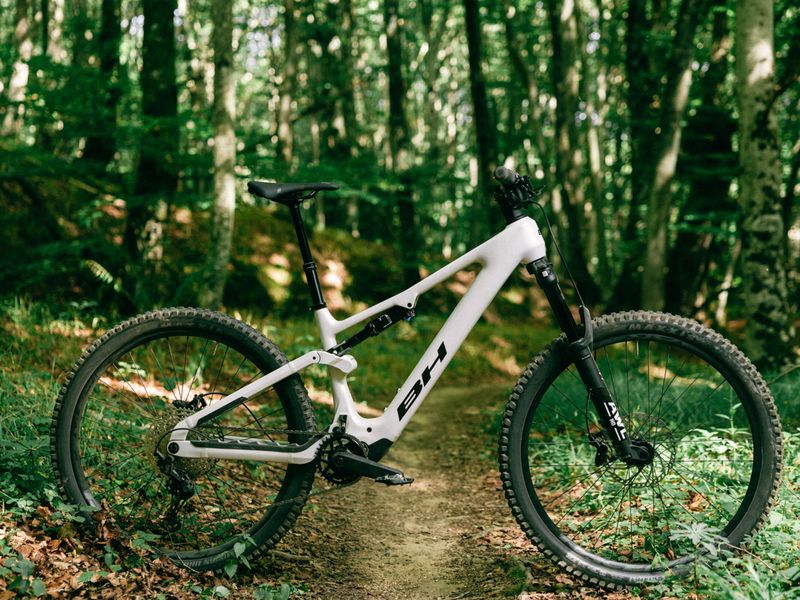

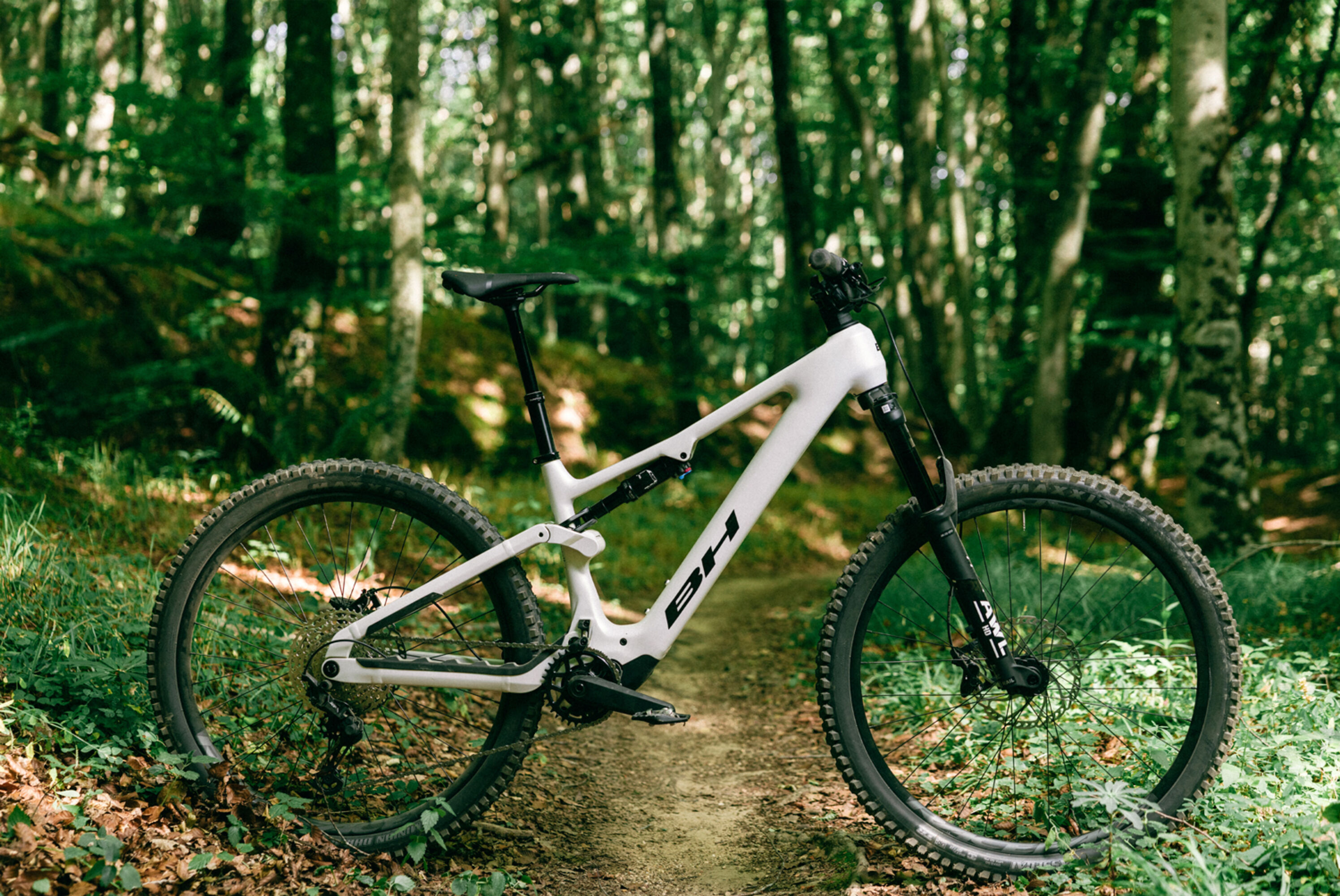

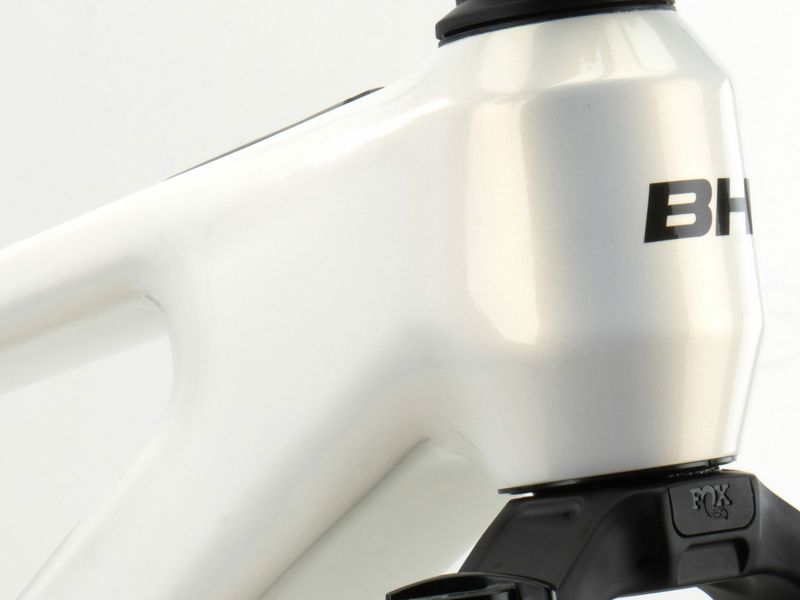

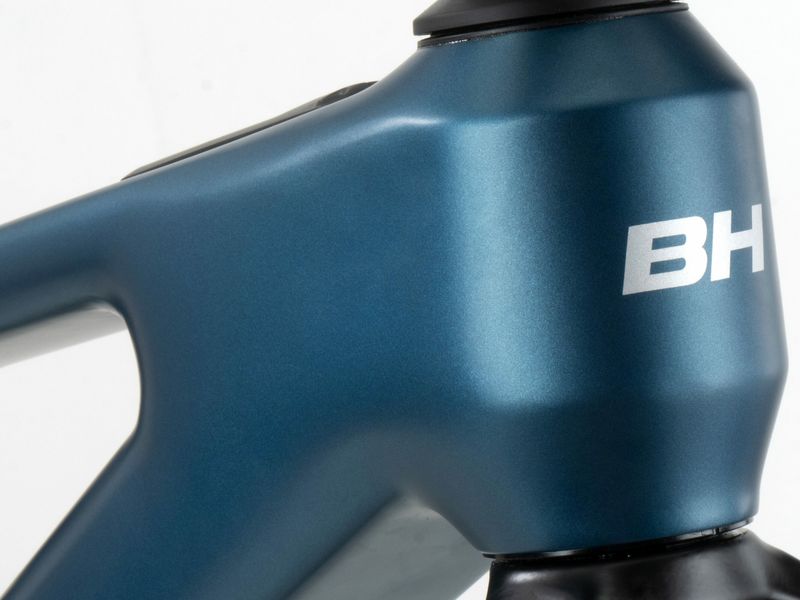

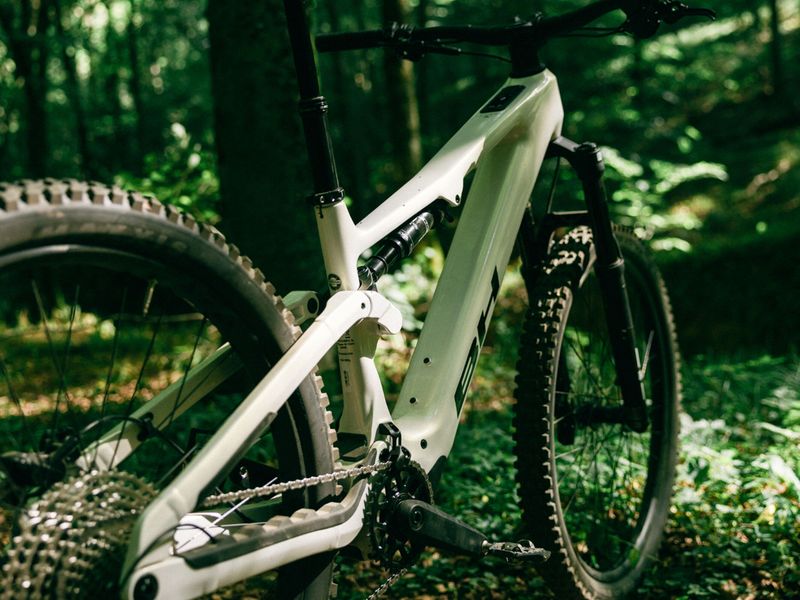

Gallery
Photos: BH Bikes
Full specifications
Frame & suspension
- Frame
- iLynx+DL, 150 mm Full Suspension 29", Alloy, ICR
- Rear shock
- FOX FLOAT Rhythm
- Fork
- FOX 36 AWL 150mm 15QR
E-system
- Battery system
- Non Removable
- Battery
- 800Wh
- Motor
- Avinox M2S
- Display
- Avinox DCP100 +Wireles Rem
Drivetrain
- Shifters
- Shimano Deore

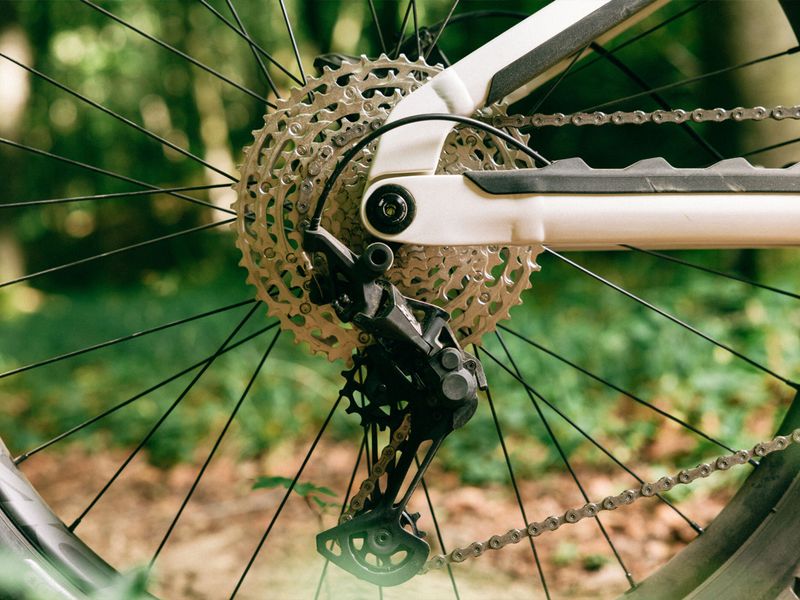

- Rear derailleur

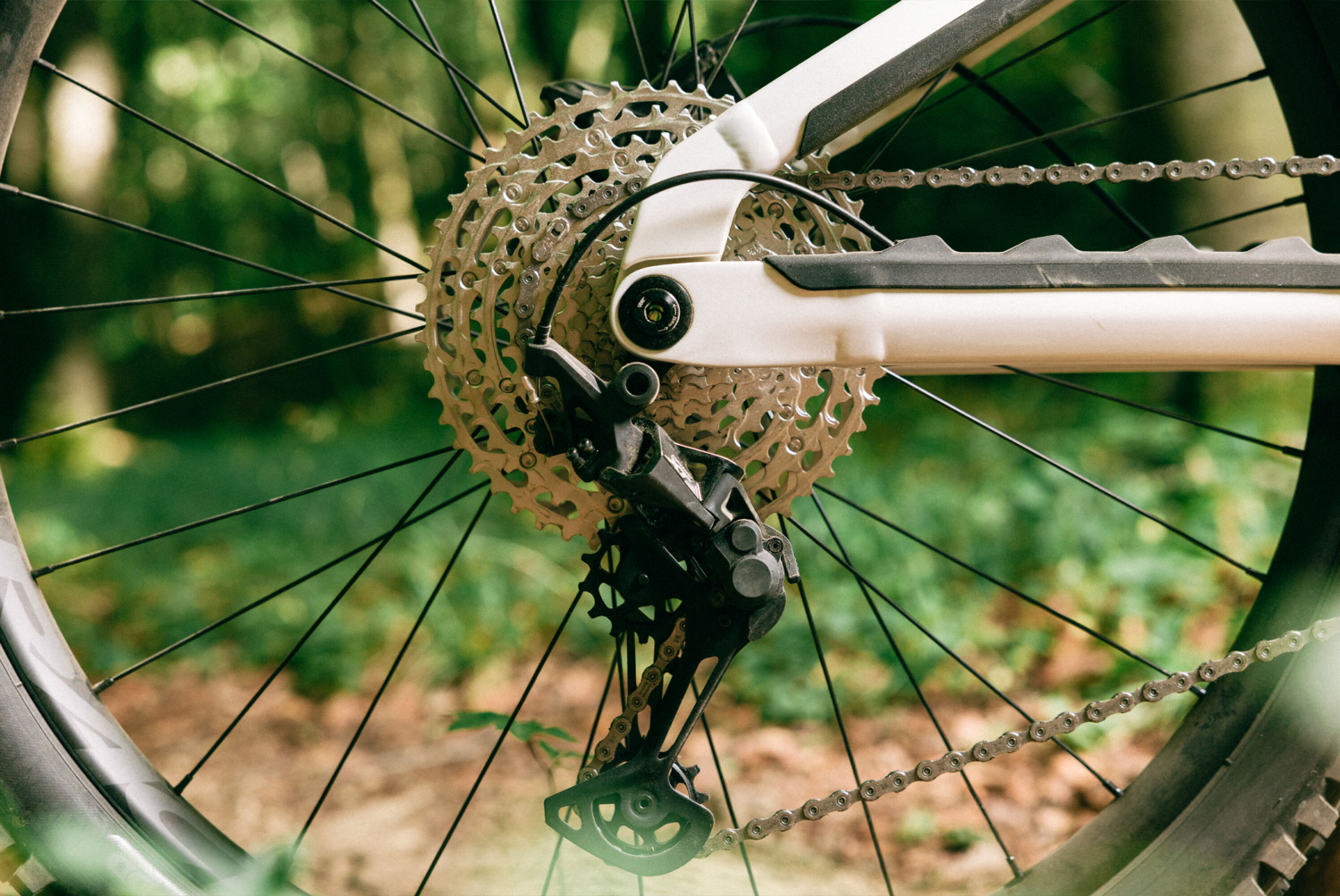

- Shimano XT 12sp
- Crankset
- EThirteen 34T 160mm
- Cassette
- Shimano CSM6100 12sp (1051T)
- Chain
- Shimano CNM6100
Brakes
- Front brake
- Shimano MT520 4 Piston, 203mm
- Rear brake
- Shimano MT520 4 Piston, 203mm
Wheels & tyres
- Wheelset
- Race Face Ar 30 TR
- Tyres
- Maxxis Minion TPI120 Terra EXO TR 29"X2,5/2,4
- Hubs
- BH
- Spokes
- Stainless Steel
Cockpit
- Saddle
- Prologo Proxim W350 Stn
- Seat clamp
- Alloy
- Seatpost
- XFusion Manic TA 31,6
- Handlebar
- Race Face Aeffect Riser 35, 780mm
- Stem
- Satori URSA 35
- Headset
- Acros AIX287 ICR BL.
- Grips
- BH Ergonomic
Other
- Chainstay protector
- Double Integrated
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
iLYNX+ DL Trail geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| H1Seat tube length | 400 mm | 420 mm | 440 mm | 480 mm |
| H2Head tube length | 110 mm | 120 mm | 130 mm | 140 mm |
| H3Fork length | 576 mm | 576 mm | 576 mm | 576 mm |
| H4Top tube length | 577 mm | 598 mm | 627 mm | 654 mm |
| H5Front centre | 780 mm | 802 mm | 834 mm | 863 mm |
| H6Chainstay length | 450 mm | 450 mm | 450 mm | 450 mm |
| H7Wheelbase | 1226 mm | 1248 mm | 1279 mm | 1308 mm |
| H8BB drop | 29 mm | 29 mm | 29 mm | 29 mm |
| H9Bb Height | 351 mm | 351 mm | 351 mm | 351 mm |
| A1Seat tube angle | 77° | 77° | 77° | 77° |
| A2Head tube angle | 65° | 65° | 65° | 65° |
| Standover | 811 mm | 809 mm | 809 mm | 809 mm |
| Reach | 448 mm | 468 mm | 493 mm | 518 mm |
| Stack | 631 mm | 635 mm | 649 mm | 658 mm |
Source: BH.
iLYNX+ DL Trail: builds compared
iLYNX+ DL Trail range →| iLYNX+ DL Trail 7.9 | iLYNX+ DL Trail 8.0 | iLYNX+ DL Trail 8.1 | iLYNX+ DL Trail Carbon 8.6 | iLYNX+ DL Trail Carbon 8.7 | iLYNX+ DL Trail Carbon 8.8 | |
|---|---|---|---|---|---|---|
| Price | €3,899.90 | €4,599.90 | €4,999.90 | €5,499.90 | €6,999.90 | €7,999.90 |
| Frame | Alloy | Alloy | Alloy | Carbon main frame, alloy rear | Carbon | Carbon |
| Fork | SR Suntour XCR34 Air 140mm 15QR | Rock Shock Recon RL Air 150mm | FOX 36 AWL 150mm 15QR | FOX 36 AWL 150mm 15QR | FOX 36 FLOAT Performance 150mm 15QR | FOX 36 FLOAT Factory 150mm 15QR |
| Shock | Rock Shox Deluxe Debonair | Rock Shox Deluxe Debonair | FOX FLOAT Rhythm | FOX FLOAT Rhythm | FOX FLOAT X Performance | FOX FLOAT X Performance |
| Derailleur | Shimano Deore 10sp | Shimano Deore 12sp | Shimano XT 12sp | Shimano XT 12sp | Shimano XT DI2 12sp | Shimano XT DI2 12sp |
| Brakes | Shimano MT420 4 Piston 203mm | Shimano MT420 4 Piston | Shimano MT520 4 Piston | Shimano MT520 4 Piston | Shimano XT 4 Piston | Shimano XT 4 Piston |
| Display | Avinox DCP100 +Wireles Rem | Avinox DCP100 +Wireles Rem | Avinox DCP100 +Wireles Rem | Avinox DCP100 +Wireles Rem | Avinox DCP100 +Wireles Rem | Avinox DP100 +Wireles Rem |
iLYNX+ DL Trail 8.1: FAQ
How much does the BH iLYNX+ DL Trail 8.1 cost?
€4,999.90 (RRP Spain, VAT incl.). The iLYNX+ DL Trail range runs from €3,899.90 (iLYNX+ DL Trail 7.9) to €7,999.90 (iLYNX+ DL Trail Carbon 8.8). Prices vary by country and dealer.
What motor and battery does the BH iLYNX+ DL Trail 8.1 have?
DJI Avinox M2S (150 Nm; 1300 W peak). 800 Wh battery — integrated, non-removable.
How much suspension travel does the BH iLYNX+ DL Trail 8.1 have?
150 mm at the fork and 150 mm at the rear, on 29" wheels.
What sizes does the BH iLYNX+ DL Trail 8.1 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the iLYNX+ DL Trail 8.1 and the iLYNX+ DL Trail Carbon 8.6?
They share the iLYNX+ DL Trail frame platform and motor; the differences are in the parts — frame: alloy vs carbon main frame, alloy rear; price: €4,999.90 vs €5,499.90.
