CubeStereo Hybrid ONE44 HPC Race 800
- Motor
- Bosch Performance Line CXUp to 120 Nm
- Battery
- 800 WhPowerTube 800
- Travel F / R
- 150 / 140 mm
- Wheels
- 29" (S: 27.5")
- Frame
- Carbon main frame, alloy rear
- Weight
- 24.5 kgManufacturer figure
Overview

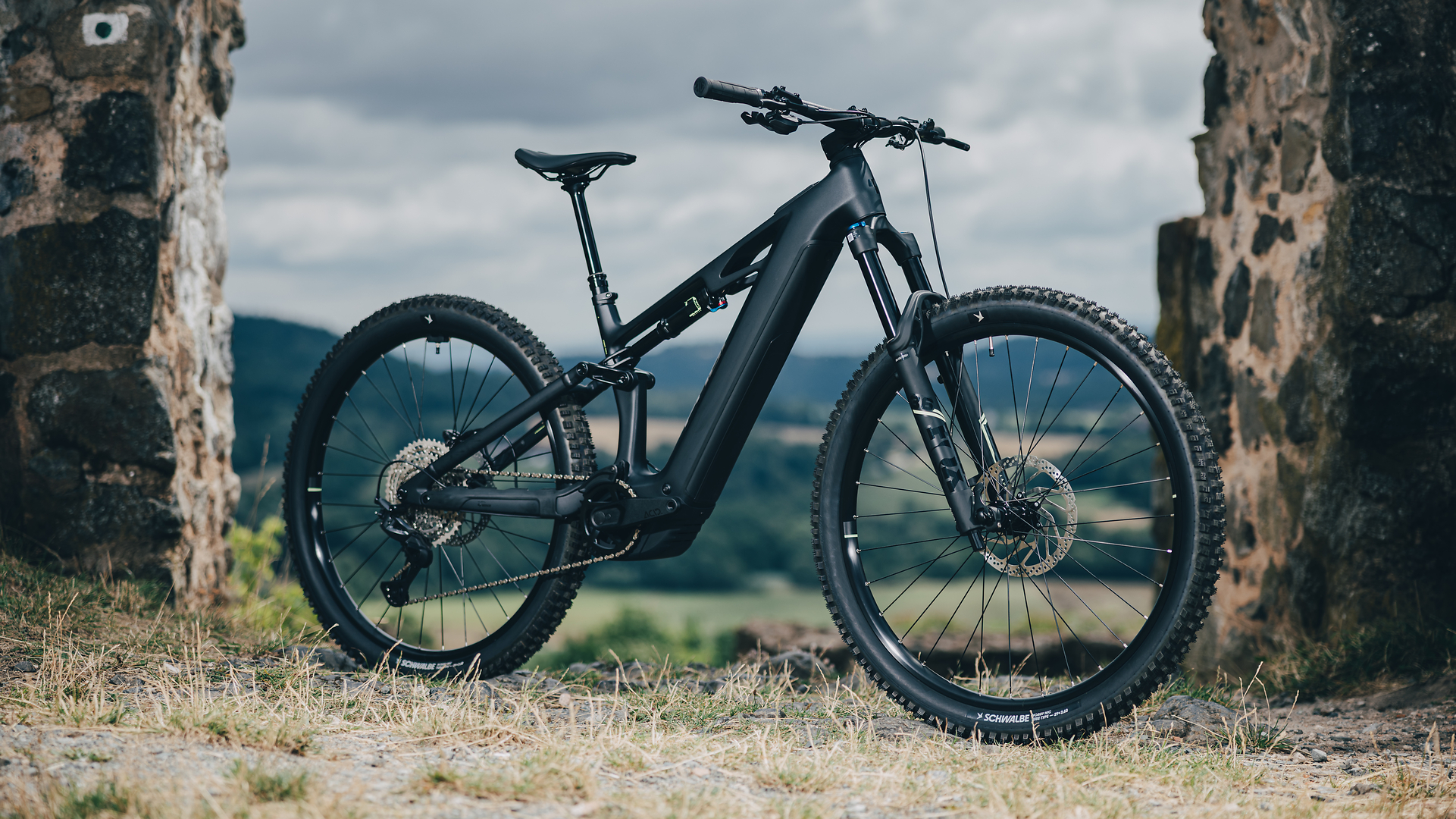

The Cube Stereo Hybrid ONE44 HPC Race 800 (€4,399) is a mid-range build of the Stereo Hybrid ONE44 HPC: Bosch Performance Line CX with 800 Wh, Fox 36 Float Rhythm GRIP fork, Fox Float Rhythm RC shock, Shimano XT RD-M8200-SGS and Shimano BR-MT420 brakes. Claimed weight is 24.5 kg.
The Stereo Hybrid ONE44 HPC is Cube's best-selling style of full-power trail e-MTB in carbon: a C:62 carbon main frame with an alloy rear triangle, 140 mm of rear travel and a 150 mm fork, 29-inch wheels (27.5-inch on size S) and adjustable head-angle cups.
Most builds use the Bosch Performance Line CX with a PowerTube 800; the EXC and Super TM switch to DJI's Avinox M2S motor (130 Nm, 150 Nm in boost) with an 800 Wh removable battery.
- Carbon main frame, 140 mm rear / 150 mm fork
- Bosch CX or DJI Avinox M2S (130 Nm)
- 800 Wh battery
- Head-angle adjustment cups

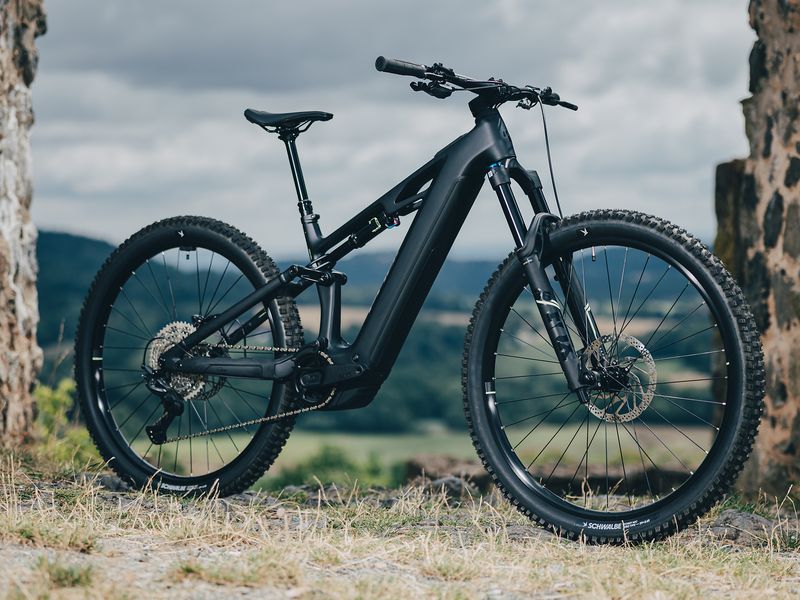

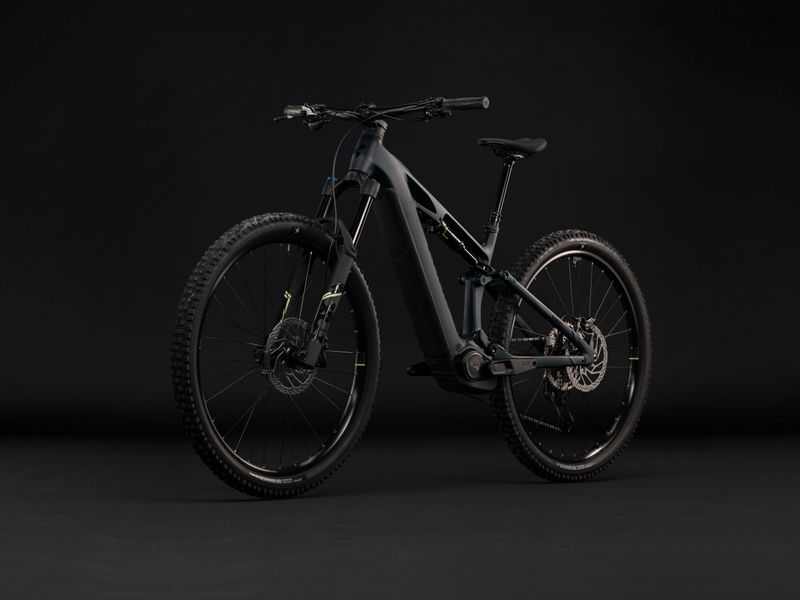

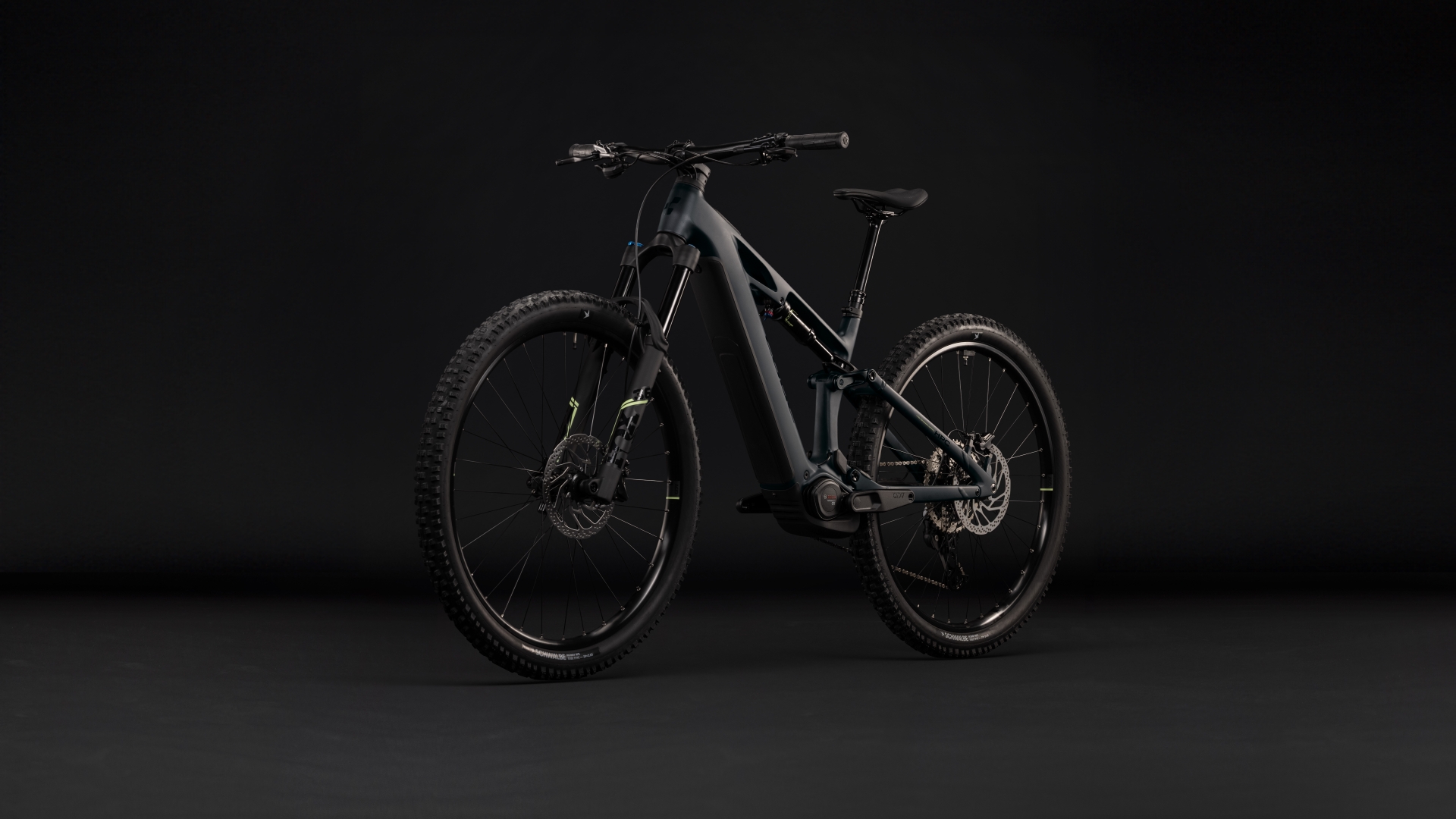

Gallery
Photos: Cube
Full specifications
Frame & suspension
- Frame
- C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
- Sizes
- Size Split: 27.5: S // 29: M, L, XL

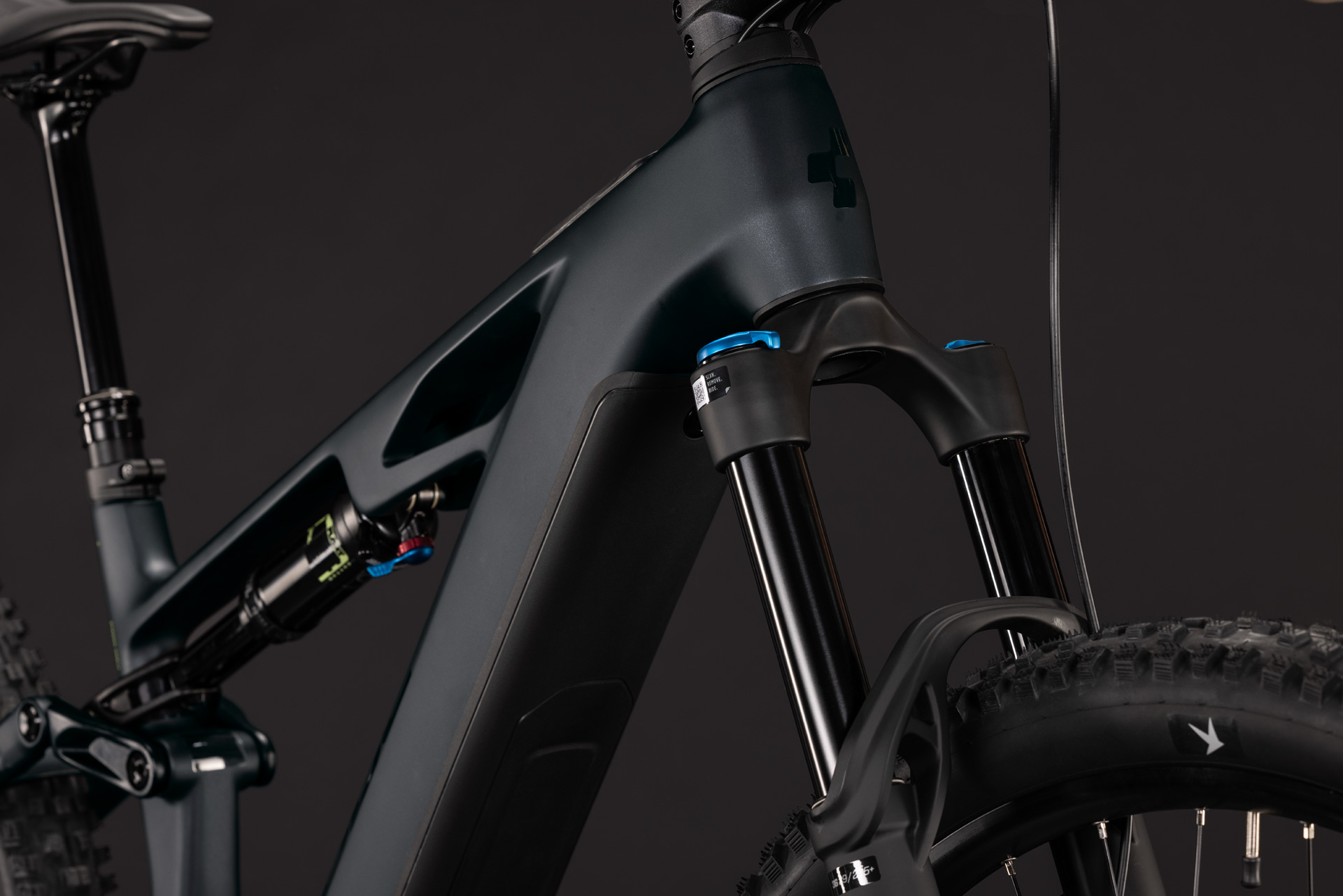

- Fork

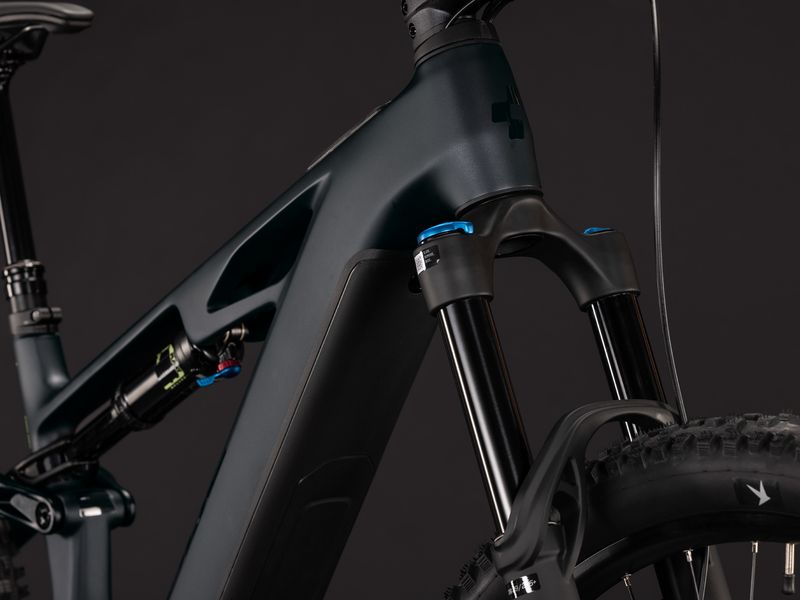

- Fox 36 Float Rhythm GRIP, Tapered, 15x110mm, E-Bike Optimized, 150mm

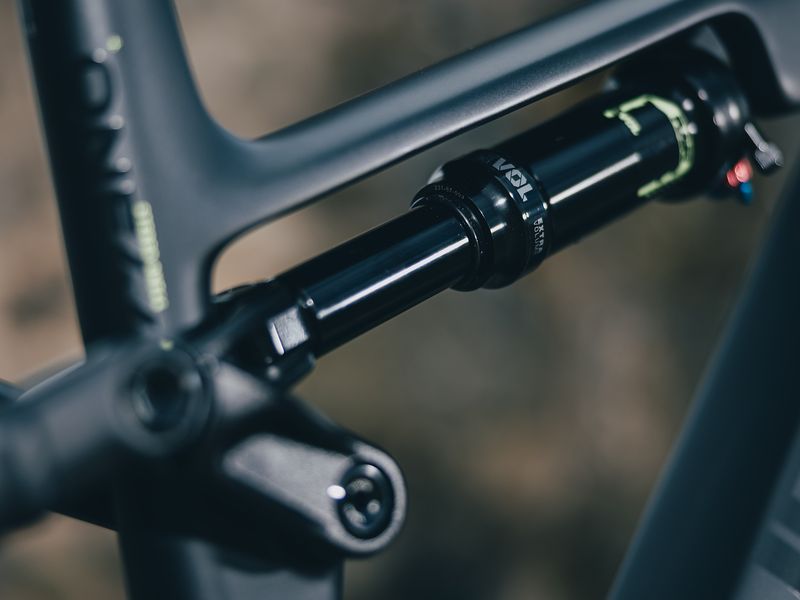

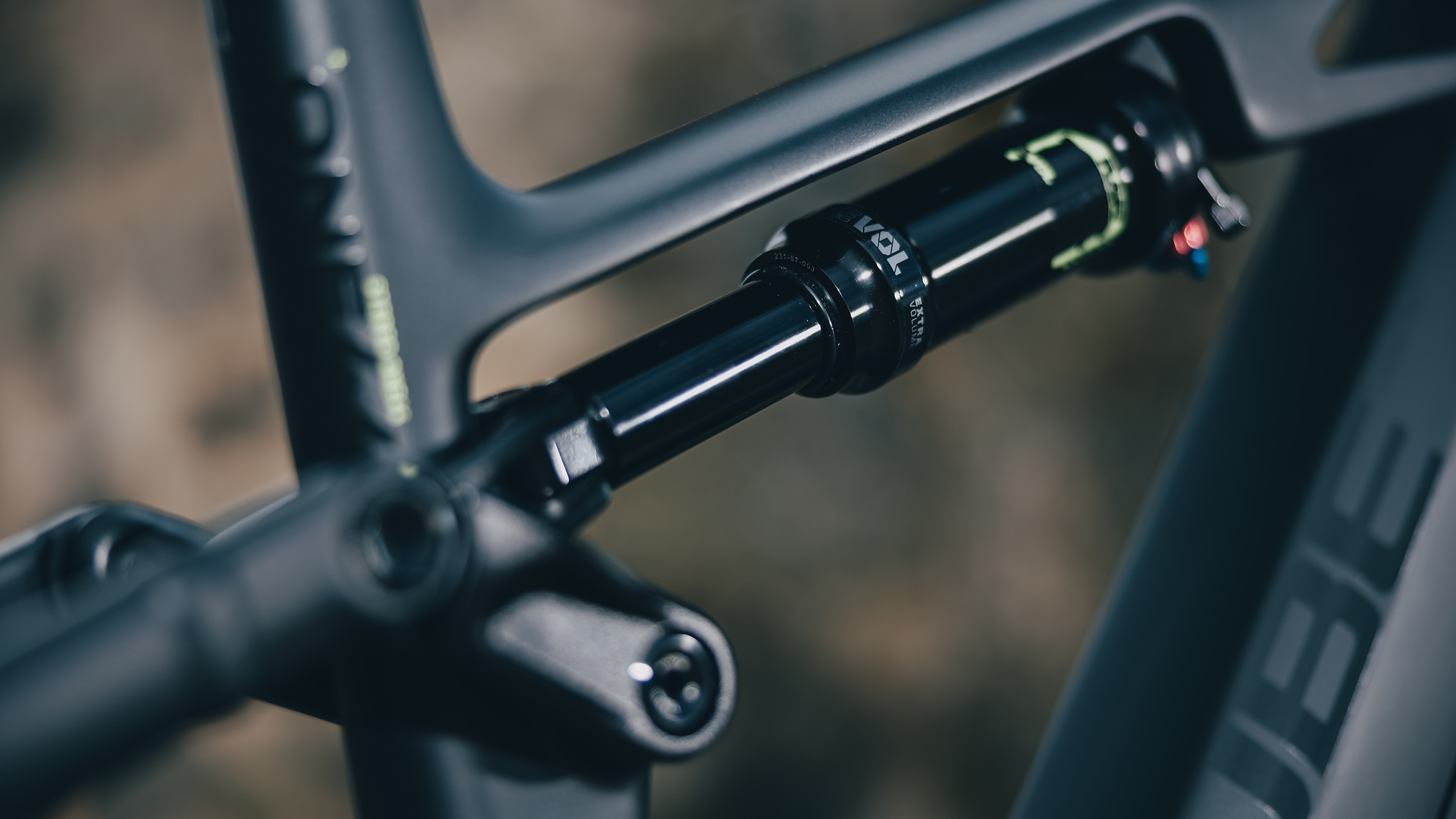

- Shock
- Fox Float Rhythm RC, 230x60mm (27.5: 210x55mm), Adjustable LSR w/ 2-Pos. Lever, Trunnion Mount
- Shock hardware
- Front: 30x8mm, Rear: DU-Bushing 12.7mm
E-system
- Motor
- Bosch Drive Unit Performance Line CX max. 120Nm (BDU38)
- Remote
- Bosch Mini Remote
- Battery
- Bosch PowerTube 800

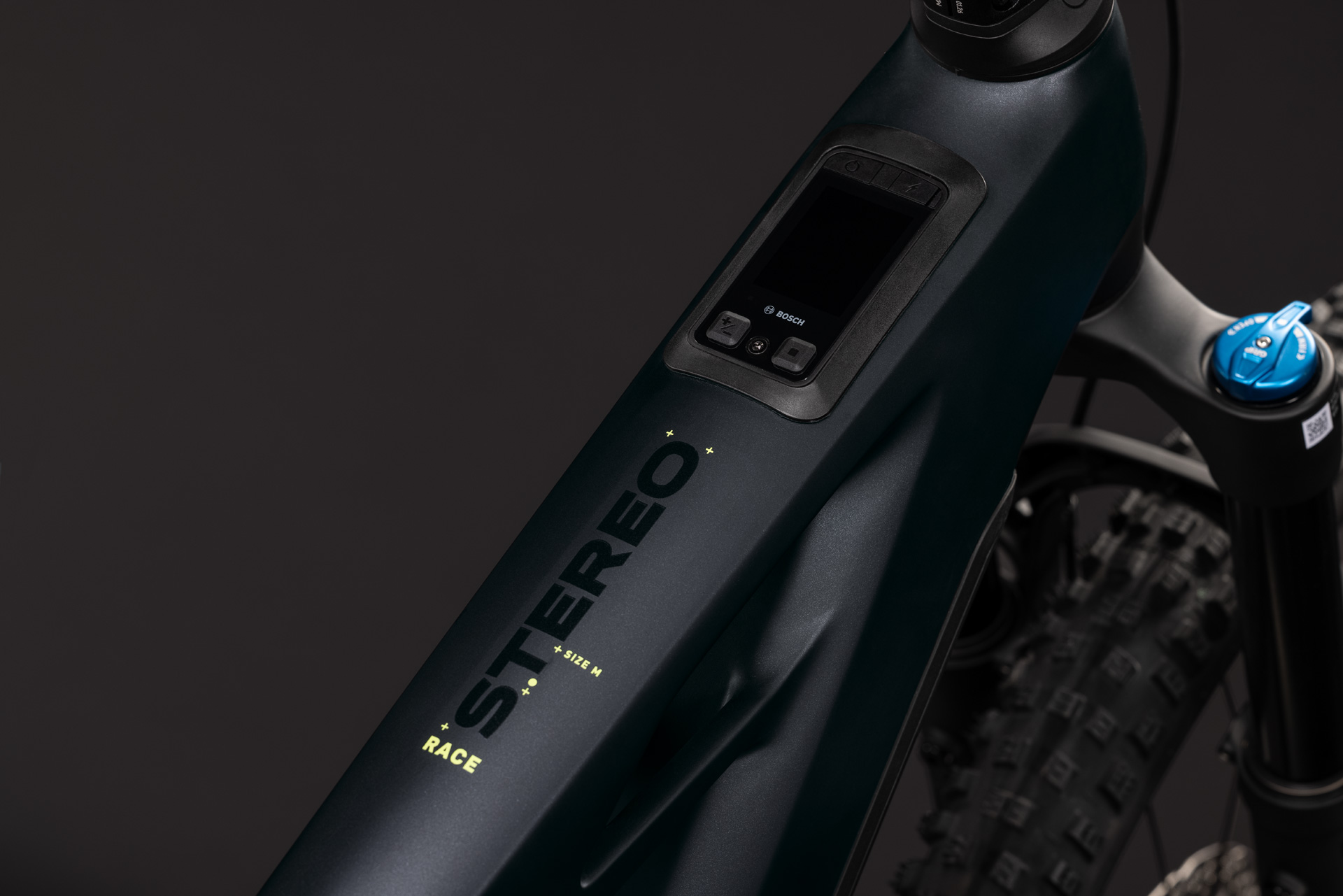

- Display

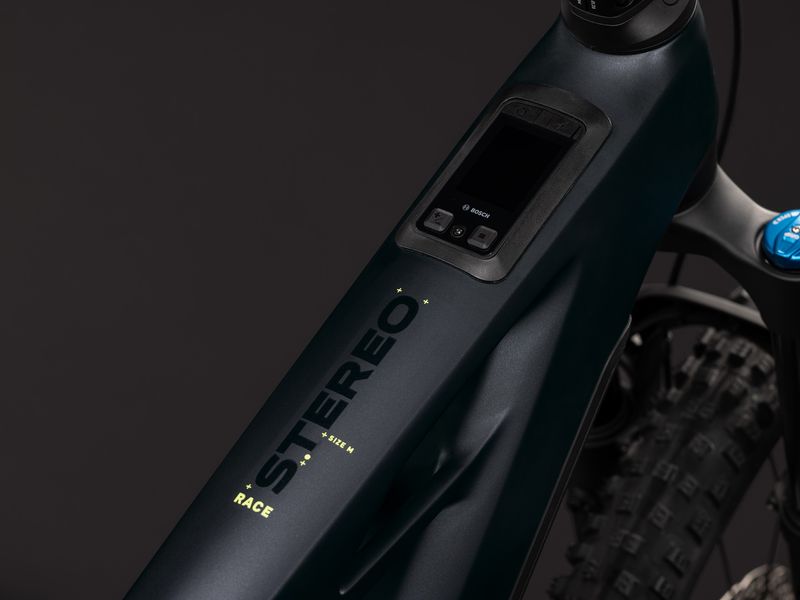

- Bosch Kiox 400C
- Charger
- Bosch 2A
Drivetrain
- Brakes
- Shimano BR-MT420, Hydr. Disc Brake (203/203)
- Rear derailleur
- Shimano XT RD-M8200-SGS, ShadowPlus, 12-Speed
- Shifter
- Shimano Deore SL-M6210-IR, Direct Attach, Single Click

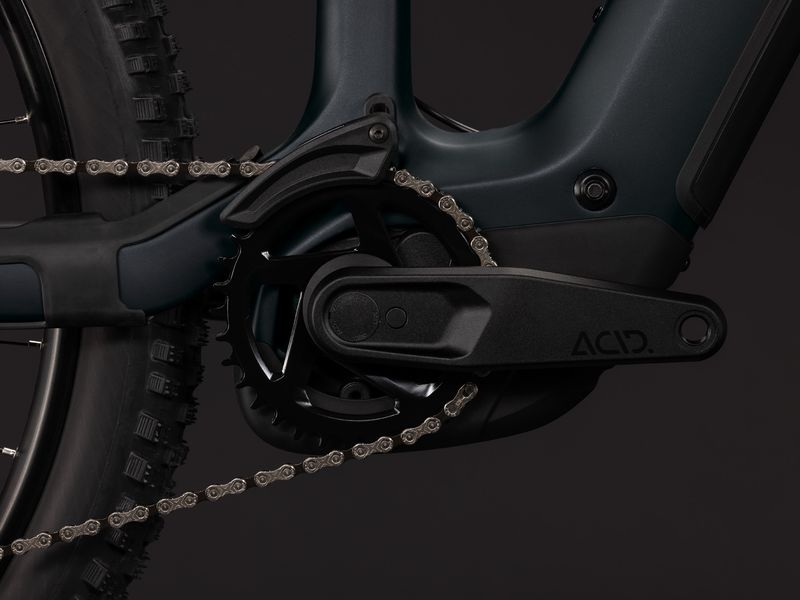

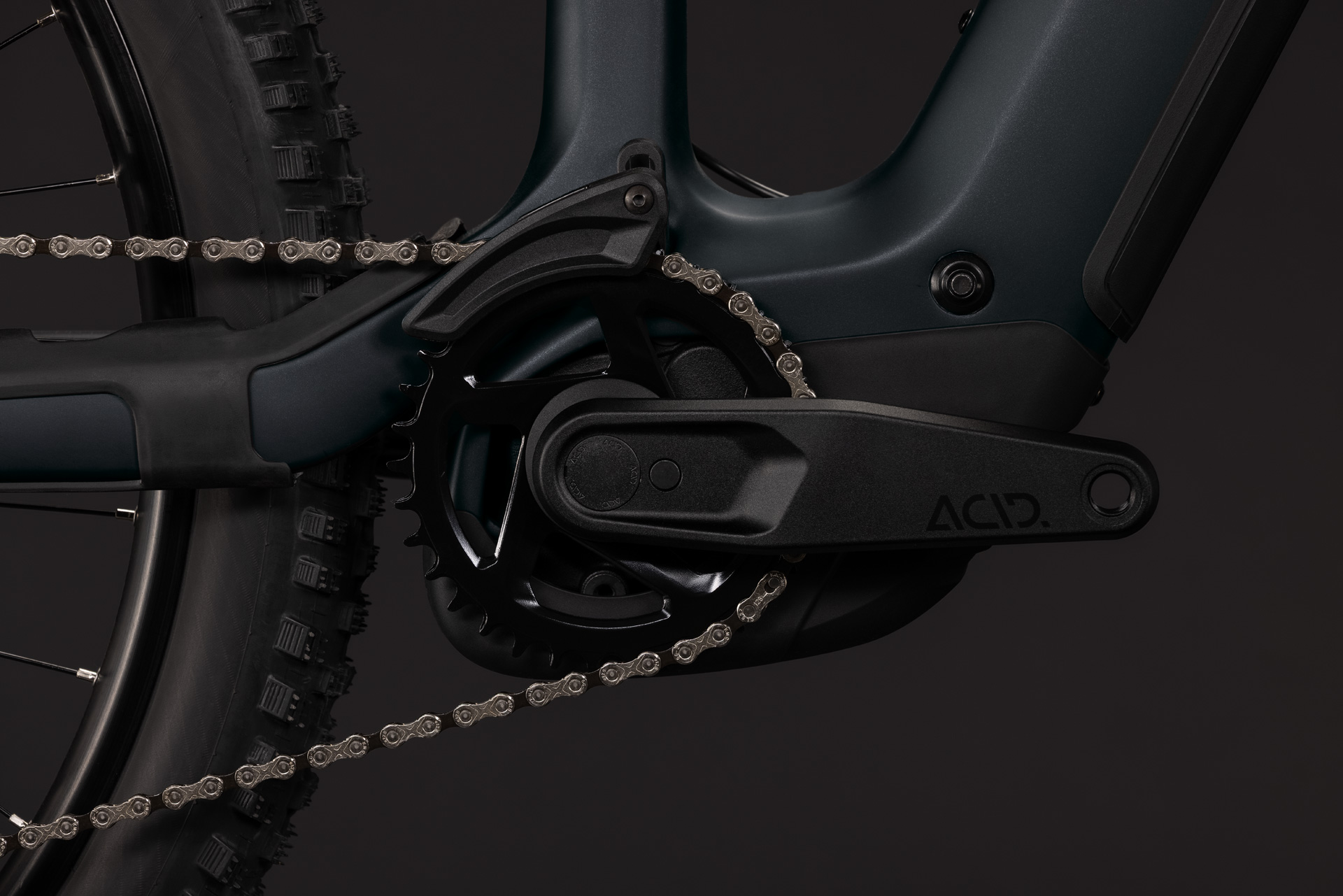

- Crankset
- ACID MTB Hybrid Pro, 27.5: 36T // 29: 34T
- Cassette
- Shimano Deore CS-M6200, 10-51T
- Chain
- KMC e12
- Chain guide
- Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Wheels & tyres
- Wheelset
- ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
- Tyres
- Schwalbe Nobby Nic, Performance, 2.6
Cockpit
- Headset
- Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
- Stem
- CUBE Performance Stem E-MTB 35, FPI-Link
- Handlebar
- CUBE Rise Trail Bar 35 VariGrip System
- Grips
- ACID Endure VariGrip System
- Saddle
- ACID Venec EMTB Trail 140
- Seatpost
- CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
- Pedals
- ACID PP MTB
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Stereo Hybrid ONE44 HPC geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 370 mm | 405 mm | 420 mm | 480 mm |
| Top tube (horizontal) | 566 / 568 mm | 596 / 598 mm | 626 / 627 mm | 669 / 671 mm |
| Seat angle | 76.2° / 76° | 76.2° / 76° | 76.2° / 76° | 76.2° / 76° |
| Head angle | 64.8° / 64.4° | 64.8° / 65.4° | 64.8° / 65.4° | 64.8° / 65.4° |
| Chainstay | 450 mm | 457 mm | 457 mm | 457 mm |
| Head tube | 128 mm | 106 mm | 120 mm | 148 mm |
| Wheelbase | 1204 / 1196 mm | 1233 / 1226 mm | 1264 / 1256 mm | 1311 / 1303 mm |
| BB offset (to hub axle) | 12 / 11 mm | 30 mm | 30 mm | 30 mm |
| Standover (-80 mm) | 733 mm | 748 mm | 748 mm | 748 mm |
| Reach | 427 / 425 mm | 452 / 450 mm | 477 / 475 mm | 512 / 510 mm |
| Stack | 604 / 606 mm | 620 / 622 mm | 632 / 634 mm | 658 / 660 mm |
Where two values are given: Slack/Moderate geometry setting. Source: Cube.
Stereo Hybrid ONE44 HPC: builds compared
Stereo Hybrid ONE44 HPC range →| Stereo Hybrid ONE44 HPC Pro 800 | Stereo Hybrid ONE44 HPC Race 800 | Stereo Hybrid ONE44 HPC EXC 800 | Stereo Hybrid ONE44 HPC SLX 800 | Stereo Hybrid ONE44 HPC SLX Evo 800 | Stereo Hybrid ONE44 HPC TM 800 | Stereo Hybrid ONE44 HPC Super TM 800 | Stereo Hybrid ONE44 HPC AT 800 | Stereo Hybrid ONE44 HPC SLT 800 | |
|---|---|---|---|---|---|---|---|---|---|
| Price | €4,099 | €4,399 | €4,799 | €4,999 | €5,699 | €5,999 | €6,999 | €6,999 | €8,499 |
| Frame | Carbon main frame, alloy rear | Carbon main frame, alloy rear | Carbon main frame, alloy rear | Carbon main frame, alloy rear | Carbon main frame, alloy rear | Carbon main frame, alloy rear | Carbon main frame, alloy rear | Carbon main frame, alloy rear | Carbon main frame, alloy rear |
| Fork | RockShox Psylo Silver RC Air, Tapered | Fox 36 Float Rhythm GRIP, Tapered | RockShox Psylo Gold RC Air, Tapered | Fox 36 Float Performance GRIP, Tapered | Fox 36 Float Performance GRIP, Tapered | RockShox Lyrik Select+ Charger 3.2 RC2 Air, Tapered | RockShox Zeb Ultimate Charger 3.2 RC2 Air, Tapered | Fox 36 Float Factory GRIPX, Tapered | Fox 36 Float Factory GRIPX2, Tapered |
| Shock | RockShox Deluxe Select R | Fox Float Rhythm RC | RockShox Deluxe Select+ | Fox Float Performance | Fox Float Performance | RockShox Super Deluxe Select | RockShox Super Deluxe Ultimate | Fox Float X Factory | Fox Float X Factory |
| Derailleur | Shimano XT RD-M8200-SGS | Shimano XT RD-M8200-SGS | Sram Eagle™ 90 Transmission | Shimano XT RD-M8200-SGS | Shimano XT Di2 RD-M8260-SGS | Sram GX Eagle AXS™ Transmission | Sram X0 Eagle AXS™ Transmission | Shimano XTR Di2 RD-M9260 | Sram XX Eagle AXS™ Transmission |
| Brakes | Magura Louise | Shimano BR-MT420 | Sram Maven Base | Shimano XT BR-M8220 | Shimano XT BR-M8220 | Sram Maven Bronze | Sram Maven Ultimate | Shimano XTR BR-M9220 | Magura Race Pro |
| Display | Bosch Kiox 400C | Bosch Kiox 400C | Avinox DP100 Curved | Bosch Kiox 400C | Bosch Kiox 400C | Bosch Kiox 400C | Avinox DP100 Curved | Bosch Kiox 400C | Bosch Kiox 400C |
| Weight | 24.7 kg | 24.5 kg | 24.6 kg | 24.4 kg | 24.7 kg | 24.4 kg | 24.4 kg | 24.6 kg | 23.4 kg |
Stereo Hybrid ONE44 HPC Race 800: FAQ
How much does the Cube Stereo Hybrid ONE44 HPC Race 800 cost?
€4,399 (RRP Germany (UVP), VAT incl.). The Stereo Hybrid ONE44 HPC range runs from €4,099 (Stereo Hybrid ONE44 HPC Pro 800) to €8,499 (Stereo Hybrid ONE44 HPC SLT 800). Prices vary by country and dealer.
How much does the Cube Stereo Hybrid ONE44 HPC Race 800 weigh?
Cube quotes 24.5 kg. The lightest Stereo Hybrid ONE44 HPC build is the Stereo Hybrid ONE44 HPC SLT 800 at 23.4 kg.
What motor and battery does the Cube Stereo Hybrid ONE44 HPC Race 800 have?
Bosch Performance Line CX (Up to 120 Nm). 800 Wh battery — powerTube 800.
How much suspension travel does the Cube Stereo Hybrid ONE44 HPC Race 800 have?
150 mm at the fork and 140 mm at the rear, on 29" (S: 27.5") wheels.
What sizes does the Cube Stereo Hybrid ONE44 HPC Race 800 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Stereo Hybrid ONE44 HPC Race 800 and the Stereo Hybrid ONE44 HPC EXC 800?
They share the Stereo Hybrid ONE44 HPC frame platform; the differences are in the parts — fork: Fox 36 Float Rhythm GRIP vs RockShox Psylo Gold RC Air; derailleur: Shimano XT RD-M8200-SGS vs Sram Eagle™ 90 Transmission; claimed weight: 24.5 kg vs 24.6 kg; price: €4,399 vs €4,799.
