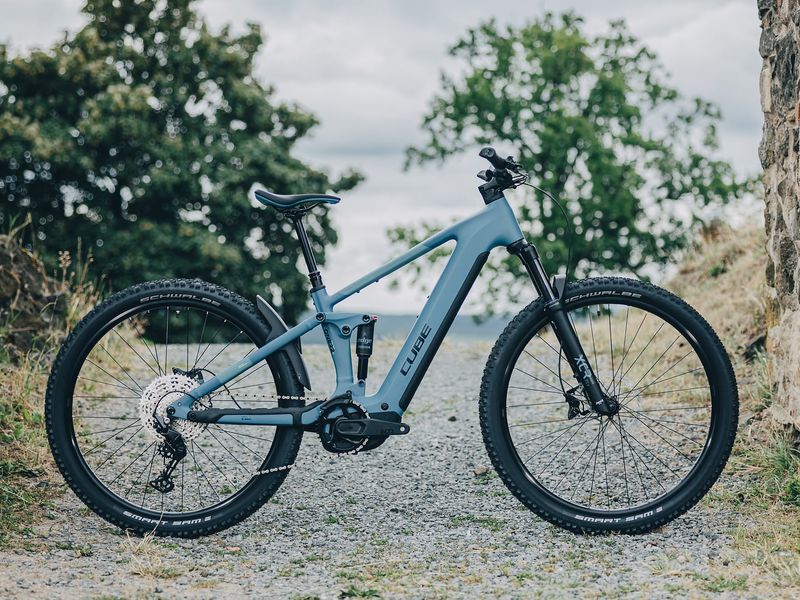

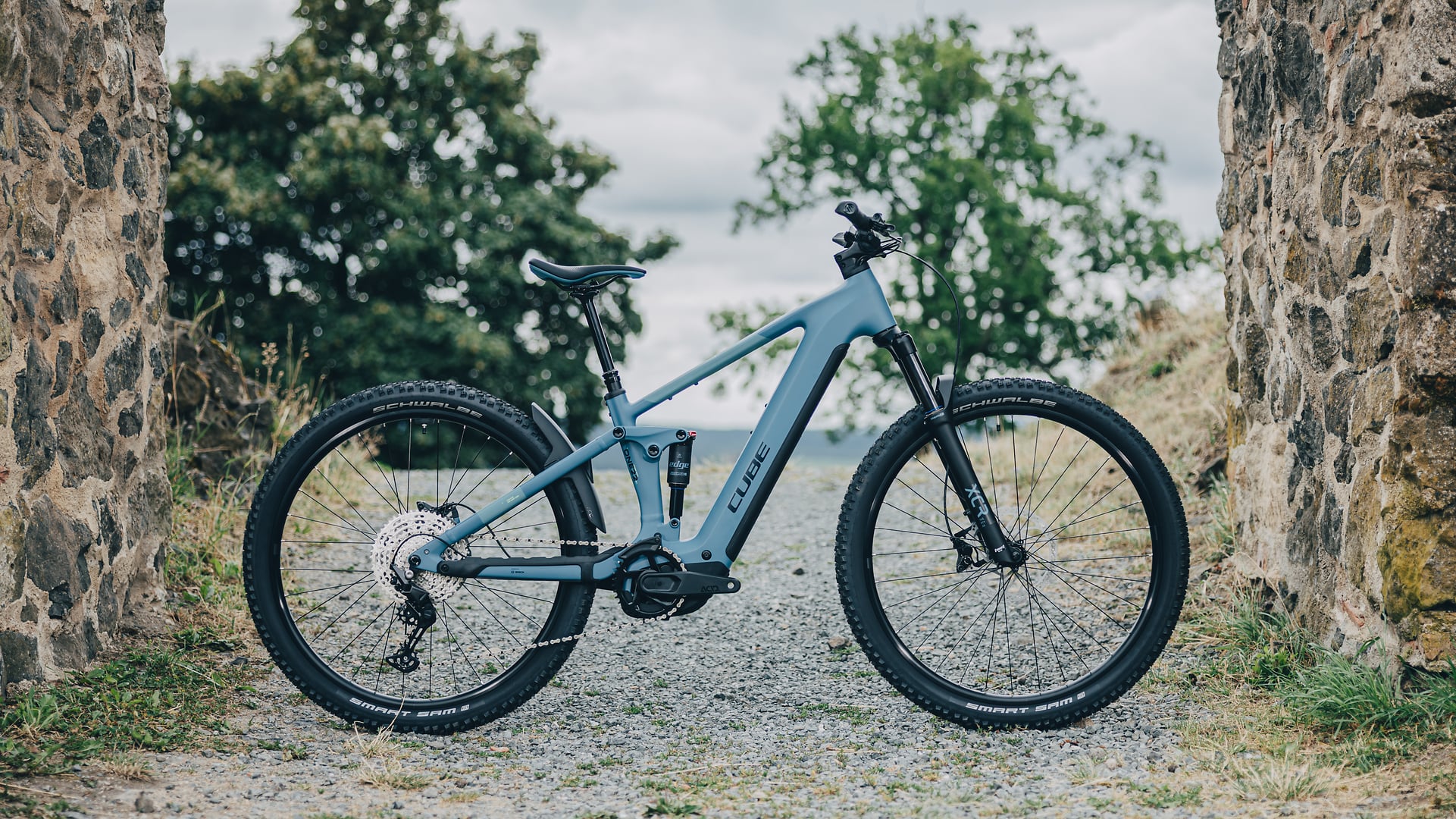

CubeStereo Hybrid ONE22 Pro 800
- Motor
- Bosch Performance Line CXUp to 120 Nm
- Battery
- 800 WhPowerTube 800
- Travel F / R
- 120 / 120 mm
- Wheels
- 29" (S: 27.5")
- Frame
- Alloy
- Weight
- 26.7 kgManufacturer figure
All Bosch Performance Line CX eMTBs →
Watching this bike? Get new models and updates on Telegram →
Overview
€3,699 makes this one of the cheapest full-suspension Bosch CX bikes from Cube, with 800 Wh and SR Suntour suspension. Shimano Deore shifting and MT420 brakes; claimed 26.7 kg.
The Stereo Hybrid ONE22 Pro 800 is one of 2 builds of the Cube Stereo Hybrid ONE22. About the Stereo Hybrid ONE22 range and all its builds →

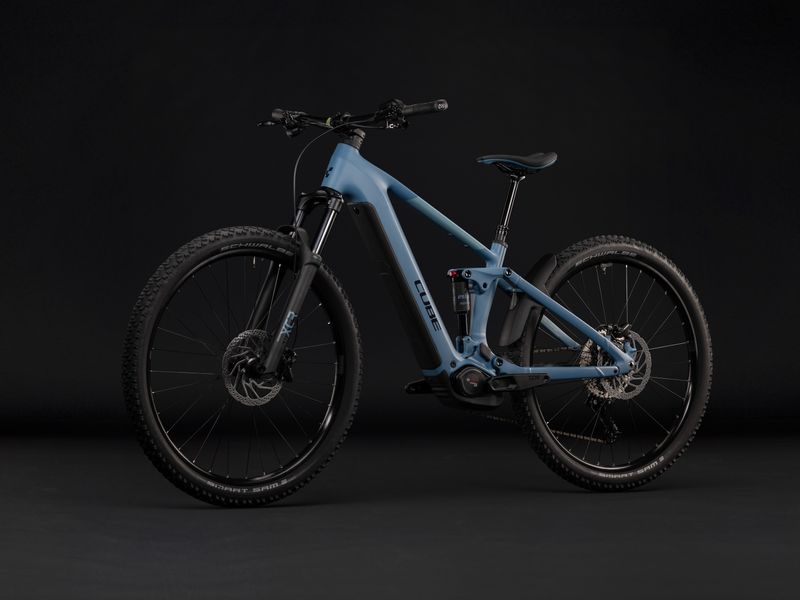

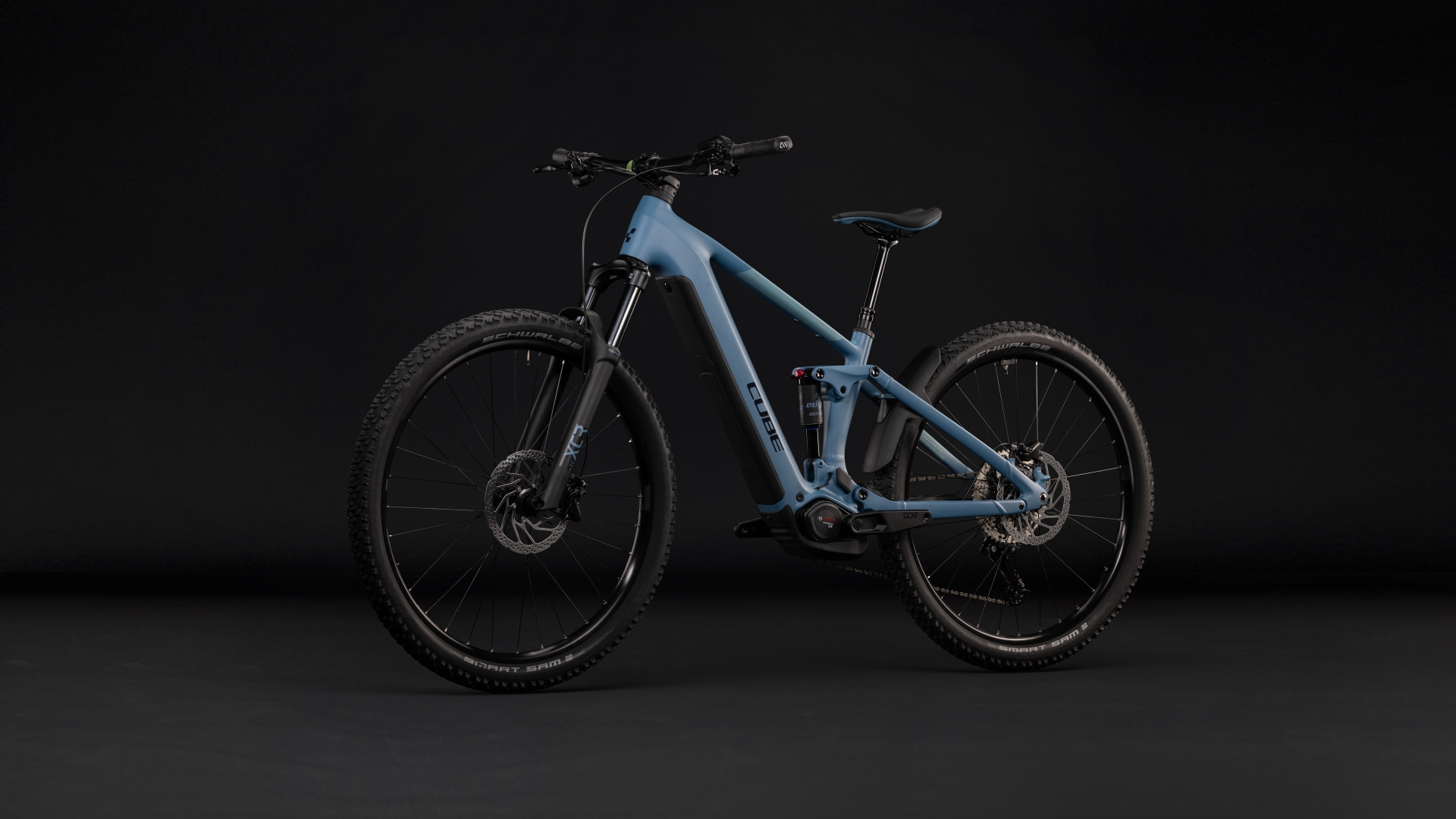

Gallery
Photos: Cube
Full specifications
Frame & suspension
- Frame
- Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp
- Sizes
- Size Split: 27.5: S // 29: M, L, XL
- Fork
- SR Suntour XCR36X 2CR Air, Tapered, 15x110mm, 120mm
- Shock

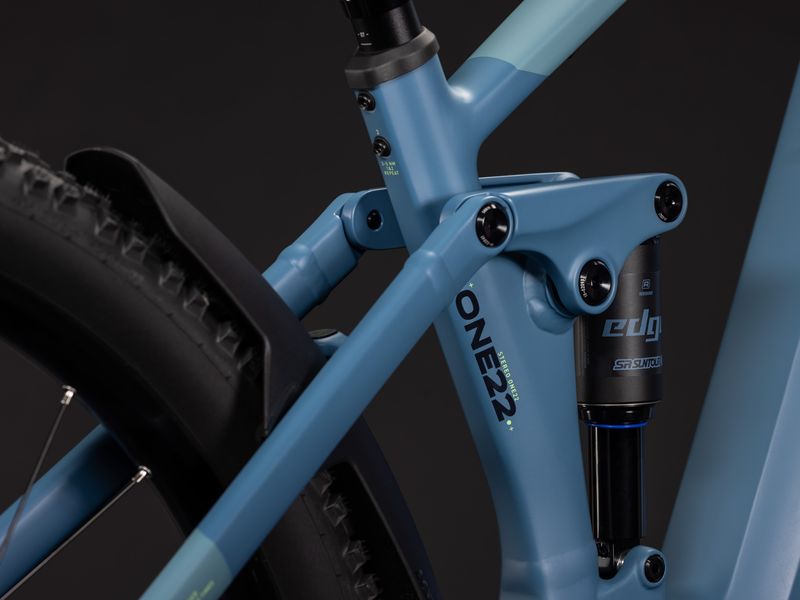

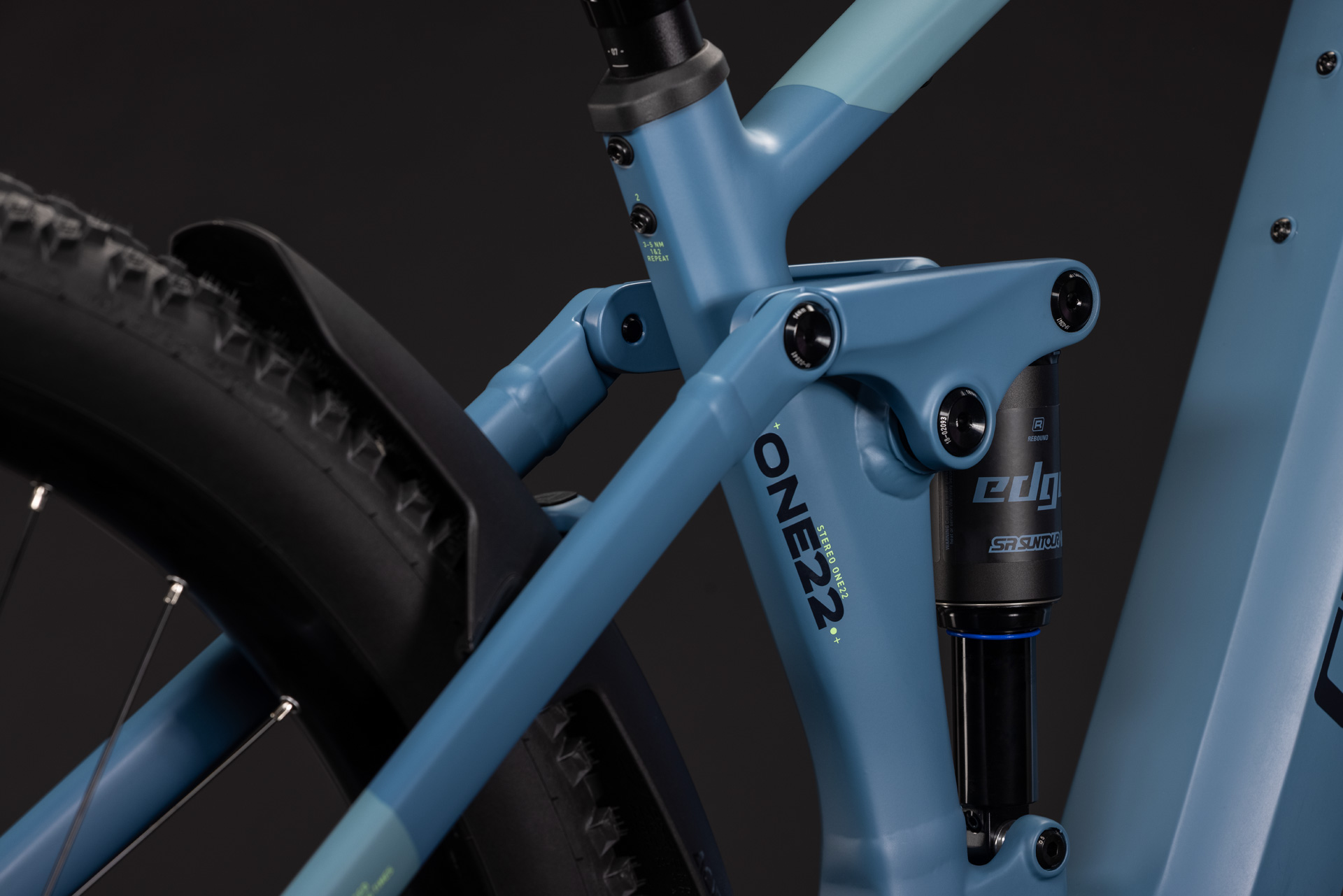

- SR Suntour EdgeX R 185x52.5mm, Rebound Adjust, Trunnion Mount
- Shock hardware
- Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
E-system
- Motor

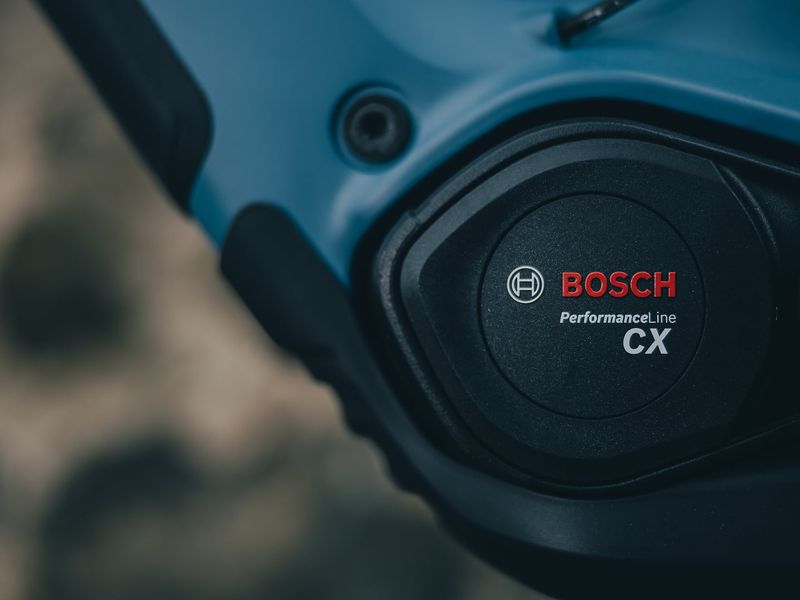

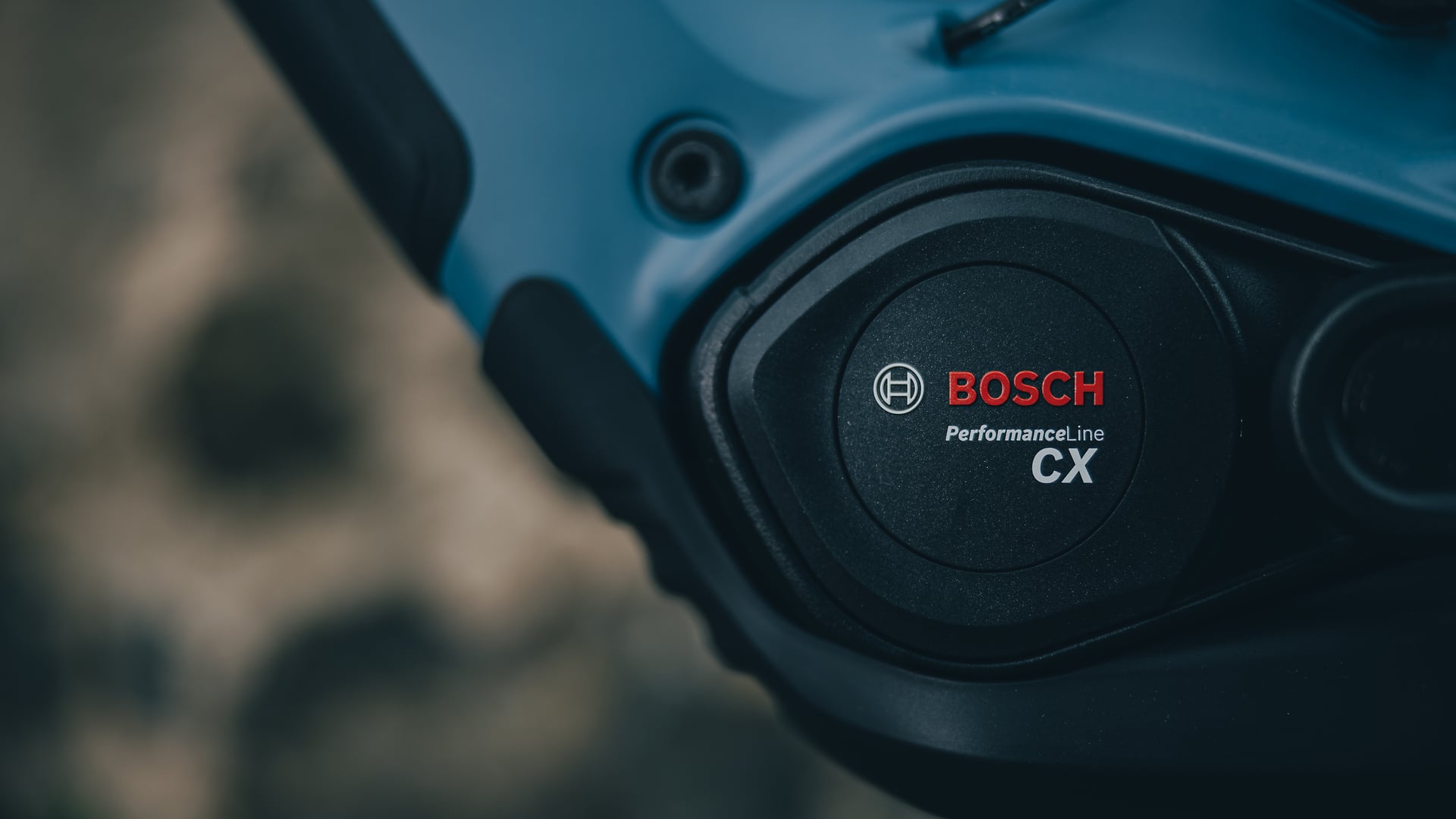

- Bosch Drive Unit Performance Line CX max. 120Nm (BDU38)
- Remote

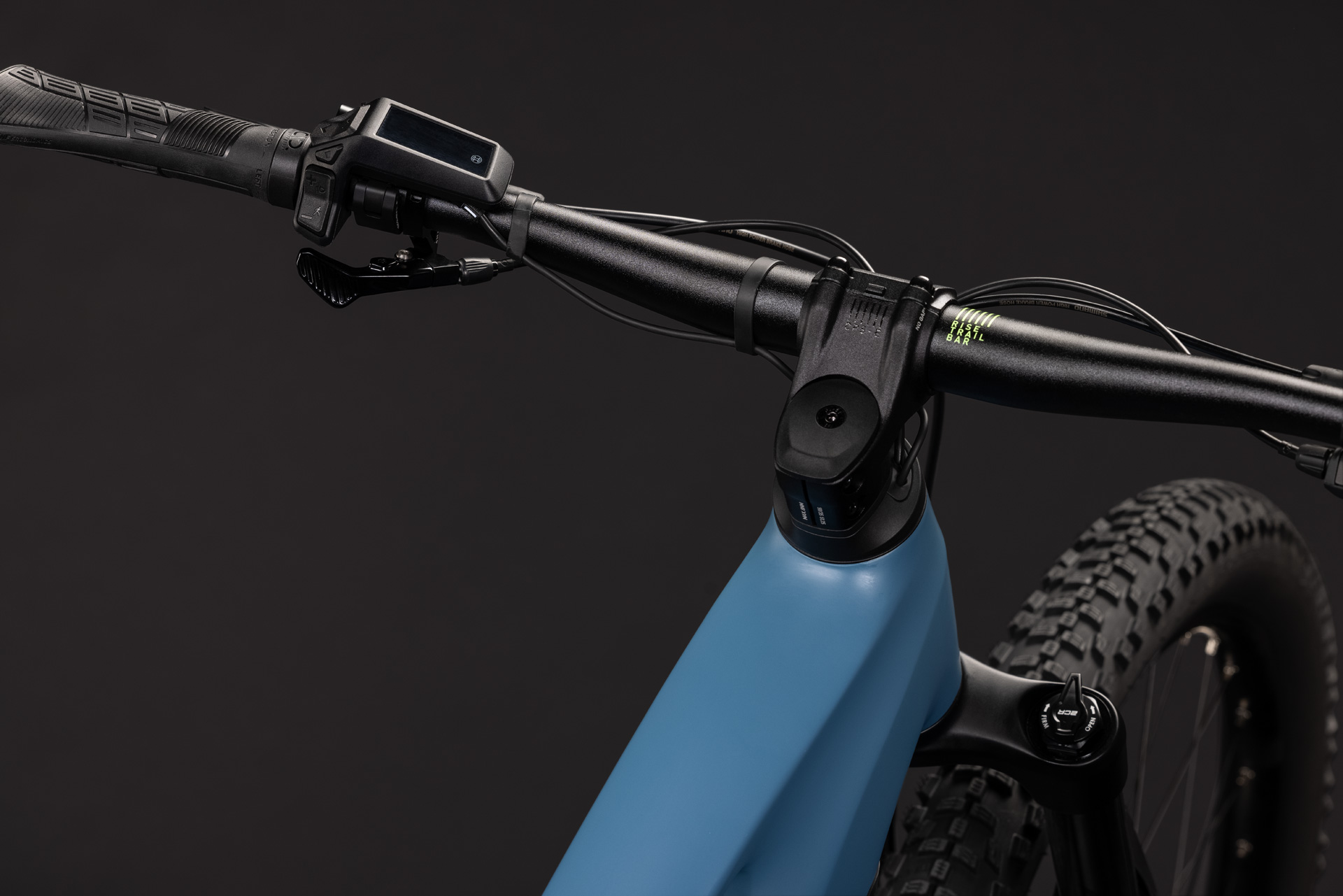

- Bosch Purion 200 with Integrated Display
- Battery
- Bosch PowerTube 800
- Charger
- Bosch 2A
Drivetrain
- Brakes
- Shimano BR-MT420, Hydr. Disc Brake (203/203)
- Rear derailleur
- Shimano Deore RD-M6200-SGS, ShadowPlus, 12-Speed
- Shifter
- Shimano Deore SL-M6210-IR, Direct Attach, Single Click
- Crankset

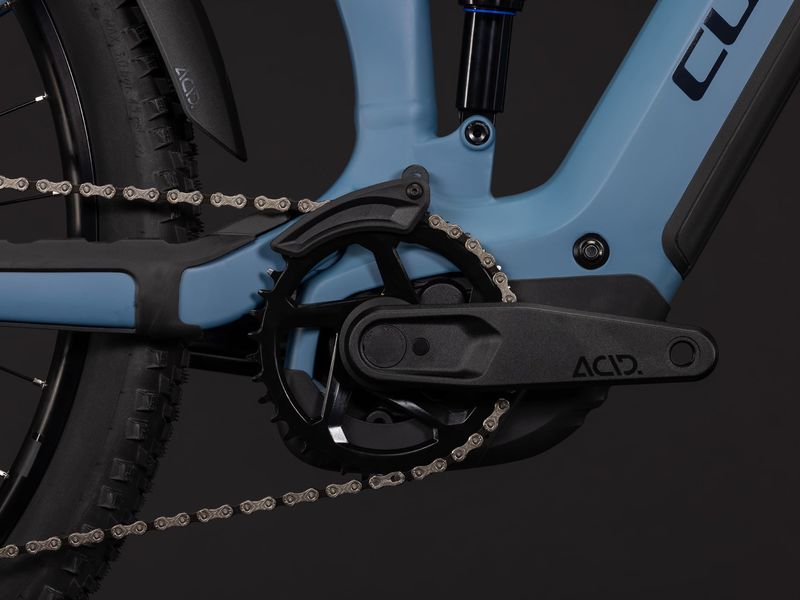

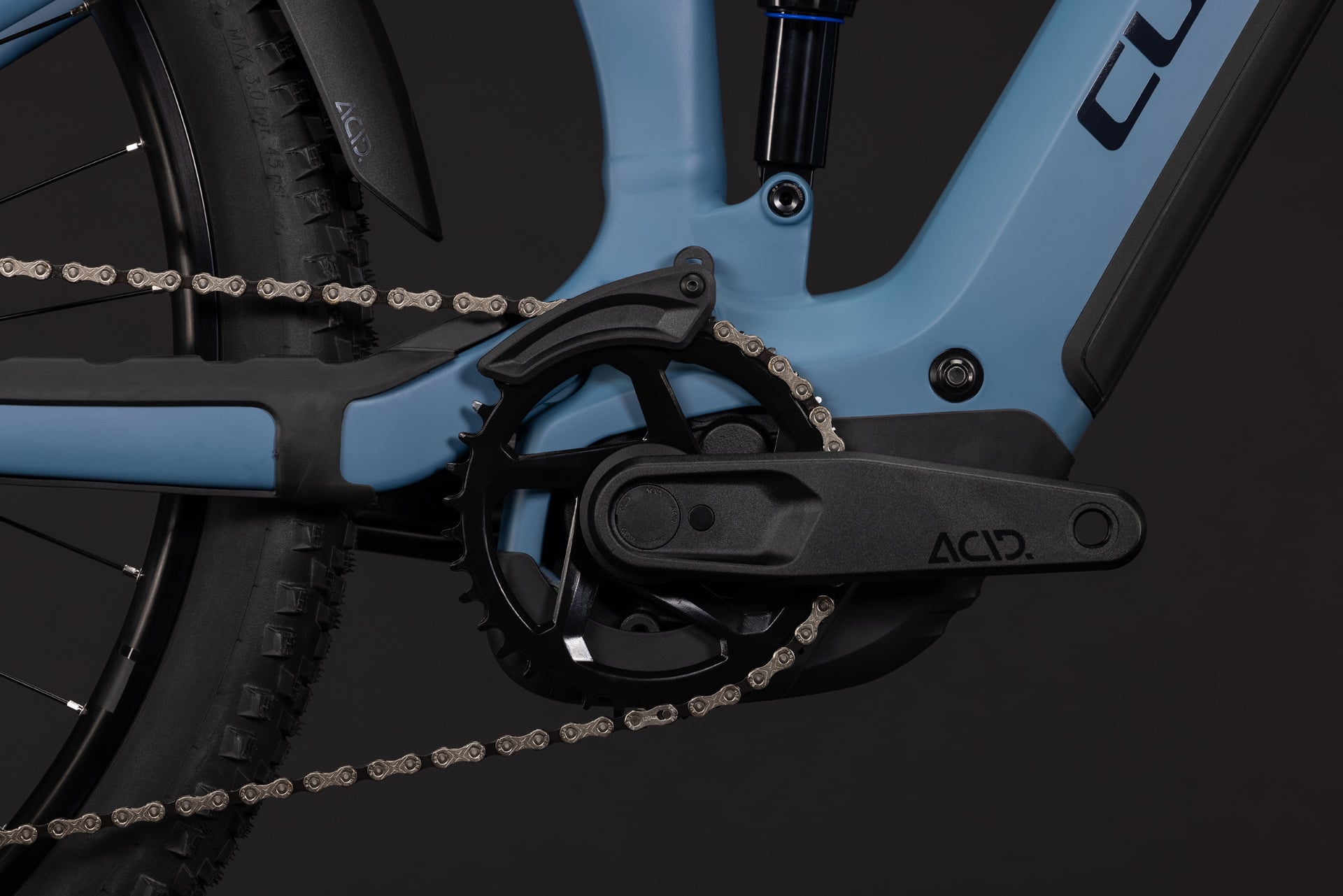

- ACID MTB Hybrid Pro, 38T
- Cassette
- Shimano Deore CS-M6200, 10-51T
- Chain
- KMC e12
- Chain guide
- Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Wheels & tyres
- Wheelset
- ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
- Tyres
- Schwalbe Smart Sam, Active, 2.6
Cockpit
- Headset
- Acros AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface
- Stem

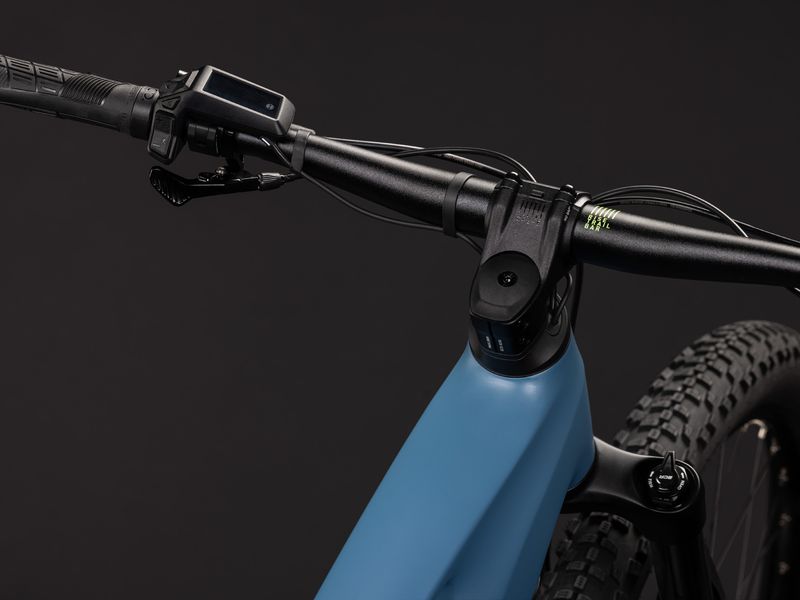

- CUBE Performance Stem E-MTB 35, FPI-Link
- Handlebar
- CUBE Rise Trail Bar 35
- Grips
- ACID Hybrid Perform
- Saddle
- ACID Venec EMTB Plus 145
- Seatpost
- CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
- Pedals
- ACID PP MTB
Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.
Stereo Hybrid ONE22 geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 370 mm | 405 mm | 420 mm | 480 mm |
| Top tube (horizontal) | 570 mm | 600 mm | 630 mm | 660 mm |
| Seat angle | 76° | 76° | 76° | 76° |
| Head angle | 66.5° | 66.5° | 66.5° | 66.5° |
| Chainstay | 455 mm | 488 mm | 488 mm | 488 mm |
| Head tube | 163 mm | 132 mm | 142 mm | 157 mm |
| Wheelbase | 1186 mm | 1240 mm | 1271 mm | 1303 mm |
| BB offset (to hub axle) | -23 | -43 | -43 | -43 |
| Standover (-80 mm) | 764 mm | 786 mm | 784 mm | 794 mm |
| Reach | 417 mm | 444 mm | 471 mm | 496 mm |
| Stack | 638 mm | 647 mm | 656 mm | 670 mm |
Source: Cube.
Stereo Hybrid ONE22: builds compared
Stereo Hybrid ONE22 range →| Stereo Hybrid ONE22 Pro 800 | Stereo Hybrid ONE22 SLX 800 | |
|---|---|---|
| Price | €3,699 | €4,199 |
| Frame | Alloy | Alloy |
| Fork | SR Suntour XCR36X 2CR Air, Tapered | Fox 36 Float AWL RAIL 2.0, Tapered |
| Shock | SR Suntour EdgeX R 185x52.5mm | Fox Float Rhythm RC |
| Derailleur | Shimano Deore RD-M6200-SGS | Shimano XT RD-M8200-SGS |
| Brakes | Shimano BR-MT420 | Shimano XT BR-M8220 |
| Weight | 26.7 kg | 26.5 kg |
Stereo Hybrid ONE22 Pro 800: FAQ
What is the difference between the Stereo Hybrid ONE22 Pro 800 and the Stereo Hybrid ONE22 SLX 800?
They share the Stereo Hybrid ONE22 frame platform and motor; the differences are in the parts: fork: SR Suntour XCR36X 2CR Air vs Fox 36 Float AWL RAIL 2.0; derailleur: Shimano Deore RD-M6200-SGS vs Shimano XT RD-M8200-SGS; claimed weight: 26.7 kg vs 26.5 kg; price: €3,699 vs €4,199.
