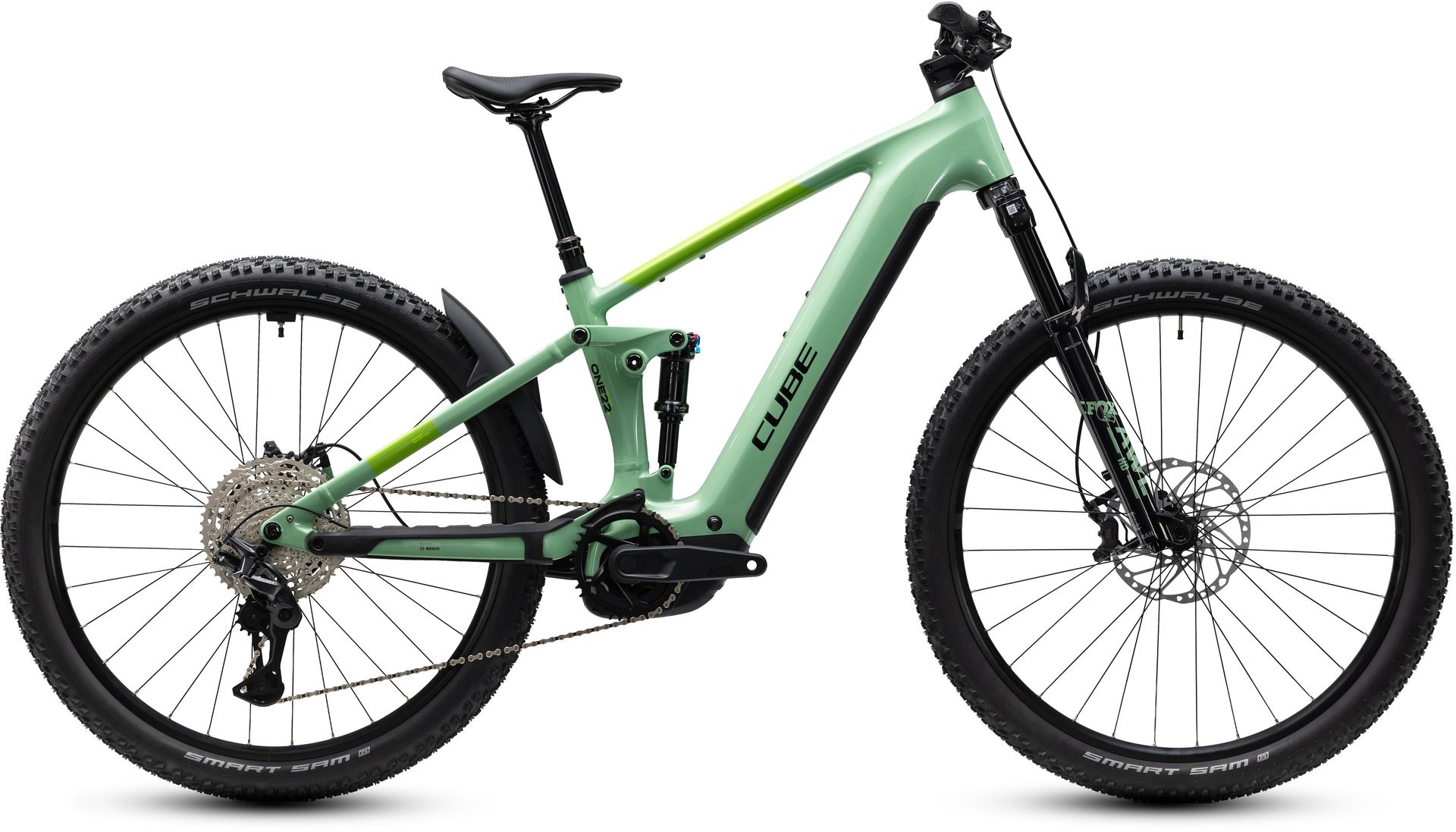

CubeStereo Hybrid ONE22
- Price
- €3,699 – €4,199
- Motor
- Bosch Performance Line CXUp to 120 Nm
- Battery
- 800 WhPowerTube 800
- Travel F / R
- 120 / 120 mm
- Wheels
- 29" (S: 27.5")
- Weight
- 26.5 kg – 26.7 kg
Overview
The Stereo Hybrid ONE22 is Cube's comfort-oriented full-suspension e-MTB: an aluminium frame with 120 mm of travel, 29-inch wheels (27.5-inch on size S) and the Bosch Performance Line CX with an 800 Wh PowerTube.
- 120 mm travel
- Bosch CX, 800 Wh
- Aluminium frame
- Comfort-oriented geometry
Cube Stereo Hybrid ONE22 builds
Stereo Hybrid ONE22 builds compared
| Stereo Hybrid ONE22 Pro 800 | Stereo Hybrid ONE22 SLX 800 | |
|---|---|---|
| Price | €3,699 | €4,199 |
| Frame | Alloy | Alloy |
| Fork | SR Suntour XCR36X 2CR Air, Tapered | Fox 36 Float AWL RAIL 2.0, Tapered |
| Shock | SR Suntour EdgeX R 185x52.5mm | Fox Float Rhythm RC |
| Derailleur | Shimano Deore RD-M6200-SGS | Shimano XT RD-M8200-SGS |
| Brakes | Shimano BR-MT420 | Shimano XT BR-M8220 |
| Weight | 26.7 kg | 26.5 kg |
Stereo Hybrid ONE22 geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 370 mm | 405 mm | 420 mm | 480 mm |
| Top tube (horizontal) | 570 mm | 600 mm | 630 mm | 660 mm |
| Seat angle | 76° | 76° | 76° | 76° |
| Head angle | 66.5° | 66.5° | 66.5° | 66.5° |
| Chainstay | 455 mm | 488 mm | 488 mm | 488 mm |
| Head tube | 163 mm | 132 mm | 142 mm | 157 mm |
| Wheelbase | 1186 mm | 1240 mm | 1271 mm | 1303 mm |
| BB offset (to hub axle) | -23 | -43 | -43 | -43 |
| Standover (-80 mm) | 764 mm | 786 mm | 784 mm | 794 mm |
| Reach | 417 mm | 444 mm | 471 mm | 496 mm |
| Stack | 638 mm | 647 mm | 656 mm | 670 mm |
Source: Cube.
Cube Stereo Hybrid ONE22: FAQ
How much does the Cube Stereo Hybrid ONE22 cost?
€3,699 – €4,199 depending on the build (Stereo Hybrid ONE22 Pro 800 €3,699, Stereo Hybrid ONE22 SLX 800 €4,199); RRP Germany (UVP), VAT incl..
How many Cube Stereo Hybrid ONE22 builds are there?
2: Stereo Hybrid ONE22 Pro 800, Stereo Hybrid ONE22 SLX 800. They share the frame platform and differ mainly in suspension, drivetrain, wheels and weight.
How much does the Cube Stereo Hybrid ONE22 weigh?
Claimed weights range from 26.5 kg (Stereo Hybrid ONE22 SLX 800) to 26.7 kg (Stereo Hybrid ONE22 Pro 800).
What motor and battery does the Cube Stereo Hybrid ONE22 use?
Bosch Performance Line CX (Up to 120 Nm) with a 800 Wh battery (powertube 800).
How much travel does the Cube Stereo Hybrid ONE22 have?
120 mm fork and 120 mm rear travel on 29" (S: 27.5") wheels.
