CubeStereo Hybrid ONE22 SLX 800
- Motor
- Bosch Performance Line CXUp to 120 Nm
- Battery
- 800 WhPowerTube 800
- Travel F / R
- 120 / 120 mm
- Wheels
- 29" (S: 27.5")
- Frame
- Alloy
- Weight
- 26.5 kgManufacturer figure
Overview

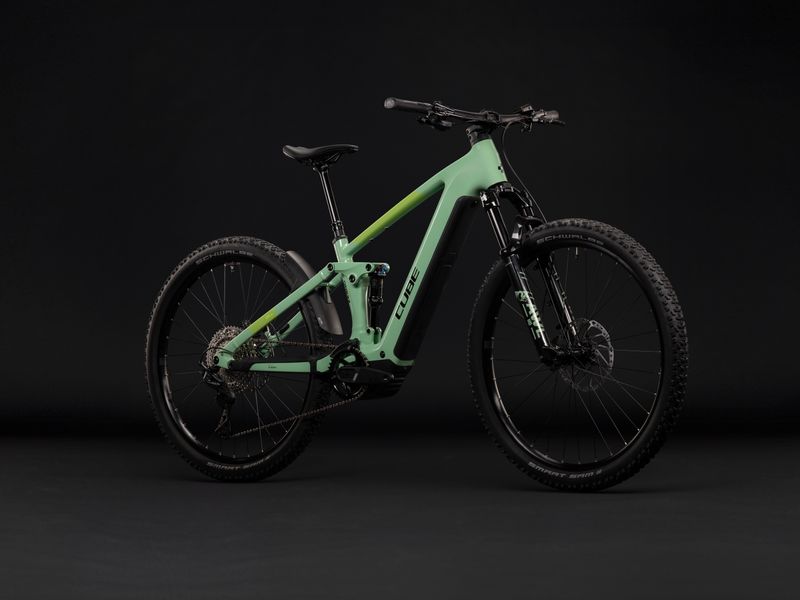

The Cube Stereo Hybrid ONE22 SLX 800 (€4,199) is the top build of the Stereo Hybrid ONE22: Bosch Performance Line CX with 800 Wh, Fox 36 Float AWL RAIL 2.0 fork, Fox Float Rhythm RC shock, Shimano XT RD-M8200-SGS and Shimano XT BR-M8220 brakes. Claimed weight is 26.5 kg, the lightest Stereo Hybrid ONE22.
The Stereo Hybrid ONE22 is Cube's comfort-oriented full-suspension e-MTB: an aluminium frame with 120 mm of travel, 29-inch wheels (27.5-inch on size S) and the Bosch Performance Line CX with an 800 Wh PowerTube.
- 120 mm travel
- Bosch CX, 800 Wh
- Aluminium frame
- Comfort-oriented geometry

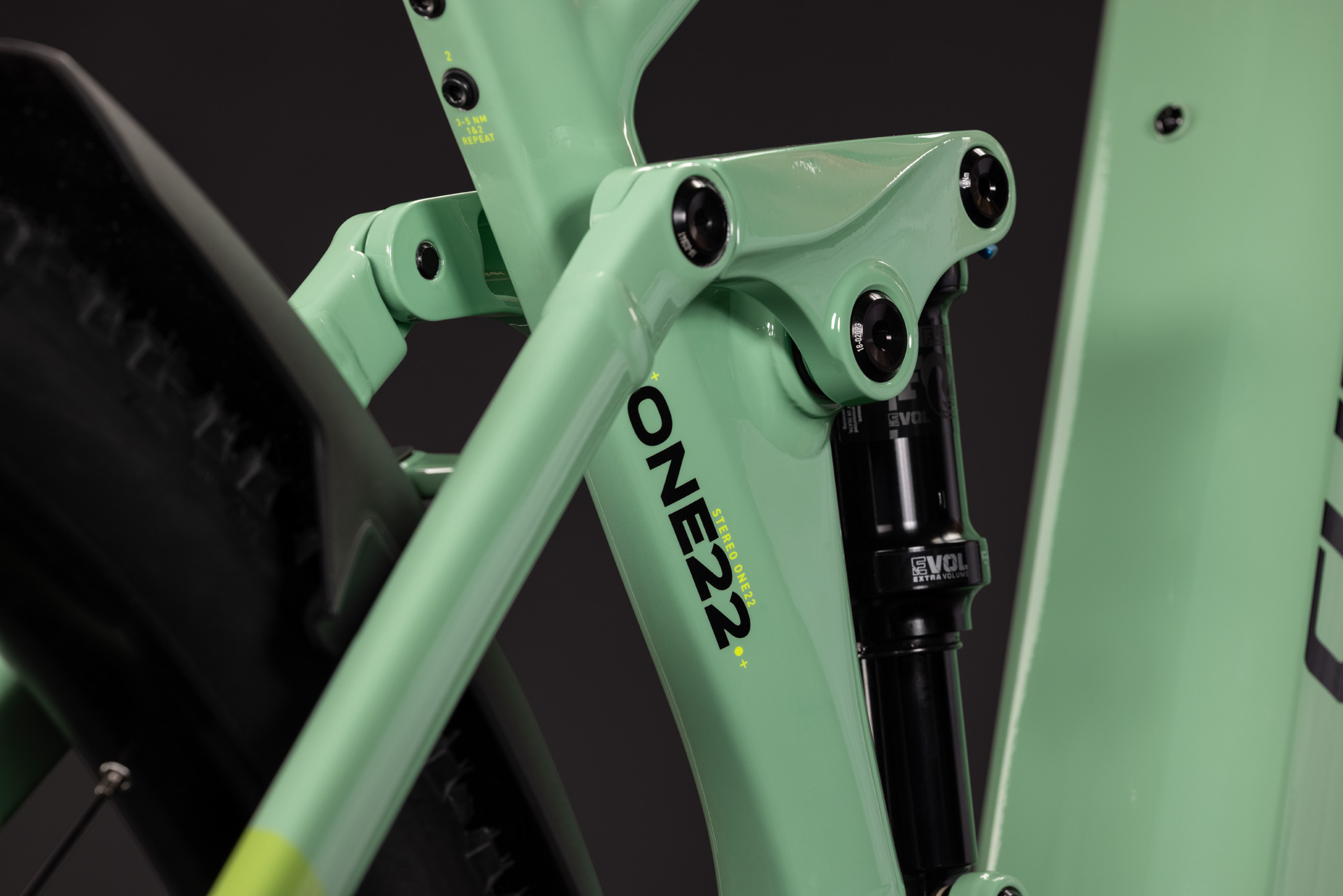

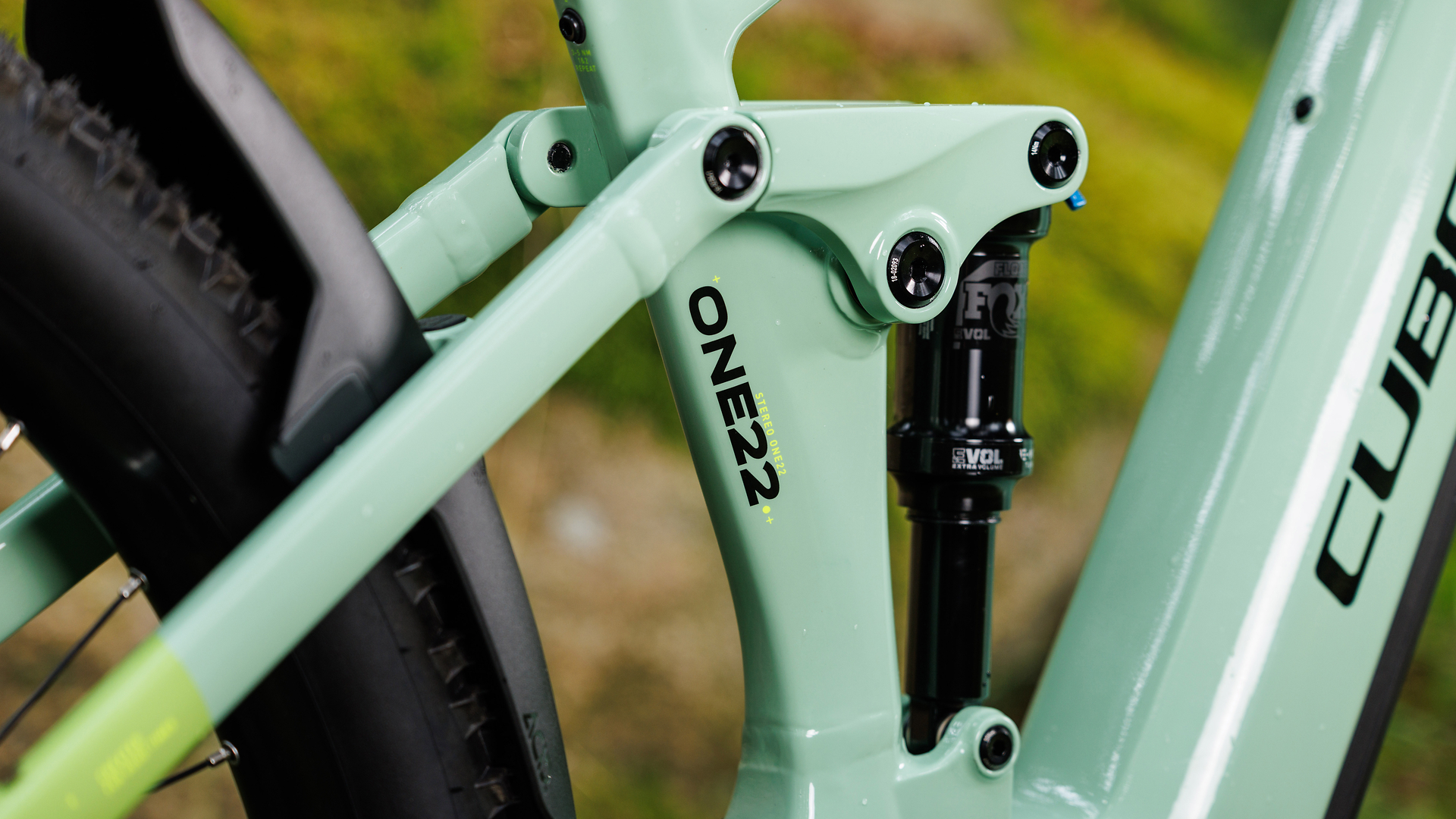

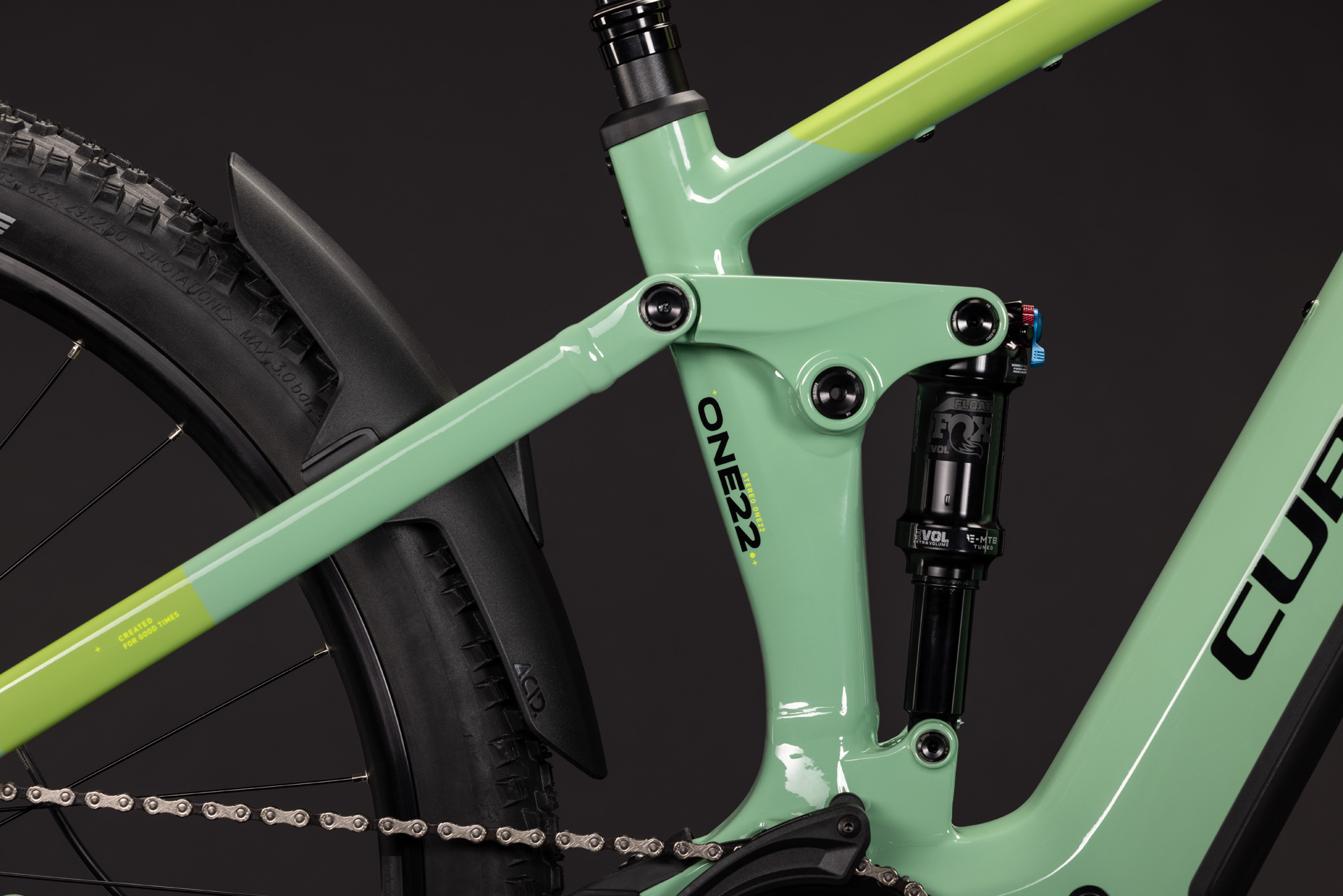

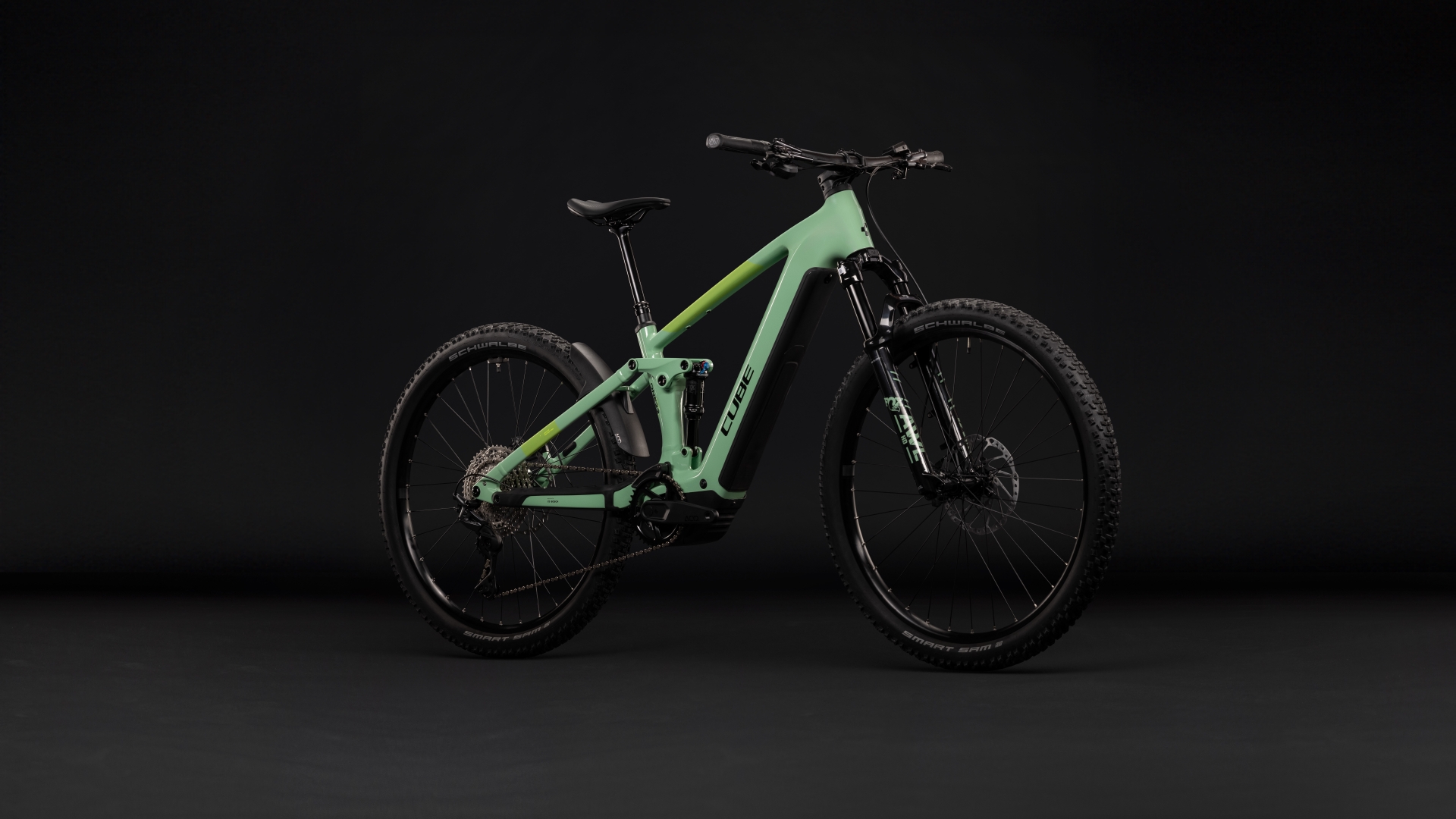

Gallery
Photos: Cube
Full specifications
Frame & suspension
- Frame
- Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp
- Sizes
- Size Split: 27.5: S // 29: M, L, XL
- Fork
- Fox 36 Float AWL RAIL 2.0, Tapered, 15x110mm, E-Bike Optimized, 120mm

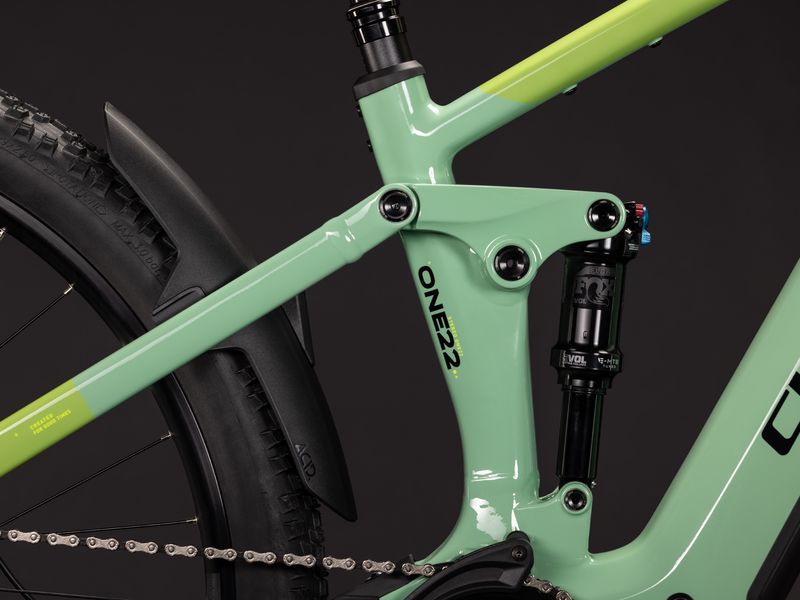

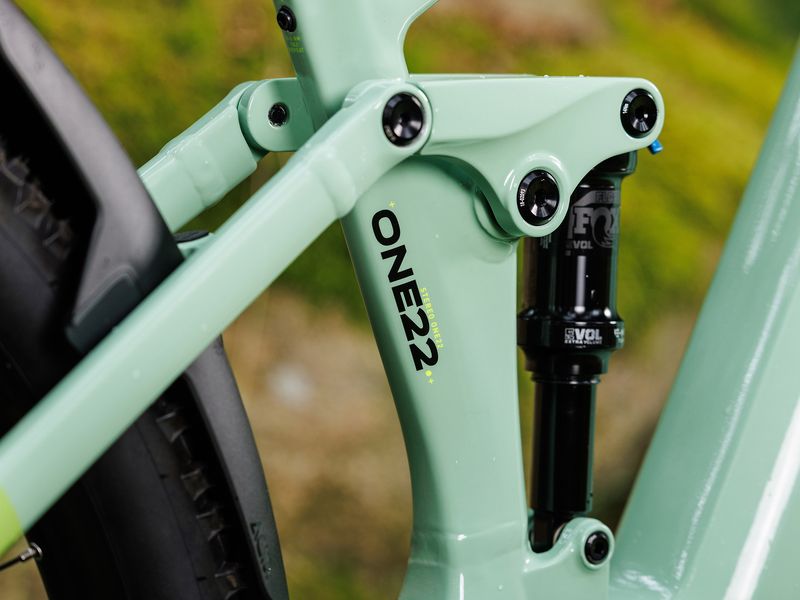

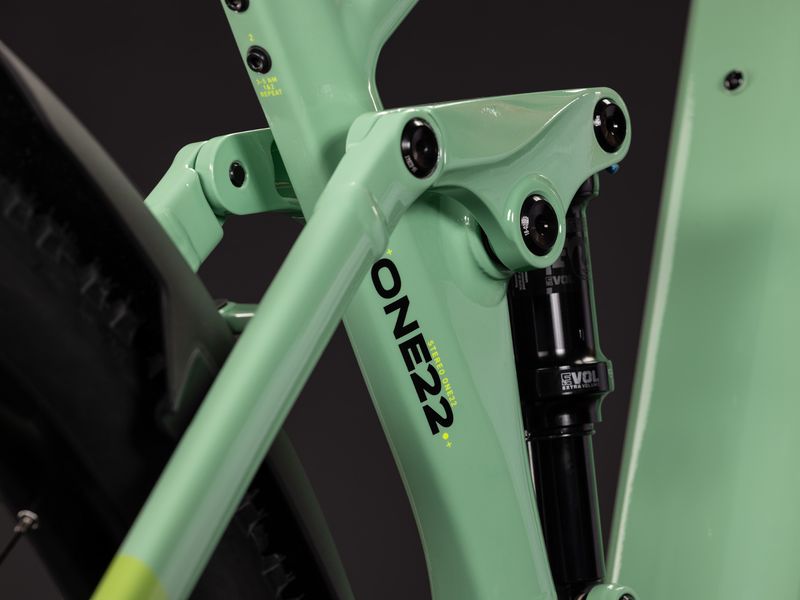

- Shock
- Fox Float Rhythm RC, 185x52,5mm, Open/Firm Mode, Trunnion Mount
- Shock hardware
- Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
E-system
- Motor
- Bosch Drive Unit Performance Line CX max. 120Nm (BDU38)
- Remote
- Bosch Purion 200 with Integrated Display
- Battery
- Bosch PowerTube 800
- Charger
- Bosch 2A
Drivetrain
- Brakes
- Shimano XT BR-M8220, Hydr. Disc Brake (203/203)
- Rear derailleur
- Shimano XT RD-M8200-SGS, ShadowPlus, 12-Speed
- Shifter
- Shimano Deore SL-M6210-IR, Direct Attach, Single Click
- Crankset
- ACID MTB Hybrid Pro, 38T
- Cassette
- Shimano Deore CS-M6200, 10-51T
- Chain
- KMC e12
- Chain guide
- Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Wheels & tyres
- Wheelset
- ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
- Tyres
- Schwalbe Smart Sam, Active, 2.6
Cockpit
- Headset
- Acros AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface
- Stem
- CUBE Performance Stem E-MTB 35, FPI-Link

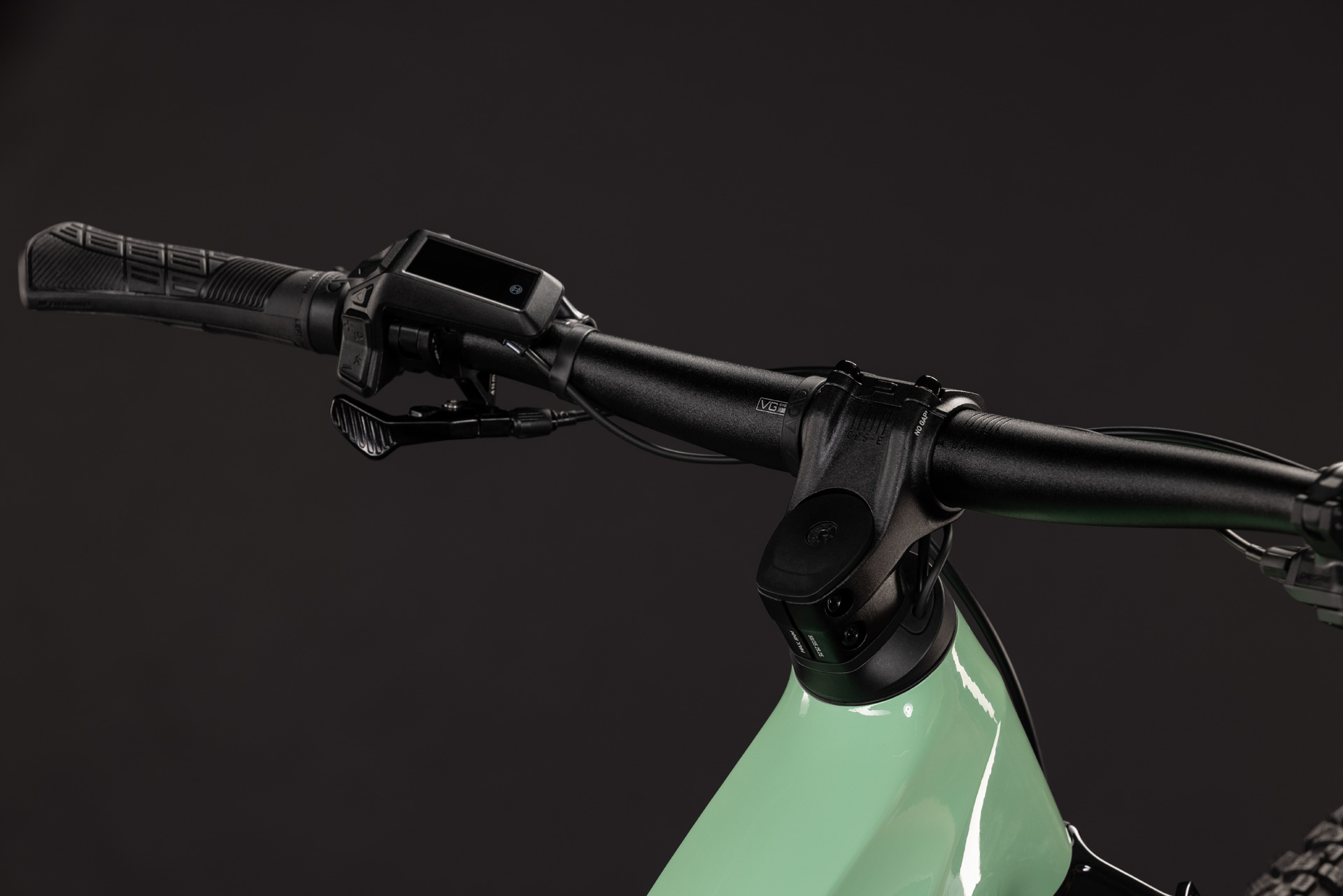

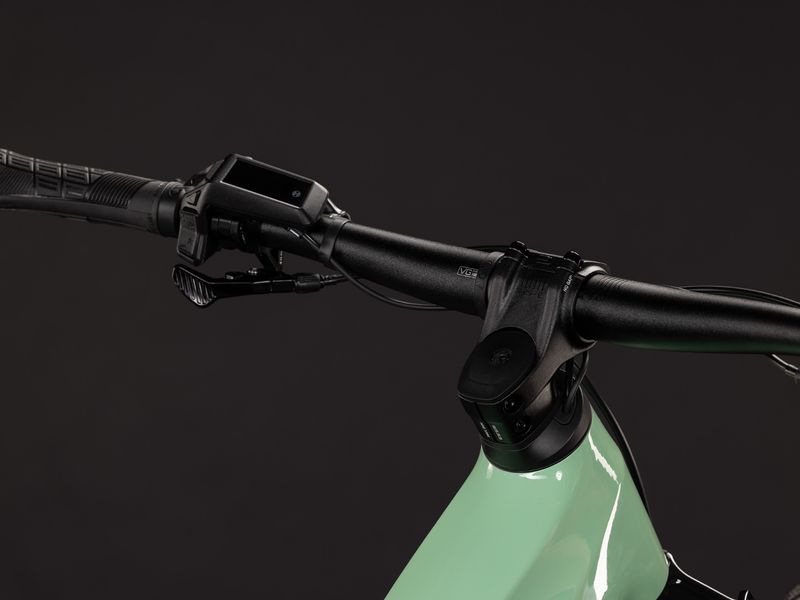

- Handlebar
- CUBE Rise Trail Bar 35 VariGrip System
- Grips
- ACID Hybrid Perform VariGrip System
- Saddle
- ACID Venec EMTB Plus 145

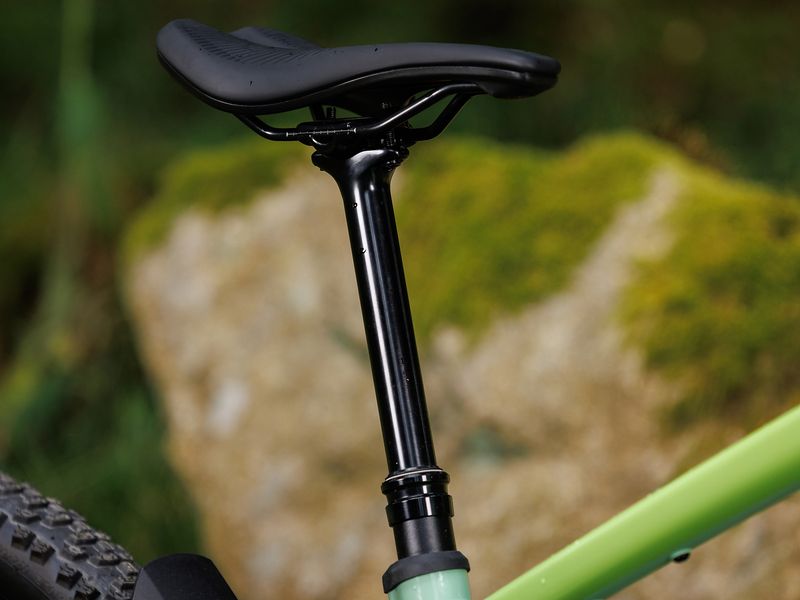

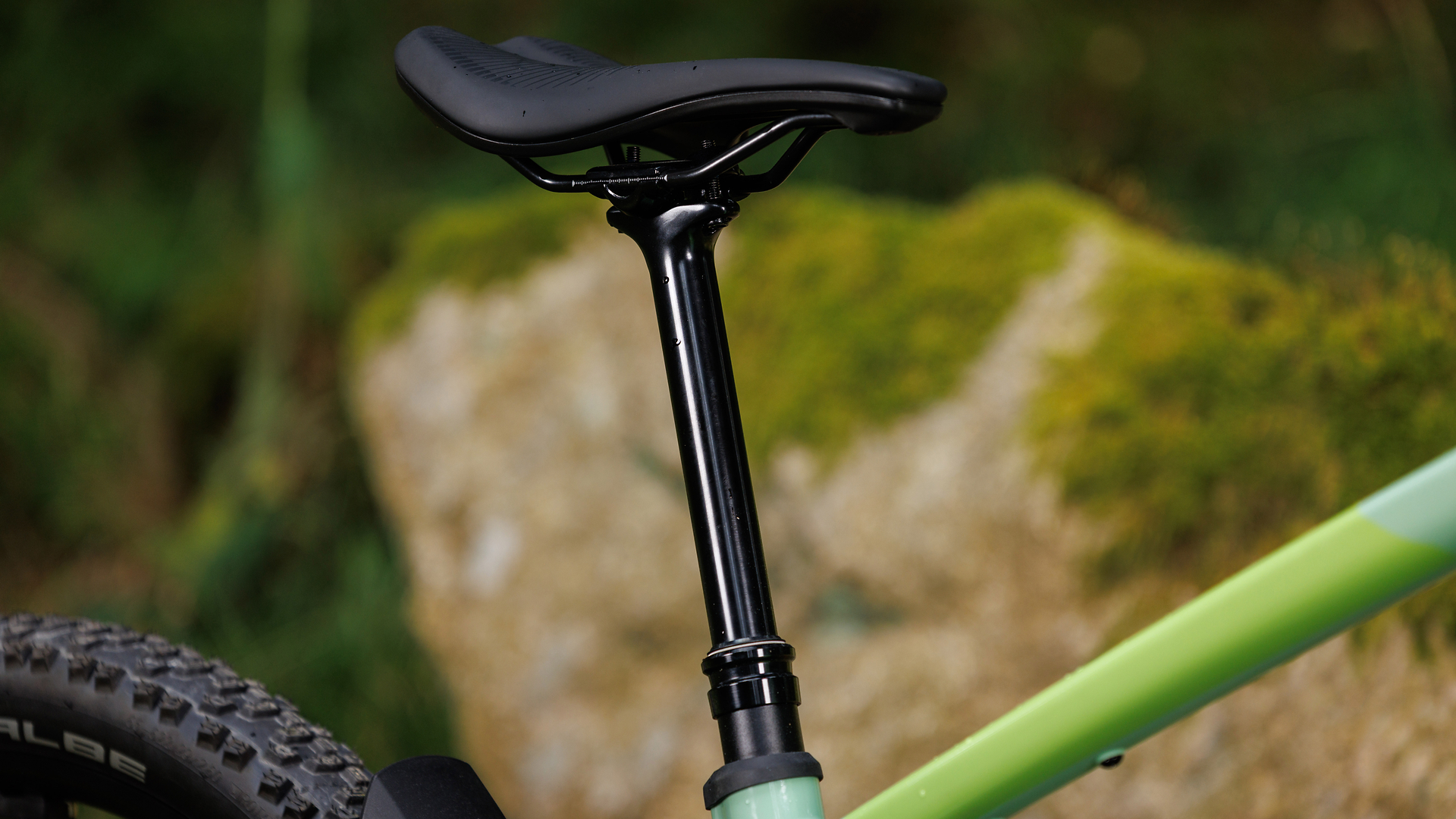

- Seatpost
- CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
- Pedals
- ACID PP MTB
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Stereo Hybrid ONE22 geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 370 mm | 405 mm | 420 mm | 480 mm |
| Top tube (horizontal) | 570 mm | 600 mm | 630 mm | 660 mm |
| Seat angle | 76° | 76° | 76° | 76° |
| Head angle | 66.5° | 66.5° | 66.5° | 66.5° |
| Chainstay | 455 mm | 488 mm | 488 mm | 488 mm |
| Head tube | 163 mm | 132 mm | 142 mm | 157 mm |
| Wheelbase | 1186 mm | 1240 mm | 1271 mm | 1303 mm |
| BB offset (to hub axle) | -23 | -43 | -43 | -43 |
| Standover (-80 mm) | 764 mm | 786 mm | 784 mm | 794 mm |
| Reach | 417 mm | 444 mm | 471 mm | 496 mm |
| Stack | 638 mm | 647 mm | 656 mm | 670 mm |
Source: Cube.
Stereo Hybrid ONE22: builds compared
Stereo Hybrid ONE22 range →| Stereo Hybrid ONE22 Pro 800 | Stereo Hybrid ONE22 SLX 800 | |
|---|---|---|
| Price | €3,699 | €4,199 |
| Frame | Alloy | Alloy |
| Fork | SR Suntour XCR36X 2CR Air, Tapered | Fox 36 Float AWL RAIL 2.0, Tapered |
| Shock | SR Suntour EdgeX R 185x52.5mm | Fox Float Rhythm RC |
| Derailleur | Shimano Deore RD-M6200-SGS | Shimano XT RD-M8200-SGS |
| Brakes | Shimano BR-MT420 | Shimano XT BR-M8220 |
| Weight | 26.7 kg | 26.5 kg |
Stereo Hybrid ONE22 SLX 800: FAQ
How much does the Cube Stereo Hybrid ONE22 SLX 800 cost?
€4,199 (RRP Germany (UVP), VAT incl.). The Stereo Hybrid ONE22 range runs from €3,699 (Stereo Hybrid ONE22 Pro 800) to €4,199 (Stereo Hybrid ONE22 SLX 800). Prices vary by country and dealer.
How much does the Cube Stereo Hybrid ONE22 SLX 800 weigh?
Cube quotes 26.5 kg. It is the lightest build of the Stereo Hybrid ONE22.
What motor and battery does the Cube Stereo Hybrid ONE22 SLX 800 have?
Bosch Performance Line CX (Up to 120 Nm). 800 Wh battery — powerTube 800.
How much suspension travel does the Cube Stereo Hybrid ONE22 SLX 800 have?
120 mm at the fork and 120 mm at the rear, on 29" (S: 27.5") wheels.
What sizes does the Cube Stereo Hybrid ONE22 SLX 800 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Stereo Hybrid ONE22 SLX 800 and the Stereo Hybrid ONE22 Pro 800?
They share the Stereo Hybrid ONE22 frame platform and motor; the differences are in the parts — fork: Fox 36 Float AWL RAIL 2.0 vs SR Suntour XCR36X 2CR Air; derailleur: Shimano XT RD-M8200-SGS vs Shimano Deore RD-M6200-SGS; claimed weight: 26.5 kg vs 26.7 kg; price: €4,199 vs €3,699.
