CubeAMS Hybrid ONE44 C:62 Pro 400X
- Motor
- Bosch Performance Line SXUp to 60 Nm
- Battery
- 400 WhCompactTube 400
- Travel F / R
- 140 / 140 mm
- Frame
- Carbon
- Weight
- 18.1 kgManufacturer figure
Overview

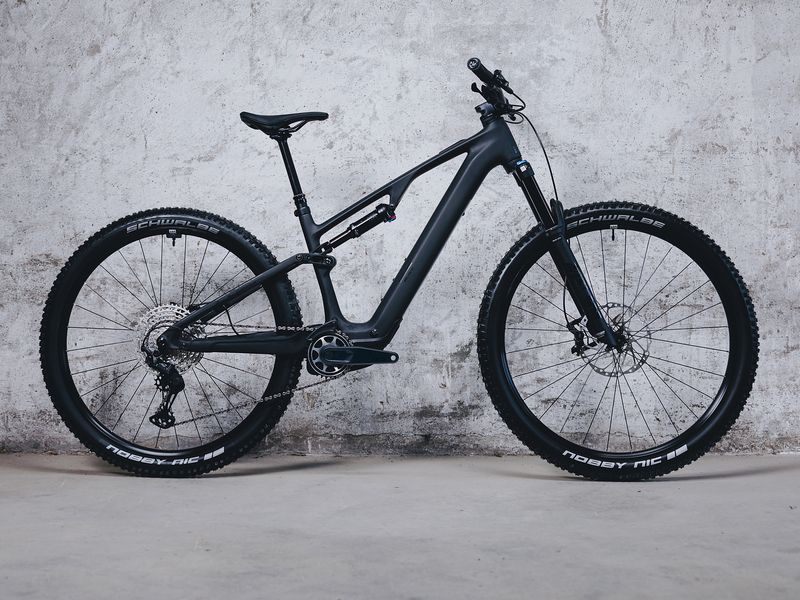

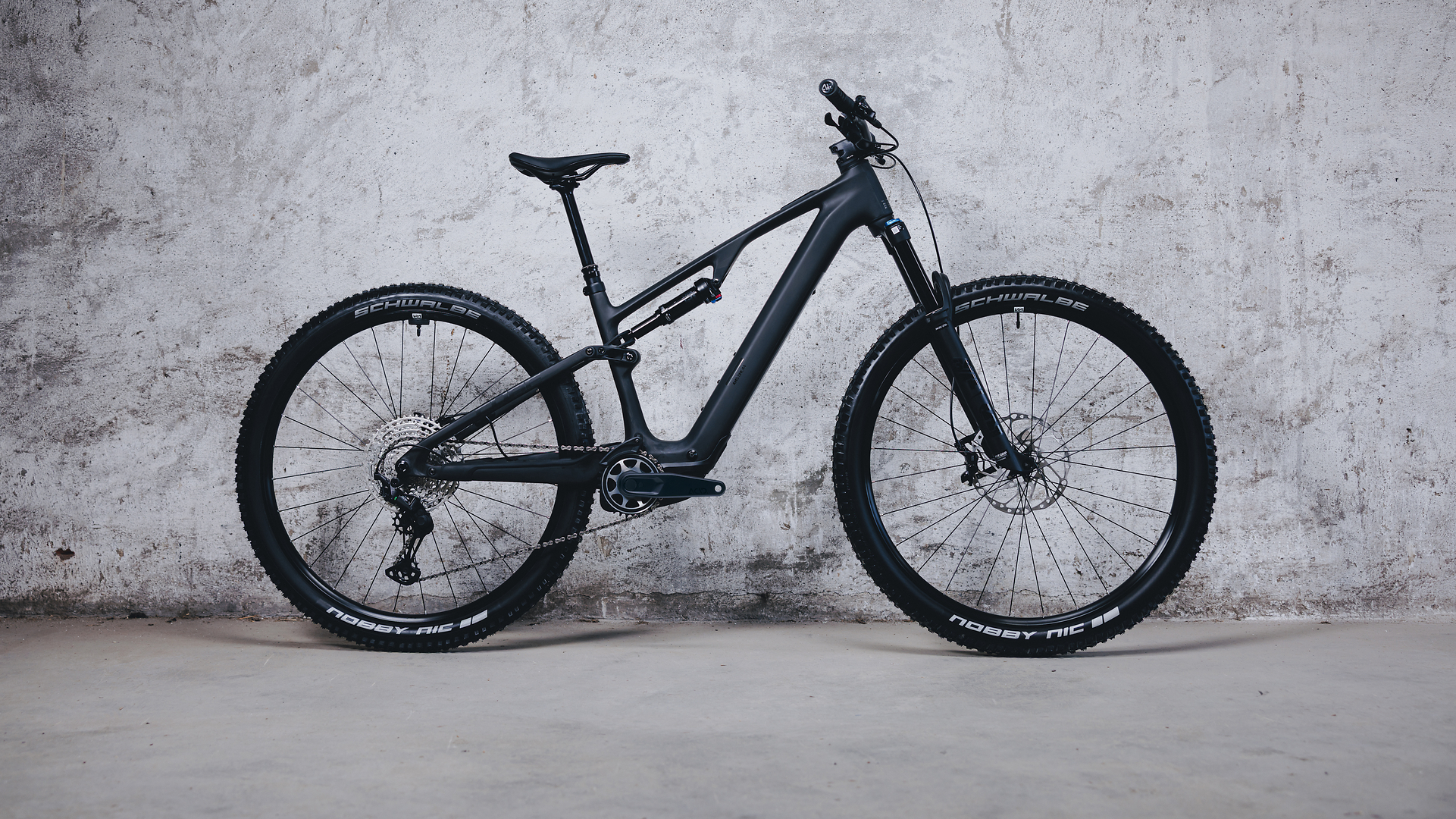

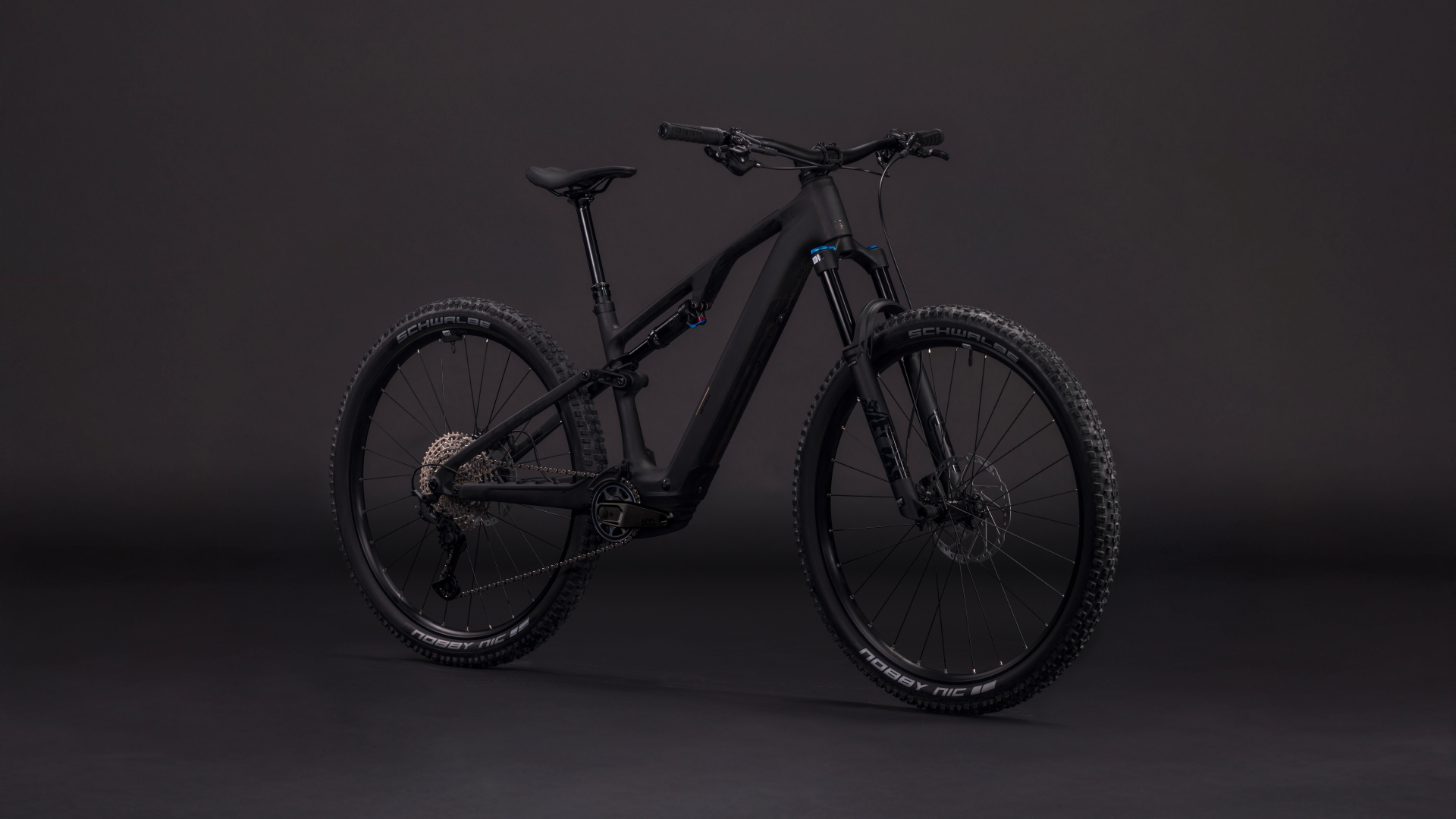

The Cube AMS Hybrid ONE44 C:62 Pro 400X (€4,199) is the entry build of the AMS Hybrid ONE44: Bosch Performance Line SX with 400 Wh, Fox 34 Float Rhythm GRIP fork, Fox Float Rhythm RC shock, Shimano XT RD-M8100-SGS and Shimano XT BR-M8120 brakes. Claimed weight is 18.1 kg.
The AMS Hybrid ONE44 is Cube's lightweight e-MTB: a carbon frame (C:62 or the lighter C:68X) with 140 mm of travel and the Bosch Performance Line SX motor (up to 60 Nm) with a 400 Wh CompactTube battery. Claimed weights run from 16.8 to 19.8 kg.
- Bosch SX, up to 60 Nm
- 400 Wh CompactTube
- Carbon frame, 140 mm travel
- From 16.8 kg claimed

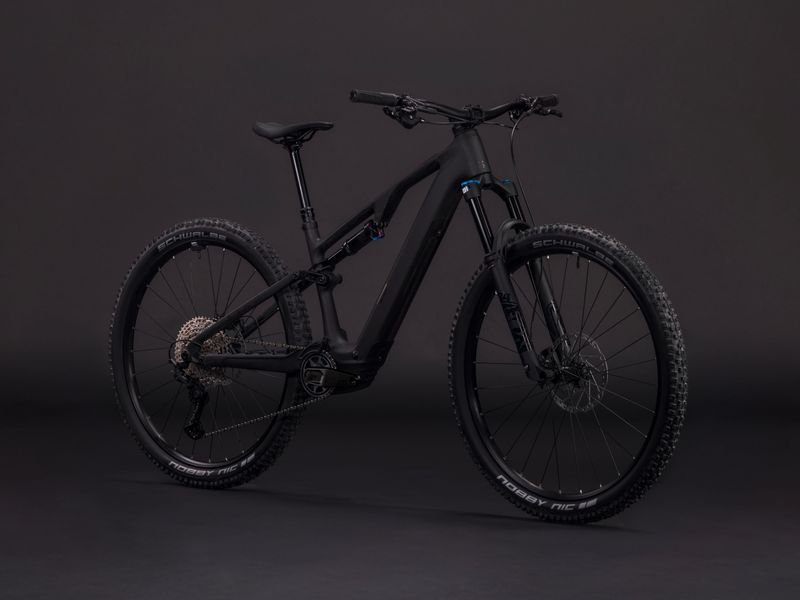

Gallery
Photos: Cube
Full specifications
Frame & suspension
- Frame
- C:62® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link. Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing
- Sizes
- S, M, L, XL
- Fork

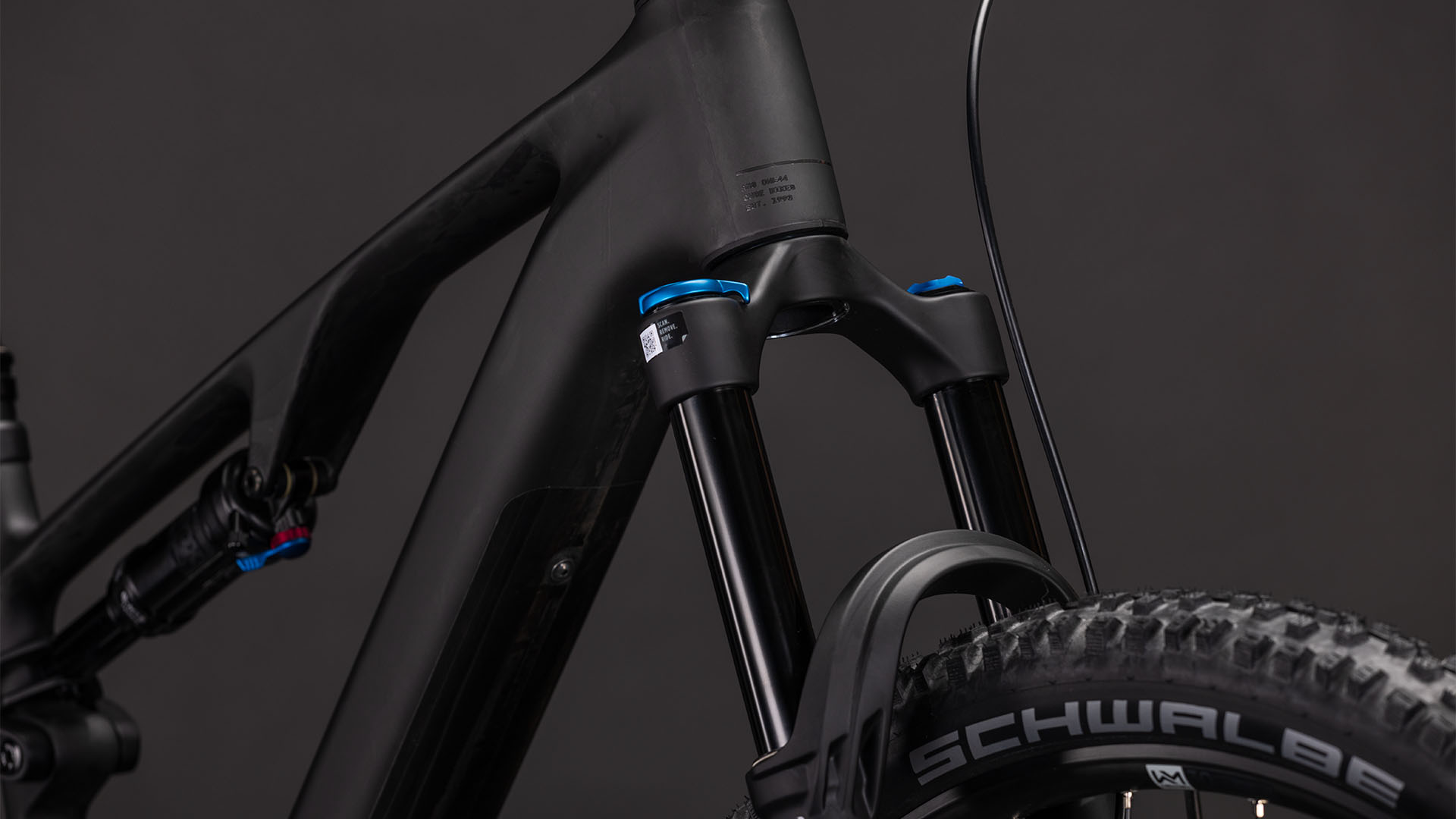

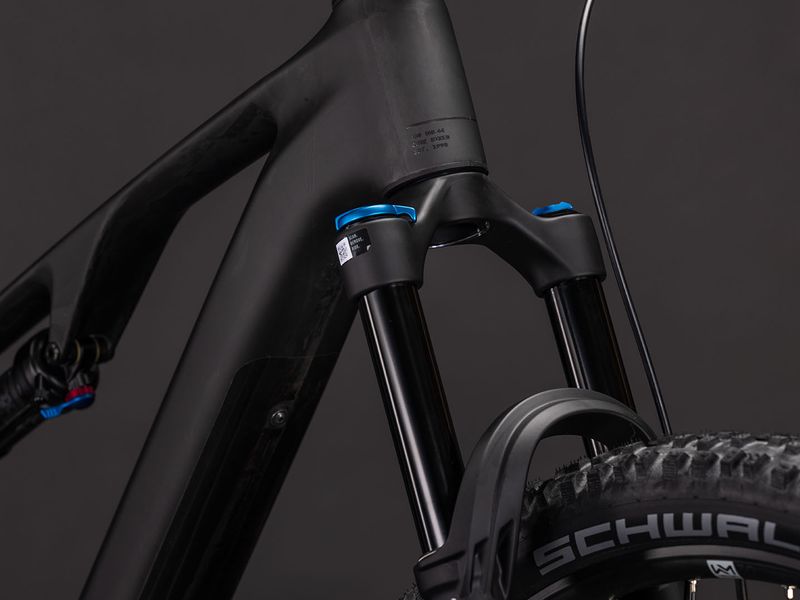

- Fox 34 Float Rhythm GRIP, Tapered, 15x110mm, 140mm
- Shock

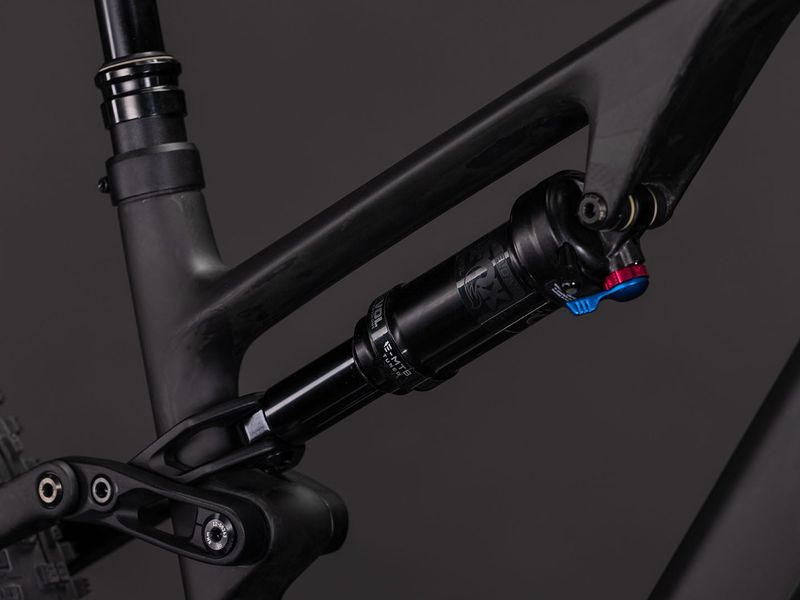

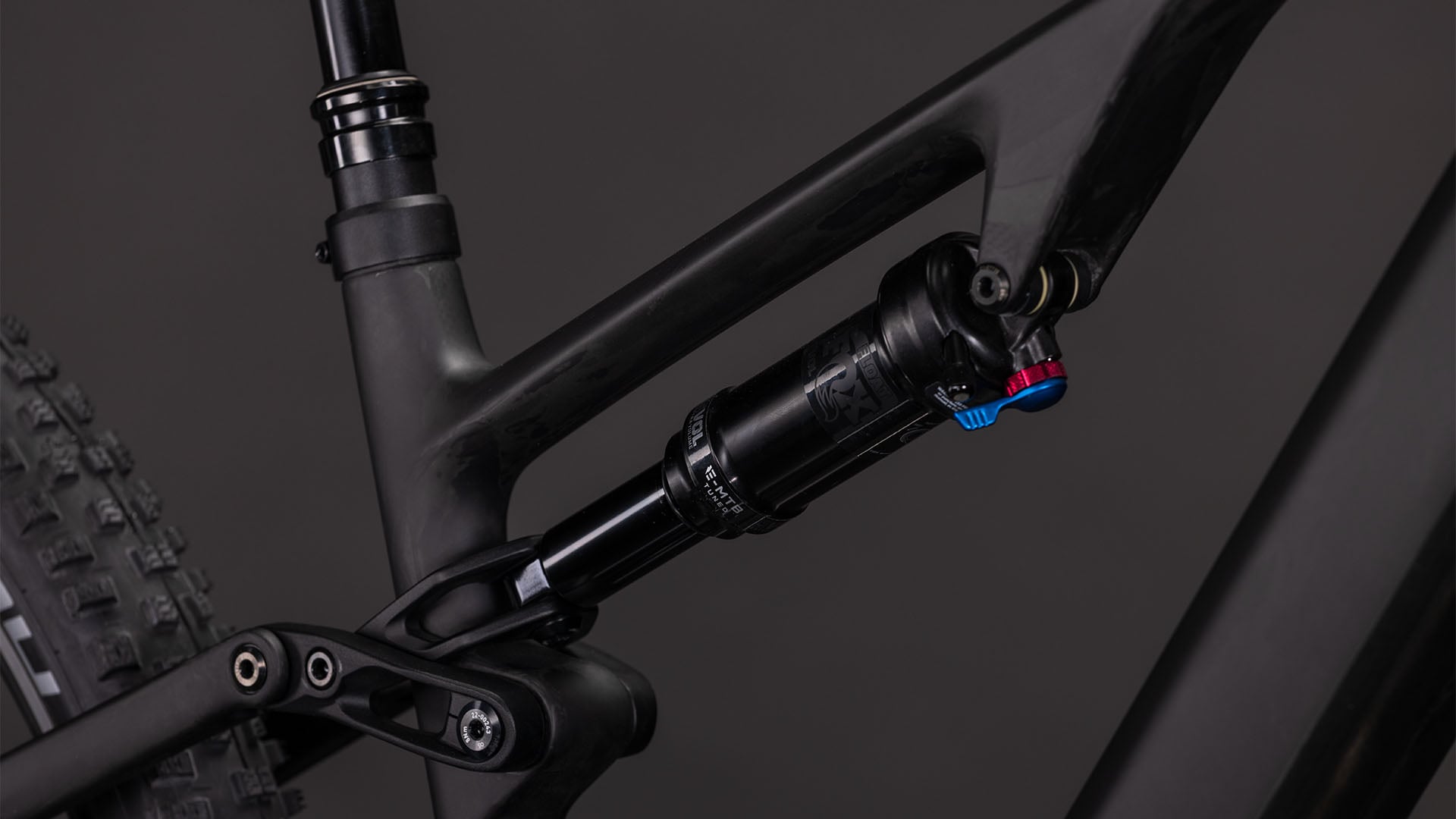

- Fox Float Rhythm RC, 210x55mm, Adjustable LSR w/ 2-Pos. Lever
- Shock hardware
- Front: 30x8mm, Rear: DU-Bushing 12.7mm
E-system
- Motor
- Bosch Drive Unit Performance SX max. 60Nm (BDU31)
- Remote

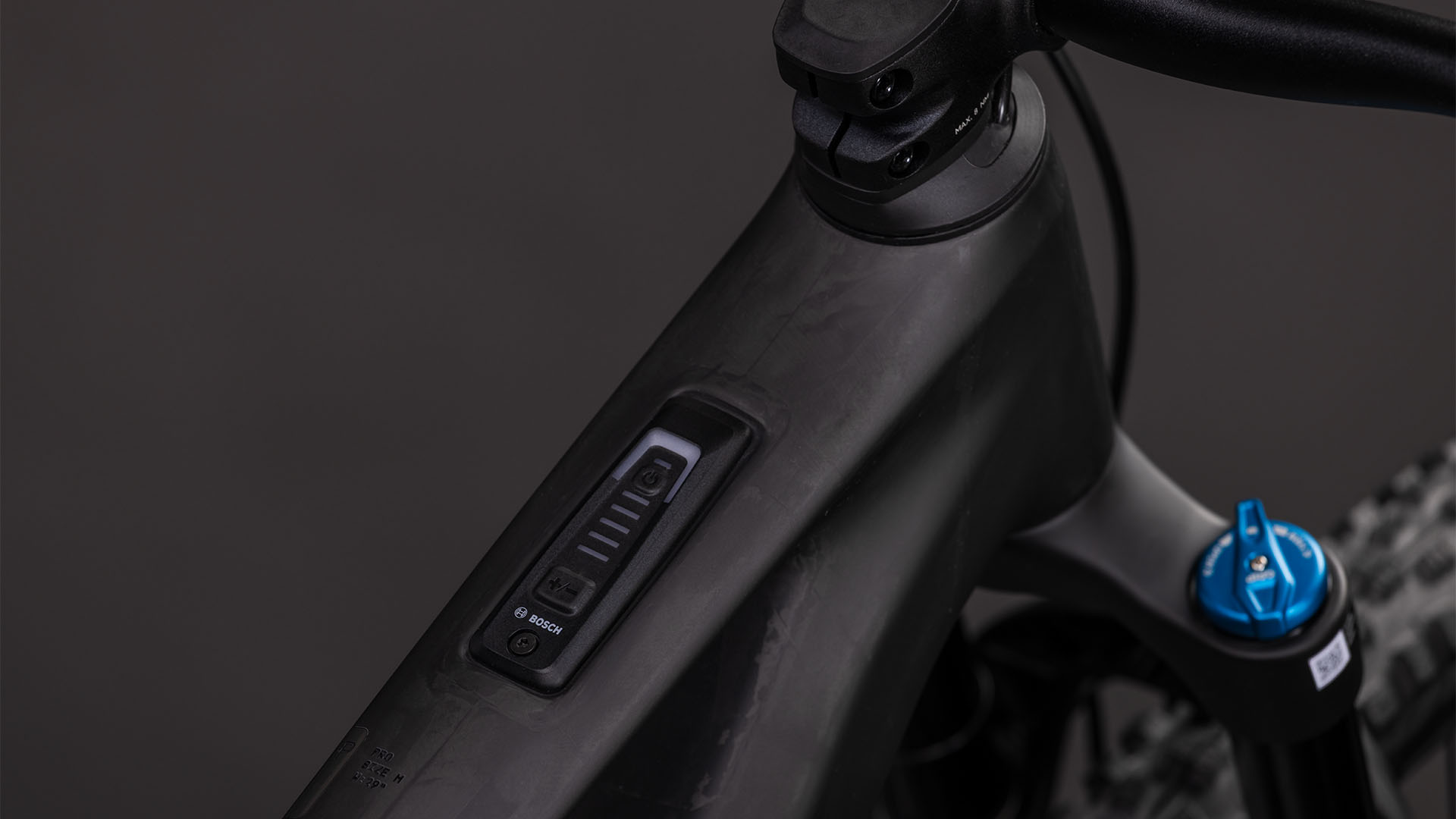

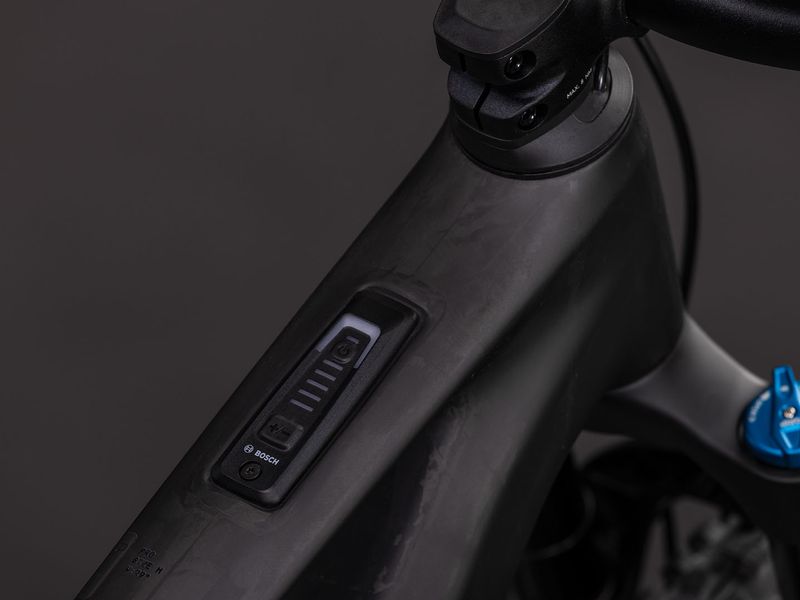

- Bosch System Control, incl. Mini Remote
- Battery
- Bosch CompactTube 400
- Charger
- Bosch 2A
Drivetrain
- Brakes
- Shimano XT BR-M8120, Hydr. Disc Brake (203/180)
- Rear derailleur
- Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
- Shifter
- Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
- Crankset
- ACID MTB Hybrid Pro, 32T
- Cassette
- Shimano Deore CS-M6100, 10-51T
- Chain
- KMC e12
- Chain guide
- Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Wheels & tyres
- Wheelset
- Newmen Performance 30 base/base, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
- Tyres
- Schwalbe Nobby Nic, Addix Performance, Kevlar, 2.4
Cockpit
- Headset
- Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
- Stem
- CUBE Stereo Stem w/ Cable Routing
- Handlebar
- Newmen Evolution SL 318.25, 780mm
- Grips
- ACID Disrupt, Soft Compound
- Saddle
- ACID Venec EMTB Trail 140
- Seatpost
- CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
- Pedals
- ACID PP MTB
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
AMS Hybrid ONE44 geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 370 mm | 405 mm | 420 mm | 470 mm |
| Top tube (horizontal) | 576 / 577 mm | 598 / 599 mm | 626 / 627 mm | 658 / 660 mm |
| Seat angle | 76.2° / 76° | 76.2° / 76° | 76.2° / 76° | 76.2° / 76° |
| Head angle | 65.4° / 66° | 65.4° / 66° | 65.4° / 66° | 65.4° / 66° |
| Chainstay | 450 mm | 450 mm | 450 mm | 450 mm |
| Head tube | 102 mm | 112 mm | 122 mm | 142 mm |
| Wheelbase | 1193 / 1186 mm | 1217 / 1210 mm | 1246 / 1239 mm | 1282 / 1274 mm |
| BB offset (to hub axle) | -34 / -32 | -34 / -32 | -33 / -32 | -33 / -32 |
| Standover (-80 mm) | 761 / 765 mm | 762 / 766 mm | 762 / 766 mm | 763 / 767 mm |
| Reach | 429 / 428 mm | 449 / 448 mm | 474 / 473 mm | 501 / 500 mm |
| Stack | 615 / 617 mm | 624 / 626 mm | 633 / 635 mm | 652 / 654 mm |
Where two values are given: Slack/Moderate geometry setting. Source: Cube.
AMS Hybrid ONE44: builds compared
AMS Hybrid ONE44 range →| AMS Hybrid ONE44 C:62 Pro 400X | AMS Hybrid ONE44 C:62 Race 400X | AMS Hybrid ONE44 C:68X SLX 400X | AMS Hybrid ONE44 C:68X TM 400X | AMS Hybrid ONE44 C:68X SLT 400X | |
|---|---|---|---|---|---|
| Price | €4,199 | €4,499 | €5,999 | €6,499 | €7,999 |
| Frame | Carbon | Carbon | Carbon | Carbon | Carbon |
| Fork | Fox 34 Float Rhythm GRIP, Tapered | RockShox Psylo Gold RC Air, Tapered | Fox 36 Float SL Performance GRIP, Tapered | Fox 36 Float Performance GRIP, Tapered | Fox 36 Float SL Factory GRIPX2, Tapered |
| Shock | Fox Float Rhythm RC | RockShox Super Deluxe Select+ | Fox Float Performance | Fox Float X Performance | Fox Float Factory |
| Derailleur | Shimano XT RD-M8100-SGS | Sram Eagle 90 Transmission | Shimano XT Di2 RD-M8260-SGS | Sram GX Eagle AXS™ Transmission | Shimano XTR Di2 RD-M9260-SGS |
| Brakes | Shimano XT BR-M8120 | Sram Maven Base | Shimano XT BR-M8220 | Sram Maven Silver | Shimano XTR BR-M9220 |
| Weight | 18.1 kg | 19.8 kg | 17.5 kg | 18.7 kg | 16.8 kg |
AMS Hybrid ONE44 C:62 Pro 400X: FAQ
How much does the Cube AMS Hybrid ONE44 C:62 Pro 400X cost?
€4,199 (RRP Germany (UVP), VAT incl.). The AMS Hybrid ONE44 range runs from €4,199 (AMS Hybrid ONE44 C:62 Pro 400X) to €7,999 (AMS Hybrid ONE44 C:68X SLT 400X). Prices vary by country and dealer.
How much does the Cube AMS Hybrid ONE44 C:62 Pro 400X weigh?
Cube quotes 18.1 kg. The lightest AMS Hybrid ONE44 build is the AMS Hybrid ONE44 C:68X SLT 400X at 16.8 kg.
What motor and battery does the Cube AMS Hybrid ONE44 C:62 Pro 400X have?
Bosch Performance Line SX (Up to 60 Nm). 400 Wh battery — compactTube 400.
How much suspension travel does the Cube AMS Hybrid ONE44 C:62 Pro 400X have?
140 mm at the fork and 140 mm at the rear.
What sizes does the Cube AMS Hybrid ONE44 C:62 Pro 400X come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the AMS Hybrid ONE44 C:62 Pro 400X and the AMS Hybrid ONE44 C:62 Race 400X?
They share the AMS Hybrid ONE44 frame platform and motor; the differences are in the parts — fork: Fox 34 Float Rhythm GRIP vs RockShox Psylo Gold RC Air; derailleur: Shimano XT RD-M8100-SGS vs Sram Eagle 90 Transmission; claimed weight: 18.1 kg vs 19.8 kg; price: €4,199 vs €4,499.
