ShimanoDeore M7230 LinkGlide 11-Speed
No RRP published on the accessible Shimano spec site
- Speeds
- 11 (LINKGLIDE)
- Range
- 11-45T / 11-50T
- Shifting
- Mechanical
- Max. low sprocket
- 50T
- Derailleur hanger
- UDH
- Weight
- 439 gRD-M7230-SGS, average weight per Shimano spec chart
Overview
Deore M7230 LinkGlide 11-Speed: mechanical 11-speed Deore drivetrain with the RD-M7230-SGS derailleur (up to 50T, 439 g) and CS-LG700-11 cassette.
The Deore M7230 LinkGlide 11-Speed groupset is Shimano's Deore mechanical drivetrain for LINKGLIDE, built around the RD-M7230-SGS rear derailleur (11-speed, LINKGLIDE, HG 11-speed chain, up to 50T low sprocket, 39T capacity).
It pairs with the CS-LG700-11 cassette (11-45T, 11-50T; average weight 609 (11-50T) g).
- 11-speed LINKGLIDE mechanical drivetrain
- RD-M7230-SGS derailleur, up to 50T, 39T capacity
- Cassette 11-45T, 11-50T
- UDH compatible derailleur
Gallery
Full specifications

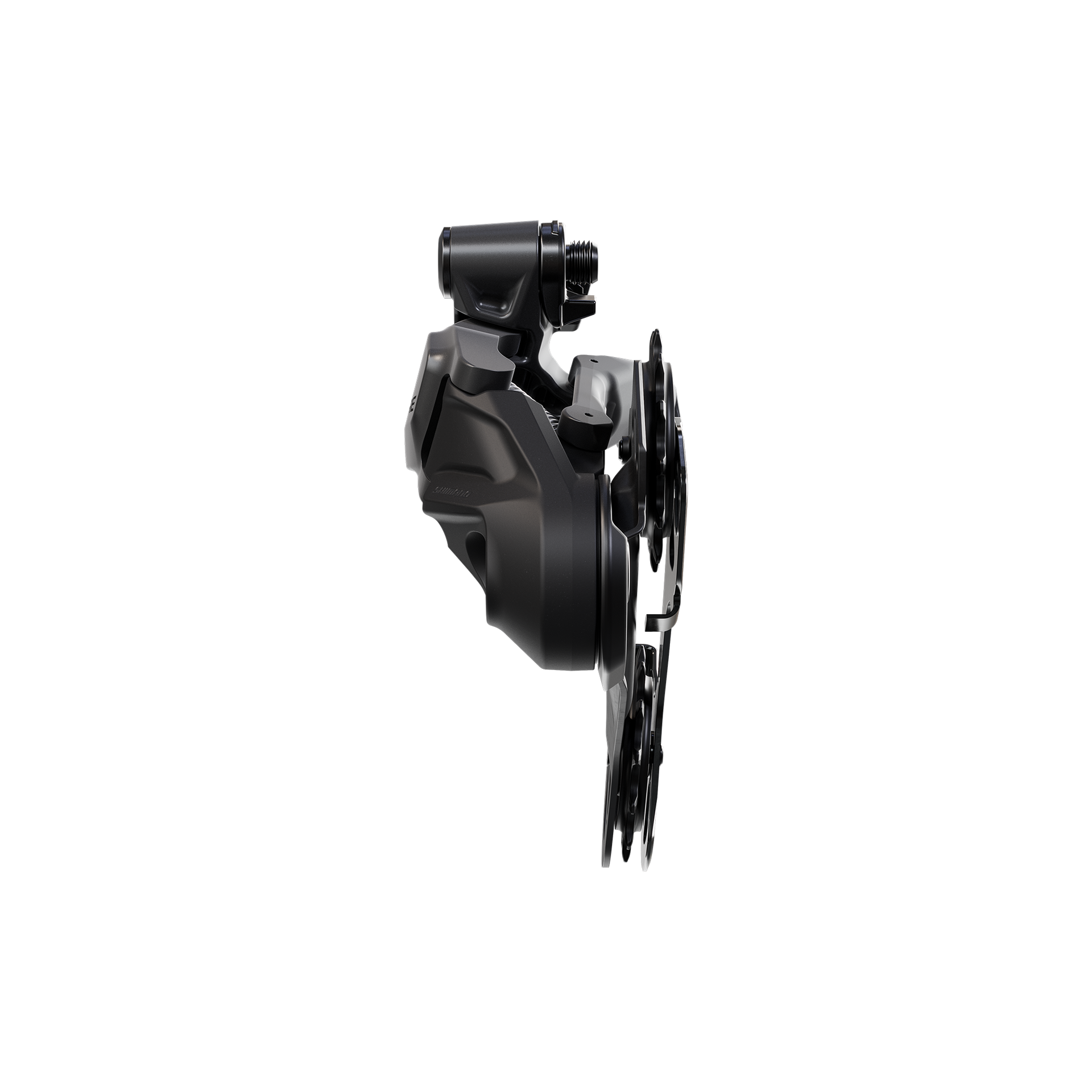

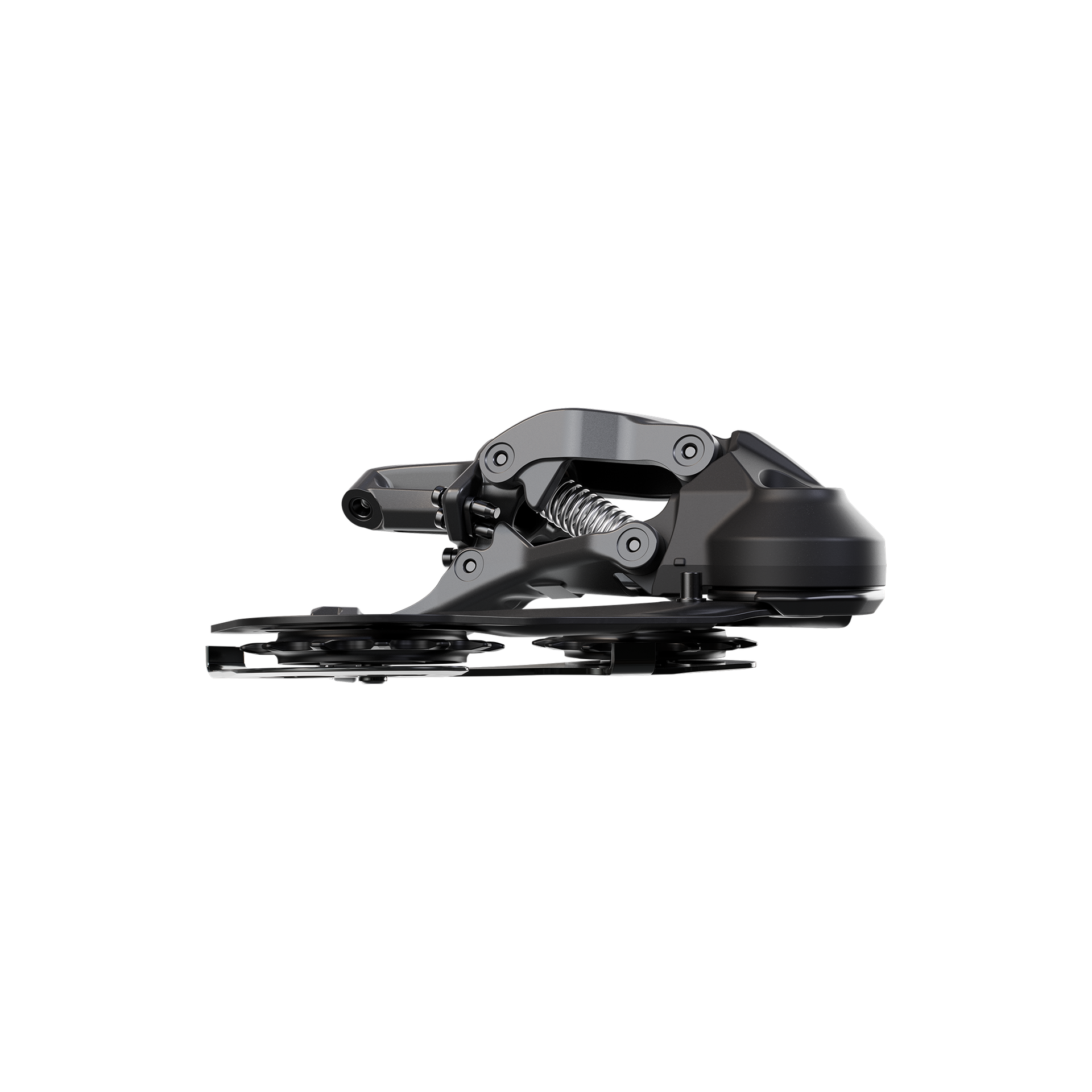

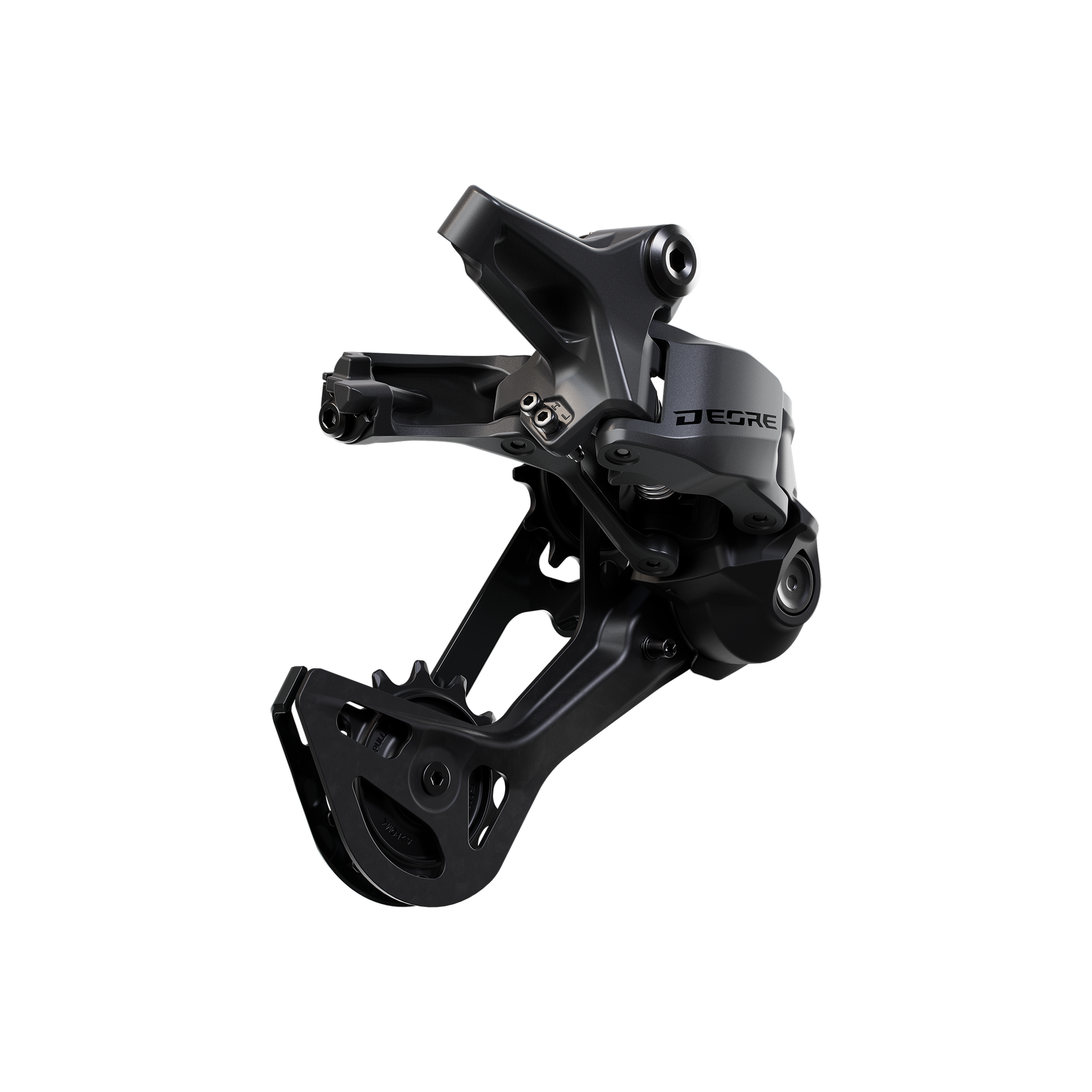

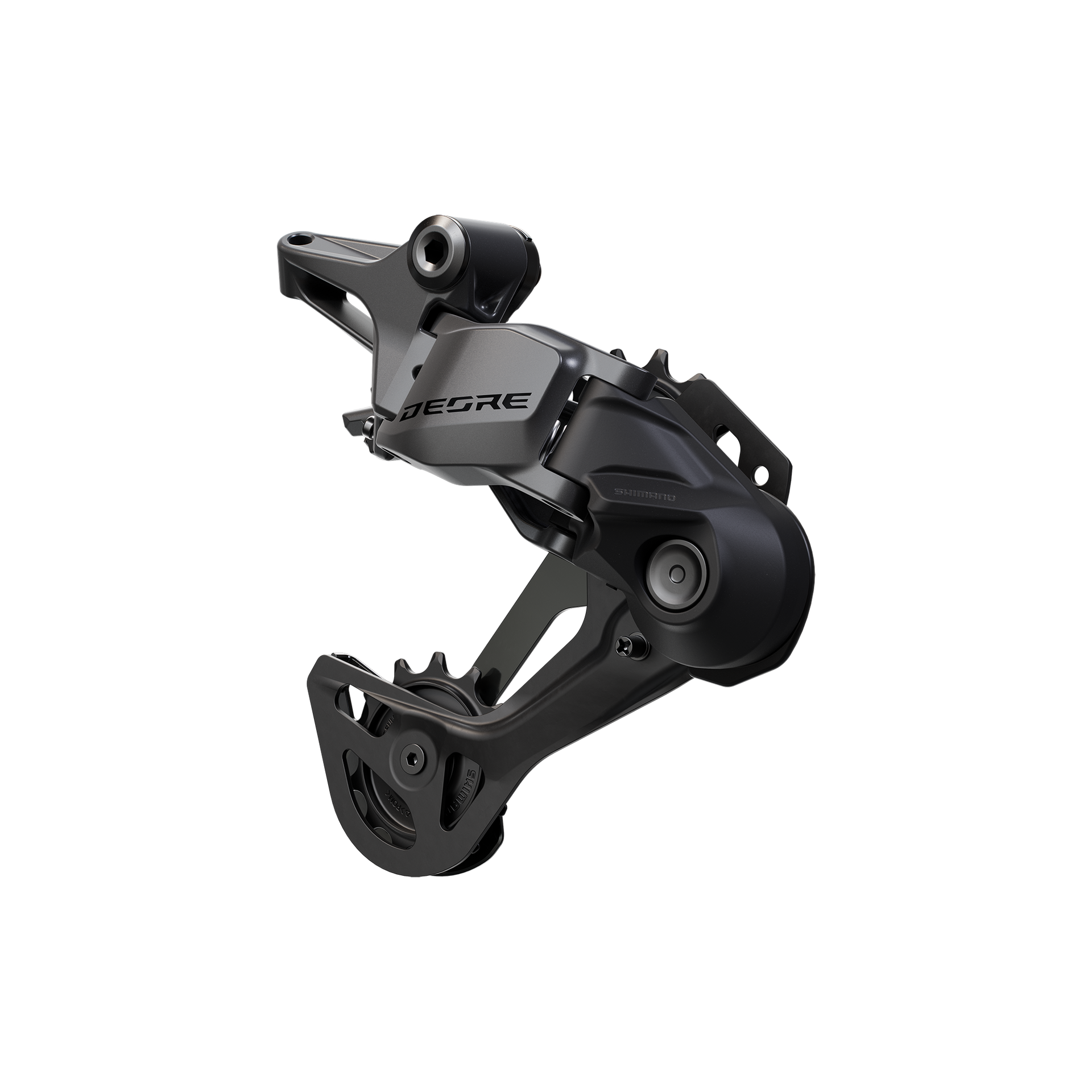

Rear derailleur (RD-M7230-SGS)
- Series
- DEORE
- Model no.
- RD-M7230-SGS
- Color / 1
- Series color
- Rear speeds
- 11
- Compatible chain
- LINKGLIDE, HG 11-speed
- RD construction / SHADOW ES
- Yes
- Applicable derailleur hanger / SHIMANO MTB type / Direct attachment (conventional)
- Yes
- Applicable derailleur hanger / UDH standard
- Yes
- Max. front difference
- 0T
- Total capacity
- 39T
- Low sprocket / Max.
- 50T
- Low sprocket / Min.
- 50T
- Top sprocket / Max.
- 11T
- Top sprocket / Min.
- 11T
- Fluoric coated link bushings
- 4
- Pulley / Teeth
- 13T
- Pulley / Screws material
- Stainless steel
- Pulley / Sunken type pulley screw
- Yes
- B-axle / Material
- Stainless steel
- Bracket body / Material
- Aluminum
- Bracket body / Finish
- Painted
- P-axle / Material
- Steel
- P-axle / Finish
- Plated
- Plate body / Material
- GFRP
- Outer link / Material
- Aluminum
- Outer link / Finish
- Painted
- Inner link / Material
- Aluminum
- Inner link / Finish
- Anodized
- Outer plate / Material
- Steel
- Outer plate / Finish
- Painted
- Inner plate / Material
- Steel
- Inner plate / Finish
- Painted
- Cable fixing screw / Material
- Steel
- Cable fixing screw / Finish
- Plated
- Stroke adjusting screw / Material
- Steel
- Stroke adjusting screw / Finish
- Plated
- Average weight (g)
- 439

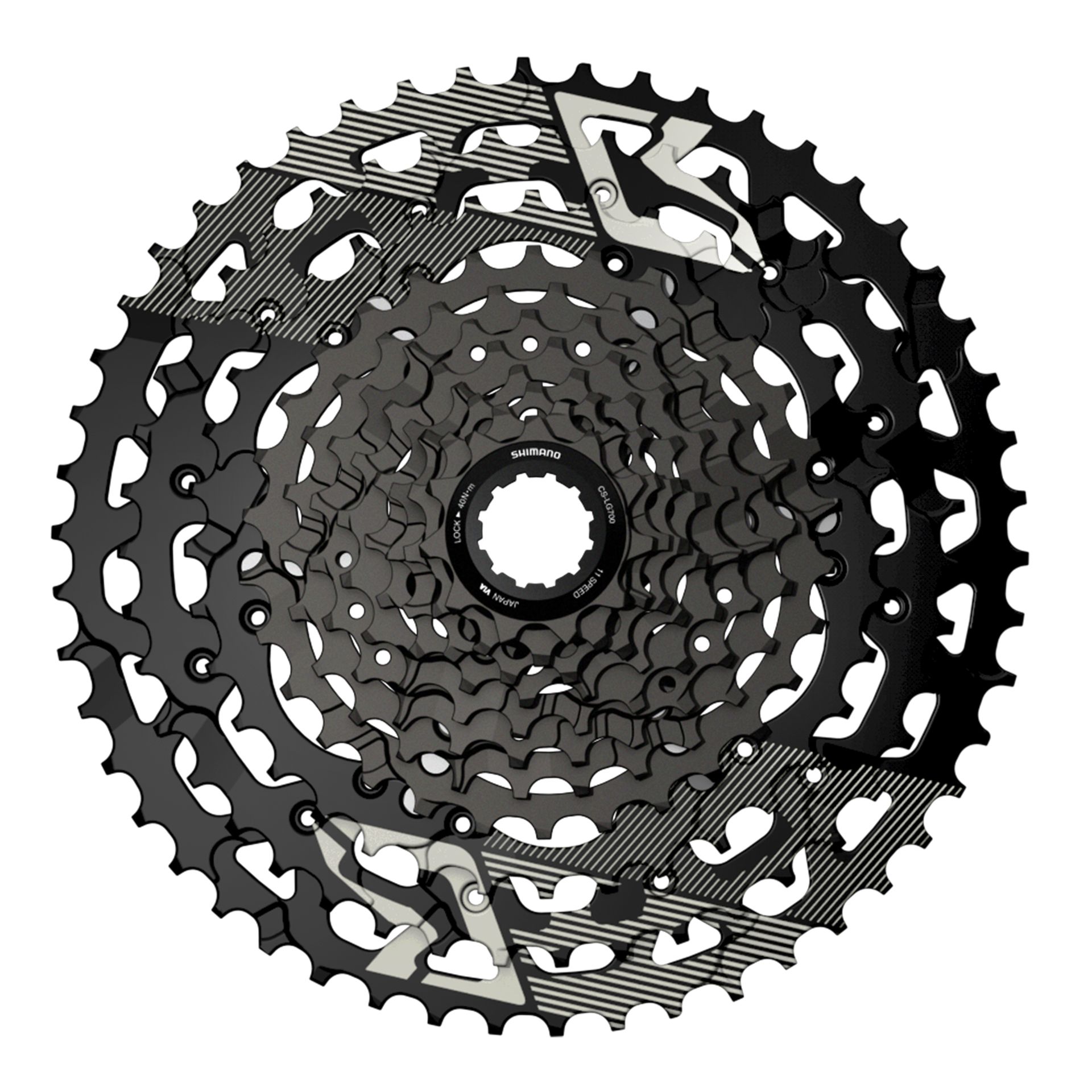

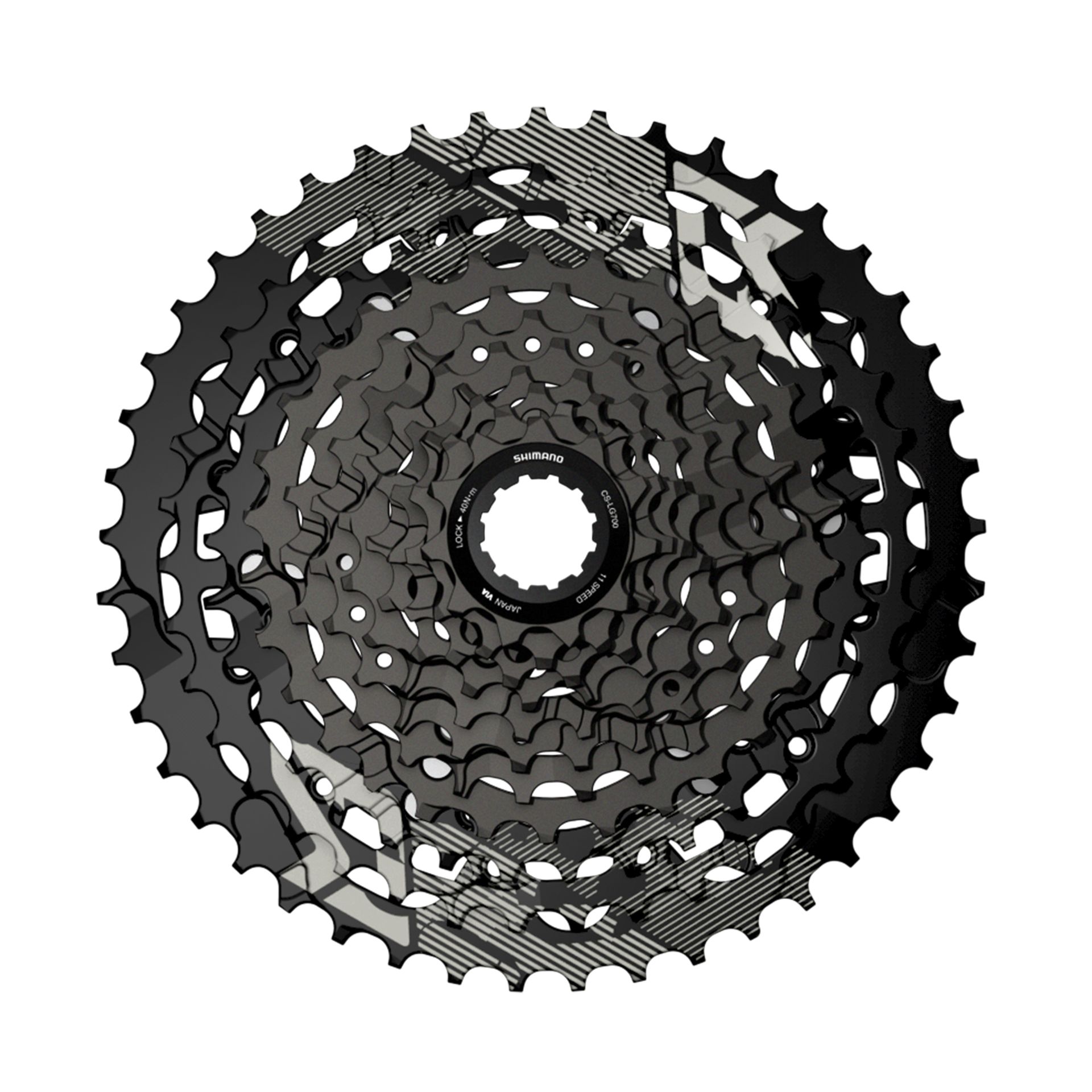

Cassette (CS-LG700-11)
- Series
- SHIMANO
- Model no.
- CS-LG700-11
- Type
- LINKGLIDE
- Rear speeds
- 11
- Compatible chain
- LINKGLIDE, HG 11-speed
- Combination name (Group name)
- 11-45T, 11-50T
- Combination * Titanium gear / 1
- 11-13-15-17-20-23-26-30-34-39-45T
- Combination * Titanium gear / 2
- 11-13-15-17-20-23-26-30-36-43-50T
- Spline type / HG spline M (10/9/8-speed, MTB 11-speed, 7-speed CS-HG400/HG210)
- Yes *1
- Aluminum spider arm / QTY (pcs)
- 1
- Aluminum spider arm / Finish
- Painted
- Steel gear / QTY (pcs)
- 11
- Steel gear / Finish
- Plated
- Lock ring / Material
- Aluminum
- Lock ring / Finish
- Anodized
- Average weight (g)
- 609 (11-50T)
- Note
- *1 Follow compatibility chart
Manufacturer specification — Shimano. Specs and prices can change; check with the brand or your dealer.
Shimano Deore M7230 LinkGlide 11-Speed: FAQ
How much does the Shimano Deore M7230 LinkGlide 11-Speed weigh?
Shimano quotes 439 g (RD-M7230-SGS, average weight per Shimano spec chart).
Is the Shimano Deore M7230 LinkGlide 11-Speed suitable for e-bikes?
Shimano does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the Shimano Deore M7230 LinkGlide 11-Speed?
Speeds: 11 (LINKGLIDE); Range: 11-45T / 11-50T; Shifting: Mechanical; Max. low sprocket: 50T; Derailleur hanger: UDH.
