MegamoRyal 03 AXS
- Motor
- DJI Avinox M2S130 Nm (150 Nm Boost); 1,500 W peak
- Battery
- 800 WhRemovable (RS800), key lock
- Travel F / R
- 160 / 160 mm
- Wheels
- 29"
- Frame
- Alloy
Overview

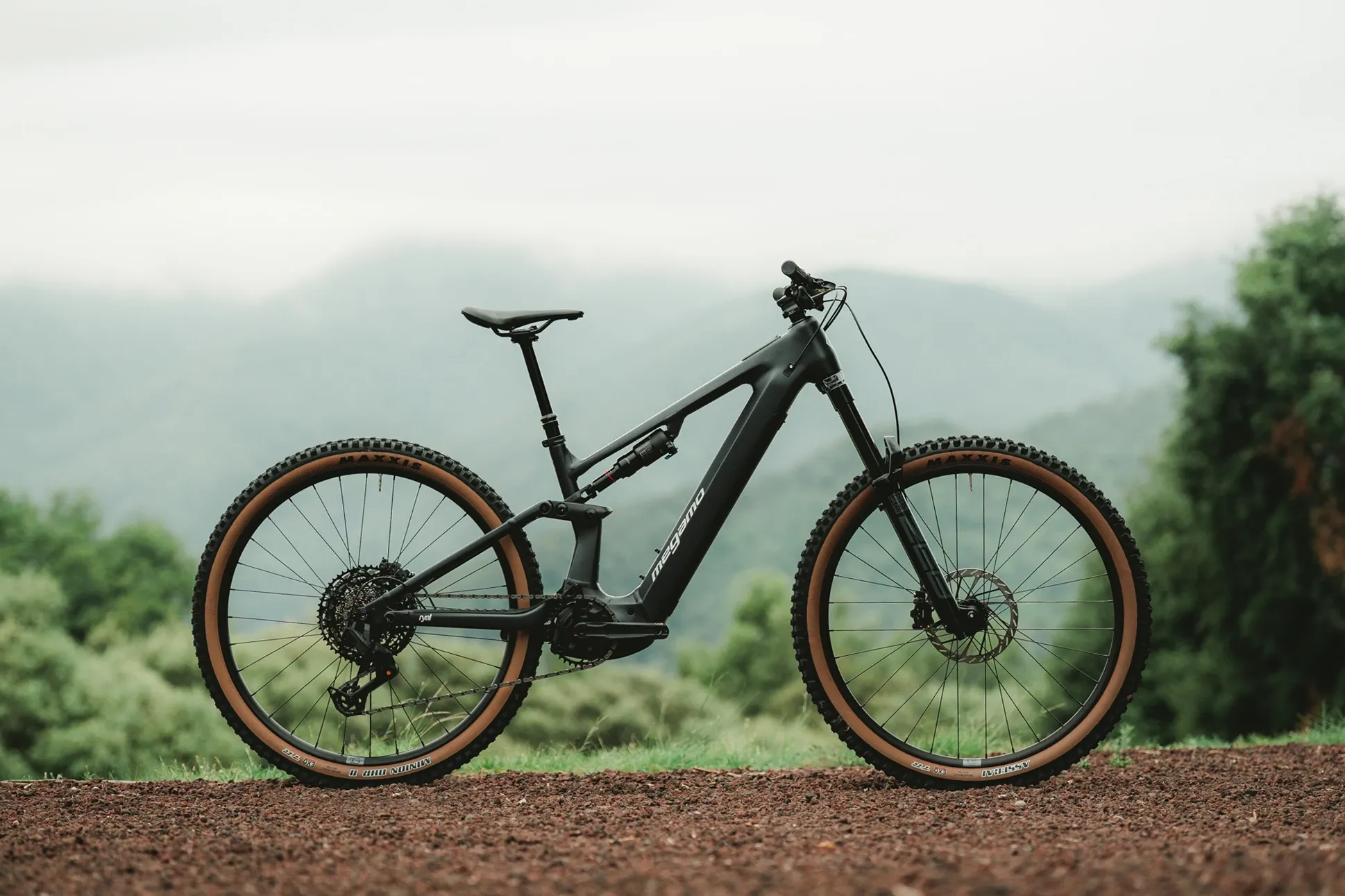

The Megamo Ryal 03 AXS (€6,999) is the top build of the Ryal: DJI Avinox M2S (130 Nm, 150 Nm Boost) with 800 Wh, Fox 38 Float Factory fork, Fox Float X Factory shock, Sram S1000 EAGLE AXS T-TYPE and Shimano XT M8220 brakes.
The Ryal is Megamo's aluminium Avinox e-MTB with 160 mm of travel front and rear, 29-inch wheels and a removable 800 Wh battery (RS800) with a key lock. Megamo describes it as sharing the Reason's DNA with a more relaxed geometry: shorter reach, higher stack and longer chainstays.
The 03 AXS and 05 use the DJI Avinox M2S (130 Nm, 150 Nm and 1,500 W in Boost mode), the 08 and 10 the Avinox M2 (110 Nm, 125 Nm and 1,100 W in Boost). All builds use the DPC100 2-inch OLED display, the frame accepts dual-chamber shocks and cables can be routed internally or externally.
- Aluminium frame, 160/160 mm travel
- Removable 800 Wh battery
- Avinox M2S or M2 motor
- More relaxed geometry than the Reason

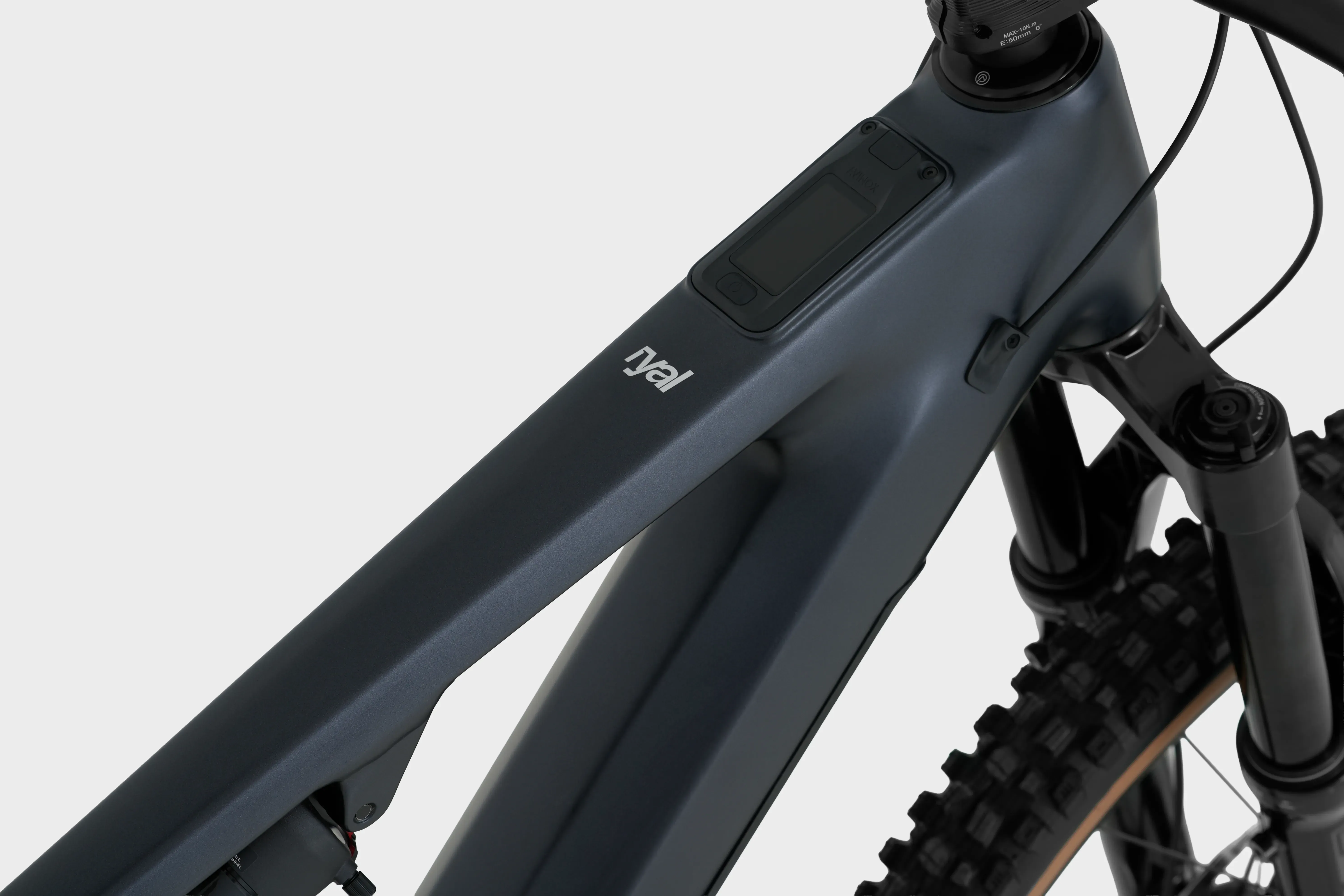

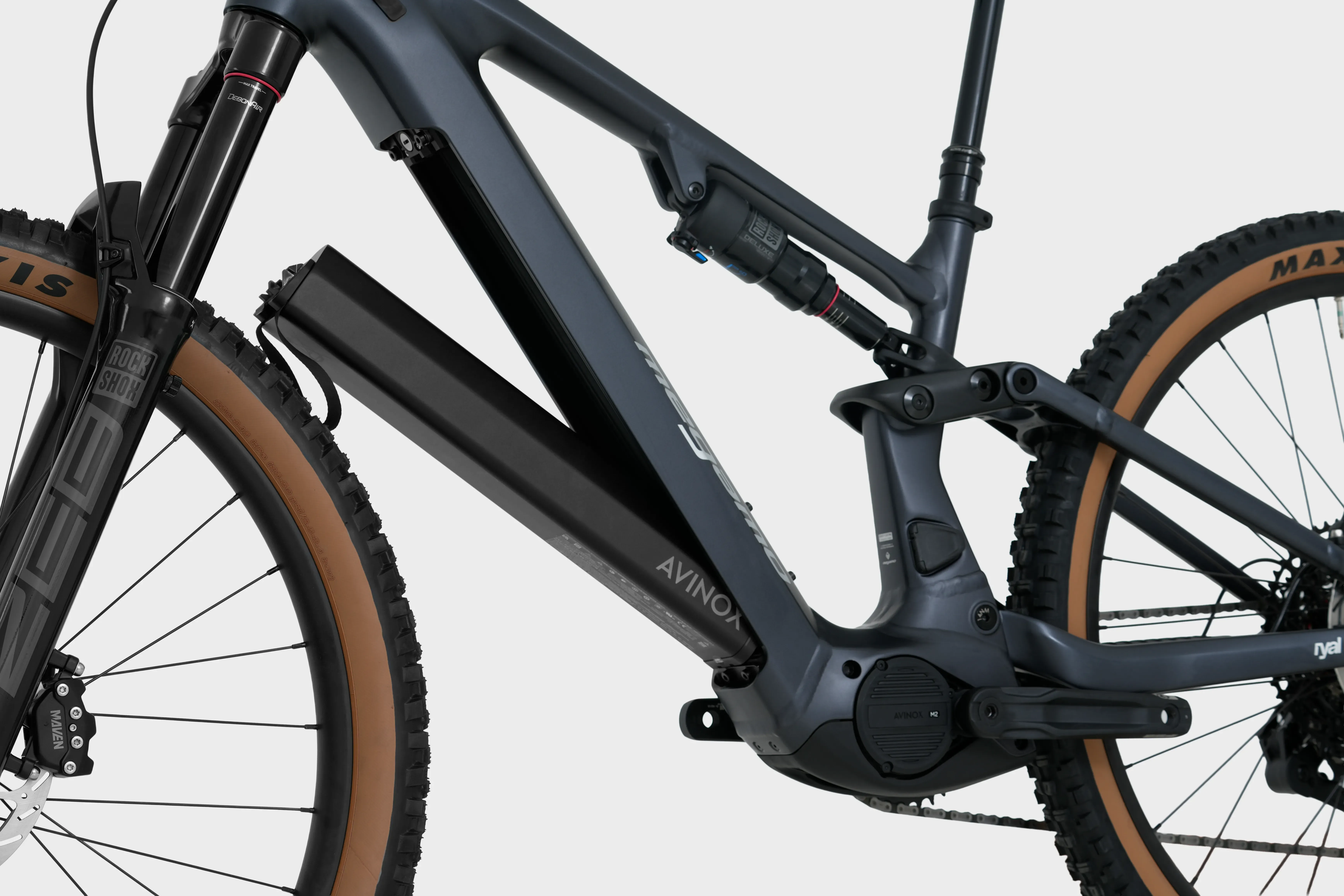

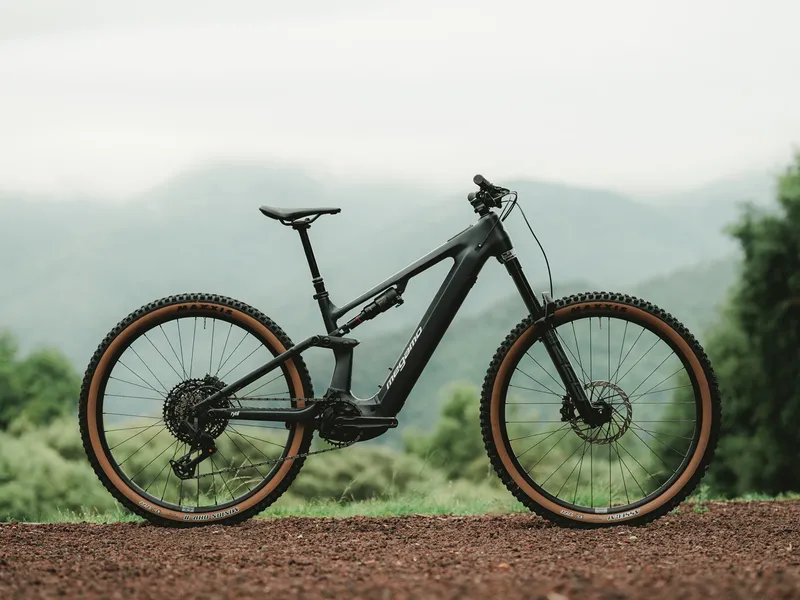

Gallery
Photos: Megamo
Full specifications
Frame & suspension
- Frame

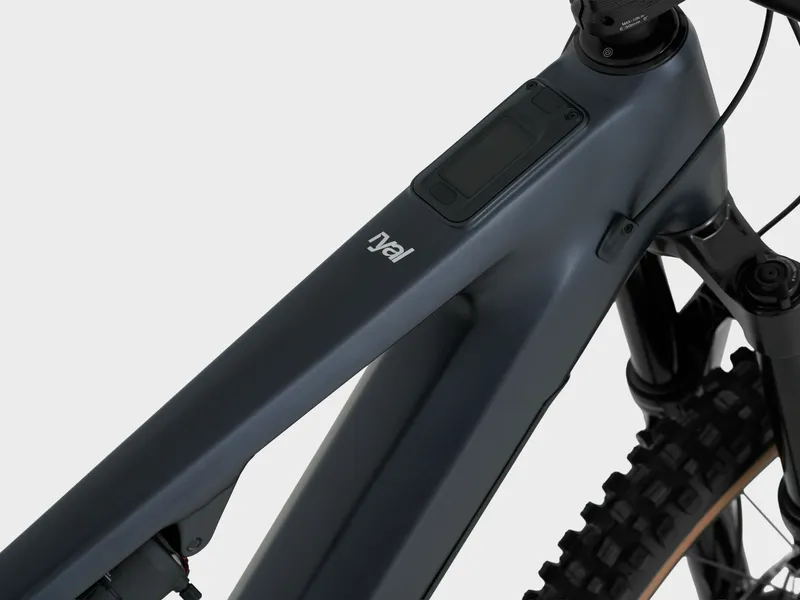

- Ryal Alloy Frame, Alloy shock extension, Full Integratted Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 160 mm
- Fork
- Fox 38 Float Factory E-Bike Optimized, 160mm Travel, Grip X2
- Rear shock
- Fox Float X Factory, 210 x 55 mm
- Headset
- Acros blocklock 135º
E-system
- Motor

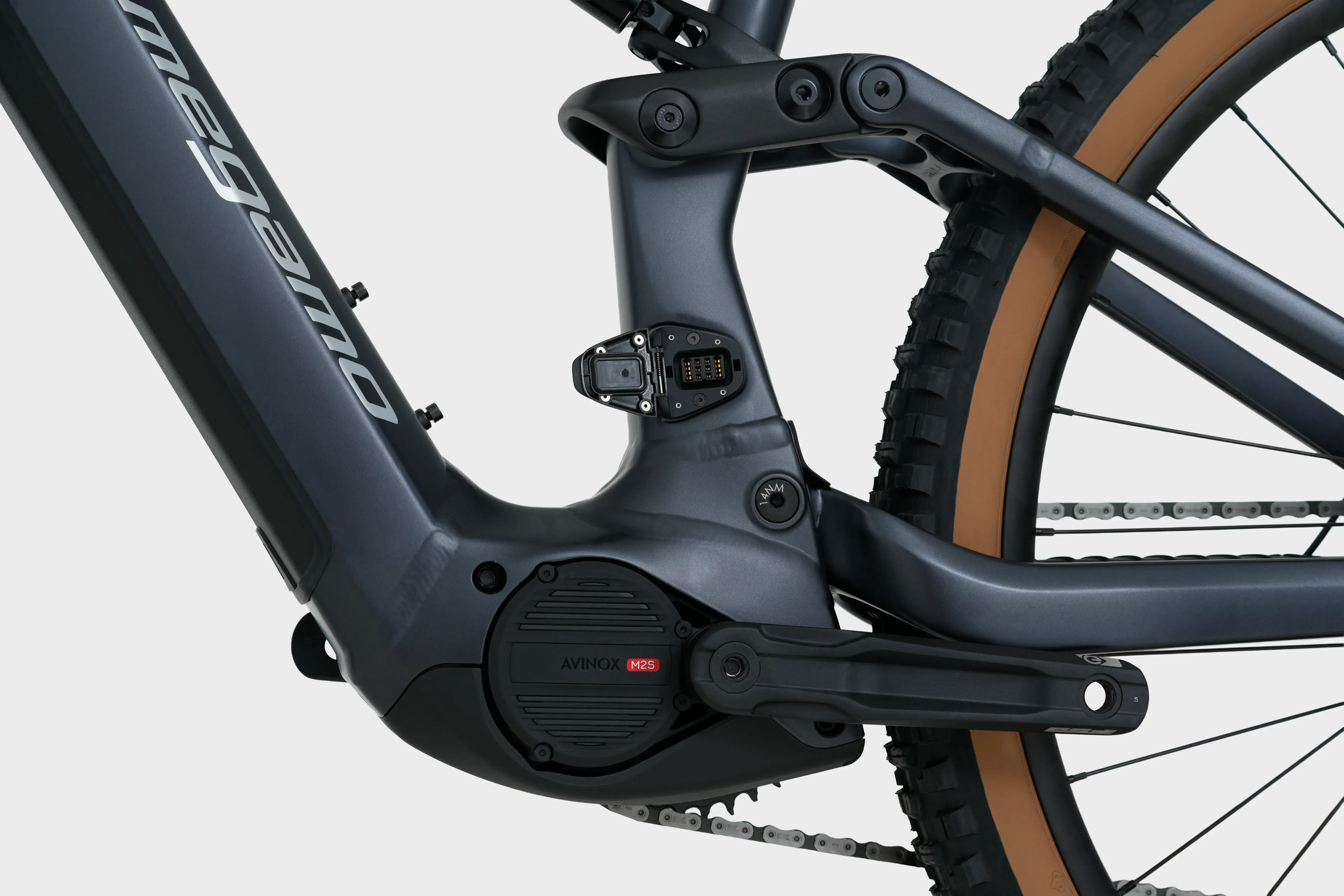

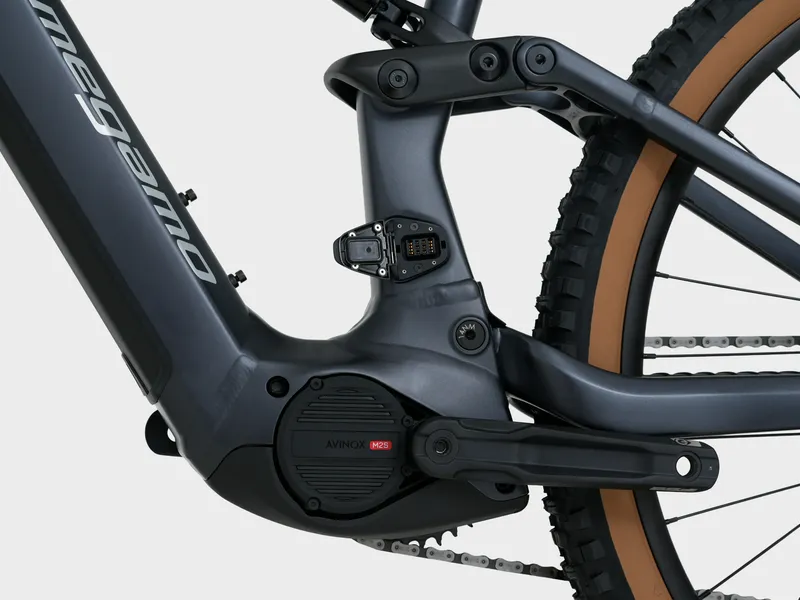

- Avinox M2S -150Nm 1500W (Boost mode) / 130Nm 1300W0W
- Battery
- Avinox 800 Wh Removable
- Display

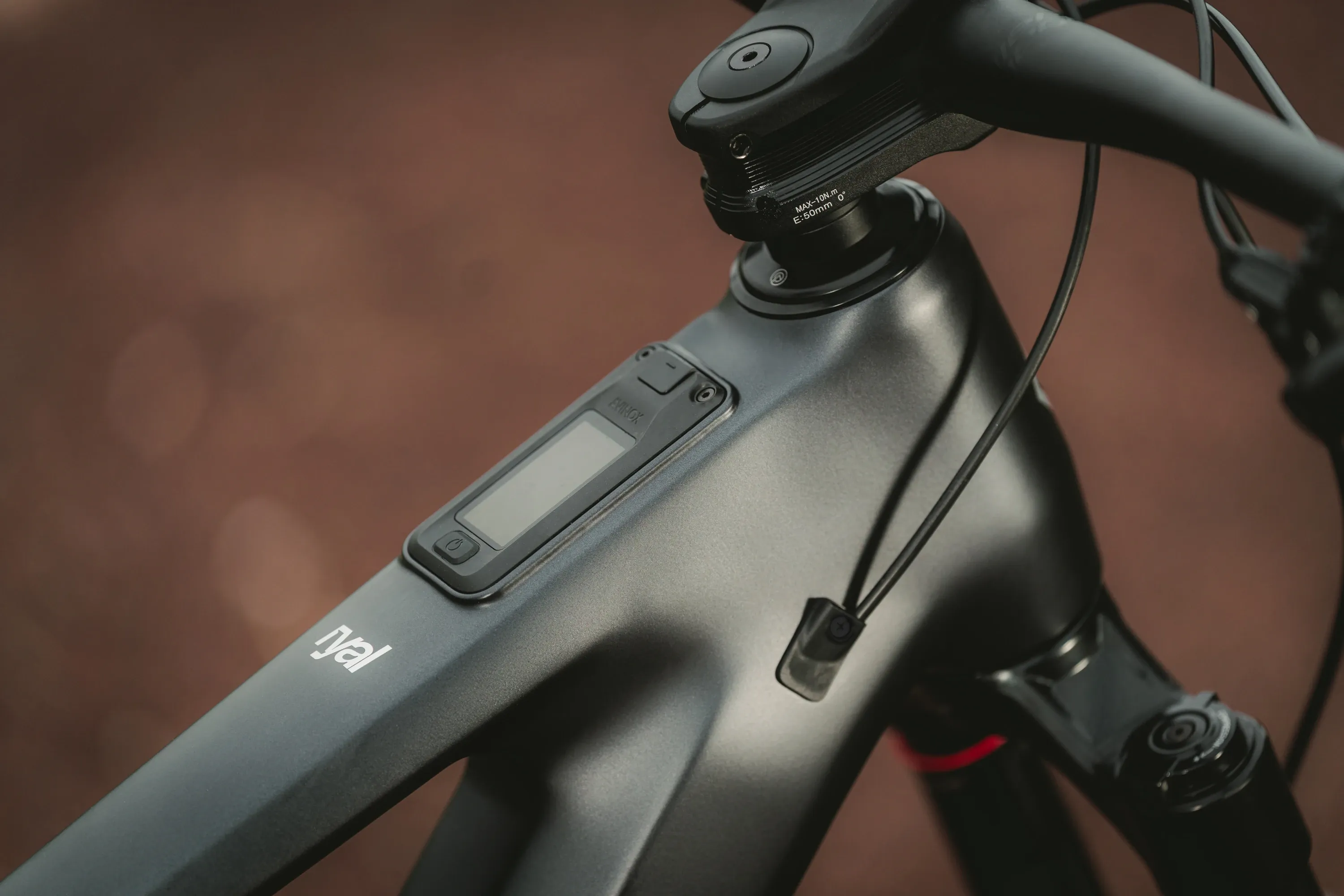

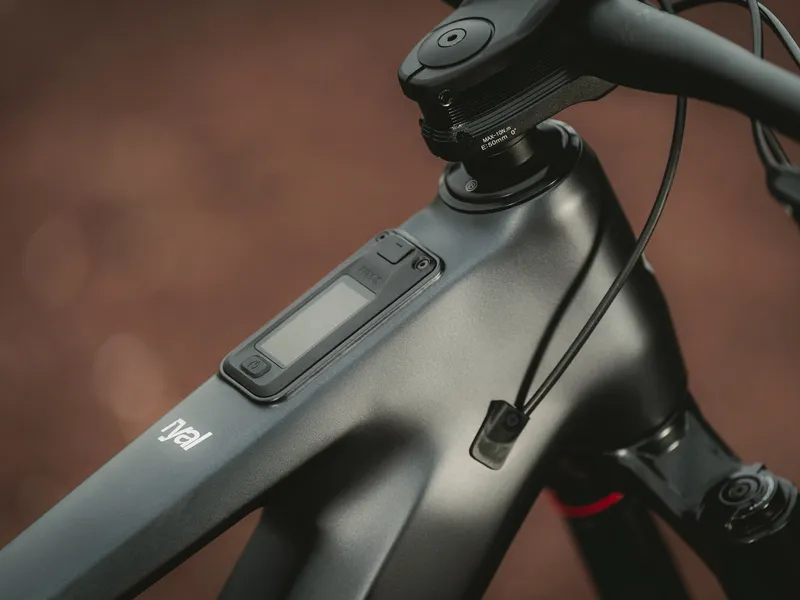

- Avinox DPC100, 2-inch OLED display
- Charger
- Avinox 12A Fast Charger
Drivetrain
- Rear derailleur
- Sram S1000 EAGLE AXS T-TYPE, 12-Speed
- Shifters
- Sram AXS POD
- Crankset
- Sram EAGLE T-TYPE Avinox Chainring 36T 12-Speed, Crankset 160mm
- Cassette
- Sram XS 1270 T-TYPE, 10-52T
Brakes
- Brakes
- Shimano XT M8220, Hydraulic Disc 4-Piston, RT-CL800 203 mm
Wheels & tyres
- Tyres
- Maxxis Assegai 29x2.5 EXO+, Tubeless ready
- Wheelset
- DT Swiss H 1900 SPLINE, 30mm Tubeless ready Aluminium rim, 370 Ratchet LN 18
Cockpit
- Handlebar
- Carbon Race Face ERA 35x800, Rise 20mm
- Stem
- Satori New Ursa, 35 x 50 mm
- Seatpost
- Fox Transfer Factory Ø31.6 mm S size 150 mm Drop / M size 180 mm Drop / L and XL size 210 mm Drop
- Saddle
- Fizik Terra Aidon X5, 145 mm
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Ryal geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ATop tube | 580 mm | 604 mm | 634 mm | 656 mm |
| BChainstay | 455 mm | 455 mm | 455 mm | 455 mm |
| CSeat tube | 390 mm | 410 mm | 430 mm | 460 mm |
| DHead tube | 105 mm | 125 mm | 145 mm | 155 mm |
| EReach | 435 mm | 455 mm | 480 mm | 500 mm |
| FStack | 629 mm | 647 mm | 665 mm | 674 mm |
| GBB drop | 30 mm | 30 mm | 30 mm | 30 mm |
| HHead angle | 64.4° | 64.4° | 64.4° | 64.4° |
| ISeat angle | 77° | 77° | 77° | 77° |
| JWheelbase | 1221 mm | 1249 mm | 1283 mm | 1307 mm |
Source: Megamo.
Ryal: builds compared
Ryal range →| Ryal 10 | Ryal 08 | Ryal 05 | Ryal 03 AXS | |
|---|---|---|---|---|
| Price | €4,299 | €4,799 | €5,499 | €6,999 |
| Frame | Alloy | Alloy | Alloy | Alloy |
| Fork | Rock Shox Psylo Silver RC, 160 mm Travel | Rock Shox Zeb Base, 160 mm Travel | Fox 38 Float Performance E-Bike Optimized, 160mm Travel | Fox 38 Float Factory E-Bike Optimized, 160mm Travel |
| Shock | Rock Shox Deluxe Select+ | Rock Shox Deluxe Select+ | Fox Float Rhythm | Fox Float X Factory |
| Derailleur | Shimano XT M8100 | Sram 70 EAGLE T-TYPE | Sram 90 EAGLE T-TYPE | Sram S1000 EAGLE AXS T-TYPE |
| Brakes | Shimano MT520 | Sram Maven Base | Shimano XT M8220 | Shimano XT M8220 |
| Display | Avinox DPC100 | Avinox DPC100 | Avinox DPC100 | Avinox DPC100 |
Ryal 03 AXS: FAQ
How much does the Megamo Ryal 03 AXS cost?
€6,999 (RRP Spain (megamo.com, EN), VAT incl.). The Ryal range runs from €4,299 (Ryal 10) to €6,999 (Ryal 03 AXS). Prices vary by country and dealer.
What motor and battery does the Megamo Ryal 03 AXS have?
DJI Avinox M2S (130 Nm (150 Nm Boost); 1,500 W peak). 800 Wh battery — removable (RS800), key lock.
How much suspension travel does the Megamo Ryal 03 AXS have?
160 mm at the fork and 160 mm at the rear, on 29" wheels.
What sizes does the Megamo Ryal 03 AXS come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Ryal 03 AXS and the Ryal 05?
They share the Ryal frame platform and motor; the differences are in the parts — fork: Fox 38 Float Factory E-Bike Optimized vs Fox 38 Float Performance E-Bike Optimized; shock: Fox Float X Factory vs Fox Float Rhythm; derailleur: Sram S1000 EAGLE AXS T-TYPE vs Sram 90 EAGLE T-TYPE; price: €6,999 vs €5,499.
