DucatiDM-160 R
- Motor
- DJI Avinox M2S130 Nm (150 Nm Boost); 1300 W peak
- Battery
- 800 WhAvinox, integrated
- Travel F / R
- 160 / 160 mm
- Wheels
- 29"
- Frame
- Carbon
Overview
The Ducati DM-160 R (€7,990) is the only build of the DM-160: DJI Avinox M2S with 800 Wh, RockShox ZEB Select fork, RockShox Super Deluxe Select+ shock, SRAM Eagle 90 T-Type and SRAM Maven Base brakes. No claimed weight is published.

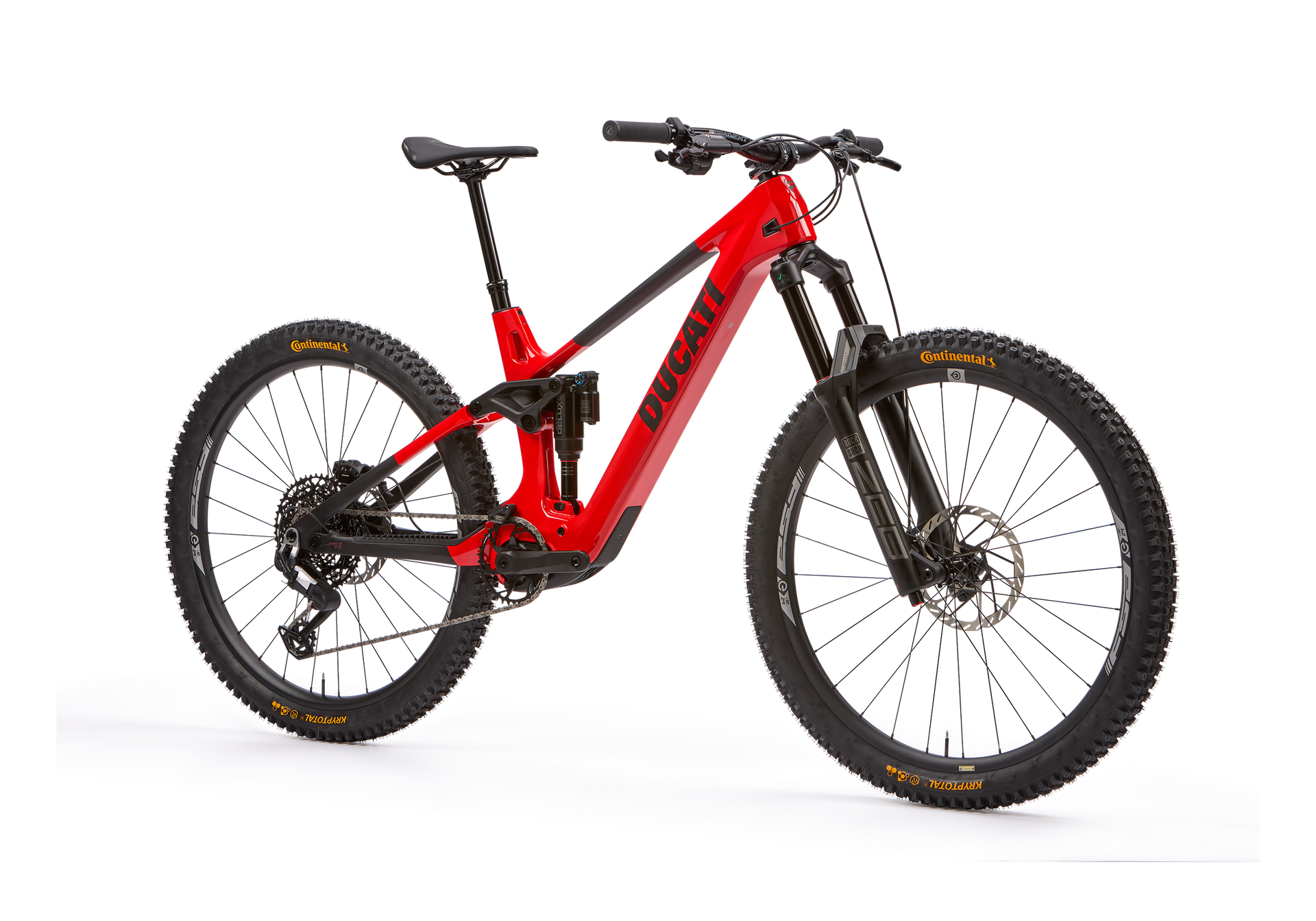

The DM-160 R is Ducati's 160 mm enduro e-MTB, developed with Diamant S.r.l. (Zecchetto Group) and sold through Ducati Cycling. It uses a UD carbon fibre frame with a 1.5" tapered head tube, 29" wheels and geometry adjustable via a flip chip; head angle is 64°.
Power comes from the DJI Avinox M2S drive unit (up to 130 Nm, 150 Nm in Boost, 1300 W peak) with an integrated 800 Wh battery and the DP100 Flat touchscreen display built into the top tube. Suspension is a RockShox ZEB Select 160 mm fork and a Super Deluxe Select+ 205x60 trunnion shock.
- Avinox M2S: 130 Nm (150 Nm Boost), 1300 W peak
- 800 Wh integrated battery
- 160 mm RockShox ZEB, 29" wheels
- UD carbon frame with flip chip
Gallery

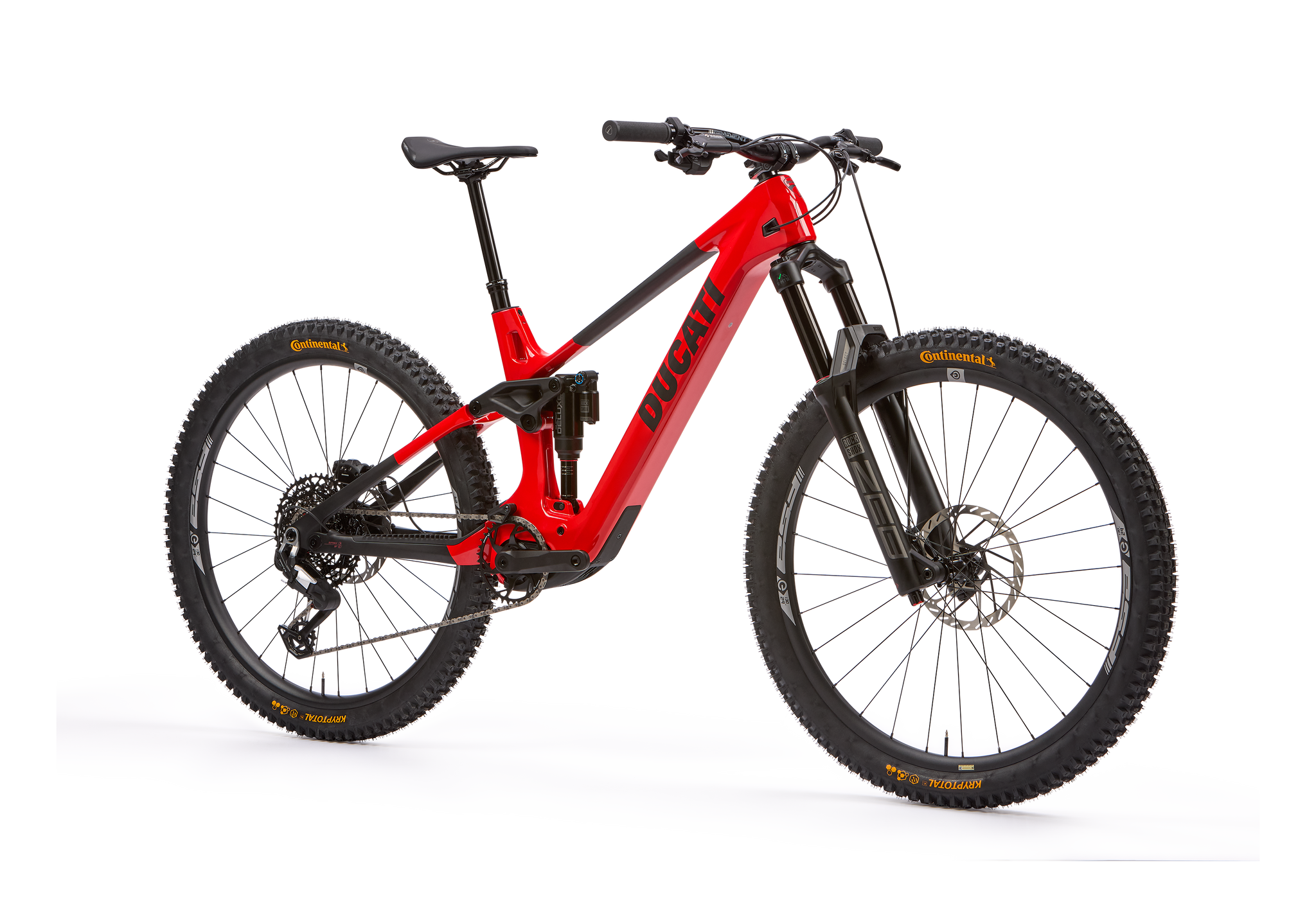

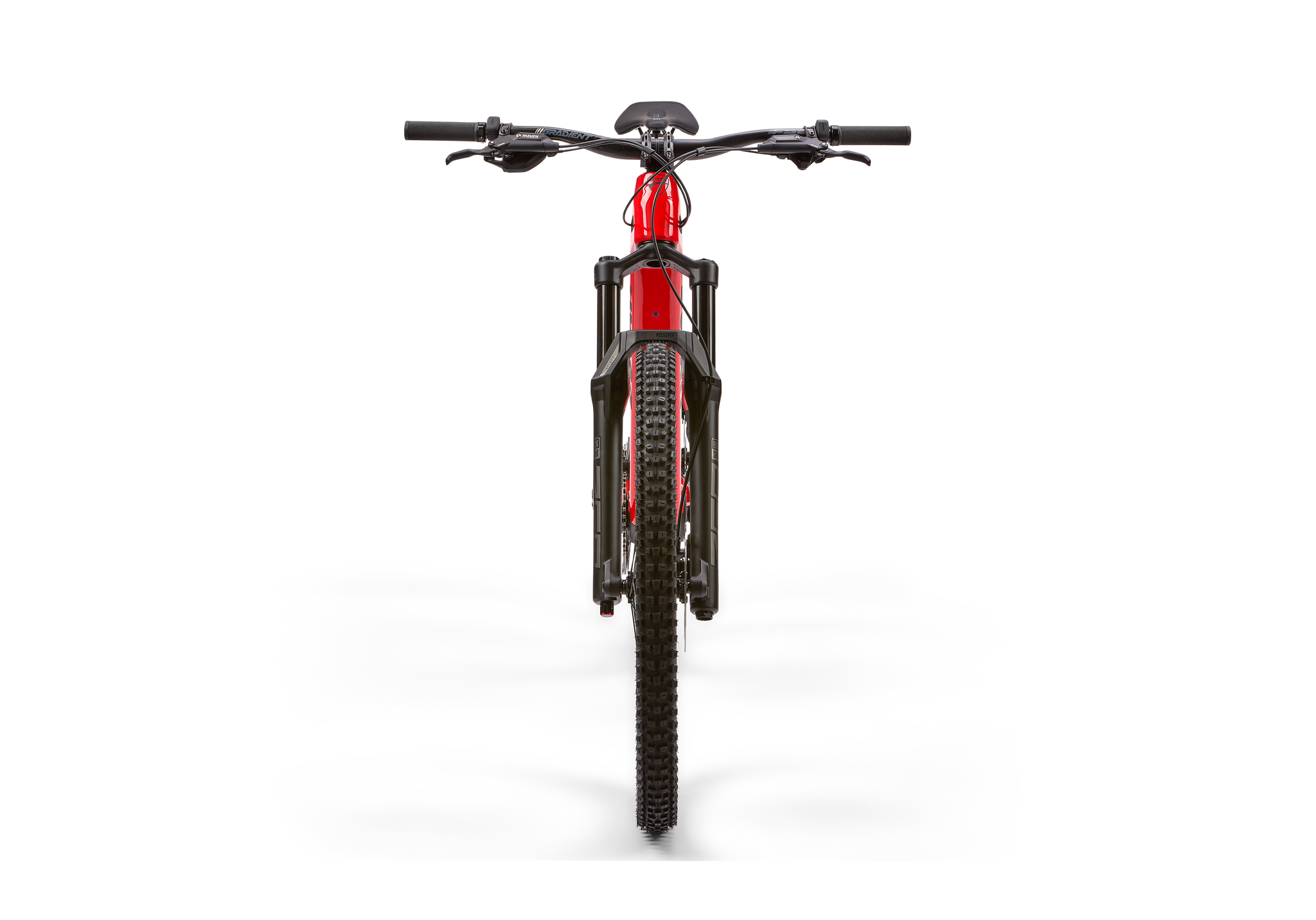

Photos: Ducati
Full specifications
Frame & suspension
- Frame
- UD carbon fiber frame, 1.5" tapered head tube, adjustable geometry with Flip Chip system
- Rear travel
- 160 mm
- Fork

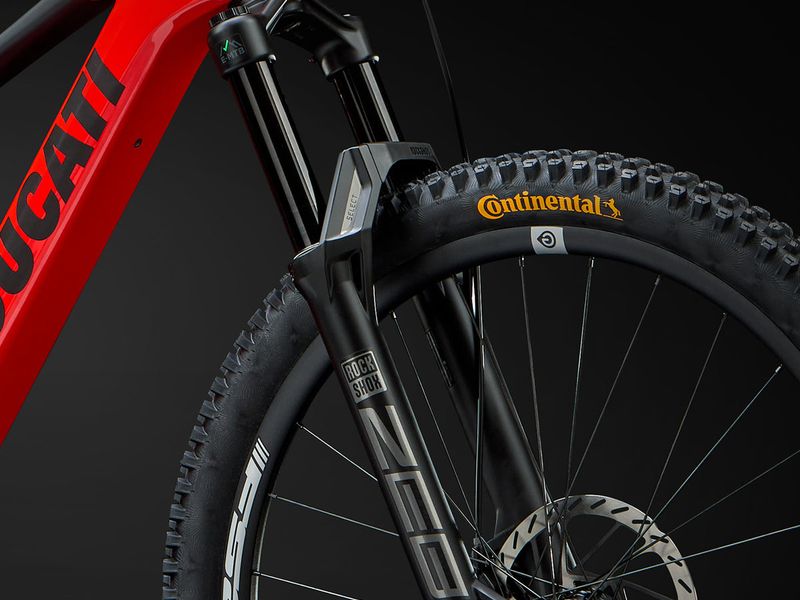

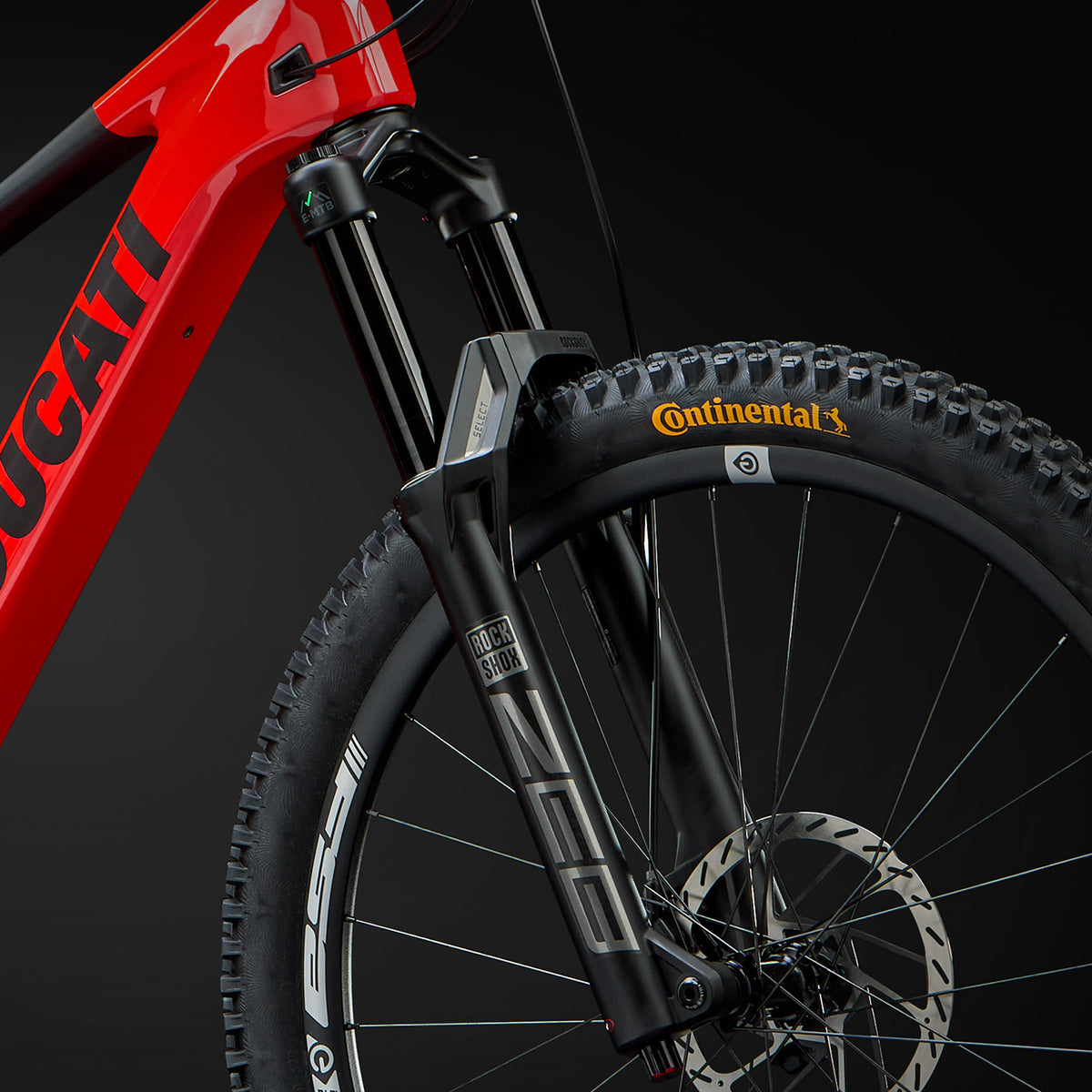

- RockShox Zeb Select 29", 160 mm travel
- Rear shock

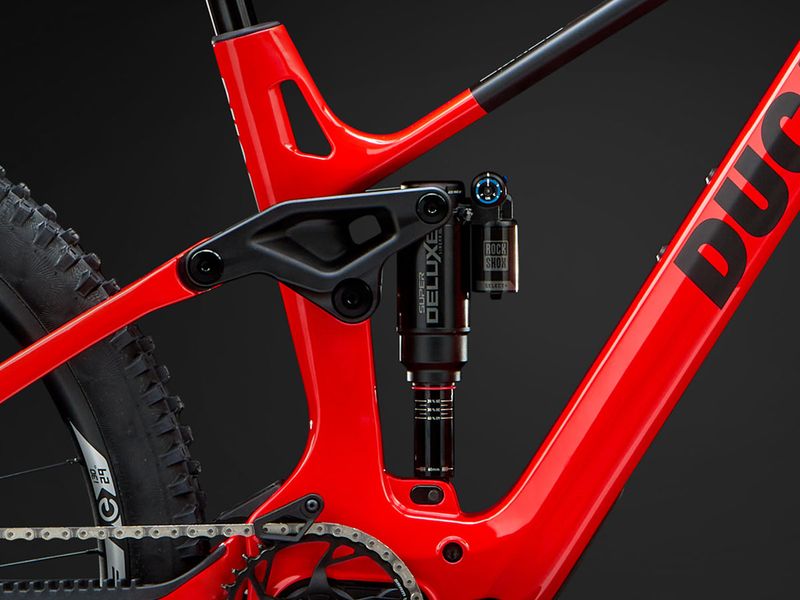

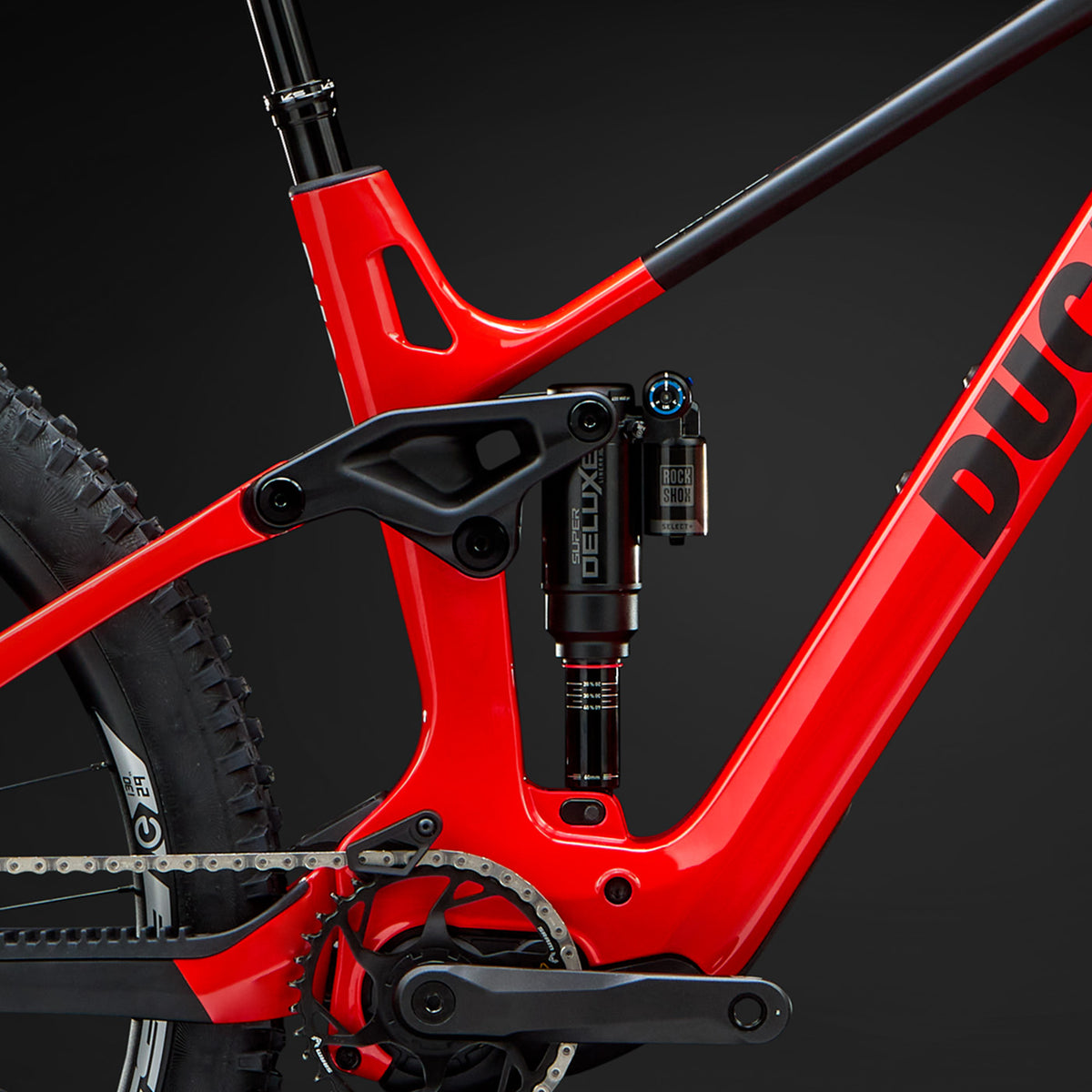

- RockShox Super Deluxe Select+ 205×60 Trunnion, custom tuned
E-system
- Motor
- Avinox M2S
- Display
- DP100 Flat
- Battery
- Avinox 800 Wh (integrated)
Drivetrain
- Rear Derailleur
- SRAM Eagle 90 12-speed T-Type
- Shifter
- SRAM Eagle 90 Single Click
- Cassette
- SRAM XS 1270 (10–52)
- Chain
- GX T-Type
- Chainring
- Avinox 36T Steel T-Type
- Crankset
- FSA – CK745 160 mm
Brakes
- Brakes

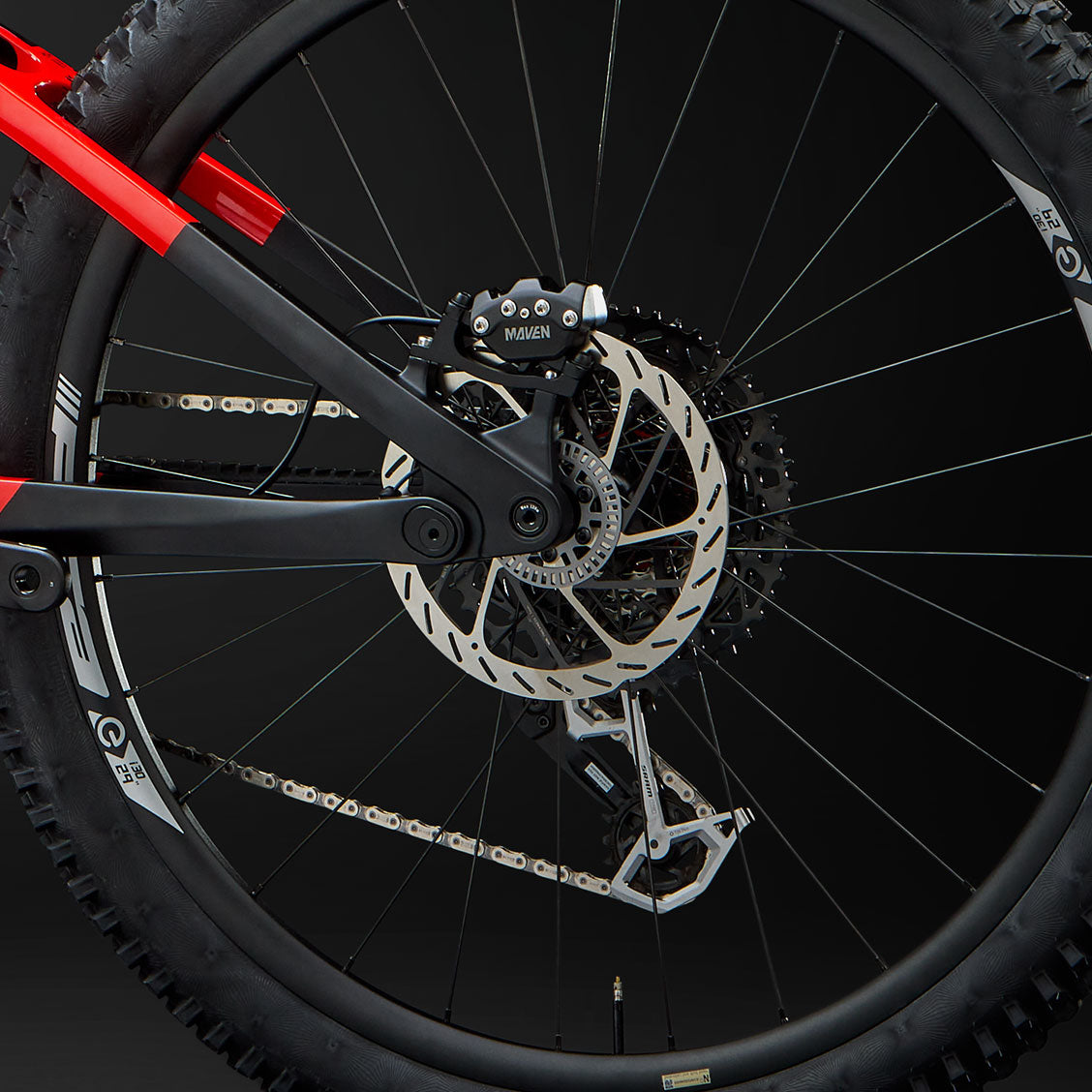

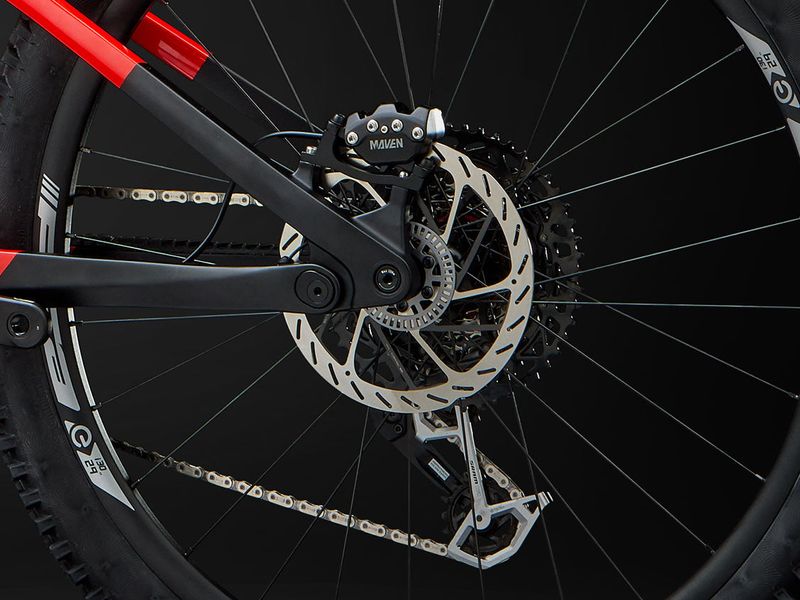

- SRAM Maven Base – SRAM H2S 200 mm rotors
Wheels & tyres
- Wheelset
- E-MTB i30 Alloy 15×110 29"
- Front tyre
- Kryptotal-F Enduro Soft, TR, SmartGrip, HyperWall 29" × 2.4
- Rear tyre
- Kryptotal-R Enduro Soft, TR, SmartGrip, HyperWall 29" × 2.4
Cockpit
- Stem
- FSA Gradient 35×33 mm +6° B5
- Handlebar
- FSA HB MTB Gradient riser alloy 25×800 mm Ø35 mm
- Seatpost
- KS Rage-i dropper seatpost with remote control, micro height adjustment (170 mm S1/S2, 190 mm S3)
- Saddle
- Prologo Proxim Altius Tirox – Custom label
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
DM-160 geometry
| Size | S1 | S2 | S3 |
|---|---|---|---|
| AReach | 455 mm | 477 mm | 504 mm |
| BStack | 618 mm | 631 mm | 643 mm |
| CSeat Tube | 390 mm | 420 mm | 450 mm |
| DEffective Seat Tube Angle | 73.4° | 74° | 74.8° |
| EVirtual Seat Tube Angle | 78.2° | 78.5° | 78.8° |
| FSaddle Height For Virtual Seat Tube Angle | 684 mm | 726 mm | 770 mm |
| GEffective Top Tube | 577 mm | 598 mm | 624 mm |
| HVirtual Top Tube | 582 mm | 605 mm | 632 mm |
| IHead Tube | 100 mm | 115 mm | 130 mm |
| LHead Tube Angle | 64° | 64° | 64° |
| MChain Stay | 449 mm | 449 mm | 454 mm |
| NFront to Center | 792 mm | 820 mm | 855 mm |
| OWheelbase | 1240 mm | 1269 mm | 1308 mm |
| PBB Drop Front/Rear | 27 mm | 27 mm | 27 mm |
| QEstimated BB Height | 348 mm | 348 mm | 348 mm |
Source: Ducati Cycling. Flip-chip position of the published figures not stated.
DM-160 R: FAQ
How much does the Ducati DM-160 R cost?
€7,990 (RRP Ducati Cycling EU store, VAT incl.). Prices vary by country and dealer.
What motor and battery does the Ducati DM-160 R have?
DJI Avinox M2S (130 Nm (150 Nm Boost); 1300 W peak). 800 Wh battery — avinox, integrated.
How much suspension travel does the Ducati DM-160 R have?
160 mm at the fork and 160 mm at the rear, on 29" wheels.
What sizes does the Ducati DM-160 R come in?
S1, S2, S3. Check the geometry table to compare reach and stack between sizes.
