DucatiDM-170 RR
- Motor
- DJI Avinox M2S130 Nm (150 Nm Boost); 1300 W peak
- Battery
- 800 WhAvinox, integrated
- Travel F / R
- 170 / 170 mm
- Wheels
- 29"
- Frame
- Carbon
Overview
The Ducati DM-170 RR (€9,490) is the only build of the DM-170: DJI Avinox M2S with 800 Wh, Öhlins RXF M3 Air fork, Öhlins TTX2 Air shock, SRAM GX AXS T-Type and SRAM Maven Bronze brakes. No claimed weight is published.
The DM-170 RR is Ducati's 170 mm enduro e-MTB, developed with Diamant S.r.l. (Zecchetto Group) and sold through Ducati Cycling. It uses a UD carbon fibre frame with a 1.5" tapered head tube, 29" wheels and geometry adjustable via flip chips; head angle is 63.5°.
It shares the DJI Avinox M2S drive unit (up to 130 Nm, 150 Nm in Boost, 1300 W peak), integrated 800 Wh battery and DP100 Flat display with the DM-160, but uses Öhlins suspension at both ends (RXF M3 Air fork, TTX2 Air 205x65 shock with Ducati custom tune) and a wireless SRAM GX AXS drivetrain powered from the main battery.
- Öhlins RXF M3 Air fork and TTX2 Air shock, 170 mm
- Avinox M2S: 130 Nm (150 Nm Boost), 1300 W peak
- 800 Wh integrated battery
- SRAM GX AXS wireless, Maven Bronze brakes

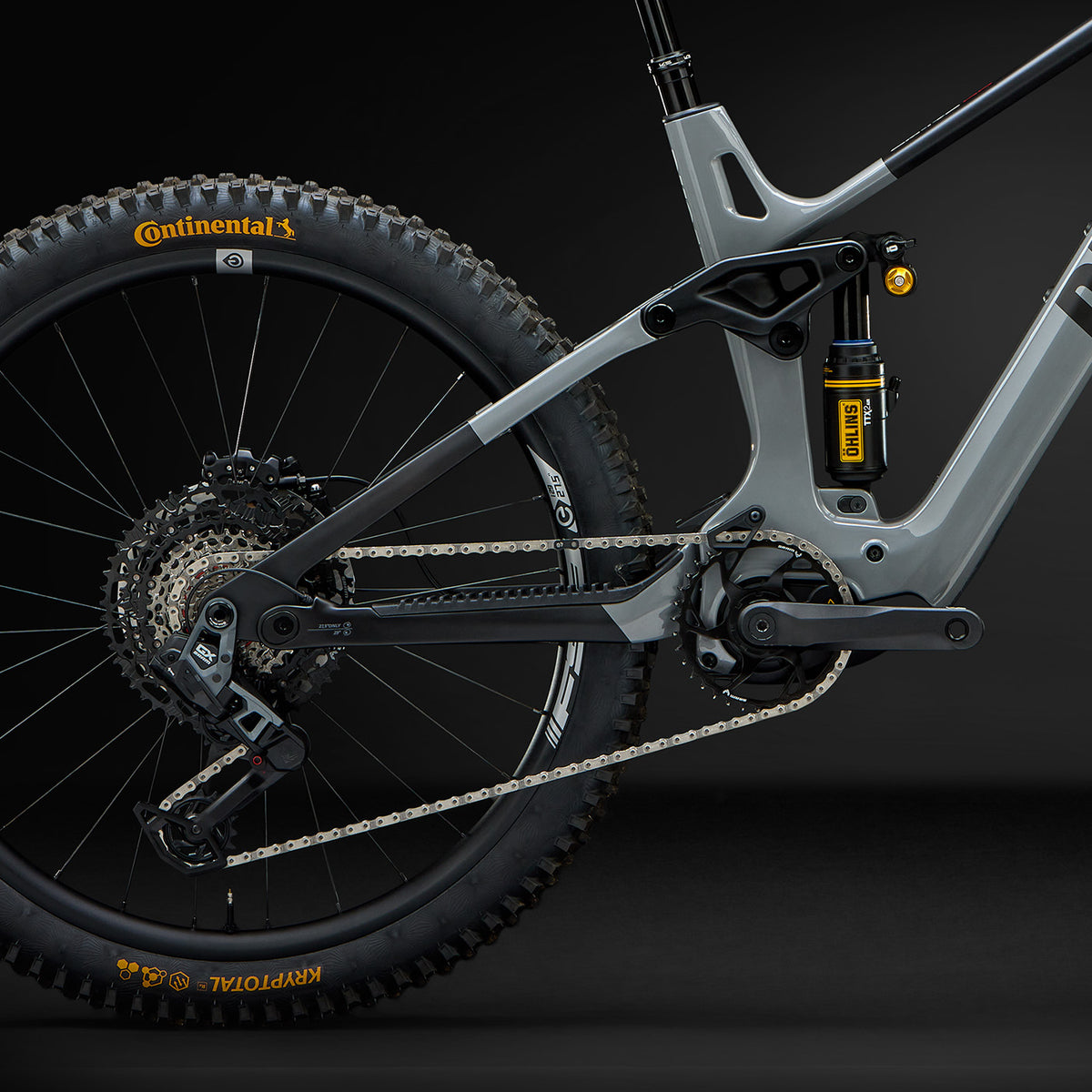

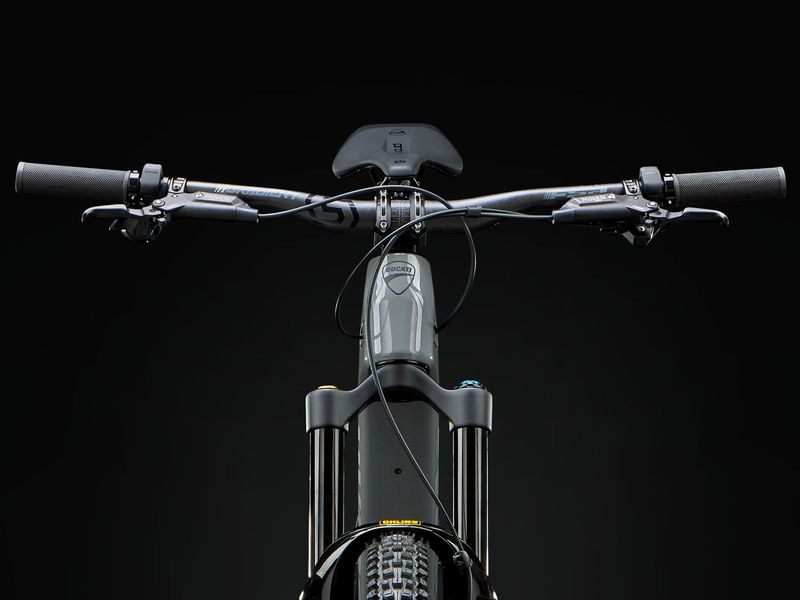

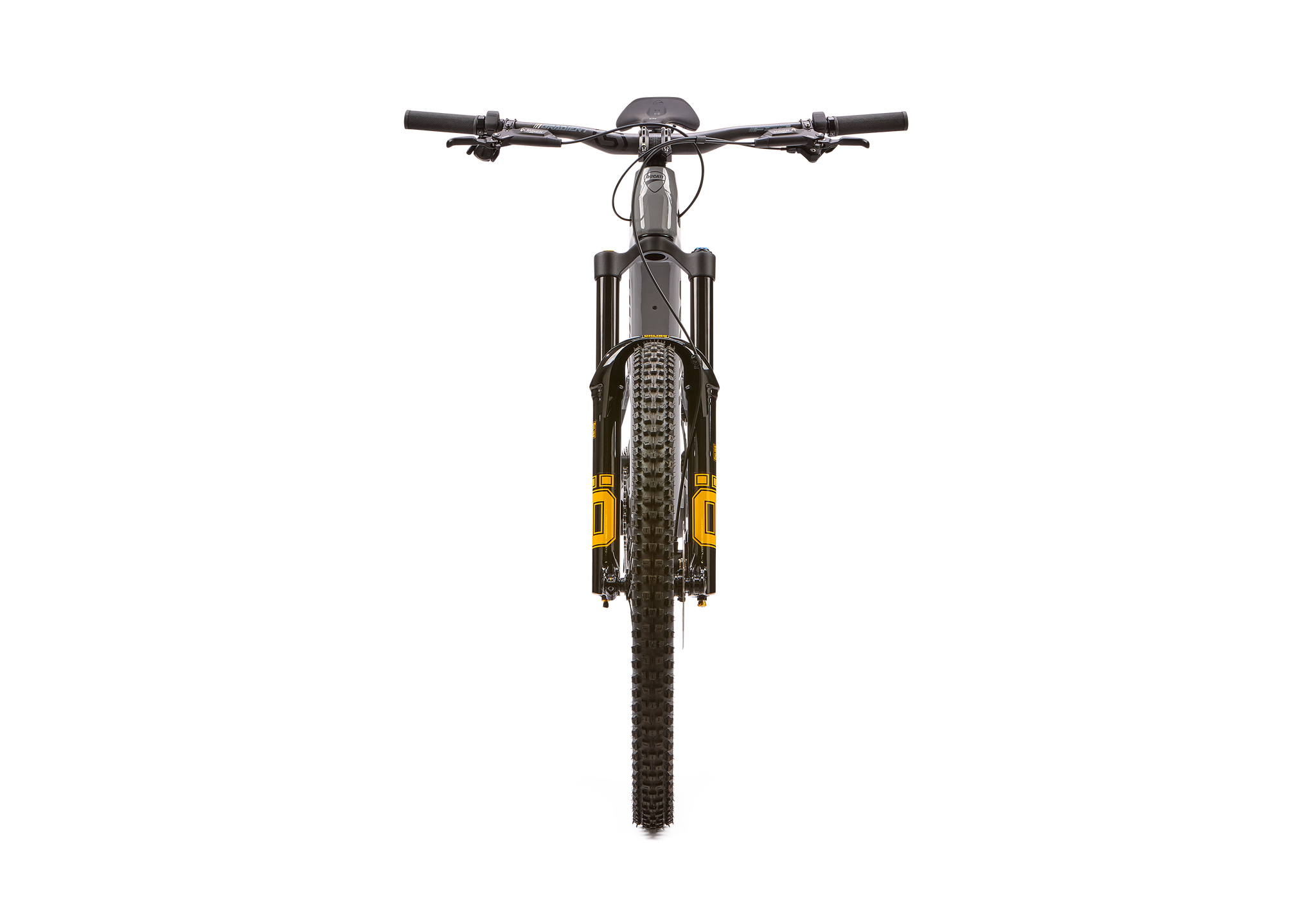

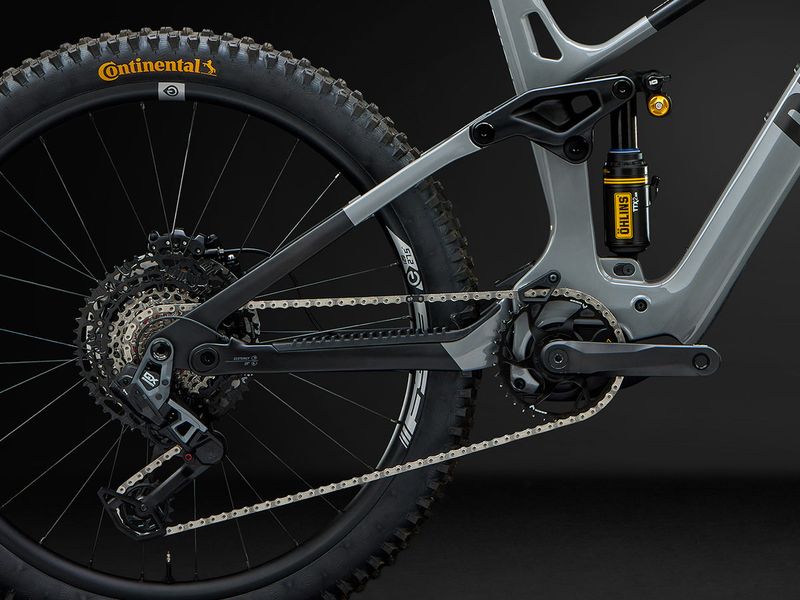

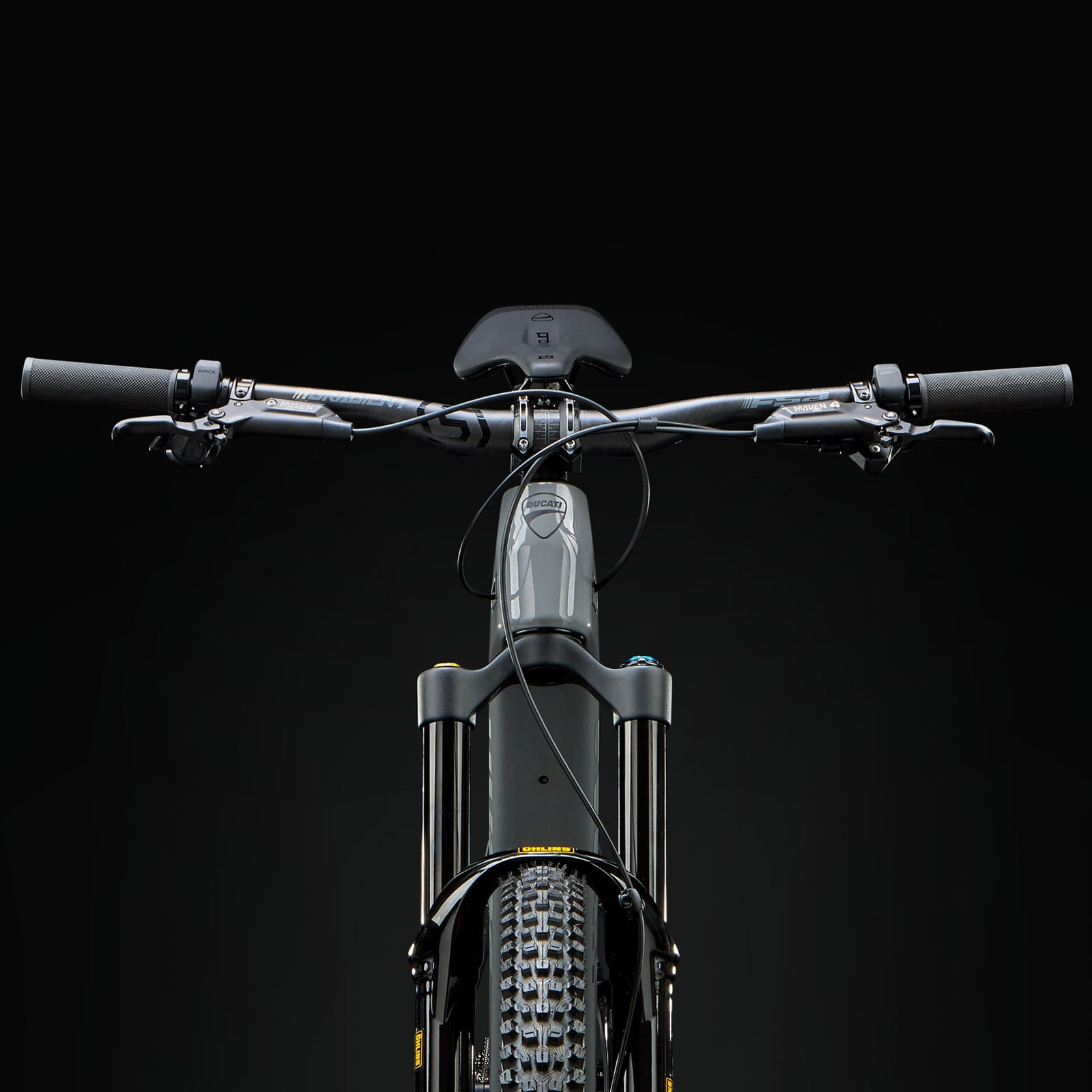

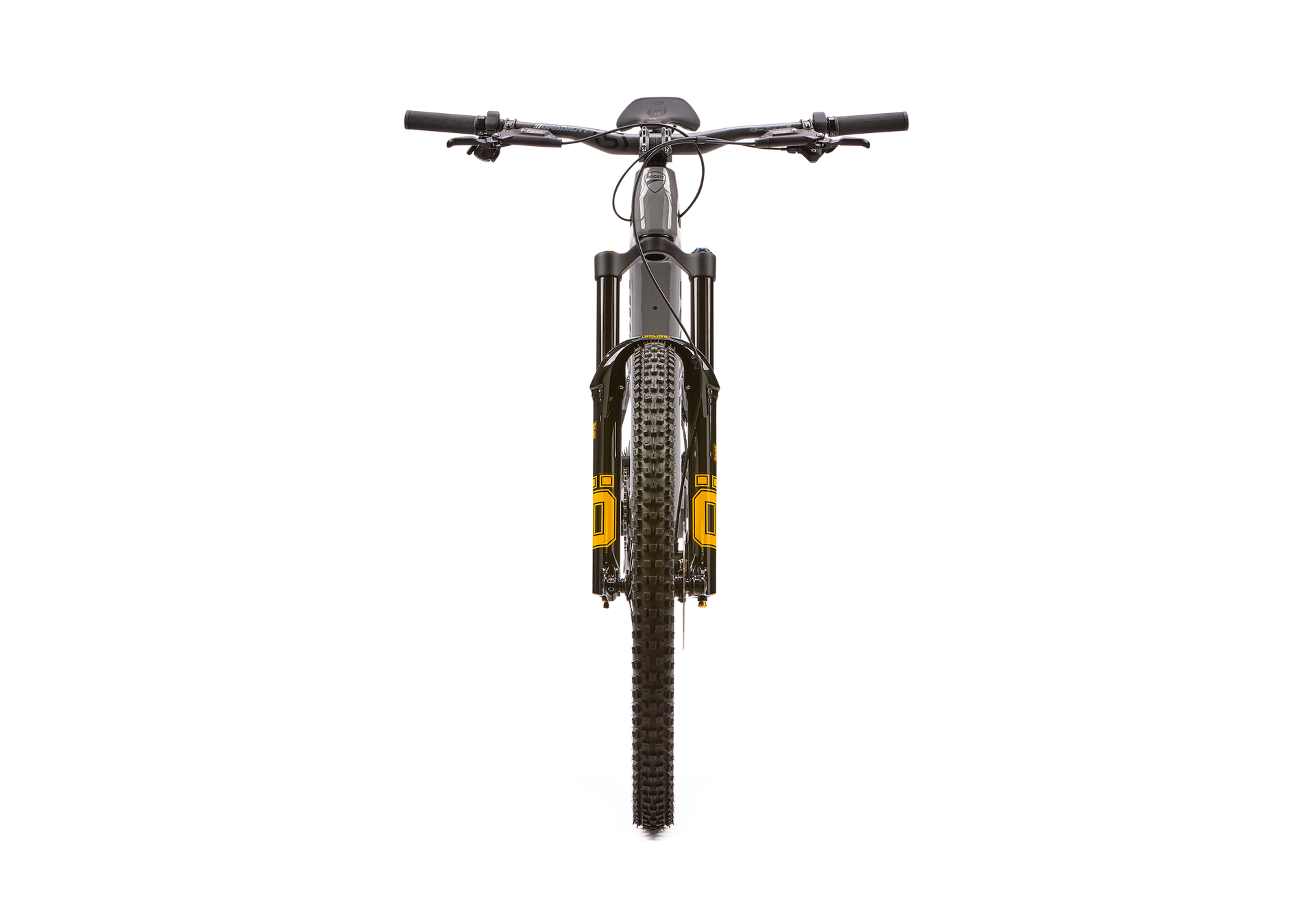

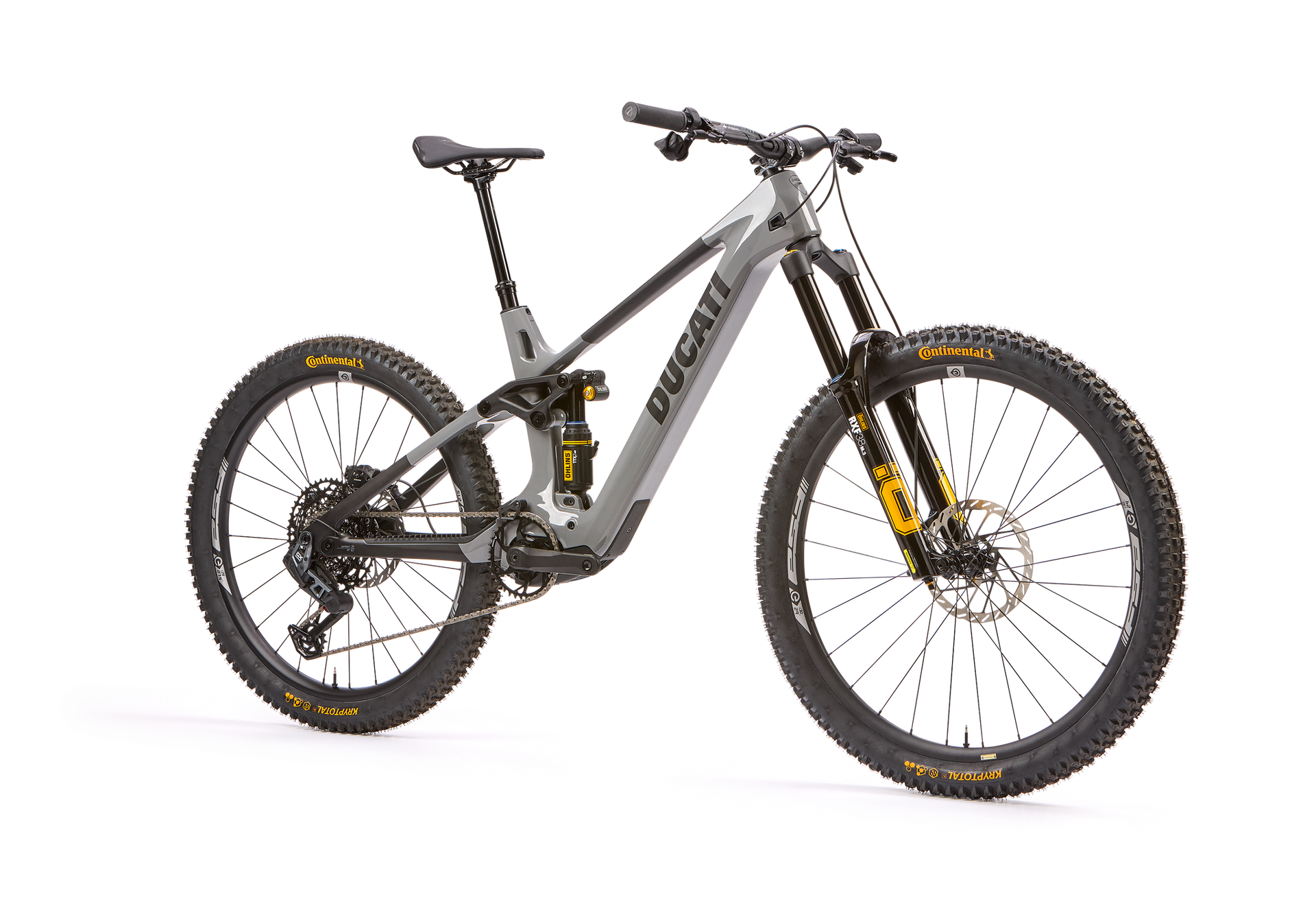

Gallery
Photos: Ducati
Full specifications
Frame & suspension
- Frame
- UD carbon fiber frame, 1.5" tapered head tube, adjustable geometry with Flip Chip system
- Rear travel
- 170 mm
- Fork

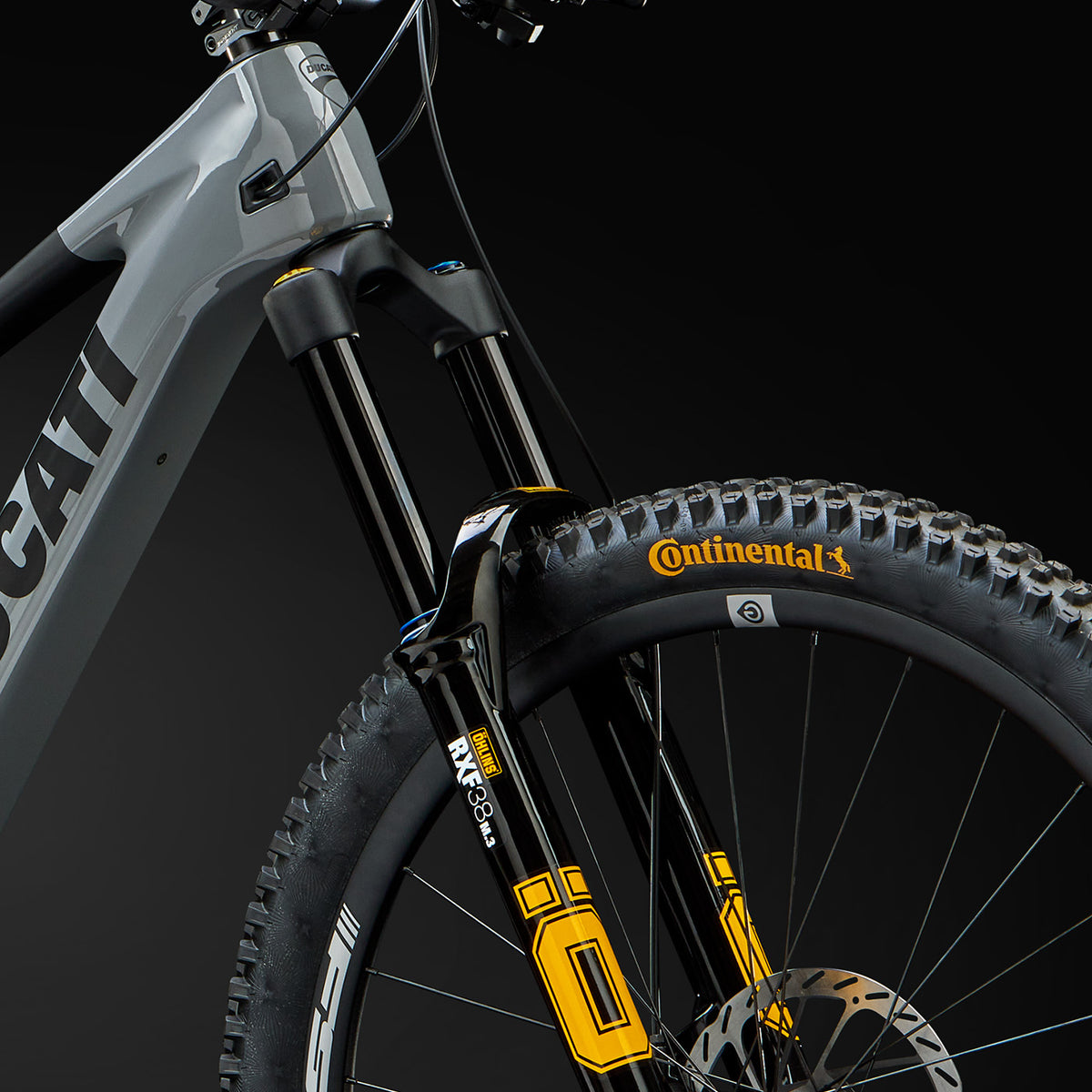

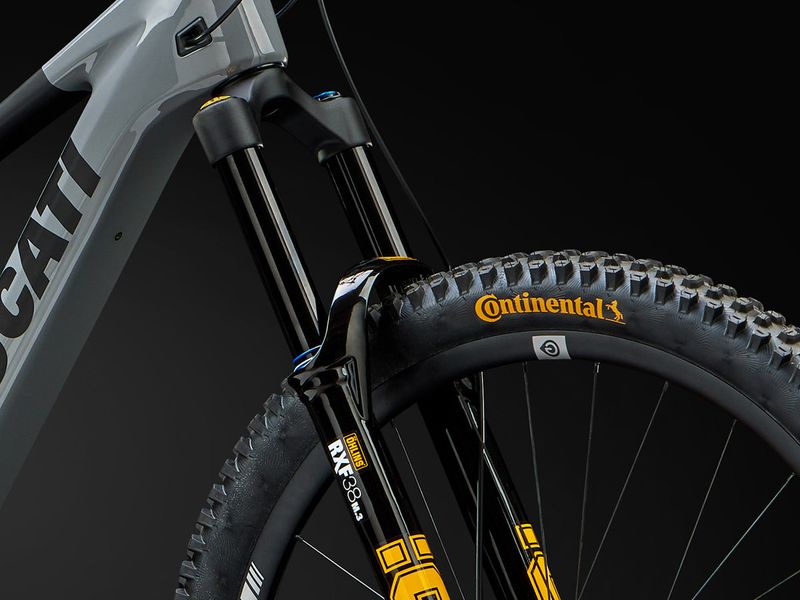

- Öhlins RXF M3 Air, Boost – 29", 170 mm travel
- Rear shock
- Öhlins TTX2 Air – 170 mm travel, Ducati custom tune, 205 × 65 mm
E-system
- Motor
- Avinox M2S
- Display
- DP100 Flat
- Battery
- Avinox 800 Wh (integrated)
Drivetrain
- Rear Derailleur
- SRAM GX AXS 12-speed T-Type
- Shifter
- SRAM AXS
- Cassette
- SRAM XS 1270 (10–52)
- Chain
- GX T-Type
- Chainring
- Avinox 36T Steel T-Type
- Crankset
- FSA – CK745 160 mm
Brakes
- Brakes
- SRAM Maven Bronze – SRAM H2S 200 mm rotors
Wheels & tyres

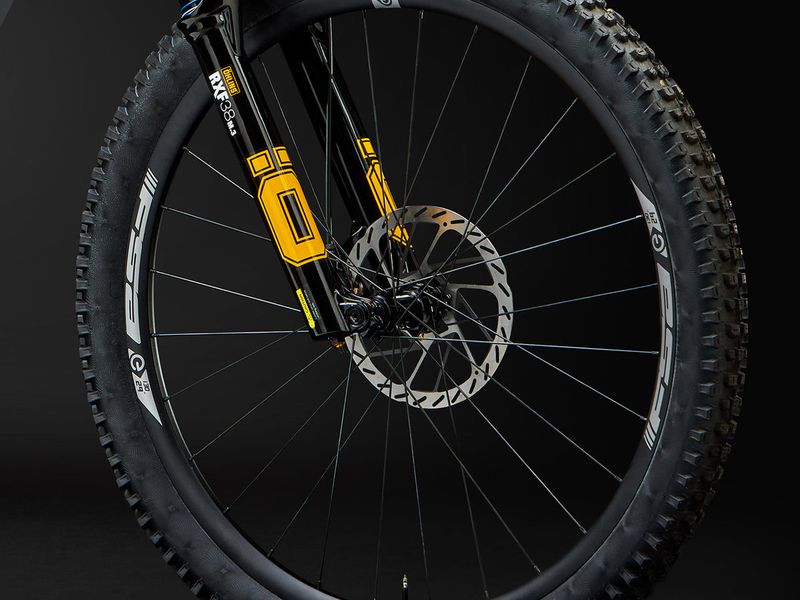

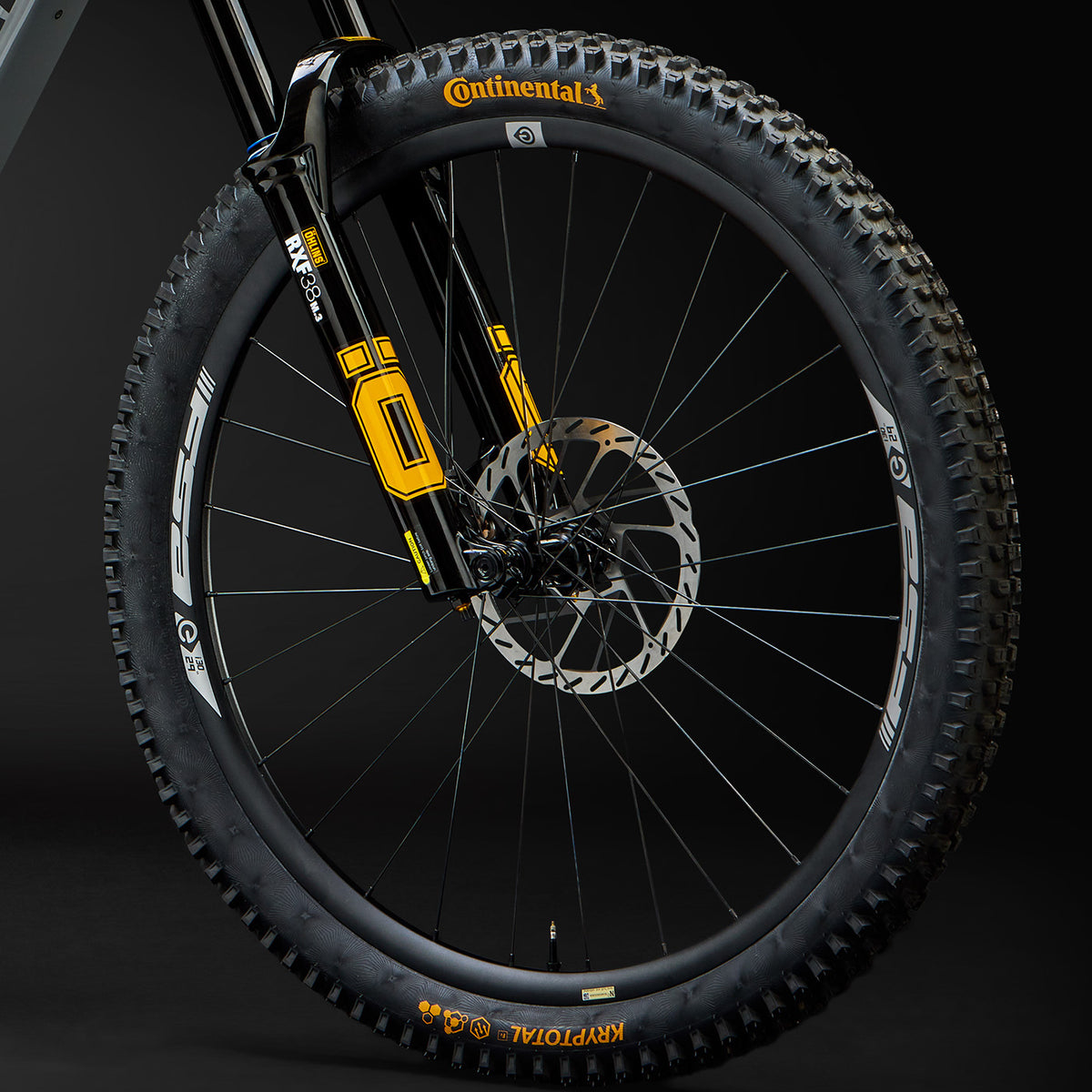

- Wheelset
- E-MTB i30 Alloy 15 × 110 29"
- Front tyre
- Kryptotal-F Enduro Soft, TR, SmartGrip, HyperWall 29" × 2.4
- Rear tyre
- Kryptotal-R Enduro Soft, TR, SmartGrip, HyperWall 29" × 2.4
Cockpit
- Stem
- FSA Gradient 35 × 33 mm +6° B5
- Handlebar
- FSA HB MTB Gradient Carbon riser handlebar 25 × 800 mm Ø35 mm
- Seatpost
- KS Rage-i dropper seatpost with remote control and micro height adjustment (170 mm sizes S1/S2, 190 mm size S3)
- Saddle
- Prologo Proxim Altius Tirox – Custom label
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
DM-170 geometry
| Size | S1 | S2 | S3 |
|---|---|---|---|
| AReach | 449 mm | 471 mm | 498 mm |
| BStack | 622 mm | 636 mm | 648 mm |
| CSeat Tube | 390 mm | 420 mm | 450 mm |
| DEffective Seat Tube Angle | 72.8° | 73.5° | 74.2° |
| EVirtual Seat Tube Angle | 77.8° | 78° | 78.2° |
| FSaddle Height For Virtual Seat Tube Angle | 684 mm | 726 mm | 770 mm |
| GEffective Top Tube | 579 mm | 600 mm | 625 mm |
| HVirtual Top Tube | 583 mm | 606 mm | 633 mm |
| IHead Tube | 100 mm | 115 mm | 130 mm |
| LHead Tube Angle | 63.5° | 63.5° | 63.5° |
| MChain Stay | 442 mm | 442 mm | 447 mm |
| NFront to Center | 794 mm | 823 mm | 858 mm |
| OWheelbase | 1234 mm | 1293 mm | 1328 mm |
| PBB Drop Front/Rear | 29/11 mm | 29/11 mm | 29/11 mm |
| QEstimated BB Height | 346 mm | 346 mm | 346 mm |
Source: Ducati Cycling. Flip-chip position of the published figures not stated.
DM-170 RR: FAQ
How much does the Ducati DM-170 RR cost?
€9,490 (RRP Ducati Cycling EU store, VAT incl.). Prices vary by country and dealer.
What motor and battery does the Ducati DM-170 RR have?
DJI Avinox M2S (130 Nm (150 Nm Boost); 1300 W peak). 800 Wh battery — avinox, integrated.
How much suspension travel does the Ducati DM-170 RR have?
170 mm at the fork and 170 mm at the rear, on 29" wheels.
What sizes does the Ducati DM-170 RR come in?
S1, S2, S3. Check the geometry table to compare reach and stack between sizes.
