UnnoMith Pro
- Motor
- DJI Avinox M2S130 Nm (150 Nm Boost)
- Battery
- 800 WhAvinox FS800, integrated (3.74 kg)
- Travel F / R
- 170 / 160 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
Overview

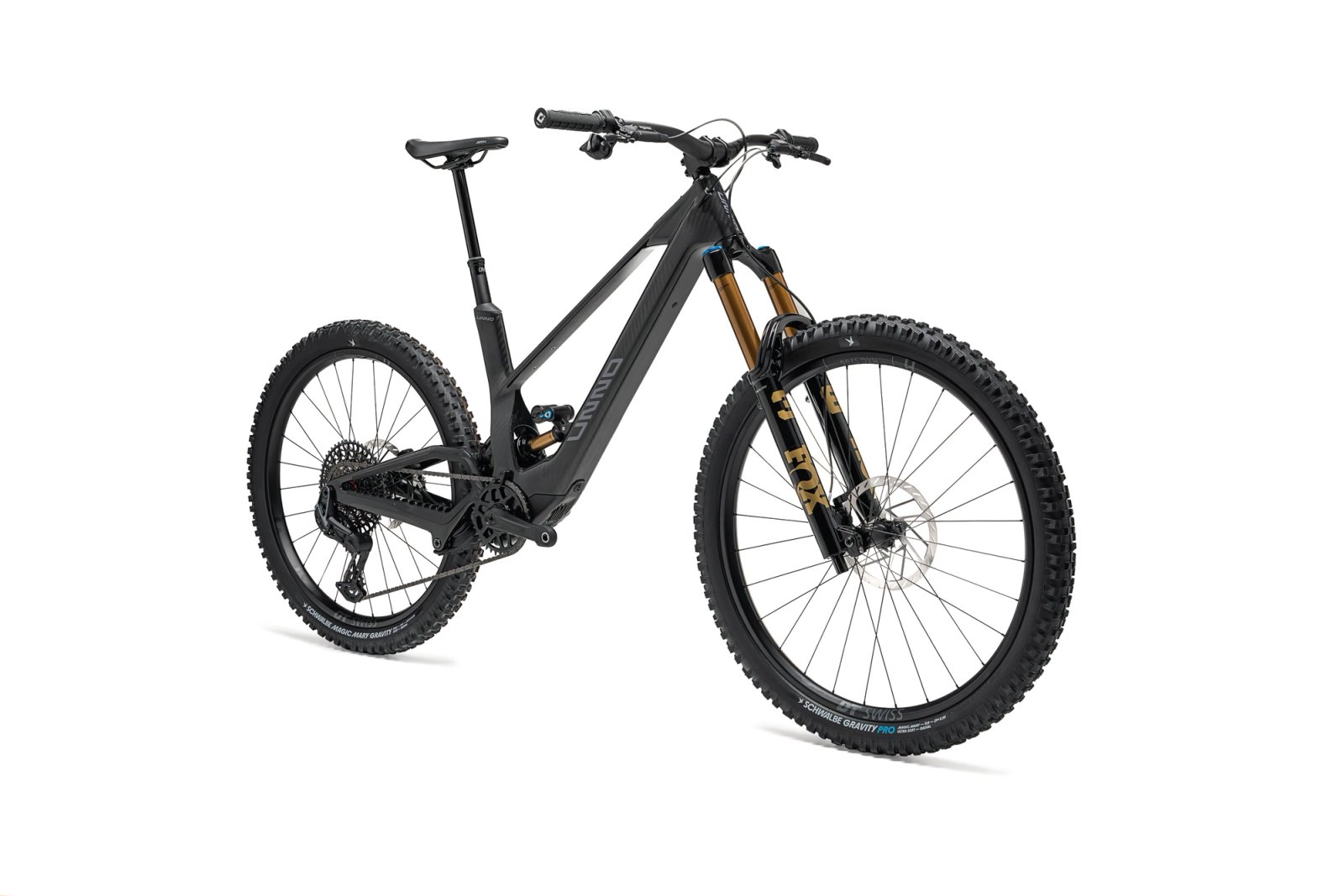

The UNNO Mith Pro (€12,095) is a mid-range build of the Mith: DJI Avinox M2S (130 Nm) with 800 Wh, Fox 38 Factory fork, Fox Float X2 Factory shock, SRAM X0 Eagle AXS and SRAM Maven Silver brakes.
The MITH is UNNO's carbon e-enduro bike, designed in Barcelona: a T700/T1000 carbon monocoque frame with virtual-pivot suspension, 160 mm of rear travel, a 170 mm fork and mixed wheels (29-inch front, 27.5-inch rear).
All current builds use the DJI Avinox M2S drive unit (2.6 kg, 250 W rated; 130 Nm / 1300 W in regular modes, 150 Nm in Boost) with an integrated 800 Wh Avinox battery (3.74 kg), DP100 OLED display and BC100 wireless remote. Geometry: 63.5° head angle, 77° seat angle, 450 mm chainstays, sizes S1–S3.
- DJI Avinox M2S: 130 Nm (150 Nm Boost), 1300 W peak
- 800 Wh integrated battery
- 160 mm rear / 170 mm fork, mixed wheels
- Carbon frame, virtual-pivot suspension

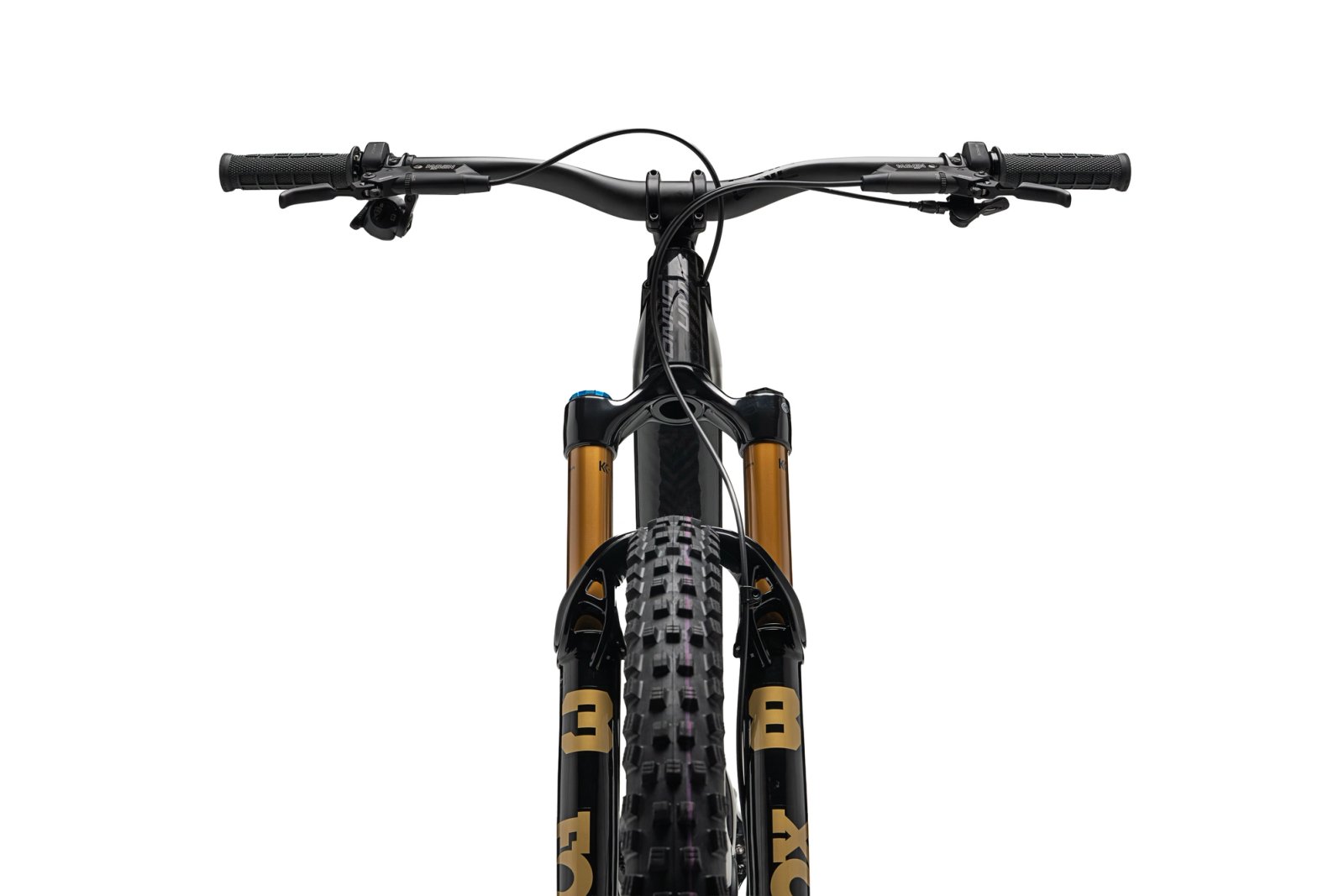

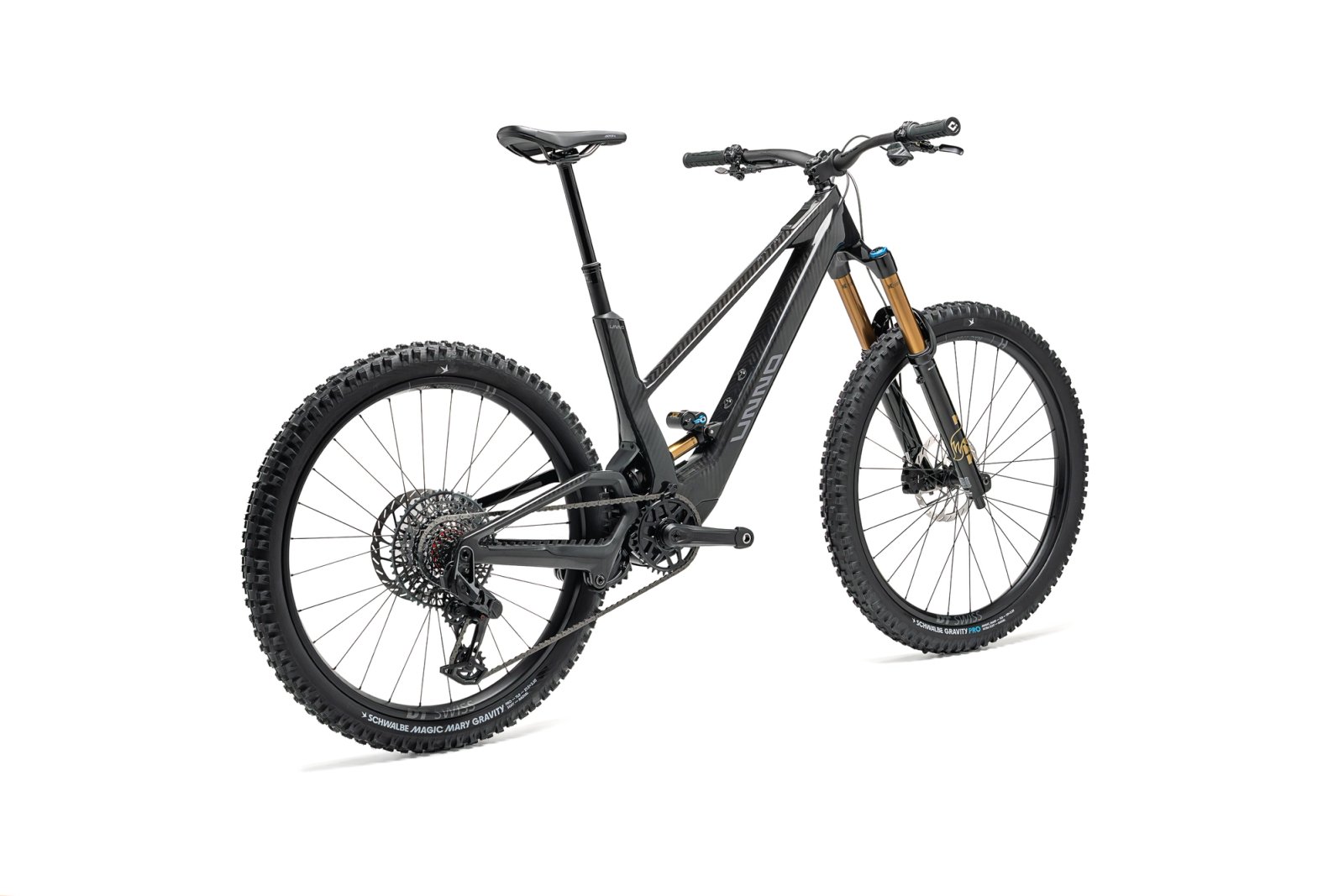

Gallery
Photos: UNNO
Full specifications
Frame & suspension
- Frame
- MITH PRO, T700/T1000 Carbon fiber monocoque with 3k Twill Carbon Finish and virtual pivot suspension.
- Headset
- CANE CREEK, FORTY Series (IS41-42/28.6 - IS52/40)

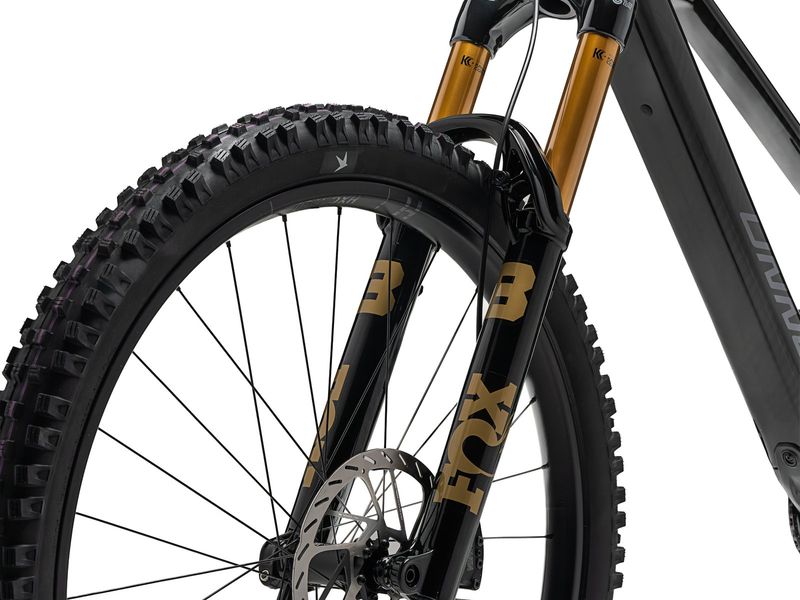

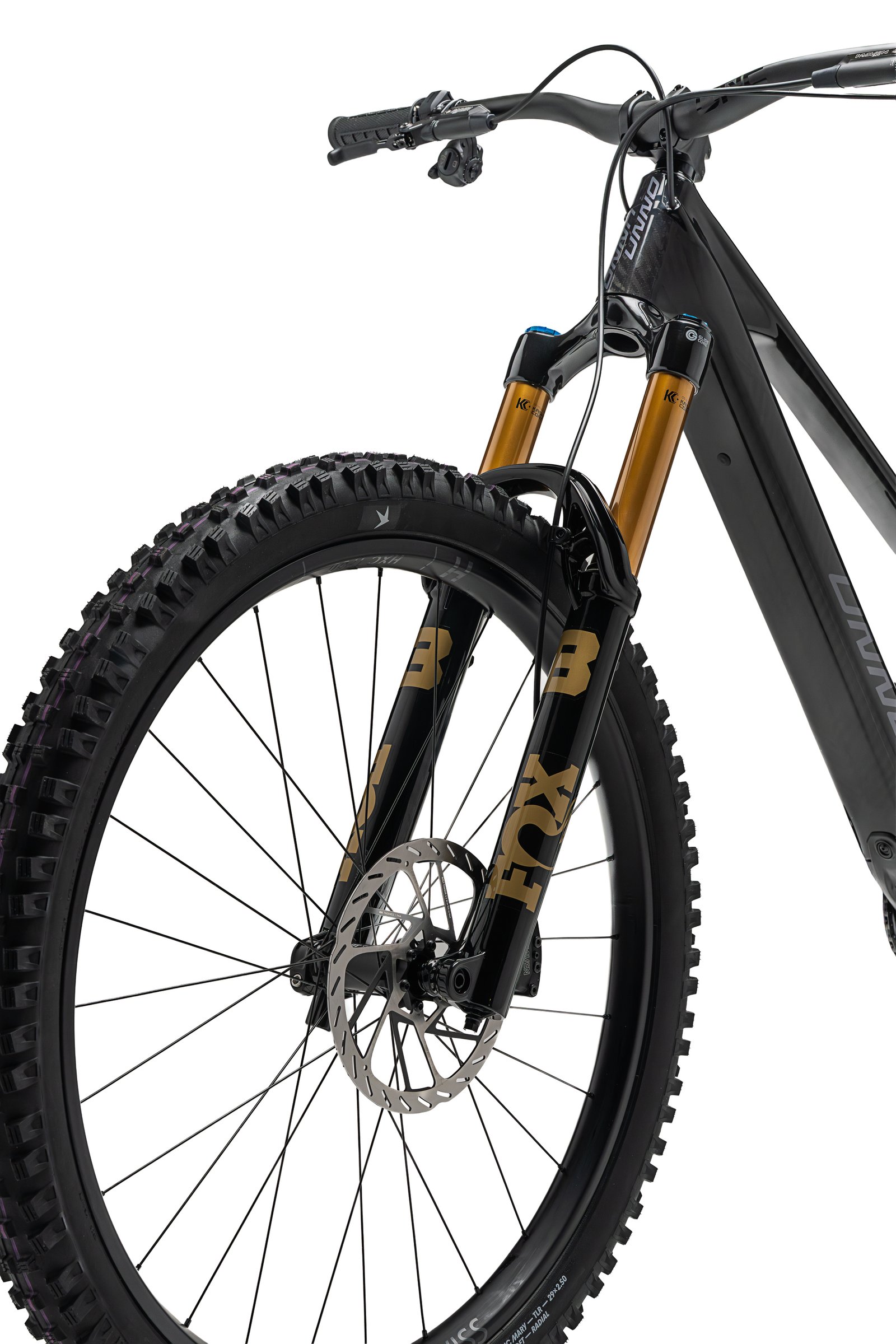

- Fork
- Fox 38 Factory, 170mm travel. Kashima coating. Grip X2 damper. Adjustments: HSC, LSC, HSR, LSR. 44mm offset.

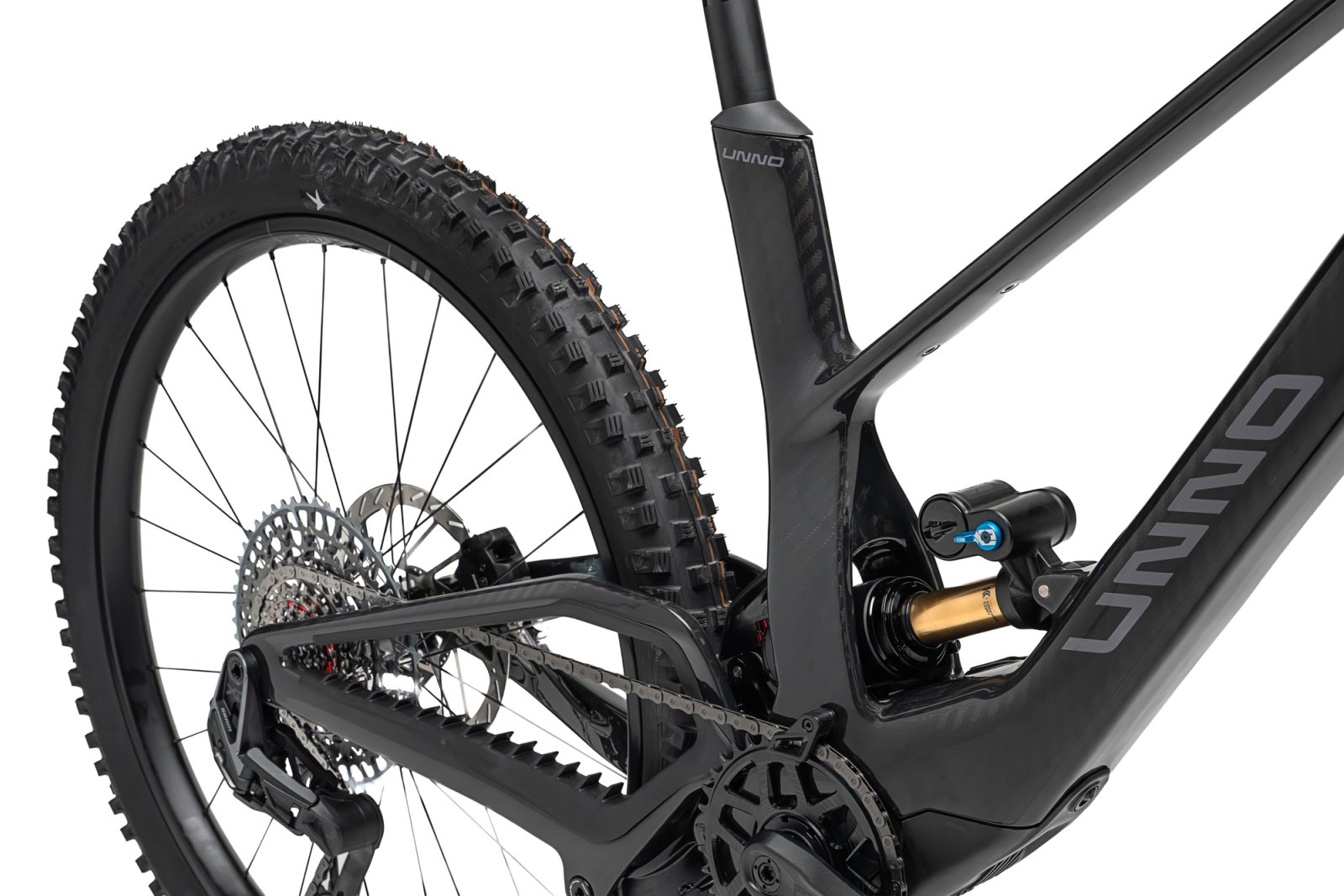

- Rear shock
- Fox Float X2 Factory, 230x65mm. Kashima coating. 2-pos lever. VVC Rebound. Adjustments: HSC, LSC, HSR, LSR. 160mm of travel, 230mm length and 65mm stroke.
E-system
- Motor
- Avinox, AVINOX M2S (2,60kg Drive unit with 250W rated power) Regular modes max: 1300 W / 130 Nm Boost mode max: 1300 W / 150 Nm
- Display
- Avinox DP100, 2" OLED smart multi-function touchscreen with 800 nits and 326 ppi
- Remote
- Avinox BC100, Wireless Controller with Bluetooth Connectivity
- Battery
- Avinox FS800 Wh, Integrated 3.74kg battery
- Charger
- Avinox 12A, 508W 12A fast charger 0 to 75% in 90min 0 to 100% in 2h 25min

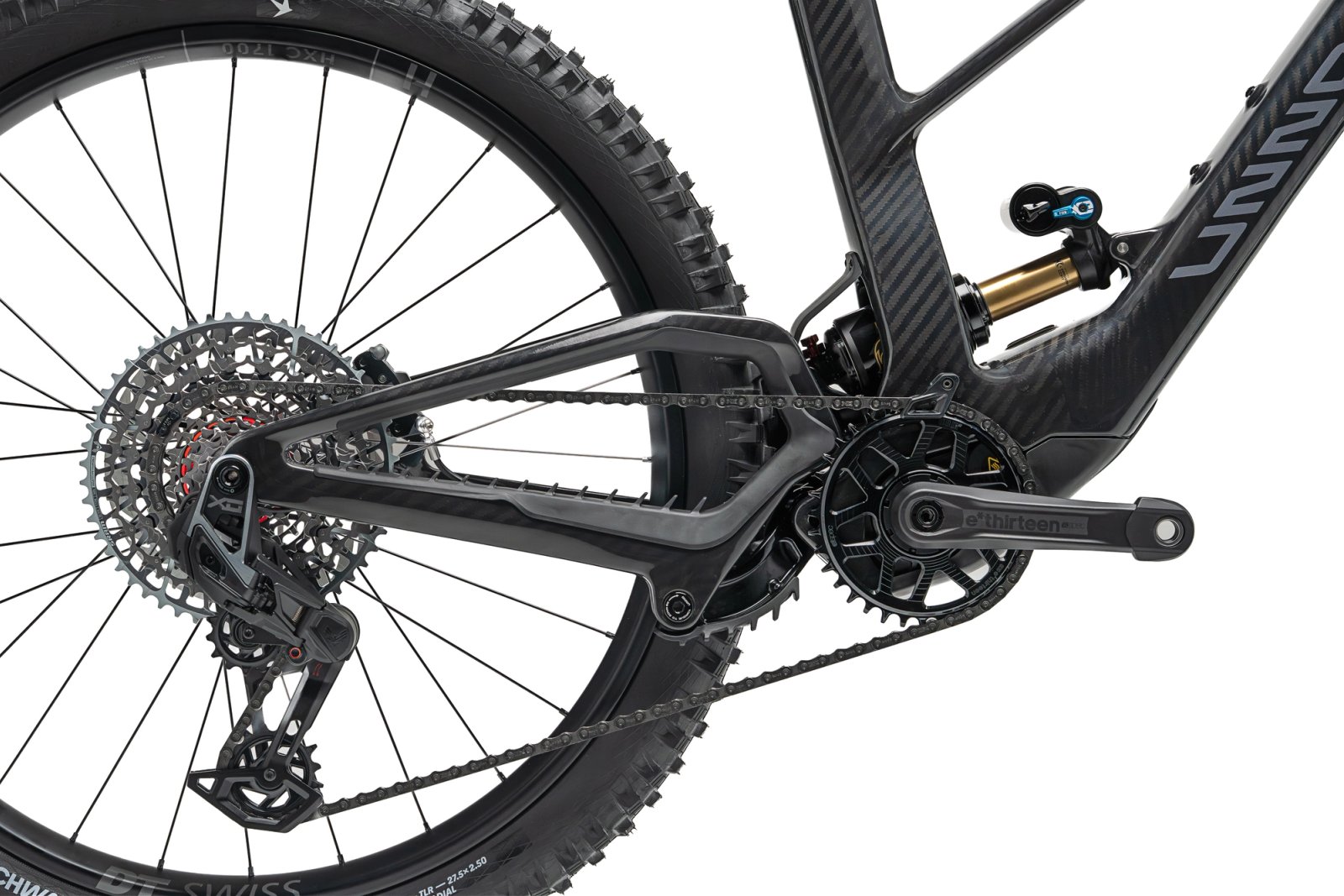

Drivetrain
- Rear derailleur
- SRAM X0 Eagle AXS, AXS Wireless - T-Type - 12speed
- Chain
- SRAM X0, T-Type 120 links
- Shifters
- SRAM / ONE UP, Right: SRAM AXS POD ROCKR Left: ONE UP Mechanical Shifter
- Crankset
- E13 Helix, CORE E*SPEC
- Chainring
- E13 HELIX RACE E*SPEC, 36T 8mm offset 55 mm CL
Brakes
- Brakes
- SRAM Maven Silver
- Rotors
- SRAM, SRAM HS2 6-BOLT TYPE 200mm
Wheels & tyres
- Wheelset
- DT SWISS HXC 1700, Mullet 29" Front and 27.5" Rear.
- Front tyre
- SCHWALBE Magic Mary, Ultra Soft Gravity Pro, TLR, 29” x 2.5”
- Rear tyre
- SCHWALBE Magic Mary, Soft Evo Gravity Pro, TLR, 27.5” x 2.5”

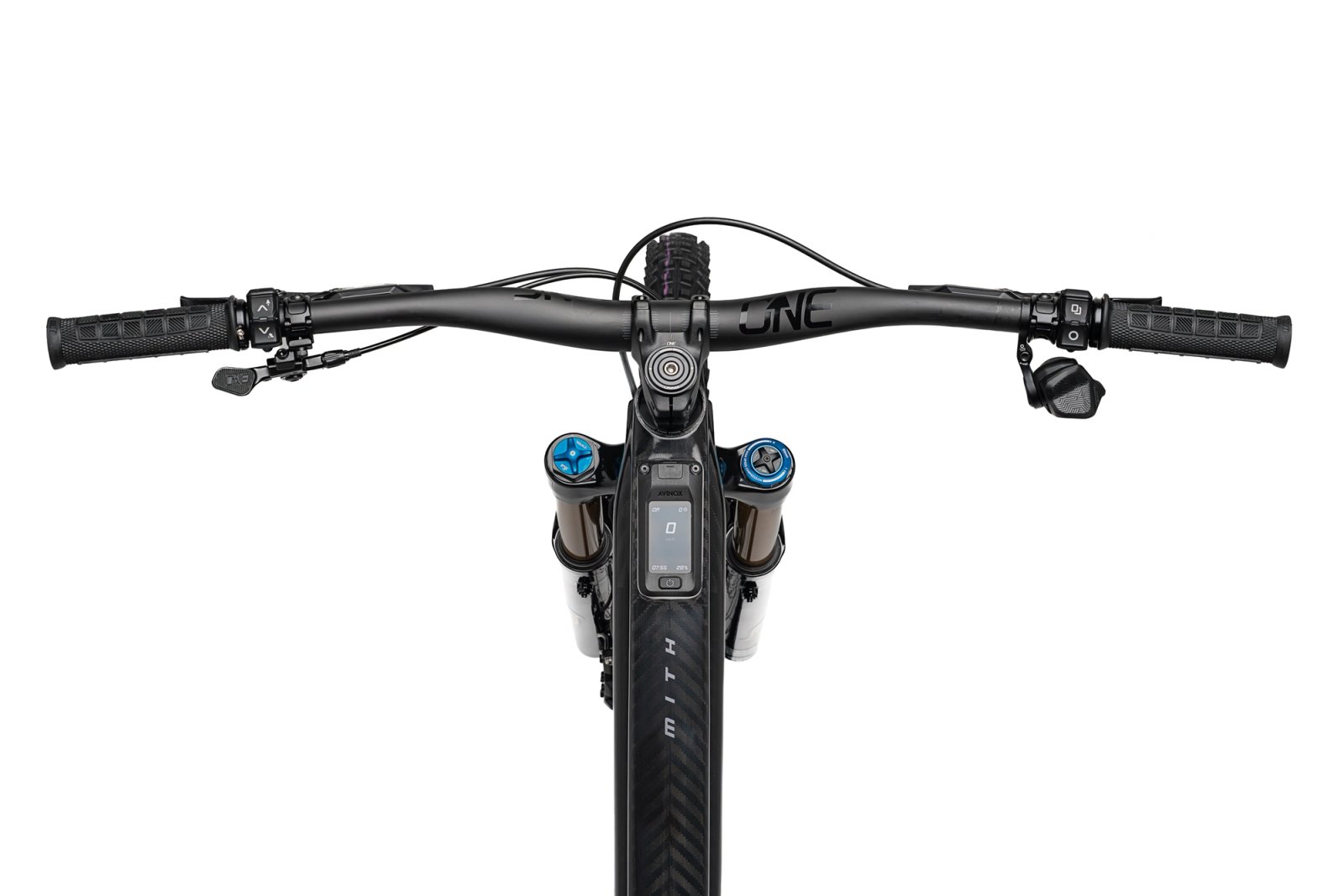

Cockpit
- Cockpit
- ONE UP V2, Carbon handlebar, 35mm diameter, 800mm length, 35mm rise and ONE UP FORGED 42mm stem

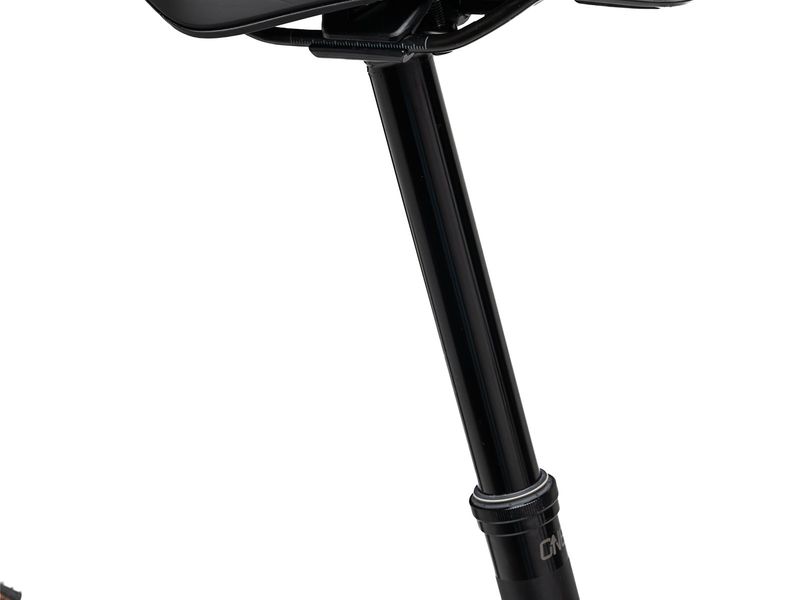

- Dropper
- ONE UP V3 Mechanical, 31.6mm diameter with Travel of: 150 mm (S1), 175 mm (S2), 200 mm (S3)

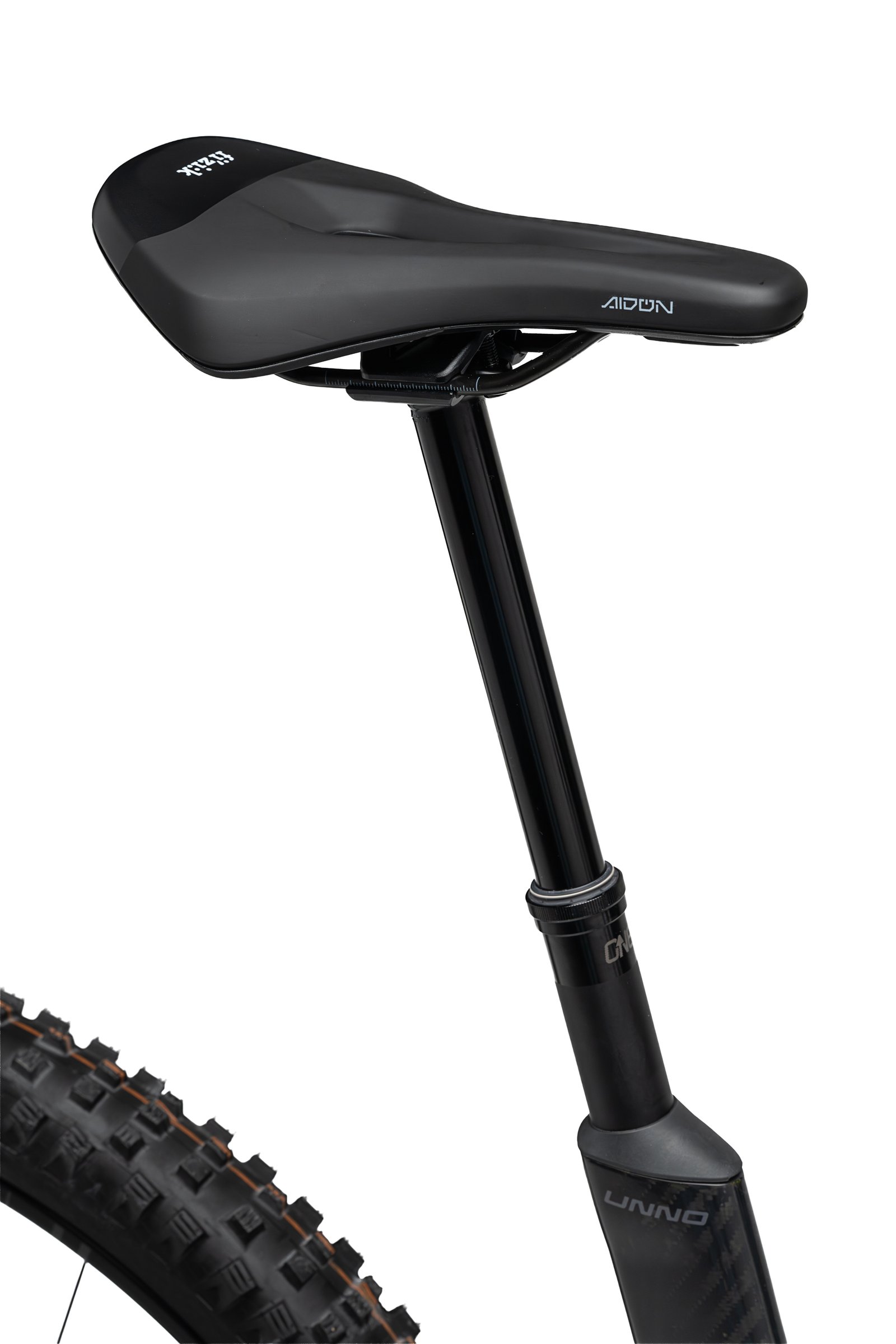

- Saddle
- FIZIK Terra Aidon X5, 145mm
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Mith geometry
| Size | S1 | S2 | S3 |
|---|---|---|---|
| Reach | 430 mm | 460 mm | 490 mm |
| Wheelbase | 1225 mm | 1261 mm | 1302 mm |
| Seat tube length | 420 mm | 420 mm | 440 mm |
| Seat tube angle | 77° | 77° | 77° |
| Head tube angle | 63.5° | 63.5° | 63.5° |
| BB drop | 30-15 mm | 30-15 mm | 30-15 mm |
| Top tube | 560 mm | 590 mm | 623 mm |
| Stack | 624 mm | 636 mm | 658 mm |
| Chainstays | 450 mm | 450 mm | 450 mm |
| Head tube length | 107 mm | 120 mm | 145 mm |
| Standover | 706 mm | 706 mm | 706 mm |
Source: UNNO. BB drop given as a range (30-15 mm) by UNNO.
Mith: builds compared
Mith range →| Mith Race RS | Mith Race | Mith Pro | Mith Pro Podium | Mith Factory | |
|---|---|---|---|---|---|
| Price | €9,995 | €9,995 | €12,095 | €13,095 | €15,095 |
| Frame | Carbon | Carbon | Carbon | Carbon | Carbon |
| Fork | Rock Shox - ZEB ULTIMATE 29" BOOST ELECTRIC RED, 170mm travel | Fox 38 Factory, 170mm travel | Fox 38 Factory, 170mm travel | FOX PODIUM FACTORY, Kashima coating | FOX PODIUM FACTORY, Kashima coating |
| Shock | Rock Shox - VIVID COIL ULTIMATE | FOX Float X Factory | Fox Float X2 Factory | FOX DHX2 SLS | Fox Float X2 Factory |
| Derailleur | SRAM S1000 Eagle | SRAM S1000 Eagle | SRAM X0 Eagle AXS | SRAM X0 Eagle AXS | SRAM XX EAGLE AXS |
| Brakes | SRAM Maven Base | SRAM Maven Base | SRAM Maven Silver | SRAM Maven Silver | SRAM MAVEN ULTIMATE |
| Display | Avinox DP100 | Avinox DP100 | Avinox DP100 | Avinox DP100 | Avinox DP100 |
Mith Pro: FAQ
How much does the Unno Mith Pro cost?
€12,095 (RRP Spain (unno.com/en-es), VAT incl.). The Mith range runs from €9,995 (Mith Race RS) to €15,095 (Mith Factory). Prices vary by country and dealer.
What motor and battery does the Unno Mith Pro have?
DJI Avinox M2S (130 Nm (150 Nm Boost)). 800 Wh battery — avinox FS800, integrated (3.74 kg).
How much suspension travel does the Unno Mith Pro have?
170 mm at the fork and 160 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Unno Mith Pro come in?
S1, S2, S3. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Mith Pro and the Mith Pro Podium?
They share the Mith frame platform and motor; the differences are in the parts — fork: Fox 38 Factory vs FOX PODIUM FACTORY; shock: Fox Float X2 Factory vs FOX DHX2 SLS; price: €12,095 vs €13,095.
