UnnoMith Race RS
- Motor
- DJI Avinox M2S130 Nm (150 Nm Boost)
- Battery
- 800 WhAvinox FS800, integrated (3.74 kg)
- Travel F / R
- 170 / 160 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
Overview
The UNNO Mith Race RS (€9,995) is a mid-range build of the Mith: DJI Avinox M2S (130 Nm) with 800 Wh, Rock Shox - ZEB ULTIMATE 29" BOOST ELECTRIC RED fork, Rock Shox - VIVID COIL ULTIMATE shock, SRAM S1000 Eagle and SRAM Maven Base brakes.
The MITH is UNNO's carbon e-enduro bike, designed in Barcelona: a T700/T1000 carbon monocoque frame with virtual-pivot suspension, 160 mm of rear travel, a 170 mm fork and mixed wheels (29-inch front, 27.5-inch rear).
All current builds use the DJI Avinox M2S drive unit (2.6 kg, 250 W rated; 130 Nm / 1300 W in regular modes, 150 Nm in Boost) with an integrated 800 Wh Avinox battery (3.74 kg), DP100 OLED display and BC100 wireless remote. Geometry: 63.5° head angle, 77° seat angle, 450 mm chainstays, sizes S1–S3.
- DJI Avinox M2S: 130 Nm (150 Nm Boost), 1300 W peak
- 800 Wh integrated battery
- 160 mm rear / 170 mm fork, mixed wheels
- Carbon frame, virtual-pivot suspension

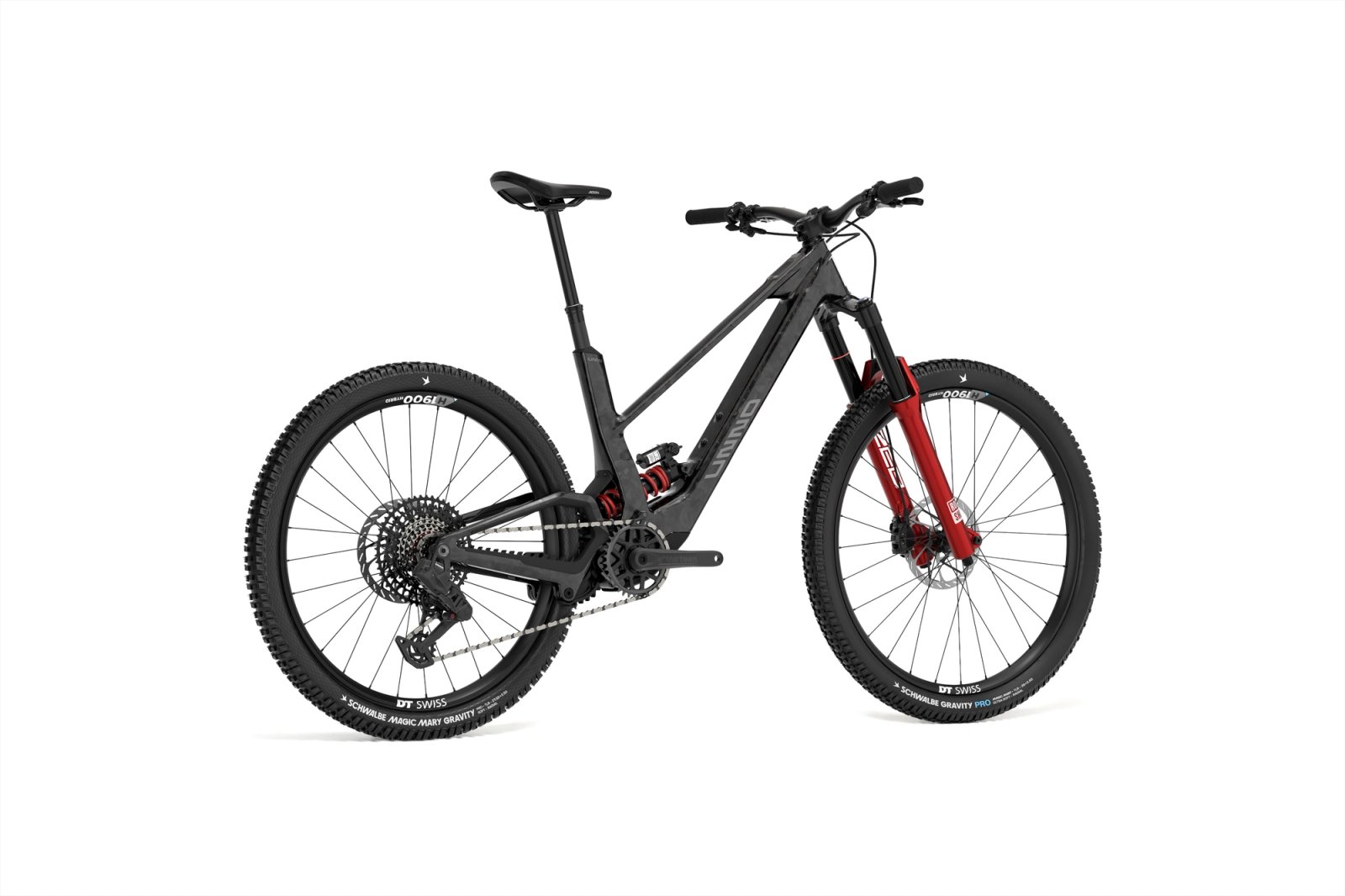

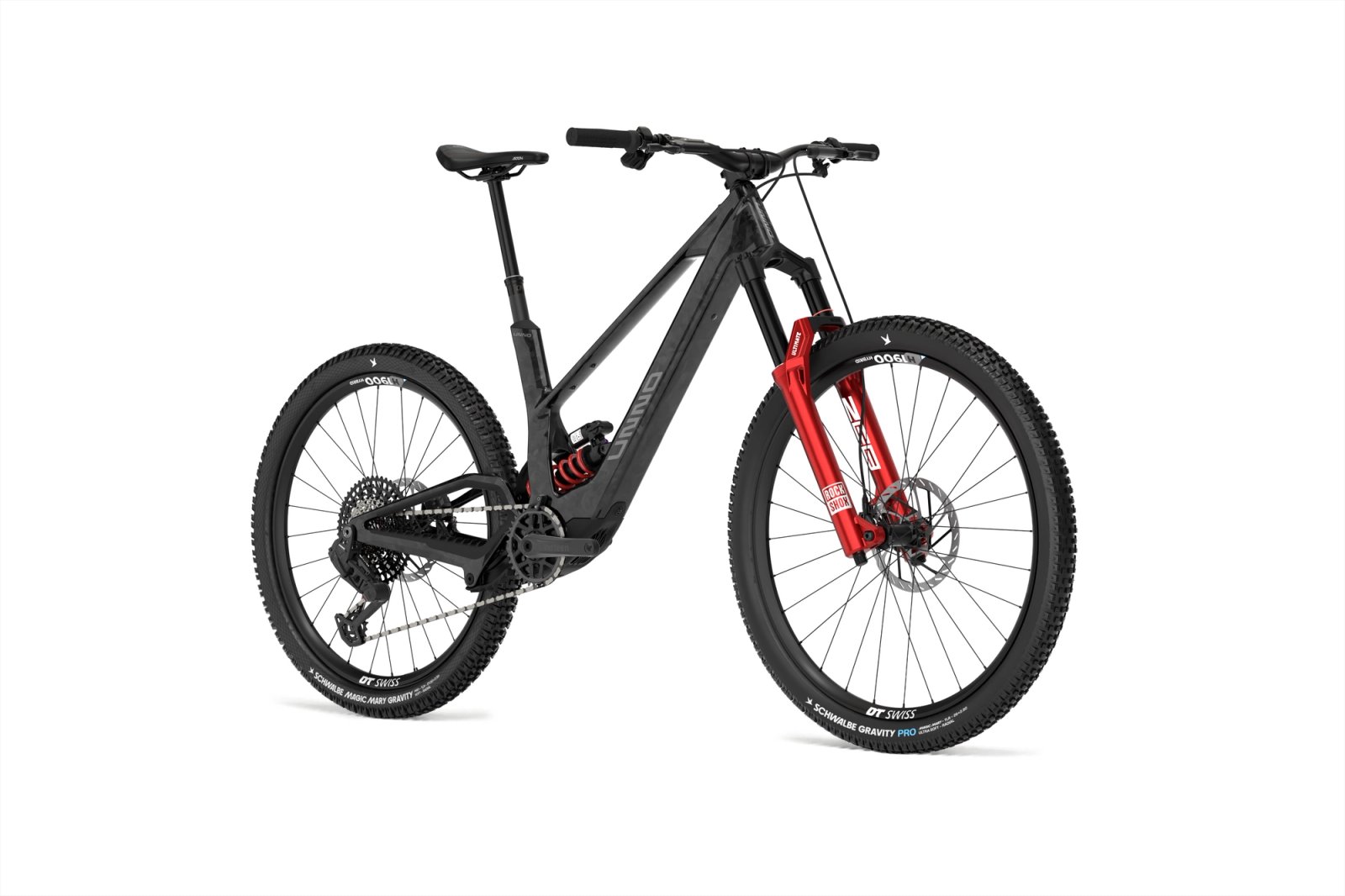

Gallery
Photos: UNNO
Full specifications
Frame & suspension
- Frame
- MITH RACE RS, T700/T1000 Carbon fiber monocoque with Forged Carbon finish and virtual pivot suspension.
- Headset
- CANE CREEK, FORTY Series (IS41-42/28.6 - IS52/40)
- Fork
- Rock Shox - ZEB ULTIMATE 29" BOOST ELECTRIC RED, 170mm travel. 44mm offset.
- Rear shock
- Rock Shox - VIVID COIL ULTIMATE, S1 - Coil 275lbs Vivid 230x65mm S2 - Coil 325lbs Vivid 230x65mm S3 - Coil 400lbs Vivid 230x65mm
E-system
- Motor
- Avinox, AVINOX M2S (2,60kg Drive unit with 250W rated power) Regular modes max: 1300 W / 130 Nm Boost mode max: 1300 W / 150 Nm
- Display
- Avinox DP100, 2" OLED smart multi-function touchscreen with 800 nits and 326 ppi
- Remote
- Avinox BC100, Wireless Controller with Bluetooth Connectivity
- Battery
- Avinox FS800 Wh, Integrated 3.74kg battery
- Charger
- Avinox 4A, 4A Charger max. charging power 168 W
Drivetrain
- Rear derailleur
- SRAM S1000 Eagle, AXS Wireless - T-Type - 12 speed
- Cassette
- SRAM Eagle 70, XS 1270 T-Type, 10-52T V2
- Chain
- SRAM 70, T-TYPE 120 Link
- Shifters
- ONE UP / SRAM, Right: SRAM AXS POD Control Left: ONE UP Mechanical Shifter
- Crankset
- E13 Helix, CORE E*SPEC
- Chainring
- E13 HELIX RACE E*SPEC, 36T 8mm offset 55 mm CL
Brakes
- Brakes
- SRAM Maven Base
- Rotors
- SRAM, SRAM HS2 6-BOLT TYPE 200mm
Wheels & tyres
- Wheelset
- DT Swiss H1900, Mullet: 29" front and 27.5" rear with DT 370 hub
- Front tyre
- SCHWALBE Magic Mary, Ultra Soft Gravity Pro, TLR, 29” x 2.5”
- Rear tyre
- SCHWALBE Magic Mary, Soft Evo Gravity Pro, TLR, 27.5” x 2.5”
Cockpit
- Cockpit
- ONE UP ALLOY, Aluminium handlebar, 35mm diameter, 800mm length, 35mm rise and ONE UP FORGED 42mm stem
- Dropper
- ONE UP V3 Mechanical, 31.6mm diameter with Travel of: 150 mm (S1), 175 mm (S2), 200 mm (S3)
- Saddle
- FIZIK Terra Aidon X5, 145mm
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Mith geometry
| Size | S1 | S2 | S3 |
|---|---|---|---|
| Reach | 430 mm | 460 mm | 490 mm |
| Wheelbase | 1225 mm | 1261 mm | 1302 mm |
| Seat tube length | 420 mm | 420 mm | 440 mm |
| Seat tube angle | 77° | 77° | 77° |
| Head tube angle | 63.5° | 63.5° | 63.5° |
| BB drop | 30-15 mm | 30-15 mm | 30-15 mm |
| Top tube | 560 mm | 590 mm | 623 mm |
| Stack | 624 mm | 636 mm | 658 mm |
| Chainstays | 450 mm | 450 mm | 450 mm |
| Head tube length | 107 mm | 120 mm | 145 mm |
| Standover | 706 mm | 706 mm | 706 mm |
Source: UNNO. BB drop given as a range (30-15 mm) by UNNO.
Mith: builds compared
Mith range →| Mith Race RS | Mith Race | Mith Pro | Mith Pro Podium | Mith Factory | |
|---|---|---|---|---|---|
| Price | €9,995 | €9,995 | €12,095 | €13,095 | €15,095 |
| Frame | Carbon | Carbon | Carbon | Carbon | Carbon |
| Fork | Rock Shox - ZEB ULTIMATE 29" BOOST ELECTRIC RED, 170mm travel | Fox 38 Factory, 170mm travel | Fox 38 Factory, 170mm travel | FOX PODIUM FACTORY, Kashima coating | FOX PODIUM FACTORY, Kashima coating |
| Shock | Rock Shox - VIVID COIL ULTIMATE | FOX Float X Factory | Fox Float X2 Factory | FOX DHX2 SLS | Fox Float X2 Factory |
| Derailleur | SRAM S1000 Eagle | SRAM S1000 Eagle | SRAM X0 Eagle AXS | SRAM X0 Eagle AXS | SRAM XX EAGLE AXS |
| Brakes | SRAM Maven Base | SRAM Maven Base | SRAM Maven Silver | SRAM Maven Silver | SRAM MAVEN ULTIMATE |
| Display | Avinox DP100 | Avinox DP100 | Avinox DP100 | Avinox DP100 | Avinox DP100 |
Mith Race RS: FAQ
How much does the Unno Mith Race RS cost?
€9,995 (RRP Spain (unno.com/en-es), VAT incl.). The Mith range runs from €9,995 (Mith Race RS) to €15,095 (Mith Factory). Prices vary by country and dealer.
What motor and battery does the Unno Mith Race RS have?
DJI Avinox M2S (130 Nm (150 Nm Boost)). 800 Wh battery — avinox FS800, integrated (3.74 kg).
How much suspension travel does the Unno Mith Race RS have?
170 mm at the fork and 160 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Unno Mith Race RS come in?
S1, S2, S3. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Mith Race RS and the Mith Race?
They share the Mith frame platform and motor; the differences are in the parts — fork: Rock Shox - ZEB ULTIMATE 29" BOOST ELECTRIC RED vs Fox 38 Factory; shock: Rock Shox - VIVID COIL ULTIMATE vs FOX Float X Factory.
