PropainEkano AL Enduro Base
- Motor
- DJI Avinox M2125 Nm (boost); 1100 W peak
- Battery
- 600 WhAvinox, permanently installed
- Travel F / R
- 170 / 160 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Alloy
Overview
The Propain Ekano AL Enduro Base (€5,199) is the entry build of the Ekano AL Enduro: DJI Avinox M2 with 600 Wh, RockShox Domain Gold RC 170mm fork, RockShox Deluxe Select shock, SRAM Eagle 70 Transmission (1x12) and SRAM DB8 Stealth 200mm / 200mm brakes.
The Ekano AL Enduro is the longer-travel sibling of the Ekano AL Trail: an aluminium full-power e-MTB with 160 mm of PRO10 rear travel, a 170 mm fork, mixed wheels and a slacker head angle. Propain describes it as the successor to the Ekano 2 AL; the frame is approved for Category 4 use.

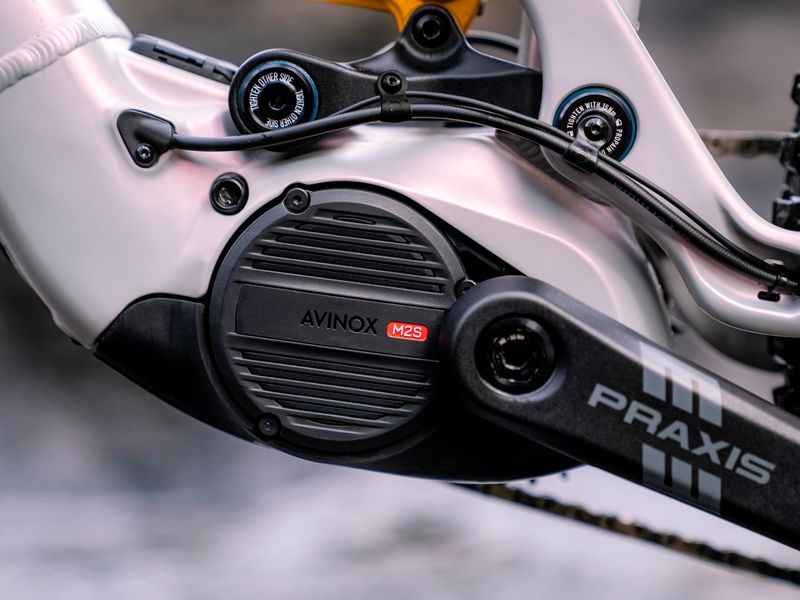

It uses the DJI Avinox drive, M2 (125 Nm boost, 1100 W) on the lower builds and M2S (150 Nm, 1300 W) on the upper ones, with a 600 or 800 Wh battery. Swappable dropouts give a choice of short or long chainstays.
- 170 mm fork / 160 mm PRO10 rear
- DJI Avinox M2 / M2S, up to 150 Nm
- 600 or 800 Wh battery
- Mixed wheels, short/long chainstay option

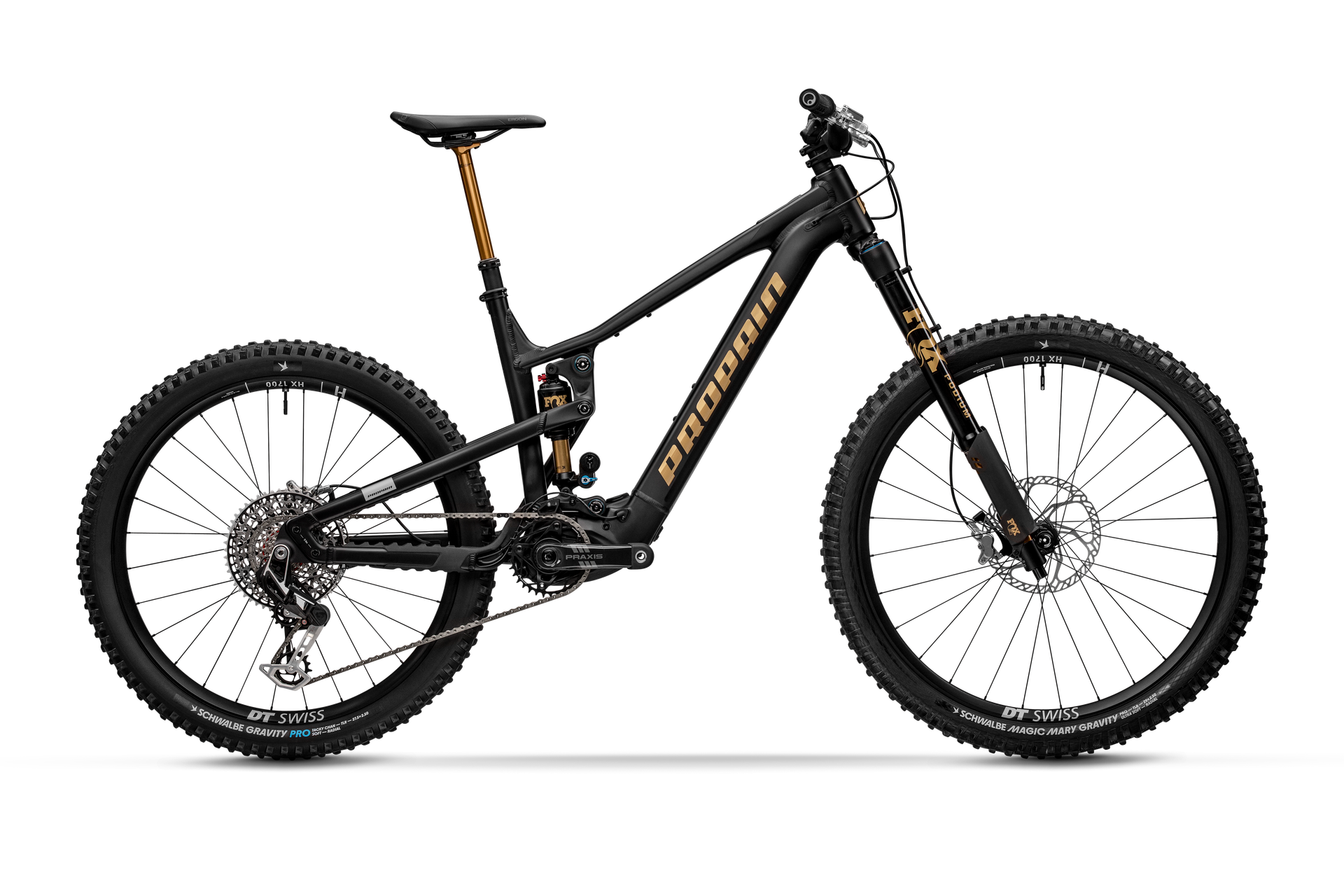

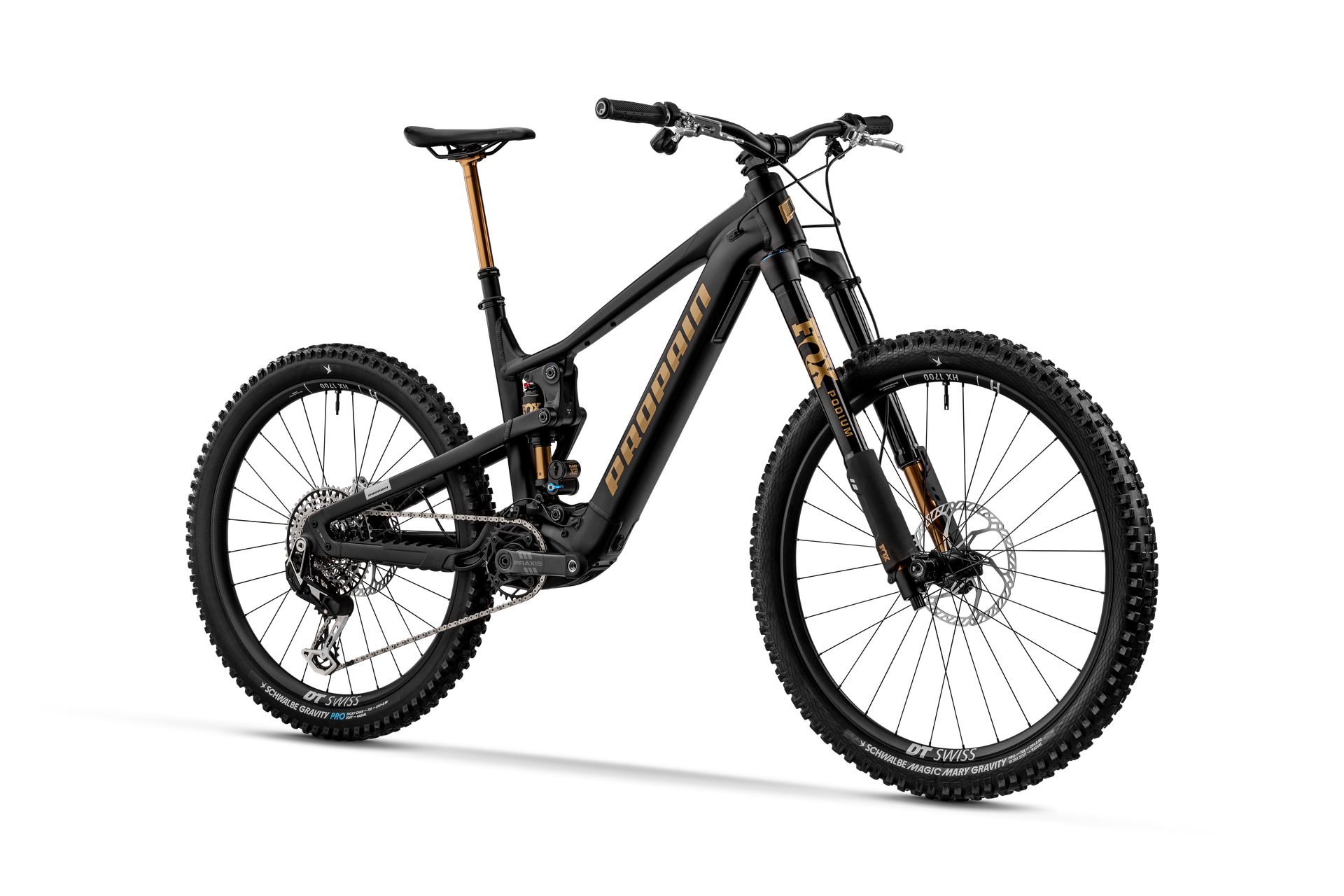

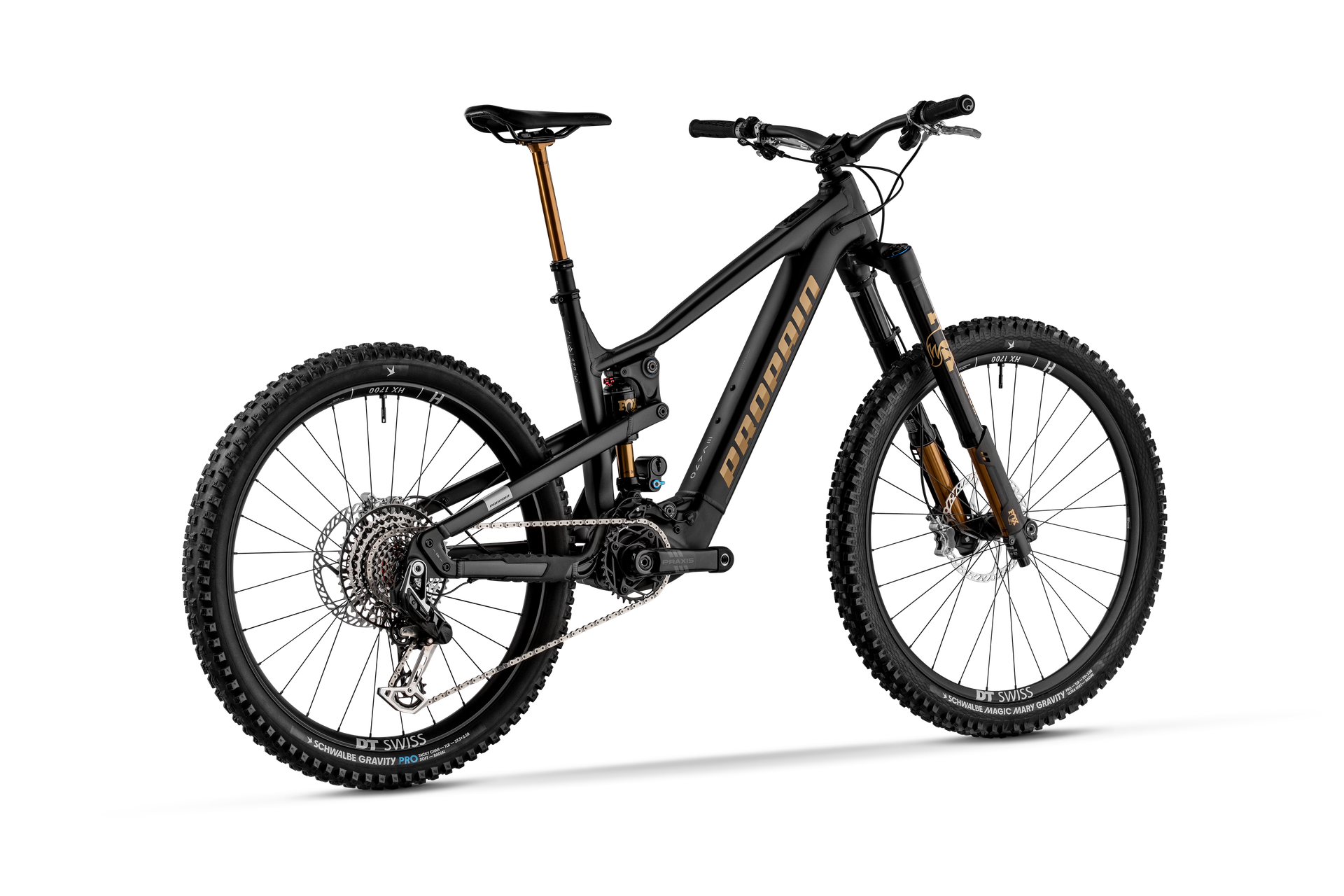

Gallery
Photos: Propain
Full specifications
Frame & suspension
- Fork
- RockShox Domain Gold RC 170mm
- Rear shock
- RockShox Deluxe Select
E-system
- Motor

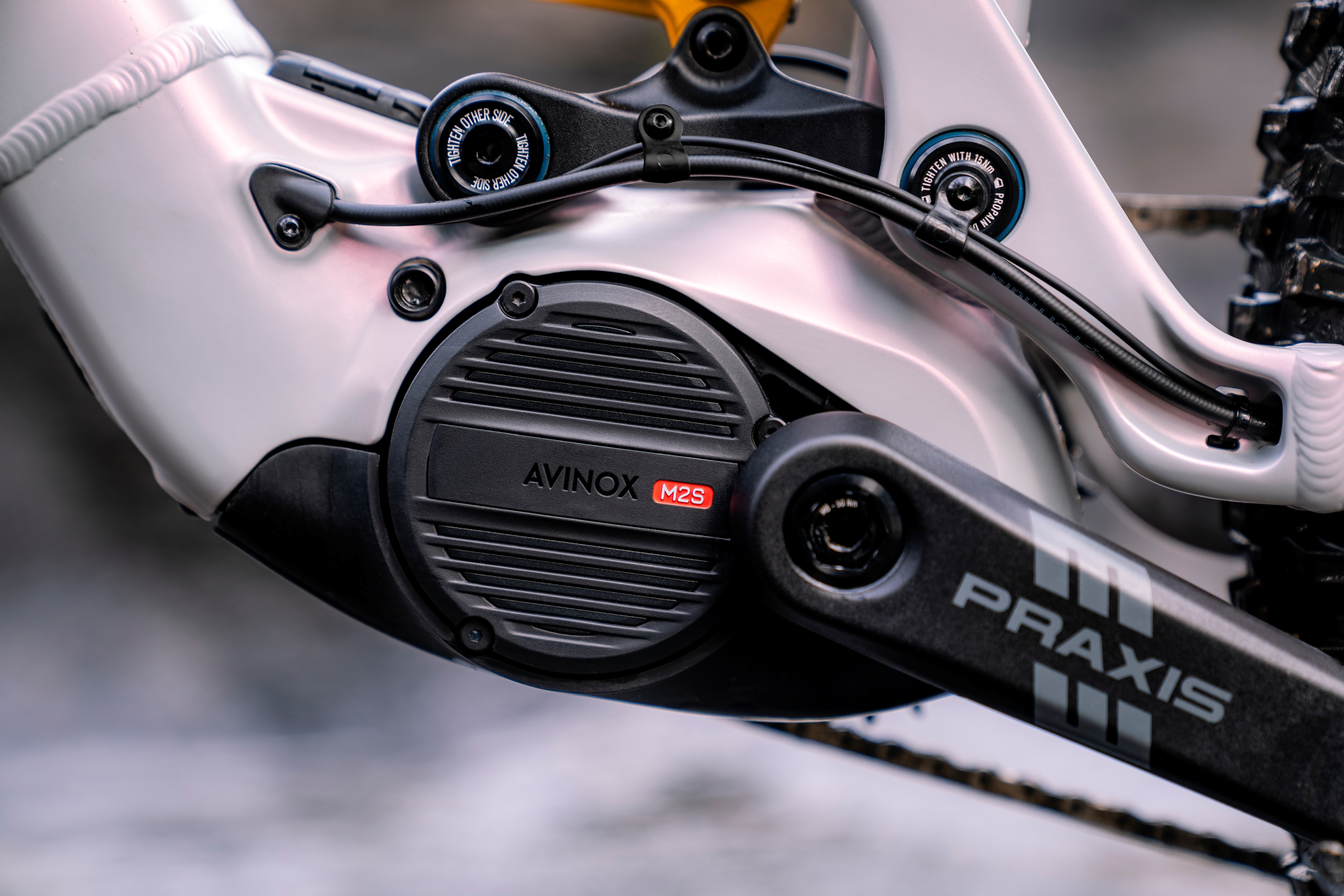

- Avinox M2 Motor
- Battery
- Avinox 600 Wh Battery
- Display

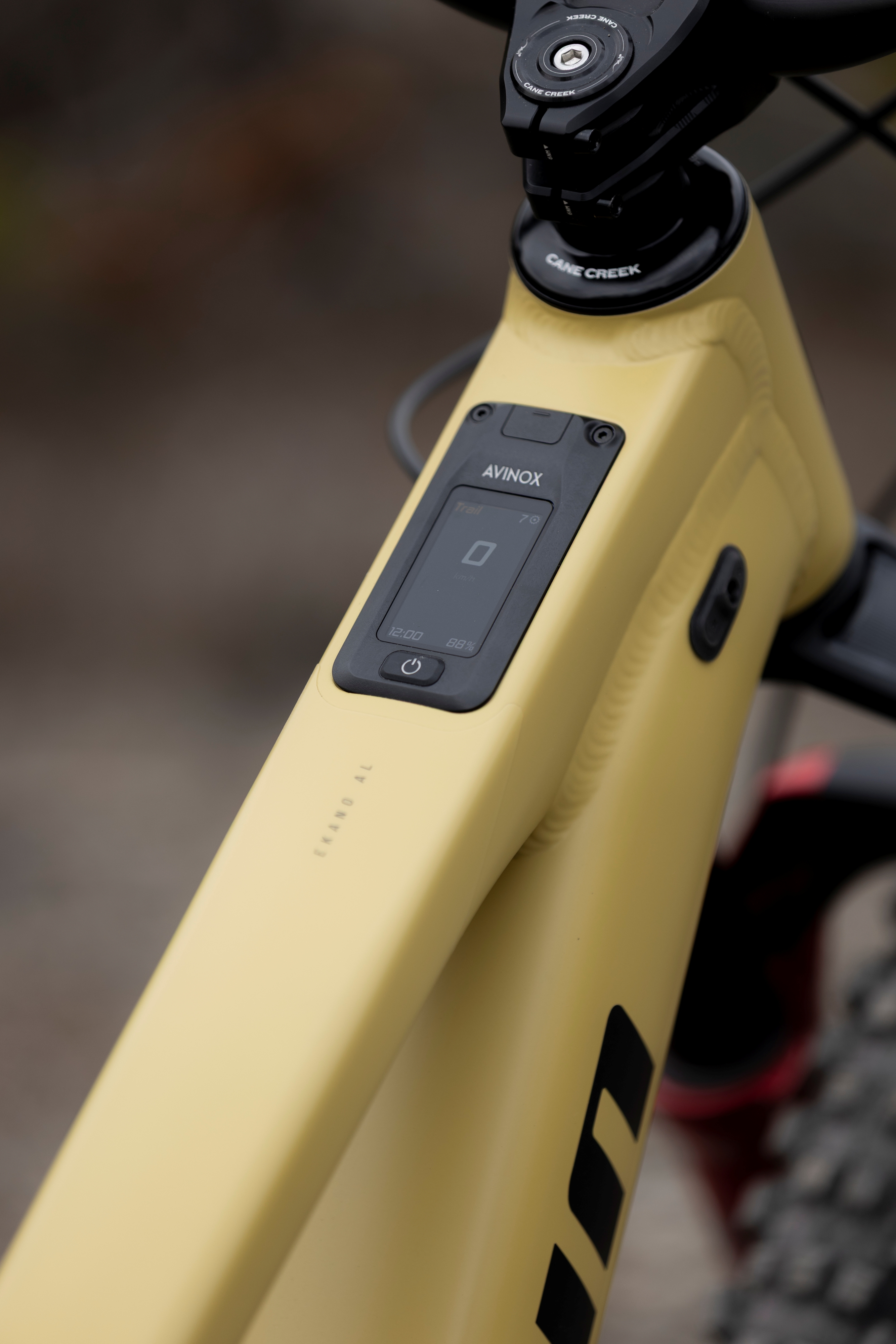

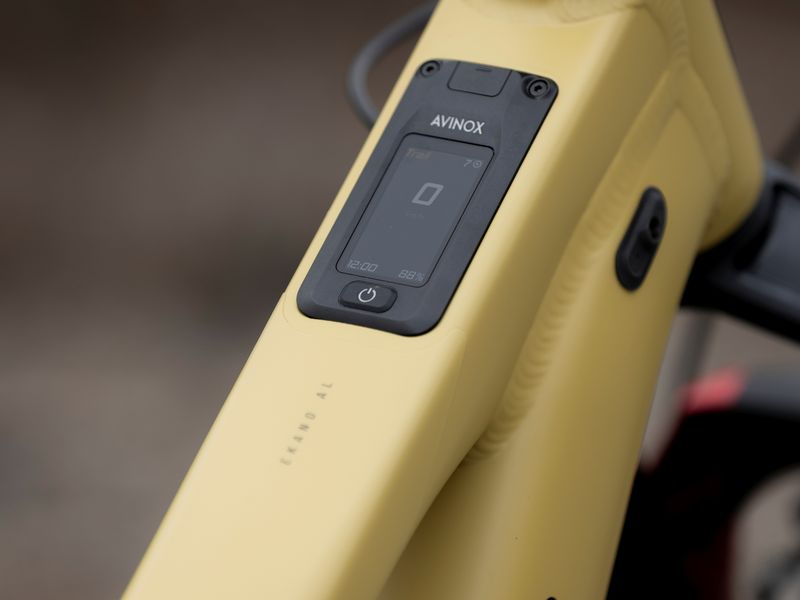

- Avinox DPC100 Display
- Charger
- Avinox 4 A / 168 W Charger
Drivetrain
- Rear derailleur
- SRAM Eagle 70 Transmission (1x12)
- Crankset
- Practice TYPE2 ALLOY 155 mm 34T
Brakes
- Brakes
- SRAM DB8 Stealth 200mm / 200mm
Wheels & tyres
- Wheelset
- NEWMEN Performance 30 Base
- Tyres
- Continental Kryptonite Enduro
Cockpit
- Stem
- Classic Internal & Sixpack Vertic
- Handlebar
- Sixpack Millenium 805 30mm Rise
- Grips
- Sixpack Millennium Alloy
- Seatpost
- OneUP V3
- Saddle
- Ergon SM10 Enduro
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Ekano AL Enduro geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| AFrame height | 410 mm | 430 mm | 455 mm | 480 mm |
| BFork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| CFork length | 586 mm | 586 mm | 586 mm | 586 mm |
| DHead tube length | 110 mm | 115 mm | 120 mm | 130 mm |
| EReach | 435 mm | 450 mm | 475 mm | 500 mm |
| FStack | 633 mm | 638 mm | 642 mm | 651 mm |
| GHead angle | 63.5° | 63.5° | 63.5° | 63.5° |
| HSeat angle – real | 77.1° | 77.1° | 77.1° | 77.1° |
| ISeat angle – effective | 78° | 78° | 78° | 78° |
| JTop tube length | 570 mm | 586 mm | 611 mm | 638 mm |
| KBB offset | 8 / 28 mm | 8 / 28 mm | 8 / 28 mm | 8 / 28 mm |
| LChainstay length | Length: 452 mm short: 447 mm | Length: 452 mm short: 447 mm | Length: 452 mm short: 447 mm | Length: 452 mm short: 447 mm |
| MWheelbase | Length: 1238 mm short: 1233 mm | Length: 1255 mm short: 1250 mm | Length: 1282 mm short: 1277 mm | Length: 1312 mm short: 1307 mm |
Source: Propain. Chainstay/wheelbase depend on dropout (long/short) and BB offset on wheel setup, as listed by Propain. Recommended position.
Ekano AL Enduro: builds compared
Ekano AL Enduro range →| Ekano AL Enduro Base | Ekano AL Enduro Swedish Gold | Ekano AL Enduro Ultimate | Ekano AL Enduro Factory | Ekano AL Enduro Podium | |
|---|---|---|---|---|---|
| Price | €5,199 | €6,709 | €8,976 | €9,140 | €10,220 |
| Frame | Alloy | Alloy | Alloy | Alloy | Alloy |
| Fork | RockShox Domain Gold RC 170mm | Öhlins RXF 38 170 mm | RockShox ZEB Ultimate 170 mm | Fox 38 Factory Grip X2 170 mm | Fox Podium Factory 170 mm |
| Shock | RockShox Deluxe Select | Öhlins TTX22 Coil | RockShox Vivid Ultimate | Fox DHX2 Coil Factory | Fox Float X2 Factory |
| Derailleur | SRAM Eagle 70 Transmission (1x12) | SRAM Eagle 70 Transmission (1x12) | SRAM XO Transmission (1x12) | SRAM XO Transmission (1x12) | SRAM XO Transmission (1x12) |
| Brakes | SRAM DB8 Stealth 200mm / 200mm | Formula Cura 4 Silver Polished 200mm / 200mm | SRAM Maven Silver 200mm / 200mm | Shimano XTR M9220 203mm / 203mm | Trickstuff Diretissima |
| Display | Avinox DPC100 Display | Avinox DPC100 Display | Avinox DPC100 Display | Avinox DP100 Display | Avinox DP100 Display |
Ekano AL Enduro Base: FAQ
How much does the Propain Ekano AL Enduro Base cost?
€5,199 (RRP Germany, VAT incl. (preset build; configurable)). The Ekano AL Enduro range runs from €5,199 (Ekano AL Enduro Base) to €10,220 (Ekano AL Enduro Podium). Prices vary by country and dealer.
What motor and battery does the Propain Ekano AL Enduro Base have?
DJI Avinox M2 (125 Nm (boost); 1100 W peak). 600 Wh battery — avinox, permanently installed.
How much suspension travel does the Propain Ekano AL Enduro Base have?
170 mm at the fork and 160 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Propain Ekano AL Enduro Base come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Ekano AL Enduro Base and the Ekano AL Enduro Swedish Gold?
They share the Ekano AL Enduro frame platform and motor; the differences are in the parts — fork: RockShox Domain Gold RC 170mm vs Öhlins RXF 38 170 mm; shock: RockShox Deluxe Select vs Öhlins TTX22 Coil; price: €5,199 vs €6,709.
